Product Features
Blazing Fast Performance
• Up to 3-Gb/sec per port
transfer rates with SAS, SATA
and SATA II attachment
• Increased bandwidth through
x8 PCI Express host interface
• Point-to-point technology
delivers full throughput to
each connected storage
device
Smooth Data Streaming
• Alleviate data transfer
bottlenecks and move data
more efficiently while
managing latency with
ATTO’s exclusive ADS™
technology
• Improve I/O through
optimized data movement
One Click Installation
• One-click installation allows
for quick and easy set-up
• Simple GUI based utility for
effortless adapter
configuration
• BIOS setup utility provides
flexibility for custom
applications

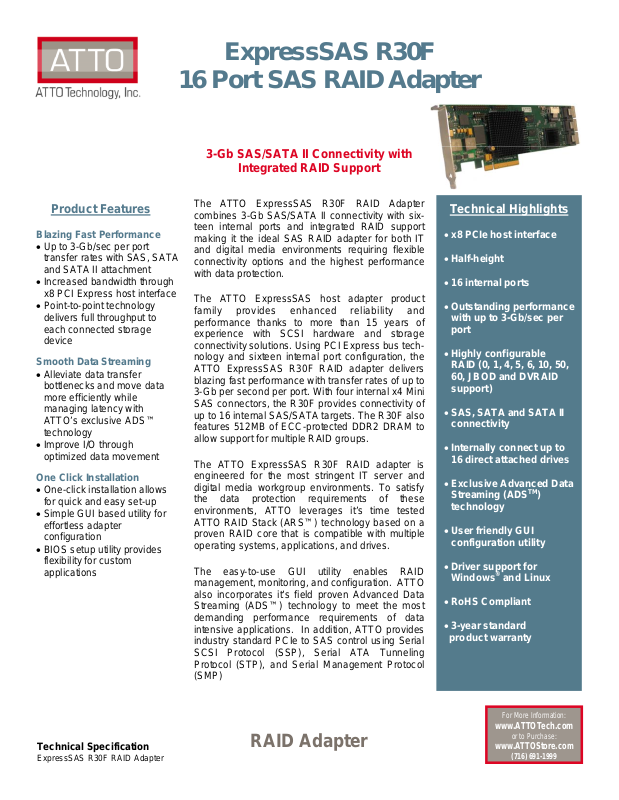

ExpressSAS R30F
16 Port SAS RAID Adapter
3-Gb SAS/SATA II Connectivity with
Integrated RAID Support
The ATTO ExpressSAS R30F RAID Adapter
combines 3-Gb SAS/SATA II connectivity with sixteen internal ports and integrated RAID support
making it the ideal SAS RAID adapter for both IT
and digital media environments requiring flexible
connectivity options and the highest performance
with data protection.
The ATTO ExpressSAS host adapter product
family provides enhanced reliability and
performance thanks to more than 15 years of
experience with SCSI hardware and storage
connectivity solutions. Using PCI Express bus technology and sixteen internal port configuration, the
ATTO ExpressSAS R30F RAID adapter delivers
blazing fast performance with transfer rates of up to
3-Gb per second per port. With four internal x4 Mini
SAS connectors, the R30F provides connectivity of
up to 16 internal SAS/SATA targets. The R30F also
features 512MB of ECC-protected DDR2 DRAM to
allow support for multiple RAID groups.
The ATTO ExpressSAS R30F RAID adapter is
engineered for the most stringent IT server and
digital media workgroup environments. To satisfy
the data protection requirements of these
environments, ATTO leverages it’s time tested
ATTO RAID Stack (ARS™) technology based on a
proven RAID core that is compatible with multiple
operating systems, applications, and drives.
The easy-to-use GUI utility enables RAID
management, monitoring, and configuration. ATTO
also incorporates it’s field proven Advanced Data
Streaming (ADS™) technology to meet the most
demanding performance requirements of data
intensive applications. In addition, ATTO provides
industry standard PCIe to SAS control using Serial
SCSI Protocol (SSP), Serial ATA Tunneling
Protocol (STP), and Serial Management Protocol
(SMP)
Technical Highlights
• x8 PCIe host interface
• Half-height
• 16 internal ports
• Outstanding performance
with up to 3-Gb/sec per
port
• Highly configurable
RAID (0, 1, 4, 5, 6, 10, 50,
60, JBOD and DVRAID
support)
• SAS, SATA and SATA II
connectivity
• Internally connect up to
16 direct attached drives
• Exclusive Advanced Data
Streaming (ADS
technology
• User friendly GUI
configuration utility
• Driver support for
Windows
• RoHS Compliant
• 3-year standard
product warranty
TM
®
and Linux
)
Technical Specification
ExpressSAS R30F RAID Adapter
RAID Adapter
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
ExpressSAS 16 Port RAID Adapter
3-Gb SAS/SATA II Connectivity with Integrated RAID Support
Hardware Specifications
Applications
Maximum Transfer Rate
Advanced Capabilities
PCI Bus Specifications
Connectivity
Software Specifications
Driver Support
Agency Approvals
Safety and Environmental
Compliancy
Environmental & Physical Specifications
Dimensions
Operating Environment
• Support for IT server and digital media workgroup solutions requiring high-bandwidth and data
protection. Applications include audio/video, VOD, fixed content, database and other data intensive
environments.
• Up to 3-Gb/sec per port
• Device support for SAS, SATA and SATA II
• SES Support
• S.M.A.R.T Support
• Support for Staggered drive spin-up
• Pass-through mode to support tape devices
• Support for RAID levels 0, 1, 4, 5,6, 10, 40, 50, 60, JBOD and DVRAID
• On-line capacity expansion (OCE)
• Hot spare, auto-rebuild
• Native Command Queuing
• Cache memory—512MB ECC protected memory
• User friendly GUI for RAID setup
• x8 PCI Express host interface
• Supports PCI Express Base Spec 1.0a
• Easy-to-install low-profile connection bracket; full-height bracket included in Finished Goods packaging
• Four x4 Internal Mini SAS (SFF-8087) connectors
• Windows
®
Server 2003, 2008, XP, Vista
• Linux (Red Hat and SuSE)
• FCC Rules, Part 15, Class B
• CE Mark: CISPR 22:2002
• EN55022:2002, Class B
• RoHS Compliant
• Length 8.640”
• Height 2.900”
• Temperature: 0-60° C (32°-140°F)
• Humidity: 5 - 95% non-condensing
Storage Environment
• Temperature: -40°-70°C (-40°-157°F)
• Humidity: 5 - 95% non-condensing
Power
• 12V @ 1.44A
• 3.3V @ 0.54A
Airflow
Ordering Information
Model Number
• 150 lf/m (min) recommended
• ESAS-R30F-000 (RoHS)
Technical Specification
ExpressSAS R30F RAID Adapter
©2008 ATTO Technology, Inc. Specifications subject to change without notice
Power Behind the Storage
For More Information:
Rev 9/08
