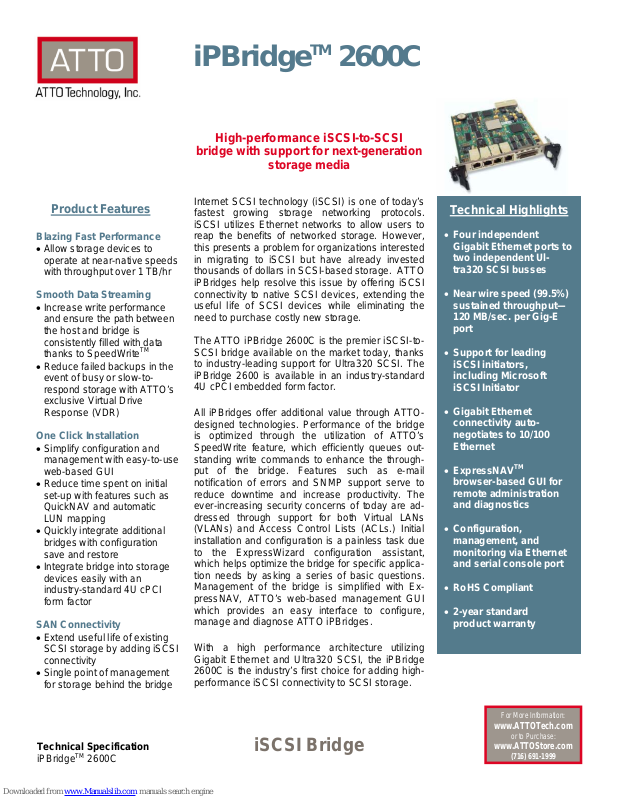

ATTO Technology iSCSI Bridge 2600C Specification Sheet

Product Features

Blazing Fast Performance

• Allow storage devices to
operate at near-native speeds
with throughput over 1 TB/hr

Smooth Data Streaming

• Increase write performance
and ensure the path between
the host and bridge is
consistently filled with data
thanks to SpeedWrite

• Reduce failed backups in the
event of busy or slow-to­respond storage with ATTO’s
exclusive Virtual Drive
Response (VDR)

One Click Installation

• Simplify configuration and
management with easy-to-use
web-based GUI

• Reduce time spent on initial
set-up with features such as
QuickNAV and automatic
LUN mapping

• Quickly integrate additional
bridges with configuration
save and restore

• Integrate bridge into storage
devices easily with an
industry-standard 4U cPCI
form factor

SAN Connectivity

• Extend useful life of existing
SCSI storage by adding iSCSI
connectivity

• Single point of management
for storage behind the bridge

TM

TM

iPBridge

2600C

High-performance iSCSI-to-SCSI

bridge with support for next-generation

storage media

Internet SCSI technology (iSCSI) is one of today’s
fastest growing storage networking protocols.
iSCSI utilizes Ethernet networks to allow users to
reap the benefits of networked storage. However,
this presents a problem for organizations interested
in migrating to iSCSI but have already invested
thousands of dollars in SCSI-based storage. ATTO
iPBridges help resolve this issue by offering iSCSI
connectivity to native SCSI devices, extending the
useful life of SCSI devices while eliminating the
need to purchase costly new storage.

The ATTO iPBridge 2600C is the premier iSCSI-to­SCSI bridge available on the market today, thanks
to industry-leading support for Ultra320 SCSI. The
iPBridge 2600 is available in an industry-standard
4U cPCI embedded form factor.

All iPBridges offer additional value through ATTO­designed technologies. Performance of the bridge
is optimized through the utilization of ATTO’s
SpeedWrite feature, which efficiently queues out­standing write commands to enhance the through­put of the bridge. Features such as e-mail
notification of errors and SNMP support serve to
reduce downtime and increase productivity. The
ever-increasing security concerns of today are ad­dressed through support for both Virtual LANs
(VLANs) and Access Control Lists (ACLs.) Initial
installation and configuration is a painless task due
to the ExpressWizard configuration assistant,
which helps optimize the bridge for specific applica­tion needs by asking a series of basic questions.
Management of the bridge is simplified with Ex­pressNAV, ATTO’s web-based management GUI
which provides an easy interface to configure,
manage and diagnose ATTO iPBridges.

With a high performance architecture utilizing
Gigabit Ethernet and Ultra320 SCSI, the iPBridge
2600C is the industry’s first choice for adding high­performance iSCSI connectivity to SCSI storage.

• Four indepe ndent

• Near wire speed (99.5%)

• Support for leading

• Gigabit Ethernet

• ExpressNAV

browser-based GUI for

• Configuration,

• RoHS Com pl iant

• 2-year standard

product warranty

Technical Highlights

Gigabit Ethernet ports to
two independent Ul­tra320 SCSI busses

sustained throughput—
120 MB/sec. per Gig-E
port

iSCSI initiators,
including Microsoft
iSCSI Initiator

connectivity auto­negotiates to 10/100
Ethernet

TM

remote administration
and diagnostics

management, and
monitoring via Ethernet
and serial console port

Technical Specification

iPBridge

TM

2600C

iSCSI Bridge

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

iPBridgeTM 2600C

Gigabit Ethernet and SCSI

Gigabit Ethernet Interface

SCSI Interface

Management Interface

Management

Operating Environment

Local and Network Management

Agency Approvals (Pending)

Safety and Environmental

Environmental & Physical Specifications

Dimensions
Operating Environment

Storage Environment

Power
Airflow

Ordering Information

Model Number
Accessories

• Four independent 100/1000 Gig-E RJ45 Ethernet ports

• Supports IP v.4

• Compliance with IEEE802.3ab Gig-E

• Supports Microsoft iSCSI Initiator

• Dual independent Ultra320 LVD/SE SCSI bus ports

• Backwards compatible with all single-ended SCSI devices

• RJ-45 connector for Ethernet management port

• RS-232 serial header console port

• Operating system independent

• Supports all SCSI devices including hard disk drives, tape drives, RAID controller, DVD, MO and CD libraries

• ExpressNAV

capabilities

TM

web-based management console for remote configuration, management and diagnostic

• Local diagnostics supported through CLI, SNMP, Telnet, FTP and SCSI Enclosure Services (SES)

• Command line and menu-based ASCII text management access via Ethernet management port

• RoHS Compliant

• 6.193” W X 6.375” L

• Temperature: 5-40° C

• Humidity: 10-90% non-condensing

• Temperature: -40°-70° C

• Humidity: 5 - 95% non-condensing

• 5.0A @ 3.3V

• 11 CFM recommended

• Ambient air not to exceed 40° C

• IPBR-2600-CR0

• Cables: CBL-0911-R01

Technical Specification

iPBridgeTM 2600C

©2008 ATTO Technology, Inc. Specifications subject to change without notice

Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

Rev 2/08
