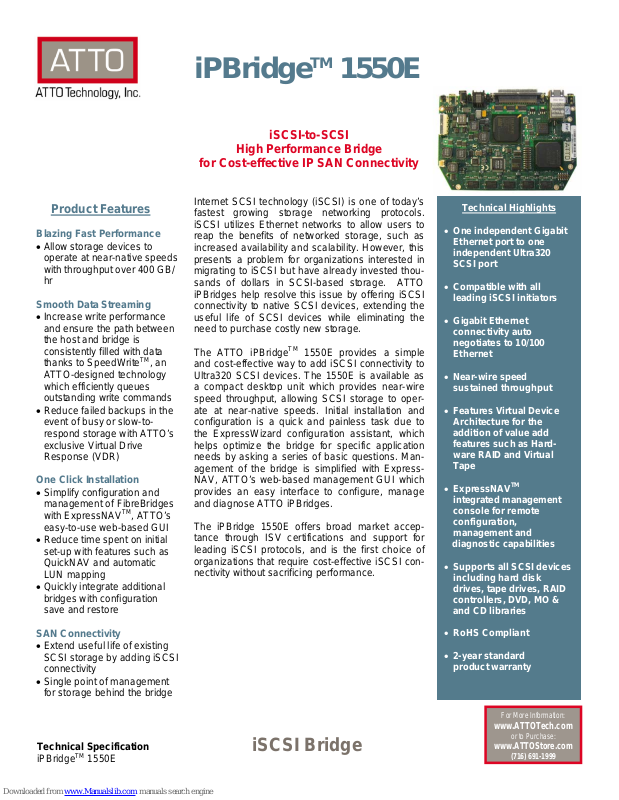

ATTO Technology iPBridge 1550E Specification Sheet
Product Features
Blazing Fast Performance
• Allow storage devices to
operate at near-native speeds
with throughput over 400 GB/
hr
Smooth Data Streaming
• Increase write performance
and ensure the path between
the host and bridge is
consistently filled with data
thanks to SpeedWrite
ATTO-designed technology
which efficiently queues
outstanding write commands
• Reduce failed backups in the
event of busy or slow-torespond storage with ATTO’s
exclusive Virtual Drive
Response (VDR)
One Click Installation
• Simplify configuration and
management of FibreBridges
with ExpressNAV
easy-to-use web-based GUI
• Reduce time spent on initial
set-up with features such as
QuickNAV and automatic
LUN mapping
• Quickly integrate additional
bridges with configuration
save and restore
SAN Connectivity
• Extend useful life of existing
SCSI storage by adding iSCSI
connectivity
• Single point of management
for storage behind the bridge
TM
TM
, ATTO’s
, an
TM
iPBridge
iSCSI-to-SCSI
High Performance Bridge
for Cost-effective IP SAN Connectivity
Internet SCSI technology (iSCSI) is one of today’s
fastest growing storage networking protocols.
iSCSI utilizes Ethernet networks to allow users to
reap the benefits of networked storage, such as
increased availability and scalability. However, this
presents a problem for organizations interested in
migrating to iSCSI but have already invested thousands of dollars in SCSI-based storage. ATTO
iPBridges help resolve this issue by offering iSCSI
connectivity to native SCSI devices, extending the
useful life of SCSI devices while eliminating the
need to purchase costly new storage.
The ATTO iPBridge
and cost-effective way to add iSCSI connectivity to
Ultra320 SCSI devices. The 1550E is available as
a compact desktop unit which provides near-wire
speed throughput, allowing SCSI storage to operate at near-native speeds. Initial installation and
configuration is a quick and painless task due to
the ExpressWizard configuration assistant, which
helps optimize the bridge for specific application
needs by asking a series of basic questions. Management of the bridge is simplified with ExpressNAV, ATTO’s web-based management GUI which
provides an easy interface to configure, manage
and diagnose ATTO iPBridges.
The iPBridge 1550E offers broad market acceptance through ISV certifications and support for
leading iSCSI protocols, and is the first choice of
organizations that require cost-effective iSCSI connectivity without sacrificing performance.
TM
1550E provides a simple
1550E
Technical Highlights
• One independent Gigabit
Ethernet port to one
independent Ultra320
SCSI port
• Compatible with all
leading iSCSI initiators
• Gigabit Ethernet
connectivity auto
negotiates to 10/100
Ethernet
• Near-wire speed
sustained throughput
• Features Virtual Device
Architecture for the
addition of value add
features such as Hard-
ware RAID and Virtual
Tape
• ExpressNAV
integrated management
console for remote
configuration,
management and
diagnostic capabilities
• Supports all SCSI devices
including hard disk
drives, tape drives, RAID
controllers, DVD, MO &
and CD libraries
• RoHS Compliant
• 2-year standard
product warranty
TM
Technical Specification
iPBridge
TM
1550E
iSCSI Bridge
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
iPBridgeTM 1550E
Appliance
Gigabit Ethernet and SCSI
Gigabit Ethernet Interface
SCSI Interface
Management
Operating Environment
Local and Network Management
Agency Approvals
Safety and Environmental
Environmental & Physical Specifications
Configuration
Dimensions
Operating Environment
Power
Weight
Ordering Information
Model Number
• 10/100/1000 Gig-E RJ45 Ethernet port
• Supports IP v.4
• Compliance with IEEE802.3ab Gig-E
• Compliance with IEEE 802.3x Flow Control
• SNMP MIB 2 support
• Supports 9K Jumbo Ethernet frames
• Single 68-pin SCSI connector
• Ultra320 LVD SCSI—320 MB/sec. maximum throughput
• Backward compatible with all single-ended SCSI devices
• Supports SCSI-3 specifications
• Operating system independent
• Supports all SCSI devices including hard disk drives, tape drives, RAID controller, DVD, MO and CD libraries
• ExpressNAV
capabilities
TM
integrated management console for remote configuration, management and diagnostic
• Command line management access via Ethernet and RS232
• Local diagnostics supported through SNMP, Telnet, and FTP
• Includes support for DHCP, ICMP, and RMON
• Built in memory has ECC detection and correction
• User accessible reset switch
• Built-in watchdog timer
• Automatically detects and maps all connected devices at power on
• RoHS Compliant
• Embedded Board
• Embedded Board: 4.4” W x 6.4” L
• Temperature: 5-40° C
• Humidity: 10-90% non-condensing
• Standard 4 pin power connector, 12V, 1.5A
• Nominal power consumption: 1A @ 12V
• 1.5 lbs
• IPBR-1550-ER0
Technical Specification
iPBridgeTM 1550E
©2008 ATTO Technology, Inc. Specifications subject to change without notice
Power Behind the Storage
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
Rev 1/08
