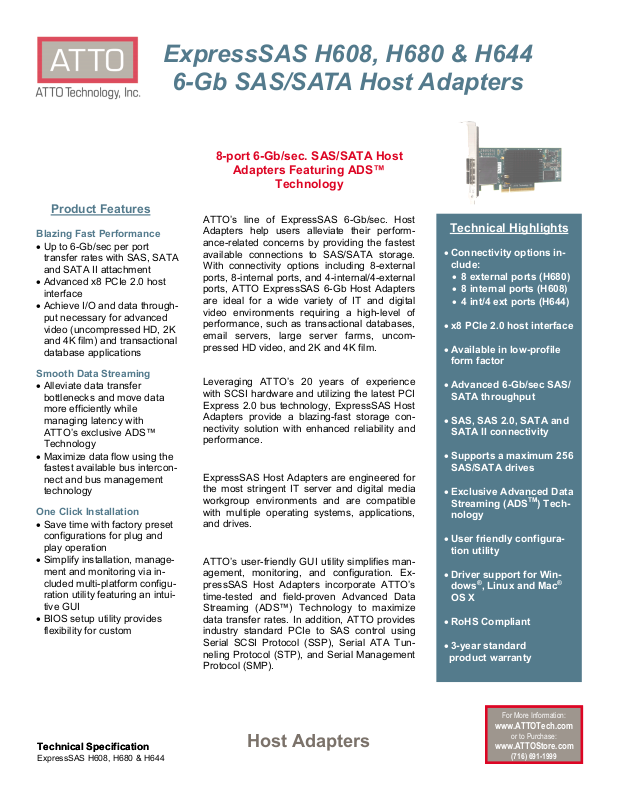

Page 1
ExpressSAS H608, H680 & H644
Product Features
Blazing Fast Performance
• Up to 6-Gb/sec per port
transfer rates with SAS, SATA
and SATA II attachment
• Advanced x8 PCIe 2.0 host
interface
• Achieve I/O and data throughput necessary for advanced
video (uncompressed HD, 2K
and 4K film) and transactional
database applications
Smooth Data Streaming
• Alleviate data transfer
bottlenecks and move data
more efficiently while
managing latency with
ATTO’s exclusive ADS™
Technology
• Maximize data flow using the
fastest available bus interconnect and bus management
technology
One Click Installation
• Save time with factory preset
configurations for plug and
play operation
• Simplify installation, management and monitoring via included multi-platform configuration utility featuring an intuitive GUI
• BIOS setup utility provides
flexibility for custom
6-Gb SAS/SATA Host Adapters
8-port 6-Gb/sec. SAS/SATA Host
Adapters Featuring ADS™
Technology
ATTO’s line of ExpressSAS 6-Gb/sec. Host
Adapters help users alleviate their performance-related concerns by providing the fastest
available connections to SAS/SATA storage.
With connectivity options including 8-external
ports, 8-internal ports, and 4-internal/4-external
ports, ATTO ExpressSAS 6-Gb Host Adapters
are ideal for a wide variety of IT and digital
video environments requiring a high-level of
performance, such as transactional databases,
email servers, large server farms, uncompressed HD video, and 2K and 4K film.
Leveraging ATTO’s 20 years of experience
with SCSI hardware and utilizing the latest PCI
Express 2.0 bus technology, ExpressSAS Host
Adapters provide a blazing-fast storage connectivity solution with enhanced reliability and
performance.
ExpressSAS Host Adapters are engineered for
the most stringent IT server and digital media
workgroup environments and are compatible
with multiple operating systems, applications,
and drives.
ATTO’s user-friendly GUI utility simplifies management, monitoring, and configuration. ExpressSAS Host Adapters incorporate ATTO’s
time-tested and field-proven Advanced Data
Streaming (ADS™) Technology to maximize
data transfer rates. In addition, ATTO provides
industry standard PCIe to SAS control using
Serial SCSI Protocol (SSP), Serial ATA Tunneling Protocol (STP), and Serial Management
Protocol (SMP).
Technical Highlights
• Connectivity options include:
• 8 external ports (H680)
• 8 internal ports (H608)
• 4 int/4 ext ports (H644)
• x8 PCIe 2.0 host interface
• Available in low-profile
form factor
• Advanced 6-Gb/sec SAS/
SATA throughput
• SAS, SAS 2.0, SATA and
SATA II connectivity
• Supports a maximum 256
SAS/SATA drives
• Exclusive Advanced Data
Streaming (ADS
nology
• User friendly configuration utility
• Driver support for Win-
• RoHS Compliant
• 3-year standard
product warranty
dows
OS X
®
, Linux and Mac®
TM
) Tech-
Technical Specification
Technical Specification
ExpressSAS H608, H680 & H644
For More Information:
For More Information:
www.ATTOTech.com
www.ATTOTech.com
or to Purchase:
Host Adapters
or to Purchase:
www.ATTOStore.com
www.ATTOStore.com
(716) 691-1999
(716) 691-1999
Page 2
ExpressSAS H608, H680 & H644
Host Adapters
Hardware Specifications
Applications
Maximum Transfer Rate
Advanced Capabilities
PCI Bus Specifications
Connectors
Software Specifications
Driver Support
Agency Approvals (Pending)
Safety and Environmental
Compliancy
Environmental & Physical Specifications
Dimensions & Power
•
Support for IT server and digital media workgroup solutions requiring high-bandwidth and reliability.
Applications include audio/video, VOD, fixed content, database and other data intensive environments.
•
Up to 6-Gb/sec per port
•
Device support for SAS, SAS 2.0, SATA and SATA II
•
User friendly GUI for quick and easy configuration
•
Advanced management functions
•
PC BIOS bootability
•
x8 PCI Express 2.0 host interface
•
Mini SAS connectors
•
Windows® Server 2003, 2008, XP, Vista
•
Mac® OS X 10.4.x & 10.5.x (8 port cards only)
•
Linux (Red Hat and SuSE)
•
FCC Part 15, Subpart B, Class B
•
EN55022: 2006, Class B
•
EN55024: 1998A + A1: 2001 & A2: 2003
•
EN60950-1: 2001
•
EN60825-1: 1994-2: 2004
•
RoHS Compliant
H608 H680 H644
•
Length 5.600” 6.600” 5.600”
•
Height 2.713” 2.713” 2.713”
•
Power (W – typical) 8.1W 7.8W 8.3W
Operating Environment (Pending)
Storage Environment (Pending)
Airflow
Ordering Information
Model Number
Technical Specification
ExpressSAS H608, H680 & H644
•
Temperature: 0-40° C (32°-104°F)
•
Humidity: 5 - 95% non-condensing
•
Temperature: -40°-70°C (-40°-157°F)
•
Humidity: 5 - 95% non-condensing
•
100 lf/m (min) recommended
•
ESAS-H608-000 (8 ports internal)
•
ESAS-H680-000 (8 ports external)
•
ESAS-H644-000 (4 ports internal/4 ports external)
Power Behind the Storage
Power Behind the Storage
Power Behind the StoragePower Behind the Storage
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
©2008 ATTO Technology, Inc. Specifications subject to change without notice
Rev 12/08
