ATTO Celerity Fibre Channel Host Adapters
Installation and Operation Manual
Celerity FC-84EN
8Gb FC quad channel PCIe 2.0 host adapter
Celerity FC-82EN
8Gb FC dual channel PCIe 2.0 host adapter
Celerity FC-81EN
8Gb FC single channel PCIe 2.0 host adapter
Celerity FC-44ES
4Gb FC quad channel PCIe host adapter
Celerity FC-42ES
Celerity FC-41ES
4Gb FC single channel PCIe host adapter
Celerity FC-41XS
4Gb FC single channel PCI-X host adapter
Page 2
ATTO Technology, Inc.
155 CrossPoint Parkway Amherst, New York 14068 USA
www.attotech.com
Tel (716) 691-1999 Fax (716) 691-9353
Sales support: sls@attotech.com Technical support: Monday -- Friday, 8am-6pm EST
techsupp@attotech.com (716) 691-1999 ext. 242
© 2010 ATTO Technology, Inc. All rights reserved. All brand or product names are trademarks of their respective holders. No part of this manual may be reproduced in any form or by any means without the express written permission of ATTO Technology, Inc.
8/11
. ........................................ ...... ......... ....... .............. ................. ........ ,,,,,,,,,,,, ,, ,,,,,,,,,,,,,,,,,,,,,,,,,,.
PRMA-0344-000
Page 3
Contents
1 ATTO Celerity HBA Features & Overview ........................................................1
Getting started Celerity FC-84EN Adapter Celerity FC-82EN Adapter Celerity FC-81EN Adapter Celerity FC-44ES Adapter Celerity FC-42ES Adapter Celerity FC-41ES Adapter Celerity FC-41XS Adapter
2 Install Drivers .....................................................................................................11
Windows OS X Linux VMware ESXi 5 VMware ESX/ESXi 4 VMware ESX 3.5 NPIV Support Specialized configurations
3 Hardware Installation .........................................................................................18
Bracket details Adapter board details
4 Updating Hardware Flash, Drivers ...................................................................25
5 Troubleshooting .................................................................................................27
General suggestions Mac OS X Windows Server 2008, 2003, 2000; Vista, XP Linux VMware Supplemental Guide for VMware ESX/ESXi
Appendix A Glossary ............................................................................................i
Appendix B Accessories ......................................................................................iii
Appendix C ATTO Adapter Selection Guides ....................................................iv
Appendix D Standards, Compliances: 8Gb adapters ........................................viii
FCC standards: radio and television interference Canadian standards European standards
Page 4
Appendix E Standards, Compliances: 4Gb adapters ........................................ix
FCC standards: radio and television interference Canadian standards European standards
Appendix F Safety, Warranty ...............................................................................x
Safety ATTO Technology, Inc. limited warranty
Page 5

1 ATTO Celerity HBA Features & Overview

Note
The ATTO Celerity Fibre Channel family of storage products provides connectivity, intelligence and scalability.
Celerity FC host adapters simplify advanced storage networking needs such as switching, backup and data management. Specifically designed to enhance the functionality of third party fabric hardware and software, Celerity FC products are the industry­leading platform for storage connectivity.
Fibre Channel is a serial communications technology designed to transfer large amounts of data among a variety of hardware systems over long distances. It is a key technology for applications that require shared, high bandwidth access to storage.

Getting started

In general, to install the ATTO Celerity FC host adapter, you must:
1 Ensure you have the equipment and software
you need for the installation:
• Celerity FC adapter
• ATTO Celerity CD including drivers, user manuals and utilities (Installation CD)
• A computer with an available expansion slot
• Storage, cables and connectors
2 Install drivers from the Installation CD for your
operating system. Refer to Install Drivers page 11.
on
Fibre Channel provides a logical, point-to-point, serial channel for the transfer of data between a buffer at a source device and a buffer at a destination device. It moves buffer contents from one port to another, without regard to the format or meaning of the data so different upper level protocols are able to run over Fibre Channel hardware.
The Fibre Channel architecture is structured as a hierarchical set of protocol layers. Defined within these layers are rules for signal interfaces, serial encoding and decoding, error control, frame format and communications protocols.
3 Install the configuration software, the ATTO
Configuration Tool, found on the Installation CD.
4 Install the Celerity adapter. Refer to Hardware
Installation on page 18.
5 Attach storage. 6 If required, configure your Celerity adapter
using the ATTO Configuration Tool.
Default settings are appropriate for most systems but you may change settings using the ATTO Configuration Tool.
1
Page 6

Celerity FC-84EN Adapter

The ATTO Celerity FC-84EN leverages two next­generation storage technologies: PCIe 2.0 interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per channel, the Celerity FC-84EN supports the most demanding application requirements, including high­definition video, rich content databases and other high-bandwidth environments.
ATTO Celerity host adapters are an integrated family of advanced storage connectivity solutions that are designed to provide reliable connectivity, intelligence and scalability.

Advanced FC capabilities

• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre
Channel
• Supports target and initiator modes
• Supports Windows®
FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express
interconnect
• Conforms to PCI Express Base Spec 2.0
• Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches
• Height: 3.987 inches
• Operating temperature: 0-40 ºC (32-113 ºF)
• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)
• Relative humidity: 10 to 90% non-condensing
• 7.8 W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

Technical specifications

• 4 independent Fibre Channel ports
• 8-Gigabit data transfer rates
• 1600 MB/sec. maximum full-duplex throughput per channel
• Supports all FC topologies: fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• ATTO Advanced Data Streaming (ADS™) Technology

External connectivity

• Easy to install full height connection bracket
• External LEDs for on-line and speed status for each channel
• Four pluggable 8-Gb optical LC SFP+ modules included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• VMware ESX Server® 3.5 - 4.x
• VMware ESXi Server® 4.x - 5.x
4.x (2.6.x kernesl)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
2 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 7

Celerity FC-82EN Adapter

The ATTO Celerity FC-82EN leverages two next­generation storage technologies: PCIe 2.0 interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per channel, the Celerity FC-82EN supports the most demanding application requirements, including high­definition video, rich content databases and other high-bandwidth environments.
ATTO Celerity host adapters are an integrated family of advanced storage connectivity solutions that are designed to provide reliable connectivity, intelligence and scalability.

Advanced FC capabilities

• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows®
FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express interconnect
• Conforms to PCI Express Base Spec 2.0 Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches
• Height: 2.731 inches
• Operating temperature: 0-40 ºC (32-113 ºF)
• Storage temperature: -40 to 70 ºC (-40 to 158 ºF)
• Relative humidity: 10 to 90% non-condensing
• 5.9W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

Technical specifications

• Two independent Fibre Channel ports
• 1600 MB/sec. maximum throughput per channel in full-duplex mode
• 8-Gigabit data transfer rates
• Conforms to PCI Express Low Profile form­factor specifications
• Supports all FC topologies: fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• ATTO Advanced Data Streaming (ADS™) Technology

External connectivity

• Easy to install full height connection bracket; low-profile bracket included in finished goods packaging
• External LEDs for on-line and speed status for each channel
• Two pluggable 8-Gb optical LC SFP+ modules included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• VMware ESX Server® 3.5 - 4.x
• VMware ESXi Server® 4.x - 5.x
4.x (2.6.x kernels)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
3
Page 8

Celerity FC-81EN Adapter

The ATTO Celerity FC-81EN leverages two next­generation storage technologies: PCIe 2.0 interconnect and 8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/sec. per channel, the Celerity FC-81EN supports the most demanding application requirements, including high­definition video, rich content databases and other high-bandwidth environments.
ATTO Celerity host adapters are an integrated family of advanced storage connectivity solutions that are designed to provide reliable connectivity, intelligence and scalability.

Technical specifications

• One independent Fibre Channel port
• 8-Gigabit FC data transfer rates
• 1600 MB/sec. throughput in full-duplex mode
• Supports all FC topologies: fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 41
• ATTO Advanced Data Streaming (ADS™) Technology

Advanced FC capabilities

• Supports SNIA HBA API
• Backward compatible with 4-Gb and 2-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows
FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express interconnect
• Conforms to PCI Express Base Spec 2.0
• Conforms to PCI Express CEM Spec 2.0
• PCI Hot Plug spec 1.0

Environmental & physical specifications

• Length: 6.6 inches
• Height: 2.731 inches
• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 5.3 W (typical)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

External connectivity

• Easy to install full height connection bracket; low-profile bracket included in finished goods packaging
• External LEDs for on-line and speed status for each channel
• One pluggable 8-Gb optical LC SFP+ module included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core® Linux 7.x (2.6.x kernels)
• Fedora Core® Linux 8.x (2.6.x kernels)
• VMware ESX Server® 3.5 - 4.x
• VMware ESXi Server® 4.x - 5.x
4.x (2.6.x kernels)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
4 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 9

Celerity FC-44ES Adapter

The Celerity FC-44ES uses PCI Express Interconnect and 4-Gigabit Fibre Channel to provide 4-Gb FC speeds of up to 800 MB/sec. per channel. The FC­44ES supports high-definition video, rich content databases and other high bandwidth environments.
The FC-44ES uses PCI Express, a serial, high-speed connection that supports aggregate throughput up to 4 GB/sec. (x8 PCIe) full-duplex. Software compatible with existing PCI and PCI-X products, the FC-44ES uses the same device drivers as other Celerity FC family products, simplifying installation and support.

Technical specifications

• 4 independent Fibre Channel ports
• 4-Gigabit data transfer rates per channel
• 800 MB/sec. maximum full-duplex throughput per channel
• Supports all FC topologies: fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
• ATTO Advanced Data Streaming (ADS™) Technology

Advanced FC Capabilities

• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb, 2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows
FDMI and WMI

Host bus specifications

• x8 mechanical and x8 electrical PCI Express Interconnect
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
• PCI Express to PCI/PCI-X Bridge spec 1.0

Environmental & physical specifications

• Conforms to PCI standard height, half length form-factor specifications
• Length: 6.525 inches
• Height: 3.81 inches
• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 12V@ 2.1A (max.)
• 3.3V @ 3.0A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

External connectivity

• Easy-to-install full height connection plate
• External LEDs for on-line and speed status for each channel
• 4 pluggable optical LC SFP transceivers included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 8.x (2.4.x kernels)
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• Fedora Linux® 9.x (2.6.x kernels)
• Solaris® 9.x x86
• Solaris® 10.x x86
• VMware ESX Server® 3.5
2.x (2.4.x kernels)
3.x (2.4.x kernels)
4.x (2.6.x kernels)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
5
Page 10

Celerity FC-42ES Adapter

The Celerity FC-42ES is a dual-channel host adapter providing port density for Enterprise server and workstation applications. With 4-Gb FC speeds of up to 800 MB/sec. per channel, the FC-42ES supports the most demanding application requirements.
Additionally the FC-42ES uses the latest in host interconnect technology, PCI Express, a serial, high­speed connection that supports aggregate throughput up to 4 GB/sec. (x8 PCIe) full-duplex.
The FC-42ES is software compatible with existing PCI and PCI-X products using the same device drivers as other Celerity FC family products, simplifying user installation and support. It is backward compatible with existing 2-Gb and 1-Gb Fibre Channel infrastructure, protecting existing technology.

Technical specifications

• 2 independent Fibre Channel ports
• 4-Gigabit data transfer rates per channel
• 800 MB/sec. maximum full-duplex throughput per channel
• Supports all FC topologies: direct fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
• ATTO Advanced Data Streaming (ADS™) Technology

Advanced FC Capabilities

• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb, 2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows
FDMI and WMI

Host bus specifications

• x4 mechanical and x4 electrical PCI Express Interconnect (RoHS compliant)
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
• PCI Express to PCI/PCI-X Bridge spec 1.0

Environmental & physical specifications

• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 100 lf/m (minimum) airflow recommended
• Conforms to PCI half height, half length form­factor specifications
• 12V@ 4A (max.); 3.3V @ 1.5A (max.)
• Length: 5.6 inches
• Height: 2.712 inches
• RoHS compliant

External connectivity

• Easy-to-install full height connection plate
• External LEDs for on-line and speed status for each channel
• 2 pluggable optical LC SFP transceivers included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 8.x (2.4.x kernels)
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• Fedora Linux® 9.x (2.6.x kernels)
• Solaris® 9.x x86
• Solaris® 10.x x86
• VMware ESX Server® 3.5
2.x (2.4.x kernels)
3.x (2.4.x kernels)
4.x (2.6.x kernels)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
6 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 11

Celerity FC-41ES Adapter

The Celerity FC-41ES is a single-channel host adapter providing support for the most demanding application requirements. With 4-Gb FC speeds of up to 800 MB/sec. per channel, the FC-41ES is a cost effective connectivity solution for environments requiring maximum throughput.
The FC-41ES uses the latest in host interconnect technology: PCI Express, a serial, high-speed connection that supports aggregate throughput up to 2 GB/sec. (x4 PCIe) full-duplex. The FC-41ES is software compatible with existing PCI and PCI-X products using the same device drivers as other Celerity FC products, simplifying user installation and support. It is backward compatible with existing 2-Gb and 1-Gb Fibre Channel infrastructure, protecting existing technology investments.

Technical specifications

• 1 Fibre Channel port
• 4-Gigabit FC data transfer rates
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 Bytes; 8 @ 2 Kilobytes
• ATTO Advanced Data Streaming (ADS™) Technology

Advanced FC Capabilities

• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb, 2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows
FDMI and WMI

Host bus specifications

• x4 mechanical and x4 electrical PCI Express Interconnect (RoHS compliant)
• Conforms to PCI Express Base Spec 1.0a
• Conforms to PCI Express CEM Spec 1.0a
• PCI Express to PCI/PCI-X Bridge spec 1.0

Environmental & physical specifications

• Conforms to PCIe low profile form factor specifications
• Length: 5.600 inches
• Height: 2.712 inches
• Operating temperature: 0-45ºC (32-113ºF)
• Storage temperature: -40 to 70ºC (-40 to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 12V@ 0.4A (max.)
• 3.3V @ 1.0A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

External connectivity

• Easy-to-install full height connection plate
• External LEDs for on-line and speed status
• Pluggable optical LC SFP transceivers included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x and up
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 8.x (2.4.x kernels)
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• Fedora Linux® 9.x (2.6.x kernels)
• Solaris® 9.x x86
• Solaris® 10.x x86
• VMware ESX Server® 3.5
2.x (2.4.x kernels)
3.x (2.4.x kernels)
4.x (2.6.x kernels)
5.x (2.6.x kernels)
6.x (2.6.x kernels)
7
Page 12

Celerity FC-41XS Adapter

The single-channel Celerity FC-41XS provides speeds of up to 800 MB/sec. using full 4-Gigabit Fibre Channel performance while being fully backward­compatible with existing 2-Gb and 1-Gb Fibre Channel infrastructure, protecting existing technology investments. It is capable of supporting the most data­intense applications.

Technical specifications

• 1 Fibre Channel port
• 4-Gigabit data transfer rates
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: direct fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-FS, FC-AL, FCP, FC­AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer credits: 8 @ 512 bytes; 8 @ 2 Kilobytes
• ATTO Advanced Data Streaming (ADS™) Technology

Advanced FC capabilities

• Supports SNIA HBA API
• On-demand automatic negotiation among 4-Gb, 2-Gb and 1-Gb Fibre Channel
• Supports target and initiator modes
• Supports Windows
FDMI and WMI

PCI bus specifications

• 64-bit, 133 MHz PCI-X
• PCI-X 1.0a compliant
• PCI 2.2 compliant
• 3.3V PCI signaling only

Environmental & physical specifications

• Conforms to PCI low profile form factor standards
• Length: 6.600 inches
• Height: 2.536 inches
• Operating temperature: 0-45ºC (32º-113ºF)
• Storage temperature: -40º to 70ºC (-40º to 158ºF)
• Relative humidity: 10 to 90% non-condensing
• 3.3V@ 1.5A (max.)
• 100 lf/m (minimum) airflow recommended
• RoHS compliant

External connectivity

• Easy-to-install full height connection plate
• External LEDs for on-line and speed status
• Optical LC SFP transceiver included

Software specifications

• Windows 7®, XP®, Vista®
• Windows Server® 2003, 2008
• Mac® OS X 10.4.x - 10.5.x
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• RedHat Enterprise Linux®
• SUSE Linux Enterprise® 8.x (2.4.x kernels)
• SUSE Linux Enterprise® 9.x (2.6.x kernels)
• SUSE Linux Enterprise® 10.x (2.6.x kernels)
• Fedora Core Linux® 7.x (2.6.x kernels)
• Fedora Core Linux® 8.x (2.6.x kernels)
• Fedora Linux® 9.x (2.6.x kernels)
• Solaris® 9.x x86
• Solaris® 10.x x86
2.x (2.4.x kernels)
3.x (2.4.x kernels)
4.x (2.6.x kernels)
5.x (2.6.x kernels)
8 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 13

Selection guide: Celerity 8-Gb adapters

Product Features FC-84EN FC-82EN FC-81EN
Fibre Channel Ports 421
FC protocol 8-Gb 8-Gb 8-Gb
Maximum Transfer Rate (half duplex) 3.2 GB/sec 1.6 GB/sec 800 MB/sec.
Maximum Transfer Rate (full duplex) 6.4 GB/sec 3.2 GB/sec 1.6 GB/sec.
Bus type PCIe 2.0 PCIe 2.0 PCIe 2.0
Bus characteristics 8 lane 8 lane 4 lane
Optical interface SFP+LC SFP+LC SFP+ LC
300m@2-Gb 150m@4-Gb
50m@8-Gb
Maximum cable length
Low profile form factor
Advanced Data Streaming (ADS™) Technology
Software RAID support
Developer's kit (Target Mode & API)
Windows support
Linux driver support
Macintosh OS X driver support
VMware ESXi Server 5.x
VMware ESX/ESXi Server 4.x
VMware ESX Server 3.5
1 ATTO Express Power Center recommended
1
300m@2-Gb 150m@4-Gb
50m@8-Gb
300m@2-Gb 150m@4-Gb
50m@8-Gb
         
9
Page 14

Selection guide: Celerity 4-Gb adapters

Product Features FC-44ES FC-42ES FC-41ES/ FC-41XS
Fibre Channel Ports 4211
FC protocol 4-Gb 4-Gb 4-Gb 4-Gb
Maximum Transfer Rate (half duplex) 1.6 GB/sec 800 MB/sec 400 MB/sec. 400 MB/sec
Maximum Transfer Rate (full duplex) 2 GB/sec 1 GB/sec 800 MB/sec. 800 MB/sec
Bus type PCIe PCIe PCIe PCI-X
Bus characteristics 8 lane 4 lane 4 lane
Optical interface SFP LC SFP LC SFP LC SFP LC
Maximum cable length
Low profile form factor
Advanced Data Streaming (ADS™) Technology
Software RAID support
Developer's kit (Target Mode & API)
Windows support
Linux driver support
Macintosh OS X driver support
VMware ESX Server 3.5
Novell Netware
Solaris
Free BSD
1 Performance ceiling is Performance constrained by bus transfer speed. Backward compatible to 32-bit and 33 MHz
PCI
2 ATTO Express Power Center recommended
300m@2-Gb 150m@4-Gb
          
300m@2-Gb 150m@4-Gb
300m@2-Gb 150m@4-Gb

  
64-bit
133 MHz
300m@2-Gb 150m@4-Gb
2
  
10 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 15

2 Install Drivers

Note
Note
Note
Before installing your Celerity adapter, you must configure your system to recognize and use it by installing drivers for your operating system.
Configure your system to recognize and use your Celerity adapter by installing drivers for your operating system.
If you already have one or more Celerity adapters installed and you are installing additional adapter(s), you do not need to perform any of these procedures unless you are updating a previously installed driver.

Windows

Windows 7, Vista and 2008 may utilize a new User Account Control Feature. Because of this there may be additional confirmations that will need to be performed to properly install the driver. These confirmations normally consist of a dialog where the user has to give Windows permission to perform an action. If you do not have the correct privileges during this, you will be prompted for an actual user name and password. You may need to contact your system administrator if you do not have this information.
ATTO Celerity adapters ship with the latest firmware installed. The Celerity FC Installation CD shipped with your adapter also contains the latest driver.
The Installation CD automatically starts when inserted in the system CD-ROM drive. Navigate the easy-to­use HTML-based menu to find the driver for your adapter and operating system.
The Celerity FC Installation CD referred to in these instructions can be the Installation CD shipped with your adapter, a folder containing the latest downloaded and expanded driver, a Celerity FC installation floppy disk, or a USB flash drive.
2 Insert the Installation CD. The ATTO
Installation CD guide should appear. If not, navigate to the root of the CD and run the
AUTORUN.BAT batch file. 3 Click on Windows Drivers. 4 Click on Windows XX Driver link based on the
HBA speed (4Gb or 8Gb) and operating system
(x86, x64 or Itanium) in use. If you are unsure
which version you are using, please contact
your system administrator. 5 Click Install Windows Driver XX next to the
appropriate item to initiate the driver setup
program. 6 Follow the on-screen instructions to complete
the driver installation.

Driver Installation

1 Power on your system and log in as the
administrator or a user with proper administrative privileges.
WHQL Certified Drivers are available for select Celerity Fibre Channel HBAs. If available, these drivers will be listed below the default Windows drivers.
11
Page 16

Creating Windows installation media

Note
Note
Note
Note
Note
Note
Installation media is required when performing an installation of Windows to a hard drive that is controlled by a Celerity FC host adapter. A floppy is required for Windows 2000, XP or 2003. Windows 7, Vista and 2008 can utilize other media such as removable USB stick. This procedure does not apply to Itanium systems as the Celerity FC driver does not support boot functionality on these systems.
1 Power on your system and log in as the
administrator or a user with proper administrative priveleges

OS X

2 Insert the Installation CD. The ATTO
Installation CD guide should appear. If not,
navigate to the root of the CD and run the
AUTORUN.BAT batch file 3 Click on Windows Drivers. 4 Click on Windows XX Driver link based on the
HBA speed (4Gb or 8Gb) and operating system
(x86, x64 or Itanium) in use. If you are unsure
which version you are using, please contact
your system administrator. 5 Click Install Windows Driver XX next to the
appropriate item to initiate the driver setup
program. 6 Follow the on-screen instructions to complete
the driver installation.
8 Follow the on-screen instructions.
Some ATTO Celerity FC drivers are included on the Mac OS X Lion (10.7) CD and do not require additional installation steps, however we recommend you visit the ATTO website to check for, and download, the latest drivers and firmware.
The ATTO Celerity FC host adapters support OS X Snow Leopard, Leopard and Tiger operating systems. ATTO 8Gb FC adapters also have EFI boot support on Intel based systems.

Driver Installation (for all ATTO FC host adapters)

1 Power on your system and log in as the
administrator or a user with proper
administrative privileges. 2 Insert the Installation CD. 3 After the CD mounts, open the Celerity volume
on the desktop. 4 Open the Drivers folder. 5 Open the folder corresponding to the speed of
the HBA. 6 Open the folder corresponding to the OS X
version in use. 7 Launch the installer package.

Installing a fresh copy of OS X onto a disk attached to a Celerity FC adapter (only for 8Gb FC adapters)

Boot support is available on Intel-based systems only.
The EFI boot driver is disabled by default. To enable it, use the ATTO Configuration Tool in an existing OS X installation, or use the EFI Configuration utility built into the EFI driver (see the procedure below for launching the utility).
This is a two step process. First step is to adjust adapter settings with the EFI Configuration utility. Second step is to install the OS X onto a disk attached to the adapter. Please review thoroughly to ensure you are using the second step corresponding to the OS X version available in your system.
12 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 17
Adjusting adapter settings with the EFI
Note
Note
Configuration Utility (only for 8Gb FC adapters)
Depending on your configuration, it may be necessary to adjust adapter NVRAM settings prior to performing the OS X installation. For example, you may need to modify the connection mode or data rate. The EFI configuration utility can be launched from the EFI shell.
An EFI shell is not included with Intel Macs. ATTO recommends rEFIt, which is available for free from Once you have downloaded the DMG or rEFIt, follow these steps to open the EFI Configuration Utility.
1 Burn the rEFIt DMG file to a CD. Do not remove
the CD. 2 Shut down the system and install the Celerity
adapter 3 With the rEFIt CD inserted, boot the system
while pressing and holding ‘C’ key. This will
boot the rEFIt CD. 4 The rEFIt boot menu will appear which contains
a series of icons. Release the ‘C’ key and use
the arrows to highlight the “Start EFI Shell” icon.
Press ‘Return’ to enter the EFI Shell. 5 At the prompt, enter the ‘driver-b’ command.
Scroll through the list of installed EFI drivers
and find the ATTO Celerity driver. There may
be more than one entry based on the number
and type of adapter(s). Note the two or three
digit hexadecimal driver handle on the far left of
the screen. 6 At the prompt, enter ‘drvcfg -s {handle}’ where
{handle} is the hexadecimal number from the
previous step. This will launch the EFI
Configuration Utility for the associated adapter.
http://refit.sourceforge.net
.
7 Use the on-screen menus to configure your
adapter. Help is available at the bottom of the screen.
8 When exiting the configuration utility, if you
changed any settings, the system will restart the adapter so the new settings take effect.
9 At the prompt, enter ‘exit’ to return to the rEFIt
boot menu or ‘reset’ to restart the system.

Installing OS X Lion or Snow Leopard onto a disk attached to a Celerity adapter (only for 8Gb FC adapters)

1 Install your Celerity adapter and connect your
storage.
2 If you are launching the OS X installation by
booting the installation DVD:
a. Launch the installation and proceed to the
“Select the disk where you want to install Mac OS X” screen
b. If you need to partition your disk, open Disk
Utility from the Utilities menu. Once you partition your disk and exit, the newly created volume will appear in the installer window.
3 If you are launching the OS X installation from
an existing OS X installation:
a. If you need to partition disk, open Disk
Utility from /Applications/Utilities. Partition your disk and exit.
b. Launch the installation DVD and proceed
to the “Select the disk where you want to install Mac OS X” screen.
4 Select the volume on the disk where you want
to install OS X.
5 Click ‘Install’ and proceed with the rest of OS X
installation.
6 When OS X installation completes, install the
latest Celerity driver from the ATTO Technology
website.
13
Page 18
Installing OS X Leopard or Tiger onto a
Note
Note
disk attached to a Celerity adapter (only for 8Gb FC adapters)
Due to limitations of the Mac OS X Installer, two systems are required to complete this procedure. These will be referred to as the “target” and “host” systems. The target system will contain your Celerity adapter and storage. The host system will only be used during the installation and must be an Intel­based system capable of booting the OS X installation CD. However, it does not have to be the same type of system as the target system. For example, you may use a MacBook Pro to install OS X on a Mac Pro containing your Celerity adapter. Both systems must have an available FireWire port.
1 On the target system, install the Celerity
adapter and connect your storage. 2 Connect the target and host systems with a
FireWire cable. 3 Power on the target system while pressing and
holding ‘T’, this will boot the target system in
target disk mode. You may release the key
when the FireWire symbol appears. 4 On the host system, insert the OS X installation
disc and begin installation. Proceed through the
installation wizard until you reach the destination volume selection window.
5 Select a volume on the storage attached to the
Celerity adapter. If a volume is not present, open the Disk Utility from the OS X Installer menu to create a volume. The storage will appear in Disk Utility as ‘AAPL FireWire Media’. Exit the Disk Utility when finished and select the newly created volume.
6 Finish the OS X installation, restart the host
system when prompted, and complete the OS X setup wizard. You may now remove the OS X installation disc.
7 On the host system, obtain and install the latest
version of the Celerity OS X driver from the software CD that came with your adapter or the
ATTO Technology website.
8 On the host system, open System Preferences
and restore the Startup Disk to the disk that the host system booted from before performing this procedure. After restarting, you may disconnect the FireWire cable from the target system. The host system is no longer needed.
9 Power off the target system and power it back
on again normally. If you previously had an OS X installation present, it will boot that version of OS X. Otherwise, the new OS X installation will be booted.
10 On the target system, open System
Preferences and set the Startup Disk to the new OS X installation and restart.

Linux

4 Open the Linux folder.
These steps assume a basic knowledge of Linux terminal commands. You must also have the correct kernel source files for the appropriate kernel already installed.
1 Power on your system and log in as the
administrator or a user with proper
administrative privileges. 2 Insert the Installation CD. 3 After the CD mounts, open the Celerity volume
on the desktop.
14 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
5 Open the Drivers folder. 6 Open the folder corresponding to the speed of
the HBA. 7 Copy the .tgz file to a temporary folder. 8 Open a terminal window and change to the
location of copied tgz from step 7. 9 Extract the file using the command tar -xfz
<filename.tgz>.
10 Change to the directory created above then run
the installer script ./install.sh.
Page 19

VMware ESXi 5

Note
Note
Note
Note

Including driver in boot image

8Gb Celerity support only.
VMware vSphere 5 includes the ability to dynamically construct boot images for your ESXi 5 servers using vCenter 5. This allows you to include ATTO drivers as part of a boot image, then using PXE boot you can start an ESXi 5 host with that image. The end result is that your server(s) will boot and have ATTO drivers included without any additional steps. Consult the VMware vSphere 5 documentation for more information on this feature.

Driver CD as an Update

Adding an ATTO adapter and installing the driver after you have installed ESXi 5
1 Download the Driver Bundle, from the VMware
or ATTO website, for the appropriate ATTO adapter. Unzip the contents of the bundle on your local workstation. Within the bundle you

VMware ESX/ESXi 4

will find the Driver VIB file (.vib) for your ATTO
Adapter. 2 Use the Datastore Browser in the vSphere
Client to upload the VIB file to your ESXi host.
Alternatively, you can utilize programs like WinSCP (Windows) or SCP (Linux) to upload the file directly to your ESX host.
3 Log in to the ESXi host on the Local Tech
Support Console (ESXi), or through an SSH
client. 4 Install the VIB using the following command on
the ESXi host:
# esxcli software install -v <full path to VIB file>
5 Once the VIB is installed, reboot the ESXi host. For detailed instructions or driver parameters, please
reference the
ESX/ESXi
Supplemental Guide for VMware
on page 29.

Driver CD usage during ESX installation (ESX only)

8Gb Celerity support only.
During ESX 4.x installation, you may choose to install additional drivers. This will allow you to install ESX onto storage that is attached to your ATTO adapter. You will need to write the appropriate ATTO driver ISO image to CD media.
1 During ESX installation, select Yes to install
custom drivers and chose Add.
2 The installer will prompt you to insert the media
containing the ATTO device driver.
3 After you add the ATTO driver, the installer will
prompt you to reinsert the ESX installation media and continue with the installation.
4 When the installer prompts you to choose the
location for the ESX install, you may choose local storage or storage that is attached to your ATTO adapter.

Driver CD as an Update CD (ESX or ESXi)

Adding an ATTO adapter and installing the driver after you have installed ESX/ESXi 4
1 Mount the Driver CD ISO on your local
workstation. This may require the use of a third-party ISO reader.
Microsoft Windows Vista and later include a built-in ISO reader. On Linux, use the mount command and the loopback interface. For example:
# mkdir -p /mnt/cdrom # mount -r -l loop <path to driver ISO> /mnt/cdrom
2 Copy the offline bundle from the ISO image to a
local folder on your workstation. This ZIP file is
located in the offline-bundle folder of the ISO
image (ex. offline-bundle/celerity8fc.zip). 3 Use the Datastore Browser in the vSphere
Client to upload the ZIP file to your ESX/ESXi
host.
Alternatively, you can utilize programs like WinSCP (Windows) or SCP (Linux) to upload the file directly to your ESX host.
15
Page 20
4 Log in to the ESX/ESXi host on the Service
Note
Note
Note
Console (ESX) or the Local Tech Support Console (ESXi), or through an SSH client.
5 Install the offline bundle using the following
command on the ESX/ESXi host:
# esxupdate --maintenancemode --nosigcheck update --bundle <path to driver bundle ZIP file>

VMware ESX 3.5

8 & 4Gb Celerity PCIe support only. PCIx cards are not supported.

Creating and using the Driver CD.

1 Download the correct driver .iso file from the
VMware Drivers & Tools Download site. 2 Write the .iso image to a CD-ROM. 3 Use the CD-ROM as a Boot CD or an Update
CD.

Driver CD as a Boot CD Only

The following procedure describes how to use the driver CD as a boot CD. Use this CD as a boot CD only if the new driver must enable the target device on which ESX Server 3.5 will be installed.
1 Place the driver CD in the CD-ROM drive of the
host machine. 2 Start the host machine. 3 When prompted for an upgrade or installation,
press Enter for graphical mode. 4 Choose the language you prefer. 5 Select a keyboard type. 6 After you are prompted to swap the driver CD
with the ESX Server installation CD, insert the
ESX Server 3.5 installation CD and continue
with ESX Server installation.
6 Once the package is installed, reboot the
ESX/ESXi host.
For detailed instructions or driver parameters, please reference the
ESX/ESXi
7 After ESX Server is installed and the system
reboots, log in to ESX Server.
8 Verify that the driver is installed successfully:
a. Run the esxupdate query command. A
b. View the PCI ID XML file in the
c. Check for the latest version of the driver
d. To verify that the driver is loaded and
Supplemental Guide for VMware
on page 29.
message containing the information about the driver appears.
/etc/vmware/pciid/ directory. The driver information is available in the file.
module in the following directory:
/usr/lib/vmware/vmkmod/
functioning, enter vmkload_mod -l command. The driver is listed in the displayed list.

Driver CD as an Update CD Only

The following procedure describes how to use the driver CD to update or add the driver on an existing ESX Server 3.5.
1 Start the ESX Server machine and log in to
service console as root.
2 Place the driver CD in the CD-ROM drive of the
server. 3 Mount the driver CD. 4 Change the directory to the
VMupdates/RPMS/ on the driver CD.
16 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 21
5Run the esxupdate update command.
Note
Note
If the hardware is not already installed on the system, run the esxupdate command with the
--noreboot option
machine manually, install the hardware, and then boot the host machine. This allows you to install in a single boot.
The server reboots after the driver update.
6 Remove the driver CD from the CD-ROM drive
before the system reboots. 7 After the system reboots, log in to ESX Server. 8 Verify that the driver is installed successfully:
, shut down the host

NPIV Support

a. Run the esxupdate query command and
verify that the information about the driver is mentioned in the resulting message.
b. View the PCI ID XML file in the
/etc/vmware/pciid/ directory. The driver information is available in the file.
c. Check for the latest version of the driver
module in /usr/lib/vmware/vmkmod/
d. To verify that the driver is loaded and
functioning, run the vmkload_mod -l command. The driver is listed in the displayed list.
For detailed instructions or driver parameters, please reference the
ESX/ESXi
Supplemental Guide for VMware
on page 29.

VMware

8Gb Celerity support only.
N_Port ID Virtualization (NPIV) is an extension to the Fibre Channel industry standard. NPIV allows a single, physical adapter port to function as multiple virtual ports (VPorts), with each VPort having a unique identity in the SAN fabric. Using the Fibre Channel NPIV option, each virtual machine can have a unique Fibre Channel World Wide Name. This allows a Storage Administrator to follow SAN best practices such as zoning and masking, and to control LUN access on a Virtual Machine basis.

Specialized configurations

Some specialized applications may benefit from modification of adapter settings. The ATTO Utilities Installation and Operation Manual provides detailed information on using ATTO Technology configuration utilities found on the Installation CD or downloaded from the
ATTO website
.
NPIV support is enabled for all ATTO Celerity 8Gb Fibre Channel adapters. The celerity8fc driver for VMware ESX/ESXi 4.x and VMware ESXi 5 provides NPIV support, by default.
Virtual ports will appear as additional virtual adapters in the vSphere client, once they are created (after the VM is started).
For additional NPIV Configuration details, please consult the VMware Fibre Channel SAN Configuration Guide.
For detailed instructions or additional parameters, please reference the
VMware ESX/ESXi
Supplemental Guide for
on page 29.
17
Page 22

3 Hardware Installation

CAUTIONCAUTION
CAUTIONCAUTION
Note
You need a basic understanding of Fibre Channel before installing the Celerity FC host adapter. Please refer to Appendix A for a list of related websites.
WWN 4: 44ES, 84EN
Back up your system data before changing or installing any hardware.

System requirements

The Celerity FC host adapter package contains the host adapter, the ATTO Utilities CD and a warranty and registration card. If any of these items are missing, contact your ATTO authorized sales representative.
To install and use the Celerity Fibre Channel host adapter you need:
• A computer with an available PCI, PCI-X or PCI
Express expansion slot
• The complete Celerity FC host adapter package

Fibre Channel address

Celerity FC adapters are configured with a unique address designated by the Institute of Electrical and Electronic Engineers. The W (WWN) and Node Name are the two components of the address assigned to Fibre Channel products. This address, stored in flash memory, allows the system to recognize the Celerity host adapter as a unique part of your configuration. The address is clearly marked on the back of the board for easy identification. Please keep a reference copy of the number in a safe place or write in the space provided on this page.
Celerity FC host adapter WWNs are assigned for each channel. The WWN listed on your host adapter is assigned to the first channel (1). Sequential WWNs apply for additional channels.
WWN 1: all adapters WWN 2: 44ES, 42ES, 82EN, 84EN WWN 3: 44ES, 84EN
orldWide Port Name

Installation

Celerity FC host adapters contain components that are sensitive to electrostatic discharge (ESD). ESD can cause damage to the Celerity FC host adapter. Please follow standard methods to avoid ESD.
1 Install the latest drivers. Refer to Install Drivers
on page 11.
2 Power down the computer and unplug the
computer from all power sources. 3 Open the case. 4
Install the Celerity FC host adapter in any open
PCI-X or PCI Express expansion slot. If you
have questions about how to install an
expansion card in your system, consult your
computer’s documentation.
Drawings of Celerity brackets begin on page 19
and drawings of boards begin on page 21.
The Celerity FC-41XS host adapters only fit in 3.3V slots.
The Celerity FC-42ES and FC-41ES fit into x4, x8, or x16 mechanical PCI Express slots.
5 Connect Fibre Channel devices by inserting a
Fibre Channel cable from the devices to the
connectors on the Celerity FC host adapter until
you hear a click. 6 Close the case on the computer and power it
up.
18 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 23

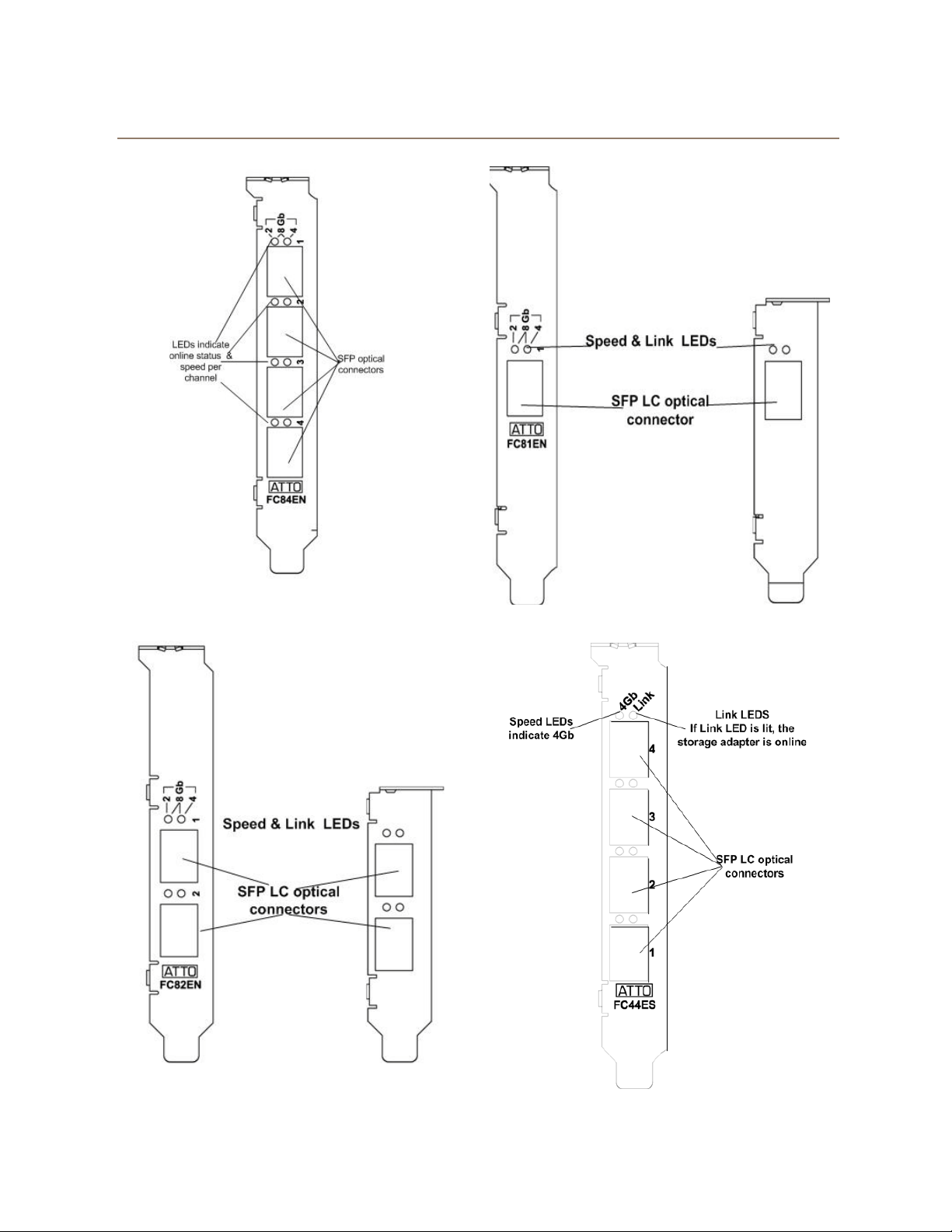

Bracket details

Exhibit 3-1 FC-84EN

Exhibit 3-4 FC-81EN full height and low profile

Exhibit 3-2 FC-82EN full height and low profile

Exhibit 3-5 FC-44ES full height

Exhibit 3-3

19
Page 24

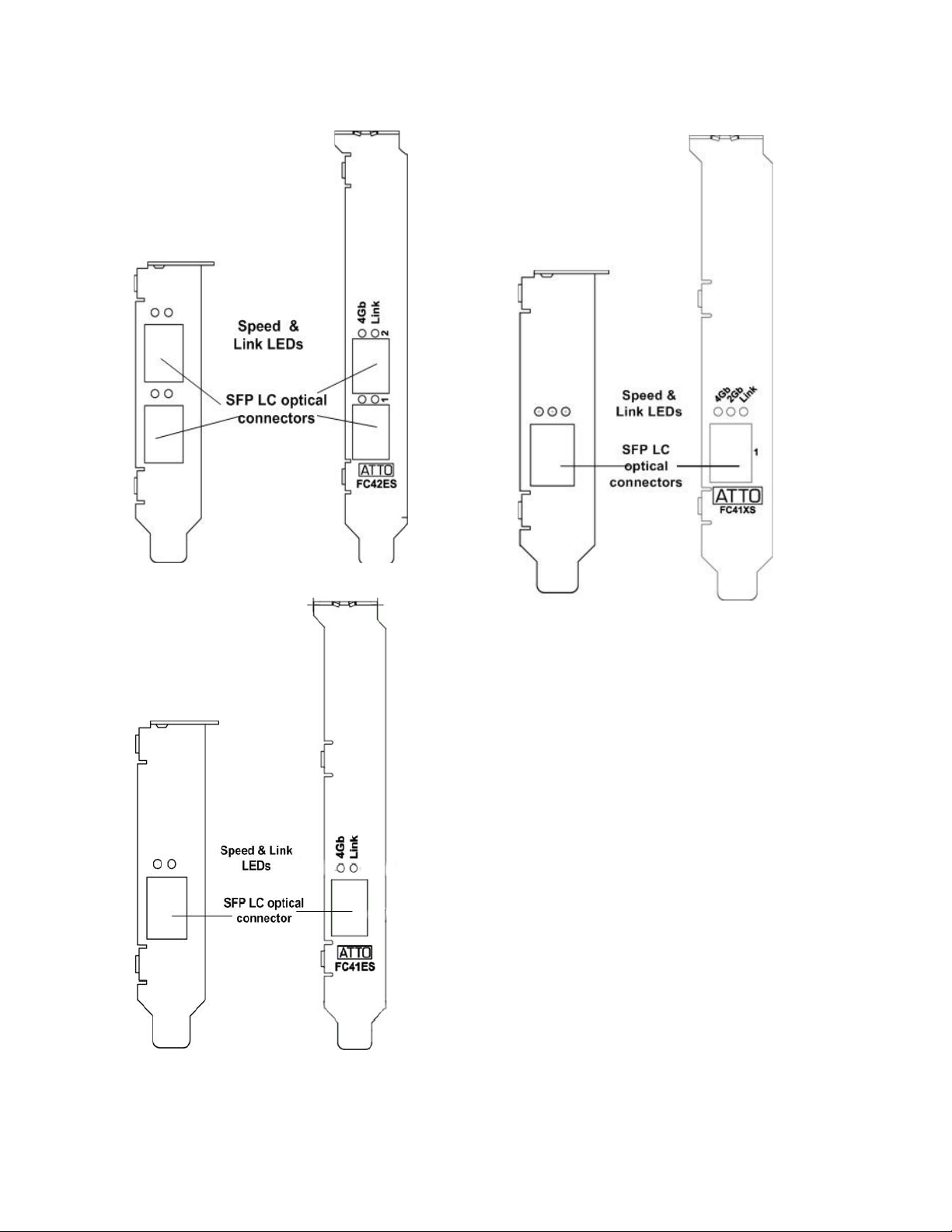

Exhibit 3-6 FC-42ES low profile, full height

Exhibit 3-9 FC-41XS low profile and full height

Exhibit 3-7 FC-41ES low profile and full height

Exhibit 3-8 FC-41EL low profile, full height

20 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 25

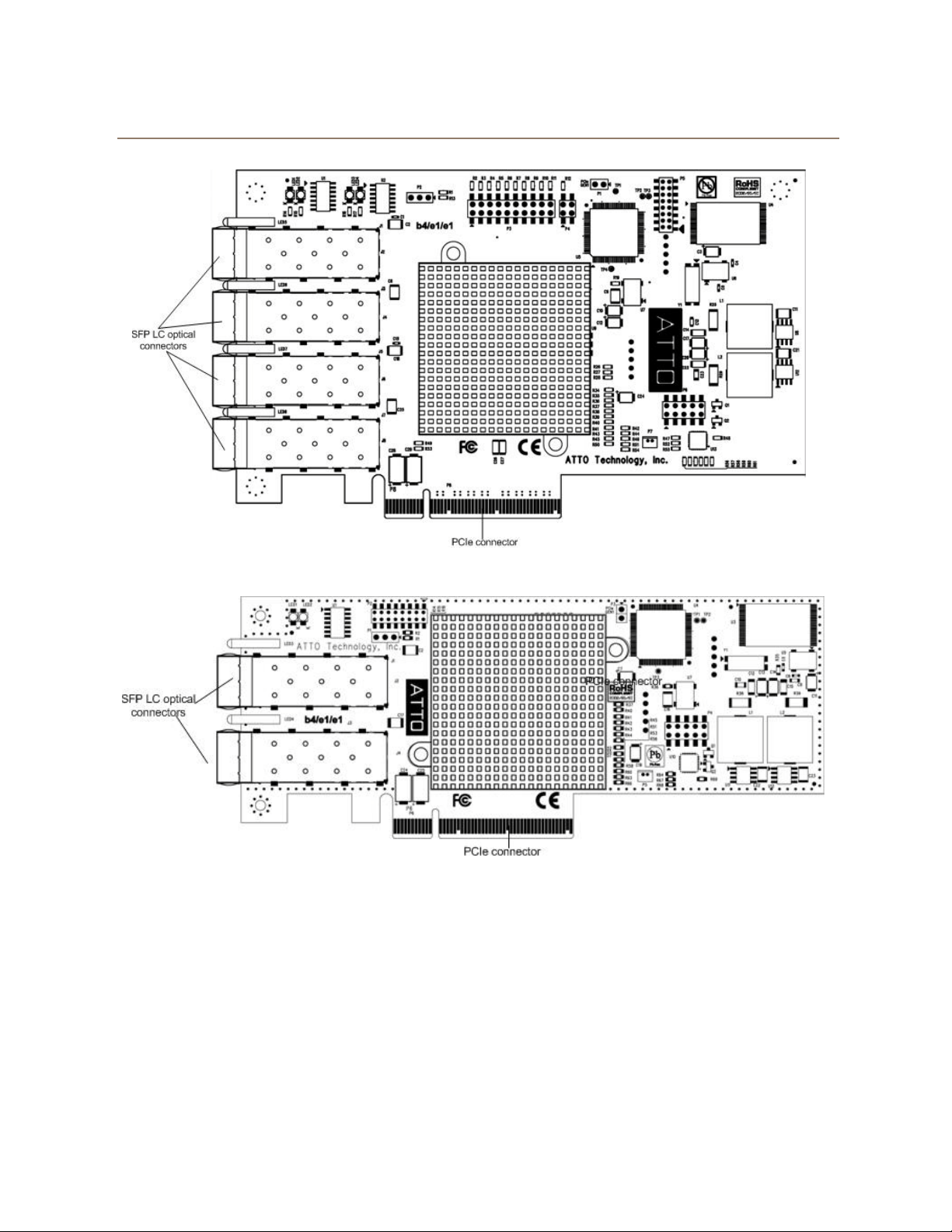

Adapter board details

Exhibit 3-10 FC-84EN

Exhibit 3-11 FC-82EN

21
Page 26

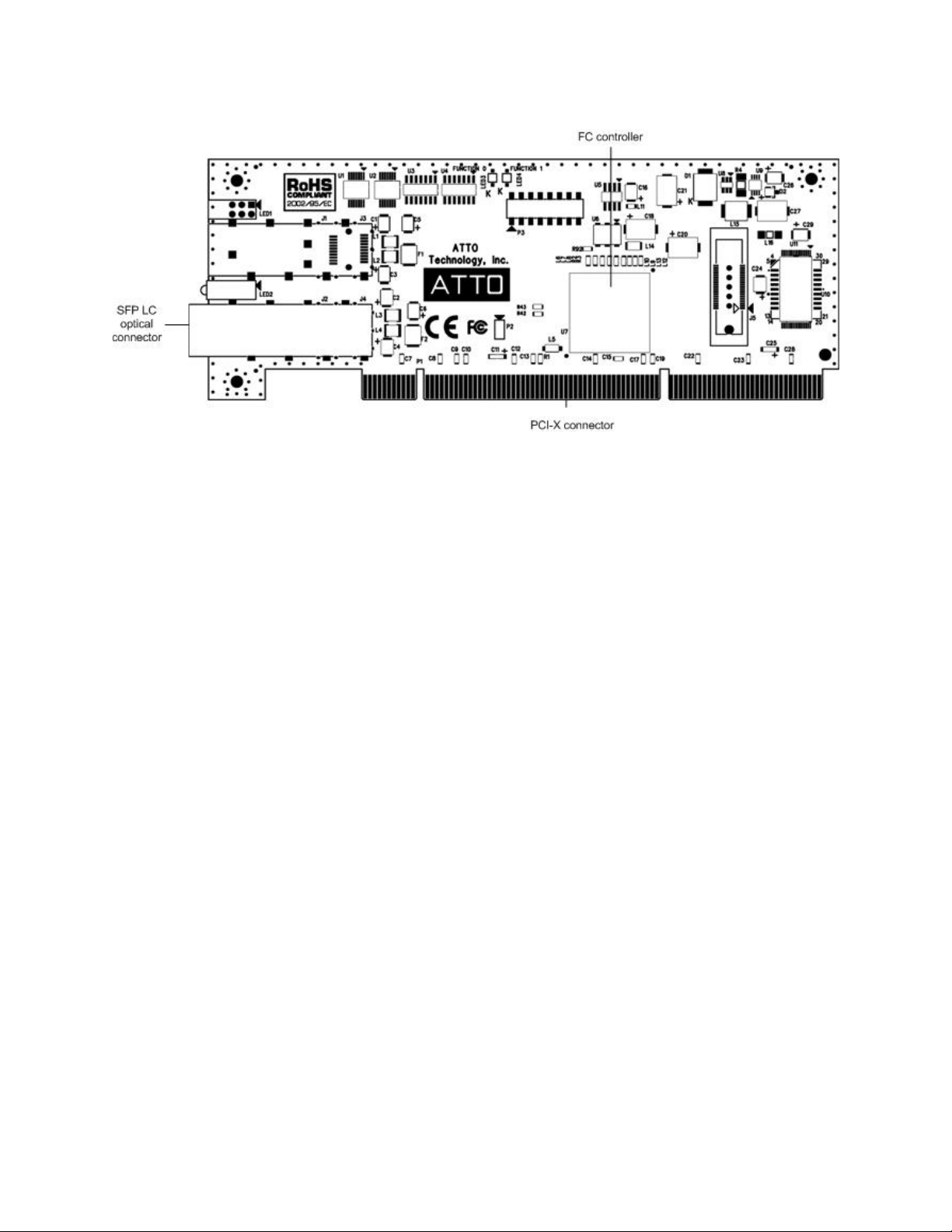

Exhibit 3-12 FC-81EN

Exhibit 3-13 FC-44ES

22 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 27

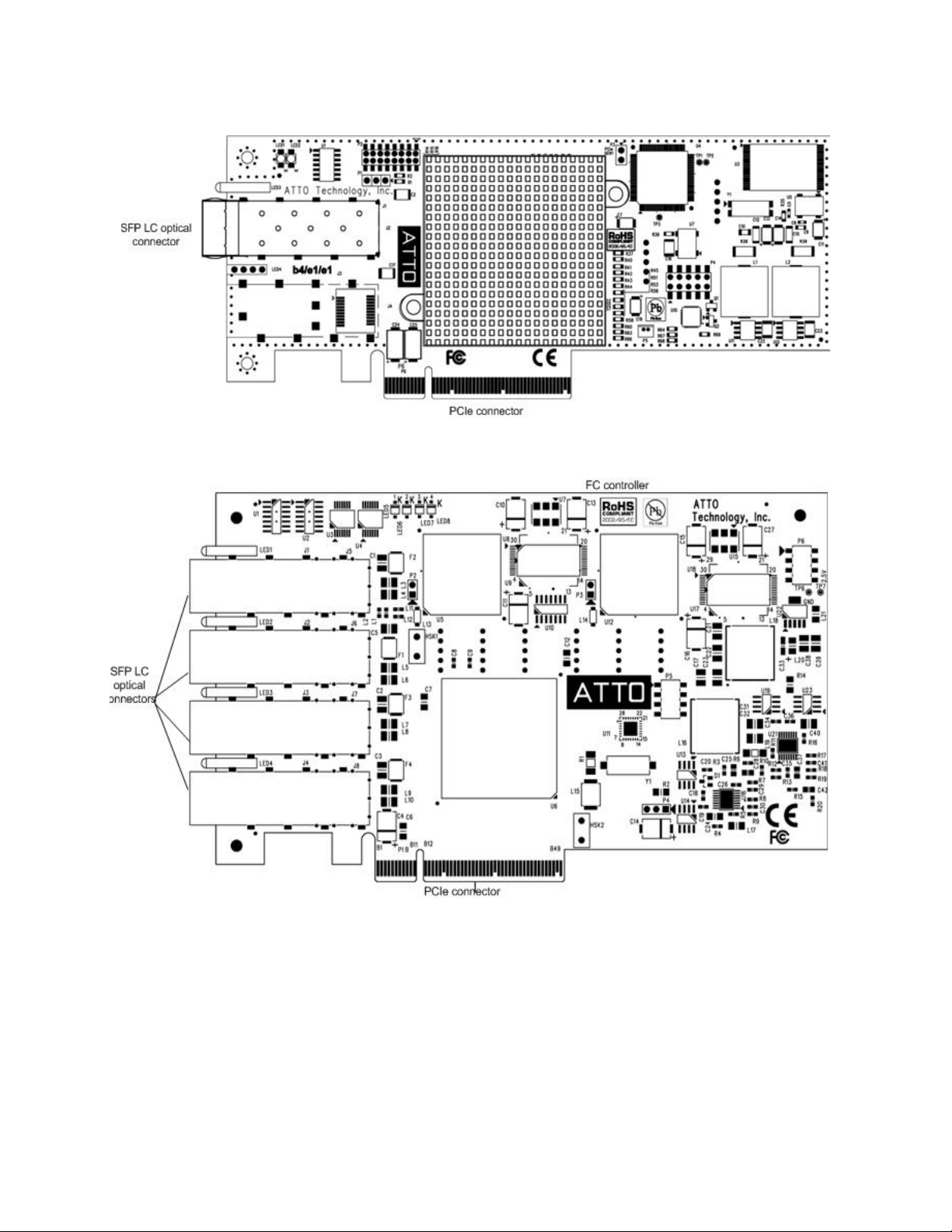

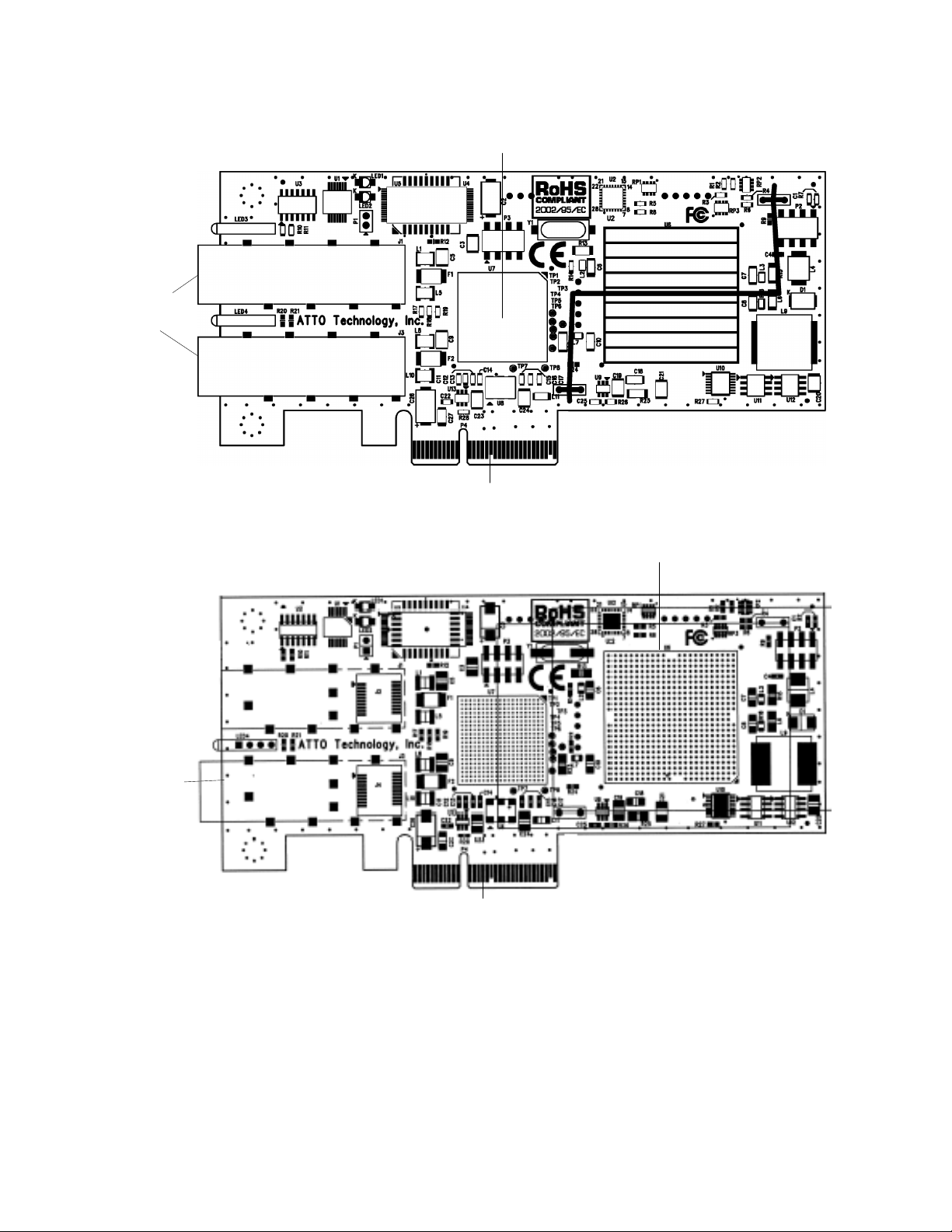

Exhibit 3-14 FC-42ES
FC controller
PCIe connector
SFP LC optical
connectors
SFP LC optical
connector
PCIe connector
FC controller
Exhibit 3-15 FC-41ES
23
Page 28
Exhibit 3-16 FC-41XS
24 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 29

4 Updating Hardware Flash, Drivers

Your Celerity FC host adapter is shipped with the latest flash and drivers but these may need to be updated as new versions become available. Visit the ATTO website, flash bundle.
www.attotech.com
, to download the latest drivers and

Updating flash

Hardware flash memory may need to be updated as new versions become available.
1 Download and install the most recent version of
the Configuration Tool from the ATTO website. Refer to Updating the ATTO
Configuration Tool on this page.
2 Download the proper flash bundle (adapter
specific) from the ATTO website.
a. Go to www.attotech.com b. Click on downloads. c. Register or log in if previously registered. d. Click on Fibre Channel Host Adapters in
the left dialog.
e. Navigate to your HBA model in the right
dialog and click on it.
f. Scroll down to and click the desired flash
bundle depending on the operating system.
g. A download window appears. Choose
Save.
h. After the download has completed,
process the downloaded file:
• On OS X, mount the .dmg file.
• On Windows, extract the .zip file.
• On Linux, expand the .tgz file. 3 Launch the Configuration Tool. 4 In the Device window, select the adapter that
needs to be updated.
5 In the Flash window, click on the Browse
button to find the flash bundle that you previously downloaded and extracted to your
desktop. 6 Click Update to update your flash ROM. 7 Repeat for any additional adapters installed in
the machine. 8 Reboot your system for the changes to take
effect.

Updating drivers

Update drivers by downloading the latest driver software from the ATTO Technology website.
1Go to www.attotech.com 2 Click on downloads. 3 Register or log in if previously registered. 4 Click on Fibre Channel Host Adapters in the
left dialog. 5 Register or log in if previously registered. 6 Navigate to your HBA model in the right dialog
and click it. 7 Scroll down to and click the desired driver
depending on the operating system. 8 A download window appears. Choose Save. 9 After the download has completed, process the
downloaded file:
• On OS X, expand the .tgz file, then double click on the installer icon.
• On Windows, run the downloaded .exe file.
• On Linux, expand the .tgz file, then run the install.sh installation script.
10 Follow the instructions for installing the drivers.

Updating the ATTO Configuration Tool

If you want the latest version of the ATTO Configuration Tool, download it from the ATTO website.
1Go to www.attotech.com. 2 Click on downloads. 3 Register or log in if previously registered. 4 Click on Fibre Channel Host Adapters in the
left dialog. 5 Register or log in if previously registered. 6 Navigate to your HBA model in the right dialog
and click it. 7 Scroll down to and click the desired ATTO
Configuration Tool depending on the
operating system. 8 A download window appears. Choose Save.
25
Page 30
9 After the download has completed, process the
downloaded file:
• On OS X, mount the .dmg file, then double click on the installer icon located in the new volume.
• On Windows, run the downloaded .exe file.
• On Linux, expand the .tgz file, then run the .bin installer application.
10 Follow the instructions for installing the
application.
11 To use the tool, refer to the ATTO Utilities
Installation and Operation Manual which may be downloaded from the ATTO website.
a. Go to www.attotech.com. b. Click on downloads. c. Register or log in if previously registered. d. Click on Fibre Channel Host Adapters in
the left dialog.
e. Navigate to your HBA model in the right
dialog and click it.
f. Click the Utility Manual (.pdf) link to
save/open the document.
26 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 31

5 Troubleshooting

Note
Note
Note
This chapter contains solutions for the most common problems you might encounter. If you need additional assistance, please refer to the ATTO Technology website, Technology representative.

General suggestions

www.attotech.com
, or contact an authorized ATTO
• Check each cable connection on every device.
• Verify all cables are in proper working condition. Loose or broken cables are often the cause of errors or problems.

Mac OS X

The Celerity FC supports Mac OS X versions
10.4.x and later.
1 Open the ATTO Configuration Tool from the
ATTO Utilities CD or download from the ATTO website. Refer to the ATTO Utilities Installation and Operation Manual for additional information.
2 If the adapter does not appear in the Device
Listing, make sure it is properly seated in the PCI slot.
a. Remove power from the PC. b. Remove the case. c. Check the PCI slot. d. Replace the case. e. Apply power.
• Check that Fibre Channel devices are plugged into an AC outlet and are turned on before you add power to your computer.
3 Verify the driver is loaded.
a. Click on the adapter name in the Device
Listing to view the Basic Info screen.
b. If the Driver Information section indicates
Unknown: driver not loaded, reinstall the driver. Refer to Updating Hardware Flash,
Drivers on page 25.
c. If reinstalling the driver does not fix the
problem, contact an authorized ATTO representative.
4 Reset the NVRAM for all channels to defaults
and reboot. If the problem persists, contact an authorized ATTO representative.
When calling ATTO Technical Support, please have a printout of the IOreg listing and output from the Apple System Profiler available.
If the Celerity adapter is properly seated and devices are still not accessible, contact an authorized ATTO representative.

Windows Server 2008, 2003, 2000; Vista, XP

• If the card has been recently re-flashed, a new Windows driver must be installed. Follow the procedure in Updating Hardware Flash, Drivers on page 25.
• All of the external devices connected to the host
adapter should be identified. If they do not appear in the Device Manager, the external devices or connection may not be working properly.
• For Intel-based PCs, check the computer CMOS setup and verify that the PCI slots are configured correctly.
• Procedures vary greatly: refer to the manual supplied with your system or call the computer supplier for configuration assistance.
• Windows 2000/XP/Server 2003/Vista are Plug­n-Play operating systems: be sure your computer’s BIOS is set accordingly.
27
Page 32
• If these do not solve the problem, re-flash the
Note
host adapter and re-install the Windows 2000/XP/Server 2003/Vista/2008 driver. See
Updating Hardware Flash, Drivers
If the devices connected to the Celerity FC host adapter are not accessible:
1 Click on the Start button 2 Click Control Panel. (In XP, 2000 and 2003,
click Settings then Control Panel.) 3 Double click on Administrative Tools. 4 Double click on Computer Management. 5Select Device Manager.
• If the Celerity FC host adapter does not appear
under the SCSI and RAID controllers, remove
on page 25.

Linux

power from the PC, open the case, and check that the Celerity FC adapter is properly seated in the PCI slot. Replace the case and apply power.
• If the adapter has been identified but there is an exclamation point (!) on the listing, right click on the listing and select Uninstall.
6 Reload the driver (see Updating Hardware
Flash, Drivers on page 25).
7 Reboot the system and repeat the installation
process.
8 If problems persist, contact your authorized
ATTO Technology representative.
1 Verify the celerityfc driver is loaded with the
lsmod command. If lsmod does not show the driver, refer to the installation instructions to install and load the driver in Updating Hardware
Flash, Drivers on page 25.
2 Check the system log with the command
dmesg. The celerityfc driver creates status messages during initialization. Make sure that all installed cards are properly detected and initialized.

VMware

1 After driver installation, please reboot host.
Once the host is back online, go to Storage and create VMFS datastore. If storage does not appear, perform a rescan using the VMware
3 Examine the contents of the file(s)
/proc/scsi/celerityfc/X, where X is the adapter’s host number. This file contains details such as link status, connection speed and discovered devices.
Advanced users only. Modify the
makefile
Upon loading, the detailed debugging information which may help troubleshoot the problem.
Storage option. If your storage does not present itself, thereafter, please contact your SAN administrator.
to enable debugging information.
celerityfc driver
driver
displays
28 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 33

Supplemental Guide for VMware ESX/ESXi

The following information should be used by advanced users only. Please consult with our Technical Support Department before applying any of the following information.

1 Driver Configuration

Use the esxcfg-module command to query and configure the ATTO adapter driver parameters. In the examples that follow, <driver name> should be replaced with the ATTO driver name.
To obtain a list of available driver parameters:
# esxcfg-module -i <driver name>
The following table lists the configurable parameters along with a brief description. Supported driver abbreviations are: A - All drivers, C - celerityfc, celerity8fc, E - esashba, esas2hba.
PARAMETER DESCRIPTION
atto_log_mask Defines the log mask for sending ATTO driver
information to the system log. Default is 0 (none).
atto_max_sectors Maximum number of disk sectors in a single data
transfer. Default is 65535 (largest possible value).
can_queue Maximum number of commands per adapter
channel. Default is 128.
change_notification Enable notifying the OS of the arrival and departure
of target devices. Default is 1 (on).
cmd_per_lun Maximum number of commands per LUN. Default
is 16.
cmd_retry_count Maximum number of retries allowed for a
command. Default is 20.
event_log_mask A bit mask of events to report to the system log.
Default is 0x00000001 (crtitical events only).
fab_alternate_exchanges Causes the chip to alternate between to exchanges
when it runs out of credits on a fabric. This may improve performance in multiple initiator/target
environments. Default is 0 (off). heap_initial Initial heap size allocated for the dirver. A heap_max Maximum attainable heap size of the driver. A io_time_out Time (in seconds) before an I/O command is timed
out by the driver. Set to 0 for no timeout. Default is
30.
max_logins Defines the maximum number of ports that can be
logged in at once. Default is 256.
To list the driver parameters that have been set:
# esxcfg-module -g <driver name>
To set a driver parameter:
# esxcfg-module -s param=value <driver name>
Configuration changes made with the esxcfg­module -s command are persistent across system reboots. However, the changes will not take affect until the system is rebooted.
Driver
Support
A
A
A
A
A
A
A
C
A
C
29
Page 34
num_erq Exchange Request Queue entries. In general, one
ERQ entry is required for each SEST entry. Default
is 256. num_imq Incoming Message Queue entries. These are used
to report completion of I/O requests and to notify
the host driver of certain other kinds of events
detected by the hardware. Default is 256. num_sas_addr Number of SAS addresses to assign to the
adapter’s PHYs. Addresses are assigned
sequentially from the base address. Valid settings
are 1, 2, 4, 8. Default is 1. num_sest Number of entries in the SCSI Exchange State
Table. One of these structures is used per active
exhance. Default is 256. num_sg_lists Number of SGL pages. Default is 256. A num_targets Maximum number of target devices. Default is 256. E old_device_reset Use the old device reset method. Default is 0 (use
new method). port_retry_count Maximum number of retries allowed for a port
which is logged out. Default 0 (use NVRAM
setting). private_els_timeout Timeout (in seconds) for ELS commands when on
a private loop. Default is 2. quick_init Enabled quick link initialization. Default is 1
(enabled). sg_tablesize Maximum number of entries in a scatter/gather
table. A value of 255 means that the S/G table be
any size. Default is 255. sgl_page_size Scatter/Gather List page size in number of S/G
entries. Default is 128. speed_override Override the NVRAM link speed setting. 0 for auto
speed negotiation, 2 for 2Gb, 4 for 4Gb or 8 for
8Gb. Other values will cause the use of NVRAM
setting. Default is -1 (use NVRAM setting) topology_override Override the NVRAM topology setting. 0 for loop, 1
for PTP, 2 for loop preferred, 3 for PTP preferred.
Other values will cause the use of NVRAM setting.
Default is -1 (use NVRAM setting). use_tm_completions Wait for task management commands to complete
before returning from handler. Default is 1
(enabled). use_transport_layer Attached to the SCSI transport layer. Default is 1
(enabled).
C
C
E
C
A
C
C
C
A
A
C
C
A
A
30 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 35

2 Adapter Management

On VMware ESX/ESXi you can identify and manage ATTO adapters using the VMware vSphere Client, or the Service Console. On ESXi, the Service Console is referred to as Local Tech Support Mode.

2.1 vSphere Client

With VMware vSphere Client, you can identify ATTO adapters on a VMware ESX/ESXi system, and view the attached storage devices.
1 Start vSphere Client from your local workstation
and select the host containing one or more ATTO adapters.
2 Click the Configuration tab, and then select
Storage Adapters under Hardware in the left pane.
3 A list of all storage adapters in the system is
displayed. The Model, Identifier (WWN or SAS address) and Targets are shown for each adapter channel.
TBD - Insert a screenshot from vSphere client showing ATTO adapter

2.2 Service Console

Using the Service Console, information about each adapter channel can be found in the /proc/scsi filesystem, under /proc/scsi/<driver name>.
To view details on a specific adapter channel, run the following command:
# cat /proc/scsi/<driver name>/<channel>
This command displays the following information: "Adapter type "Driver, BIOS and Firmware versions "Driver Parameters "Adapter Model and Identifier (WWN or SAS
address) "Virtual Port Information "Discovered Targets "Driver Statistics
A sample output is shown below:
~ # cat /proc/scsi/celerity8fc/6 ATTO Celerity 8GB Fibre Channel Adapter Driver version 1.31 BIOS version 07/28/2010 Firmware version 06.01.00 Copyright 2001-2010 http://www.attotech.com
Driver Parameters:
-----------------­quick_init=1, max_logins=256, speed_override=-1,
num_sest=256, num_imq=256, num_erq=256, private_els_timeout=2, port_retry_count=0, topology_override=-1, fab_alternate_exchanges=0, sgl_page_size=128, event_log_mask=0x00000001, num_sg_lists=1024, cmd_per_lun=16, can_queue=128, sg_tablesize=255, atto_max_sectors=65535, cmd_retry_count=20, io_time_out=30, change_notification=1, old_device_reset=0, t10_dif=0
Adapter Information:
-------------------­Model: ATTO Celerity FC-82EN WWNN: 20000010:8601dfb0 WWPN: 21000010:8601dfb0 Link down
Virtual Port Information (NPIV): Max VPorts:16 Max VLogins:32
-----------------------------------------------------------------
Discovered Ports:
# TargID PortWWN PortId I T
----------------------------------------------­None
Statistics:
----------­Time elapsed (ms) : 95353655 Commands completed : 0 Outstanding commands : 0 Max outstanding commands: 0
31
Page 36

3 Virtual Ports (NPIV)

N_Port ID Virtualization (NPIV) is an extension to the Fibre Channel industry standard. NPIV allows a single, physical adapter port to function as multiple virtual ports (VPorts), with each VPort having a unique identity in the SAN fabric. Using the Fibre Channel NPIV option, each virtual machine can have a unique Fibre Channel World Wide Name. This allows a Storage Administrator to follow SAN best practices
There are four additional driver parameters for the celerity8fc driver that affect the performance and behavior of the NPIV feature. See the section on Driver Configuration to get/set these values.
max_npiv_logins The maximum number of ports that can be logged in to an NPIV virtual
port. Default is 32; maximum allowed is 256.
max_npiv_vports The maximum number of NPIV virtual ports for an adapter channel.
Default is 4; maximum allowed is 126.
npiv_disc_wait_time The time period (in msecs) that the driver waits for discovery to
complete after creating a virtual port. Default is 10000.
npiv_init_retries The number of times to attempt to initialize a virtual port before giving
up. Default is 10.

Information about the VPorts is shown in the Driver Info file on the Service Console.

such as zoning and masking, and to control LUN access on a Virtual Machine basis.
NPIV support is enabled for all ATTO Celerity 8Gb Fibre Channel adapters. The celerity8fc driver for VMware ESX/ESXi 4.x and VMware ESXi 5 provides NPIV support, by default.
For additional NPIV Configuration details, please consult the VMware Fibre channel SAN Configuration Guide (
http://www.vmware.com/pdf/vsphere4/r41/vsp_41_san_cfg.pdf).
32 ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 37

Appendix A Glossary

Some terms used in the Fibre Channel industry are defined below. More information is available through the ATTO Technology website ( Cern (
www.cern.ch
Consortium (
Term Definition
ANSI American National Standards Institute arbitrate process of selecting one L_Port from a collection of ports which ask for use of the arbitrated loop
arbitrated loop a loop topology (FC-AL) in which two or more ports are interconnected, but only two ports can
auto negotiation hardware senses and automatically responds depending on configuration BER Bit Error Rate: a measure of transmission accuracy; the ratio of bits received in error to bits sent bit smallest unit of data a computer can process: a single binary digit with a value of either 0 or 1 bus a collection of unbroken signal lines used to transmit information from one part of a computer
byte an ordered set of 8 bits channel a point-to-point link which transports data from one point to another CPU Central Processing Unit: the portion of the computer that actually performs computations CRC Cyclic Redundancy Check: an error-correcting code which calculates a numeric value for received
destination address
device driver a program that allows a microprocessor to direct the operation of a peripheral device DMA Direct Memory Access: a way to move data from a storage device directly to RAM without using
DMA bus master allows a peripheral to control the flow of data to and from system memory by block as opposed to
fabric a Fibre Channel switch of two or more Fibre Channel switches interconnected to physically transmit
FC Fibre Channel F_port a port in the Fibre Channel fabric where a N_port may attach FL_port a port in the Fibre Channel fabric where a NL_port may attach in an arbitrated loop frame an indivisible unit for transfer of information in Fibre Channel frame header the first field in the frame containing the address and other control information about the frame full-duplex a communication protocol which allows transmission in both directions at the same time half duplex a communication protocol which allows transmission in both directions, but only one direction at a
host a processor, usually a CPU and memory, which communicates with devices over an interface initiator device a component which originates a command L_port a port in an arbitrated loop, either a NL_port or a FL_port LED Light-emitting diode: a type of diode that emits light when current passes through it; visible LEDs
LUN Logical Unit Number: an identifier for a logical unit (0-7) multi-mode fiber an optical fiber which can carry several beams of light at once
www.iol.unh.edu/consortiums
www.attotech.com
), the Storage Area Networking Industry Association (
at the same time
communicate at one time; low-cost solution which may or may not use hubs and switches
system to another; taps on the lines connect devices to the bus
and transmitted data; if no error has occurred during transmission, the CRC for both received and transmitted data should be the same
a value in the frame header of each frame which identifies the port in the node where the frame is being sent
the CPU’s resources
allowing the processor to control the data by bytes (PIO or programmed I/O)
data between any two N_Ports on the switch or switches
time
are used as indicator lights on all sorts of electronic devices
), the Fibre Channel Industry Association (
www.snia.org
, click on FC).
www.fibrechannel.com
), and the Fibre Channel
),
i
Page 38
Term Definition
N_port a port attached to a node used with point to point or fabric configurations NL_ port a port attached to a node in Fibre Channel arbitrated loop or fabric loop configuration originator an initiating device; a component which originates a command parity checking a method which verifies the accuracy of data transmitted over the SCSI bus by adding one bit in
the transfer to make the sum of all the bits either odd or even (for odd or even parity); an error message occurs if the sum is not correct
PCI Peripheral Component Interconnect. Allows peripherals to be connected directly to computer
memory, bypassing the slower ISA and EISA busses point-to-point a topology where two ports communicate port an access point in a device: see N_port, NL_port, etc. port address also port number; the address, assigned by the PCI bus, through which commands are sent to a
host adapter board port number see port address receiver the ultimate destination of data transmission; a terminal device SAS Serial Attached SCSI: a serial SCSI bus technology and point to point architecture for connecting
host bus adapters to storage devices SATA Serial AT Attachment: a serial ATA bus technology and point to point architecture for connecting
host bus adapters to storage devices scatter/gather a device driver feature which allows the host adapter to modify a transfer data pointer so that a
single host adapter can access many segments of memory, minimizing interrupts and transfer
overhead SCSI Small Computer Systems Interface: a processor-independent standard for system-level interface
between a computer and intelligent devices including hard disks, floppy disks, CD-ROM, printers,
scanners, etc. single-mode fiber an optical fiber with a small core which supports one wavelength (ray of light); the core radius is
nearly equal to the wavelength of the source SNMP Simple Network Management Protocol: a standard for monitoring network-attached devices topology logical layout of the parts of a computer system or network and their interconnections transceiver a transmitter/receiver module transfer rate the rate at which bytes or bits are transferred, as in megabytes or gigabits per second
ii ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 39

Appendix B Accessories

The following Fibre Channel accessories are available through ATTO Technology and authorized resellers. Contact an ATTO Technology authorized sales representative to order.

Optical Cables

CBL-FCFI-05x5 m. cable– Duplex 50 Micron Multi-mode FC/Optical CBL-LCSC-0033 m. 50/125 optical cable (LC to SC) CBL-LCSC-01010 m. 50/125 optical cable (LC to SC)
A variety of iSCSI, Fibre Channel, SAS and SCSI products are also available from ATTO Technology. Please contact your ATTO sales representative for product descriptions and part number information.

Fibre Channel and iSCSI solutions

ATTO FibreBridgeTMFibre Channel-to-SCSI bridge ATTO iPBridge iSCSI to SCSI, iSCSI to Fibre Channel bridges

SCSI solutions

ATTO ExpressPCI Family of SCSI Host Adapters (see Appendix C)

SAS/SATA Solutions

ATTO ExpressSAS family of SAS Adapters (see Appendix C)

Software

ATTO Utilities Configuration and management software ATTO Express Power Center Windows & Mac OS X RAID 0 and benchmark software
iii
Page 40

Appendix C ATTO Adapter Selection Guides

Contact your ATTO representative or visit the ATTO website for details on all ATTO products.
ExpressPCI SCSI host adapters
Ultra 320 SCSI
Product Features
Max. transfer rate (MB/sec.) 640 640 640 Low Voltage Differential
Single-ended SCSI
Number of SCSI Channels (internal/external) 2/2 0/2 2/2 Number of SCSI IDs supported 30 30 30 Low profile
Large file transfers
Cable distances (m) 12.5 12.5 12.5 32-bit PCI compatible
64-bit PCI compatible
33 MHZ PCI
133 MHZ PCI-X
66 MHz PCI
x4 PCI Express
Windows 2000/XP, Server 2003/2008/Vista support
Linux support
Mac OS X support
Novell Netware support
RoHS compliant
UL5D UL5D LP UL4D
• • •
• • •
• • •
• •
• • •
• • •
• • •
• • •
• • •
iv ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 41
ExpressSAS Host and RAID adapters
Product Features
Max. Data rate 3 Gb/sec. 3 Gb/sec. 3 Gb/sec. 3 Gb/sec. 3 Gb/sec. 3 Gb/sec. x8 PCI Express • • • • • • Number of ports8 8168 816 Port configuration
external/internal
Connector type 2 mini SAS
Number of devices supported
1.5 Gb SATA support
3 Gb SATA II support
3 Gb SAS support • • • • • • Cable distances up to 8m SAS,
Software RAID 0 0 0 0, 40, 50, 60 0, 40, 50, 60 0, 40, 50, 60 Integrated RAID 0, 1, 4, 5, 6
RAID Management Utility
Global Hot Spares • • • Event notification E-mail, pop-up,
SNMP • • • Memory (ECC) 256 MB 256 MB 512 MB Advanced Data
Streaming™ 32-bit support • • • • • • 64-bit support • • • • • • Windows • • • • • • Linux • • • • • • Mac OS X VMware • • • Low profile • • 1/2 height • • 1/2 height
H308 H380 H30F R348 R380 R30F
0/8 0/8 0/16 4/8
selectable 4/4
or 0/8
2 mini SAS
(x4) SFF-8087
internal
256 end-point
devices
• • • • • •
• • • • • •
1m SATA
• • • • • •
• • • • • •
(x4) SFF-8088
external
256 end-point
devices
up to 8m SAS,
1m SATA
4 mini SAS
(x4) SFF-8087
internal
256 end-point
devices
up to 8m SAS,
1m SATA
1 mini SAS
(x4) SFF-8088
external
2 mini SAS
(x4) SFF-8087
internal
128 SAS/SATA
targets
up to 8m SAS,
1m SATA
JBOD,
DVRAID
• • •
log file
8/0 0/16
2 mini SAS
(x4) SFF-8088
external
128 SAS/SATA
targets
up to 8m SAS,
1m SATA
0, 1, 4, 5, 6
JBOD,
DVRAID
E-mail, pop-up,
log file
4 mini SAS
(x4) SFF-8087
internal
128 SAS/SATA
targets
up to 8m SAS,
1m SATA
0, 1, 4, 5, 6
JBOD,
DVRAID
E-mail, pop-
up, log file
v
Page 42
ExpressSAS 6 Gb Host adapters
Product Features
Max Data Rate 6 Gb/sec. 6 Gb/sec. 6 Gb/sec. 6 Gb/sec. 6 Gb/sec. x8 PCI Express • • • • • Number of ports 16 16 8 8 8 Port configuration
external/internal Connector type 4 mini SAS
Number of devices supported
1.5 Gb SATA support
3 Gb SATA II support
3 Gb SAS support • • • • • 6 Gb SATA II
support 6 Gb SAS support • • • • • Software RAID 0 0 0 0 0 Cable distances up to 8m SAS,
Advanced Data Streaming™
32-bit support • • • • • 64-bit support • • • • • Windows • • • • • Linux • • • • • Mac OS X • • • • • VMware • • • • • Low profile • • 1/2 height 1/2 height 1/2 height
H6F0 H60F H680 H608 H644
16/0 0/16 8/0 0/8 4/4
4 mini SAS
(x4) SFF-8088
external
512 end-point
devices
• • • • •
• • • • •
• • • • •
1m SATA
• • • • •
(x4) SFF-8087
internal
512 end-point
devices
up to 8m SAS,
1m SATA
2 mini SAS
(x4) SFF-8088
external
256 end-point
devices
up to 8m SAS,
1m SATA
2 mini SAS
(x4) SFF-8087
internal
256 end-point
devices
up to 8m SAS,
1m SATA
1 mini SAS
(x4) SFF-8088
external
1 mini SAS
(x4) SFF-8087
internal
256 end-point
devices
up to 8m SAS,
1m SATA
vi ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 43
ExpressSAS 6 Gb RAID adapters
Product Features
Max Data Rate 6 Gb/sec. 6 Gb/sec. 6 Gb/sec. 6 Gb/sec. x8 PCI Express • • • • Number of ports 16 8 8 8 Port configuration
external/internal Connector type 4 mini SAS
Number of devices supported
1.5 Gb SATA support
3 Gb SATA II support
3 Gb SAS support • • • • 6 Gb SATA II
support 6 Gb SAS support • • • • Software RAID 0, 40, 50, 60 0, 40, 50, 60 0, 40, 50, 60 0, 40, 50, 60 Integrated RAID 0, 1, 4, 5, 6
RAID Management Utility
Global Hot Spares • • • • Event notification E-mail, pop-up,
SNMP • • • • Memory (ECC) 512 MB 512 MB 512 MB 512 MB Cable distances up to 10m
Advanced Data Streaming™
32-bit support • • • • 64-bit support • • • • Windows • • • • Linux • • • • Mac OS X • • • • VMware Low profile • • • •
R60F R680 R608 R644
0/16 8/0 0/8 4/4
2 mini SAS
(x4) SFF-8087
internal
128 SAS/SATA
targets
• • • •
• • • •
• • • •
JBOD,
DVRAID
• • • •
log file
SAS, 1m SATA
• • • •
(x4) SFF-8088
external
128 SAS/SATA
targets
0, 1, 4, 5, 6
JBOD,
DVRAID
E-mail, pop-
up, log file
up to 10 SAS,
1m SATA
2 mini SAS
(x4) SFF-8087
internal
128 SAS/SATA
targets
0, 1, 4, 5, 6
JBOD,
DVRAID
E-mail, pop-up,
log file
up to 10m
SAS, 1m SATA
1 mini SAS
(x4) SFF-8088
external
1 mini SAS
(x4) SFF-8087
internal
128 SAS/SATA
targets
0, 1, 4, 5, 6
JBOD,
DVRAID
E-mail, pop-up,
log file
up to 10m
SAS, 1m SATA
vii
Page 44

Appendix D Standards, Compliances: 8Gb adapters

The Technical Specification sheet for each Celerity FC host adapter lists certifications for that model. Models covered by this page include the Celerity FC-84EN, FC-82EN and the FC-81EN.

FCC standards: radio and television interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Canadian standards

This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

European standards

Declaration of Conformity

This following statement applies to the Celerity FC host adapter. This device has been tested in the basic operating configuration and found to be compliant with
the following European Union standards: Application of Council Directive: 89/336/EEC Standard(s) to which conformity is declared: EN55024:2002; EN55022:2002 CLASS B. This Declaration will only be valid when this product is used in conjunction with other CE
approved devices and when the entire system is tested to the applicable CE standards and found to be compliant.
Some ATTO Celerity cards comply with Directive 2002/95/EC on the Restriction of the Use of Hazardous Substances in Electrical and Electronic Equipment (RoHS). Contact your ATTO representative regarding RoHS compliant products.
viii ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Page 45

Appendix E Standards, Compliances: 4Gb adapters

The Technical Specification sheet for each Celerity FC host adapter lists certifications for that model. Models covered by this page include the Celerity FC-44ES, FC-42ES, FC-41ES and FC-41XS.

FCC standards: radio and television interference

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

Canadian standards

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

European standards

Declaration of Conformity

This following statement applies to the Celerity FC host adapter. This device has been tested in the basic operating configuration and found to be compliant with
the following European Union standards: Application of Council Directive: 89/336/EEC Standard(s) to which conformity is declared: EN55024:2002; EN55022:2002 CLASS B. This Declaration will only be valid when this product is used in conjunction with other CE
approved devices and when the entire system is tested to the applicable CE standards and found to be compliant.
Some ATTO Celerity cards comply with Directive 2002/95/EC on the Restriction of the Use of Hazardous Substances in Electrical and Electronic Equipment (RoHS). Contact your ATTO representative regarding RoHS compliant products.
ix
Page 46

Appendix F Safety, Warranty

All ATTO host adapter products have been tested to meet applicable safety standards when operated in proper electrical and thermal environments.

Safety

Please review the specifications for your specific host adapter before installing and operating it in any computer system to ensure compatibility.

Installation

Before installing an ATTO host adapter product into your computer system, unplug the computer from its electrical power source and allow adequate time for electrical discharge and the internal components to cool down before removing the computer system cover. This will decrease the risk of personal injury from electrical shock or touching the hot surface of an electrical component.
Once an ATTO host adapter is installed in a computer system, the computer cover must be reinstalled properly before turning the computer system back on.

Operation

ATTO host adapters require adequate cooling to function properly. If you have any questions as to the airflow provided by your computer system, please refer to your computer system manual or contact your computer system manufacturer.
To facilitate proper air circulation, ATTO host adapters should never be operated in a computer system without the cover installed or with an inoperable fan as this may cause safety or thermal problems which could damage the ATTO host adapter and void the warranty.

ATTO Technology, Inc. limited warranty

ATTO Technology, Inc. warrants to the original purchaser of this product that it is free from defects in material and workmanship as described in the ATTO Technology website,
ATTO Technology, Inc. liability shall be limited to replacing or repairing, at its option, any defective product. There is no charge for parts or labor should ATTO Technology, Inc. determine that this product is defective.
Products which have been subject to abuse, misuse, alteration, neglected, or have been serviced, repaired or installed by unauthorized personnel shall not be covered under this warranty provision. Damage resulting from incorrect connection or an inappropriate application of this product shall not be the responsibility of ATTO Technology, Inc. Liability is limited to ATTO Technology, Inc.product(s); damage to other equipment connected to ATTO Technology, Inc.product(s) is the customer’s responsibility.
This warranty is made in lieu of any other warranty, express or implied. ATTO Technology, Inc. disclaims any implied warranties of merchantability or fitness for a particular purpose.
ATTO Technology, Inc. responsibility to repair or replace a defective product is the sole and exclusive remedy provided to the customer for breech of this warranty. ATTO Technology, Inc. is not liable for any indirect, special, incidental, or consequential damages irrespective of whether ATTO Technology, Inc. has advance notice of the possibility of such damages.
No ATTO Technology, Inc. dealer, agent or employee is authorized to make any modification, extension or addition to this warranty.
www.attotech.com
, for three years.
x ATTO Technology Inc. Celerity FC Host Adapters Installation and Operation Manual
Loading...
