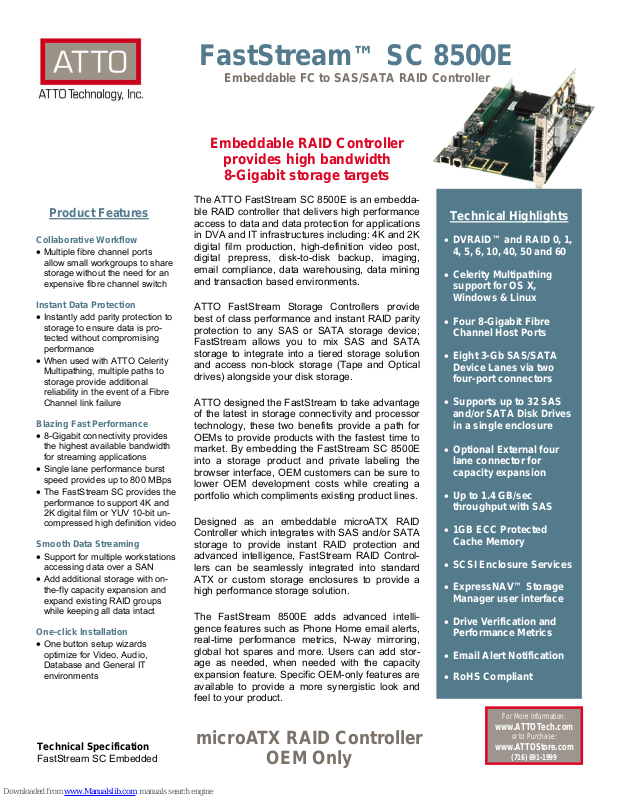

ATTO Technology FastStream SC 8500E Specification Sheet

Product Features

Collaborative Workflow

• Multiple fibre channel ports

allow small workgroups to share
storage without the need for an
expensive fibre channel switch

Instant Data Protection

• Instantly add parity protection to

storage to ensure data is pro­tected without compromising
performance

• When used with ATTO Celerity

Multipathing, multiple paths to
storage provide additional
reliability in the event of a Fibre
Channel link failure

Blazing Fast Performance

• 8-Gigabit connectivity provides

the highest available bandwidth
for streaming applications

• Single lane performance burst

speed provides up to 800 MBps

• The FastStream SC provides the

performance to support 4K and
2K digital film or YUV 10-bit un­compressed high definition video

Smooth Data Streaming

• Support for multiple workstations

accessing data over a SAN

• Add additional storage with on-

the-fly capacity expansion and
expand existing RAID groups
while keeping all data intact

One-click Installation

• One button setup wizards

optimize for Video, Audio,
Database and General IT
environments

FastStream™ SC 8500E

Embeddable FC to SAS/SATA RAID Controller

Embeddable RAID Controller

provides high bandwidth
8-Gigabit storage targets

The ATTO FastStream SC 8500E is an embedda­ble RAID controller that delivers high performance
access to data and data protection for applications
in DVA and IT infrastructures including: 4K and 2K
digital film production, high-definition video post,
digital prepress, disk-to-disk backup, imaging,
email compliance, data warehousing, data mining
and transaction based environments.

ATTO FastStream Storage Controllers provide
best of class performance and instant RAID parity
protection to any SAS or SATA storage device;
FastStream allows you to mix SAS and SATA
storage to integrate into a tiered storage solution
and access non-block storage (Tape and Optical
drives) alongside your disk storage.

ATTO designed the FastStream to take advantage
of the latest in storage connectivity and processor
technology, these two benefits provide a path for
OEMs to provide products with the fastest time to
market. By embedding the FastStream SC 8500E
into a storage product and private labeling the
browser interface, OEM customers can be sure to
lower OEM development costs while creating a
portfolio which compliments existing product lines.

Designed as an embeddable microATX RAID
Controller which integrates with SAS and/or SATA
storage to provide instant RAID protection and
advanced intelligence, FastStream RAID Control­lers can be seamlessly integrated into standard
ATX or custom storage enclosures to provide a
high performance storage solution.

The FastStream 8500E adds advanced intelli­gence features such as Phone Home email alerts,
real-time performance metrics, N-way mirroring,
global hot spares and more. Users can add stor­age as needed, when needed with the capacity
expansion feature. Specific OEM-only features are
available to provide a more synergistic look and
feel to your product.

Technical Highlights

• DVR AID™ and RAID 0, 1,
4, 5, 6, 10, 40, 50 and 60

• Celerity Multipathing
support for OS X,
Windows & Linux

• Four 8-Gigabit Fibre
Channel Host Ports

• Eight 3-Gb SAS/SATA
Device Lanes via two
four-port connectors

• Supports up to 32 SAS
and/or SATA Disk Drives
in a single enclosure

• Optional Ex ternal four
lane connector for
capacity expansion

• Up to 1.4 GB/sec
throughput with SAS

• 1GB ECC Protected
Cache Memory

• SCSI Enclosure Services

• ExpressNAV™ Storage

Manager user interface

• Drive Verification and
Performance Metrics

• Em ail Alert Notification

• RoHS Com pl iant

Technical Specification

microATX RAID Controller

FastStream SC Embedded

OEM Only

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

FastStream™ SC 8500E

RAID Storage Controller

Technical Features

RAID Levels

Key Features

Hardware Specifications

Fibre Channel Interface

SAS/SATA Interface

Management Interface

• JBOD, DVRAID, 0, 1, 4, 5, 6, 10, 40, 50 and 60 plus N-way mirroring

• ATTO Celerity Multipathing Support • SCSI Enclosure Services (SES)

• Tunable RAID Rebuild Priority • Configurable Sector Sizes to 8KB

• Real-time Performance Metrics • Enclosure Aware RAID Group Creation

• Dedicated and Global Hot Spares • Hot Swap with Auto Rebuild

• Configuration Cloning • Battery Backed Event Log

• Drive Initialization and Verification • ECC Protected Memory

• Partitioning of RAID Volumes • Media Error Handling

• Port Mapping for LUN Isolation • Field Upgradeable Firmware

• 8-Gigabit, auto-negotiates to 4/2 Gigabit devices

• Four Optical SFP (Small Form Factor Pluggable) Fibre Channel ports

• Full support for direct connect for F-port fabric switches

• Class 3 and Intermix ANSI Fibre Channel Specifications

• PLDA, public loop login (NL-ports) and fabric connect (N-port)

• Eight 3-Gb SAS/SATA lanes via two internal SFF-8084 SAS connectors

• Optional external 3-Gb SAS/SATA SFF-8088 miniSAS connector

• RJ-45 connector for Ethernet management port

• RS-232 serial header console port

Management

Setup and Monitoring

Local and Network Management

Environmental & Physical Specifications

Dimensions

Operating Environment

Storage Environment

Power

Recommended Airflow

RoHS Compliant

Ordering Information

Model Numbers

• Simplified one-click setup allows for system setup in just minutes

• Built in read-only drive performance monitoring allows you to gauge

storage performance while host-based applications are in use

• ExpressNAV
configuration, management and diagnostic capabilities

• Local diagnostics supported via CLI, Telnet and FTP

• Command line and menu-based ASCII text management access via the

Ethernet management port and ExpressNAV

TM

storage manager browser-based user interface for remote

• 177.80mm (w) x 1U* (h) x 244mm (l) (*Up to 3U depending on configuration)

• Temperature: 5 - 40° C ● Humidity: 10 - 90% non-condensing

• Temperature: -40 - 70° C ● Humidity: 5 - 95% non-condensing

• Input: 12 VDC +- 10%, 6A

• 11 CFM - Ambient air not to exceed 40° C

• Yes

FSSC-8500-E00 / 8500E

Technical Specification

FastStream SC Embedded

©2009 ATTO Technology, Inc. Specifications subject to change without notice.

Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

Rev 1/09
