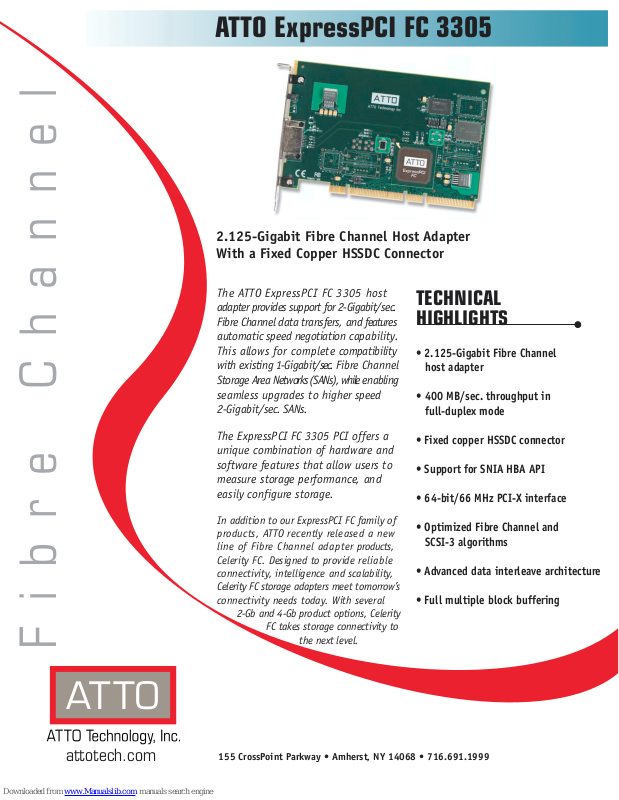

ATTO Technology ExpressPCI FC 3305 Specification Sheet

ATTO ExpressPCI FC 3305

2.125-Gigabit Fibre Channel Host Adapter
With a Fixed Copper HSSDC Connector

The ATTO ExpressPCI FC 3305 host
adapter provides support for 2-Gigabit/sec.
Fibre Channel data transfers, and features
automatic speed negotiation capability.
This allows for complete compatibility
with existing 1-Gigabit/sec. Fibre Channel
Storage Area Networks (SANs), while enabling
seamless upgrades to higher speed
2-Gigabit/sec. SANs.

The ExpressPCI FC 3305 PCI offers a
unique combination of hardware and
software features that allow users to
measure storage performance, and
easily configure storage.

In addition to our ExpressPCI FC family of
products, ATTO recently released a new
line of Fibre Channel adapter products,
Celerity FC. Designed to provide reliable
connectivity, intelligence and scalability,
Celerity FC storage adapters meet tomorrow’s
connectivity needs today. With several
2-Gb and 4-Gb product options, Celerity
FC takes storage connectivity to

Fibre Channel

the next level.

TECHNICAL
HIGHLIGHTS

• 2.125-Gigabit Fibre Channel
host adapter

• 400 MB/sec. throughput in
full-duplex mode

• Fixed copper HSSDC connector

• Support for SNIA HBA API

• 64-bit/66 MHz PCI-X interface

• Optimized Fibre Channel and
SCSI-3 algorithms

• Advanced data interleave architecture

• Full multiple block buffering

attotech.com

155 CrossPoint Parkway • Amherst, NY 14068 • 716.691.1999

ATTO ExpressPCI FC 3305

Hardware Specifications

Fibre Channel Interface:

• 2.125-Gigabit data-transfer rates

• 400 MB/sec. throughput in full-duplex mode

• Auto-negotiation between 2-Gigabit
and 1-Gigabit speeds

• Fixed copper HSSDC Fibre Channel connector

• Supports all Fibre Channel topologies

• Point-to-Point

• Arbitrated Loop

• Direct Fabric/Switch attach

• Strict adherence to ANSI FC-AL-2, FC-PLDA,
FC-Tape, and FC-FLA specifications

• Supports Class 2, Class 3 and Intermix
transfers

• Flash ROM for easy field upgrades

Advanced FC Features:

• Support for SNIA HBA API

• LUN masking

• Supports Target and Initiator Modes

Advanced SCSI-FCP Support:

• Large command FIFO

• Asynchronous I/O support

• ASPI and SCSI Manager 4.3 compatible

• SCSI-3 tagged command queuing

• Bootable from attached disks

• Support for multiple block sizes

Accelerated PCI Bus Management:

• PCI bus master rate of 528 MB/sec.

• PCI 2.2 compliant

• 64-bit/66 MHz PCI-X (backward

compatible with 32-bit and 33 MHz PCI)

Software Specifications

Driver Support:

• Windows® 2000

• Windows XP

• Windows Server 2003

• Solaris (x86 and SPARC)

• Mac® OS X

• Mac OS 9

Advanced Data Streaming (ADS™):

• Improved PCI system bandwidth use

• Optimized FC and SCSI-3 algorithms

• Tagged command queuing

• RISC processor for high performance

RAID kits available

Environmental and Physical
Characteristics

Dimensions:

• Full form factor: 4.200" x 6.521"

Operating Environment:

• Temperature: 0-50º C

• Humidity: 10-90% non-condensing

• Airflow: 100 LFM (min.)

Power:

• 1 Amp @ 5 Volts

PCI Signal Compatibility:

• 3.3 Volts/5 Volts universal

Fibre Channel Host Adapter
Selection Chart

Single & Multi-Channel 2-Gigabit Adapters

PRODUCT FEATURES

Number of FC Channels 2 1 1

Maximum Transfer Rate (MB/sec.) 400* 400 400

32-bit PCI Compatible • • •

64-bit PCI Compatible • • •

Fabric & Loop Support • • •

Cable Distances (max.) 500m 500m 10m

33 MHz PCI Compatible • • •

66 MHz PCI Compatible •

66 MHz PCI-X • •

Optical/Copper Interface

Class 2,3 2,3 2,3

Full-duplex • • •

RAID Support • • •

Windows® 2000/XP/Server 2003 • • •

Solaris, Linux Linux • •

Mac® OS and Mac OS X Support OS X • •

Configuration:

• Easy to install connection plate with LED
to monitor on-line status

LED indicates
online status

Shielded copper
HSSDC connector

FC 3321 FC 3300

SW LC SFF Fixed SW LC HSSDC

FC 3305

* per channel
