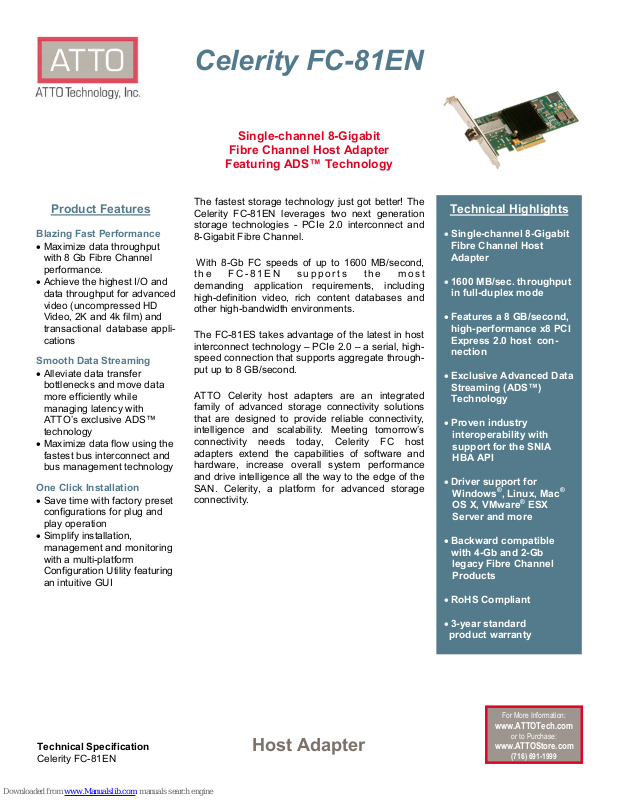

ATTO Technology Celerity FC-81EN Technical Specification
Product Features
Blazing Fast Performance
• Maximize data throughput
with 8 Gb Fibre Channel
performance.
• Achieve the highest I/O and
data throughput for advanced
video (uncompressed HD
Video, 2K and 4k film) and
transactional database applications
Smooth Data Streaming
• Alleviate data transfer
bottlenecks and move data
more efficiently while
managing latency with
ATTO’s exclusive ADS™
technology
• Maximize data flow using the
fastest bus interconnect and
bus management technology
One Click Installation
• Save time with factory preset
configurations for plug and
play operation
• Simplify installation,
management and monitoring
with a multi-platform
Configuration Utility featuring
an intuitive GUI
Celerity FC-81EN
Single-channel 8-Gigabit
Fibre Channel Host Adapter
Featuring ADS™ Technology
The fastest storage technology just got better! The
Celerity FC-81EN leverages two next generation
storage technologies - PCIe 2.0 interconnect and
8-Gigabit Fibre Channel.
With 8-Gb FC speeds of up to 1600 MB/second,
t h e F C - 81 E N s u p p o r t s t he m os t
demanding application requirements, including
high-definition video, rich content databases and
other high-bandwidth environments.
The FC-81ES takes advantage of the latest in host
interconnect technology – PCIe 2.0 – a serial, highspeed connection that supports aggregate throughput up to 8 GB/second.
ATTO Celerity host adapters are an integrated
family of advanced storage connectivity solutions
that are designed to provide reliable connectivity,
intelligence and scalability. Meeting tomorrow’s
connectivity needs today, Celerity FC host
adapters extend the capabilities of software and
hardware, increase overall system performance
and drive intelligence all the way to the edge of the
SAN. Celerity, a platform for advanced storage
connectivity.
Technical Highlights
• Single-channel 8-Gigabit
Fibre Channel Host
Adapter
• 1600 MB/sec. throughput
in full-duplex mode
• Features a 8 GB/second,
high-performance x8 PCI
Express 2.0 host connection
• Exclusive Advanced Data
Streaming (ADS™)
Technology
• Proven industry
interoperability with
support for the SNIA
HBA API
• Driver support for
Windows
OS X, VMware
Server and more
• Backward compatible
with 4-Gb and 2-Gb
legacy Fibre Channel
Products
• RoHS Compliant
• 3-year standard
product warranty
®
, Linux, Mac®
®
ESX
Technical Specification
Celerity FC-81EN
Host Adapter
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
Celerity FC-81EN
Host Adapter
Hardware Specifications
Fibre Channel Interface
Advanced FC Capabilities
Host Bus Specifications
External Connectivity
Software Specifications
Driver Support
Agency Approvals
Safety and Environmental
Environmental & Physical Specifications
Dimensions
Operating Environment
Storage Environment
Power
Airflow
Optical Cabling
RoHS Compliant
Ordering Information
Model Number
Technical Specification
Celerity FC-81EN
©2009 ATTO Technology, Inc. Specifications subject to change without notice
•
Single independent FC port
•
8-Gigabit FC data-transfer rates
•
1600 MB/sec. maximum full-duplex throughput
•
Supports all FC topologies; fabric, arbitrated loop and point-to-point
•
ANSI Fibre Channel: FC-FS, FCP, FC-AL, FC-AL2, FC-PLDA, FC-FLA
•
Flash ROM for easy field upgrades
•
FC Class 3 Support
•
Local management and diagnostics
•
Buffer Credits: 41
•
Advanced Data Streaming (ADSTM) Technology
•
Supports SNIA HBA API
•
Supports Windows FDMI and W MI
•
Supports Target and Initiator modes
•
Backward compatible with 4-Gb and 2-Gb Fibre Channel
•
x8 mechanical and x8 electrical PCI Express 2.0 interconnect
•
Supports PCI Express Base Spec 2.0
•
Supports PCI Express CEM Spec 2.0
•
PCI Hot Plug spec 1.0
•
Easy-to-install full height connection bracket; low-profile bracket included in Finished Goods packaging
•
External LEDs for on-line and speed status for each channel
•
Single (1) pluggable 8Gb optical LC SFP+ module included
•
Windows Server 2003, 2008, XP, Vista, 7
•
Red Hat Linux ( 2.6 kernel)
•
SUSE Linux (2.6 kernel)
•
Fedora Linux (7 & 8)
•
Mac OS X (10.4.x - 10.6.x)
•
VMware ESX Server 3.5
•
FCC Part 15, Subpart B, Class B
•
EN55022: 2006, Class B
•
EN55024: 1998A + A1: 2001 & A2: 2003
•
EN60950-1: 2001
•
EN60825-1: 1994-2: 2004
•
Conforms to PCI Express Low Profile form-factor specs
•
Length 6.600”
•
Height 2.731”
•
Temperature: 0-40° C
•
Humidity: 10 - 90% non-condensing
•
Temperature: -40°-70°C (-40°-157°F)
•
Humidity: 5 - 95% non-condensing
•
5.3W (Typical)
•
100 lf/m (min) recommended
•
50/125µm up to 50m @ 8-Gb
•
50/125µm up to 150m @ 4-Gb
•
50/125µm up to 300m @ 2-Gb
Yes
•
CTFC-81EN-000
Power Behind the Storage
Power Behind the Storage
Power Behind the StoragePower Behind the Storage
For More Information:
For More Information:
www.ATTOTech.com
www.ATTOTech.com
or to Purchase:
or to Purchase:
www.ATTOStore.com
www.ATTOStore.com
(716) 691-1999
(716) 691-1999
Rev 08/09
