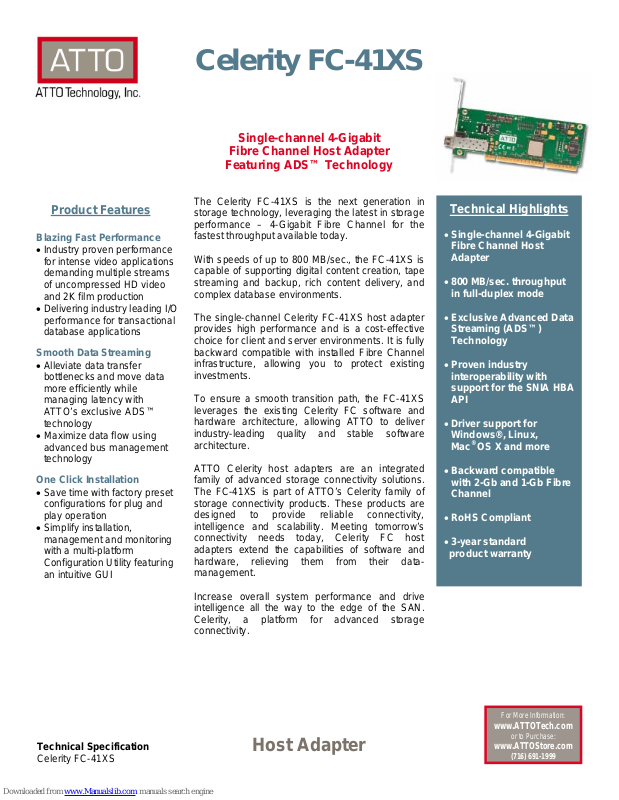

ATTO Technology Celerity FC-41XS Specifications
Product Features
Blazing Fast Performance
• Industry proven performance
for intense video applications
demanding multiple streams
of uncompressed HD video
and 2K film production
• Delivering industry leading I/O
performance for transactional
database applications
Smooth Data Streaming
• Alleviate data transfer
bottlenecks and move data
more efficiently while
managing latency with
ATTO’s exclusive ADS™
technology
• Maximize data flow using
advanced bus management
technology
One Click Installation
• Save time with factory preset
configurations for plug and
play operation
• Simplify installation,
management and monitoring
with a multi-platform
Configuration Utility featuring
an intuitive GUI
Celerity FC-41XS
Single-channel 4-Gigabit
Fibre Channel Host Adapter
Featuring ADS™ Technology
The Celerity FC-41XS is the next generation in
storage technology, leveraging the latest in storage
performance – 4-Gigabit Fibre Channel for the
fastest throughput available today.
With speeds of up to 800 MB/sec., the FC-41XS is
capable of supporting digital content creation, tape
streaming and backup, rich content delivery, and
complex database environments.
The single-channel Celerity FC-41XS host adapter
provides high performance and is a cost-effective
choice for client and server environments. It is fully
backward compatible with installed Fibre Channel
infrastructure, allowing you to protect existing
investments.
To ensure a smooth transition path, the FC-41XS
leverages the existing Celerity FC software and
hardware architecture, allowing ATTO to deliver
industry-leading quality and stable software
architecture.
ATTO Celerity host adapters are an integrated
family of advanced storage connectivity solutions.
The FC-41XS is part of ATTO’s Celerity family of
storage connectivity products. These products are
designed to provide reliable connectivity,
intelligence and scalability. Meeting tomorrow’s
connectivity needs today, Celerity FC host
adapters extend the capabilities of software and
hardware, relieving them from their datamanagement.
Increase overall system performance and drive
intelligence all the way to the edge of the SAN.
Celerity, a platform for advanced storage
connectivity.
• Single-channel 4-Gigabit
• 800 MB/sec. throughput
• Exclusive Advanced Data
• Proven industry
• Driver support for
• Backward compatible
• RoHS Compliant
• 3-year standard
product warranty
Technical Highlights
Fibre Channel Host
Adapter
in full-duplex mode
Streaming (ADS™)
Technology
interoperability with
support for the SNIA HBA
API
Windows®, Linux,
®
OS X and more
Mac
with 2-Gb and 1-Gb Fibre
Channel
Technical Specification
Celerity FC-41XS
Host Adapter
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
Celerity FC-41XS
Host Adapter
Hardware Specifications
Fibre Channel Interface
Advanced FC Capabilities
Host Bus Specifications
External Connectivity
Software Specifications
Driver Support
Agency Approvals
Safety and Environmental
Environmental & Physical Specifications
Dimensions
Operating Environment
Storage Environment
Power
Airflow
Optical Cabling
RoHS Compliant
Ordering Information
Model Number
• One independent FC port
• 4-Gigabit FC data-transfer rates
• 800 MB/sec. maximum full-duplex throughput
• Supports all FC topologies: direct fabric, arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-PH, FC-FCP, FC-AL, FC-AL2, FC-PLDA, FC-FLA
• Flash ROM for easy field upgrades
• FC Class 3 Support
• Local management and diagnostics
• Buffer Credits: 8 @ 512 Bytes; 8 @ 2 KB
• Advanced Data Streaming (ADS
TM
) Technology
• Supports SNIA HBA API
• Supports Target and Initiator modes
• LUN masking
• Interrupt coalescing
• 64-bit, 133 MHz PCI-X
• PCI-X 1.0a compliant
• PCI 2.2 compliant
• 3.3V PCI signaling only
• Easy-to-install full height connection bracket; low-profile bracket included in Finished Goods packaging
• External LEDs for on-line and speed status for each channel
• One (1) pluggable LC SFP connector included
• Windows Server 2003, 2008, XP, Vista • Novell Netware 6.5
• Red Hat Linux (2.4 and 2.6 kernel) • Solaris 9 & 10
• SUSE Linux (2.6 kernel) • Free BSD
• Mac OS X (10.4.x & 10.5.x)
• FCC Rules, Part 15, Class B
• CE Mark: CISPR 22:2002/EN55022:2002, Class B
• Conforms to PCI half height, half length form-factor specifications
• Length 6.600”
• Height 2.536”
• Temperature: 0-45° C (32°-113°F)
• Humidity: 5 to 95% non-condensing
• Temperature: -40° to 70°C (-40°-157°F)
• Humidity: 5 to 95% non-condensing
• 3.3V @ 1.5A max
• 100 lf/m (min) recommended
• 50/125µm up to 150m @ 4-Gb
• 50/125µm up to 300m @ 2-Gb
• 50/125µm up to 500m @ 1-Gb
Yes
• CTFC-41XS-0R0 (RoHS)
Technical Specification
Celerity FC-41XS
©2008 ATTO Technology, Inc. Specifications subject to change without notice
Power Behind the Storage
For More Information:
www.ATTOTech.com
or to Purchase:
www.ATTOStore.com
(716) 691-1999
Rev 04/08
