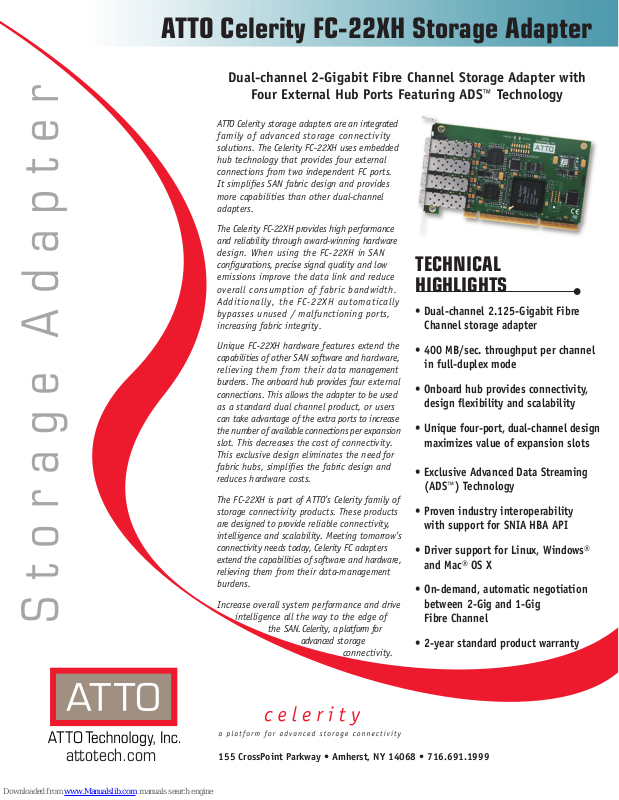

ATTO Technology Celerity FC-22XH Specification Sheet
ATTO Celerity FC-22XH Storage Adapter
Dual-channel 2-Gigabit Fibre Channel Storage Adapter with
Four External Hub Ports Featuring ADS™ Technology
ATTO Celerity storage adapters are an integrated
family of advanced storage connectivity
solutions. The Celerity FC-22XH uses embedded
hub technology that provides four external
connections from two independent FC ports.
It simplifi es SAN fabric design and provides
more capabilities than other dual-channel
adapters.
The Celerity FC-22XH provides high performance
and reliability through award-winning hardware
design. When using the FC-22XH in SAN
confi gurations, precise signal quality and low
emissions improve the data link and reduce
overall consumption of fabric bandwidth.
Additionally, the FC-22XH automatically
bypasses unused / malfunctioning ports,
increasing fabric integrity.
TECHNICAL
HIGHLIGHTS
• Dual-channel 2.125-Gigabit Fibre
Channel storage adapter
Unique FC-22XH hardware features extend the
capabilities of other SAN software and hardware,
relieving them from their data management
burdens. The onboard hub provides four external
connections. This allows the adapter to be used
as a standard dual channel product, or users
can take advantage of the extra ports to increase
the number of available connections per expansion
slot. This decreases the cost of connectivity.
This exclusive design eliminates the need for
fabric hubs, simplifi es the fabric design and
reduces hardware costs.
The FC-22XH is part of ATTO’s Celerity family of
storage connectivity products. These products
are designed to provide reliable connectivity,
intelligence and scalability. Meeting tomorrow’s
connectivity needs today, Celerity FC adapters
extend the capabilities of software and hardware,
relieving them from their data-management
burdens.
Increase overall system performance and drive
Storage Adapter
intelligence all the way to the edge of
the SAN. Celerity, a platform for
advanced storage
connectivity.
• 400 MB/sec. throughput per channel
in full-duplex mode
• Onboard hub provides connectivity,
design fl exibility and scalability
• Unique four-port, dual-channel design
maximizes value of expansion slots
• Exclusive Advanced Data Streaming
(ADS™) Technology
• Proven industry interoperability
with support for SNIA HBA API
• Driver support for Linux, Windows®
and Mac® OS X
• On-demand, automatic negotiation
between 2-Gig and 1-Gig
Fibre Channel
• 2-year standard product warranty
attotech.com
155 CrossPoint Parkway • Amherst, NY 14068 • 716.691.1999
attotech.com
ATTO Celerity FC-22XH Storage Adapter
Hardware Specifi cations
Fibre Channel Interface
• Four external ports connect to two
independent FC ports
• 2.125-Gigabit data-transfer rates per channel
• 400 MB/sec. maximum full-duplex
throughput per channel
• Supports all FC topologies: direct fabric,
arbitrated loop and point-to-point
• ANSI Fibre Channel: FC-PH, FC-FCP, FC
FCP2, FC-AL, FC-AL2, FC-PLDA, FC-FLA
• Flash ROM for easy fi eld upgrades
• FC Class 3 support
• Local management and diagnostics
• Buffer Credits: 8 @ 512 bytes; 8 @ 2k bytes
Advanced FC Capabilities:
• Supports SNIA HBA API
• Supports Target and Initiator modes
• LUN masking
• Interupt coalescing
PCI Bus Specifi cations:
• 64-bit, 133 MHz PCI-X (backward compatible
to 32-bit and 33MHz)
• PCI-X 1.0a compliant
• PCI 2.2 compliant
• 3.3V PCI signaling only
External Connectivity:
• Easy-to-install full height connection bracket
• Up to four Short Wave optical LC SFP
pluggable transceivers
• External LEDs for on-line and speed status
for each channel
• Two (2) transceivers included
Software Specifi cations:
Driver Support:
• Windows Server 2003
• Windows XP
• Windows 2000
• Linux (Red Hat, SUSE)
• Mac OS X (10.4.x Tiger)
• Universal boot support
• Advanced Data Streaming (ADS™) Technology
Agency Approvals
• FCC Rules, part 15, Class B
• CE Mark: CISPR 22:2002/EN55022:2002,
Class B
Environmental & Physical Specifi cations
Dimensions:
• Conforms to PCI standard height,
half length form factor specifi cations
• Length: 6.600”
• Height: 3.800”
Operating Environment:
• Temperature: 0-45ºC (32º113ºF)
• Humidity: 5 to 95% non-condensing
Storage Environment:
• Temperature: -40º to 70ºC (40º to 158º F)
• Humidity: 5 to 95% non-condensing
Power: 3.3V @ 2.0A max
Airfl ow: 100 lf/m (minimum)
recommended
Optical Cabling:
• 50/125µm up to 300m @ 2-Gb
• 50/125µm up to 500m @ 1-Gb
Celerity FC Product Family
PRODUCT FEATURES
Fibre Channel Ports 4 2 2 1 4 4/21 1
Fibre Channel Protocol 4-Gb 4-Gb 4-Gb 4-Gb 2-Gb 2-Gb 2-Gb
Maximum Transfer Rate 1.6 GB/sec. 800 MB/sec. 800 MB/sec. 400 MB/sec. 800 MB/sec. 400 MB/sec. 200 MB/sec.
(half duplex)
Maximum Transfer Rate 2 GB/sec.
(full duplex)
Bus Type PCIe PCIe PCI-X PCI-X PCI-X PCI-X PCI
Bus Characteristics3 8 lane 8 lane 64-bit, 133 MHz 64-bit, 133 MHz 64-bit, 133 MHz 64-bit, 133 MHZ 64-bit, 66 MHz
Optical Interface SFP LC SFP LC SFP LC SFP LC SFP LC SFP LC SFF LC
Maximum Cable Length 300m @ 2-Gb 300m @ 2-Gb 300m @ 2-Gb 300m @ 2-Gb 500m @ 1-Gb 500m @ 1-Gb 500m @ 1-Gb
150m @ 4-Gb 150m @ 4-Gb 150m @ 4-Gb 150m @ 4-Gb 300m @ 2-Gb 300m @ 2-Gb 300m @ 2-Gb
Advanced Data Streaming • • • • • • •
(ADS™) Technology
Software RAID Support
Developer’s Kit • • • • • • •
(Target Mode & API)
Developer’s Kit (Advanced)
Integrated Offl oad & - - - Processing Center (IOPC)
Onboard Memory for - - - - • - -
Direct Memory Transfers
Integrated Hub Technology
Windows Driver Support • • • • • • •
Linux (Red Hat, SUSE)
Driver Support
Mac OS X (Tiger)
Driver Support
- - • • • • •
1 ATTO’s onboard hub technology allows for up to four external connections to two FC channels
2 Performance ceiling is constrained by 133 MHz PCI-X bus transfer speed
3 Backward compatible to 32-bit and 33 MHz PCI; FC-24XL and FC-22XH are 3.3V; FC-21PS is 3.3V/5V Universal
4 ATTO ExpressStripe for OS X available; other software RAID supported
FC-44ES
4
• • • • • • •
- - - - • - -
- - - - - • -
• • • • • • •
FC-42ES
1 GB/sec.
FC-42XS
1 GB/sec.2 800 MB/sec. 1 GB/sec.2 800 MB/sec. 400 MB/sec.
FC-41XS FC-22XH
FC-24XL
• - -
FC-21PS
Storage Adapter
©2005 ATTO Technology, Inc. Specifi cations subject to change without notice.
Rev 9/05
