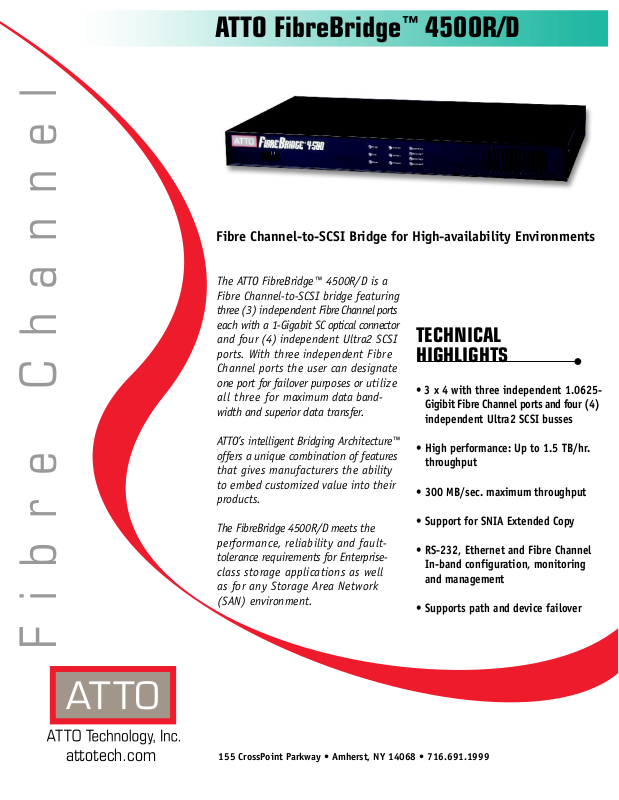

ATTO FibreBridge™ 4500R/D
Fibre Channel-to-SCSI Bridge for High-availability Environments
The ATTO FibreBridge™ 4500R/D is a
Fibre Channel-to-SCSI bridge featuring
three (3) independent Fibre Channel ports
each with a 1-Gigabit SC optical connector
and four (4) independent Ultra2 SCSI
ports. With three independent Fibre
Channel ports the user can designate
one port for failover purposes or utilize
all three for maximum data bandwidth and superior data transfer.
TECHNICAL
HIGHLIGHTS
• 3 x 4 with three independent 1.0625Gigibit Fibre Channel ports and four (4)
independent Ultra2 SCSI busses
ATTO’s intelligent Bridging Architecture™
offers a unique combination of features
that gives manufacturers the ability
to embed customized value into their
products.
The FibreBridge 4500R/D meets the
performance, reliability and faulttolerance requirements for Enterpriseclass storage applications as well
as for any Storage Area Network
(SAN) environment.
• High performance: Up to 1.5 TB/hr.
throughput
• 300 MB/sec. maximum throughput
• Support for SNIA Extended Copy
• RS-232, Ethernet and Fibre Channel
In-band configuration, monitoring
and management
• Supports path and device failover
Fibre Channel
attotech.com
155 CrossPoint Parkway • Amherst, NY 14068 • 716.691.1999
Backup Method
Provides 95%
CPU Availability
Provides 45%
CPU Availability
Serverless
Standard
1
1
2
2
3
4
3
4
5
ATTO FibreBridge™ 4500R/D
Fibre Channel and SCSI
Fibre Channel Interface:
1.0625-Gigabit (200 MB/sec. in full-duplex mode)
•
• Three (3) independent SC optical ports
• Full support for direct connect to
F-port fabric switches
• Class 2, Class 3 ANSI Fibre Channel
specifications
• PLDA, public loop login (NL_ports) and
fabric direct connect (N_port)
• Full-duplex transmissions
• FC Chip: Qlogic ISP2200A
SCSI Interface:
• Four (4) independent VHDCI
SCSI connectors
• Supports LVD Ultra2 or HVD UltraSCSI
• LVD Ultra2 SCSI – 80 MB/sec. max.
per channel
• HVD UltraSCSI – 40 MB/sec. max.
per channel
• Backward compatible with all
Single-Ended SCSI (LVD only) devices
• 128 LUNs per channel
• HVD SCSI Chip: LSI Logic SYM53C896
• LVD SCSI Ship: LSI Logic SYM54C1010
Performance:
• Up to 1.5 TB/hr.
• 300 MB/sec. maximum data-transfer rate
• Up to 280 MB/sec. sustained
data-transfer rate
• Memory: 64 MB of SDRAM
• Support for 2 concurrent XCOPY commands
Fibre Channel Compliance:
• ANSI FC-AL
• SNIA Extended Copy
• Class 2 and Class 3
Figure 2 - Rear Panel View
Fibre Channel Ports
Serial Port
Device Management User Interface:
• Command Line Interface (CLI)
• ASCII-based menu system
• ATTO BridgeTools™ Java-based application
• Tag Command Queuing supported
• Performance reporting/Error logging
LEDs:
• Power
• Ready
• Fault
• FC activity port 0, 1, 2
• SCSI activity bus 0, 1, 2, 3
Ethernet Port
SCSI Ports
Environmental and Physical
Characteristics
Dimensions:
16.725" W
10.000" L
1.720" (1U) H
Operating Environment:
• Temperature: 5-70º C
• Humidity: 0-90% non-condensing
Power:
• Input: 85-250 VAC
50/60 Hz
Max 2.0 A @ 110 VAC
• Rated: 90-132 VAC; 175 - 264 VAC,
47-63Hz, single phase
• Reset button
Configuration:
• Desktop (with attached feet)
• 19" Rack mount kit included (mounting
brackets)
Airflow:
• Internal fans provide 11 CFM
internal air flow
• Ambient air not to exceed 70º C
• Front to back
• Optional side to side
Other
Operating Systems Supported:
• Operating system independent
Agency Certifications:
• FCC Class A
• CE (EN55022/EC50082)
• CSA
•Flash: 2 qty. 16-Mbit to store Xilinz configu-
ration and i906, 2200 and 896/1010
firmware
• Internal 66 MHz PCI bus
Management
Device Management Physical Interface:
• In-band (through Fibre Channel)
• Serial through RS-232 port
• Network through 10/100 BaseT Ethernet
Port (Telnet, FTP and SNMP)
Figure 1 - Serverless Backup
Fibre Channel
©2002 ATTO Technology, Inc. Specifications subject to change without notice. PRMA-0272-000
