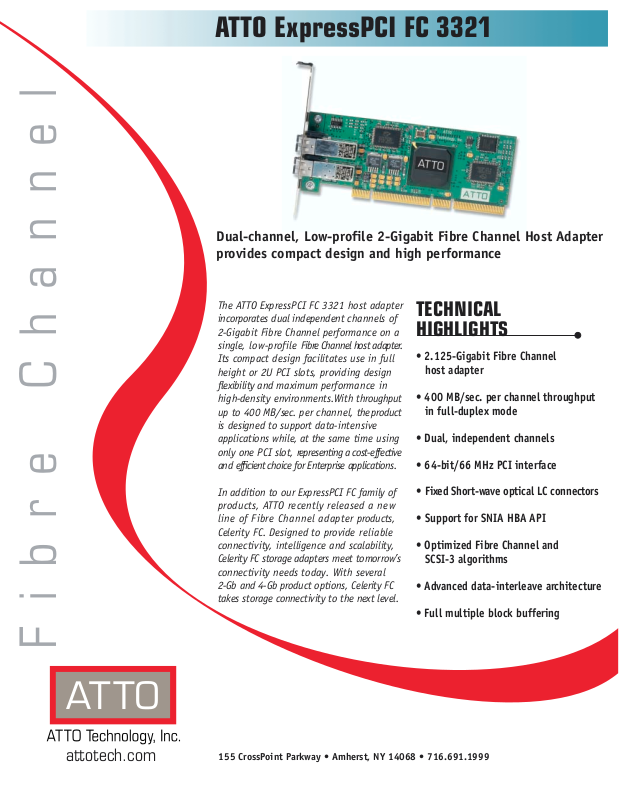

ATTO ExpressPCI FC 3321
Dual-channel, Low-profile 2-Gigabit Fibre Channel Host Adapter
provides compact design and high performance
The ATTO ExpressPCI FC 3321 host adapter
incorporates dual independent channels of
2-Gigabit Fibre Channel performance on a
single, low-profile Fibre Channel host adapter.
Its compact design facilitates use in full
height or 2U PCI slots, providing design
flexibility and maximum performance in
high-density environments.With throughput
up to 400 MB/sec. per channel, the product
is designed to support data-intensive
applications while, at the same time using
only one PCI slot, representing a cost-effective
and efficient choice for Enterprise applications.
In addition to our ExpressPCI FC family of
products, ATTO recently released a new
line of Fibre Channel adapter products,
Celerity FC. Designed to provide reliable
connectivity, intelligence and scalability,
Celerity FC storage adapters meet tomorrow’s
connectivity needs today. With several
2-Gb and 4-Gb product options, Celerity FC
takes storage connectivity to the next level.
TECHNICAL
HIGHLIGHTS
• 2.125-Gigabit Fibre Channel
host adapter
• 400 MB/sec. per channel throughput
in full-duplex mode
• Dual, independent channels
• 64-bit/66 MHz PCI interface
• Fixed Short-wave optical LC connectors
• Support for SNIA HBA API
• Optimized Fibre Channel and
SCSI-3 algorithms
• Advanced data-interleave architecture
• Full multiple block buffering
Fibre Channel
attotech.com
155 CrossPoint Parkway • Amherst, NY 14068 • 716.691.1999
ATTO ExpressPCI FC 3321
Hardware Specifications
Fibre Channel Interface:
• 2.125-Gigabit data-transfer rates on each channel
• 400 MB/sec. per channel throughput in
full-duplex mode
• Auto negotiation between 2-Gigabit and
1-Gigabit speeds
• Short-wave optical LC connectors
• Supports all Fibre Channel topologies
• Point-to-Point
• Arbitrated Loop
• Direct Fabric/Switch Attach
• Strict adherence to ANSI FC-AL-2, FC-PLDA
FC-Tape, and FC-FLA specifications
• Supports Class 2 and Class 3 transfers
• Flash ROM for easy field upgrades
Advanced FC Features:
• Support for SNIA HBA API
• Supports Target and Initiator Modes
Advanced SCSI-FCP Support:
• Large command FIFO
• Asynchronous I/O support
• ASPI and SCSI Manager 4.3 compatible
• SCSI-3 tagged command queuing
• Bootable from attached disks
• Support for multiple block sizes
Accelerated PCI Bus Management:
• PCI bus master DMA
• PCI 2.2 and PCI 99 compliant
• 64-bit/66 MHz PCI
Software Specifications
Driver Support:
• Windows® 2000
• Windows XP
• Windows Server 2003
• Linux
• Mac® OS X
Advanced Data Streaming (ADS™):
• Improved PCI system bandwidth use
• Optimized FC and SCSI-3 algorithms
• Tagged command queuing
• RISC processor for high performance
Environmental & Physical
Characteristics
Dimensions:
• Low Profile: 2.53”H x 6.6” W
(low profile and full height brackets
available)
Operating Environment:
• Temperature: 0-55º C
• Humidity: 5-90% non-condensing
• Airflow: 100 LFM (min.)
Power:
• 1.43 Amp @ 5 Volts (max)
PCI Signal Compatibility:
• 3.3 Volts/5 Volts universal
Fibre Channel Host Adapter
Selection Chart
Single & Multi-Channel 2-Gigabit Adapters
PRODUCT FEATURES
Number of FC Channels 2 1 1
Maximum Transfer Rate (MB/sec.) 400* 400 400
32-bit PCI Compatible • • •
64-bit PCI Compatible • • •
Fabric & Loop Support • • •
Cable Distances (max.) 500m 500m 10m
33 MHz PCI Compatible • • •
66 MHz PCI Compatible •
66 MHz PCI-X • •
Optical/Copper Interface
Class 2,3 2,3 2,3
Full-duplex • • •
RAID Support • • •
Windows® 2000/XP/Server 2003 • • •
Solaris, Linux Linux • •
Mac® OS and Mac OS X Support OS X • •
Configuration:
Easy to install connection plate with LEDs
•
to monitor link, on-line and fault status for
each channel (full-height bracket shown.
Low-profile bracket also available.)
FC 3321 FC 3300
SW LC SFF Fixed SW LC HSSDC
FC 3305
* per channel
Fibre Channel
©2004 ATTO Technology, Inc. Specifications subject to change without notice. Rev 10/04
