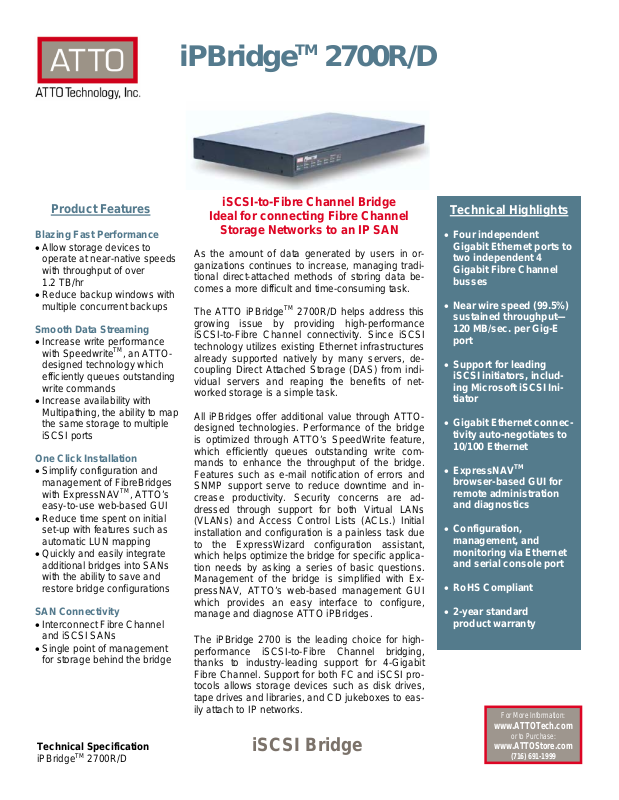

ATTO Technology 2700R-D User Manual

iPBridge

TM

2700R/D

Product Features

Blazing Fast Performance

• Allow storage devices to
operate at near-native speeds
with throughput of over

1.2 TB/hr

• Reduce backup windows with
multiple concurrent backups

Smooth Data Streaming

• Increase write performance
with Speedwrite
designed technology which
efficiently queues outstanding
write commands

• Increase availability with
Multipathing, the ability to map
the same storage to multiple
iSCSI ports

One Click Installation

• Simplify configuration and
management of FibreBridges
with ExpressNAV
easy-to-use web-based GUI

• Reduce time spent on initial
set-up with features such as
automatic LUN mapping

• Quickly and easily integrate
additional bridges into SANs
with the ability to save and
restore bridge configurations

SAN Connectivity

• Interconnect Fibre Channel
and iSCSI SANs

• Single point of management
for storage behind the bridge

Technical Specification

iPBridge

TM

TM

TM

2700R/D

, an ATTO-

, ATTO’s

iSCSI-to-Fibre Channel Bridge

Ideal for connecting Fibre Channel

Storage Networks to an IP SAN

As the amount of data generated by users in or­ganizations continues to increase, managing tradi­tional direct-attached methods of storing data be­comes a more difficult and time-consuming task.

The ATTO iPBridge
growing issue by providing high-performance
iSCSI-to-Fibre Channel connectivity. Since iSCSI
technology utilizes existing Ethernet infrastructures
already supported natively by many servers, de­coupling Direct Attached Storage (DAS) from indi­vidual servers and reaping the benefits of net­worked storage is a simple task.

All iPBridges offer additional value through ATTO­designed technologies. Performance of the bridge
is optimized through ATTO’s SpeedWrite feature,
which efficiently queues outstanding write com­mands to enhance the throughput of the bridge.
Features such as e-mail notification of errors and
SNMP support serve to reduce downtime and in­crease productivity. Security concerns are ad­dressed through support for both Virtual LANs
(VLANs) and Access Control Lists (ACLs.) Initial
installation and configuration is a painless task due
to the ExpressWizard configuration assistant,
which helps optimize the bridge for specific applica­tion needs by asking a series of basic questions.
Management of the bridge is simplified with Ex­pressNAV, ATTO’s web-based management GUI
which provides an easy interface to configure,
manage and diagnose ATTO iPBridges.

The iPBridge 2700 is the leading choice for high­performance iSCSI-to-Fibre Channel bridging,
thanks to industry-leading support for 4-Gigabit
Fibre Channel. Support for both FC and iSCSI pro­tocols allows storage devices such as disk drives,
tape drives and libraries, and CD jukeboxes to eas­ily attach to IP networks.

TM

2700R/D helps address this

iSCSI Bridge

Technical Highlights

• Four independent
Gigabit Ethernet ports to

two independent 4

Gigabit Fibre Channel

busses

• Near wire speed (99.5%)
sustained throughput—
120 MB/sec. per Gig-E
port

• Support for leading
iSCSI initiators, includ­ing Microsoft iSCSI Ini­tiator

• Gigabit Ethernet connec­tivity auto-negotiates to
10/100 Ethernet

• ExpressNAV

browser-based GUI for

remote administration
and diagnostics

• Configuration,
management, and
monitoring via Ethernet
and serial console port

• RoHS Com pl iant

• 2-year standard

product warranty

TM

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

iPBridgeTM 2700R/D

Gigabit Ethernet and Fibre Channel

Gigabit Ethernet Interface

Fibre Channel Interface

Management

Operating Environment

Local and Network Management

LEDs

Agency Approvals

Safety and Environmental

Environmental & Physical Specifications

Dimensions
Operating Environment

Power
Weight

Ordering Information

Model Number

• Four independent 100/1000 Gig-E RJ45 Ethernet ports

• Supports Microsoft iSCSI initiators

• Supports IP v.4

• Compliance with IEEE802.3ab Gig-E

• Compliance with IEEE 802.3x flow Control

• SNMP MIB 2.2 support

• 4.250-Gigabit

• Auto-negotiates to 2.125/1.0625-gigabit devices

• Two Optical SFP (Small Form Factor Pluggable) Fibre Channel Ports

• Full support for direct connect for F-port fabric switches

• Class 3 and intermix ANSI Fibre Channel Specifications

• PLDA, public loop login (NL-ports) and fabric connect (N-port)

• Full-duplex transmissions

• Operating system independent

• Supports all FC devices including hard disk drives, tape drives, RAID controller, DVD, MO and CD libraries

• Integrated web server for remote configuration, management and diagnostic capabilities

• Local diagnostics supported through CLI, SNMP, Telnet, FTP and SCSI Enclosure Services (SES)

• Command line and menu-based ASCII text management access via Ethernet

• Dedicated Ethernet Management Port

• MultiTarget Mode allows each Fibre Channel device to have its own Target (LUN) name

• Access Control Lists (ACLs)

• Virtual LAN (VLAN) support

• Multiple levels of password protection

• Ethernet link and activity

• FC activity

• Fault

• Ready

• FCC Class A

• CE EN55022

• CE EN55024

• RoHS Compliant

• Rack/Desk Enclosure: 1.579” (1U) H x 16.494” W x 10.000” L

• Operating: 5-40° C

• Temperature: user configurable integrated thermal sensor data for automatic shutdown Default 70° Celsius

• Air Flow: Recommended 11 CFM Ambient Air not to exceed 40° Celsius

• Humidity: 10-90% non-condensing

• 100-240VAC@1.7-0.8A

• 8 lbs.

• IPBR-2700-DR0

Technical Specification

iPBridgeTM 2700R/D

©2008 ATTO Technology, Inc. Specifications subject to change without notice

Power Behind the Storage

For More Information:

www.ATTOTech.com

or to Purchase:

www.ATTOStore.com

[phone]

Rev 2/08
