Attenti US XT06418, XT06318 User Manual
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
0
Table of Contents
Overview........................................................................................................................................ - 2 -
Operating Features .......................................................................................................................... - 3 –
Bracelet Details ............................................................................................................................... - 4 -
SMART Base Details ......................................................................................................................... - 5 -
Enrollment ....................................................................................................................................... -6-

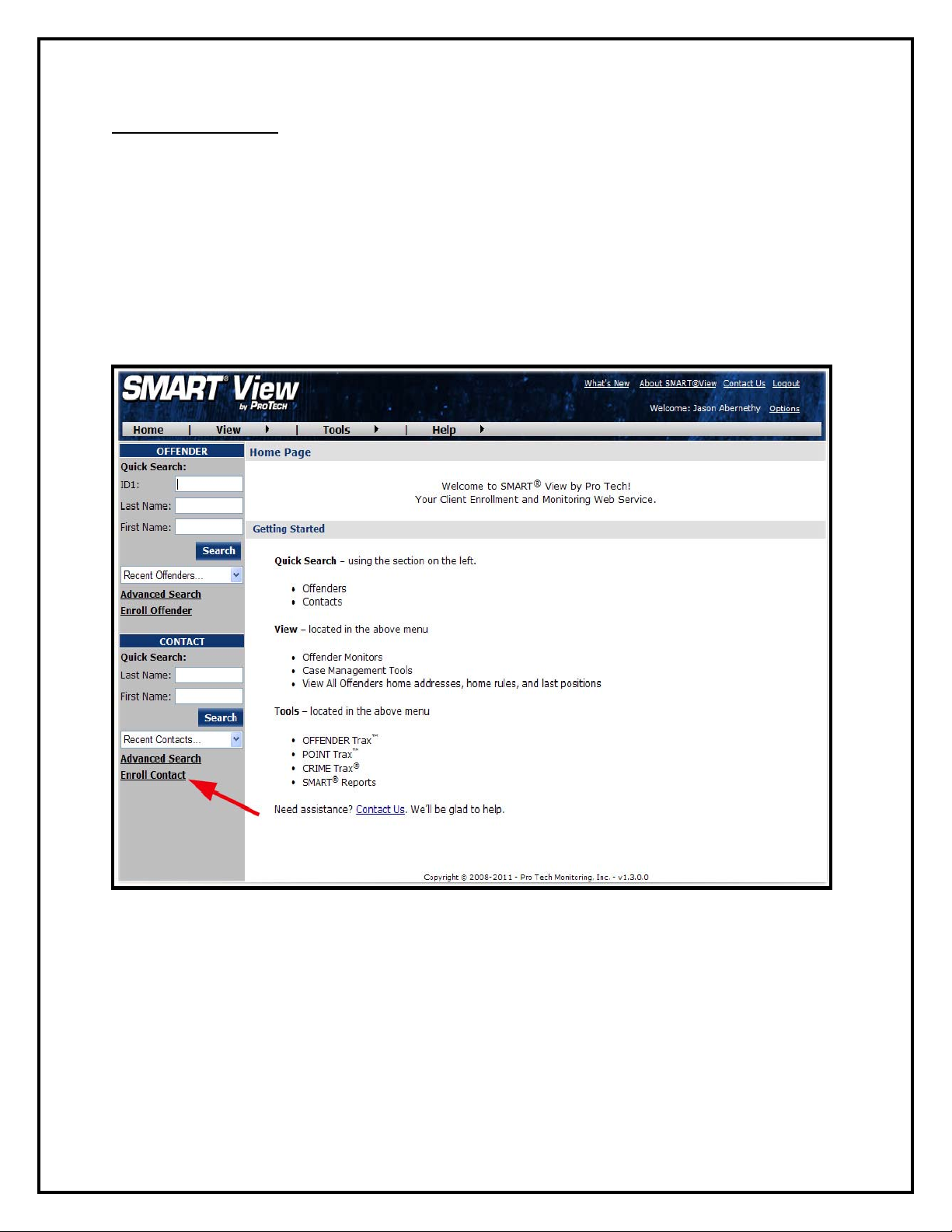

Enroll a Contact ............................................................................................................................ - 7-

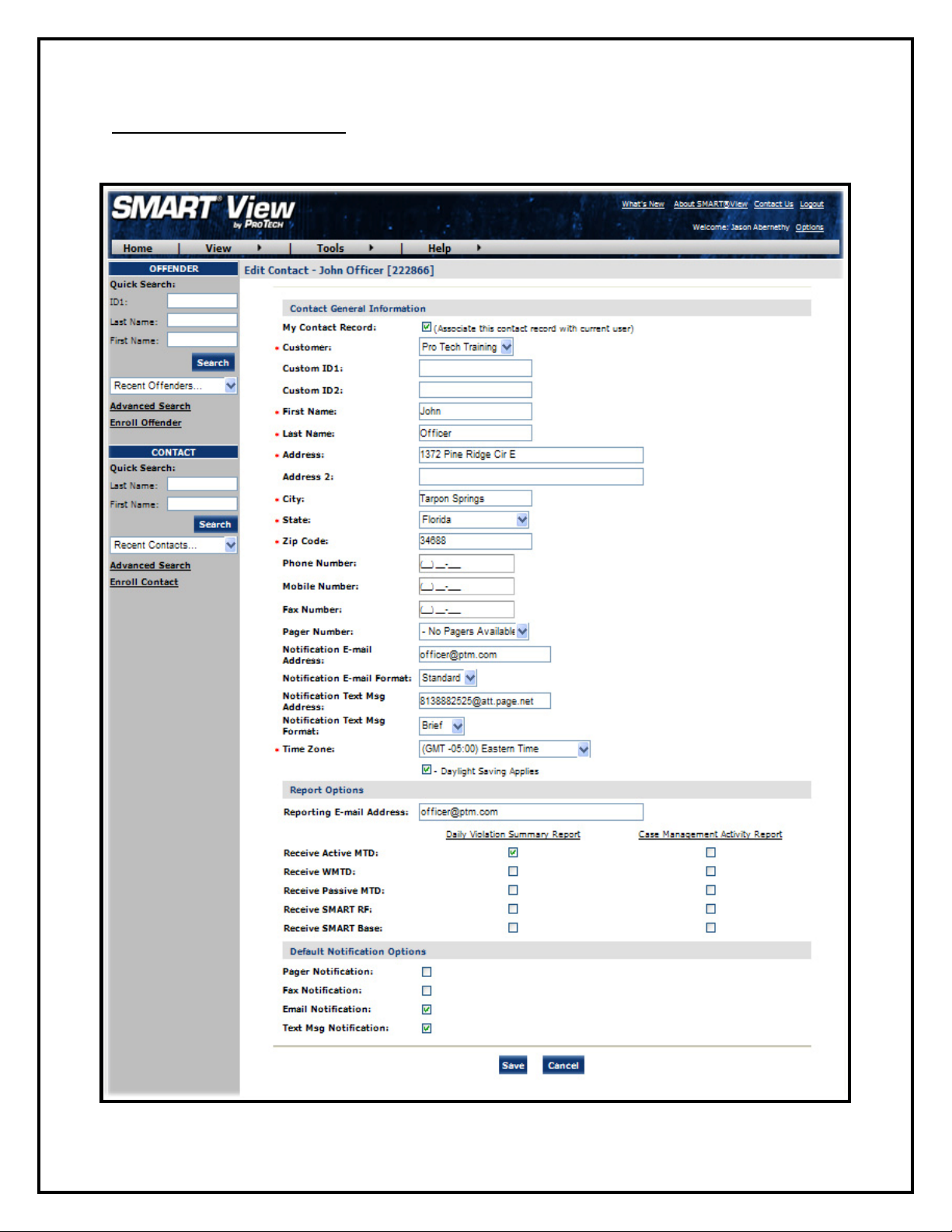

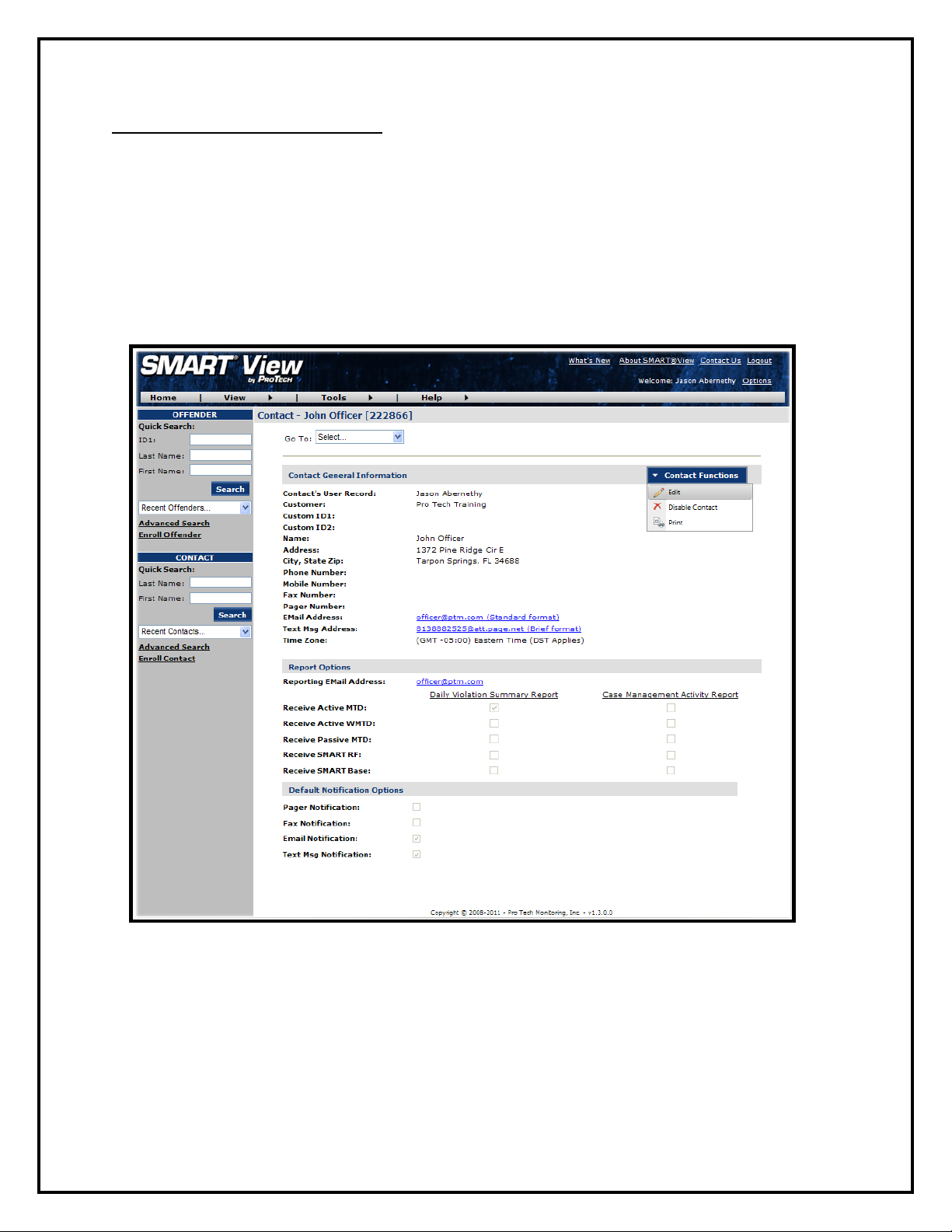

Contact Information Page ........................................................................................................... ..- 10 -

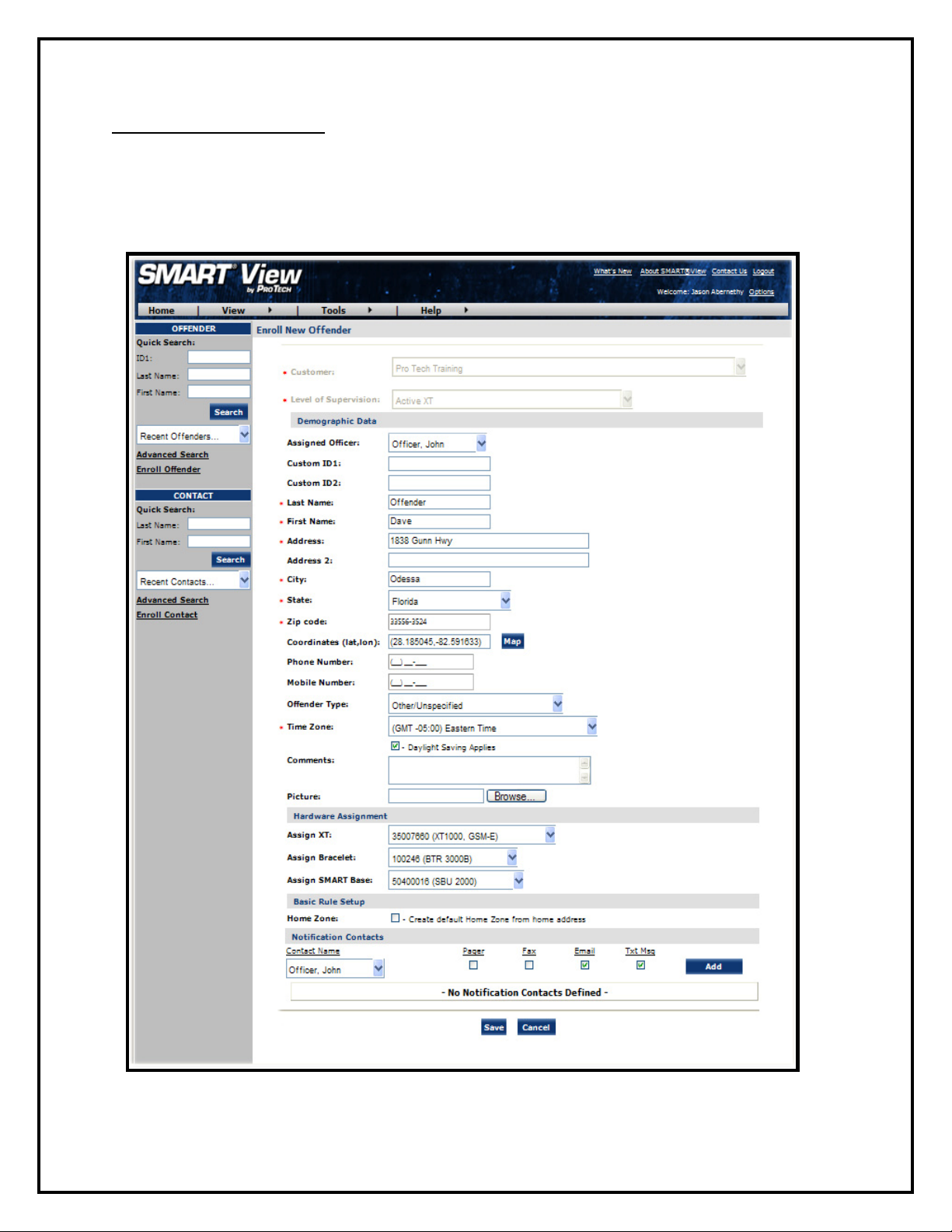

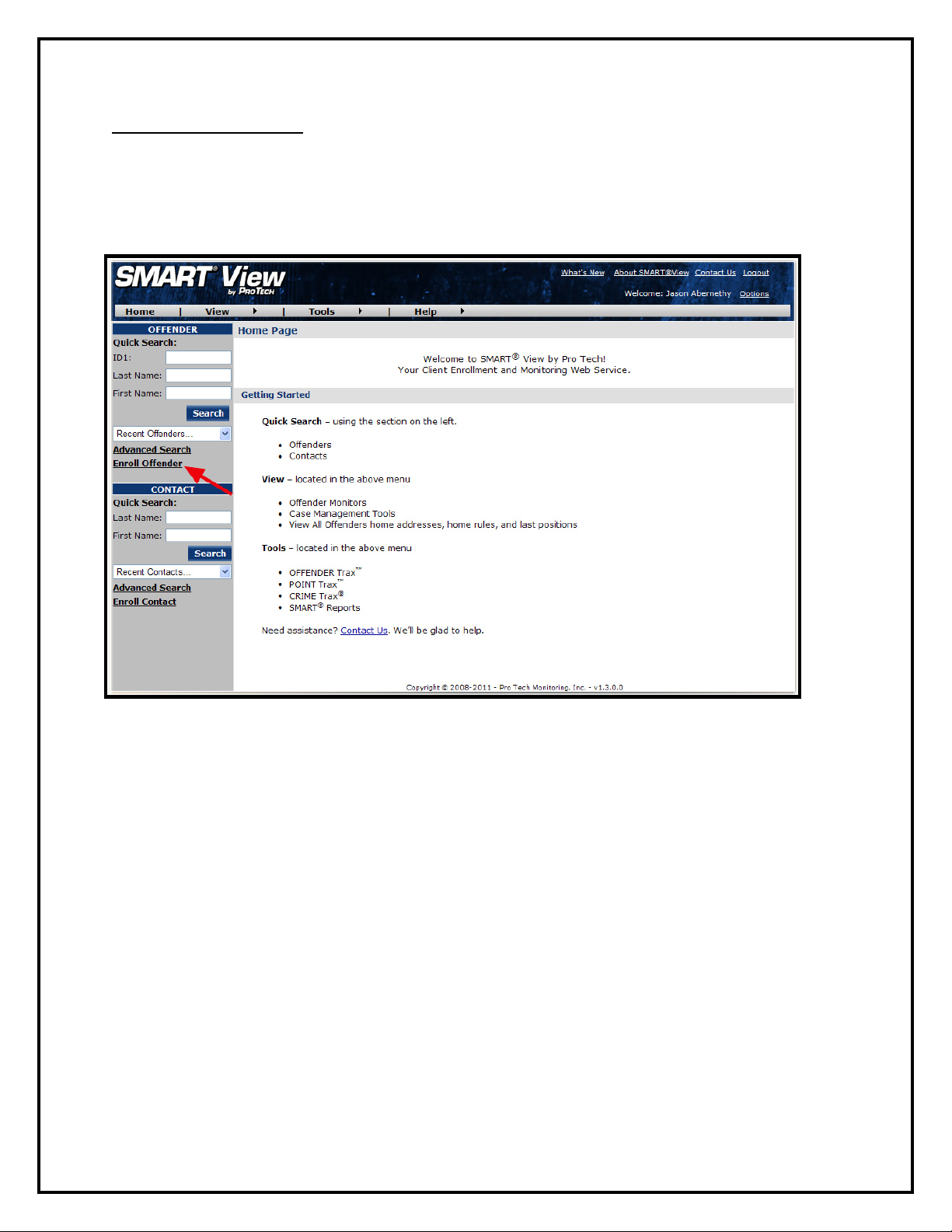

Enroll an Offender ....................................................................................................................... - 11 -

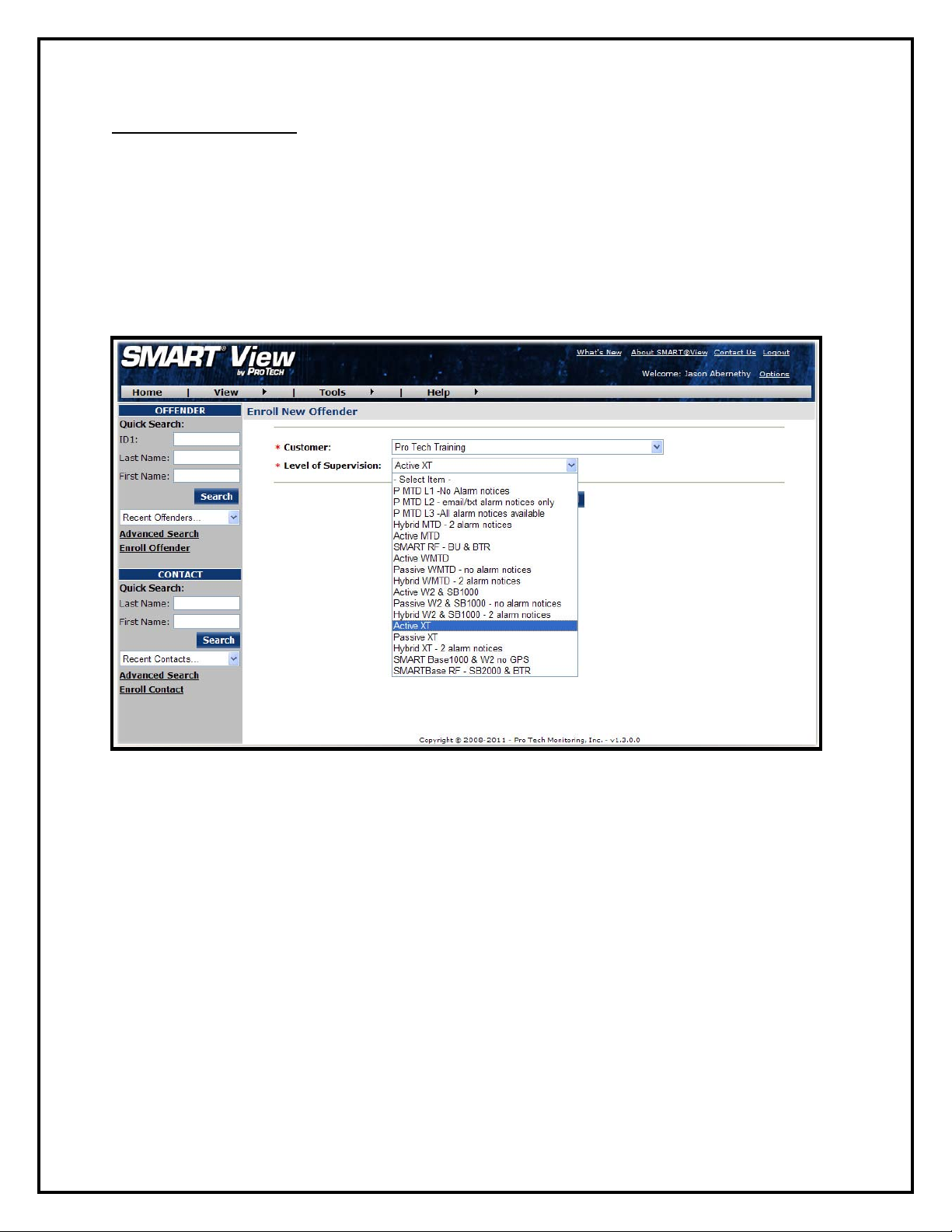

Supervision Level .......................................................................................................................... -12-

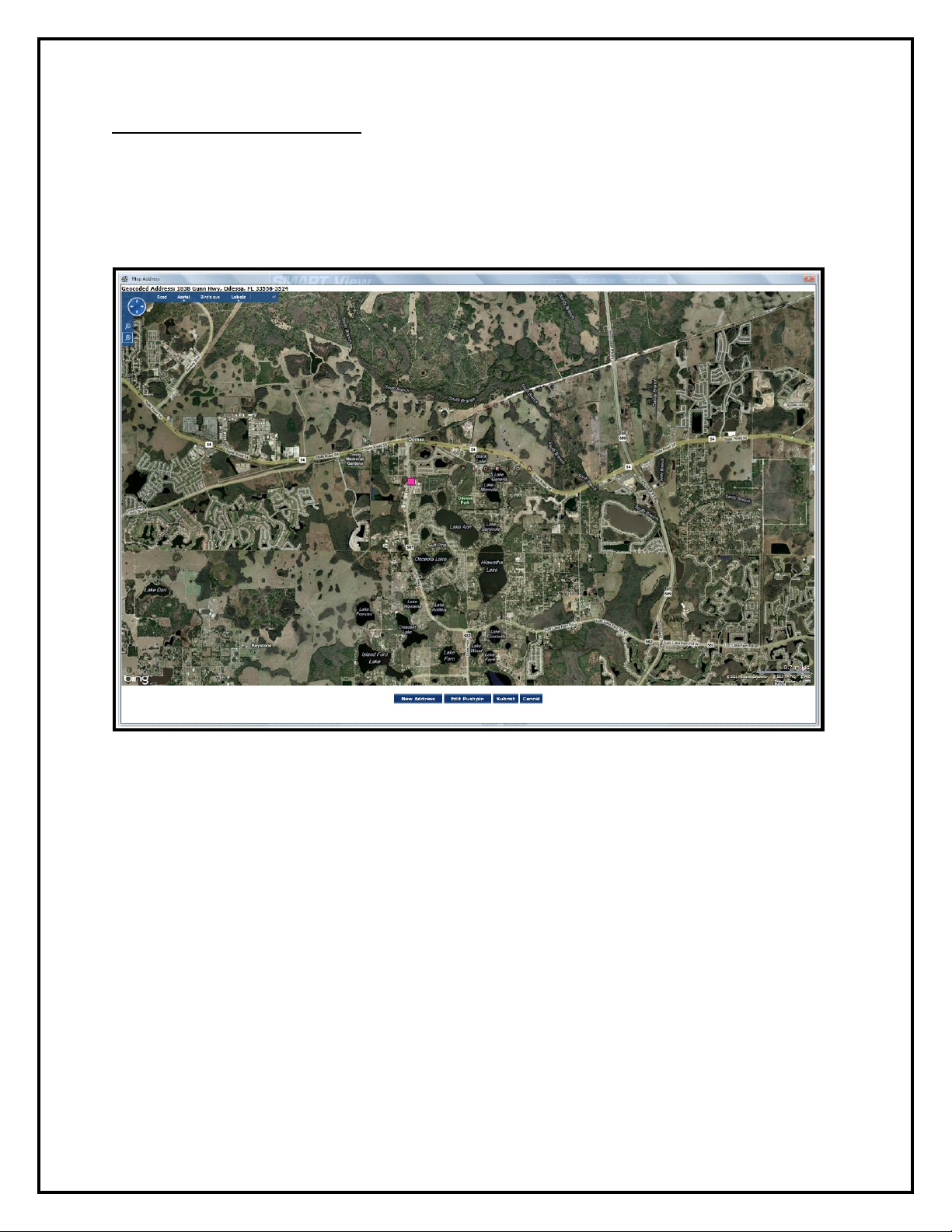

Map Offender’s Address ................................................................................................................ - 15-

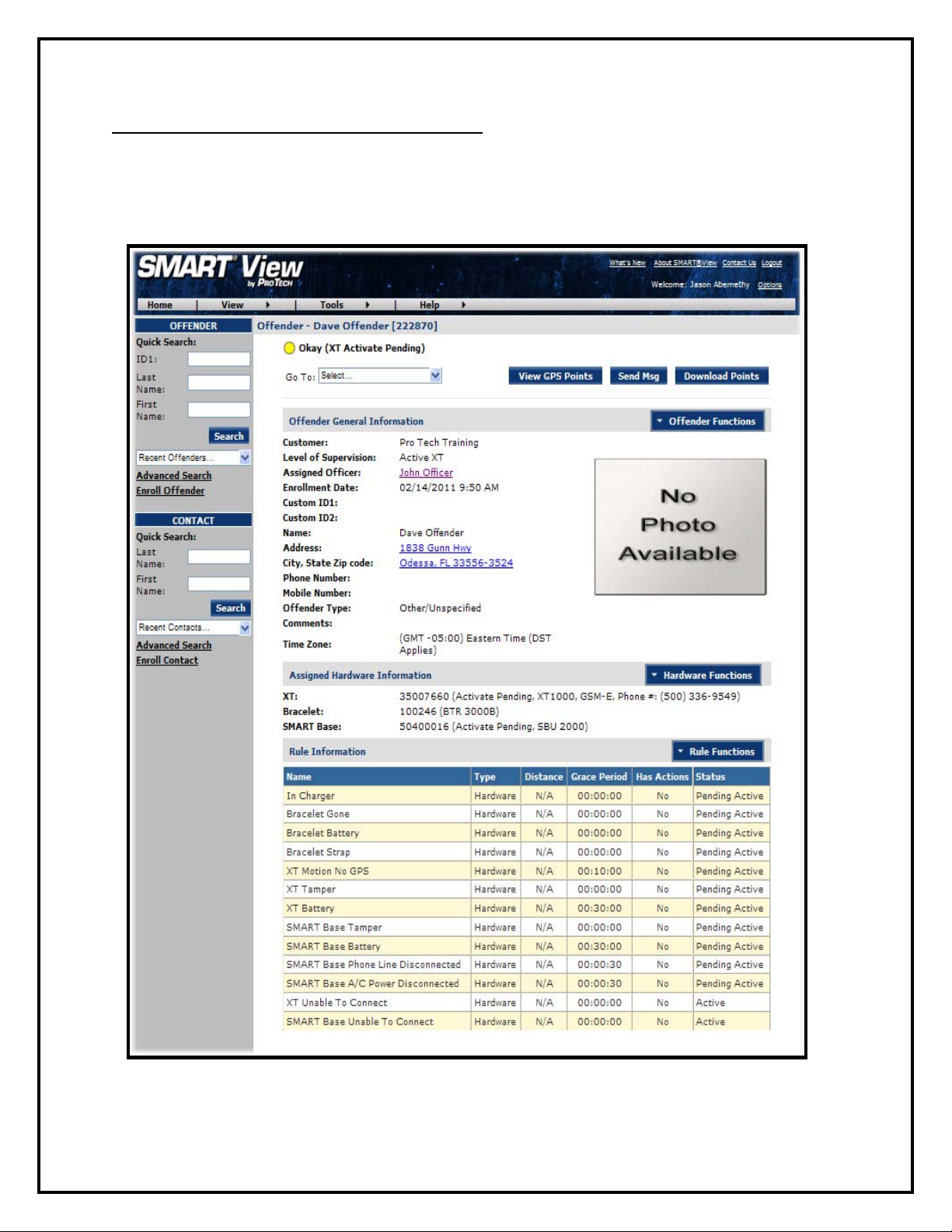

Offender General Information Page ................................................................................................. - 16-
Create Schedule for Home Inclusion Zone .......................................................................................... - 17-
Create Exclusion Zone ..................................................................................................................... - 21-
Activating the XT ........................................................................................................................... - 25 -
Deactivating Hardware .................................................................................................................... - 32 -
Removing the Bracelet ................................................................................................................... - 36 –
Appendix ....................................................................................................................................... - 38 -
Accessing the Officer Menu ............................................................................................................. - 40 –
Accessing the Offender Menu ........................................................................................................... - 41 -
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
1
Overview
Pro Tech’s SMART® XT utilizes GPS satellites to establish an offender’s location and uses
cellular networks to transmit the location data to Pro Tech. The SMART
GPS data every hour, unless there is a violation. If a violation has occurred, the GPS data is
transmitted immediately.
The SMART
and SMART
Note: Depending on the customer’s needs, the SMART
activating without the SMART
®
XT consists of four components: The Ankle Bracelet, the XT, the SMART® Base
®
View and the carrying pouch accessory.
®
®
Base are contained within this manual.
Base may not be utilized. Steps for
®
XT transmits all
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
2
Operating Features
Sim Card: The XT has a SIM card, which is similar to the data transmitter/receiver found in
most cellular phones. The XT uses the SIM card to transmit and download the GPS points it
has generated to Pro Tech’s servers. The call-in intervals vary, depending on whether or not
the XT is in active mode or passive mode. The differences between the two modes are
explained below:
Battery Life:
battery life. It takes approximately 4 hours to acquire a full charge. The daily life of the
battery is dependent upon the call-in interval of the dev ice, how often it goes to rest, and
how many violations are created. The battery must be charged each day in order to
continue to track your offender’s locations.
Range:
transmittal range will increase to 125- 150 feet.
The device should be given a full charge (4.2 volts) to supply a full day of
When undocked, the XT has a transmittal range of 75-100 feet. When docked, the
Vibrate feature: Officers can choose to enable the vibration mode to alert the offender of
any violations and/or messages. The vibration will continue until the offender has
acknowledged the violation and/or message.
Storing GPS Points:
rule is in violation, the XT will collect and store a GP S point every 15 seconds. The GPS
point history will then be transmitted to Pro Tech every hour or every six hours while in the
SMART Base – when in compliance. If the GPS point is in violation, the XT will contact Pro
Tech immediately.
The XT collects and stores a GPS point every minute. If a geographic
Call-in intervals: The XT calls Pro Tech every hour while out of the SMART Base, or every
6 hours while in the SMART Base - when in compliance. If in violation, the XT will contact
Pro Tech immediately.
At Rest:
the XT will go to “Rest” and collect a point at the top of every h o ur instead of every minute.
This feature is designed to conserve the battery lif e. While the XT is at rest, it will still be
communicating the bracelet and ensuring that the offender is in range.
Automatic Redial:
cellular coverage, it will continue calling until it is successful.
Magnetized Charger
while the battery is being recharged.
If the XT is left in the same place for 10 consecutive minutes without any motion,
If the XT is unable to communicate with Pro Tech because of poor
: The XT has a magnetized charger to prevent accidental disconnect
Carrying Pouch Accessory: In order to maintain compliance to RF exposure requirements
for body worn use the XT must be carried in the belt clip pouch to provide a minimum
1.5cm separation from the body.
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
3
Bracelet Details
Electronic Tether
The bracelet serves as an electronic tether to the XT.
Waterproof
The bracelet is waterproof up to 66 feet.
Battery Life
The bracelet battery is designed to last 9-12 months while in use and has a 2 year shelf life.
Tamper Detection
If an offender tampers with the bracelet by cutting the strap or breaking the tamper plugs
and/or pin trays, a violation will generate.
Hypoallergenic Rubber Straps
The bracelet comes with a hypoallergenic rubber strap that contains a fiber optic cable
designed to prevent tampering. The bracelet sends an infrared light through the fiber-optic
cable to complete a circuit. If the offender does anything to cause an interruption in the
infrared light running through the fiber-optic cable, they will cause a strap v iolat ion.
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
4
SMART Base Details
Charger: The SMART® Base acts as a charger for the XT. It takes approximately 4 hours to
fully charge the XT. The charge will last a minimum of 20 hours.
Communication:
SMART
®
Base will transmit the XT’s GPS data to Pro Tech.
Note: When the XT is docked or removed from the SMART
transmit the most recent GPS points to Pro Tech.
Caller ID Feature:
calling from a phone number not assigned to the offender. The SMART
out from the offender’s assigned home telephone number.
An analog phone line can be plugged into the device. Every six hours, the
®
Base, the SMART® Base will
The SMART® Base has a built-in feature that prevents the device from
®
Base will only dial
Pro Tech Monitoring Inc. Issue Date: 2/14/2011 Please check online for the most up to date version.
5
