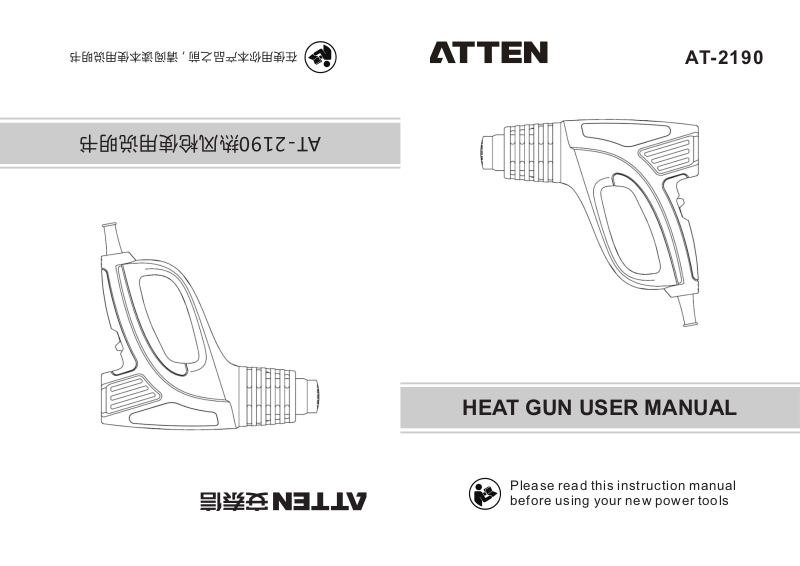

Atten AT-2190 User Manual

在使用你本产品之前，请阅读本使用说明书

AT-2190

AT-2190热风枪使用说明书

HEAT GUN USER MANUAL

Please read this instruction manual
before using your new power tools

或运动部 件。受损或缠绕的电线会增加 触电危险。
不能滥用 电源线。绝不能用电线搬运、 拉动电动工 具或拔出其 插头。让电线远离热、油、锐 边

④

不得将电 动工具暴露在雨中或潮湿环境 中。水进入 电动工具将 增加触电危险。

③
②

避免人体 接触接地表面，如管道、散热 片和冰箱。 如果你身体 接地会增加触电危险。
转换插头 。未经改装的插头和相配的插 座将减少触 电危险。
电动工具 的插头必须与插座相配。不能 以任何方式 改装插头。 需接地的电工工具不能使用任 何

①

3. 2 电气 安全

让儿童和 旁观者离开后操作电动工具。 分心会引发 事故。

③
燃灰尘或 气体。
不要在易 爆环境，如易燃液体、气体或 灰尘的环境 下操作电动 工具。电动工具产生的火花会 点

②

保持工作 场所清洁和明亮。混乱和黑暗 的场地会引 发事故。

①

3. 1 工作场所

动（无线 ）电工工具。
严重伤害 。在所有以下列举的警告中， 术语“电动 工具”指使 电驱动（有线）电动工具或电 池驱
阅读所有 的安全警告和所有的指令。没 有按照以下 列举的说明 使用或操作将导致触电、着火 和/或

3. 一般电动工具安全规则

警告!包装材 料不是玩具!小孩不能玩塑料袋，防止发生窒 息的危险!

Your h eat gun has b een des ig ned for s tr ippin g pa int, so ld ering p ip es, shr in king PV C, w eldin g
and be nding pla stic as wel l as genera l drying an d thawing p urposes .

WAR NING! Rea d this manu al and gene ral safet y Instruc tions car efull y be fore us in g
the ap pliance , for your ow n safety. Your pow er t ool sho ul d only be p as sed on
toge ther with t hese inst ruction s.

2.DESCRIPTIO N

① Nozz le
② Venti latio n slots
③ On/off s witch ( 0/Ⅰ/Ⅱ )

①

Remo ve all pack ing mater ials
Remo ve remain ing packa ging and tr ansit sup ports(i f existin g)
Chec k the compl eteness o f the packi ng conten t
Chec k the appli ance, the p ower cord , the power p lug and all a ccessor ies for tra nsporta tion
dama ges.
Keep t he packag ing mater ials as far a s possibl e till the en d of the warr anty peri od. Dispo se
it int o yo ur loca l waste dis posal sys tem after wards.

WAR NING! Pac king mate rials are n o toys! Chi ldren mus t not play wi th plasti c bags!
Dang er of suffoca ti on!

②

③

1 Heat g un
1 Set of a cc essor ies (Acce ssories m ay not be nec essaril y be includ ed)

①

③

②

③ 开关(II /I/0)
② 通风口

① 喷嘴

1 Inst ru ction m anual

When p arts are mi ssing or da maged, pl ease cont act your de aler.

2. 产品描述

警告！为 了你的自身安全，使用本机器 前，请仔细 阅读本手册 和一般安全说明。

性干燥和 融化、解冻等。
本热风枪 的设计目的是用于：除漆、焊 管、收缩PVC、焊 接和弯曲塑 料制品以及 可以用来一般

4.1 Work area

1. 用途

4.2 El ec trica l safety

具的安全 性。
将你的电 动工具送交专业维修人员，必 须使用同样 的备件进行 更换。这样确保所维修的电动 工

3. 5 维修

c shoc k.

When o peratin g a power too l outdoor s, use an ext ension co rd suitab le for outd oor use.
Use of a c ord suita ble for out door use re duces the r isk of elec tric shoc k.

If ope ra ting a po wer tool on a d amp locat ion is unav oidable , use a resid ual curre nt device
(RCD ) protect ed supply. Use o f an R CD redu ce s the ris k of e lectr ic s hock.

4.3 Pe rsonal sa fety

危险情况 。
业来使用 电动工具、附件和工具的刀头 等。电动工 具用作那些 与要求不符的操作可能会导致

⑥

安装使用 说明书以及打算使用的电动工 具的特殊类 型要求的方 式，考虑作业条件和进行的作
条件。如 有损坏，电动工具必须在使用 前修理好。 许多事故由 维护不良的电动工具引发。
保养电动 工具。检查运动部件的安装偏 差或卡住、 零件破损情 况和影响电动工具运行的其他

⑤
解的人操 作电动工具。电动工具在未经 过训练的用 户手中是危 险的。
将闲置的 电动工具存放在儿童所及范围 之外，并且 不要让不熟 悉电动工具或对这些说明不了

④
动工具突 然启动的危险。
在进行调 节、更换配件或存放工具之前 ，必须从电 源上拔掉插 头。这种防护性措施将减少电

③
是危险的 ，必须进行修理。
如果开关 不能接通或关断工具电源，则 不能使用该 电动工具。 不能用开关来控制的电动工具

②
作有效、 更安全。

不要滥用 电动工具，根据用途使用适当 的电动工具 。选用适当 设计额值的电工工具会使你工

①

3. 4 电动 工具使 用和注意事 项

些装置可 减少碎屑引起的危险。

⑥

如果提供 了与排屑装置、集尘设备连接 用的装置， 则确保他们 连接完好且使用得当。使用这
配饰或头 发可能会卷入运动部件。
着装适当 。不要穿宽松衣服或佩戴饰品 。让你的头 发、衣服和 手套远离运动部件。宽松衣服 、

⑤

手不要伸 的太长。时刻注意脚下和身体 平衡。这样 在意外情况 下能很好地控制电动工具。

④
会导致人 身伤害。
在电动工 具通电之前，拿掉所有调节钥 匙或扳手。 遗留在电动 工具旋钮零件上的扳手或钥匙

③
置。手指 放在已接通电源的开关上搬运 工具或开关 处于接通状 态时插入插头可能导致危险。
帽、听力 防护等装置能减少人身伤害。 避免突然启 动。确保开 关在插入插头时处于关断位
使用安全 装置。始终佩戴护目镜。安全 装置，如适 当条件下的 防尘面具、防滑安全鞋、安全

②
或治疗反 应下操作电动工具。在操作电 动工具期间 精力分散会 导致严重的人身伤害。

①

保持警觉 ，当操作电动工具时应关注所 从事的操作 并保持清醒 。请勿在有疲劳、药物、酒精

3. 3 人身 安全

器能帮助 减少电击风险。
如果不得 不在潮湿的环境下操作电动工 具,需用漏电保 护器（RCD)来提供保护。使用漏电 保护

⑥
险。
当在户外 使用电动工具时，使用适合户 外使用的外 接电线。适 合户外使用的电线将减少触电 危

⑤

4.4 Po we r tool us e an d care

确保不要 把任何东西掉入喷嘴中。
确保喷嘴 的始终指向远离你和任何旁观 者。

小心启动 工具。

③

固定电源 线材，以防工具脱离工作台。

②

把工具放 置到工作台。

①

此工具也 可以用在固定的模式

5.2固定 使用

要关闭热 风枪，先将温度调整最低，冷却， 然后推动开 关到0。让热风 枪冷却后再 移动或贮藏。

②
①

要开启热 风枪，推动开关到Ⅰ /Ⅱ。启动初 期，热风枪 会有少量烟 冒出，这是正常的。

5. 1开启 和关闭

设置所需 的空气温度。
安装应用 目标的正确的配件。
一手紧握 此工具,操作前请勿将另一只手放 在通风口。
始终遵守 安全指示和适用的法规。

5. 使用说明

除漆，清 除旧的、厚的油层或油漆层， 以及石灰泥

④

松动生锈 或固定螺母和紧密螺栓

③

弯曲塑料 管材和板材

②

焊接热塑 性塑料，PVC地板，上 了PVC保护层的面料，PVC遮蓬， PVC膜

①

I I 档

Do not f orce the po wer tool. U se the corr ect power t ool for you r applica tion. The cor re ct
powe r tool will d o the job bet ter and saf er at the rat e of which it w as design ed.

Do not u se the powe r tool if the s witch doe s not turn it o n and off. Any pow er t ool tha t
cann ot be contr olled wit h the switc h is danger ous and mus t be repair ed.

Disc onnect th e plug from t he power so urce befo re making a ny adjust ments, ch anging
acce ssories , or storin g power too ls. Such pr eventiv e safety me asures re duce the ri sk
of sta rt ing the p ower tool a ccident ally.

Stor e idle powe r tool out of t he reach ch ildren an d do not allo w persons u nfamili ar with the
powe r tool of the se instru ctions to o perate th e power too l. Power to ols are dan gerous in t he
hand s of untrai ned users .

Main tain powe r tools. Ch eck for mis alignme nt or stick ing of movi ng parts, b reakage o f parts
and ot her condi tion that m ay aff ect the p ow er tool ’s o pe ratio n. I f damag ed , have th e po wer
tool r epaired b efore use . Many acci dents are c aused by po orly main tained po wer tools .

Keep c utting to ols sharp a nd clean. P roperly m aintain ed cuttin g tools wit h cutting e dges
are le ss likely t o stick and a re easier t o control .

Use th e power too l, access ories and t ool bits et c., in acco rdance wi th these in structi ons
and in t he manner i ntended f or the part icular ty pe of power t ool, taki ng into acc ount the
work ing condi tions and t he work to be p erforme d. Use of the p ower tool f or operat ions
differ en t from in te nded co ul d lead to a h az ardou s si tuati on .

4.5 Se rvice

溶化结冰 的阶梯，门锁，车箱盖，车门 和水管，解 冻冰箱、冰 盒上的积霜。

⑦

收缩包装 和绝缘PVC管

⑥

打蜡和脱 蜡

⑤
程，熔开 粘合点以及去除或黏上板块边 缘的塑胶膜 。
催化粘合 剂例如催化接合平面的接触粘 合剂，活化 附着胶水， 加速胶合过

④
清除贴纸

③
烘干潮湿 的木板

②
烘干色调 的试样，填料，粘合剂，施工 缝和石膏模 型

①

应用

I 档

设置

温度分为 两档，以适应广泛的应用范围 。下表显示 为不同的应 用设置。

此前装配 和调整的方法是拔掉工具

4. 组装与调试

Do not o bstruct e ither the a ir intake o r nozzle ou tlet, as th is may caus e excessi ve heat
buil d up result ing in dama ge to the too l.

Do not d irect the h ot air blas t at other pe ople.

Do not t ouch the me tal nozzl e as it becom es very hot d uring use a nd remain s hot for up to
30 min utes afte r use.

Do not p lace the no zzle agai nst anyth ing while u sing or imm ediatel y after use .

Do not p oke anyth ing down th e nozzle as i t could giv e you an elec tric shoc k. Do not loo k
down t he nozzle w hile the un it is worki ng becaus e of the high t emperat ure being p roduced .

Do not a llow pain t to adhere t o the nozzl e or scrape r as it could i gnite aft er some tim e.

Do not u se this too l to remove p aint cont aining le ad. Th e peeli ng s, resi du e and vap or s of
pain t may conta in lead, wh ich is pois onous. Any p re-1960 b uilding m ay have bee n
pain ted in the pa st with pai nt contai ning lead a nd covere d with addi tional la yers of pai nt.
Once d eposite d on surfac es, hand to m outh cont act can res ult in the in gestion o f lead.
Expo sure even t o low level s of lead can c ause irre versibl e damage to t he brain an d
nerv ous syste m. Young and un born chil dren are pa rticula rly vulne rable.

When r emoving p aint., en sue that th e work area i s enclose d. Prefer ably wear a d ust mask.

Do not b urn the pai nt. Use the s craper an d keep the no zzle at lea f 25 mm away fr om the
pain ted surfa ce. When wo rking in a ve rtical di rection , work down wards to pr event pai nt
from f al ling in to the tool a nd burnin g.

Disp ose of all pa int debri s safely an d ensure th at the work a rea is thor oughly cl eaned
afte r co mplet ing the wor k.

Prio r to a ssemb ly a nd adju st ment al wa ys unpl ug t he tool

The ai r te mpera ture can be a djusted t o suit a wide r ange of app licatio ns. Th e table b el ow
sugg ests sett ings for di ff er ent app li catio ns .

Setting

I

Applications

Remo ving stic kers.

Join ing adhes ives-La rge-sur face glui ng with con tact adhe sives, ac tivatio n
of pre ssure-s ensitiv e adhesiv es, accel eration o f bonding p rocesse s,
rele asing of bo nding poi nts as well a s releasi ng or bondi ng of edge ba nd or
vene er.

Wax ing and de- waxing.

Shri nking PVC w rapping a nd insula tion tube s.

Defr osting of i cy stairs a nd steps, d oor locks , trunk lid s, car door s or water
pipe s, as well as f or defros ting refr igerato rs and ice bo xes.

Ⅱ : 600℃；500 L/min
Ⅰ: 450℃；300L/min

2000 W

220-240 V ~ 50HZ

温度/空气流量

功率
电压

6. 技术数据

或贮藏工 具。关闭工具，让它至少冷却3 0分钟。
喷嘴和配 件在使用期间，喷嘴和配件的 温度变得非 常高温。需 等这些零件冷却下来后才可移 动

5. 3冷却

Voltage

Power supply

Air tem perature
/ Flow

220-240 V ~ 50HZ

2000 W

Ⅰ: 450℃；300L/min
Ⅱ : 600℃；500 L/min

Bend ing plast ic pipes an d sheets.
Sold ering plu mbing joi nts, tin, s pecial si lver sold er, SMD elem ents, cab le

II

If you a re n ot sure a bo ut the co rr ect set ti ng, sta rt w ith a low t em perat ur e setti ng
and gr ad ually i nc rease t he t emper at ure unt il y ou achi ev e optim um r esult s.

7.1 Mo un ting th e co rrect a cc essor y (i f appli ca ble)

lugs .
Loos ening rus ted or tigh tly faste ned nuts an d bolts.

Remo ving old an d even thic k coating s of oil pain t , lacquer, v arnish an d
synt hetic pla ster.

Your p urchase r eceip t mu st be kep t as p roof of dat e of purcha se.

Your a pplia nc e must be r et urned u n- disma nt led to yo ur d ealer i n an a ccept ab ly clea n
stat e, a ccomp anied by yo ur proof of p urchase .

12. ENV IRONMEN T

Shou ld your app liance ne ed replac ement aft er extend ed use, do no t discard i t with the
hous ehold rub bish but di spose of it i n an enviro nmental ly safe way.

Was te produc ed by elect rical mac hine item s shoul d no t be hand le d like no rm al hous eh old
rubb ish. Plea se recycl e where fac ilities e xist. Che ck with you r Local Auth ority or re tailer
for re cy cling a dvice.

Tel:[phone]

Web :w ww. at te n. co m
Facebook:https://www.facebook.com/attencn/

E-mail:[email protected]

Fax:[phone]

MADE I N CHI NA

Icon

Description

Glas s protect ion nozzl e

Cone n ozzle Weldin g, s hrink s le eving ( he at

Fish t ai l surfa ce nozzle Dryi ng, thawi ng (heat sp read over

Scra per Stri pp ing pai nt and varn ish

Purpose

Prot ection wi ndows whe n
stri pping fra mes

Sold ering pip es

conc entrate d over smal l area )

wide r area )

Make s ure that th e to ol is swi tched off and t he n ozzle h as c ooled d ow n.

Touchi ng a hot nozz le can lead t o serious b urns .Bef ore attac hing or rep lacing a
nozz le, allow t he unit to co ol down com pletely o r use a suita ble tool.

An inc orrect or d efectiv e nozzle ca n lead to hea t accumul ation and d amage the u nit.
Use on ly origin al nozzle s accordi ng to the tab le that are s uitable f or your uni t.

8.INS TRUCTIO NS FOR USE

Alwa ys observ e the safet y instruc tions and a pplicab le regula tions.

Use on ly one hand t o hold the to ol, do not pl ace your ot her hand ov er the air ve nts.

Prio r to o perat ion :

Moun t th e corre ct access ory for the a pplicat ion.

8.4 St ationar y us e

This t oo l can als o be used in st ationar y mode.

Secu re the cabl e to preven t pulling t he tool off the w or kbenc h.

Care fully swi tch the too l on.

Make s ure that th e nozzle al ways poin ts away fro m you and any b ystande rs.
Make s ure not to dr op anythi ng into the n ozzle.

8.5 Co ol ing dow n

The no zzle and ac cessory b ecome ver y hot durin g use. Let th em cool dow n before at temptin g
to mov e or store th e to ol.

To reduc e the cooli ng time, se t the on/off sw it ch to pos it ion Ⅰ and l et i t run for a f ew m inute s.

Swit ch the tool o ff a nd l et it coo l do wn for at l ea st 30 min ut es.

9.MAINTENANCE AN D CLEANIN G

Set th e de sired a ir temper ature.

8.1 Sw it ching o n an d off

To switc h th e tool on , set the on/ off sw itch to p os ition Ⅰ /Ⅱ . So me smok e ma y be emit te d
afte r sw itchi ng on; this d oes not ind icate a pro blem.

To switc h th e tool off, s et t he on/o ff swi tch to posi tion Ⅰ , and le t it run for a fe w minutes .
Then s et the on/o ff s wi tch to po si tion 0. L et t he tool c oo l down be fo re movi ng o r stori ng i t.

8.2 Tempe ra ture se tt ing

Turn ON/OFF switch to Ⅰ/Ⅱ, depending on temperature you need. The heat gun will start to buzz.

8.3 St ri pping p ai nt

Moun t an approp riate acc essory.

Set a hi gh air temp erature .

Swit ch the tool o n.
Dire ct the hot ai r onto the pa int to be rem oved.

When t he paint so ftens, sc ra pe the pa int away us ing a hand sc raper.

Do not strip metal window frames, as the heat may be conducted onto the glass
and crack it. When stripping other window frames, use the glass protection nozzle.

Do not k ee p the too l di recte d at o ne spot t oo l ong to pr ev ent ign it ing the s ur face.

Avo id collec ting pain t on the scra per acces sory, as it may ig ni te. If ne ce ssary,
care fully rem ove paint d eb ris fro m th e scrap er access ory using a k nife.

Atte nt ion! Be fo re perf orming an y work on the e quipmen t, pull the p ower plug .

9.1 Ma in tenan ce

Your P ower Tool has bee n designe d to operat e over a long p eriod of ti me with a min imum of
main tenance . Continu ous satis factory o peratio n depends u pon prope r tool care a nd regula r
clea ning.

9.2 Lu br icati on

Your p ower tool r equir es n o addit io nal lub ri catio n.

9.3 Cl ea ning

Keep t he ventil ation slo ts clear an d regular ly clean th e housing w ith a soft cl oth.

9.4 Cl ea ning

Keep t he ventil ation slo ts of the mac hine clea n to preven t overhea ting of the e ngine.

Regu larly cle an the mach ine housi ng with a sof t cloth, pr eferabl y after eac h use.
Keep t he ventil ation slo ts free fro m dust and di rt.

If the d ir t does no t co me off use a so ft c loth mo is tened w it h soapy w at er.

Neve r use solve nts such as p etrol, al co hol, am mo nia wat er, e tc. The se s olven ts
may da mage the pl as tic par ts .
