DuraShield | Opaque Cover | W
FLUSH FITTING COVER FASTENED BY CAPTIVE LID SCREWS
CONSTRUCTION
Material (Box & Cover) Hot Compression Molded Fiberglass Reinforced Polyester (Thermoset)
Gasket Material Poured polyurethane seamless gasket
Cover Screw Material 304 Stainless Steel
Cover Screw Size M6 x 35 mm
Cover Screw Torque 17-22 in.-lbs.
Mounting Bosses Panel mounting capability for fixed rear panel
Metal Inserts All bosses utilize threaded brass inserts accepting M6 screws
Soft Edge Design Rounded Edges, Minimal Protrusions Or Exposed Pocket Areas
INDUSTRY STANDARDS
UL/cUL File # E64358
NEMA Ratings 1, 3, 3S, 4X, 6, 6P, 12
(UL508A, UL50 & UL50e)
CSA Std. C22.2 File # LR069014
IEC 60529 Ratings IP66, IP67, IP68
Temperature Range (-26°F to +257°F) (-32°C to +125°C)
Flammability Rating UL94-V0
8
DuraShield (DUL)
Self Extinguishing Non-halogenated, Non-flame propagating
Certifications UL, CSA, CE, REACH, RoHS
Outdoor UV Exposure (UL 746C) (f1) Rated
Chemical Resistance See chart on page 120
W
ACCESSORIES
BACK PANELS
Aluminum BPDU__A pg. 109
ACCESSORIES
4X Breather Vent pg. 102
4X Drain Vent pg. 102
PluggIt pg. 103
Mounting Feet pg. 113
Thermal Accessories pg. 115
All Other Accessories Pg. 102-117
MODIFICATIONS
Custom Colors pg. 10-11
Silk Screening pg. 10-11
Custom Cutouts/Holes pg. 10-11
58
DuraShield | Opaque Cover | W

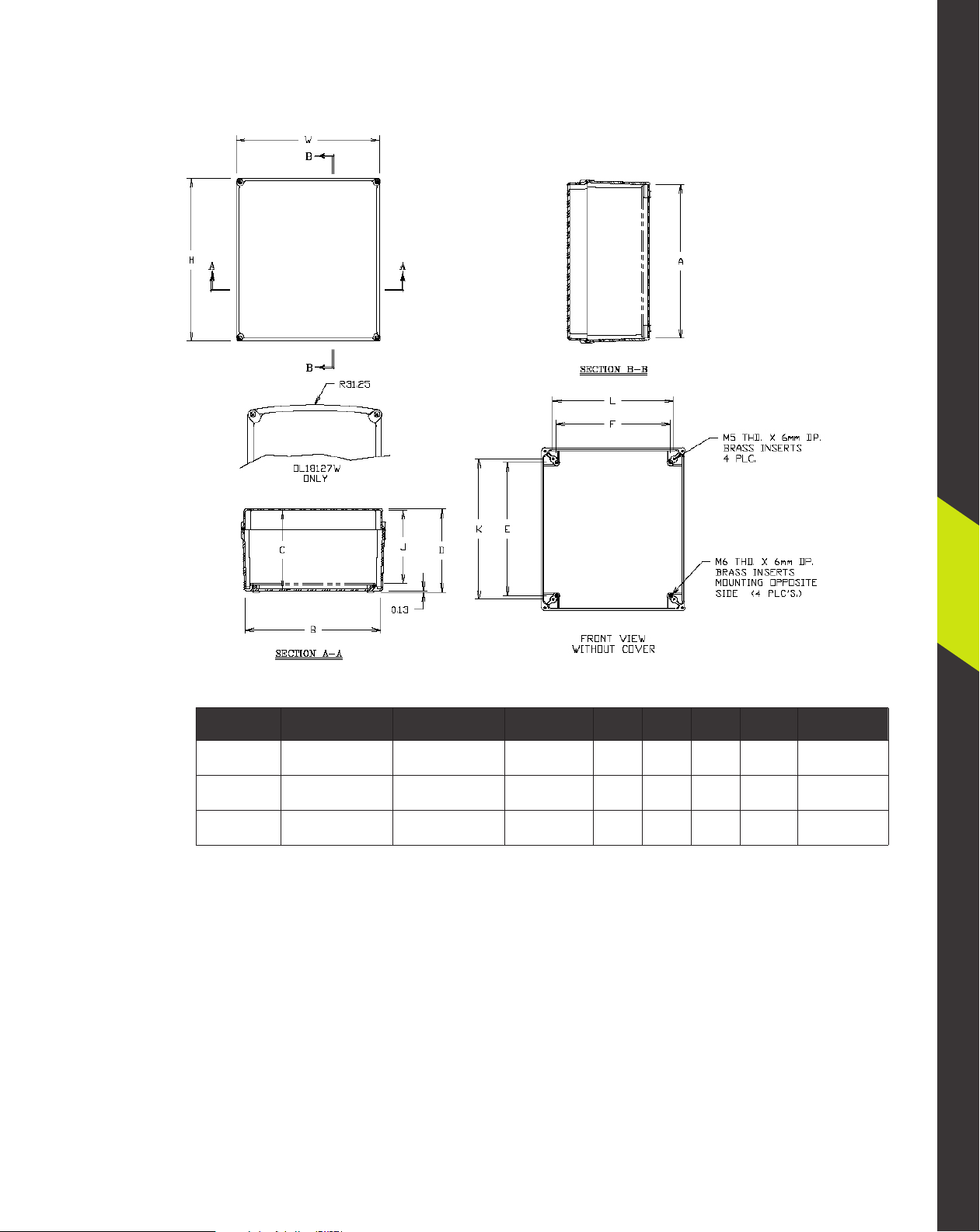

TECHNICAL DRAWINGS / DIMENSIONS
8
DuraShield (DUL)
DURASHIELD W DIMENSIONS
DURASHIELD W DIMENSIONS
SIZE ID
NUMBER
DUL18127W
DUL18168W
DUL24168W
Caution: Metric units are for reference; do not convert
* Panel ordered separately
OVERALL
H X W X D
16.54 x 10.63 x 7.22
(420 x 270 x 183)
16.54 x 14.57 x 8.44
(420 x 370 x 214)
23.63 x 16.54 x 8.44
(600 x 420 x 214)
15.02 x 9.12 x 6.85
(382 x 232 x 174)
15.56 x 13.59 x 7.99
(395 x 345 x 207)
22.67 x 15.55 x 7.99
(576 x 395 x 207)
INSIDE
A X B X C
MOUNTING E X F J K L
12.68 x 7.17
(322 x 182)
13.54 x 11.57
(344 x 294)
20.63 x 13.54
(524 x 344)
6.26
(159)
7.44
(189)
7.44
(189)
13.46
(342)
14.25
(362)
21.34
(542)
(202)
12.24
(311)
14.21
(361)
SHIPPING
WEIGHT
7.95
5.5 LBS BPDU1812A*
9.9 LBS BPDU1816A*
15.4 LBS BPDU2416A*
PANEL
NUMBER
W
59
