AT&T SynJ SB67148 User Manual

User’s manual

SynJ SB67148 DECT 6.0 4-line expansion deskset for use with AT&T model SynJ SB67118/SB67138

Congratulations

Compatible with

Hearing Aid T-Coil

TIA-1083

on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information on pages 76-77 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (888) 915-2007. In Canada, dial 1 (866) 288-4268.

Model number: SynJTM SB67148

Type: DECT 6.0 expansion deskset

Serial number:

Purchase date:

Place of purchase:

Both the model and serial numbers of your AT&T product can be found on the bottom of the deskset.

Save your sales receipt and original packaging in case it is necessary to return this product for warranty service.

Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license.

The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to supply this product with an ENERGY STAR® qualified power adapter meeting the latest energy efficiency guidelines.

© 2010 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China.

SynJ

is a trademark of Advanced American Telephones.

Parts checklist

Check to make sure the telephone package includes the following items:

User’s manual

SynJ SB67148 DECT 6.0 4-line expansion deskset for use with AT&T model SynJ SB67118/SB67138

User's manual

cord installed

Quick start guide

SynJ SB67148 DECT 6.0 4-line expansion deskset for use with AT&T model SynJ SB67118/SB67138

Quick start guide

Deskset

Backup batteryHandset with coiled

Deskset power adapter

Additional directory card

User’s manual

SynJ SB67148 DECT 6.0 4-line expansion deskset for use with AT&T model SynJ SB67118/SB67138

Table of contents

Getting started

Quick reference guide ..............................1

Installation ...................................................... 4

Deskset installation ....................................5

Backup battery installation .................... 6

Backup battery charging ......................... 7

Add and register a deskset .................... 8

SB67118 telephone base ....................8

SB67138 telephone base ....................9

Deregister a deskset ................................10

Deregister the deskset from your

SynJ SB67118 telephone base ......10

Deregister the deskset from your

SynJ SB67138 telephone base ......11

Add a corded headset ............................12

Add a corded headset to

the deskset ...............................................12

Deskset settings

Deskset setup..............................................13

Menu settings ..........................................13

Ringer volume .........................................13

Ringer tone ...............................................14

LCD contrast ............................................15

Key tone .....................................................15

Language ...................................................16

Line selection ..........................................16

Deskset name ..........................................17

Hold reminder .........................................17

Speed dial setup ....................................18

Customer support .................................18

Deskset operation

Deskset basic operation ........................19

Line indicators .........................................19

Make a call................................................19

On hook dialing (predialing) ............20

Dial a speed dial number ..................21

Answer a call ...........................................21

End a call ...................................................21

Switch among the corded handset, the speakerphone

and the corded headset ....................22

Temporary ringer silencing ...............22

Last number redial ................................22

Options while on calls ............................24

Volume control .......................................24

Call waiting ...............................................24

Mute .............................................................24

Call privacy ...............................................25

Record a call ............................................26

Hold ..............................................................27

Switch among lines ..............................27

Join a call in progress .........................27

Chain dialing ............................................28

Three-way conference calls .............28

COVM (central office voicemail) .....30

Intercom .........................................................31

Make an intercom call.........................31

Answer an incoming call during

an intercom call .....................................32

Answer an intercom call ....................32

End an intercom call ............................32

Call transfer using intercom ................33

Push to talk (PTT) intercom .................35

PTT to the main telephone base

or a system device ...............................35

PTT to all devices ..................................36

Answer a PTT call ..................................37

Convert a PTT call to an

intercom call ............................................37

End a PTT call ........................................37

Getting started

Quick reference guide

HOLD

Press to place an outside call on hold (page 27).

LINE 1-LINE 4 keys

Press to make or answer a call on the desired line (pages 19-21).

Softkeys (2)

Press to select a menu item displayed above the key.

EXIT

While in a menu, press to cancel an operation and exit the menu display.

NEW CALL indicator

On when there are new or missed calls (page 46).

DIR

Press to view directory information (page 41).

CID

Press to view caller ID information (page 46).

/SKIP

During message playback, press to skip to the next message (page 58).

/MAILBOX

When in idle mode, press to enter the general or an assigned mailbox menu (page 57).

/REPEAT

During message playback, press to repeat a message, or press twice to play the previous message (page 58).

X/DELETE

Press to delete the message currently playing (page 58).

Press to delete an entry while reviewing the redial list (page 23), directory (page 43) or call log (page 47).

Press to delete a digit or character while entering numbers or names.

Navigation keys

While in menus, press DIR or CID to scroll through the menus, highlight items or to change settings.

While entering names or numbers, press the left or right.

While playing back messages, press

twice to hear the previous message, or press to skip to the

press next message.

or to move the cursor to

once to repeat the message, or

Getting started

Quick reference guide

FLASH

During a call, press to answer an incoming call when you receive a call waiting alert (page 24).

PTT

Press to initiate a PTT call (page 35).

Press and hold to broadcast to all extensions (page 36).

INT

When in idle mode, press to initiate an intercom call (page 31).

Speed dial keys

Press to review or dial a stored speed dial number when the deskset is not in use (page 21).

LOWER

Press to enter the lower speed dial locations (page 21).

MUTE

During a call, press to mute the microphone (page 24).

During an incoming call, press to mute the ringer (page 22).

HEADSET

When a corded headset is connected to the deskset, press to get a line, answer a call or hang up (pages 19-22). The red indicator is on when the headset is in use.

SPEAKER

Press to turn on the speakerphone. Press again to turn it off (page 22).

VOL+/VOL-

During a call, press to adjust the listening volume (page 24).

During message playback, press to adjust the playback volume (page 58).

Press to adjust the ringer volume (page 13).

Getting started

Quick reference guide

Directory card

To write names on the directory card:

Remove the clear plastic cover by inserting the tip of a small item such as a paperclip into the hole at the top edge of the cover.

Pull out the directory card.

Write the information on the directory card.

Replace the directory card and the plastic cover.

Main menu

The > symbol highlights a menu item.

L1 L2 L3 L4

1:Deskset 1 3 Missed calls

10:01AM 11/23

Redial

L1 L2 L3 L4

>Directory Call log Ringer setting Mailbox setup

Back

Select

Main menu

Directory (pages 38-43)

• Call log (pages 44-48)

• Ringer setting (pages 13-14)

• Mailbox setup (pages 52-56)

• Deskset setup (pages 15-17)

• COVM (page 30)

• Speed dial setup (page 18)

• Customer support (page 18)

•

Using menus:

Press the Menu softkey to show the first menu item, Directory.

1. Press

Press the Select softkey to select or the Save softkey to save changes to

DIR or CID to scroll through menu items.

a highlighted menu item.

Press the Back softkey to cancel an operation or back up to the previous menu.

Getting started

Installation

Install the deskset close to a power outlet not controlled by a wall switch. The deskset should be placed on a flat surface. For optimum range and better reception, place the deskset near the main telephone base.

Your product may be shipped with a protective sticker covering the deskset display - remove it before use.

For customer service or product information, visit our website at

www.telephones.att.com or call 1 (888) 915-2007. In Canada, dial 1 (866) 288-4268.

Avoid placing the deskset too close to:

•

Communication devices such as television sets, VCRs, or other cordless telephones.

•

Excessive heat sources.

•

Noise sources such as a window with traffic outside, motors, microwave ovens, refrigerators, or fluorescent lighting.

•

Excessive dust sources such as a workshop or garage.

•

Excessive moisture.

•

Extremely low temperature.

•

Mechanical vibration or shock such as on top of a washing machine or work bench.

Getting started

Deskset installation

Install the deskset as shown below.

Plug the large end of the power adapter into a power outlet not controlled by a wall switch.

Raise the antenna for optimum wireless range and performance.

Route the power adapter cord through the slot at the bottom of the deskset.

Plug the small end of the power adapter into the power jack at the bottom of the deskset.

Plug the end of the coiled handset cord into the jack at the bottom of the deskset.

IMPORTANT INFORMATION:

Use only the power adapter supplied with this product. To order a replacement power adapter,

•

visit our website at www.telephones.att.com, or call

1 (888) 915-2007. In Canada, dial 1 (866) 288-4268.

The power adapter is intended to be correctly oriented in a vertical or floor mount position.

• The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.

Getting started

Battery Pack

89-1323-00-00

Model 27910

3.6V 600mAh NI-MH

WARNING: DO NOT BURN OR

PUNCTURE BATTERIES

MADE IN CHINA BY1029

Battery Pack

89-1323-00-00

Model 27910

3.6V 600mAh NI-MH

WARNING: DO NOT BURN OR

PUNCTURE BATTERIES

MADE IN CHINA BY1029

Backup battery installation

Install the backup battery as shown below. In the event of a power failure, the charged backup battery allows the deskset to operate. Plug in the AC power adapter into the power jack at the bottom of the deskset to charge the backup battery.

Press down the tab to open the battery compartment cover.1.

Place the battery in the compartment.

2. Align the cover flat against the Make sure the supplied battery with the label THIS SIDE UP faces up as indicated.

3. battery compartment, then press down until it clicks into place.

IMPORTANT INFORMATION:

Use only the supplied rechargeable battery or replacement battery (model 27910). To order, visit

our website at

Canada, dial

www.telephones.att.com, or call 1 (888) 915-2007. In

1 (866) 288-4268.

Getting started

Backup battery charging

When the deskset loses power with the backup battery installed, the screen indicates the battery status (see table below) and displays Check AC power. When the backup battery is in low battery mode, the screen displays Low battery. The backup battery is fully charged after 16 hours of continuous charging. See the table on page 82 for battery operating times.

The following table summarizes the battery charge indicators and actions to take.

Battery indicators Battery status Action

The screen shows Low battery and flashes.

Battery has enough charge to be used for a short time.

Charge without interruption at least one hour.

The screen shows

Battery is fully charged. Keep the backup

battery in the battery compartment to recharge.

Getting started

Add and register a deskset

The handset provided with the SynJ SB67118/SB67138 is already registered as Handset 1. Additional desksets are assigned numbers in the order they are registered (Deskset 2 to Deskset 10). You can register a maximum of 10 desksets/handsets, or 9 desksets/handsets and one cordless headset.

You can add desksets (SynJ SB67148, purchased separately) to the SynJ SB67118/SB67138 at any time, but each new deskset must be registered with the main telephone base before use.

Start registration when the deskset shows

Press MENU on MAIN base, select Registration & then Register HS. Then press Start.

Register the deskset to your SynJ SB67118 telephone base

On the SynJ SB67118 telephone base,

press MENU/

Scroll down to Registration and then press

Press

MENU/ENTER again to select Register HS. The main

ENTER.

MENU/ENTER.

telephone base displays Handset registering.

Press the Start softkey on the unregistered deskset.

The deskset shows Registering...Please wait. You hear a beep when the registration process is successful. The main telephone base shows Handset registered. The deskset shows Registered and then X:Deskset X (X represents the extension number [1-0]; Deskset X represents the default deskset name). It takes up to 60 seconds to complete the registration process.

Press MENU on MAIN base, select Registration & then Register HS. Then press Start

SB67118:

COVM Speed dial setup Customer support Registration

Cordless headset Deregistration

Handset registering

Handset registered

SB67148:

2:Deskset 2

Getting started

Add and register a deskset

Register the deskset to your SynJ SB67138 telephone base

On the SynJ SB67138 telephone base, press MENU/

Scroll down to Registration and press

Press

MENU/ENTER again to select Register HS.

MENU/ENTER.

The main telephone base screen shows

Registering new device...

Press the Start softkey on the unregistered deskset. The deskset shows Registering...Please wait. You hear a beep sound when the registration process is successful. The main telephone base shows Deskset registered. The deskset shows Registered and then X:Deskset X (X represents the extension number [1-0]; Deskset X represents the default deskset name). It takes up to 60

seconds to complete the registration process.

NOTE: If the registration fails, the screen shows Press MENU on MAIN base, select Registration & then Register HS. Then press Start. Try the registration process again.

ENTER.

SB67138:

COVM Speed dial setup Customer support Registration

Deregistration

Registering new device...

Deskset registered

SB67148:

2:Deskset 2

Getting started

Deregister a deskset

You may need to deregister the deskset from the main telephone base if you already have ten registered devices and need to replace a deskset, or if you wish to change the assigned number of your registered devices.

You must first deregister ALL the registered devices, and then register each device that you wish to use again individually.

Please read carefully through all the instructions in this section before beginning the deregistration process.

Please make sure the telephone system is not in use before deregistration. Deregistering a deskset does not remove the data saved on it. For details, see

Deregister handsets and headset in the SynJ SB67118/SB67138 user’s manual.

Deregister the deskset from your SynJ SB67118 telephone base

On the SynJ SB67118 telephone base, pressSynJ SB67118 telephone base, presstelephone base, press MENU/ENTER.

Scroll down to Registration and press

Scroll down to Deregistration and press

The main telephone base shows

Deregister all devices? <=No >=Yes. Press

MENU/ENTER.

REP to exit

or press SKIP to continue the deregistration process.

The main telephone base shows Deregistering

. The mainmain

telephone base shows All handsets deregistered and beeps when the deregistration process is successful. It takes up to 10 seconds to complete.

Deregister all devices?

<=No >=Yes

Deregistering

All handsets deregistered

Getting started

Deregister a deskset

Deregister the deskset from your SynJ SB67138 telephone base

On the SynJ SB67138 telephone base, pressSynJ SB67138 telephone base, presstelephone base, press MENU/ENTER.

Scroll down to Registration and press

Scroll down to Deregistration and press

The main telephone base shows Deregister all devices? <=No >=Yes. Press or press SKIP to continue the deregistration process.

The main telephone base shows Deregistering telephone base shows All devices deregistered and beeps when the deregistration process is successful. It takes up to 10 seconds to complete.

NOTES:

If the deregistration process fails, you may need to reset the system and try again. To reset,

•

you can press EXIT on the main telephone base. You can also reset the main telephone base by unplugging the power from it and plugging it back in.

To register a deskset again, refer to the registration information on pages 8 and 9.

•

MENU/ENTER.

REP to exit

. The mainmain

Deregister all devices?

<=No >=Yes

Deregistering

All devices deregistered

Getting started

Add a corded headset

You can use this deskset handsfree when you install any industry-standard

2.5mm corded telephone headset (purchased separately). For best results, use a 2.5mm corded headset. To purchase a headset, visit our website at

www.telephones.att.com, or call 1 (888) 915-2007. In Canada, dial 1 (866) 288-4268. See pages 19-22 for instructions on using the corded

headset with this deskset.

Add a corded headset to the deskset

Lift open the plastic cover.

Plug a 2.5 mm headset into the HEADSET jack on the side of the deskset.

Deskset settings

Deskset setup

Menu settings

Use the menus to change the deskset settings.

Press the Menu softkey to enter the main menu when

1. the deskset is not in use.

Press

DIR or CID to scroll to the feature to beto scroll to the feature to be

changed. The > symbol indicates the selected menu item.

Press the Select softkey to select the menu item.

Press the Back softkey to cancel an operation, exit the menu display, or return to the previous menu.

-OR-

Press

to return to the previous menu.

-ORPress EXIT to exit to idle mode without making any changes.

Ringer volume

Use this feature to set the ringer volume to one of three levels or turn the ringer off. When the ringer is off,

When the deskset is not in use, press the Menu softkey.

Press

Press the Select softkey twice to select Ringer volume.

Press

DIR or CID to scroll to Ringer setting.

DIR, or VOL+ to increase the ringer volume.

icon appears on the deskset.

Press CID, or VOL- to derease the ringer volume.

Press the Save softkey to save the setting and return to the previous menu. There is a confirmation tone.

NOTE: The ringer volume also determines the ringer volume for intercom calls. If the ringer volume is set to off, the deskset is silenced for all incoming calls, including intercom calls.

>Directory Call log Ringer setting Mailbox setup

Back

Directory Call log >Ringer setting Mailbox setup

Back

>Ringer volume Ringer tone

Back

Ringer volume

Back

Select

Set

Deskset settings

Deskset setup

Ringer tone

Use this feature to turn the key tone on and off. The telephone base is factory set to beep with each key press. You can turn off this beep sound by turning the key tone off.

When the deskset is not in use, press the Menu softkey.

1. Press

DIR or CID to scroll to Ringer setting. Press

the Select softkey.

Press

DIR or CID to scroll to Ringer tone. Press the

Select softkey.

Press

Repeat Step 4 and Step 5 above to choose ringer tones

or to select a desired line (L1, L2, L3 or L4).

DIR or CID to select a desired ringer tone.

for other lines if desired.

Press the Save softkey to save the setting and return to the previous menu. There is a confirmation tone.

NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.

Directory Call log >Ringer setting Mailbox setup

Back

Ringer volume >Ringer tone

Back

Ringer tone L1 L2 L3 L4 1 3 1 1

Back

Select

Save

Deskset settings

Deskset setup

LCD contrast

Use this feature to adjust the screen contrast to one of five levels to optimize readability in different lighting conditions.

When the deskset is not in use, press the Menu

Press

DIR or CID to scroll to Deskset setup. Press

softkey.

the Select softkey.

Press the Select softkey to select LCD contrast.

Press

DIR or CID to adjust the screen contrast level.

The screen display temporarily fades away as you press

CID and reappears as you press DIR.

Press the Save softkey to save the setting and return to the previous menu. There is a confirmation tone.

Key tone

Use this feature to turn the key tone on or off. The deskset is factory programmed to beep with each key press. If you turn off the key tone, there are no beeps when you press the keys.

When the deskset is not in use, press the Menu

Press

DIR or CID to scroll to Deskset setup. Press

softkey.

the Select softkey.

Press

DIR or CID to scroll to Key tone. Press the

Select softkey.

Press

Press the Save softkey to save the setting and return to

DIR or CID to scroll to On or Off.

the previous menu. There is a confirmation tone.

Call log Ringer setting Mailbox setup >Deskset setup

Back

>LCD contrast Key tone Language Line selection

Back

LCD contrast

Back

Call log Ringer setting Mailbox setup >Deskset setup

Back

LCD contrast >Key tone Language Line selection

Back

Key tone :Off

Back

Select

Save

Select

Save

Deskset settings

Deskset setup

Language

Use this feature to change the display language that is used in all menus and screen displays. This telephone comes factory set for English displays.

When the deskset is not in use, press the Menu softkey.

Press

DIR or CID to scroll to Deskset setup. Press

the Select softkey.

Press

DIR or CID to scroll to Language. Press the

Select softkey.

Press

Press the Save softkey to save the setting and return to

DIR or CID to select English or Español.

the previous menu. There is a confirmation tone.

Line selection

Use this feature to select the default telephone line to be used when you make outgoing calls. The deskset comes factory set for Auto selectable line, which chooses the first available line for making a call. To select a particular line, choose Line 1, Line 2, Line 3 or Line 4.

When the deskset is not in use, press the Menu

Press

DIR or CID to scroll to Deskset setup. Press

softkey.

the Select softkey.

Press

DIR or CID to scroll to Line selection. Press

the Select softkey.

Press

DIR or CID to select Auto, Line 1, Line 2,

Line 3 or Line 4.

Press the Save softkey to save the setting and return to the previous menu. There is a confirmation tone.

Call log Ringer setting Mailbox setup >Deskset setup

Back

LCD contrast Key tone >Language Line selection

Back

Language :English

Back

Call log Ringer setting Mailbox setup >Deskset setup

Back

LCD contrast Key tone Language >Line selection

Back

Line selection :Auto

Back

Select

Save

Select

Save

Deskset settings

Deskset setup

Deskset name

Use this feature to change the deskset name.

When the deskset is not in use, press the Menu softkey.

1. Press

DIR or CID to scroll to Deskset setup. Press

the Select softkey.

Press

DIR or CID to scroll to Deskset name. Press

the Select softkey.

Use the dialing keys (page 40) to enter a name.

•

Press

•

Press X/DELETE to erase a character.

•

Press and hold X/DELETE to erase all characters.

Press the Save softkey to confirm and return to the previous menu. There

move the cursor to the left or to the right.

is a confirmation tone.

Hold reminder

When there is a call on hold for more than three minutes, the deskset gives you a reminder beep once every 30 seconds. You can also turn this setting off.

When the deskset is not in use, press the Menu softkey.

Press

DIR or CID to scroll to Deskset setup. Press

the Select softkey.

Press

DIR or CID to scroll to Hold Reminder. Press

the Select softkey.

Press

Press the Save softkey to save the setting and return to

DIR or CID to scroll to On or Off.

the previous menu. There is a confirmation tone.

Call log Ringer setting Mailbox setup >Deskset setup

Back

Key tone Language Line selection >Deskset name

Back

Enter name:

Deskset 1

Back

Call log Ringer setting Mailbox setup >Deskset setup

Back

Language Line selection Deskset name

>Hold Reminder

Back

Hold Reminder: :On

Select

Save

Select

NOTE: A call on hold after 10 minutes is automatically forwarded to

Back

the auto attendant, even if the auto attendant is not activated. To keep a call on hold longer than 10 minutes, release the held call within 10 minutes and then place the call on hold again.

Save

Deskset settings

Deskset setup

Speed dial setup

The deskset has 10 speed dial locations where you can store the telephone numbers you wish to dial using fewer keys than usual. You can store up to 32 digits in each location. The first five locations can be accessed buy using only the speed dial keys. To access the remaining five locations, press LOWER and then the speed dial key for the desired location.

To enter, edit or delete a speed dial number:

When the deskset is not in use, press the Menu softkey.

1. Press

DIR or CID to scroll to Speed dial setup. Press

the Select softkey.

Press DIR or CID to choose a desired speed dial location, then press the Select softkey.

Use the dialing keys to enter or edit the telephone number up to 32 digits. If you want to delete the entry, erase all the digits.

•

Press

•

Press the Pause softkey to insert a dialing pause

or to move the cursor to the left or right.

(a P appears).

•

Press X/DELETE to backspace and delete digits.

•

Press and hold X/DELETE to delete all digits.

Mailbox setup Deskset setup COVM >Speed dial setup

Back

>Speed dial 1 Speed dial 2 Speed dial 3 Speed dial 4

Back

Enter phone #: 8888832445

Pause

Speed dial 1 888 883 2445

5. Press the Save softkey to save the setting. There is a confirmation tone.

NOTES:

See page 21 for instructions on calling a speed dial number.

•

The speed dial memory and the directory are independent, so setting up speed dial numbers

• does not decrease your directory storage space.

Select

Save

Customer support

Use this feature to display the AT&T website.

When the deskset is not in use, press the Menu softkey.

1. Press

DIR or CID to scroll to Customer support.

Press the Select softkey.

To exit, press the Back softkey.

Deskset setup COVM Speed dial setup >Customer support

Back

www.telephones

Back

Select

.att.com

Deskset operation

Deskset basic operation

The telephone comes programmed to use line 1 (default primary line) for outgoing calls when you do not press a line key. (To change the primary line, see Line selection on page 16.) When you answer a call, the telephone automatically selects the ringing line.

Line indicators

Each of the four indicators on LINE 1-LINE 4 indicates the status of the corresponding telephone line.

•

On when the corresponding line is in use.

•

Flashes slowly when the line is on hold.

•

Flashes slowly when there is a transferred call on the corresponding line.

•

Flashes slowly when there is an incoming auto attendant transferred call on the corresponding line.

•

Flashes rapidly when there is an incoming call on the corresponding line.

Make a call

To make a call using the corded handset:

Lift the corded handset.

-OR-

To override automatic line selection, press LINE 1-LINE 4 for the desired line, and then lift the corded handset.

Wait for a dial tone, then enter the telephone number. The screen displays the elapsed time as you talk (in hours, minutes and seconds).

To make a call using the speakerphone:

Press

SPEAKER on the deskset.

-OR-

To override automatic line selection, press LINE 1-LINE 4 for the desired line.

Wait for a dial tone, then enter the telephone number. The screen displays the elapsed time as you talk (in hours, minutes and seconds).

To make a call using the corded headset:

Make sure a corded headset is connected to the deskset (page 12).

Press HEADSET on the deskset.

-OR-

To override automatic line selection, press LINE 1-LINE 4 for the desired line, and then press HEADSET.

Wait for a dial tone, then dial the number. The screen displays the elapsed time as you talk (in hours, minutes and seconds).

Elapsed time

Line1 00:00:30 8888832445

Option

Deskset operation

Deskset basic operation

On hook dialing (predialing)

To predial using the corded handset:

Enter the telephone number.

•

Press X/DELETE to make corrections when entering the telephone number.

Lift the corded handset to dial.

-OR-

To override automatic line selection, press

LINE 1-LINE 4 for the desired line, then lift the corded handset.

To predial using the speakerphone:

Enter the telephone number.

•

Press X/DELETE to make corrections when entering the telephone number.

Press SPEAKER to dial.

-ORTo override automatic line selection, press LINE 1-LINE 4 for the desired line.

To predial using the corded headset:

Enter the telephone number.

•

Press X/DELETE to make corrections when entering the telephone number.

Press HEADSET on the deskset to dial.

-OR-

To override automatic line selection, press LINE 1-LINE 4 for the desired line, then press HEADSET.

Deskset operation

Deskset basic operation

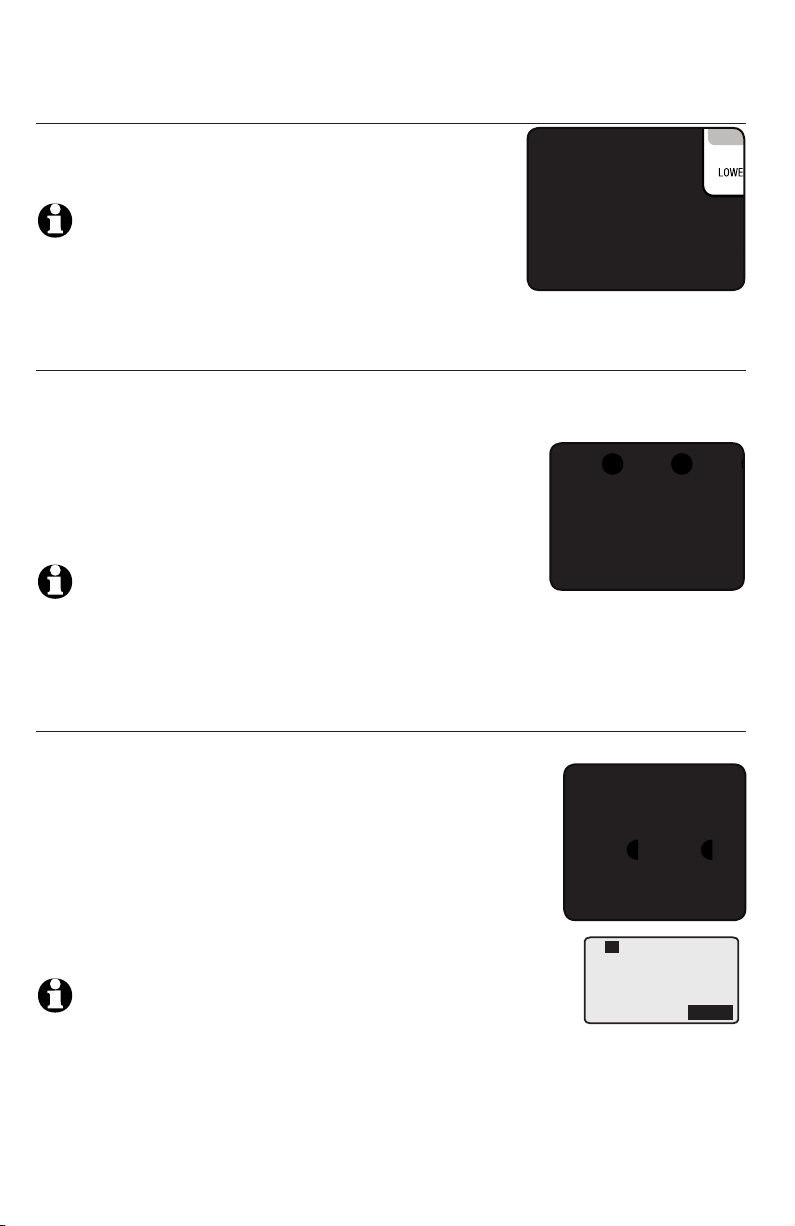

Dial a speed dial number

Press the desired speed dial key.

-OR-

Press LOWER and then the desired speed dial key.

Lift the corded handset, or press the Call softkey,

SPEAKER or HEADSET.

-OR-

To override automatic line selection, press LINE 1-LINE 4 for the desired line and use the speakerphone. If you want to use the corded handset, lift it from the deskset. If you want to use the corded headset, press HEADSET.

NOTE: If there is no telephone number stored in the speed dial location,

No number displays.

Answer a call

To answer a call using the corded handset:

Lift the corded handset.

•

To answer a call using the speakerphone:

•

Press

SPEAKER.

To answer a call using the corded headset:

Press HEADSET.

•

End a call

To end a call using the corded handset:

Place the corded handset on the deskset.

•

To end a call using the speakerphone:

Press

•

SPEAKER.

To end a call using the corded headset:

•

Press HEADSET on the deskset.

NOTE: The elapsed time is not affected by accessing services from your telephone service provider, such as call waiting.

Deskset operation

Deskset basic operation

Switch among the corded handset, the speakerphone and the corded headset

To switch from the corded handset to the speakerphone/corded headset:

While you are using the corded handset on a call, press

1. HEADSET.

Put the corded handset back to the deskset.

To switch from the speakerphone/corded headset to the corded handset:

While you are using the speakerphone or corded headset on a call, pick up

• the corded handset to continue the call.

Temporary ringer silencing

Press MUTE while the telephone is ringing to silence the ringer temporarily on the deskset only. This turns off the ringer without disconnecting the call. The next incoming call rings normally at the preset volume.

Last number redial

The last 10 telephone numbers dialed (up to 32 digits) are stored in the redial memory of the deskset.

SPEAKER or

To view the 10 most recently dialed numbers:

Press the Redial softkey to enter the redial list and display the most

1. recently called number.

Press

Press the Back softkey to exit the redial list.

DIR or CID to browse.

To redial a number:

•

To dial the displayed number, lift the corded handset, or presslift the corded handset, or press SPEAKER or HEADSET.

-OR-

NOTE: If there are no numbers on the redial list, the deskset displays Redial list empty.

Deskset operation

Deskset basic operation

To save a redialed number in the directory:

When the desired number displays, press the Save softkey.

The deskset displays Enter phone #.

•

Use the dialing keys (page 40) to edit the number, if necessary.

•

Press

•

Press X/DELETE to backspace and delete a digit.

•

Press and hold X/DELETE to delete all the digits.

•

Press the Pause softkey to enter a dialing pause

or to move the cursor to the left or right.

(a P appears).

•

Press FLASH to enter a flash.

Press the Next softkey. The deskset displays Enter name. Use the dialing keys to enter a name.

•

Use the dialing keys (page 40) to enter a name.

•

Press

•

Press X/DELETE to backspace and delete a character.

•

Press and hold X/DELETE to delete all characters.

Press the Save softkey to confirm. There is a confirmation tone.

or to move the cursor to the left or right.

1:Deskset 1 3 Missed calls New messages

11:30PM 12/31

Redial

888 883 2445

Back

Line1 00:00:01 8888832445

Save

Option

To delete a redialed number:

•

When the screen displays the desired number, press X/DELETE to delete the number from the redial memory. The deskset displays Deleted. There is a confirmation tone.

+ 63 hidden pages
