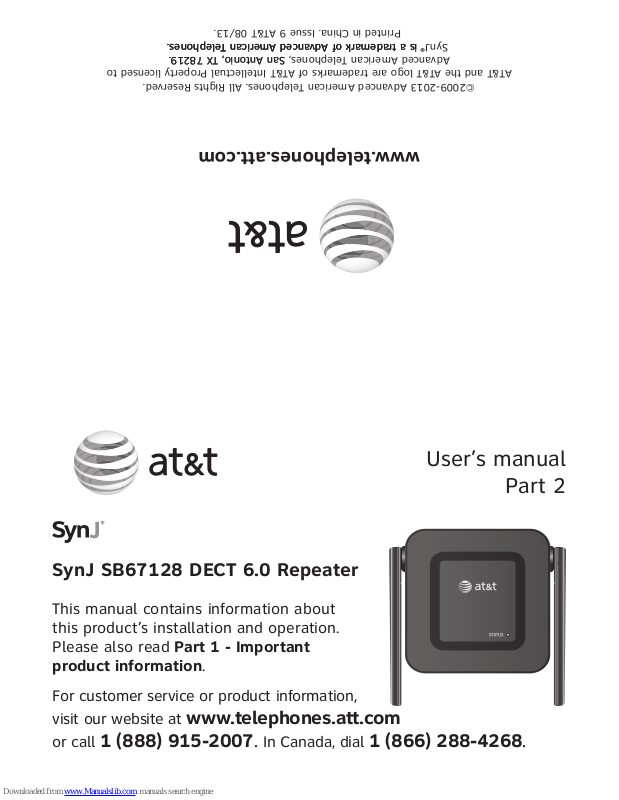

AT&T SynJ SB67128 DECT 6.0 Repeater User Manual
SynJ SB67128 DECT 6.0 Repeater
This manual contains information about
this product’s installation and operation.
Please also read Part 1 - Important
product information.
For customer service or product information,
visit our website at www.telephones.att.com
or call 1 (888) 915-2007. In Canada, dial 1 (866) 288-4268.
User’s manual
Part 2
©2009-2013 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
San Antonio, TX 78219.
SynJ® is a trademark of Advanced American Telephones.
® is a trademark of Advanced American Telephones.
is a trademark of Advanced American Telephones.
Printed in China. Issue 9 AT&T 08/13.
www.telephones.att.com
Before you install
Parts list
SynJ® SB67128 DECT 6.0 repeater® SB67128 DECT 6.0 repeater SB67128 DECT 6.0 repeater
Power adapter
Part 1 Important product information
Part 2 User’s manual
Package of screws
•
•
•
•
•
Use only the power adapter supplied with this product. To obtain a
replacement, visit our website at www.telephones.att.com or
call 1 (888) 915-2007. In Canada, dial 1 (866) 288-4268.
1
Figure 1: Repeater
You can use a repeater to extend the operating range for the SynJ
SB67118/SB67138/SB67158 DECT 6.0 4-line corded/cordless
telephone system to cover areas where the signal is very weak or not
available. The repeater extends the range in all directions, even going
around certain barriers.
The telephone base, cordless handsets and repeaters are linked through
wireless connections. When configured properly, you should not notice
any reception problems as you move around within the covered area.
Up to six repeaters can be registered to the telephone base. There
can be two repeaters in series going between the base and handsets.
The first repeater can be up to 980 feet away from the base. The
second repeater can be up to 980 feet away from the first repeater.
Handsets work up to 980 feet from the base or any repeater, so with
two repeaters in series, handsets work up to 2,940 feet away from the
base. The figure below shows an example of how you might choose to
setup your system.
About the repeater
2
Figure 2: Planning repeater placement
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
980 feet
3
Registration
You should register your repeaters to the telephone base before
choosing locations for them in the building.
NOTE: You can register a repeater to a SynJ SB67118/SB67138/SB67158
telephone base without deregistering it from the previous telephone base. New
registrations overwrite any previous repeater registrations.
Repeater registration
1. Plug in the repeater to AC power. The STATUS indicator light on the
repeater flashes slowly.
2. Press and hold the SETUP button at the bottom of the
repeater for two seconds. The STATUS indicator light
on the repeater flashes quickly.
3. On the telephone base, press MENU/ENTER.
4. Scroll down to Registration and press MENU/ENTER.
5. Press MENU/ENTER again to select Register HS. The
SynJ SB67118 telephone base screen shows Handset
registering during registration. The SynJ SB67138/
SB67158 telephone base screen shows Registering
new device... during registration. It takes about 60
seconds to complete the registration.
6. The STATUS indicator light becomes solidly lit. The
telephone base shows Repeater registered and beeps
when registration is successful.
NOTES:
If the registration is not successful (the STATUS indicator light is not lit after 60
seconds), the telephone base screen shows Error. Try the Repeater registration
process again.
A registered repeater does not count as an extension and does not have an
assigned extension number within the telephone system.
For complete registration instructions of a SynJ SB67118/SB67138/SB67158 telephone
base, please refer to the manual provided with your SynJ SB67118/SB67138/SB67158
product, or visit www.telephones.att.com/smb to download the manual.
•
•
•
STATUS
indicator light
SETUP button
