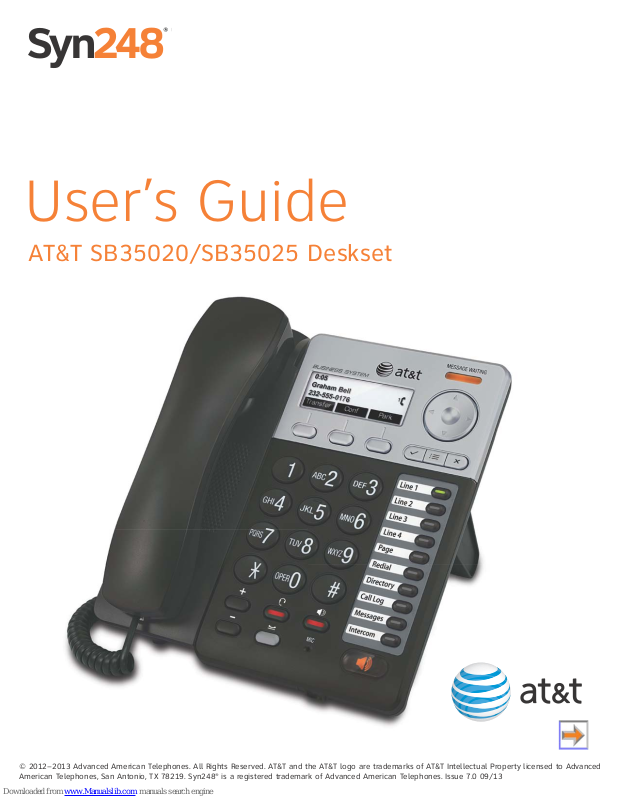

AT&T SB35020, SB35025 User Manual

© 2012–2013 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced
American Telephones, San Antonio, TX 78219. Syn248® is a registered trademark of Advanced American Telephones. Issue 7.0 09/13

AT&T SB35020/SB35025 Deskset

®

User’s Guide

Syn248 SB35020/SB35025 Deskset User’s Guide

Preface ..............................................................................................................6

Additional Documentation .................................................................................................................................6

Topic Navigation ..................................................................................................................................................... 7

Text Conventions....................................................................................................................................................7

C

ONTENTS

Overview...........................................................................................................8

Syn248 System Overview...................................................................................................................................9

Deskset Overview.................................................................................................................................. 9

Deskset Description............................................................................................................................................ 10

Deskset Hard Keys............................................................................................................................. 11

Lines and Line Keys............................................................................................................................................ 12

Setting Your Password...................................................................................................................................... 12

Soft Keys.................................................................................................................................................................. 13

Scroll Indicators ................................................................................................................................................... 13

Deskset Status Indicators................................................................................................................................ 14

Call Indicators ....................................................................................................................................................... 15

Call Status LEDs.................................................................................................................................. 15

Call Status Icons................................................................................................................................. 16

Programmable Feature Keys ......................................................................................................................... 17

Programmable Feature Key LEDs............................................................................................... 18

Dial-Pad Entry ....................................................................................................................................................... 19

Using the Speakerphone.................................................................................................................................. 20

Using Help Screens............................................................................................................................................. 20

Making Calls...................................................................................................21

Active Call Screen............................................................................................................................................... 22

Predialing................................................................................................................................................................. 23

Live Dialing ............................................................................................................................................................. 23

Making a Call from a List................................................................................................................................. 24

Making an Intercom Call.................................................................................................................................. 25

Making Calls with an Optional AT&T DECT Cordless Headset (SB35025 Only)................... 26

Answering Calls.............................................................................................27

Incoming Call Screen......................................................................................................................................... 28

Incoming Call Indication .................................................................................................................................. 28

2

Syn248 SB35020/SB35025 Deskset User’s Guide

Answering a Call.................................................................................................................................................. 29

Ignoring a Call....................................................................................................................................................... 30

Intercom Auto Answering ............................................................................................................................... 31

Call Forward–No Answer................................................................................................................................. 32

About the Auto Attendant .............................................................................................................................. 32

Caller Options ...................................................................................................................................... 32

Call Management ..........................................................................................33

Call Management................................................................................................................................................. 34

Putting a Call on Hold ...................................................................................................................................... 35

Transferring a Call............................................................................................................................................... 36

Making a Conference Call............................................................................................................................... 37

Putting a Conference on Hold.....................................................................................................38

Ending a Conference ........................................................................................................................ 38

Call Management Using a Headset ............................................................................................................ 39

Accessing Items in Lists ..............................................................................40

Accessing the Extension List ......................................................................................................................... 41

Accessing the Redial List................................................................................................................................. 42

Dialing a Redial Number................................................................................................................. 42

Deleting Redial Entries .................................................................................................................... 43

Searching the Extension or Directory Lists ............................................................................................ 44

Accessing the Held Calls List ........................................................................................................................ 45

Directory .........................................................................................................46

Using the Directory............................................................................................................................................. 47

Viewing and Calling Directory Entries....................................................................................................... 48

Creating a New Personal List Entry ........................................................................................................... 49

Editing a Personal List Entry.......................................................................................................................... 50

Deleting a Personal List Entry ...................................................................................................................... 51

Storing Directory Entries from the Call Log or Redial List............................................................. 52

Sorting Directory Entries.................................................................................................................................. 53

Voicemail ........................................................................................................54

Voicemail Overview ............................................................................................................................................ 55

Setting up Your Voicemail Greetings ........................................................................................................ 56

Accessing Your Messages ............................................................................................................................... 57

Message Playback..............................................................................................................................58

Calling the Messenger ..................................................................................................................... 59

Deleting Messages.............................................................................................................................................. 60

New Message Status Indications ................................................................................................................. 61

Accessing Your Voicemail Remotely.......................................................................................................... 62

3

Syn248 SB35020/SB35025 Deskset User’s Guide

Call Log ...........................................................................................................65

Using the Call Log .............................................................................................................................................. 66

Managing Missed Calls...................................................................................................................................... 67

Listening to Voicemail From the Call Log.............................................................................. 68

Storing Call Log Entries.................................................................................................................................... 69

Deleting Call Log Entries................................................................................................................................. 70

Paging..............................................................................................................71

Sending a Page..................................................................................................................................................... 72

Deskset Settings ...........................................................................................73

Deskset Menu........................................................................................................................................................ 74

Features.................................................................................................................................................................... 75

User Settings.......................................................................................................................................................... 76

Greetings ................................................................................................................................................ 77

Name Recording......................................................................................................................... 78

Intercom Auto Answer..................................................................................................................... 79

Deskset Settings ................................................................................................................................. 80

Display.............................................................................................................................................81

Sounds............................................................................................................................................. 82

Volume Settings ......................................................................................................................... 83

Preferred Audio Mode ............................................................................................................. 84

Directory Settings............................................................................................................................... 84

Setting, Changing, or Resetting Your Password ................................................................. 85

Registering an Optional Cordless Headset (SB35025 Only) ........................................ 86

Deregistering a Cordless Headset ............................................................................................. 87

Cordless Headset Registration and Deregistration Time-Out...................................... 87

Admin Settings...................................................................................................................................................... 88

Deskset Information........................................................................................................................................... 89

Auto-Attendant Settings.................................................................................................................................. 90

Using Do Not Disturb (DND) .......................................................................................................................... 90

Web Interface ................................................................................................91

Accessing the Web User Interface (WebUI)...........................................................................................92

Error Handling...................................................................................................................................... 93

Basic Settings........................................................................................................................................................ 94

Personal Directory .............................................................................................................................................. 95

Quick Dial................................................................................................................................................................ 97

Help ............................................................................................................................................................................ 98

Troubleshooting ............................................................................................99

Common Troubleshooting Procedures...................................................................................................100

Display Messages...............................................................................................................................................101

Calls Generally....................................................................................................................................................103

Incoming Calls.....................................................................................................................................................106

Outgoing Calls ....................................................................................................................................................108

Voicemail ...............................................................................................................................................................109

Other Deskset Features..................................................................................................................................111

4

Syn248 SB35020/SB35025 Deskset User’s Guide

WebUI......................................................................................................................................................................112

PC/Deskset Interaction ..................................................................................................................................113

Cordless Headset (SB35025 Only)............................................................................................................114

Appendixes.................................................................................................. 118

Appendix A: Soft Keys.....................................................................................................................................118

Appendix B: Technical Specifications......................................................................................................120

Appendix C: Maintenance..............................................................................................................................121

Appendix D: Important Safety Instructions...........................................................................................122

Appendix E: GPL License Information .....................................................................................................123

Glossary ....................................................................................................... 124

5

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

P

REFACE

This User’s Guide provides instructions for using your Syn248 SB35020/SB35025 Deskset
telephone with software version 1.3.1 or newer. See page 89 for instructions on checking
the software version on the Deskset. Although the Quick Start Guide also includes
information on using the Deskset, this guide has setup information and more details
about feature usage.

Before using this AT&T product, please read “Appendix D: Important Safety Instructions”

on page 122. Please thoroughly read this user’s guide for all the feature operations and

troubleshooting information necessary to operate your new AT&T product.

For customer service or product information, contact the person who installed
your system. If your installer is unavailable, visit our web site at

smbtelephones.att.com or call 1 [phone]. In Canada,

dial

1 [phone].

Additional Documentation

Downloadable copies of all Syn248 documents, including user’s guides, the
Installation and Configuration guide and Quick Start Guides, are available at

smbtelephones.att.com/product-support/product-documentation

.

Preface 6

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

DND

Notes provide important information
about a feature or procedure.

A caution means that loss of data or
unintended circumstances may result.

Topic Navigation

This Syn248 SB35020/SB35025 Deskset User’s Guide features easy navigation between
topics and the ability to return to your original topic.

Text in blue indicates a link to another section of the document.

indicates a hyperlink to an external web site.

You can also click the arrows at the bottom of the page to move around this document.

Go back to the last page viewed.

Go to the previous page.

Go to the next page.

Bold text in blue

Text Conventions

Table 1 lists text formats and describes how they are used in this guide.

Table 1. Description of Text Conventions

Text Format Description

Screen Identifies text that appears on a device screen or

a WebUI page in a title, menu, or prompt.

HARD KEY or DIAL-PAD KEY Identifies a hard key, including the dial-pad keys.

Identifies a soft key.

Example of a Note.

Example of a Caution.

Preface 7

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

1

O

VERVIEW

The Syn248® Business Phone System from AT&T is for businesses that need up to 24
extensions. This system is scalable from 1 to 8 outside lines, so as your business grows,
your phone system can too. The Syn248 Business Phone System provides simplicity
without sacrifice—it's simple to install, manage, and use, without sacrificing any of the
features you need and expect from a business telephone system.

This chapter introduces the SB35020/SB35025 Deskset and provides an overview of the
Syn248 system and the external features of the Deskset.

The SB35025 Deskset allows you to register a compatible AT&T DECT cordless headset
for hands-free phone conversations. For more information, see “Registering an Optional

Cordless Headset (SB35025 Only)” on page 86.

 “Syn248 System Overview” on page 9

 “Deskset Description” on page 10

 “Setting Your Password” on page 12

 “Deskset Status Indicators” on page 14

 “Programmable Feature Keys” on page 17

 “Using the Speakerphone” on page 20.

Overview 8

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

blue lines = telephone

red lines = Ethernet

orange lines = audio

Syn248 System Overview

Your Deskset is part of the Syn248 system. Syn248 differs from conventional telephone
systems in that calls are not coordinated by a central controller. Instead, Syn248 uses a
distributed control system over a Local Area Network (LAN). Figure 1 illustrates a sample
system.

Deskset Overview

Figure 1. Sample Syn248 System

The SB35020 Deskset and SB35025 Deskset have identical external front-panel features,
call features, and basic settings.

The SB35025 Deskset has a built-in DECT 6.0 radio to host an optional cordless headset,
and an auxiliary input/output port for connecting a Music on Hold (MoH) source and an
overhead paging system. This User’s Guide describes how to register and use a
compatible AT&T DECT cordless headset with the SB35025 Deskset. See “Registering an

Optional Cordless Headset (SB35025 Only)” on page 86.

For more information about connecting Music on Hold and overhead paging, see
the Syn248 Installation and Configuration Guide, available from

smbtelephones.att.com.

Overview 9

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

1

2

43

5

6

7

8

Deskset Description

The key external features of the Deskset are shown in Figure 2 and described in Table 2.

Figure 2. Deskset Layout

Table 2 Deskset Features

1. Liquid Crystal Display (LCD) Provides controls and information for using the

Deskset.

2. Soft Keys Three keys that produce different actions,

depending on the LCD labels.

3. Handset Connects to handset jack on left side.

4. Hard Keys Fixed-function keys. See “Deskset Hard Keys” on

page 11.

5. Programmable Feature Keys Provide easy access to various call functions. See

“Programmable Feature Keys” on page 17.

6. Display Keys Control the menu functions shown in the display.

7. Navigation Moves the cursor up (

8. Message Waiting Indicator Illuminates when there are new messages.

(SELECT), (MENU), and (CANCEL).

), down (), left (), right

() on the display.

Overview 10

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

1

2

3

4

5

Deskset Hard Keys

The hard keys include the standard telephone dial-pad keys and a set of function keys.
The Deskset hard keys are shown in Figure 3 and described in Table 3.

Figure 3. Deskset Function Keys

Table 3 Deskset Function Keys

1. VOL+/VOL– Increases/decreases the ringer and voice volume. These keys also

control the volume of the speakerphone.

2. HEADSET Routes audio to headset. Can be used to go off hook.

3. HOLD Puts the current active call on hold. Allows access to other calls

and features while maintaining call connection.

4. MUTE Mutes the microphone. When on, the other party cannot hear you.

5. SPEAKER During a call, switches voice to and from the speakerphone. Can be

used to answer or start a call, or to hang up.

Overview 11

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Message Status

Number of new, unreviewed
voice messages

Your Extension
Number

Date and Time
Extension Name

Name assigned to
this Deskset

Lines and Line Keys

The system administrator can configure your Deskset with up to 8 lines on which you can
make and receive external calls. Each line is assigned to a programmable feature key on
the Deskset. These are called Line keys in this User’s Guide. One programmable feature
key is reserved for “Intercom” calls to other Deskset extensions.

Other Desksets in the system share these lines and display the line status. Incoming calls
on a line ring at all Desksets that share that line. The Line key LED indicates whether a
line is ringing, busy, or on hold.

The Line keys are used for receiving and making calls to external numbers. To call
another extension in your office, you must use an Intercom key. By default, the Intercom
key is the bottom programmable feature key, but your system administrator can
configure additional Intercom keys.

Setting Your Password

You can protect your Deskset by setting a password that prevents other users from
accessing your User Settings and messages. If you create a password, you will need to
enter it before accessing User Settings, messages, and the WebUI.

For more information, see “Setting, Changing, or Resetting Your Password” on page 85.

Figure 4. Idle Screen

Overview 12

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Scroll Indicators

Soft Keys

Change according
to the current task.

Soft Keys

Soft keys are a set of three context-sensitive keys that provide functions based on what
you are doing on the Deskset. The top example as illustrated in Figure 5 shows the soft
key labels on the active call screen.

The soft key labels change according to the current task. For example, if you put a call
on hold, the key labels displayed are different from those displayed if you are making a
call. See “Appendix A: Soft Keys” on page 118 for an alphabetical list of the labels that
appear above the soft keys.

The top example shows the soft key labels for the soft keys on the active call screen.

The bottom example shows soft keys with and that indicate the feature
uses more than three soft keys. To view the additional keys, press

 or .

Scroll Indicators

Scroll indicators, shown in Figure 5, appear when more information can be seen by
pressing

 and .

Figure 5. Soft Keys and Scroll Indicators

Overview 13

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Status Indicator
Area

ANS

DND

Deskset Status Indicators

Status indicators appear in the upper right-hand corner of the Deskset display, as shown
in Figure 6 and as described in Table 4.

Figure 6. Sample Status Indicator

Table 4 Status Indicators

Icon Status

Ringer volume set to zero. The ringer is silent.

Intercom Auto Answer is ON.

Do Not Disturb is ON.

Less than five minutes of message recording time is available. 
The Deskset has a total of 30 minutes of message recording time available.

All the message recording time has been used.

Overview 14

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call
Information

Call Status Icon
and Line Key
Number

Call Timer

Call Indicators

When the Deskset has an incoming, ongoing, or held call, information about the call
appears on the display. The Deskset screen displays one call at a time. When you have
multiple calls, you can access each call by pressing its Line key. The Line key LEDs reflect
the call status. See “Call Status LEDs”.

During a call, icons show call status and soft keys show the optional actions to take, as
shown in Figure 7. The icon changes according to the call status. See “Call Status Icons”

on page 16 for a complete description of the available icons.

The Call Timer displays the duration of the current call status, such as how long the call
has been held.

If you subscribe to caller ID, Call Information consists of the phone number for all calls.
Incoming calls also have the name if it is sent with the phone number.

Call Status LEDs

The Call Status LEDs flash to indicate call status as described in Table 5.

Table 5 Call Status LED Activity

LED Activity Description

Off No Call

Steady GREEN Active call

Fast Flash GREEN Ringing call

Slow Flash GREEN Call held at your Deskset

Steady ORANGE Active call at another Deskset

Flash ORANGE Call held at another Deskset

Figure 7. Active Call Screen

Overview 15

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call Status Icons

Table 6 shows and describes the call status icons. The number beside an icon indicates
the number of the associated Line key.

Table 6 Call Status Icons

Icon Status Icon Status

Off Hook

Indicates that you have lifted the
handset, pressed (SPEAKER) or

(HEADSET), or you are on a phone

call.

On Hold

Indicates you have put the call on
hold.

Conference

Indicates a conference call.

Conference On Hold

Indicates you have put a conference call
on hold.

Ringing Call and Ignored Call

Indicates an incoming call.

Call Forwarded

Indicates that your intercom call was
forwarded to another number.

Overview 16

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Programmable Feature Keys

The Deskset has ten programmable feature keys as shown in Figure 2 on page 10. Key
10 (bottom) is an Intercom key, and is not programmable. Press this key to call another
extension. Your system administrator can program the other nine keys to access more
outside li nes, more intercom lines, or for other functions, including quick dial. See “Quick

Dial” on page 97 to add quick dial entries.

Table 7 lists the default functions for the programmable feature keys. Your key
assignments may be different. Table 8 on page 18 has a complete list of possible
programmable feature key assignments.

Table 7 Programmable Feature Key Default Functions

Key Function Label For more information, see...

1 Line 1

2 Line 2

3 Line 3

4 Line 4

5 Page “Sending a Page” on page 72

6 Redial “Accessing the Redial List” on page 42

7 Directory “Using the Directory” on page 47

8 Call Log “Using the Call Log” on page 66

9 Messages “Voicemail Overview” on page 55

10 Intercom

a

“Lines and Line Keys” on page 12

“Making an Intercom Call” on page 25

a. Non-programmable.

Overview 17

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Programmable Feature Key LEDs

The programmable feature keys have two-color LEDs to signal the status of some
functions. The LED flash patterns indicate call and feature status as described in Table 8.

Table 8 Programmable Feature Keys LED Activity

Key LED Activity Description

Line 1, Line 2, Line 3... Off No call

Steady GREEN Active call

Quickly Flashing GREEN Ringing call

Slow Flash GREEN Call held at your Deskset

Steady ORANGE Active call at another Deskset

Flash ORANGE Held call at another Deskset

Page Off No page

Steady GREEN Making page

Quickly Flashing GREEN Receiving page

Redial Off Not applicable

Directory Off Not applicable

Call Log Off No new calls

Steady ORANGE One or more new missed calls

Messages Off No new messages

Steady ORANGE One or more new messages

Do Not Disturb Off DND off

Steady ORANGE DND on

Quick Dial Off Not applicable

Held Calls List Off Not applicable

Intercom

Help Off Not applicable

Steady GREEN Active call

Quickly flashing GREEN Incoming call

Slowly flashing GREEN Held call

Overview 18

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Dial-Pad Entry

Use the dial-pad keys to enter letters and numbers into a text field. Keys 2, 3, 4, 5, 6,
and 8 have three assigned letters, while keys 7 and 9 have four assigned letters, as
shown in Figure 8.

Figure 8. Dial Pad

Pressing 1 once enters a space; pressing it twice enters a 1.

Pressing a key numbered 2 to 9 enters characters in the following order:

1. Upper-case letters.

2. Key number.

3. Lower-case letters.

For example, pressing 2 cycles through A, B, C, 2, a, b, c. Pressing 7 cycles through P, Q,
R, S, 7, p, q, r, s.

For text fields that accept only numbers, pressing a key once enters a number.

You can enter special characters by pressing the # and * keys.

 Press # to cycle through the special characters # & ‘ , – . @ (in that order).
 Press * to cycle through the special characters ! ( ) * + ? (in that order).

Overview 19

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Using the Speakerphone

When the speakerphone is active, the (SPEAKER) key is lit.

To use the speakerphone:

1. To start a call, press . The key becomes backlit and you hear a dial tone. Begin
dialing.

2. To end a call, press . The key backlight goes out.

During an active call, if you are using the handset or a headset, pressing switches
audio to the speakerphone. If the handset is not “hung up,” pressing switches audio
between the handset and the speakerphone.

Using Help Screens

You can view Help on the Deskset screen. These are very brief descriptions of how to use
some of the features.

A Deskset Help menu is also available on the WebUI. See “Help” on page 98.

To use the Deskset Help:

1. Press (MENU), then 1, and then 0.

A menu of help items appears.

2. Press

3. Press (SELECT).

4. Press (CANCEL) to return to the previous menu.

 and  to scroll to the desired help item.

Overview 20

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

2

M

AKING

C

ALLS

The Deskset provides several methods for making a call. If the Deskset is idle or has calls
on hold, you can predial a phone number and then go off hook to call the number. You
can make a call at any time by choosing an off-hook method, then dialing a number. This
is referred to as Live Dialing. You can also predial or live dial using phone numbers from
lists, such as the Directory, Call Log, Redial, Quick Dial, and Messages.

You can dial the extension for the system operator by pressing 0 (zero).

 “Active Call Screen” on page 22

 “Predialing” on page 23

 “Live Dialing” on page 23

 “Making a Call from a List” on page 24

 “Making an Intercom Call” on page 25

 “Making Calls with an Optional AT&T DECT Cordless Headset (SB35025 Only)” on

page 26.

Making Calls 21

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call Timer
Called Phone

Number

Call Status Icon
and Line Key
Number

Transfer

Conf

Flash

Active Call Screen

The active call screen, as shown in Figure 9, appears while you are on a call.

Figure 9. Active Call Screen

Table 9. Active Call Screen Description

Key Description

Begins transfer of a call. See “Transferring a Call” on page 36.

Begins a conference call. See “Making a Conference Call” on page 37.

External calls only—Simulates a hook flash, which signals your
telephone service provider to activate a feature. For example, hook flash
may switch you to another incoming call when you hear a call-waiting
tone, or enable you to create a conference call. These features may be
offered as part of your phone plan. Features that use hook flash occur at
the Central Office (CO) and are separate from any similar functions in
Syn248.

Making Calls 22

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Store

Pause

Backspc

Predialing

Predial is only available when the Deskset is idle or when all calls are on hold. In predial
mode, there is no dial tone. You can only predial one phone number at a time.

To make a Predial call:

1. Using the dial pad, enter the phone number (for example: 232-555-0176). The
predial screen appears.

Before you call the number, you can press:

 to store the number in your Personal list.

 to insert a two-second pause into the phone number.

 to delete the last digit entered.

2. Lift the handset, or press (SPEAKER), (HEADSET), or press a Line key to go

Live Dialing

You can make a call by going off hook, then dialing a phone number.

To live dial a number:

1. From Idle mode, do one of the following to go off hook (to hear the dial tone):

 (CANCEL) to cancel predial.

off hook and call the number.

When all the lines are in use, you cannot start a new call by lifting the handset,

or by pressing or . Instead, the screen briefly displays All Lines Busy.

 Lift the handset.

 Press or .

 Press an available Line key.

Your system administrator can program your Deskset to use a specific external
line or intercom line whenever it goes off hook. To override this automatic
behavior, press a Line key or Intercom key for the desired line after you go off
hook.

2. Enter the phone number. When the number is complete, the Deskset dials the number.

Making Calls 23

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call

Making a Call from a List

To make a call from a list:

1. Access the desired list entry. For example, to view the Directory, press (MENU),
then 1, and then 5. The Directory screen appears. See “Accessing Items in Lists” on

page 40.

2. Press

3. Press or (SELECT) to dial the displayed number. The Deskset dials the

 or  until the desired entry appears.

number and the active call screen appears.

Making Calls 24

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

ExtList

Making an Intercom Call

To make an internal (extension-to-extension) call, you must use the intercom line. You
can access the intercom line by pressing the Intercom key. By default, key 10 is an
Intercom key, as shown in Figure 10, but your system administrator can configure
additional Intercom keys to give you more intercom lines.

Your system administrator can program your Deskset to use a specific external
line or intercom line whenever it goes off hook. To override this automatic
behavior, press a Line key or Intercom key for the desired line after you go off
hook.

Figure 10. Intercom Key

To make an intercom call:

1. With the Deskset in Idle mode, go off hook by lifting the handset, pressing

(SPEAKER), or by some other method.

2. Press the Intercom key, then dial the extension number.

Instead of dialing after pressing the Intercom key, you can press , highlight
the desired extension number, then press (SELECT) to dial the number.

When your intercom call is answered, the active call screen appears.

Making Calls 25

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Making Calls with an Optional AT&T DECT Cordless Headset
(SB35025 Only)

If you have an optional AT&T DECT cordless headset registered to your SB35025 Deskset,
then you can make calls with the headset. Use the Deskset dial pad to dial the number.

To make a call with the cordless headset:

1. Remove the headset from its charger and press the headset ON/OFF button. The
headset is active when you hear a dial tone.

2. Dial the extension or phone number on the Deskset.

3. Press the headset ON/OFF button to end the call.

OR

1. Predial the extension or phone number on the Deskset.

2. Press the headset ON/OFF button to initiate dialing and transfer the audio to the
headset.

3. Press the headset ON/OFF button to end the call.

Making Calls 26

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

3

A

NSWERING

C

ALLS

When a call comes in, the Deskset rings and the incoming call information appears as
shown in Figure 11 on page 28. The screen displays the caller’s name and number (if
available). If there is more than one incoming call, the new calls are assigned to Line keys
while the oldest call remains on the screen. You can answer or ignore each call.

The following sections describe handling incoming calls:

 “Incoming Call Screen” on page 28

 “Incoming Call Indication” on page 28

 “Answering a Call” on page 29

 “Ignoring a Call” on page 30

 “Intercom Auto Answering” on page 31

 “Call Forward–No Answer” on page 32

 “About the Auto Attendant” on page 32.

Answering Calls 27

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Press
or lift handset

Answer

Incoming Call Active Call

Answer

Ignore

Incoming Call Screen

The incoming call and active call screens are shown in Figure 11.

Figure 11. Incoming Call and Active Call

.

Table 10. Incoming Call Screen Soft Keys

Key Description

Answers incoming call.

Silences ringer during incoming call.

Incoming Call Indication

When there is an incoming call, the Deskset rings. See “Sounds” on page 82.

Do Not Disturb automatically silences the ringer. See “Using Do Not Disturb

(DND)” on page 90.

When there are no active or held calls, an incoming call screen appears as shown in
Figure 12.

If someone at another Deskset answers an outside call, your Deskset returns to Idle
mode.

If your company has caller ID, the incoming call screen displays caller information. If the

caller ID information is absent because it is unavailable, UNKNOWN NAME and

UNKNOWN NUMBER appear. If the caller chooses not to send the information,
PRIVATE NAME and PRIVATE NUMBER appear.

Figure 12. Incoming Call Screen

Answering Calls 28

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Answer

Ignore

Ignore

Answering a Call

To answer a call:

To answer an incoming call, do one of the following:

 Lift the handset.

 Press to answer using the Preferred Audio method. See “Preferred

Audio Mode” on page 84.

 Press (SPEAKER) to use the speakerphone.

 Press (HEADSET) to use a headset. See “Call Management Using a Headset”

on page 39.

 For multiple incoming calls, press the corresponding Line key to answer each call.

The previous active call is put on hold. New calls remain in the display until you
answer or until you press .

The active call screen appears.

If you are listening to voicemail when a call comes in, press to return
to the message playback screen.

Once you answer a call:

 Previous active calls are automatically put on hold.

 If you were predialing, that call is canceled.

Answering Calls 29

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Ignore

Ignore

Answer

Answer

Ignoring a Call

You can ignore an incoming call by pressing to silence the ringer. The silenced
ringer icon appears. If you are on an active or held call, after the incoming call has been
ignored, the screen returns to the call you were on before the incoming call.

 Once a call is ignored:

 The key is no longer available on the incoming call screen.

 The Line key continues to flash. If it is an intercom call, the Intercom key

flashes.

 You can press the key or the flashing Line or Intercom key to

answer the incoming call.

 Going off hook—lifting the handset, pressing (SPEAKER), or pressing

(HEADSET)—does not answer the call. Going off hook starts a new call

on the next available line.

 If no one answers the call, the call goes to the Call Forward–No Answer

destination. The default destination for external calls is the Auto Attendant.
The default destination for intercom calls is voicemail. See “Call Forward–No

Answer” on page 32.

Your system administrator can set your Deskset to ignore incoming calls on
selected lines. If your Deskset has one or more lines configured this way, your
Deskset automatically ignores incoming calls on those lines. Your Deskset does
not ring, but you can answer the call by pressing the key or the flashing
Line key.

Answering Calls 30

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

0:05
Graham Bell
9-800-216-2007

Transf er Con f Pa r k

1

AA

Call Answered.

Speak after the tone.

Ignore

Intercom Auto Answering

You can set your Deskset to answer intercom calls automatically, without your having to
touch the phone to answer. When you enable Intercom Auto Answer, ANS appears at
the top of the Deskset screen as shown in Figure 13 unless DND is active, since Auto
Answer is disabled when DND is on.

Intercom Auto Answering applies only to direct Deskset-to-Deskset calls. Auto
Answering does not apply to forwarded calls that use your intercom line(s).

Figure 13. Intercom Auto Answer Enabled

To respond to an Auto Answered intercom call:

After the call rings for the amount of time specified in the Auto Answer Delay (see

“Intercom Auto Answer” on page 79), a two-second notification screen appears, and you

hear a warning tone. Speak after the tone.

If the Intercom Auto Answer Delay is set to zero, you hear no ring. Instead, the

Call Answered screen appears and you hear the warning tone.

If you do not want the Deskset to automatically answer the call, press (CANCEL) or

while the call is ringing to send the call to the Intercom Call Forward–No

Answer target. See “Call Forward–No Answer” on page 32.

If there are multiple incoming intercom calls, Auto Answer applies to the first call.

Answering Calls 31

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call Forward–No Answer

Call Forward–No Answer is a setting that redirects incoming calls. The Syn248 system
has two types of Call Forward–No Answer settings.

Phone Line Call Forward–No Answer can only be set by the system administrator.

This setting determines the destination for unanswered calls on each line. After a call is
forwarded, the call cannot be answered at the Deskset. Calls can be forwarded to:

 an extension. Forwarded calls use the extension’s intercom line.

 an extension’s voicemail (without ringing the Deskset)

 an external phone number

 Auto Attendant (default destination). See “About the Auto Attendant”.

Intercom Call Forward–No Answer is a setting unique to each Deskset. The system

administrator also sets this setting. This setting determines the delay of, and the
destination for, unanswered calls coming through your intercom line. These calls can
include intercom calls or outside calls forwarded to you by the Phone Line Call
Forward–No Answer setting. The default destination is your voicemail. It can also be set
for another extension, an outside phone number, or OFF.

About the Auto Attendant

The Syn248 system features an Auto Attendant that can answer calls during periods
when your office is closed or when calls go otherwise unanswered. The Auto Attendant
has an interactive voice menu that can guide callers to the desired extension or
extension’s voicemail.

If your Deskset is set as the Operator extension, you can set the Auto Attendant to one
of three menus: a default menu, a Day menu and a Night menu. The default menu
instructs callers to “Enter the extension number or enter 0 for the operator.” The system
administrator can customize both the Day and Night menus with your own company’s
greeting message and instructions to callers. For more information, see “Auto-Attendant

Settings” on page 90.

Caller Options

Until callers get through to a live person, they can press 0 at any time to redirect their
call to the system operator, if the system administrator has enabled this feature.

When a caller is redirected to voicemail, the caller has the option to press 5 to skip the
greeting and press 0 to reach the operator.

The Auto Attendant may be set up so that callers can access the Auto Attendant
directory. This allows callers to use any touch-tone phone's dial pad to spell your name,
followed by pressing the pound (#) sign, to reach your extension.

Answering Calls 32

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

4

C

ALL

M

ANAGEMENT

This chapter describes the call management features of the Deskset. The Deskset enables
you to put calls on hold, transfer calls, and create conference calls.

 “Call Management” on page 34

 “Putting a Call on Hold” on page 35

 “Transferring a Call” on page 36

 “Making a Conference Call” on page 37

 “Call Management Using a Headset” on page 39.

Call Management 33

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Transfer

Conf

Flash

Call Management

Call management begins with the active call screen shown in Figure 14. The Call Status
icons are described in “Call Status Icons” on page 16.

Figure 14. Active Call Screen

Table 11 Active Call Screen Description

Key Description

Begins transfer of a call.

Begins a conference call.

External calls only—Simulates a hook flash, which signals your
telephone service provider to activate a feature.

Call Management 34

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Putting a Call on Hold

All Desksets that share assigned lines can view held calls and take calls off hold.

To hold calls and manage held calls:

1. When you are on an active call, press the (HOLD) button.

 The Held Call icon appears and the Line key LED flashes green.

 On other Desksets that are assigned that line, the Line key LED flashes orange.

Someone at any other Deskset assigned that line can press the flashing orange
Line key to take the call off hold, making it an active call on their Deskset.

 All Desksets, including those that are not assigned that line, can view and take

your call off hold from the Held Calls list. See “Accessing the Held Calls List” on

page 45.

 When you put an intercom call on hold, only you can take the call off hold.

 When a call is on hold, you can use the programmable feature keys or the

Deskset Menu to access other functions.

2. To take the call off hold, press the flashing green Line key for that call.

Call Management 35

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Transfer

Press

Transfer

ExtList

Vmail

VMList

Personal

Transfer

Call Transf erred.

Transferring a Call

You can transfer an active call to:

 an internal extension



an outside number, if this function has been enabled by your system administrator

 another extension‘s voicemail, or your personal voicemail.

To transfer a call:

1. Press from the active call screen. The call is automatically put on hold and

the Transfer Setup screen appears.

2. Select a transfer target. You can:

 press the Intercom key and dial an extension number.

 press an available Line key and dial an external number. Depending on your

system configuration, transferring calls to an outside line may be disabled.

 take a held call off hold.



call a number from a list. For example, press and select an extension to call.

 transfer the call directly to voicemail by pressing , then pressing

to select an extension or pressing to transfer the call to your

personal voicemail.

3. When the new call is established, you are ready to transfer the first call. You can:



speak to the person to whom you are transferring the call and announce the
transfer.

 cancel the Transfer Setup screen on the first call by selecting the first call and

pressing (CANCEL). The call remains on hold.

4. To complete the transfer, press . A Call Transferred screen appears for

two seconds. When the transfer is complete, the screen returns to Idle mode.

Call Management 36

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Conf

Press

Conf

Join

Join

Making a Conference Call

You can set up a conference call with yourself and two telephone numbers (either
internal, outside, or with both).

To make a conference call:

1. Press from an active call screen. The call is automatically put on hold and

the Conference Setup screen appears.

2. Establish a second call. You can dial the second call normally or you can select a
held call and take it off hold, or you can start the second call from a list.

When the second call has been established, the soft key appears.

3. To join the calls, press .

Your extension is now in conference with the other two phone numbers.

If you hang up while on the conference, the conference ends. If you make or answer
another call, the conference continues without you. You can rejoin by pressing a
corresponding Line key.

Call Management 37

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Conf

EndConf

Drop

Putting a Conference on Hold

To put a conference on hold:

1. Press (HOLD).

The other callers can continue communicating with each other. The held conference
icon indicates a held conference.

is unavailable during an active call if you have another conference on

hold.

A conference is automatically put on hold when you:

 press an available Line key to start a new call.

 answer an incoming call.

To take a conference call off hold:

1. Press a Line key for one of the calls on the conference.

Ending a Conference

To end a conference:

From the Conference screen, press:

 to end the conference. Both calls hang up and your Deskset returns to

the Idle screen or the call you were on before the conference call.

 a Line key to display the call you want to end, and then press . The other

call remains active.

Call Management 38

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Call Management Using a Headset

You can use a corded or cordless headset with the SB35025 Deskset. The SB35020
Deskset works only with a corded headset. The following types of headsets are
compatible with Syn248 Desksets:

 A corded headset that is plugged into the Headset jack on the back of the

Deskset. (compatible with SB35020 or SB35025).

 A cordless headset that provides its own wireless radio in a base unit that is

plugged into the Headset jack on the back of the Deskset (compatible with
SB35020 or SB35025).

 A compatible AT&T DECT cordless headset (compatible with SB35025 only). The

cordless headset can be registered to a SB35025 Deskset. No other connections
to the Deskset are required. See “Registering an Optional Cordless Headset

(SB35025 Only)” on page 86.

To use a headset:

 From Idle mode or during a call using the corded handset or speakerphone, press

the (HEADSET) key.

If you have a headset connected to the jack on the back of the Deskset, then
that headset becomes active.

If you have a AT&T DECT cordless headset registered to the Deskset, then the
cordless headset becomes active.

 To send audio from the headset to the Deskset speakerphone, press

(SPEAKER).

 To send audio from the headset to the corded handset, lift the handset. If the

handset is already off hook, press to send audio to the handset. While the
handset is off hook, you can press again to return audio to the headset.

Call Management 39

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

5

A

CCESSING ITEMS IN

L

ISTS

The Deskset has lists of phone numbers that are used for making calls and for call
management. Some of the lists, like the Messages list, have other features associated
with them that are explained elsewhere in this guide. In this chapter, you learn how to
access an individual item in a list. All instructions start from the Idle screen.

The Deskset may provide access to the following lists:

 Directory List — See Chapter 6, “Directory” on page 46

 Voicemail List — See Chapter 7, “Voicemail” on page 54

 Call Log — See Chapter 8, “Call Log” on page 65

 Extension List — See “Accessing the Extension List” on page 41

 Redial List — See “Accessing the Redial List” on page 42

 Held Calls List – See “Accessing the Held Calls List” on page 45.

Accessing Items in Lists 40

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

ExtList

ExtList

Accessing the Extension List

You can access the Extension List as part of the Directory when the phone is idle. See

“Using the Directory” on page 47. When you go off-hook, you can access the Extension

List using the soft key that appears.

To access the Extension List:

1. Lift the receiver or press (SPEAKER), then press the Intercom key.

The dialing screen appears.

2. Press . The Extension List appears.

3. Press

4. Press (SELECT) to call the highlighted extension.

 or  until you highlight the desired entry.

You can also access the Extension List from the following:

 Transfer — See “Transferring a Call” on page 36.

 Conference Setup — See “Making a Conference Call” on page 37.

Accessing Items in Lists 41

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Number, time
and date

Store

Delete

Callback

DelAll

Callback

Call

Accessing the Redial List

The last 20 phone numbers that you dialed are recorded in the Redial list, as shown in
Figure 15 and described in Table 12.

Figure 15. Redial List

Table 12. Redial List Function

Key Description

Stores the caller’s number in the Personal list. You can also enter the
caller’s name.

Deletes the entry.

Allows you to dial the number or store the caller’s number in the
Personal list.

Deletes all entries.

Dialing a Redial Number

To dial a Redial number:

1. Press (MENU), then 1, and then 7.

The Redial list appears.

2. Press

3. Press (SELECT) to redial the number, or press to:

 or  until you see the desired entry.

 redial the number by pressing .

Accessing Items in Lists 42

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Store

Save

Delete

DelAll

DelAll

Are you sure you want to
de lete all e ntrie s?

Yes No

Yes

 store the caller’s number by pressing . The Store Redial Entry screen

appears with the number filled in.

 If necessary, enter the caller’s first and last names. Press  to move the

cursor to the Last Name and Phone # entries.

 Press to save the entry.

The system does not check for duplicate entries.

4. Press (CANCEL) to exit the Redial list.

Deleting Redial Entries

You can delete a single Redial entry from the Redial list or all Redial entries. Ensure the
entry you wish to delete is displayed.

To delete a single entry:

1. In the Redial list, press  or  until you see the desired entry.

2. Press .

3. Press (CANCEL) to exit the Redial list.

To delete all Redial entries:

1. In the Redial list, press  or  to display the soft key.

2. Press . A confirmation screen appears.

3. Press to confirm deletion.

4. Press (CANCEL) to exit the Redial list.

Accessing Items in Lists 43

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

'LUH FWRU \
*UDKDP%HOO
3(5!

Cal lLastNmeNew

'LUH FWRU \
5

LFKDUG6HUOLQJ

3(5!

1HZ /DVW1PH &D OO

Searching the Extension or Directory Lists

Use the dial pad to get to the first entry that starts with any letter.

To search for a list entry:

1. Select a list to search, such as the Directory.

2. Press the dial-pad keys to cause the Deskset to search for an exact match or the
closest match. For example:

 If you press 4 once, the Deskset searches for names beginning with G.
 If you press 7 three times, the Deskset searches for names beginning with R.

See “Dial-Pad Entry” on page 19 for information on entering other individual
letters. This searching function uses only the uppercase letters.

When an exact match is found, the entry appears.

If you enter a letter and the Deskset cannot find an exact match, the Deskset displays
the entry with the next closest alphabetical match.

Accessing Items in Lists 44

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Accessing the Held Calls List

When you or anyone else in y our office p uts an exter nal call on h old , the call is displayed
in the Held Calls List. The Held Calls List shows all held calls on all lines in the system,
including lines that haven’t been assigned to your Deskset Line keys.

You can view and retrieve any held call in the system from the Held Calls List. A call
retrieved from the Held Calls List uses an intercom line on your Deskset.

Your Deskset Line keys flash orange to indicate held calls on the lines that were assigned
to your Deskset. Pressing a flashing orange Line key is the easiest way to retrieve a held
call. However, this is not always possible because all Desksets in the system may not
have the same lines assigned to them. For example, your department may have lines 1
and 2 assigned to your Desksets. Another department in your company may have lines
3 and 4 assigned to their Desksets. Using the Held Calls List, you can access calls being
held on lines 3 and 4.

To retrieve a call from the Held Calls List:

1. Press (MENU), then 1, and then 1.
The Calls on Hold screen appears.

2. Press

3. Press (SELECT) to retrieve the call.

 or  to highlight the desired call.

The call becomes active on your intercom line. Any previous active call on your
Deskset goes on hold.

If you put an external call on hold then retrieve the same call from the Held
Calls List, you will only be able manage the call on the intercom line.

Accessing Items in Lists 45

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

6

D

IRECTORY

The Syn248 system provides three Directory lists. By default, the system displays entries
from all three lists. See “To view and call Directory entries:” on page 48 to learn how you
can limit this display to one of the three lists.

 Personal — You can add, edit, and delete up to 50 entries in this Personal

directory from the Deskset or the WebUI. These entries are available only at your
extension.

 System — This directory is created and maintained by the system administrator.

It is available at all extensions. You can view and sort this directory, but you
cannot modify it.

 Extension — This is a list of all extensions in the system. It contains the Display

Names that the administrator entered and the extension number of each
Deskset. The Extension directory is available at all extensions. You can view and
sort this directory, but you cannot modify it.

 “Using the Directory” on page 47

 “Viewing and Calling Directory Entries” on page 48

 “Creating a New Personal List Entry” on page 49

 “Editing a Personal List Entry” on page 50

 “Storing Directory Entries from the Call Log or Redial List” on page 52

 “Sorting Directory Entries” on page 53.

Directory 46

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

'LU H FW RU \
*UDKDP%HOO
3(5!

CallLastNmeNew

Entry type
(Personal, System,
or Extension)

Full name
and number
displayed

New

Edit

FirstNme

LastNme

Call

Settings

Delete

Using the Directory

Access the Directory by pressing (MENU), then 1, and then 5 to display the screen
shown in Figure 16 and described in Table 13.

Figure 16. Directory

Table 13. Directory Screen Description

Key Description

Creates a new entry in the Personal list.

Allows you to change previously entered information.

Switches between first and last name sorting.

Dials the on-screen number.

Displays a list of Directory settings.

Deletes the entry.

Directory 47

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

'LUH FWRU \
*UDKDP%HOO
3(5!

Cal lLastNmeNew

Settings

Settings

'LUHFWRU\6HWWLQJV
3HUVRQDO+LGH
6\VWHP >6KRZ @
([W/LV W>6KRZ @

'LUHFWRU\6HWWLQJV
6\VWHP >6KRZ @
([W/LV W>6KRZ @



6RUW2UGH U)1DP H 

Viewing and Calling Directory Entries

By default, the Directory screen displays entries from all three Directory lists—Personal,

System, and Extension. You can change the Directory settings to view any combination
of the lists.

When viewing a list, you can press a dial-pad key to see the first name that starts with
the first letter on that key. If there is no match, the Deskset displays the next entry in the
alphabetical list.

To view and call Directory entries:

1. Press (MENU), then 1, and then 5.

The Directory list appears.

2. Press

 or  to show the desired entry.

3. Press (SELECT) to dial the displayed phone number.

To change Directory settings:

1. From the Directory list, press  or  to display the soft key.

2. Press to display the Directory Settings screen.

3. Press

4. Press

5. Press (CANCEL) to return to the Directory screen. The changes you made to the

 or  to highlight the desired list, and press  or  to select Show or

Hide. Show all lists by setting all three to Show.

 or  to highlight Sort Order, and press  or  to select the default sort

order.

Directory are applied immediately.

Directory 48

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

New

Fir st Nam e:
Last Name :
Pho ne #:

Save Backspc

Backspc

Pause

Save

Creating a New Personal List Entry

You can add up to 50 personal entries to the Directory. These personal entries are only
visible at your extension.

To create a new Personal list entry:

1. Press (MENU), then 1, and then 5.

The Directory appears.

2. Press to display the entry screen with the cursor positioned in the

First Name field.

3. Edit the First Name, Last Name, and Phone # fields using the dial pad. 

See “Dial-Pad Entry” on page 19. The name text fields are limited to 20 characters
each and the number field is limited to 32 digits.

When editing the entry, you have the following options:

 Press  or  to move the cursor.

 Press  or  to move to the previous or next field.

 Press to erase the highlighted character if there is one, or else the

character before the cursor.

 When entering a phone number, press to insert a two-second pause.

The pause appears as a P in the field and is counted as a digit.

4. Press . The Directory appears.

Directory 49

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Edit

Edit

Edit

Backspc

Pause

Save

Editing a Personal List Entry

You can edit any personal list entry while viewing the Directory.

To edit a Personal list entry:

1. Press (MENU), then 1, and then 5.

The Directory appears.

2. Press

3. Press

 or  to display a personal entry (as indicated by <PER>) to be edited.

 so that appears, then press . The entry edit screen

appears.

The key is not available when you are viewing a system or
extension entry.

4. Edit the First Name, Last Name, and Phone # fields using the dial pad. See

“Dial-Pad Entry” on page 19. The name text fields are limited to 20 characters each

and the number field is limited to 32 digits.

When editing the entry, you have the following options:

 Press  or  to move the cursor.
 Press  or  to move to the previous or next field.

 Press to erase the highlighted character if there is one, or else the

character before the cursor.

 When editing a phone number, press to insert a two-second pause. The

pause appears as a P in the field and is counted as a digit.

5. Press . The Directory appears.

Directory 50

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Delete

Delete

Are you sure you want to
delete this entry?

Yes No

Yes

Delete

Deleting a Personal List Entry

You can delete any one of your Personal list entries while viewing the Directory.

To delete a Personal list entry:

1. Press (MENU), then 1, and then 5.

The Directory appears.

2. Press

3. Press

4. Press . The confirmation screen appears.

5. To confirm the deletion, press .

 or  to display the entry to be deleted.

 so that appears.

The key is not available when you are viewing a system or
extension entry.

Directory 51

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Store

Store

Backspc

Pause

Save

Storing Directory Entries from the Call Log or Redial List

To store a Call Log or Redial entry into your Personal list:

1. In the Call Log or Redial list, press  or  to display the desired entry.

2. If necessary, press

 or  to see the soft key.

3. Press to store the entry in your Personal list. The entry screen appears.

The Deskset automatically fills in the name and number, if available.

 If necessary, edit the name and number. Press  to move the cursor to the Last

Name and Phone # entries.

 Press to erase the highlighted character if there is one, or else the

character before the cursor.

 When editing a phone number, press to insert a two-second pause. The

pause appears as a P in the field and is counted as a digit.

4. Press to save the entry.

The system does not check for duplicate entries.

Directory 52

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

FirstNme

LastNme

Sorting Directory Entries

The Directory entries are sorted by first or last names. When you use the dial pad to
search, the system searches for the names in the sort order.

To sort Directory entries:

1. Press (MENU), then 1, and then 5.

The Directory appears.

2. To sort the entries by first name, press .

To sort the entries by last name, press .

Directory 53

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

7

V

OICEMAIL

Your Syn248 Deskset records and saves incoming voice messages. The MESSAGE
WAITING LED, shown in Figure 17 on page 55, lights up when you have one or more new
messages.

Each message can be up to 2 minutes long. Your Deskset has 30 minutes of recording
time and can hold up to 100 messages.

The following sections describe how to listen to and manage voicemail on your Deskset:

 “Voicemail Overview” on page 55

 “Setting up Your Voicemail Greetings” on page 56

 “Accessing Your Messages” on page 57

 “Deleting Messages” on page 60

 “New Message Status Indications” on page 61

 “Accessing Your Voicemail Remotely” on page 62.

Voicemail 54

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

MESSAGE
WAITING LED

Name and
number

Indicates a new
message

Message
Counter

Time and date
the message
was recorded

Play

DelMsg

Callback

DelAll

PlayAll

ClrNew

MrkNew

Voicemail Overview

When there is at least one new message, the MESSAGE WAITING LED lights up, as shown
in Figure 17.

Figure 17. Message Waiting LED

To access your messages, see “Accessing Your Messages” on page 57. Each message
appears on a screen similar to the screen shown in Figure 18. To see other messages,
press

 or . Pressing  or  displays the soft keys described in Table 14.

Figure 18. Messages Screen

Table 14. Voicemail List Description

Key Description Key Description

Plays message. Deletes displayed message.

Gives you options for calling

Deletes all messages.

the number back.

Plays all messages. Clears and restores the new

message indication from a
message.

Voicemail 55

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

PlayRec

Play

Delete

Record

Stop

Play

Delete

Setting up Your Voicemail Greetings

You can have three different greetings for your voicemail. You can then activate the one

that is currently appropriate. You can record a Primary Greeting to use most of the
time and an Alternate Greeting for when you are out of the office. The Pre-Set

greeting, “Please leave a message after the tone,” is used when no other greeting is
recorded.

To record a Primary or Alternate greeting:

1. Press (MENU), then 2, then 1, and then 1 to display the Voicemail Greetings

menu.

2. Press

3. Press . The message review screen appears. The and soft

4. If you wish to record the greeting on the handset, lift the handset. You can also

5. To record your greeting, press . The message recording screen appears.

6. Press when you are finished. The greeting is saved and the message review

 or  to highlight the Primary or Alternate greeting. You cannot record

over the Pre-Set greeting.

keys do not appear if a greeting has not already been recorded.

record the greeting on the speakerphone.

screen appears. Recording stops automatically if you exceed the 60-second time
limit.

7. Press to review the message or to delete the greeting.

8. Press (CANCEL) to return to the Voicemail Greetings menu.

Voicemail 56

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Activate

Mes sages 1/10
Graham Bell Jul 19
232-555-0176 1:18p

Pla y DelMsg Callback

!

To activate a greeting:

1. Press (MENU), then 2, then 1, and then 1 to display the Voicemail Greetings

menu.

 Press  or  to highlight the Primary, Alternate, or Pre-Set greeting to be

played to outside callers.

When you highlight the Pre-Set greeting, the PlayRec soft key changes to
Play. You cannot delete or record over the Pre-Set greeting.

2. Press to make the highlighted greeting the greeting played to callers. The
system checks to see if the selected greeting has been recorded.

 If the selected greeting has been recorded, [ACTIVE] appears beside the

selected greeting.

 If a greeting has not been recorded, Greeting not recorded appears. To record

a Primary or Alternate greeting, see “To record a Primary or Alternate

greeting:” on page 56.

Accessing Your Messages

To access your messages:

1. Press (MENU), then 1, and then 3.

If necessary, use the dial pad to enter your user password and then press

(SELECT).

Once you have entered your password, you do not have to enter it again

while you are reviewing messages. However, if you exit the Messages

screen, you will need to enter your password to access the Message list.

The Messages screen appears.

2. Press

 or  until you see the desired Messages entry.

3. Press (CANCEL) to exit the Messages screen.

Voicemail 57

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Mes sages 1/10
Graham Bell Jul 19
232-555-0176 1:18p

Pla y DelMsg Callback

!

Play

Graham Bell



3DXVH 'HOHW H

!

Jul 19 1:18p

Pause

Delete

PlayAll

PlayAll

Pause

Message Playback

You can play either a single message or all of your messages.

To play a single message:

1. On the Messages screen, press  or  until the desired entry is on the screen.

2. Press . The ! icon appears on messages that are being played for the first
time.

During message playback, you can press:

 to pause message playback.

 to delete the message. If there are more messages, the next message

is displayed.

  or  to skip back or forward by 8 seconds.
  or  to skip to the previous (newer) or next (older) message.

To play all messages:

1. On the Messages screen, press  or  to display the soft key.

2. To play all messages, press .

The system starts with the oldest and ends with the most recent. There is a short
beep between messages. The ! icon appears on messages that are being played for
the first time. During message playback, you can press:

 to pause message playback.
  or  to skip back or forward by 8 seconds.
  or  to skip to the previous or next message.

 (CANCEL) to stop playback and return to the Messages list.

If all messages play without interruption, you return to the Messages list with the

last played message on the screen.

Voicemail 58

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Callback

Call Back
Graham Bell

232-555-0176

Cal l Store

Call

Store

Calling the Messenger

You can call back the person who left the message.

To call back the person who left the message:

1. In the Messages list, press  or  until the desired entry is on the screen.

2. Press . The Call Back screen appears.

 Press  or  to view the dialing options.

 Press to dial the number.

 Press to store the entry in your Personal Directory.

 Press (CANCEL) to return to the Messages list.

Voicemail 59

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

DelMsg

DelAll

DelAll

Yes

Deleting Messages

You can delete a single message or all messages from the Messages screen. You can

also delete a single message during message playback, as described in “Message

Playback” on page 58.

To delete a single message or all messages:

1. On the Messages screen, press  or  until the desired entry is on the screen.

2. Press to delete the message.

The system deletes the message and displays call information for the next message.

OR

To delete all messages:

a. Press

b. Press .

c. Press to confirm.

 or  to display the soft key.

The confirmation screen appears.

All messages are deleted, including new (unheard) messages.

Voicemail 60

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

ClrNew

ClrNew

MrkNew

ClrNew

MrkNew

New Message Status Indications

You can add a new message indication ( ) or delete the new message indication
from a message. The new message indication disappears after you play a message, but
you can mark a message as “new” or “old” at any time.

To clear and restore new message indications:

1. On the Messages screen, press  or  until the desired entry is on the screen.

2. Press

3. Press to clear the new message indication.

4. If desired, press to restore the icon for a selected message, marking

 or  to display the soft key.

The soft key replaces .

the message as new again.

Voicemail 61

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Accessing Your Voicemail Remotely

Remote access allows you to listen to messages or change the recorded greeting when
you are away from your Deskset. Follow the voice prompts and press the appropriate
dial-pad keys to navigate through the system. The voice prompts in a menu list are
repeated three times with a 5-second pause between. After three times with no action,
the voice says “Goodbye” and the remote call is disconnected.

Listening to the time/date stamp information of a message does not count as listening
to the message. If you access the voicemail through remote access and skip to another
message while the time or date is playing, the message is still considered new.

To u se th is fe atur e, yo ur sy stem must b e set up for remote voicemail access. The
Phone Line Call Forward–No Answer setting and Intercom Call Forward–No
Answer setting must allow you to reach your extension’s voicemail. For more
information, consult your system administrator.

To access voicemail remotely:

1. Dial your company phone number.

2. Depending on your system settings, do one of the following:

 If the Auto Attendant answers your call, enter your extension number. When your

extension rings, wait for your call to go to voicemail, then press the star key twice
(

) when you hear your voicemail greeting.

* *

 If the Auto Attendant allows you to reach your extension’s voicemail directly,

press the star key twice (

 If the Phone Line Call Forward–No Answer setting forwards your call directly to

your voicemail, press the star key twice (
greeting.

 If the Phone Line Call Forward–No Answer setting rings your extension, wait for

your call to go to voicemail, then press the star key twice (
your voicemail greeting.

3. When you hear “Enter your access code, followed by the pound key” enter your
password (if you have created one), then enter pound (#) to access the voice prompt
menu.

If you have not created a password, press the pound (#) key.

If your mailbox is full, your voicemail greeting does not play. Instead you hear
“Voicemail is full” before being disconnected. To access your voicemail when
your mailbox is full, quickly press the star key twice (
is full” announcement begins.

) when you hear your voicemail greeting.

* *

) when you hear your voicemail

* *

* *

) just as the “Voicemail

* *

) when you hear

Voicemail 62

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

To access voicemail remotely – listen to messages:

Once you have accessed the system, the main menu plays. From this menu you can listen
to old or new messages as shown in Figure 19. You have the following options:

 To listen to new messages, press 1.

 To listen to old messages, press 2.

 To change voicemail options, press 8.

Once you press 1 or 2, and the messages start playing, you have the following options:

 To stop message playback and replay options, press 5.

 To delete the current message, press 3.

 To repeat the previous message, press 4.

 To skip this message, press 6.

 To jump back 8 seconds, press 7.

 To jump forward 8 seconds, press 9.

 To return to the previous menu, press star

Figure 19. Remote Voicemail Access

.

*

Voicemail 63

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

To access voicemail remotely – voicemail greeting setup:

1. To set up the voicemail greeting, access the system and press 8. As illustrated in the
flow diagram in Figure 20, you have the following options:

 To record a primary greeting, press 1.

 To record an alternate greeting, press 2.

 To choose the Primary or Alternate greeting, press 7.

2. Begin recording after the tone.

3. To end the recording, press 5.

4. Select one of the following options:

 To review the recording, press 1.

 To record over the greeting, press 3.

 To accept the greeting, press 9.

Voicemail 64

Figure 20. Remote Voicemail Greeting Setup

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

8

C

ALL

L

OG

The Deskset Call Log provides available name and number information for the last 50
calls received. The newest entries replace the oldest.

 “Using the Call Log” on page 66

 “Managing Missed Calls” on page 67

 “Deleting Call Log Entries” on page 70.

You can view the Call Log by pressing (MENU), then 1, and then 6 from the Idle
screen.

This system has a caller ID feature that works with the caller identification
service offered through your telephone service provider. There is a fee for this
service, and it might not be available in all areas. This telephone can provide
information only if both you and the caller are in areas offering caller
identification service, and if both telephone service providers use compatible
equipment.

Call Log 65

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

2

4

3

1

PlayMsg

Delete

Callback

Store

ClrNew

DelAll

Using the Call Log

The Call Log soft keys, as shown in Figure 21 and described in Table 15, are available
whenever the Call Log has at least one entry.

Figure 21. Call Log Functions

1. Current Call Log entry number/

50/50 maximum.

total number of entries

2. Name and number

3. Message available for playback Exclamation mark (!) indicates the message is

new.

4. NEW Indicates the call was not answered and has

not been reviewed.

Table 15. Call Log Soft keys

Key Description Key Description

Plays message. Appears only

Deletes the entry.

when there is a message.

Gives you options for calling
the number back.

Clears [NEW] indication from

Stores number in your
Personal list.

Deletes all entries.

the displayed entry.

 The message icon appears in call entries where the caller left a message.

The icon remains until you delete the message. An ! icon indicates the message
is new.

 If your company has caller ID, the caller information appears. If the caller ID

information is absent because it is unavailable, UNKNOWN NAME and
UNKNOWN NUMBER appear. If the caller chooses not to send the information,
PRIVATE NAME and PRIVATE NUMBER appear.

Call Log 66

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Callback

Cal l Store

Call Back
Ange la Martin
732-555-7318

Call

Delete

To access the Call Log:

1. Press (MENU), then 1, and then 6.

The most recent Call Log entry appears.

2. Press

 or  until the desired entry is on the screen.

3. Press (CANCEL) to exit the Call Log.

Managing Missed Calls

All incoming calls are recorded in the Call Log. Unanswered calls that have not been
reviewed are indicated by [NEW].

To review and make calls from the Call Log:

1. On the Call Log screen, press  or  to see the desired entry.

 Press to access dialing options before calling a number and to dial the

displayed number. The Call Back screen appears.

 Press to dial the on-screen number.

 Call Log entries may not be in the proper format for dialing. In some areas,

you need to remove the area code or add or remove a 1. Press
view the dialing options. The following dialing options are available:

 or  to

 nnn-nnnn (7 digits)

 1-nnn-nnnn (8 digits)

 nnn-nnn-nnnn (10 digits)

 1-nnn-nnn-nnnn (11 digits).

 Press to delete the displayed entry.

2. Press (CANCEL) to exit the Call Log.

Call Log 67

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

PlayMsg

Graham Bell



3DXVH 'HOHW H

!

Jul 19 1:18p

PlayMsg

Listening to Voicemail From the Call Log

If the caller left a message, you can play the message from the Call Log.

To play a message from the Call Log:

1. On the Call Log screen, press  or  until the desired entry is on the screen.

2. Press . The message playback screen appears.

only appears if the call has an associated message.

If necessary, use the dial pad to enter your password and press (SELECT).

3. Press Delete while the message is playing to delete the voice message. There is a

slight delay until the message indicators change.

When the message playback completes, the Call Log appears.

4. Press (CANCEL) to exit the Call Log.

Call Log 68

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Store

Store

)LUVW1DPH $QJHOD0D
/DVW1DPH
3KRQH 



Save Pa us e Backspc

Backspc

Pause

Save

Storing Call Log Entries

To store a Call Log entry into your Personal list:

1. From the desired Call Log entry, press  or  to display the soft key.

2. Press to store the entry in your Personal list. The screen below appears.

The caller information fills in the First Name and Number fields.

3. If necessary, edit the name and number. Press

 to move the cursor to the Last

Name and Phone # entries.

 Press to erase the highlighted character if there is one, or else the

character before the cursor.

 When editing a phone number, press to insert a two-second pause. The

pause appears as a P in the field and is counted as a digit.

The system does not check for duplicate entries.

4. Press to store the entry and return to the Call Log.

5. Press (CANCEL) to exit the Call Log.

Call Log 69

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Delete

DelAll

D2FW
*

UDKDP%HOO

>1(:@



Stor e Clr New DelA ll

DelAll

Are you sure you want to
de lete all e ntrie s?

Yes No

Yes

Deleting Call Log Entries

You can delete a single Call Log entry, or all Call Log entries.

To delete Call Log entries:

1. From a Call Log entry, press . The displayed entry is removed from the list
and the next entry appears.

OR

To delete all Call Log entries, press

 or  to display the soft key.

a. Press .

The confirmation screen appears.

b. Press to confirm.

2. Press (CANCEL) to exit the Call Log.

Call Log 70

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

9

P

AGING

Paging allows you to broadcast what you say to more than one ext ension. If your system
administrator has set up paging zones, you can page all extensions or a zone.

If your Syn248 system includes an optional overhead paging (OHP) system, you may be

able to page through loudspeakers. The OHP system is included when you select All
Extensions on the Paging Zones menu. The OHP system may also be included in a

custom Paging Zone.

t

Overhead paging is available only if a SB35025 Deskset is connected to the
Syn248 system. The OHP system connects directly to the SB35025 auxiliary
input/output port. No other Syn248 Desksets have an auxiliary input/output
port. See “Syn248 System Overview” on page 9.

Paging 71

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

3DJLQJ=RQHV

$

OO([WHQVLRQV



$FFRXQWV

0DQDJHPH QW

En dPa g e

3DJLQJ$OO([WHQVLRQV

EndPage

Sending a Page

You can start sending a page from the Paging Zones menu. If your system administrator

has set up paging zones, you can page all extensions or a zone.

To send a page:

1. Press (MENU), then 1, and then 2.
The Paging Zones menu appears. The menu shows the paging options available to

your Deskset.

2. Highlight All Extensions or a paging zone.

3. Press (SELECT). The system emits a short paging tone and the Page screen

appears.

OR

Press (CANCEL) to return to the idle screen.

4. Speak into the speakerphone or pick up the handset to speak.

5. When finished, press or (CANCEL), hang up the handset, or press

(SPEAKER). The Idle screen appears.

At the extensions being paged:

 Desksets involved in active calls, listening to voicemail, or playing or recording a

name or greeting do not receive pages.

 The PAGE programmable feature key (key #5 by default) flashes.

 Press the VOL+ or VOL– keys to adjust the volume. This volume setting affects

current and future incoming pages only.

 Lifting the handset interrupts the page. The PAGE key continues to flash.

Paging 72

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

10

D

ESKSET

S

ETTINGS

You or your system administrator can customize your Deskset at the Deskset using the
following menus and features:

 “Deskset Menu” on page 74

 “Features” on page 75

 “User Settings” on page 76

 “Admin Settings” on page 88

 “Deskset Information” on page 89

 “Auto-Attendant Settings” on page 90

 “Using Do Not Disturb (DND)” on page 90.

Deskset Settings 73

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Deskset Menu

You can use the Deskset menus to set up many Deskset features. Access the menu by
pressing (MENU), and then select options by highlighting an item and pressing

(SELECT), or by pressing the dial-pad key with that option number.

To access the Deskset setup menus:

1. Press . The Menu appears.

 Press 1 on the dial pad to display the Features menu. These features are

discussed throughout this User’s Guide. See “Features” on page 75 for
appropriate links.

 Press 2 to display the User Settings menu. See “User Settings” on page 76 for

further instructions.

 Press 3 to display the Admin Settings menu. See “Admin Settings” on page 88.
 Press 4 to display the Deskset Information screen. See “Deskset Information”

on page 89 for further instructions.

 If your system administrator has set your extension as the Operator extension,

the menu has an additional item. Press 5 to change the Auto Attendant

settings. See “Auto-Attendant Settings” on page 90 for further instructions.

Deskset Settings 74

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Features Menu 1/3 Features Menu 2/3 Features Menu 3/3

Features

Use the Features menu to access the Deskset features, as shown in Figure 22 and

described in Table 16.

Figure 22. Deskset Features Menu

Table 16. Deskset Menu

Feature See page... Description

1. Held Calls List 45 View and retrieve held calls from any line in the

system.

2. Page 72 Make an announcement to your organization.

3. Messages 57 Play, delete, or forward messages.

4. Do Not Disturb 90 Turn Do Not Disturb on and off.

5. Directory 47 View and make calls from the Directory.

6. Call Log 66 View and make calls from the Call Log.

7. Redial 42 View the last 20 numbers dialed and redial a

selected number.

0. Help 20 View help information on the Deskset screen.

Depending on how your system administrator set up your extension, some of
these features may be available by pressing one of the programmable feature
keys on the right side of the Deskset. See “Programmable Feature Keys” on

page 17.

Deskset Settings 75

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

User Settings Menu 1/2 User Settings Menu 2/2

Backspc

User Settings

Use the User Settings menu to set up options as shown in Figure 23 and described in

Table 17.

Figure 23. User Settings Menu

Table 17. Deskset Menu – User Settings

Setting See page...

1. Greetings 77

2. Intercom Auto Answer 79

3. Deskset Settings 80

4. Directory Settings 84

5. User Password 85

6. Cordless Headset (SB35025 only) 86

To display the User Settings menu:

1. Press (MENU) and then 2 to display the User Settings menu.

2. If you have set a user password, the user password screen appears before the User
Settings menu appears.

 Enter your password and press (SELECT).

 To correct errors, press .

 To cancel your changes on that screen, press (CANCEL) at any time. The

Deskset will return to the previous screen.

Deskset Settings 76

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Greetings

Use the Greetings menu, as shown in Figure 24 and described in Table 18, to record

your voicemail greeting message.

Figure 24. Greetings Menu

Table 18. User Settings – Greetings Menu

Function See page... Description

1. Voicemail Greetings 56 Record and set your voicemail greetings.

2. Name Recording 78 Record your name.

Deskset Settings 77

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Play

Delete

Record

Record

Stop

Stop

Play

Delete

Name Recording

Your name recording should identify yourself to callers. If callers access the Company
Directory when unanswered calls are directed to the Auto Attendant, they hear this
recording upon entering your name.

To create a useful recording for incoming callers, you should say your name slowly,
clearly, and at a reasonable volume. Your system administrator may also recommend that
you state both your name and extension number. It is important that your recording be
consistent with recordings at other extensions in the system.

To record and play a personal name:

1. Press (MENU), then 2, then 1, and then 2 to display the Name Recording
menu. The and soft keys do not appear if your name has not

already been recorded.

2. Press to start recording. The key changes to .

You are limited to a 10-second recording; recording stops automatically if
the limit is exceeded.

3. Press when you are finished. The recording is saved and the recording
review screen appears.

4. Press to review the recorded name.

OR

Press to delete the recording. The Recording Deleted screen briefly

appears.

5. Press (CANCEL) to return to the Greetings menu.

Deskset Settings 78

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Save

Intercom Auto Answer

You can set the Deskset to automatically answer intercom calls after a delay that you
specify. Without touching the Deskset, you can speak to and be heard by people who call
you. For example, employees in warehouses or shops may use this feature for quick
conversations without having to interrupt what they are doing.

Do Not Disturb takes priority over Auto Answer.

Intercom Auto Answer does not apply to outside calls that use an intercom line
after they were forwarded to your Deskset by a Phone Line Call Forward–No
Answer setting.

To set Auto Answer:

1. Press (MENU), then 2, and then 2. The Intercom Auto Answer screen appears.

2. Press

3. Press

4. Press to confirm the change. The Call Management menu appears.

 or  to select either Disabled or Enabled.

, then  or  to set the delay before the Deskset automatically answers

each call.

When an incoming call is automatically answered, a Call Answered screen appears

and a tone sounds.

Deskset Settings 79

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Deskset Settings Menu 1/2 Deskset Settings Menu 2/2

Deskset Settings

Use the Deskset Settings menu to set up the display appearance and sounds of your

Deskset as listed in Table 19.

Figure 25. Deskset Settings Menu

Table 19. Deskset Settings Menu

Function See page... Options

1. Display 81 1. Contrast (1–9)

2. Backlight (Lo/Hi/Off)

2. Sounds 82 1. Ring Volume (0–9)

2. Ringtones (1–9)

3. Key beeps (On/Off)

4. Call Waiting Tone (On/Off)

3. Volume Settings 83 Speaker Volume (1–9)
Receiver Volume (1–9)
Headset Volume (1–9)
Paging Volume (1–9)

4. Preferred Audio Mode 84 Preferred Audio Mode (Speaker,

Headset)

Deskset Settings 80

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Save

Display

Use the Display menu to adjust your Deskset LCD screen contrast and backlight.

To use the Display menu:

1. Press (MENU), then 2, then 3, and then 1.

The Display menu appears.

2. Press

3. Press

4. Press to accept the adjustments and return to the Deskset Settings menu.

 or  to adjust the Contrast level from 1 to 9. The default is 5.
 to set the Backlight level.

Press

 or  to select Hi, Lo, or Off. The default is Hi.

Deskset Settings 81

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Save

Sounds

Use the Sounds menu to set the ring volume, pick one of nine ringtones, or turn key

beeps and the call waiting tone on and off.

To use the Sounds menu:

1. Press (MENU), then 2, then 3, and then 2.

The Sounds menu appears.

2. Press

3. Press

4. Press

5. Press

 or  to adjust the Ring Volume from 0 to 9. The default is 3. A ringer

sample plays. You can also set the ring volume by pressing the + / – (VOLUME) keys.

To turn off the ringer, decrease the volume to zero.

, and then  or  to select one of nine Ringtones. The default is 1.

Ringtone samples play when selected.

, and then  or  to turn Key Beeps On or Off. The default is On.

, and then  or  to turn Call Waiting Tone On or Off. The default is On.

The call waiting tone alerts you to an incoming call if you are already on a call. This
setting does not control any call waiting alert(s) provided by your telephone service.

6. Press to accept the adjustments and return to the Deskset Settings menu.

Deskset Settings 82

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Save

Volume Settings

Set the Speaker, Receiver, Headset, and Paging volumes using the Volume Settings

menu. You can also adjust each of these settings while you are on a call by pressing the
+ / – (VOLUME) keys.

To use the Volume Settings menu:

1. Press (MENU), then 2, then 3, and then 3.

The Volume Settings menu appears.

2. Press

3. Press

4. Press

5. Press

6. Press to accept the adjustments and return to the Deskset Settings menu.

 or  to set the Speaker Volume from 1 to 9. The default is 4.
, and then  or  to set the Receiver Volume from 1 to 9. The default is 3.
, and then  or  to set the Headset Volume from 1 to 9. The default is 4.

, and then  or  to set the Paging Volume from 1 to 9. The default is 4.

Deskset Settings 83

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Answer

Save

Preferred Audio Mode

When you press a Line key or , the call is answered in the preferred audio mode.
Lifting the handset takes first priority in all instances. You can set the audio preferences

to Headset or Speaker by using the Preferred Audio menu.

To use the Preferred Audio Mode menu:

1. Press (MENU), then 2, then 3, and then 4.

The Preferred Audio menu appears.

2. Press

3. Press to accept the adjustments and return to the Deskset Settings menu.

Directory Settings

Use the Directory Settings menu to show or hide any of the three directories
(Personal, System, and Ext List) and to set the sort order of the Directory. By default,

all directories are shown and sorted by first name.

To use the Directory Settings menu:

1. Press (MENU), then 2, and then 4.

The Directory Settings menu appears.

2. Press
personal Directory entries. See “Directory” on page 46.

3. Press
Directory holds entries created and maintained by the system administrator.

 or  to select the preferred audio mode: Speaker or Headset.

 or  to Hide or Show the Personal Directory. This Directory holds your

 and then press  or  to Hide or Show the System Directory. This

4. Press

5. Press

Deskset Settings 84

 and then press  or  to Hide or Show the Ext List Directory. This is a

list of all extensions in the system.

 and then press  or  to choose the Directory Sort Order; by first or last

name.

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Backspc

Delete

Save

Yes

Setting, Changing, or Resetting Your Password

Use the User Password menu to set, change, or reset your password. This setting can

also be controlled on the WebUI.

To set or change the password:

1. Press (MENU), then 2, and then 5.
The User Password menu appears.

2. From the User Password menu, press 1.
The Set/Change Password menu appears.

3. Use the dial pad to enter a password of up to six digits.

 To correct errors, press .

 To start over, press .

4. Press

 and enter the new password again.

5. To accept the change, press . The Password Saved screen appears, then
the User Settings menu appears.

To reset your password:

1. From the User Password menu, press 2. A confirmation screen appears.

2. Press to confirm that you want to reset your password. The message User
password has been reset appears. The User Password menu appears.

Once the password has been reset, password entry is no longer necessary for User
Settings, voicemail, and the WebUI.

Deskset Settings 85

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Register

Register

Registering an Optional Cordless Headset (SB35025 Only)

You can register one AT&T DECT Cordless headset to a SB35025 Deskset. When a
Deskset has a cordless accessory, the Deskset and headset are all part of the same
extension, and only one device can be used at a time.

The headset must be in the charger, fully charged and deregistered from any
other device before registration can proceed. Remove and replace the cordless
headset before you press on the Deskset.

To register a cordless headset:

1. Press (MENU), then 2, and then 6.
The Cordless Headset menu appears.

2. Remove and replace the cordless headset from its charging base.

3. Press . Registration in Progress... appears while the Deskset searches

for the headset.

4. When registration is complete, Headset is registered appears.

5. Press (CANCEL). The User Settings menu appears.

While registration is in progress, registration can be terminated by pressing

(CANCEL) on the Deskset.

If the cordless headset is registered to another Deskset, it must be
deregistered first. See “Deregistering a Cordless Headset” on page 87.

Deskset Settings 86

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

DeReg

Yes

Deregistering a Cordless Headset

You must deregister a cordless headset before you can register it to a different Deskset.

To deregister a cordless headset:

1. Press (MENU), then 2, and then 6.
The Cordless Headset menu appears.

2. Press . The confirmation message appears.

3. Press to confirm deregistration.

The screen displays Headset is not registered.

4. Press (CANCEL). The User Settings menu appears.

Cordless Headset Registration and Deregistration Time-Out

If the cordless headset is registered to another Deskset or telephone, it must be
deregistered first. See “Deregistering a Cordless Headset”.

For security reasons, the registration process on both the SB35025 Deskset and the
cordless accessory terminates after the time-out period of two minutes if registration is
not successful. If the registration process times out on the Deskset, it displays

Registration Failed and returns to the Cordless Headset menu.

If cordless headset registration fails, remove the headset from the charger and try the
registration process again, beginning with Step 1, “To register a cordless headset:” on

page 86.

Deskset Settings 87

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Admin Settings

The Admin Settings are determined by your system administrator. Only someone
with access to the system administrator’s password can change the Admin
Settings.

To display the Admin Settings menu:

1. Press (MENU), and then 3. You then must enter the Admin password before you
can view the Admin Settings menu.

For more information about these settings, see the Syn248 Installation and
Configuration Guide, available from

smbtelephones.att.com.

Deskset Settings 88

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Deskset Information 1/4

Deskset Information 2/4

Deskset Information 3/4 Deskset Information 4/4

Deskset Information

Use the Deskset Information screen, shown in Figure 26, to find the Deskset's IP

Address, which you will need to access the WebUI. The other Deskset information may
be used by your system administrator or the installer.

Figure 26. Deskset Information

To display the Deskset Information:

1. Press (MENU) and then 4. The Deskset Information screen appears.

The model number, device status, IP Address, and Software version are listed with
other information.

2. Press

3. Press (CANCEL) to return to the main menu.

 to view additional information.

Deskset Settings 89

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Save

Auto-Attendant Settings

If your system administrator has set your extension as the Operator extension, you can
use the Deskset to select the Auto Attendant. The Auto Attendant can answer calls
during periods when your office is closed or when calls go otherwise unanswered. The
Auto Attendant has a voice greeting and an interactive menu to enable callers to reach
the desired extension.

Three Auto Attendant menus are available: a default menu, a Day menu and a Night
menu. The default menu instructs callers to “Enter the extension number or enter 0 for
the operator.” The system administrator can customize the Day menu and Night menu
with your own company’s greeting message and instructions to callers.

For more information, see “About the Auto Attendant” on page 32.

The system administrator enables the Auto Attendant by setting a phone line’s
Call Forward–No Answer destination as the Auto Attendant. When the Auto
Attendant is enabled, extensions may ring for incoming calls on that line, but if
the calls are not answered, they will be directed to the Auto Attendant.

To manage the Auto-Attendant Settings:

1. Press (MENU), then 5 to display the Auto-Attendant Settings.

2. Press

3. Press to save the setting.

 or  to select the current menu: Default Menu, Day Menu, or Night

Menu.

Using Do Not Disturb (DND)

Do Not Disturb (DND) silences incoming ringing and paging. However, when DND is on
you can still answer incoming calls. The incoming call screen appears and the Line key
LED flashes.

To enable or disable Do Not Disturb:

1. Press (MENU), then 1, and then 4.

The DND indicator appears on the Idle screen when Do Not Disturb is on.

Deskset Settings 90

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

11

W

EB INTERFACE

Use an Internet browser to access the Web User Interface (WebUI) that resides on your
Deskset. See “Accessing the Web User Interface (WebUI)” on page 92. After you log in
to the WebUI, you can configure the following features:

 “Basic Settings” on page 94

 “Personal Directory” on page 95

 “Quick Dial” on page 97.

You can also view the Deskset Help from the WebUI. See “Help” on page 98.

Web Interface 91

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

'HVNVHW,QIRUPDWLRQ
0RGHO1R6%
6WDWXV 6\QFKURQL]HG
,3$GGU HVV 



Accessing the Web User Interface (WebUI)

To access the WebUI:

1. Ensure that your computer is connected to the same network as the Syn248 system.
In most cases, your computer will already be connected to the network through the
PC port on the back of a Deskset.

2. On the Deskset, press (MENU) and then 4 to display Deskset Information.

3. On the Deskset Information screen, find the IP Address.

4. On your computer, open an Internet browser.

5. Type the Deskset IP address in the browser address bar, and press ENTER on your
computer keyboard.

6. A Login page appears.

7. Under Login Name, log in as a user by typing your extension number.

8. Enter your password if you have created one (see “Setting, Changing, or Resetting

Your Password” on page 85). Otherwise, leave the password blank.

9. Click .

 You can create or change your user password once you are logged in.

 The Basic Settings page shown in Figure 28 on page 94 appears.

Changing a setting does not instantly apply the new value. Clicking
saves and applies all changes on that page.

Web Interface 92

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Error Message

Invalid Entry

Error Handling

If you type an invalid value into one of the WebUI fields and click , the page is not
saved. The WebUI displays an error message at the top of the page. The field with the
incorrect value is highlighted in yellow, as shown in Figure 27. You can view a more
detailed error description by resting your mouse pointer on the highlighted field.

.

Figure 27. WebUI Error Indication

Web Interface 93

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Basic Settings

The remaining procedures in this chapter assume that you are already logged in to the
WebUI. See “Accessing the Web User Interface (WebUI)” on page 92

After logging in, the Basic Settings page appears as shown in Figure 28. Your
Extension Name, which the system administrator enters, is displayed on internal calls.

.

Figure 28. Extension Basic Settings

To modify the Basic Settings:

1. If Inter com Auto Answer is enabled on your Deskset (see “Intercom Auto Answer”

on page 79), you can:

a. Disable Intercom Auto Answer.

If Intercom Auto Answer is disabled from the Deskset, this setting does not
appear.

b. Set the Intercom Auto Answer Delay from 0 to 45 seconds. Your Deskset

automatically answers intercom calls after the delay time you select.

2. Under User Password, create or change your Deskset password. The password must

consist of numbers only and can be up to six digits long. This password is also used
for accessing messages and settings on the Deskset and on the WebUI.

3. Click to save your changes.

Web Interface 94

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Personal Directory

To allow easy dialing, you can create a Personal Directory that is only available from

your extension. You can also view and edit Personal Directory entries using the Deskset.
See “Directory” on page 46.

To add an entry to the Personal Directory:

1. In the navigation menu at left, click Personal Directory. The Directory List page

appears.

2. Click . The Add Personal Directory List Entry page appears.

3. Complete the form with the required information.

4. Click to save. The Directory List appears with the entries added.

Web Interface 95

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

To edit Personal Directory entries:

1. In the navigation menu at left, click Personal Directory. The Directory List page

appears.

2. Click [Edit] next to the entry to be edited. The Edit Personal Directory List Entry

page appears.

3. Complete the form with the desired information.

4. Click to accept your changes or to reject the changes.

To sort and delete Personal Directory entries:

1. In the navigation menu at left, click Personal Directory to display the Directory List.

2. To sort entries by last name, click . The button then changes
to . This action only works during the current session. The sort
order reverts to listing the names by first name when you log in the next time.

3. To delete Directory entries:

a. Click the check boxes for the entries you want to delete.

b. Click . All of the selected entries are removed.

Web Interface 96

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Quick Dial

If your system administrator has set up your Deskset with quick-dial keys, you can add
or edit entries for those keys.

To add or edit quick-dial Entries:

1. In the navigation menu at left, click Feature Keys. The Programmable Feature
Keys page appears.

2. For the keys that the system administrator has set up for quick-dial, enter names and

telephone numbers or extensions in the Name and Number columns.

To edit or delete an entry, type over the entry.

3. To save entries, click , or to reject the changes, click .

4. Press the corresponding programmable feature key on the Deskset to verify that the
entries have been added or edited.

Web Interface 97

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Help

To access WebUI Help:

1. In the navigation menu at left, click Help.

A PDF Help file opens.

2. To view a topic, click the link for that topic. The page for that topic appears.

Web Interface 98

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

C HAPTER

12

T

ROUBLESHOOTING

If you have difficulty operating your Deskset, try the following suggestions in this section:

 “Common Troubleshooting Procedures” on page 100

 “Display Messages” on page 101

 “Calls Generally” on page 103

 “Incoming Calls” on page 106

 “Outgoing Calls” on page 108

 “Voicemail” on page 109

 “Other Deskset Features” on page 111

 “WebUI” on page 112

 “PC/Deskset Interaction” on page 113

 “Cordless Headset (SB35025 Only)” on page 114.

.

For customer service or product information, visit our web site at

smbtelephones.att.com or call 1 [phone]. In Canada,

dial

1 [phone].

Troubleshooting 99

Syn248 SB35020/SB35025 Deskset User’s Guide Back to Contents

Common Troubleshooting Procedures

Follow these procedures to resolve common issues.

Resolving General Functional Issues

To resolve a blank screen or device that does not work at all:

 Ensure the AC plug is plugged into an electrical outlet not powered by a wall

switch.

 Verify that the AC power outlet has power. Try plugging in some other AC device.

If nothing works, contact an electrician or use another power outlet.

 Verify that the DC plug is plugged into the power jack on the device.

 The system devices are not immediately active when powered up and after a

power interruption. Allow at least 30 seconds for the device to boot up.

 If your Des kset uses Po wer over Eth ern et (PoE), ask your system administrator to

confirm that the PoE switch is working correctly.

To resolve a sluggish, unresponsive, or unusually behaving device:

Reset the device. Do one of the following:

 Use a pen or paper clip to press the RESET button on the back of the Deskset

for less than five seconds

 Remove and restore AC power.

Pressing the RESET button for more than five seconds will erase all data and
settings.

To restore a Deskset to factory defaults:

Use a pen or paper clip to press the RESET button for more than five seconds.

Troubleshooting 100
