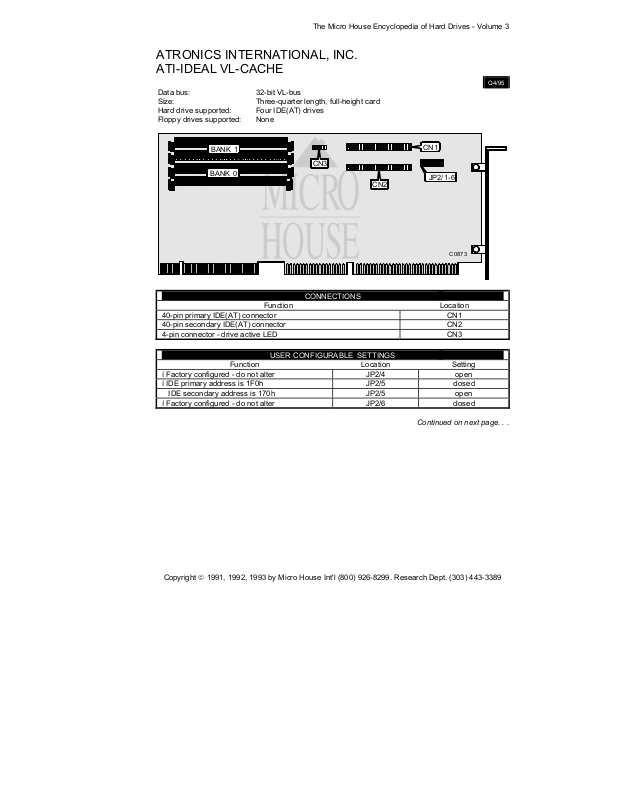

The Micro House Encyclopedia of Hard Drives - Volume 3
ATRONICS INTERNATIONAL, INC.
ATI-IDEAL VL-CACHE
Data bus: 32-bit VL-bus
Size: Three-quarter length, full-height card
Hard drive supported: Four IDE(AT) drives
Floppy drives supported: None
Q4/95

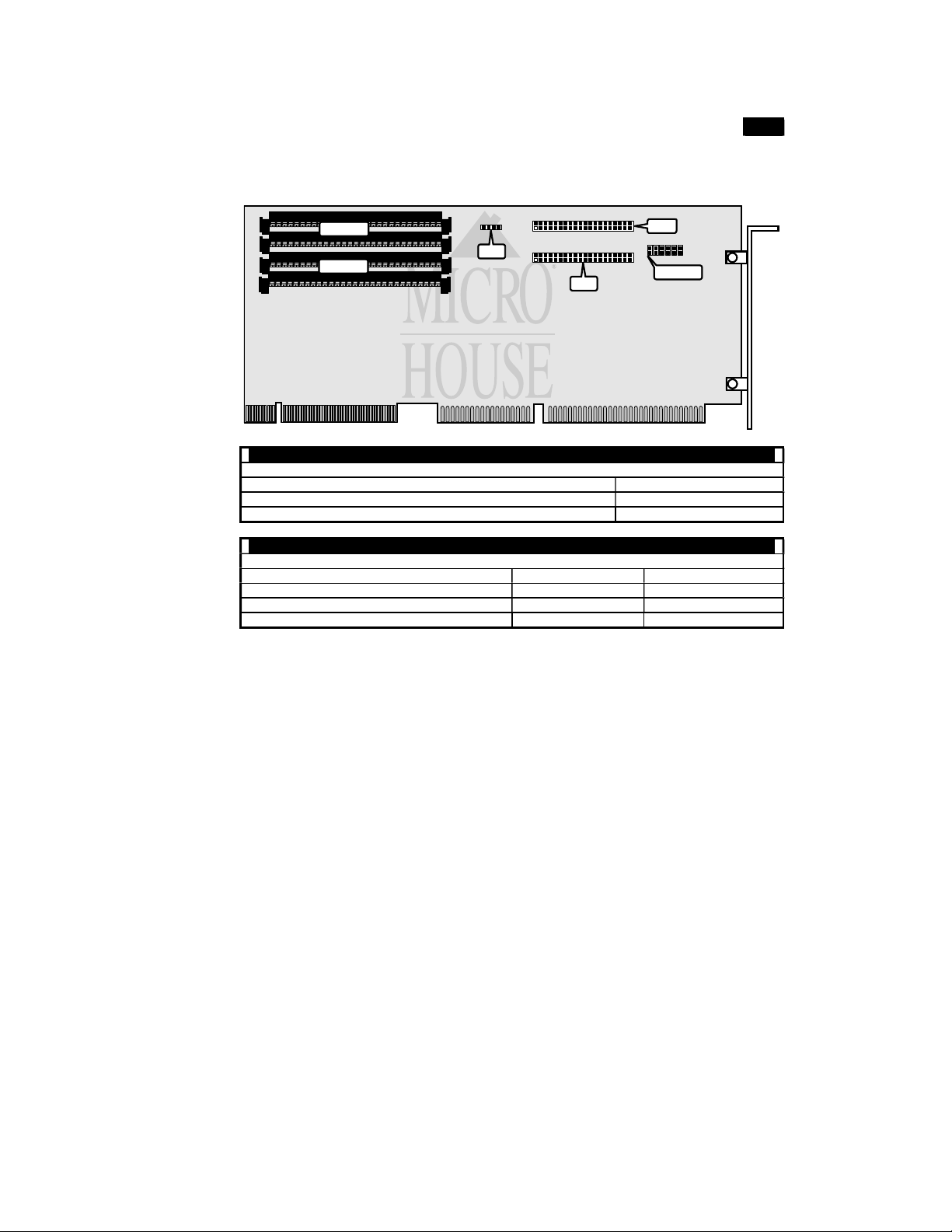

BANK 1
CN3
BANK 0
CN2
CONNECTIONS
Function Location
40-pin primary IDE(AT) connector CN1
40-pin secondary IDE(AT) connector CN2
4-pin connector - drive active LED CN3
USER CONFIGURABLE SETTINGS
Function Location Setting
í Factory configured - do not alter JP2/4 open
í IDE primary address is 1F0h JP2/5 closed
IDE secondary address is 170h JP2/5 open
í Factory configured - do not alter JP2/6 closed
CN1
JP2/1-6
C087 3
Continued on next page. . .
Copyright 1991, 1992, 1993 by Micro House Int'l (800) 926-8299. Research Dept. (303) 443-3389
Page 2
Volume 3 - Controller Cards
ATRONICS INTERNATIONAL, INC.
ATI-IDEAL VL-CACHE
BIOS ADDRESS SELECTION
Address JP2/1 JP2/2 JP2/3
í DC000-DFFFFh closed closed closed
C8000-CBFFFh closed open open
CC000-CFFFFh open closed open
D0000-D3FFFh closed closed open
D4000-D7FFFh open open closed
D8000-DBFFFh closed open closed
Disabled open open open
DRAM CONFIGURATION
Size Bank 0 Bank 1
512KB (2) 256 x 9 none
1MB (2) 256 x 9 (2) 256 x 9
2MB (2) 1MB x 9 none
2.5MB (2) 256 x 9 (2) 1MB x 9
4MB (2) 1MB x 9 (2) 1MB x 9
8MB (2) 4MB x 9 none
8.5MB (2) 4MB x 9 (2) 256 x 9
10MB (2) 4MB x 9 (2) 1MB x 9
16MB (2) 4MB x 9 (2) 4MB x 9
Note: Bank 1 & Bank 0 are interchangeable.
. . .continued from previous page
