A
t
r
i
u
m
1
9
9
8
100%
LATEX-FREE
Dry
uction
S
Control
egulator
R
uction
S
M
Bellows
Air Leak
onitor
M
ositive
P
ressure
P
elease
R
alve
V
onitor
Suction
ort
P
Patient
ressure
P
Float Ball
Manual High
egativity Vent
N
ater
W
Seal
hamber
C
Swing Out
Floor Stand
Easy-to-Grip
andle
H
Patient
Connector
In-line
onnector
C
Collection
hamber
C

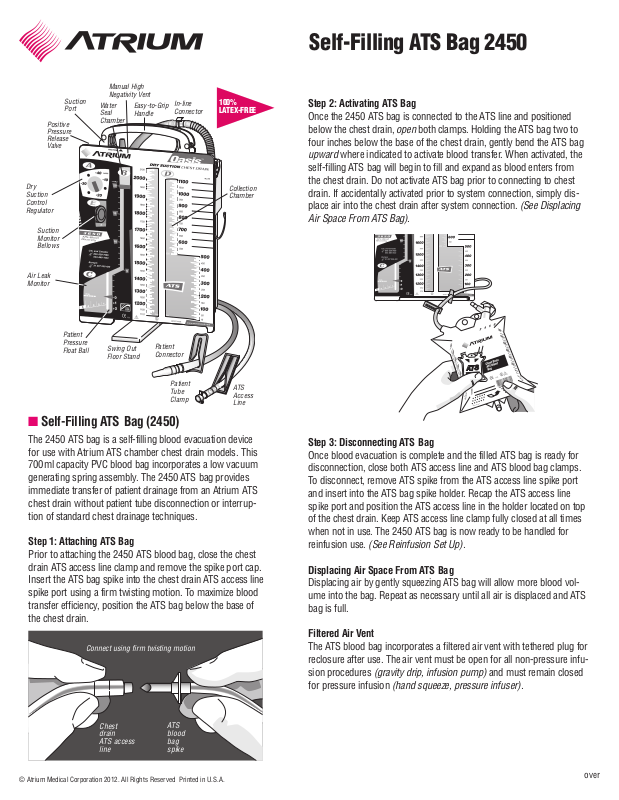

Self-Filling ATS Bag 2450
tep 2: Activating ATS Bag
S
Once the 2450 ATS bag is connected to the ATS line and positioned
below the chest drain, open both clamps. Hold ing the ATS bag two to
four inches below the base of the chest drain, gently bend the ATS bag
upward where indicated to activate blood transfer. When activated, the
self-filling ATS bag will begin to fill and expand as blood enters from
the chest drain. Do not activate ATS bag prior to connecting to chest
drain. If accidentally activated prior to system connec tion, simply displace air into the chest drain after system connection. (See Displacing
Air Space From ATS Bag).
Patient
Tube
Clamp
ATS
Access
Line

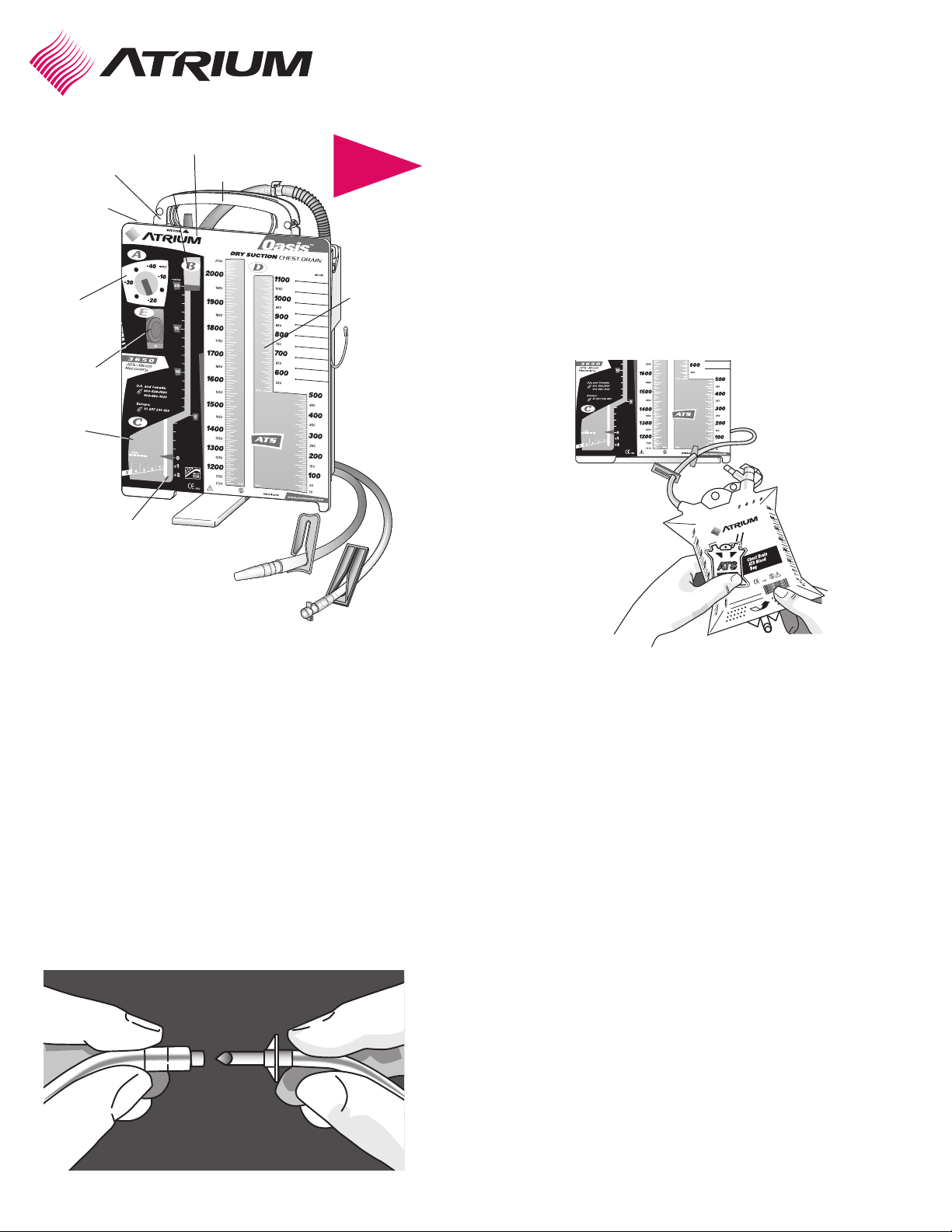

■ Self-Filling ATS Bag (2450)
The 2450 ATS bag is a self-filling blood evacuation device
for use with Atrium ATS chamber chest drain models. This
700ml capacity PVC blood bag incorporates a low vacuum
generating spring assembly. The 2450 ATS bag provides
immediate transfer of patient drain age from an Atrium ATS
chest drain without patient tube disconnection or interruption of standard chest drainage techniques.
Step 1: Attaching ATS Bag
Prior to attaching the 2450 ATS blood bag, close the chest
drain ATS access line clamp and remove the spike port cap.
Insert the ATS bag spike into the chest drain ATS access line
spike port using a firm twisting motion. To maximize blood
transfer efficiency, position the ATS bag below the base of
the chest drain.
Connect using firm twisting motion
Step 3: Disconnecting ATS Bag
Once blood evacuation is complete and the filled ATS bag is ready for
disconnection, close both ATS access line and ATS blood bag clamps.
To disconnect, remove ATS spike from the ATS access line spike port
and insert into the ATS bag spike holder. Recap the ATS access line
spike port and position the ATS access line in the holder located on top
of the chest drain. Keep ATS access line clamp fully closed at all times
when not in use. The 2450 ATS bag is now ready to be handled for
reinfusion use. (See Reinfusion Set Up).
Displacing Air Space From ATS Bag
Displacing air by gently squeezing ATS bag will allow more blood volume into the bag. Repeat as necessary until all air is displaced and ATS
bag is full.
Filtered Air Vent
The ATS blood bag incorporates a filtered air vent with tethered plug for
reclosure after use. The air vent must be open for all non-pressure infusion procedures (gravity drip, infusion pump) and must remain closed
for pressure infusion (hand squeeze, pressure infuser).
Chest
drain
ATS access
line
© Atrium Medical Corporation 2012. All Rights Reserved Printed in U.S.A.
ATS
blood
bag
spike
over
Page 2
■ ATS Bag Reinfusion Set Up And
Priming
A microemboli blood filter and I.V. blood set are required for unwashed
blood reinfusion. Caution: A new microemboli blood filter must be
used for each new ATS bag. Priming ofthe blood filter and I.V. set is
accomplished by the following steps:
1. Prime I.V. blood administration set and microemboli blood filter with
sterile saline.
2. After chest drain disconnection, invert in-line ATS bag with spike port
pointing upward and remove tethered cap using sterile technique.
Insert saline filter spike into ATS bag spike port using a firm twisting
motion. Return ATS bag to upright position and place on standard
height I.V. pole.
3. Open filtered air vent located on top of ATS bag first, then open the
I.V. clamp to complete priming. All remaining air within the I.V. circuit
must be evacuated prior to patient connection. Close I.V. clamp when
fully primed. I.V. is now readyfor patient connection. Caution: Fail-
ure to purge all air from the entire I.V. circuitprior to patient connection can result in air emboli.
■ ATS Bag Reinfusion
Follow all hospital protocols for administering autologous whole blood
reinfusion for both gravity drip or pressure infuser application:
1. Attach distal end of fully primed I.V. set to patient and open I.V. line
clamp to begin patient infusion.
2. For non-pressure infusion, open filtered air vent for maximum flow
rate.
3. For pressure infuser application, filtered air vent must remain closed.
Maximum in-line bag infuser pressure is150 mmHg. Caution: Do
not reinfuse entire blood contents completely through blood filter
and I.V. set, as air emboli can result.
Caution: Anticoagulant therapy and dosage recommen dations are
the discretion of a physician and should be monitored carefully during and after patient reinfusion.
Have a question or need help in a hurry?
Call Atrium toll free at 1-800-528-7486.
Visit us on the web at:
www.atriummed.com
