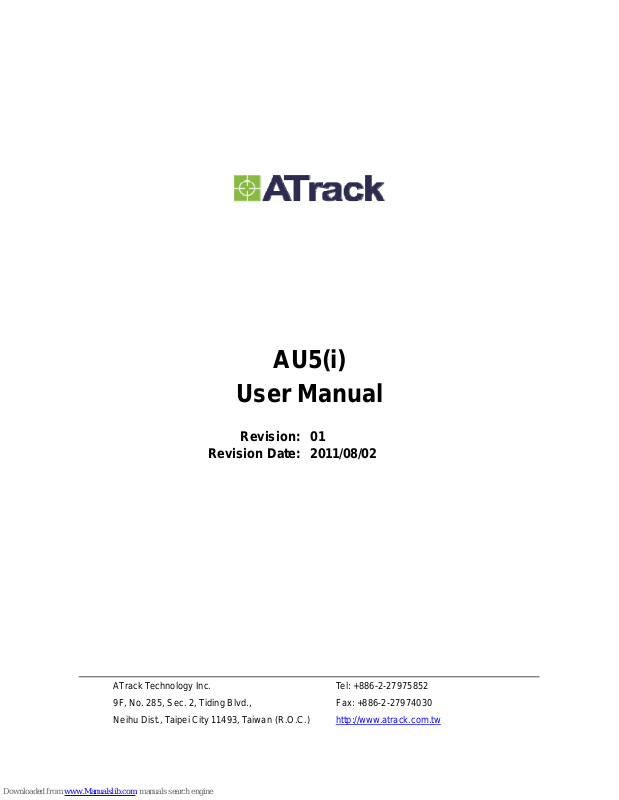

AU5(i)
User Manual
Revision: 01
Revision Date: 2011/08/02
A T rack Technology Inc.
9F, No. 285, Sec. 2, Tiding Blvd.,
Neihu Dist., Taipei City 11493, Taiwan (R.O.C.)
Tel: +886-2-27975852
Fax: +886-2-27974030
http://www.atrack.com.tw
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 2 of 14
Contents
1. Notification .............................................................................................................................. 3
1.1. Disclaimer .................................................................................................................................... 3
1.2. Copyright ...................................................................................................................................... 3
1.3. Warning ........................................................................................................................................ 3
2. Hardware ................................................................................................................................. 4
2.1. Package Content ......................................................................................................................... 4
2.2. Pin Assignments .......................................................................................................................... 5
2.2.1. Serial Cable (JST Female Connector to DB9 Female Connector) .......................................... 5
2.2.2. Power/IO connector (Male; On Device) ................................................................................... 5
3. Firmware Upgrade ................................................................................................................. 6
3.1. Firmware Upgrade by serial connection ...................................................................................... 6
4. Appendix ................................................................................................................................ 13
4.1. Hardware Specification .............................................................................................................. 13
4.2. FCC Regulations: ....................................................................................................................... 14
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 3 of 14
11.. NNoottiiffiiccaattiioonn
11..11.. DDiissccllaaiimmeerr
This document, and all other related products, such as device, firmware, and software, i s develope d by
A T rack Technology Inc. thoroughly . At the time of release, it is most compatible with specified firmware versi on.
Due to the functionalities of the devices are being developed and improved from time to time, the change in
the protocol, specification, and firmware functions are subjects to change without notice. ATrack Technology
Inc. is obligated to modify all the documentation without the limitation of time frame. A change notice shall be
released to ATrack Technology Inc. customers upon the completion of document modification.
ATrack Technology Inc. products are not intended to be used as life support or rescue equipments. A Track
Technology Inc. is not liable for any loss or injury caused by using or referencing to any products. Any possible
means of using or integrating A Track Technology Inc. products shall be avoided.
11..22.. CCooppyyrriigghhtt
A Track T ech n ology Inc. holds all p a rts of intellectual rights applicable in the copyright laws in all the countries.
Any or all parts of this document shall not be exposed to non-authorized p arty without any form of approval
from ATrack Technology Inc. Any forms, including but not limited to oral, copy, or internet sh aring, of releasing
or exposing information to an unauthorized party shall be prohibited. ATrack Technology Inc. reserves the
rights of litigation in the violation of such copyright laws.
11..33.. WWaarrnniinngg
Connecting the wire inputs can be hazardous to both the installer and your vehicle’s electrical system if not
done by an experienced installer. This document assumes you are aware of the inherent dangers of working
in and around a vehicle and have a working understanding of electricity.
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 4 of 14
22.. HHaarrddwwaarree

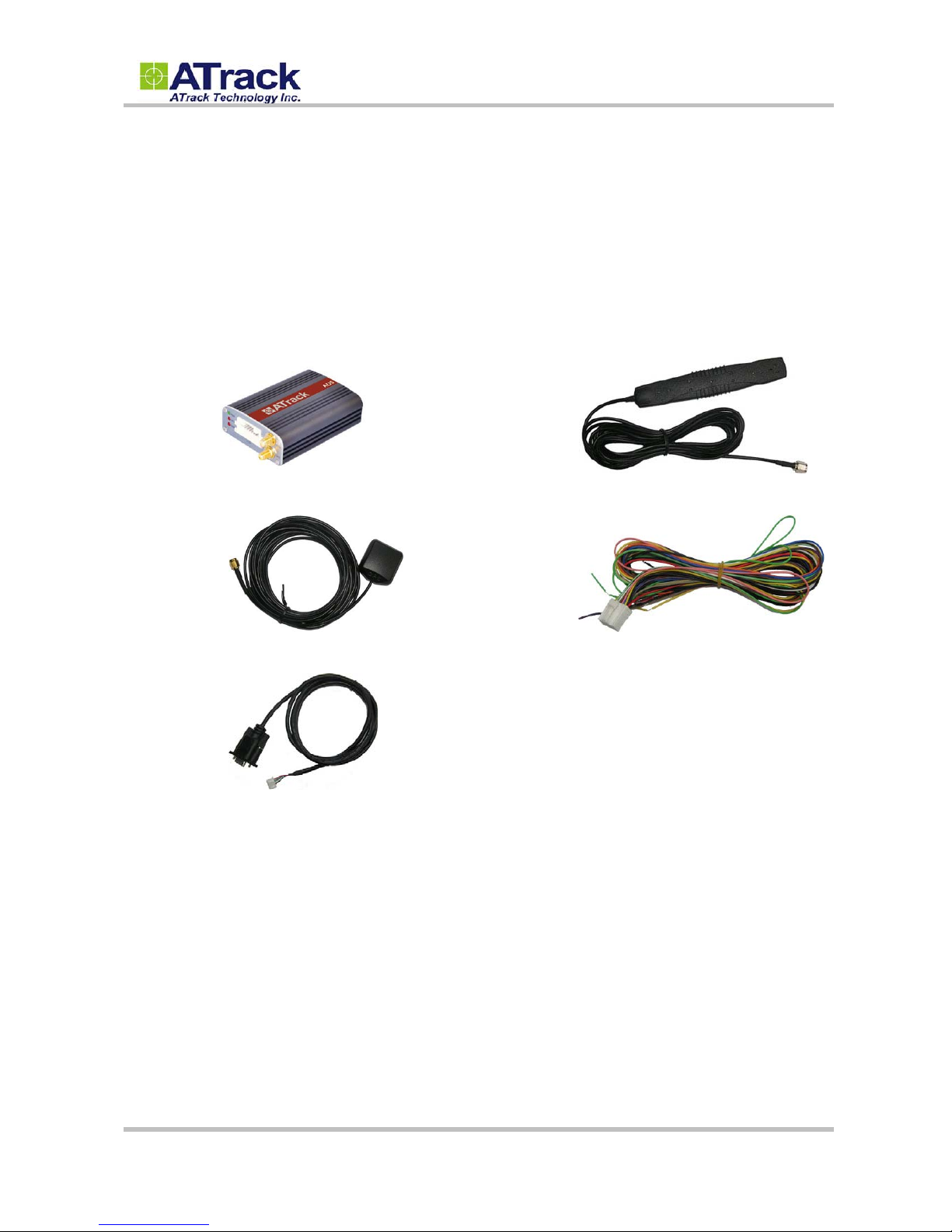

22..11.. PPaacckkaaggee CCoonntteenntt
Each package contains the following device/accessories:
• Device * 1
• GPS Antenna * 1
• Serial Cable * 1
• GSM/UMTS Antenna * 1
• Power/IO Cable * 1
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 5 of 14

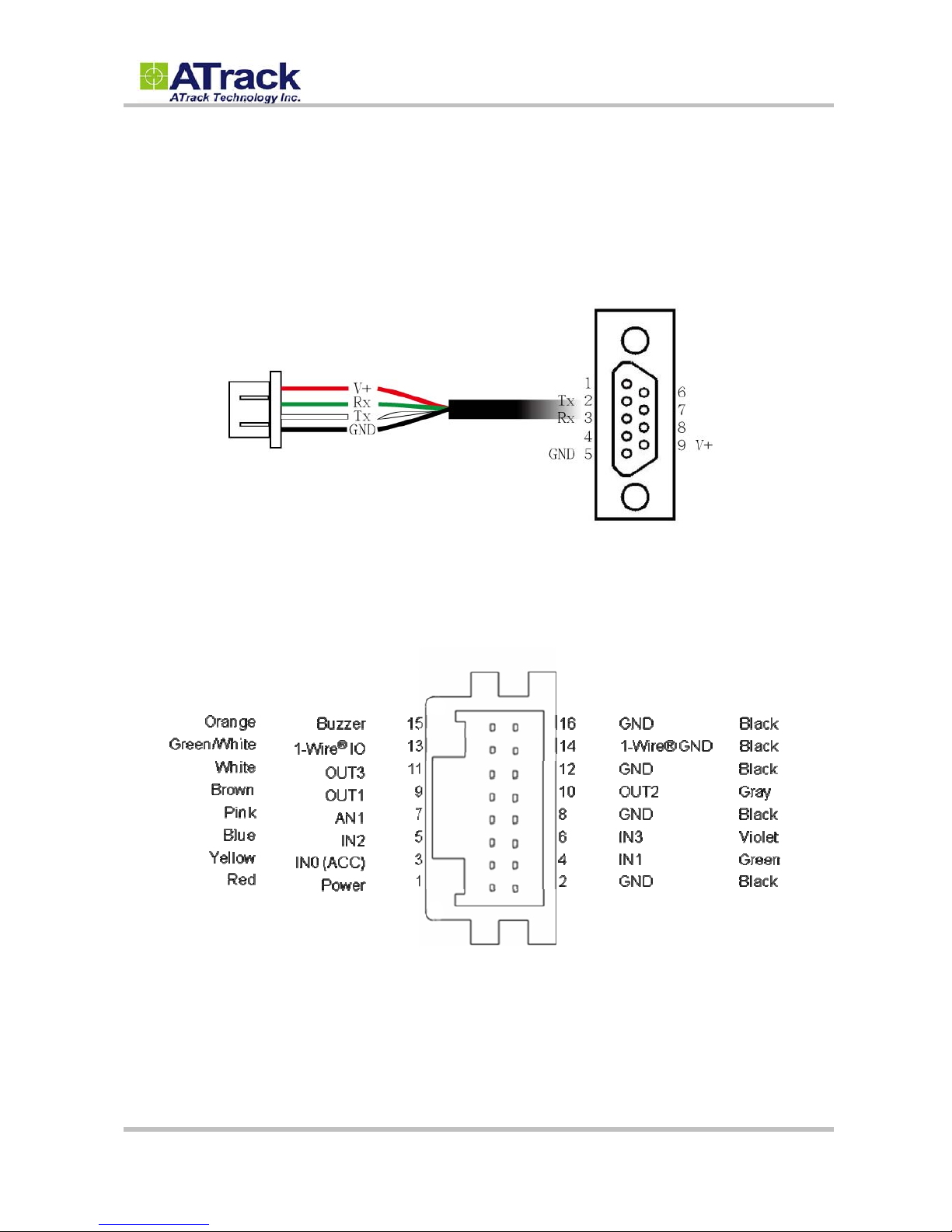

22..22.. PPiinn AAssssiiggnnmmeennttss
22..22..11.. SSeerriiaall CCaabbllee ((JJSSTT FFeemma
allee CCoonnnneeccttoorr ttoo DDBB99 FFeemmaallee CCoonnnneeccttoorr))
22..22..22.. PPoowweerr//IIOO ccoonnnneeccttoorr ((MMaallee;; OOnn DDeevviiccee))
Positive Inputs: IN0, IN1 (Triggere d when connects to V+ range from 3.7 ~ 40V)
Negative Inputs: IN2, IN3 (Triggered when connects to ground range from 0.8 ~ 0V)
Analog Input: 0 ~ 40 V; 10-bit Resolution.
All outputs are open collector type (grounded when enabled).
DO NOT CONNECT ANY POWER SOURCE TO 1-WIRE IO AND 1-WIRE GND TO AVOID DAMAGE.
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 6 of 14
33.. FFiirrmmwwaarree UUppggrraaddee
33..11.. FFiirrmmwwaarree UUppggrraaddee bbyy sseerriiaall ccoonnnneeccttiioonn

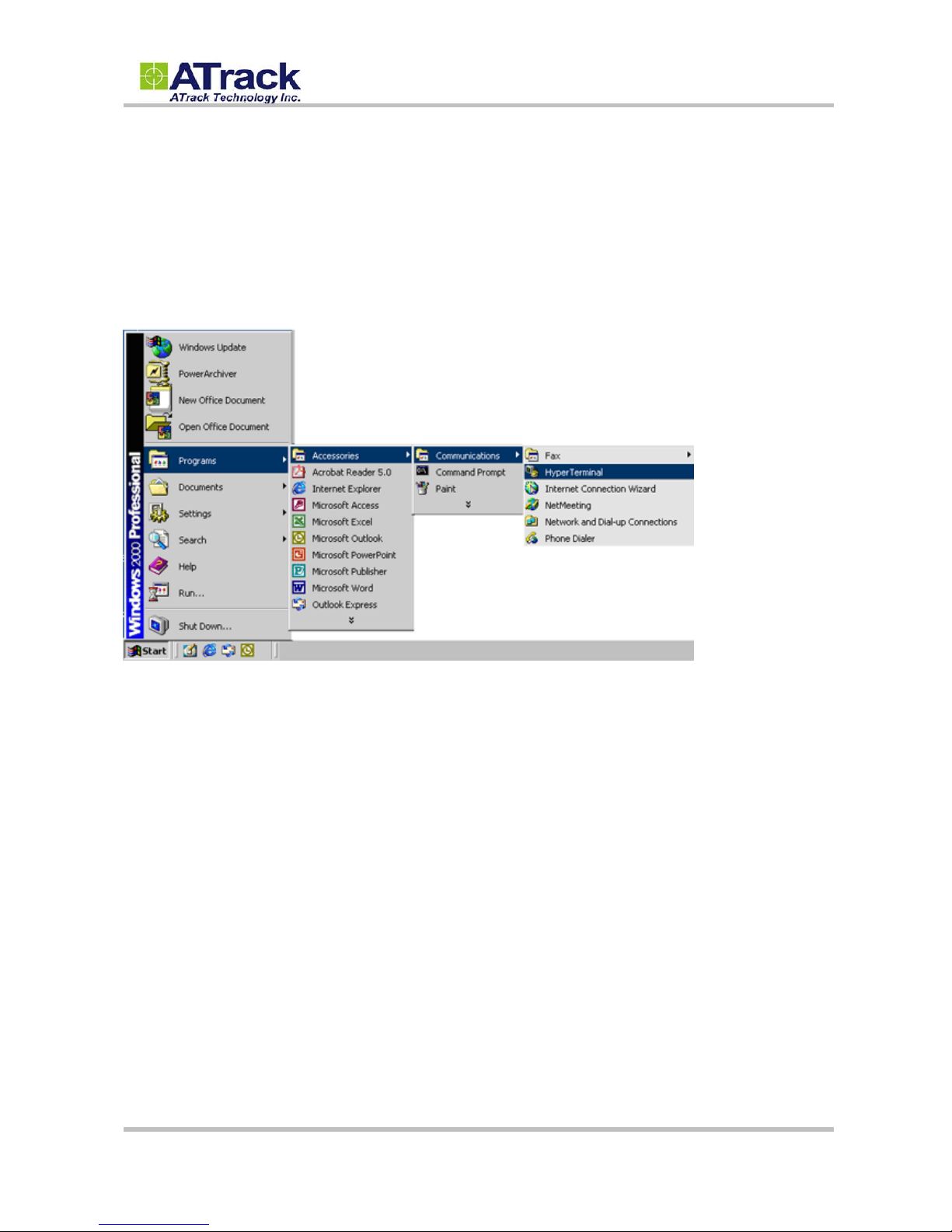

(1) Run HyperTerminal program
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 7 of 14

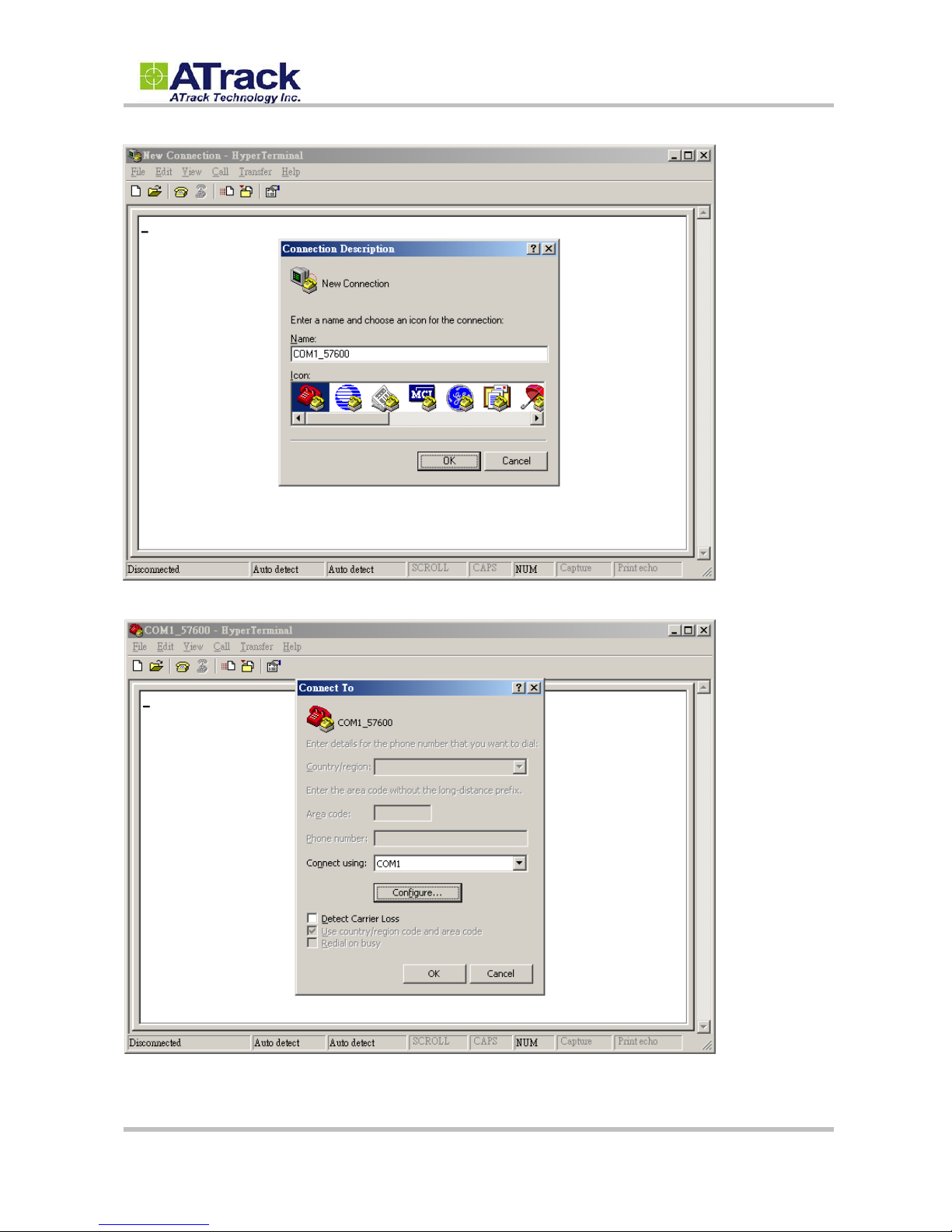

(2) Enter a name for the connection
(3) Choose COM port and click [Configure…] button.
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 8 of 14

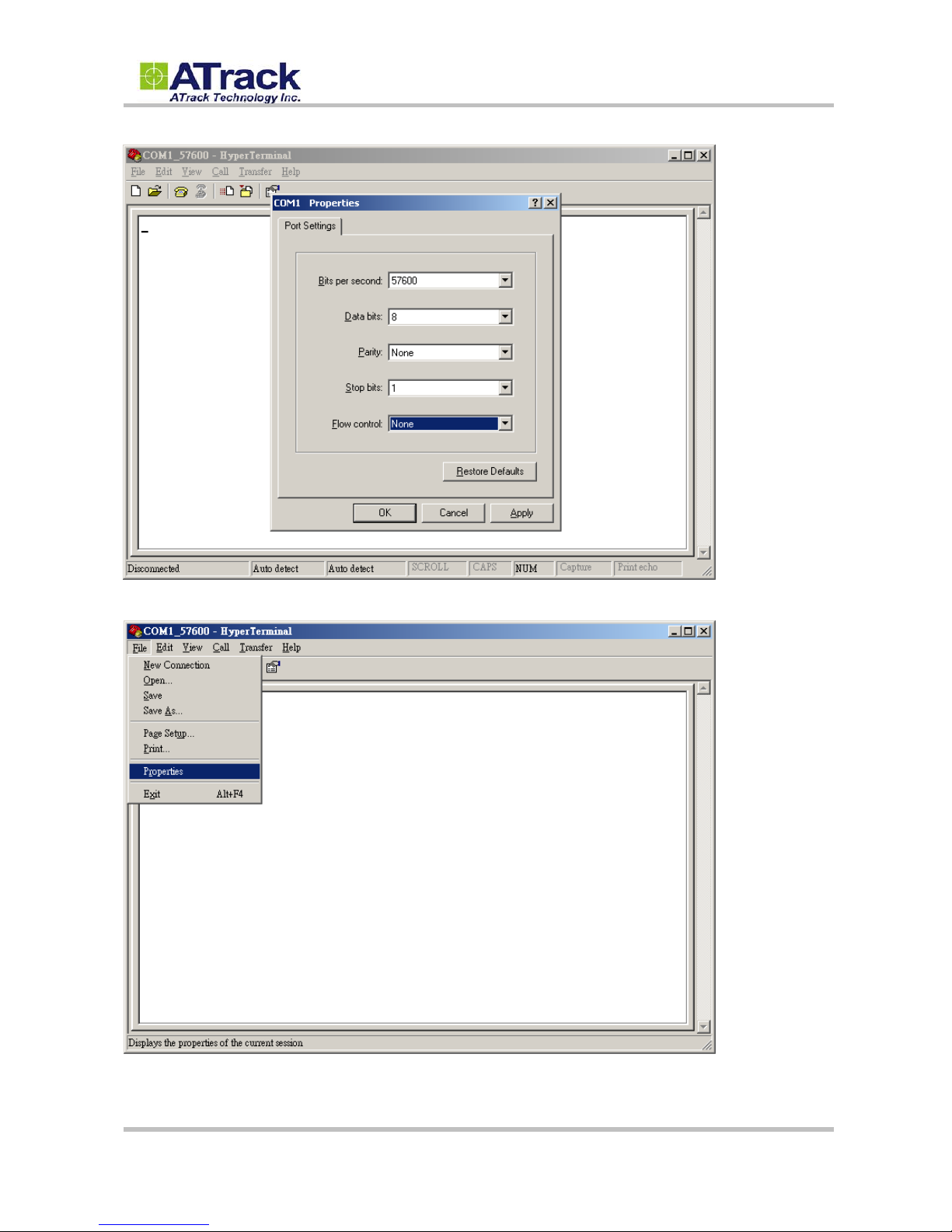

(4) Choose 57600,8,N,1 None flow control properties and click [OK] button.
(5) Click [File]Æ[Properties]
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 9 of 14

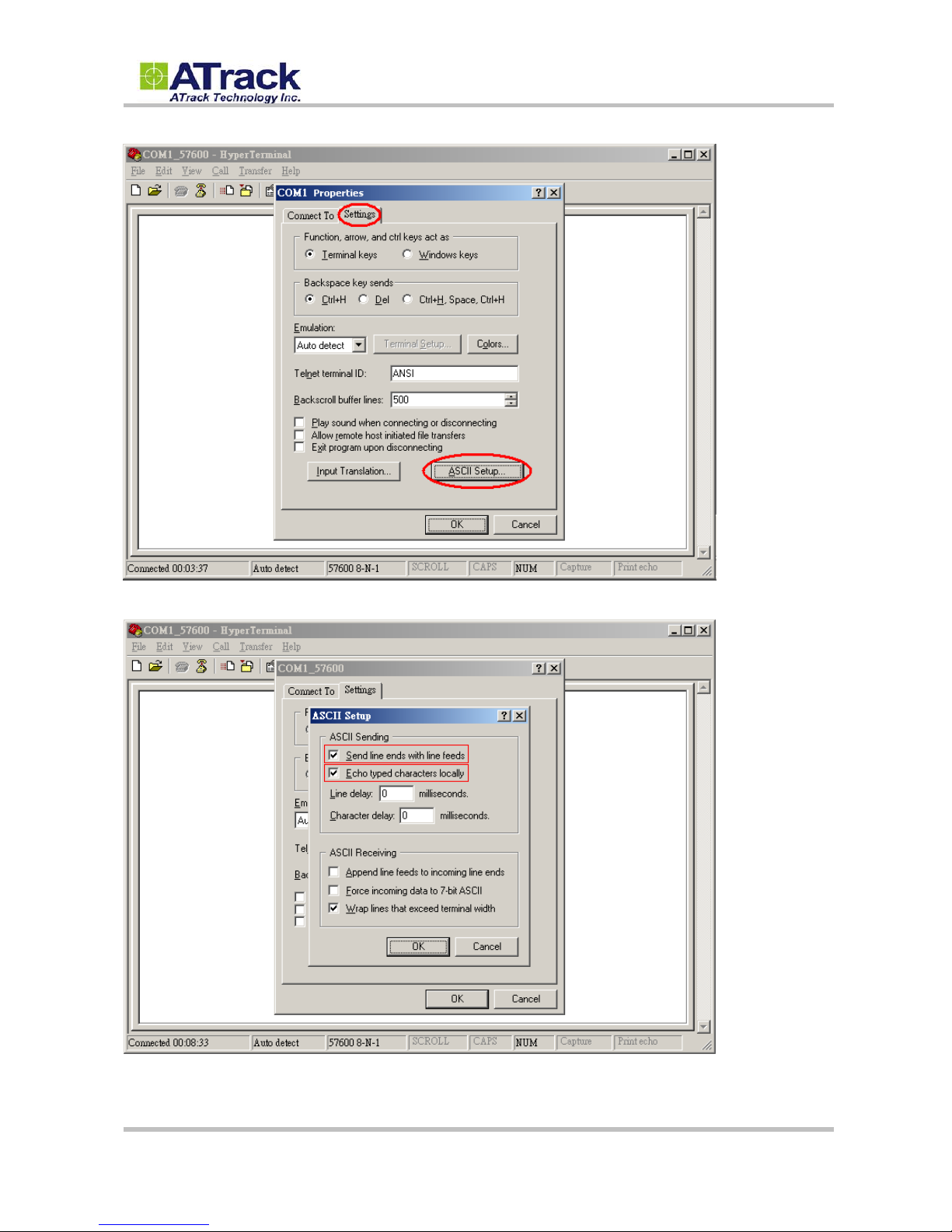

(6) Click [Settings] tab and [ASCII Setup…] button
(7) Checked the following option and click [OK] button
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 10 of 14

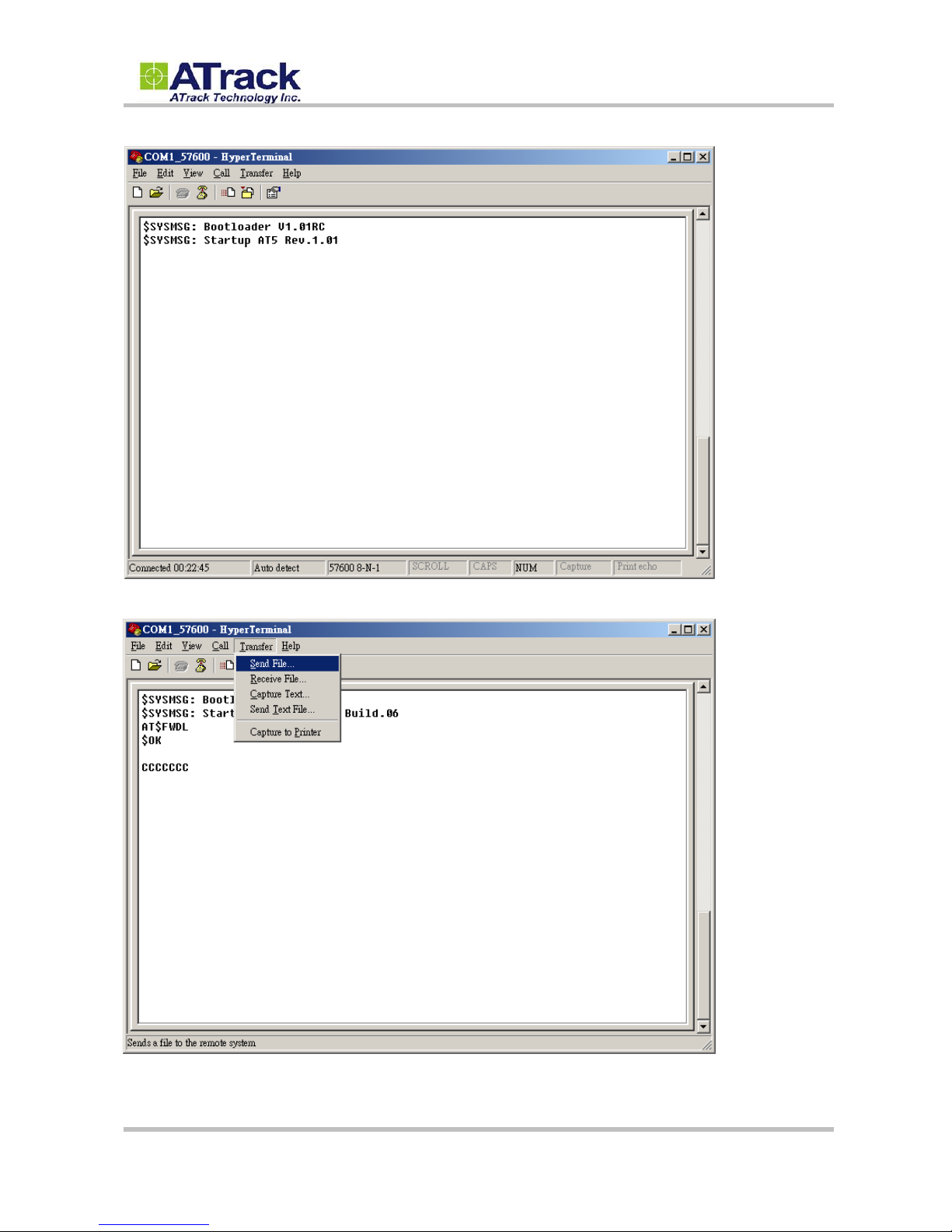

(8) Power ON the device. The startup message will show on the screen.
(9) T ype “A T$FWDL” command and press [Enter] key. Choose [Transfer]Æ[Send File…]
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 11 of 14

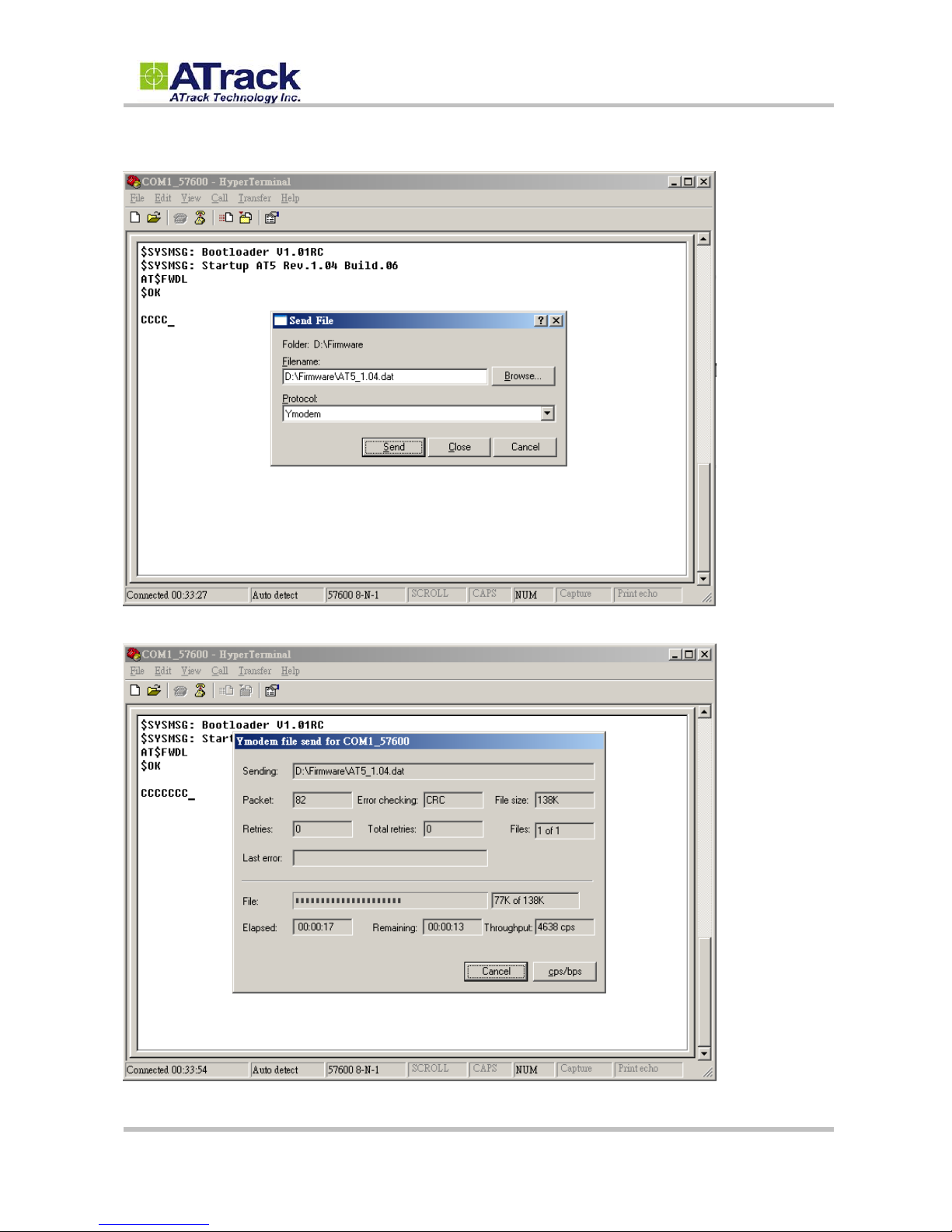

(10) Choose the firmware filename which is provided by ATrack and select [Ymodem] Protocol option and
click [Send] button.
(11) When [Send] button is clicked, the file transfer progress will show as below:
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 12 of 14

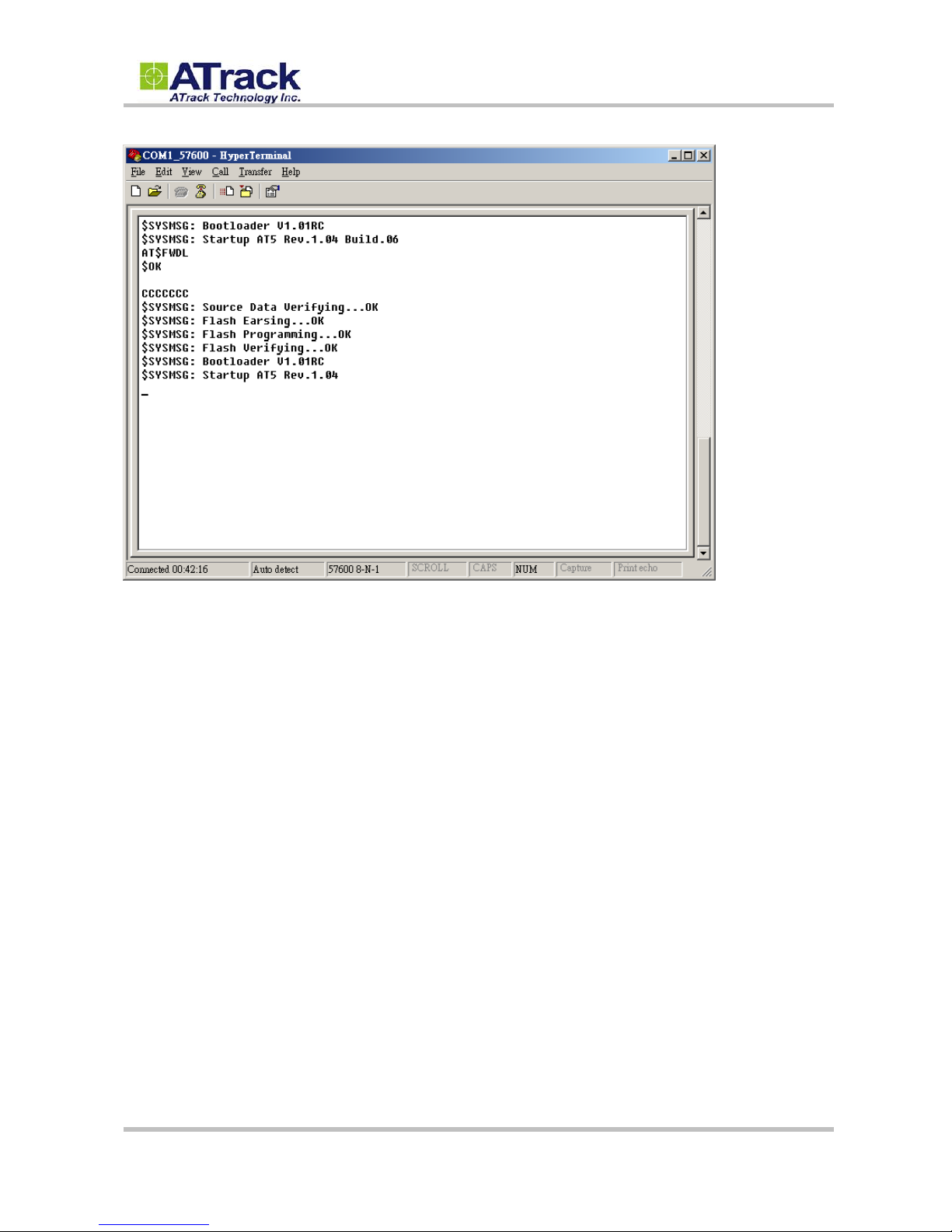

(12) When file sending is completed, the device will program and restart it self automatically.
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 13 of 14
44.. AAppppeennddiixx
44..11.. HHaarrddwwaarree SSppeecciiffiiccaattiioonn
AU5(i)
Physical Characteristics
Dimension 100 * 65 * 26 mm
GSM Module Quad band GSM 850/900/1800/1900 MHz
Tri‐bandUMTS850/1900/2100MHz
GPS Module High Sensitivity (44 Channel)
GSM and GPS Antennas SMA Connector Type
Accelerometer Built-In 3-Axis @ 16G
MAX
Audio Amplifier Built-In
Real-Time Clock Built-In
Memory Capacity 8MB
Casing Aluminum alloy
Electrical Characteristics
Power Source 8-40 VDC
Power Consumption Operational 80 mA @ 12VDC (Max. 200mA)
Sleep 18 mA @ 12VDC (Max. 100mA)
Deep Sleep 0.12mW
I/O Characteristics
Device I/O Ports Positive Inputs 2 (Triggering voltage: 3.7 ~ 40V)
Negative Inputs 2 (Triggering voltage: 0 ~ 0.8V)
Analog Input 1 (0 ~ 40V with 10-bit resolution)
Negative Outputs 3 (Open Collector Type @ 300mA
MAX
)
Serial Configurable 1
Baud rates 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200 bps
1-Wire (AT5i ONLY) 1
Environmental Characteristics
Operation Temp erature -30 ~ +65°C (Note: Temp. up to +85°C with
extreme condition)
Storage Temperature -40 ~ +85°C
Relative Humidity 5 ~ 95%
Confidential Document
© ATrack Technology Inc. All Rights Reserved. Page 14 of 14
44..22.. FFCCCC RReegguullaattiioonnss::
z This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may n ot cause harmful interference, and (2) this device mu st accept any
interference received, including interference that may cause undesired operation.
z This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection a gai nst ha rmful
interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation If this equipment does cause h armful interferen ce to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance coul d void the
user‘s authority to operate the equipment.
4RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
z This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to
the antenna shall not be less than 20cm (8 inches) during normal operation.
