ATP Electronics ET-933 User Manual

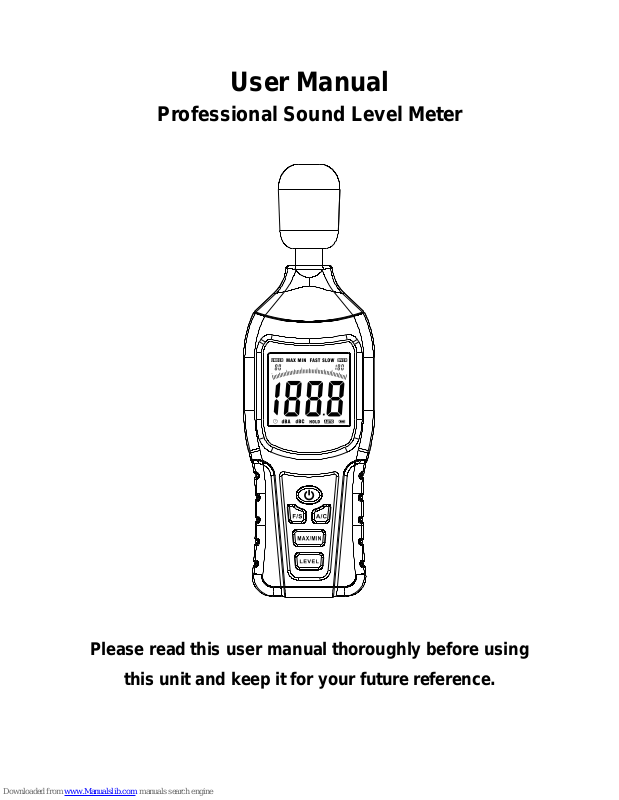

User Manual
Professional Sound Level Meter
Please read this user manual thoroughly before using
this unit and keep it for your future reference.
Contents
1. Safety .................................................................. 1
2. Applications and Features ................................... 2
3. Specifications ...................................................... 3
4. Meter Description ................................................ 4
5. LCD Display Description ..................................... 5
6. Operation Instruction ........................................... 6
7. Calibration ........................................................... 9
8. Basic Operation ................................................. 10
9. Notes ................................................................. 11
10. Accessories ..................................................... 12
1
1. Safety
Read the following safety information carefully before attempting to operate the meter. Use the meter only as specified in this manual; otherwise, the warranty may be invalidated.
Environment conditions:
Altitude up to 2000 meters RH≤90%(Non-Condensation Operating Temperature: -20°C 60°C
Maintenance
Repairs or servicing should only be performed by ATP Instrumentation Ltd. Cleaning: Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument.
Safety Symbol
Complies with EMC
2
2. Applications and Features
This Sound Level Meter is designed to meet the measurement requirements of safety engineers, health and safety legislation, industrial safety officers and sound quality control in various environments like factories, schools, construction sites etc.
Max/Min/Data Hold
Over-range indication
Under-range indication
A & C Weighting
FAST & SLOW response
3
3. Specifications
Applied standard Frequency range 31.5Hz8kHz Dynamic range 50dB Measuring level
range
Lo30dB80dB Med50dB100dB
Hi80dB130dB Auto30dB130dB Accuracy ±1.4dB Time weighting FAST: 125ms – SLOW: 1s Microphone 1/2 inch electret condenser microphone Display 3½ digits LCD display with a resolution of 0.1dB Frequency weighting A & C Data update 2 times per second Alarm function “OVER” – input is more than upper range limit.
“UNDER” – input is less than lower range limit. Auto power off Meter automatically shuts down after approx. 15
minutes inactivity. Power supply 1x 9V battery, 006P or IEC 6F22 or NEDA 1604. Battery life at least 30 hours Operating conditions -20℃~60℃,10%RH~90%RH Storage conditions -20℃~60℃,10%RH~75%RH Weight 178g Dimension(L*W*H) 158 x 62 x 32mm
4
4. Meter Description
Microphone ②LCD display Frequency weighting A/C selection key MAX/MIN Key Range Level selection key Response time FAST/SLOW selection key Power ON/OFF key ⑧Battery Compartment
5
5. LCD Display Description
Under-range icon MAX hold Min hold Fast sampling time icon Slow sampling time icon Over-range icon Level range display Analog bar Measurement reading Battery icon Auto range icon Data hold icon dBC icon dBA icon Auto power off icon
6
6. Operation Instruction
(1) Power ON/OFF: Turn the meter on by pressing the " " button for 1 second. To turn the meter off, press and hold the " " button for approx. 3 seconds then release the button. (2) Backlight: After turning the meter on, momentarily press the " " key, the backlight will turn on/off. It will automatically turn off after approx. 30 seconds of inactivity. (3) Frequency weighting A/C selection: Press " " key to select A or C. dBA: “A“ frequency weighting (designed to reflect the response of the human ear to noise which is most sensitive between 500Hz and 6000Hz) dBC: “C” frequency weighting (commonly used to measure peak sound pressure levels)
7
(4) FAST/SLOW selection
With the meter powered on; press the “ ” button to select
FAST or SLOW measurement mode.
FAST: Fast sampling time measurement, 1 time per 125ms.
SLOW: Slow sampling time measurement, 1 time per
second.
(5) MAX/MIN
With the meter powered on, press and hold the " "
button for 3 seconds to enter MAX measurement. After 3
seconds, release the button while the flashing ‘MAX’ icon
appears on the LCD. The maximum measured value will be
displayed. Press the button again to alternate back and forth
between ‘MIN’ and ‘MAX’ modes. Press and hold the button
for 3 seconds to exit MAX/MIN measurement mode.
8
(6) Data HOLD:
After turning the meter on, momentarily press the " "
button. "HOLD" icon will appear on the LCD, which indicates
the data is frozen. To release the held reading, press the
button again.
(7) Level range selection:
Press the “ ” key and the level range will change from
‘Lo’, ‘Med’, ‘Hi’ to ‘Auto’ in turn.
Lo30dB~80dB Med50dB100dB
Hi80dB~130dB Auto30dB130dB
9
7. Calibration
The recommended recalibration period is 1 year.
Calibration, repairs or servicing should only be performed by ATP Instrumentation Ltd.
10
8. Basic Operation
(1) Open battery cover and install a 9-volt battery in the
battery compartment.
(2) Press the ‘ ’ button to select desired level range.
(3) Select ‘dBA’ for general noise sound levels or ‘dBC’ for
measuring peak sound levels.
(4) Select ‘FAST’ for instant response or ‘SLOW’ for an
average sound level over 1 second.
(5) Select the ‘ ’ button to view the maximum and
minimum noise level readings.
(6) Hold the meter in hand or use the tripod to affix the
meter in the desired location. The best measuring distance is
1m to 1.5m away from the sound source to the microphone.
11
9. Notes
(1) Do not store or operate the meter in high temperature or
humidity.
(2) Remove the battery when the meter is to be stored for
long periods of time to avoid battery leakage.
(3) Wind blowing across the microphone will affect the noise
measurement. Use the supplied wind muffler to cover the
microphone during applications involving turbulent air.
(4) Keep microphone dry and avoid severe vibration.
(5) If the date and time automatically reset to the default
setting after powering the meter on, this indicates the battery
power is low. The meters’ battery should then be replaced.
(6) When the low battery icon " " appears, replace the
meters’ battery.
12
10. Accessories
User Manual Wind Muffler Regulator Rod 9V battery
ATP Instrumentation Ltd
Tournament Way
Ashby-de-la-Zouch
Leicestershire
LE65 2UU
Sales: 01530 566 800 sales@atp-instruments.co.uk Repair and Calibration: 01530 566 804 technical@atp-instruments.co.uk
www.atp-instrumentation.co.uk
