Atop AF100-2, AF100-25, AF100-40, AF100-60, AF100-100 User Manual

...

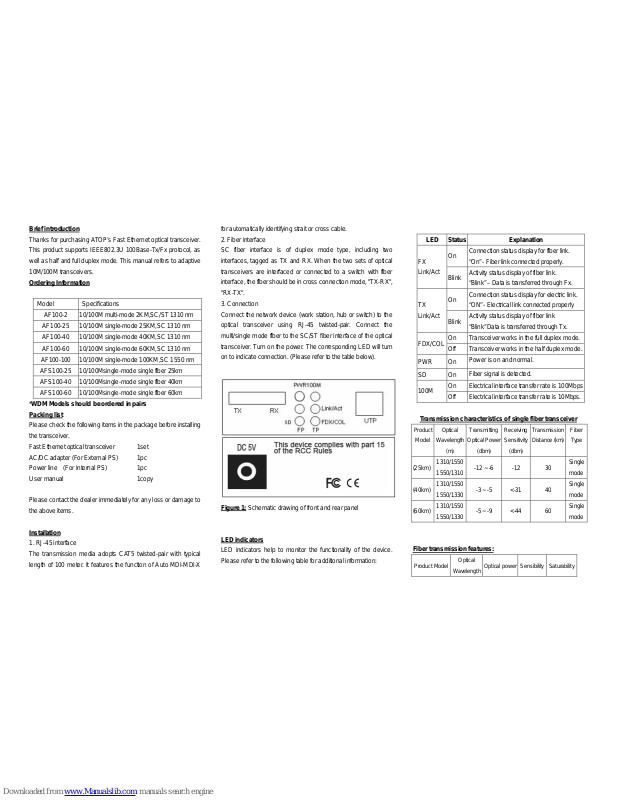

Brief introduction
Thanks for purchasing ATOP’s Fast Ethernet optical transceiver. This product supports IEEE802.3U 100Base-Tx/Fx protocol, as well as half and full duplex mode. This manual refers to adapti ve 10M/100M transceivers.
Ordering Information
AF100-2 10/100M multi-mode 2KM,SC/ST 1310 nm AF100-25 10/100M single-mode 25KM,SC 1310 nm AF100-40 10/100M single-mode 40KM,SC 1310 nm AF100-60 10/100M single-mode 60KM,SC 1310 nm
AF100-100 10/100M single-mode 100KM,SC 1550 nm AFS100-25 10/100Msingle-mode single fibe r 25km AFS100-40 10/100Msingle-mode single fibe r 40km AFS100-60 10/100Msingle-mode single fibe r 60km
*WDM Models should be ordered in pairs
Packing list
Please check the following items in the package before installing the transceiver. Fast Ethernet optical transceiver 1set AC/DC adapter (For External PS) 1pc Power line (For Internal PS) 1pc User manual 1copy
Please contact the dealer immediately for any loss or damage to the above items.
Installation
1. RJ-45 interface The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of Auto MDI-MDI-X
for automatically identifying strait or cross cable.
2. Fiber interface SC fiber interface is of duplex mode type, including two interfaces, tagged as TX and RX. When the two sets of optical transceivers are interfaced or connected to a switch with fiber interface, the fiber should be in cross connection mode, "TX-RX", "RX-TX".
3. Connection Connect the network device (work station, hub or switch) to the optical transceiver using RJ-45 twisted-pair. Connect the multi/single mode fi be r t o t h e S C/ ST fi be r int e rf ace of t h e optical transceiver. Turn on the power. The corresponding LED will turn on to indicate connection. (Please refer to the t able below).
Figure 1: Schematic drawing of front and rear panel
LED indicators
LED indicators help to monitor the functionality of the device. Please refer to the following table for additional information:
LED Status Explanation
On
Connection status display for fiber link. “On” - Fiber link connected properly .
FX Link/Act
Blink
Activity status display of fibe r link. “Blink” – Data is transferred through Fx.
On
Connection status display for electric link. “ON” - Electrical link connected properly
TX Link/Act
Blink
Activity status display of fibe r link “Blink” Data is transferred through Tx.
On Transceiver works in the full duplex mode.
FDX/COL
Off Transceiver works in the half duplex mode.
PWR On
Power is on and normal.
SD On
Fiber signal is detected.
On Electrical interface transfer rate is 100Mbps
100M
Off Electrical interface transfer rate is 10Mbps.
Transmission characteristics of single fiber transceiver
Product
Model
Optical
Wavelength
(m)
Transmitting
Optical Power
(dbm)
Receiving Sensitivity
(dbm)
Transmission Distance (km)
Fiber Type
(25km)
1310/1550 1550/1310
-12 ~ -6 -12 30
Single mode
(40km)
1310/1550 1550/1330
-3 ~ -5 <-31 40
Single mode
(60km)
1310/1550 1550/1330
-5 ~ -9 <-44 60
Single mode
Fiber transmission features:
Product Model
Optical
Wavelength
Optical power Sensibility Saturability
AF100-2
1310 nm -19-14 dbm -31 dbm -12 dbm
AF100-25
1310 nm -14-7 dbm -34 dbm -3 dbm
AF100-40
1310 nm -9-5 dbm -38 dbm -3 dbm
AF100-60
1310 nm -5-0 dbm -38 dbm -3 dbm
AF100-100
1550DFB -5-0 dbm -38 dbm -3 dbm
Main features
1. Complies with IEEE 802.3 10 Base-T st andard. Complies with IEEE 802.3u 100 Base-TX/FX standards.
2. Max. 2M buffer memory built in chip.
3. Back pressure flow control for full/half duplex IEEE802.3X.
4. Automatic identi fication of MDI /MDI-X cross-lin e.
5. High-performance 1.4Gbps memory bandwidth.
6. Complies with FCC, 15 CLASS A and CE MARK.
Technical p arameters: Standard Protocol IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
Connectors UTP RJ-45, SC/ST Fiber connector Operation mode Full /Half duplex mode Power supply External 5V DC 1A
Internal 110-265VAC 48VDC Temperature 0 - 60 Humidity 5% - 90% TP cable Cat5 UTP cable Fiber Multi-mode: 50/125, 62.5/125 or 100/140μm
Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125μm Dimensions External power supply: 26x71x94 (mm) Internal power supply: 40x110x140 (mm)
Cautions:
1. This product is suitable for indoor application.
2. Please make sure to cover the fiber interface when not in use.
3. It is forbidden to stare at the TX fiber transceiver.
IF Media Converter with DIPswitch :
Pin No. ON OFF
1 LLF Enabled LLF Disabled 4 TX - Force Mode TX - Auto negotiation 5 IEEE802.3X - Disabled IEEE802.3X - Enabled 6 TX - 10M TX - 100M 7 TX - Half Duplex TX - Full Duplex 8 FX - Half Duplex FX – Full Duplex
Pin No.2 Pin No.3 Status
OFF OFF Store & Forward OFF ON Cut-through
ON OFF Pure Converter mode ON ON Converter with auto-change-forward f unction
AF100
Fast Ethernet Media Converter
User manual
ATOP TECHNOLOGY
