ATON RA.Store-3 User Manual

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

RA.Store-3

User Manual

Rev. 1.08

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

INDEX

1. INTRODUCTION ....................................................................................................................................................................... 3

2. DESCRIPTION OF THE SYSTEM ................................................................................................................................................. 3

2.1 IDENTIFICATION PLATE ............................................................................................................................................................... 8

2.2 SAFETY AND MAINTENANCE ........................................................................................................................................................ 8

2.2.1 Maintenance on the AC lines of the building .............................................................................................................. 9

2.3 DESCRIPTION OF THE SAFETY SYSTEMS AND DEVICES ........................................................................................................................ 9

2.4 PICTOGRAMS AND WARNINGS ON THE SYSTEM ............................................................................................................................. 10

3. FUNCTIONING ........................................................................................................................................................................ 11

3.1 ON-GRID MODE .................................................................................................................................................................. 11

3.2 EPS MODE ........................................................................................................................................................................... 11

3.3 MONTHLY RECHARGE OF THE BATTERY ....................................................................................................................................... 11

3.4 WINTER FUNCTIONING OF THE BATTERY (WINTER MODE) .............................................................................................................. 11

4. SCREENS OF THE DISPLAY ...................................................................................................................................................... 12

4.1 MAIN SCREEN ........................................................................................................................................................................ 13

4.2 STATISTICAL DATA SCREEN........................................................................................................................................................ 14

4.3 NUMERICAL DATA SCREEN ....................................................................................................................................................... 14

4.4 CONFIGURATION SCREEN ......................................................................................................................................................... 16

5. CONNECTIVITY OF THE SYSTEM ............................................................................................................................................. 18

5.1 MODIFICATION OF THE WIFI CONNECTIVITY ................................................................................................................................ 18

6. STATUSES OF THE SYSTEM ..................................................................................................................................................... 25

7. PROBLEMS OF THE SYSTEM ................................................................................................................................................... 26

8. SWITCH OFF AND ON THE SYSTEM ........................................................................................................................................ 29

8.1 PROLONGED STOP .................................................................................................................................................................. 30

8.3 RA.STORE-3BPLUS ................................................................................................................................................................ 30

9. REMOVAL AND DISPOSAL OF THE SYSTEM............................................................................................................................ 31

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

1. Introduction

The present manual is addressed to the end customer and describes the main functions of the system RA.Store-3.

READ THE PRESENT MANUAL BEFORE STARTING ANY OPERATION

Before starting any operation, it is compulsory to read the present
User Manual.
The guarantee of good functioning and the full compliance of the
performances of the storage system are strongly connected to the
correct commitment of all instructions that are contained in this
Manual.

2. Description of the system

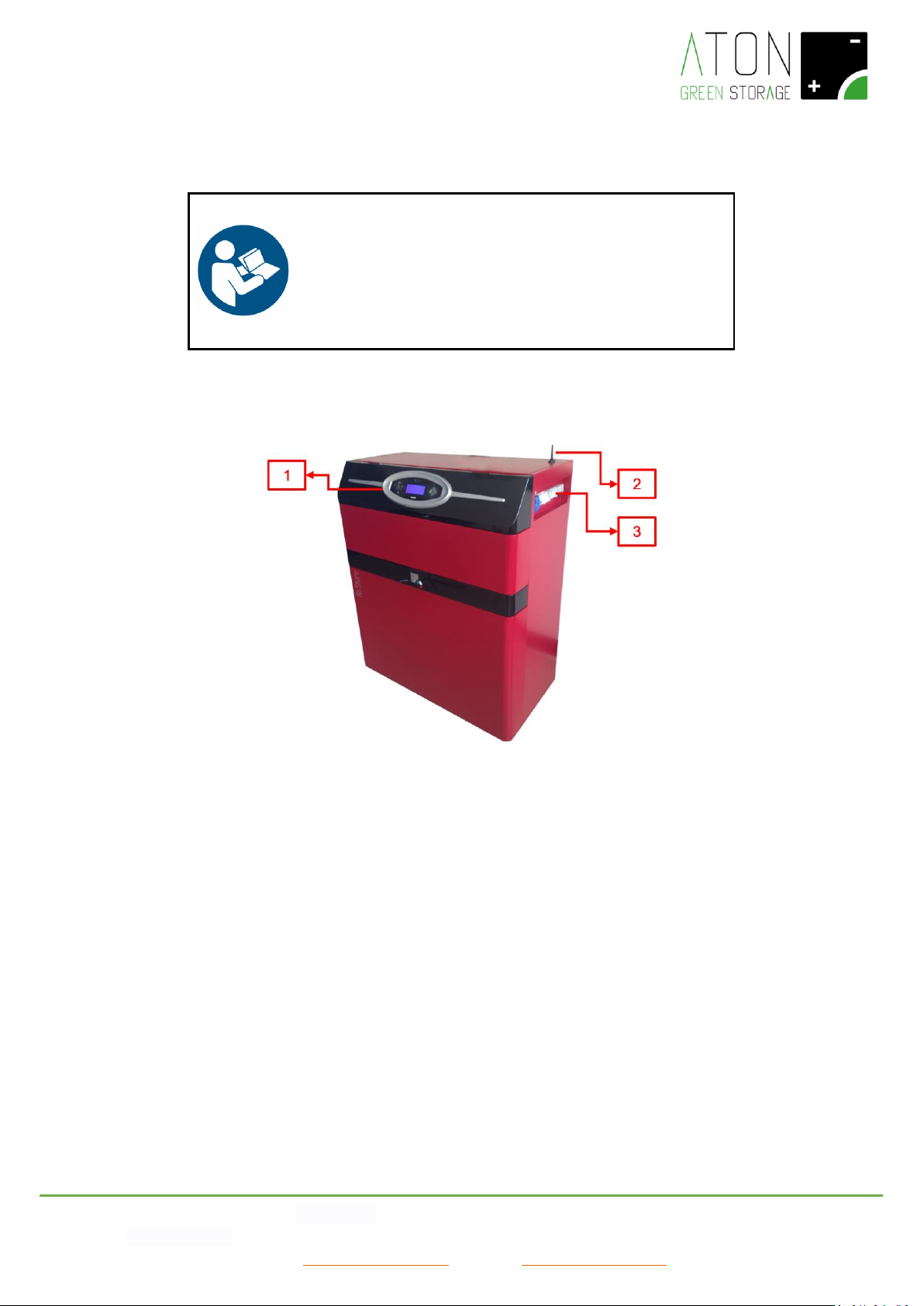

Picture 1 - RA.Store-3 system

In Picture 1, the following parts of the RA.Store-3 system are showed:

- Interface board (1): it allows the communication between the user and the system.

- Antenna (2): A GPRS communication module (or WiFi, as an optional) allows to send the data about the functioning of the

system to a portal accessible from internet, and the assistance service to execute any control in remote assistance.

- Electrical panel (3): it allows to switch on and off the system.

- CT sensor (not visible on the picture): there is an electricity sensor in order to control the energy exchanged with the public

grid.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

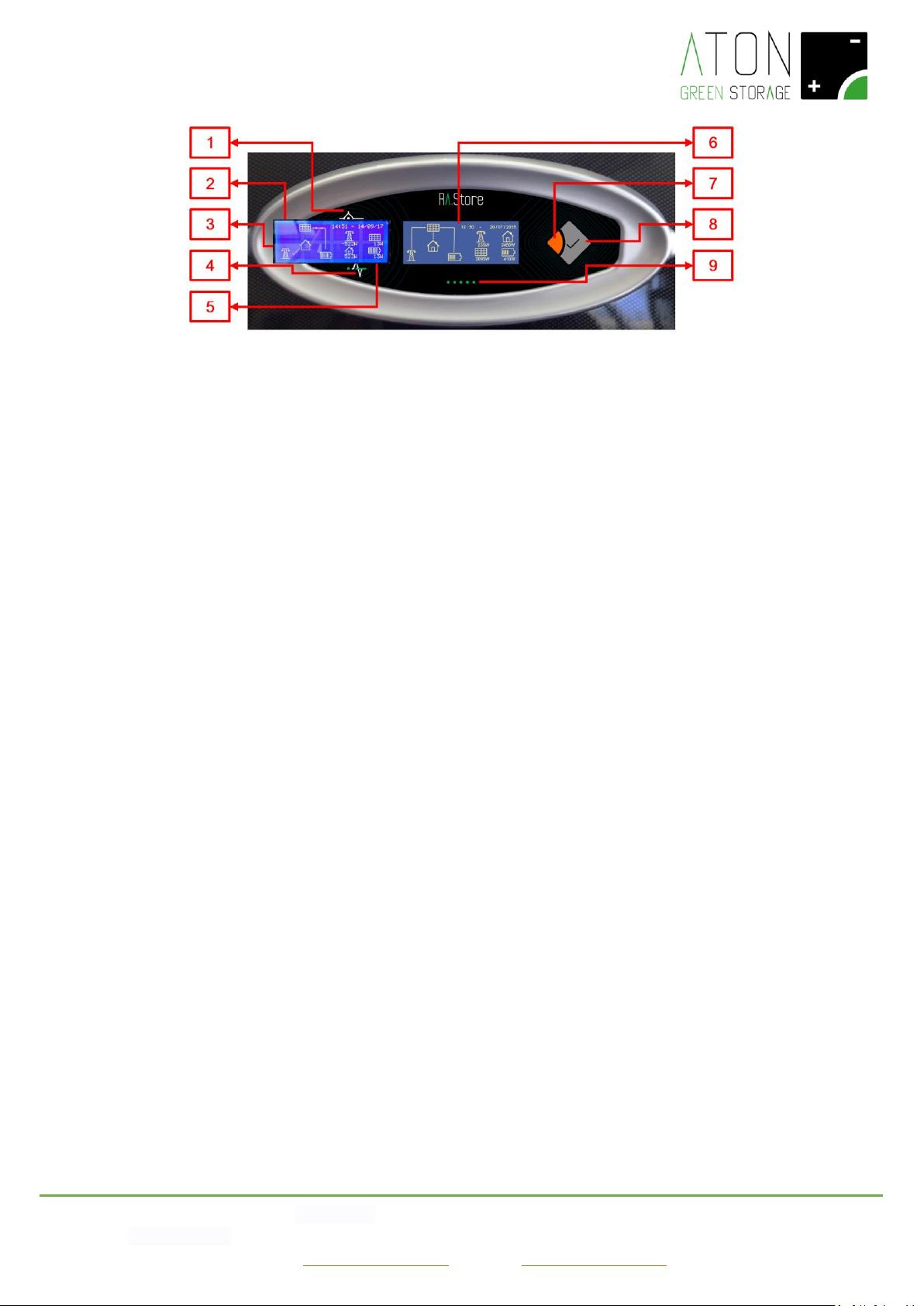

Picture 2 – Interface board

The interface board shows the following parts (Picture 2):

- Graphic display with capacitive keyboard (6): it shows information regarding to the functioning of the system and it allows to

interact with it,

- Key Enter (8) and key Esc (7): together with the display they allow to interact with the system.

- Status led lights of the system:

- Active system (3): switched on if the system is active and switched off if the system is not active.

- Solar (1): switched on if the PV panels are supplying energy to the system, switched off in the opposite case.

- Grid (4): switched on if the public electric grid functions correctly, switched off in case of blackout, and flashing in case

of blackout and run down battery.

- WiFi Communication (5): switched on if the system is communicating the data regarding its functioning through the

WiFi card (optional), flashing if the system cannot communicate its data, and switched off if the WiFi communication is
not activated.

- Fault (2): switched on or flashing if there is an active alarm, switched off in the opposite case.

- Status led lights of the battery (9): the led lights represent visually the amount of energy in the battery. Moreover the

discharge and recharge phases are indicated with particular sequences of switching on of the led lights.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

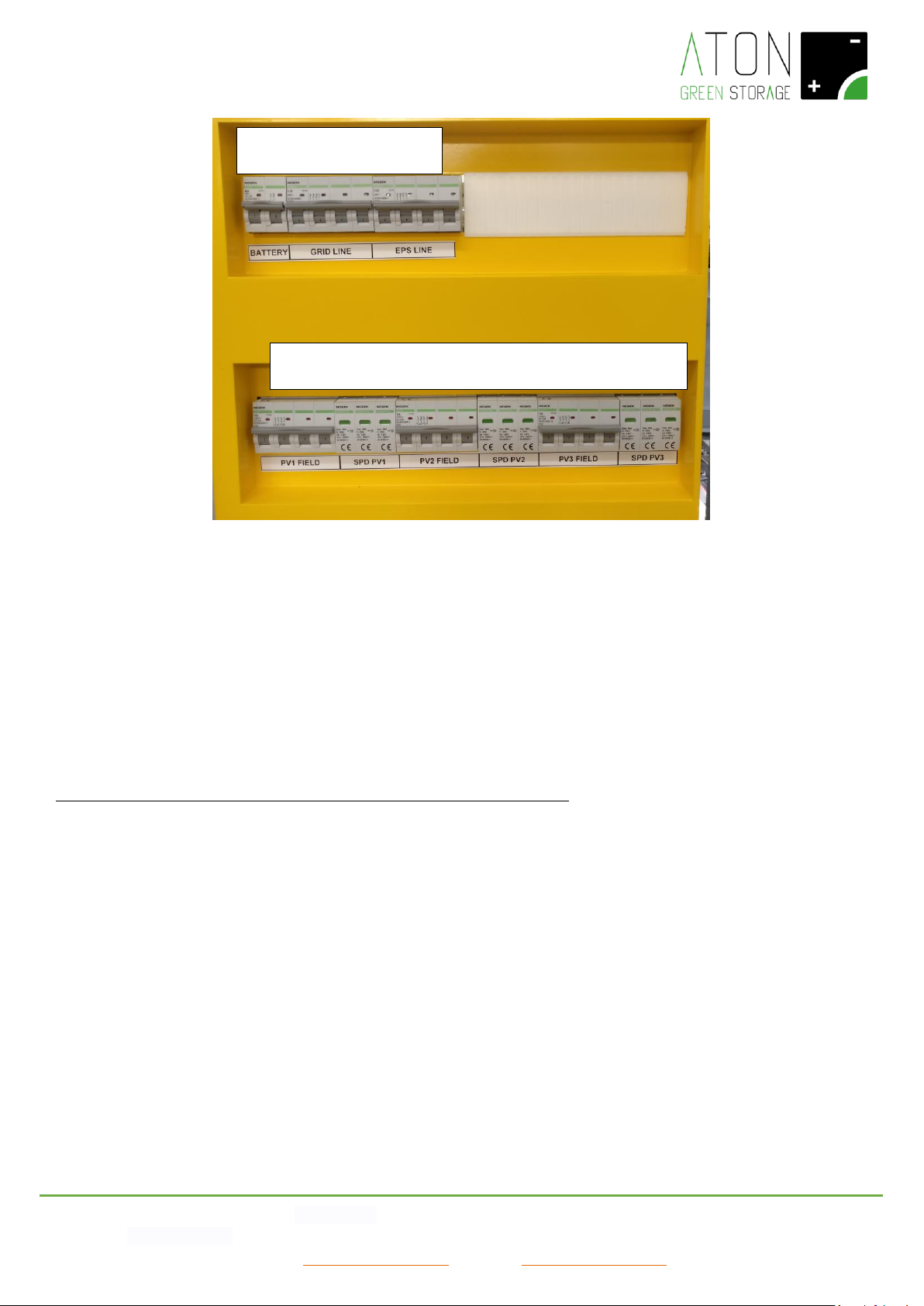

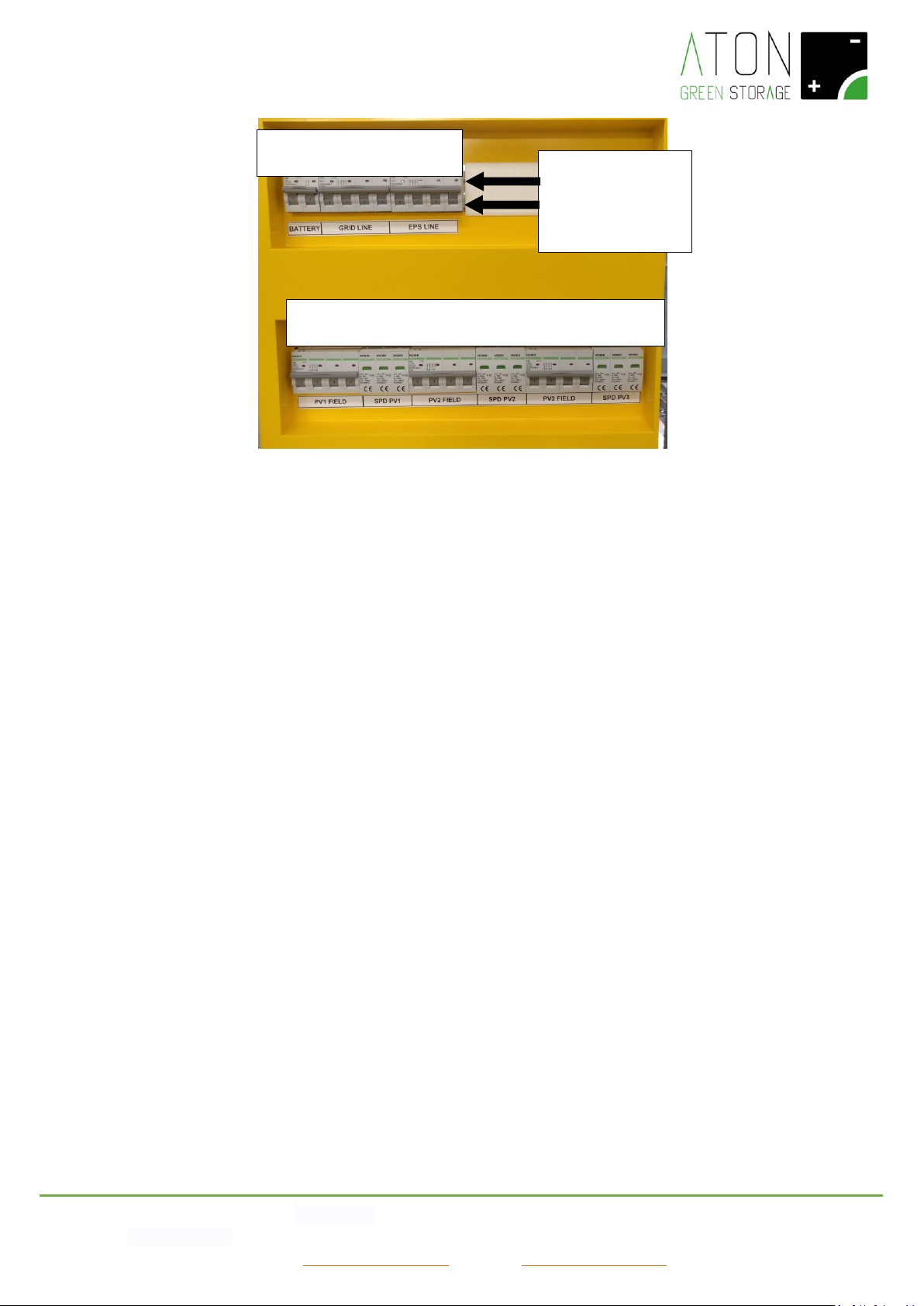

Picture 3 – Front side of the electrical panel

The electrical panel, as shown in Picture 3, is composed of two types of equipments:

- Automatic magneto-thermal breakers (Picture 4 and Picture 5): they isolate and protect the electrical lines on which they are
installed.

- Lightning arrestor SPD (Picture 6): it protects the system from overvoltages due to atmospheric origin.

1 2 3

4 5 6 7 8 9

INDICATOR OF
POSITION
1: ON (RED)
0: OFF (GREEN)

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Picture 6 – Lightning arrestor SPD

On the electrical panel the user can access the following parts:

- Magneto-thermal breaker BATTERY (1): it protects the electrical line of the batteries.

In position of “1 - ON”:

- It activates and switches on the control and management card of the storage system;

- It activates the function of charge and discharge of the batteries.

In position of “0 - OFF”:

- It deactivates and switches off control and management card of the storage system;

- It deactivates the function of charge and discharge of the batteries.

- Magneto-thermal breaker GRID LINE (2): it connects the storage system to the house and the public electrical grid. This

outlet is supplied during normal conditions, i.e. when the national grid is at 400 Vac.
In position of “1 - ON”:

- It allows the supply of energy from the storage system to the house and the public electrical grid;

In position of “0 - OFF”:

Indicator of position
1: ON

Indicator of
position
0: OFF

Indicator of
status
0: GREEN

Indicator of status
1: RED

Indicator SPD
GREEN: OK
RED: TO BE REPLACED

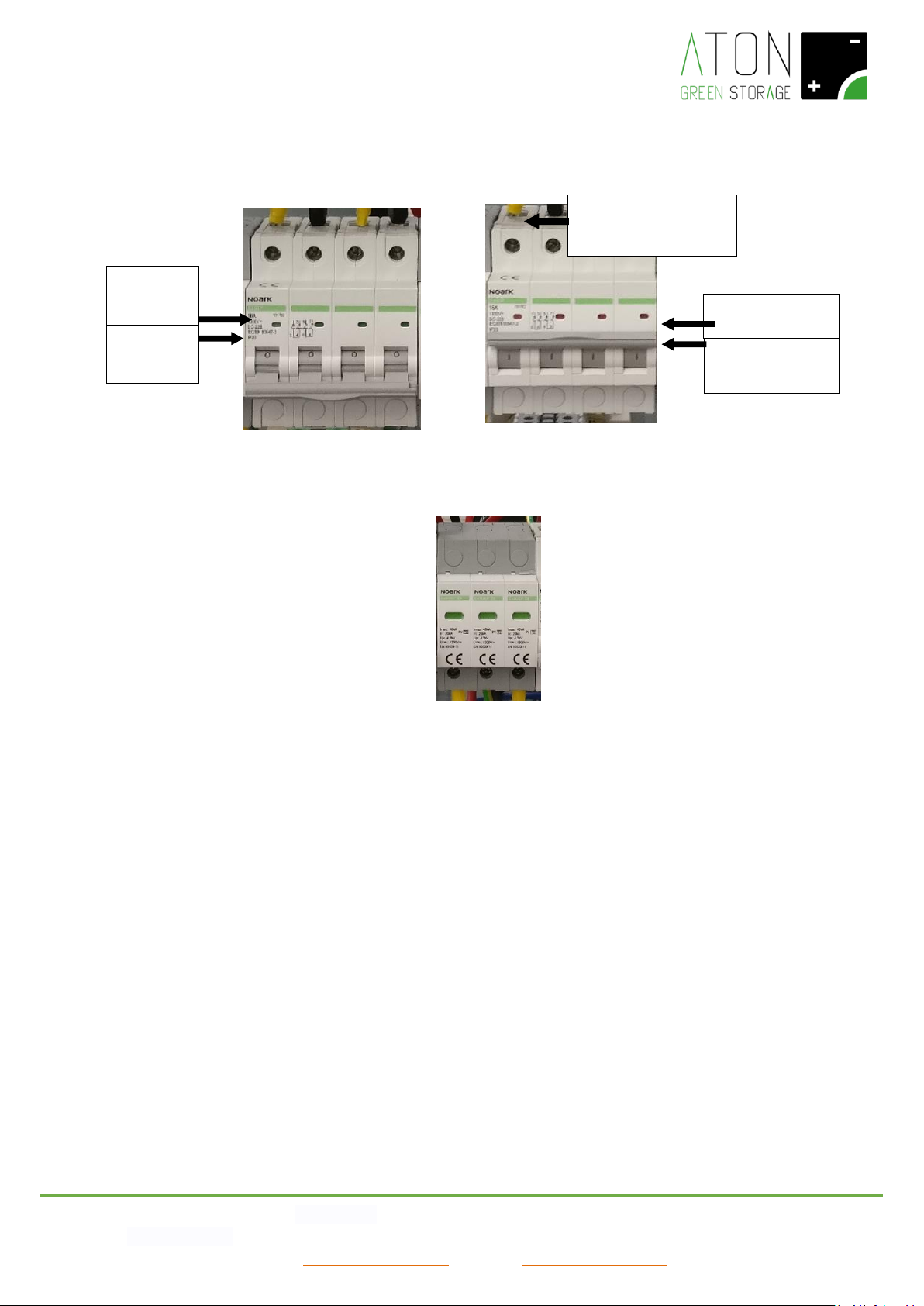

Picture 4 - Automatic magneto-

thermal breaker in position of OFF –

Switched off

Picture 5 - Automatic magneto-

thermal breaker in position of ON

– Switched on

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

- It prevents the supply of energy from the storage system to the house and the public electrical grid.

- Magneto-thermal breaker EPS LINE (3): it connects the storage system to the house when there is a blackout, i.e when the

national grid is temporarily at 0 Vac.

- In position of “1 - ON”:

- It allows the supply of energy from the storage system to the house or only a part of it;

In position of “0 - OFF”:

- It prevents the supply of energy from the storage system to the house or only a part of it.

- Disconnnector panels string 1 “PV1 FIELD”(4): it connects the storage system to the first PV panels string.

- In position of “1 - ON”:

- It allows the supply of energy from the PV string connected to the entry of the storage system n.1 towards this latter;

- In position of “0 - OFF”:

It does not allow the supply of energy from the PV string connected to the entry of the storage system n.1 towards this
latter;

- Lightning arrestor “SPD PV1”(5): it protects the system from overvoltages due to atmospheric origin coming from the string

1.

- Disconnnector panels string 2 “PV2 FIELD” (6): it connects the storage system to the second PV panels string.

- In position of “1 - ON”:

- It allows the supply of energy from the PV string connected to the entry of the storage system n.2 to this latter;

- In position of “0 - OFF”:

It does not allow the supply of energy from the PV string connected to the entry of the storage system n.2 to this latter;

- Lightning arrestor “SPD PV2” (7): it protects the system from overvoltages due to atmospheric origin coming from the string

2.

- Disconnnector panels string 3 “PV3 FIELD” (8): it connects the storage system to the third PV panels string.

- In position of “1 - ON”:

- It allows the supply of energy from the PV string connected to the entry of the storage system n.3 to this latter;

- In position of “0 - OFF”:

It does not allow the supply of energy from the PV string connected to the entry of the storage system n.3 to this latter;

- Lightning arrestor “SPD PV3” (9): it protects the system from overvoltages due to atmospheric origin coming from the string

3.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

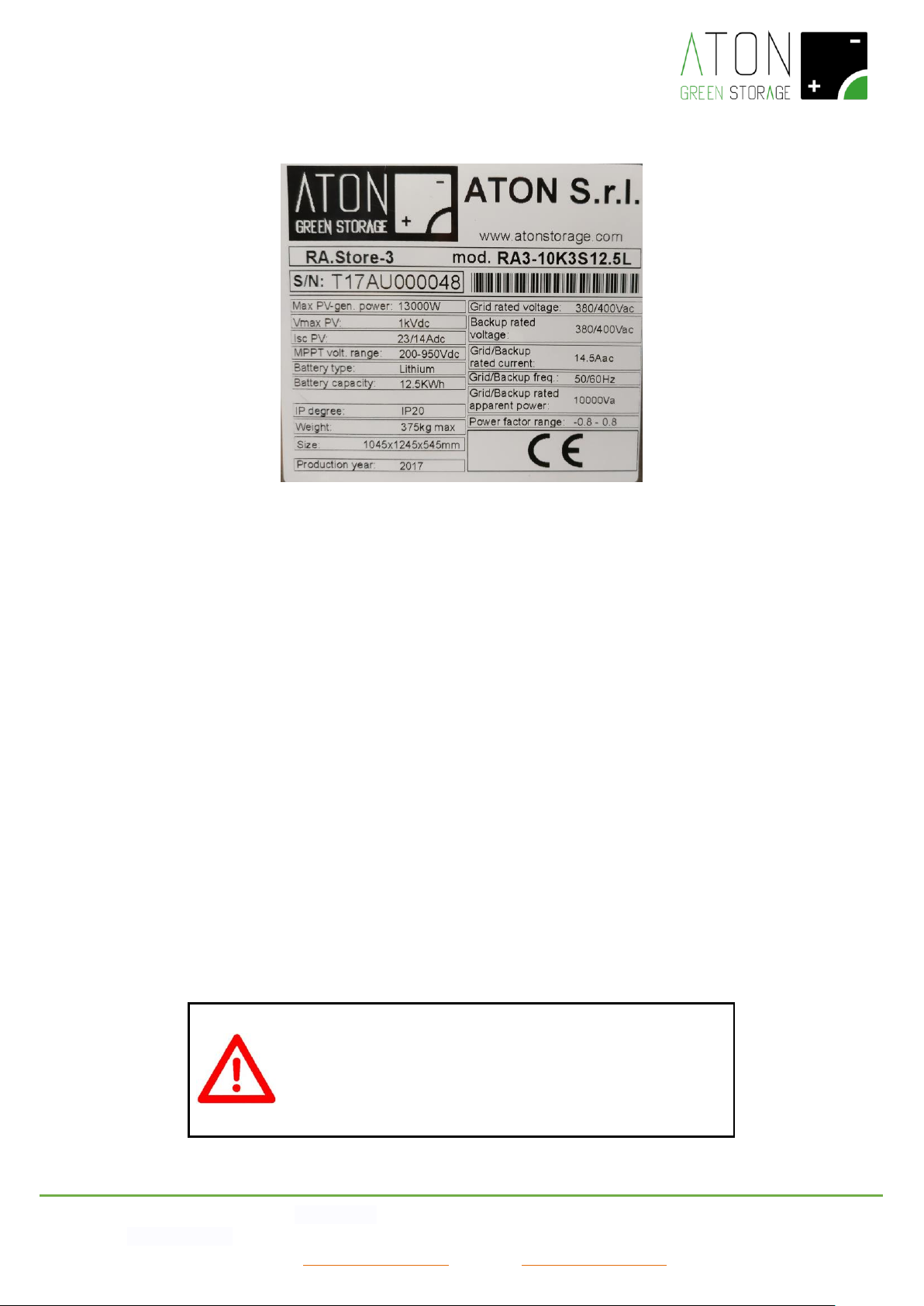

2.1 Identification plate

Picture 7 - Identification plate

The CE identification plate shows the following data (Picture 7):

• Identification of the producer;

• Type of product and model;

• S/N: Serial Number of the product;

• Max PV-gen. power: the maximum power that can be produced by the PV panels towards the inverter;

• Isc PV: the maximum current value of short circuit for each entry on the DC side;

• MPPT volt. range: voltage range of MPPT;

• Battery type: the type of batteries installed in the storage system;

• Battery capacity: the nominal storage capacity of the batteries;

• IP degree: IP protection degree;

• Weight: the total weight of the storage system;

• Size: the dimensions of the storage system;

• Production year: the year in which the storage system is manufactured;

• Grid/Backup rated voltage: the voltage value available on the outlets “Grid” and “Backup”;

• Grid/Backup rated current: the maximum value of current produced by the inverter on the outlets Grid and Backup;

• Grid/Backup rated apparent power: the maximum value of apparent power produced by the inverter on the outlets

Grid and Backup;

• Grid/Backup freq.: the frequency range of the voltage coming from the inverter (it can be set up);

• Power factor range: the power factor range within the inverter is set up.

2.2 Safety and maintenance

GENERAL WARNINGS

Despite the design in full compliance with the essential safety
requirements and the installation of the proper safety devices, for a
correct use of the storage system please take into consideration all
the rules about accidents prevention listed in the present manual

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

- The end user is not allowed to execute any reparation, replacement or other intervention on the system, for his own safety,

the protection of the household appliances and the storage system itself.

- It is strictly forbidden to try to access the inner parts of the system and each intervention not executed by authorized staff

will invalidate the guarantee and the liability of the producer.

- Do not move the system because this may cause disconnections and false contacts.

- Do not alter in any way the system, including plates and instructions.

- The connection of the system to the grid and the PV panels is of permanent type and cannot be altered, except by authorized

staff.

- Do not put powders or liquids on the inner parts of the system.

- Keep the system away from flames or heat sources.

- Do not store inflammable materials nearby the system.

- In order to clean the system, use a normal duster and do not use inflammable or toxic solvents.

- Always ensure proper ventilation, avoiding to block the air intakes of the system.

The system does not require any maintenance provided by the end user apart from always ensuring proper ventilation, avoiding
to block the air intakes of the system, and the execution of the following visual checks:

- Parts that are mechanically damaged;

- Damaged electrical cables connected to the system.

In these cases, do not intervene on the system but please contact your authorized dealer.

2.2.1 Maintenance on the AC lines of the building

ATTENTION

Before executing any operation of maintenance on the AC lines of
the building, lower the disconnectors GRID and EPS (Picture 3).

2.3 Description of the safety systems and devices

The safety systems and devices installed on the storage system are the following:

- Protection casing of the battery space, battery charger and inverter;

- Protection against direct and indirect electrical contacts;

- Magneto-thermal breakers;

- Fuses.

In order that the protection system is efficient against the indirect contacts, it is necessary that the protection equipment
(earthing) of the general electrical installation of the building is duly dimensioned and efficient.

NOTE: The customer is liable for guaranteeing the efficiency according to the existing rules relating to the earthing of the
general electrical installation of the building.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

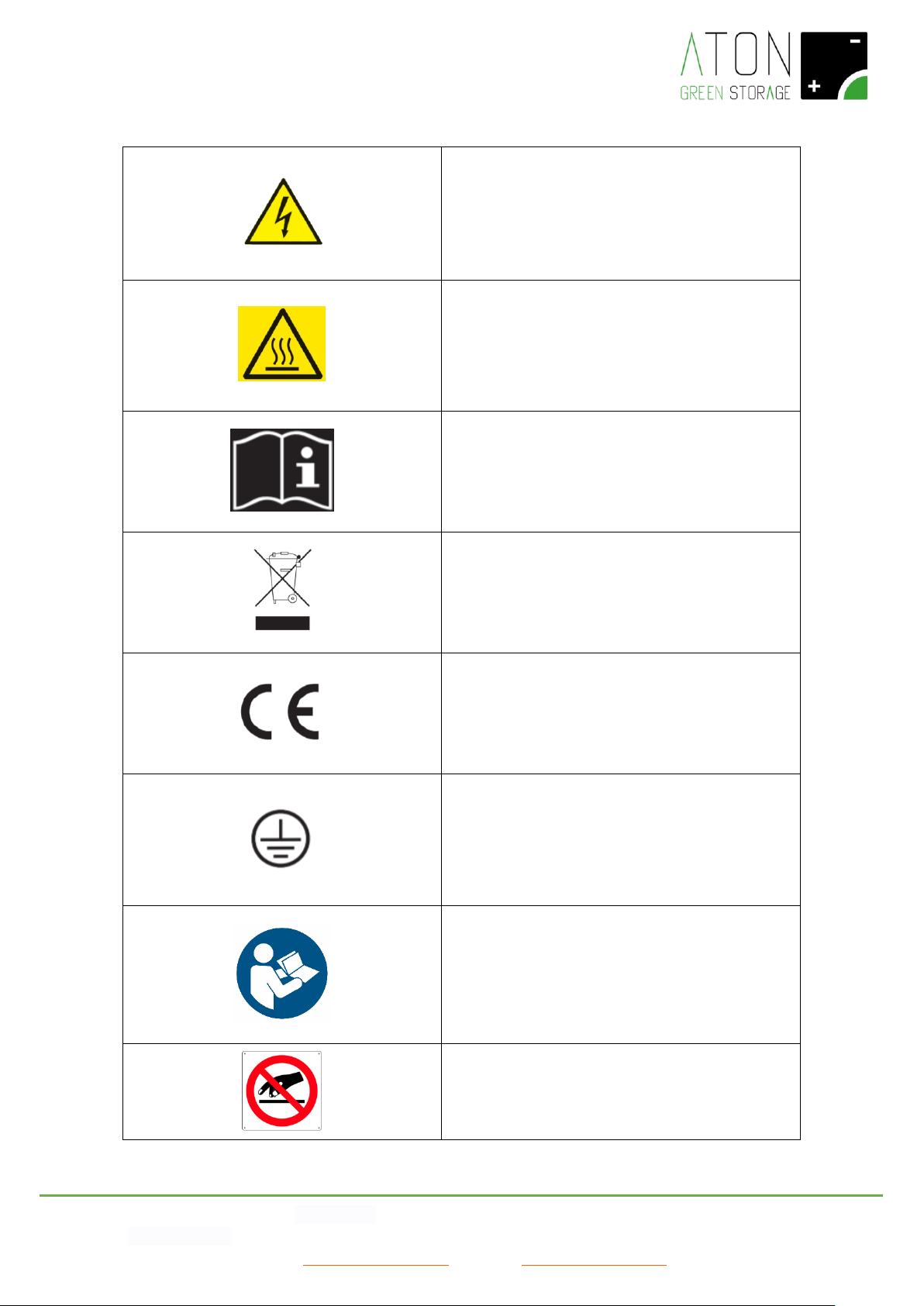

2.4 Pictograms and warnings on the system

Electrocution hazard – presence of electricity. It is
therefore forbidden to try to enter the inner parts of
the system. All the works executed on the system
must be done by qualified technical staff.

Placed nearby the electrical panel.

Risk of burns due to hot surfaces.

Some areas of the product may get hot during the
functioning. Avoid the direct contact with the body
during the functioning. Before executing any activity
on the product, switch it off and leave it cool enough.

Respect all the indications given in the manuals and in
the technical datasheets.

RAEE / WEEE Waste
Do not dispose the product together with household
waste, but respecting all the local and European laws
regarding the disposal of electronical waste applicable
in the country of installation.

CE Mark
The product is compliant with the requirements
applicable by the EU Directives.

Appliance Class I

The chassis of the system is connected to the
protection conductor of the product. The protection
conductor of the product must be connected to the
earthing protection conductor of the house.

Refer to the present manual – please always read this
manual (and the installation manual in case of
technical authorized staff) before starting each
operation on the system.

Placed nearby the electrical panel.

It is forbidden to block or cover the air intakes of the
system.

Placed nearby the electrical panel.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

3. Functioning

Ra.Store-3 is a system for the storage of the energy produced from photovoltaic panels and the supply of the stored energy.
It is possible to distinguish two different functioning modes of the system: the on-Grid mode and the EPS mode. The on-Grid
mode is used by the system when the public electrical grid is functioning correctly, whereas in case of blackout the system
activates automatically the EPS mode in order to solve the problem occurred, and then at last come back to the on-Grid mode
when the problem is solved.
In order to use the functioning mode called EPS it is necessary to install an external commutation electrical panel between the
two AC electrical lines of the storage system.

3.1 ON-GRID Mode

During the on-Grid mode, the electrical energy produced from the PV panels, if not consumed immediately, will charge the
battery of the system and, if there will be an overproduction, it will be transferred to the public grid. On the contrary, in case the
electrical energy produced from the PV panels is not enough to satisfy the needs of the consumptions, the lacking part will be
supplied by the battery and, if even this will not be enough, from the public grid.
During the on-Grid mode, it is possible to take energy from the battery as long as the charge of this latter is more than 20% and
the power able to be taken from the battery gradually reduces when the battery approaches this percentage.
This threshold guarantees a long life of the battery and an energy reserve in case of blackout of the public grid (EPS mode).

3.2 EPS Mode

During the installation phase, it is possible to set the system so that in case of blackout of the public grid it supplies a part of the
consumptions (the so called privileged household appliances).

NOTE: The distinction between privileged and non-privileged consumptions is set by the installator (under supervision of the
final user) and can be modified only by qualified technical staff.

In case of blackout of the public grid, only the privileged consumptions are authorized to use the energy (energy produced from
the PV panels and/or supplied by the battery).
During this mode, called EPS mode, it is possible to take energy from the battery as long as the charge of this latter is more than
10% and the power able to be taken from the battery gradually reduces together with the battery status.
In this mode, it is moreover active the EPS electrical socket in the electric panel of the system (picture 2, indicator 7).
This mode is showed through the status 074 – EPS MODE.

3.3 Monthly recharge of the battery

In order to protect the battery life, on the first day of each month the system makes automatically a recharge of the battery
group up to 90%. During this activity, the system prefers to charge the battery, obviously from the panels, rather than supply
energy to the consumptions. The stored energy will not be wasted away, because it is completely available for the consumptions
at the end of this recharge phase.

NOTE: If, during the 15 days before the first day of each month, the battery has already done a recharge up to 90%, the above
mentioned recharge will not be executed.

This mode is showed through the status 065 – RIGEN.RICARICA

3.4 Winter functioning of the battery (Winter mode)

In order to protect the battery life, if the temperature of the battery goes down under 0°C degrees, it will be activated a
charge/discharge functioning as described below.
The winter functioning stops automatically when the room temperature is above 5°C.
This mode is showed through the status 041 – WINTER MODE.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

ROOM
TEMPERATURE
[°C]

MAX. CHARGE
CURRENT OF
THE BATTERY
[A]

MAX.
DISCHARGE
CURRENT OF
THE BATTERY
[A]

MIN.
DISCHARGE
VOLTAGE OF
THE
BATTERY[V]

MAX.
CHARGE
VOLTAGE OF
THE
BATTERY [V]

-10≤ roomT. ≤
0

4

13

47

52.5

roomT. < -10

0 – INACTIVE
BATTERY

0 - INACTIVE
BATTERY

INACTIVE
BATTERY

INACTIVE
BATTERY

4. Screens of the display

On the display are showed the functioning data of the system in real time and in statistical format. The main screen shows the
data of produced and consumed power in real time and, by pressing on the keys Esc and Enter (Picture 2, indicators 7 and 8), the
user can access the other screens.

NOTE: after 30 seconds from the last pressure of a key, the display goes back to the main screen.

The elements of the different screens are described as follows.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

4.1 Main screen

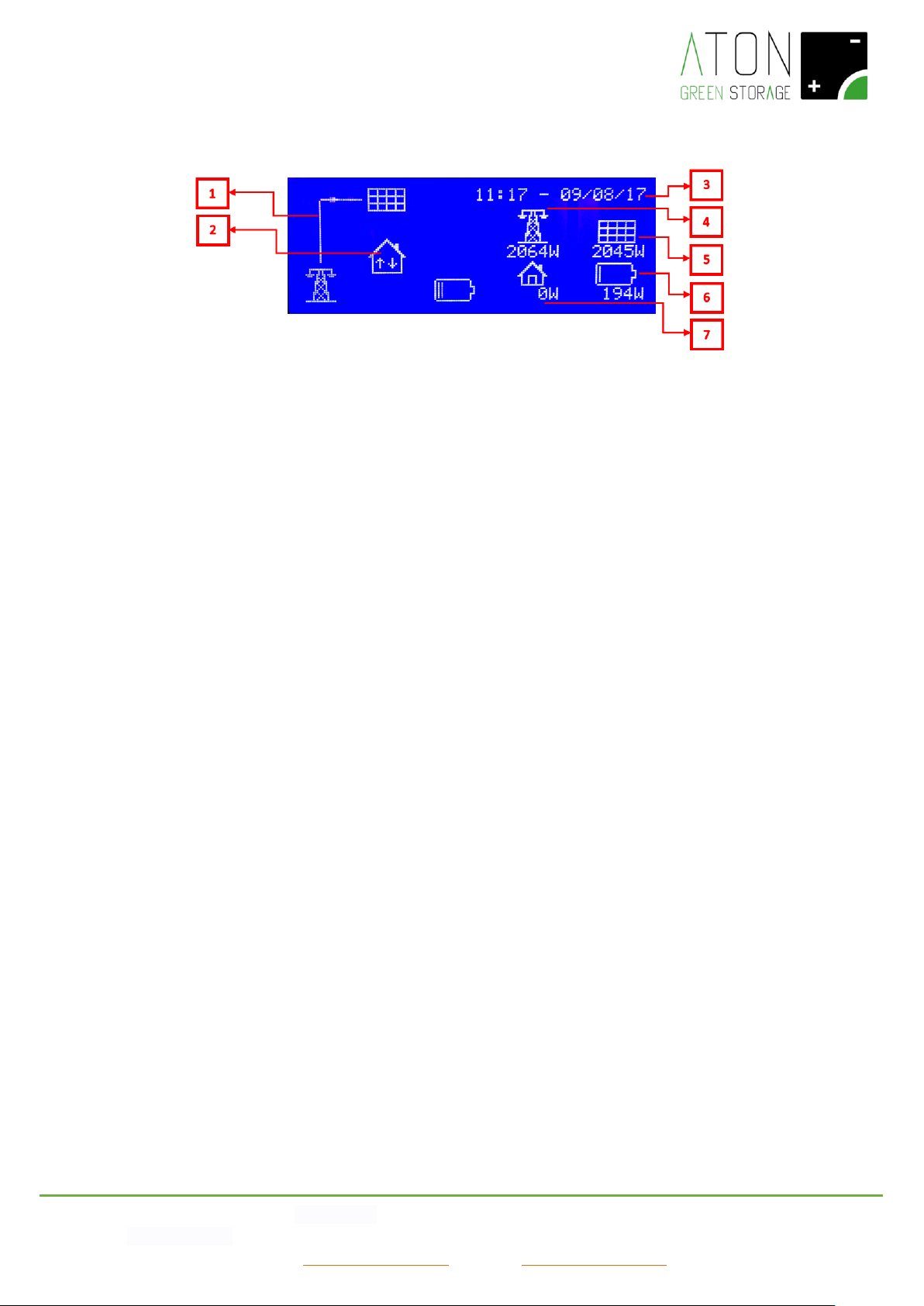

Picture 8 – Main screen

The interface board shows the following parts (Picture 8):

- Flux line of the energy (1): it shows the progress of the electric energy between PV panels, electrical grid, the consumer

(house), the battery. The flux is shown by the indicating line.

- Communication with the storage system (2): the presence of the 2 arrows in alternating direction shows that the

communication has been done.

- Date and time (3): indication of date and time.

- Indication of instantaneous active power of electrical grid (4): it shows the active power given to or purchased from the

national electrical grid expressed in Watt. If the visualized power is positive, then it means that the system is giving energy to
the electrical grid. If the visualized power is negative, then it means that the system is taking energy from the electrical grid.

- Indication of instantaneous active power of PV panels (5): it shows the active power produced by the PV panels expressed in

Watt.

- Indication of instantaneous active power of battery (6): it shows the active power given or taken from the battery expressed

in Watt. If the visualized power is positive, then it means that the system is charging the battery. If the visualized power is
negative, then it means that the system is discharging the battery.

- Indication of instantaneous active power of the house (7): it shows the active power requested by the house expressed in

Watt. It is always expressed with a positive number.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

4.2 Statistical data screen

By pressing the Enter key repeatedly, the user can access the following screens.

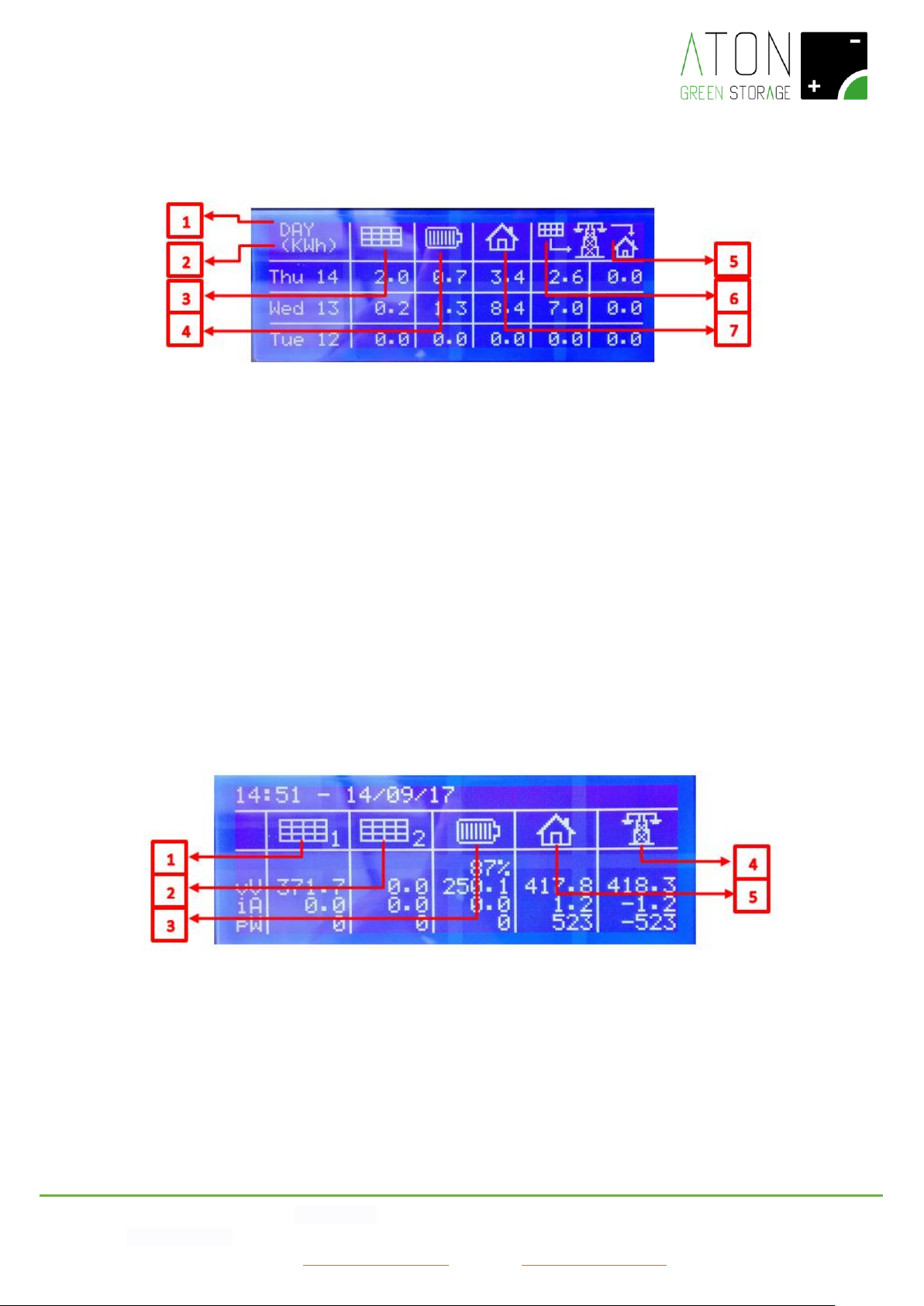

Picture 9 - Statistical data screen

Please refer to Picture 9: regarding what is showed, the showed statistical data indicate:

a. DAY for the data relating to the last three days,
b. MONTH for the data relating to the last three months,
c. YEAR for the data relating to the last three years.

1. It indicates the measure unity with which the data are expressed.

2. Energy supplied by the PV panels in the indicated period.

3. Energy supplied by the battery to the household appliances in the indicated period.

4. Energy purchased from the public electrical grid in the indicated period.

5. Energy sold to the public electrical grid in the indicated period.

6. Energy used by the household appliances in the indicated period.

4.3 Numerical data screen

By pressing the Enter key again, the user can access the following screen with the main functioning data in numeric format. The
user can see a table, as shown in the following picture (Picture 10).

Picture 10 - Numerical data screen

In the table the following data are showed:

1. Current, voltage and power supplied by the PV panels string 1.

2. Current, voltage and power supplied by the PV panels string 2 (if available).

3. Charge status, current, voltage and power exchanged with the battery (with minus, it means that the energy is taken from

the battery).

4. Current, voltage and power exchanged with the public electrical grid (with minus, it means that the energy is taken from the

public electrical grid).

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

5. Current, voltage and power supplied to the household appliances.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

4.4 Configuration screen

By pressing the Enter key again, the user can access the configuration screen.

Picture 11 – Configuration screen

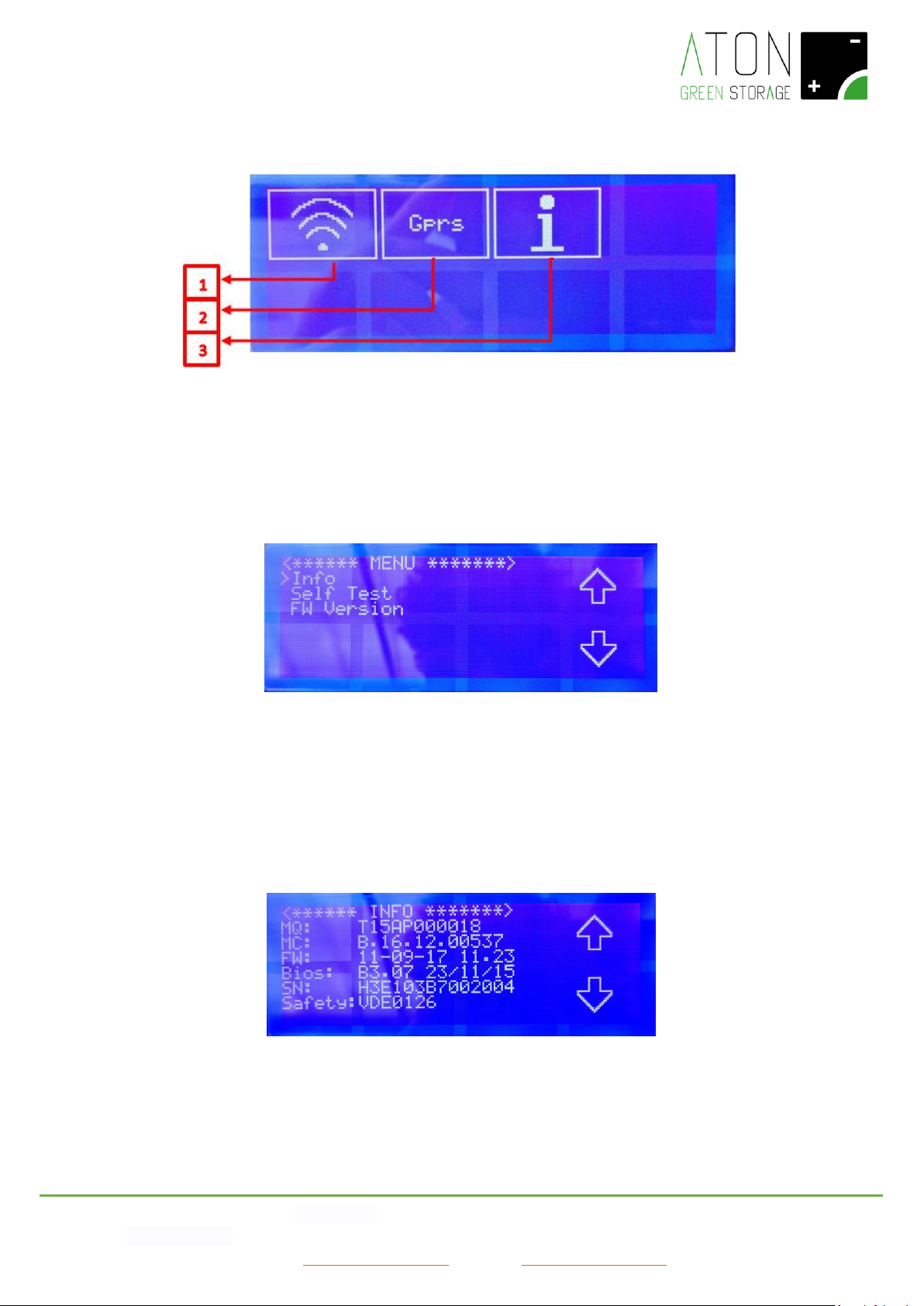

Through WiFi or GPRS, the system is able to communicate its own functioning data.
By pressing on the WiFi icon (1) (Picture 11), it is possible to see and set up the parameters regarding the WiFi connectivity of
the system (please refer to the paragraph “WiFi connectivity of the system” for further details).
By pressing on the Gprs icon (2) it is possible to switch on and off the Gprs communication.

Finally by pressing on the “i” icon (3) the user can access the following menu (Picture 12)

Picture 12 – User Menu

Use the keys “arrow up”, “arrow down” in the display and “Enter” to select an item. Press the “Esc” key to go back to the
previous menu.

By selecting the item “Info”, it is possible to see the serial numbers of the main components of the system and the Directive
(item “Safety”) that the system is compliant with in order to connect it to the public grid (CEI-021 in Italy, VDE0126 in Germany,
etc.).

Picture 13 - Menu Info

The item “FW Version” shows the firmwares of the system used during the certification phase.

• FW Manager v2.07.xx

• FW Inverter v2.02.xx

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

• FW Charger v2.03.xx

• FW Controller v1.00.xx.yy

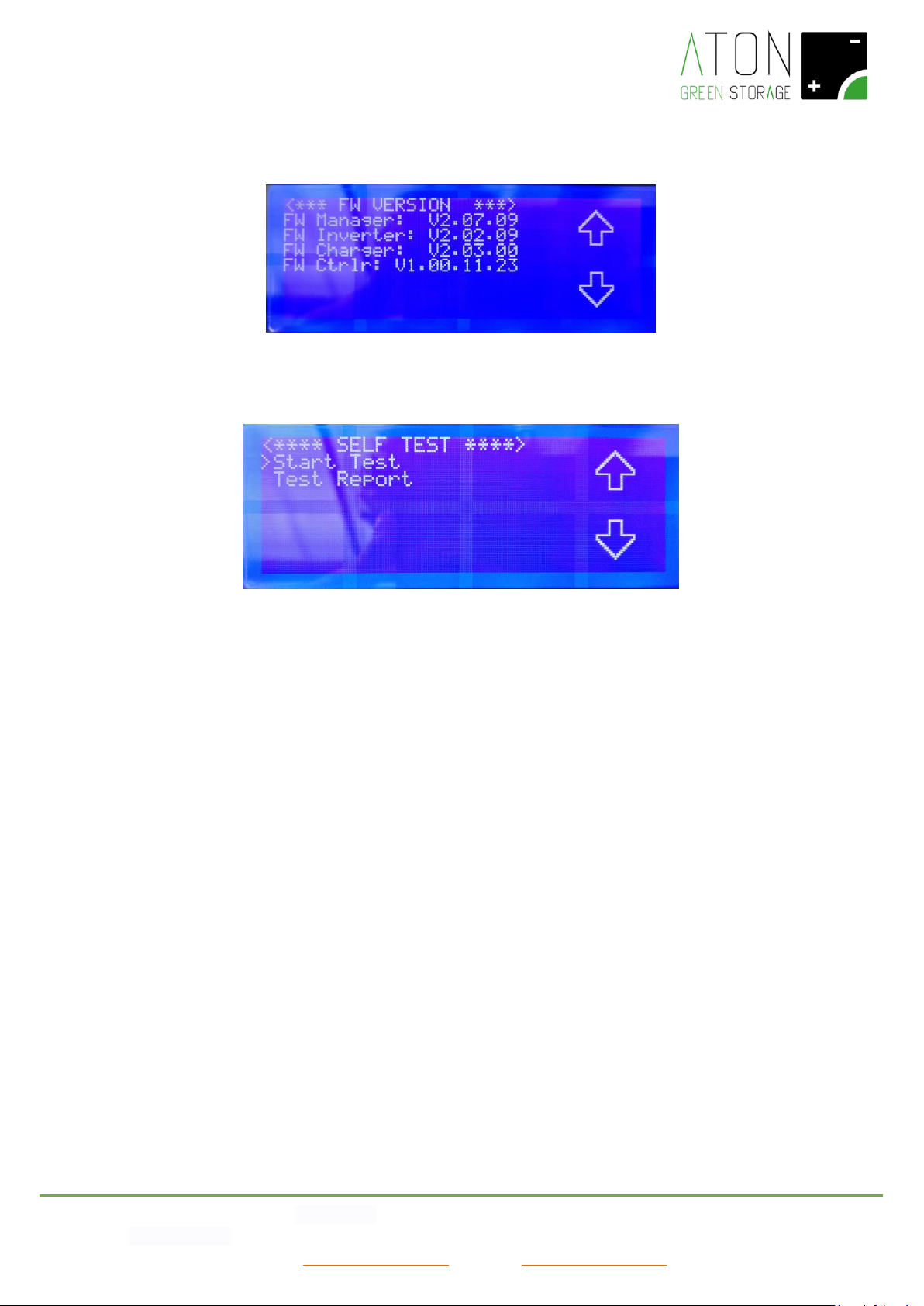

Picture 14 - Menu FW Version

In order to execute the Self Test (Directive CEI-021), select the item “Self Test”, then “Start Test”.

Picture 15 – Screen for the Self Test

The test will start and the messages “<* WAIT TESTING…1*>”, “<* WAIT TESTING…2*>”, “<* WAIT TESTING…3*>”… are
showed.

In case the test will not be successful, the message “<*** TEST FAILED ***>” will be showed, whereas if the test ends correctly
the screen with the test results will be showed.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

5. Connectivity of the system

The system is able to communicate the data relating to its functioning through GPRS, LAN or WiFi. This service allows the user of
the system to check his PV installation through the webpage www.atonstorage.com, and the remote assistance to check in real
time the presence of eventual problems.
In case the service is active, the producer reserves the chance to update the Firmware of the system in order to improve its
performance, and the relating updated User Manual can be downloaded at the page www.atonstorage.com.
The connectivity of the system and therefore the remote assistance service are subject to the presence of internet connectivity
and this will be checked during the installation phase.

NOTE: The user of the system must check and guarantee the continuity of the internet connectivity in order to have the chance
to exploit the service of remote assistance.

For further information about the remote assistance service, please contact your authorized dealer.

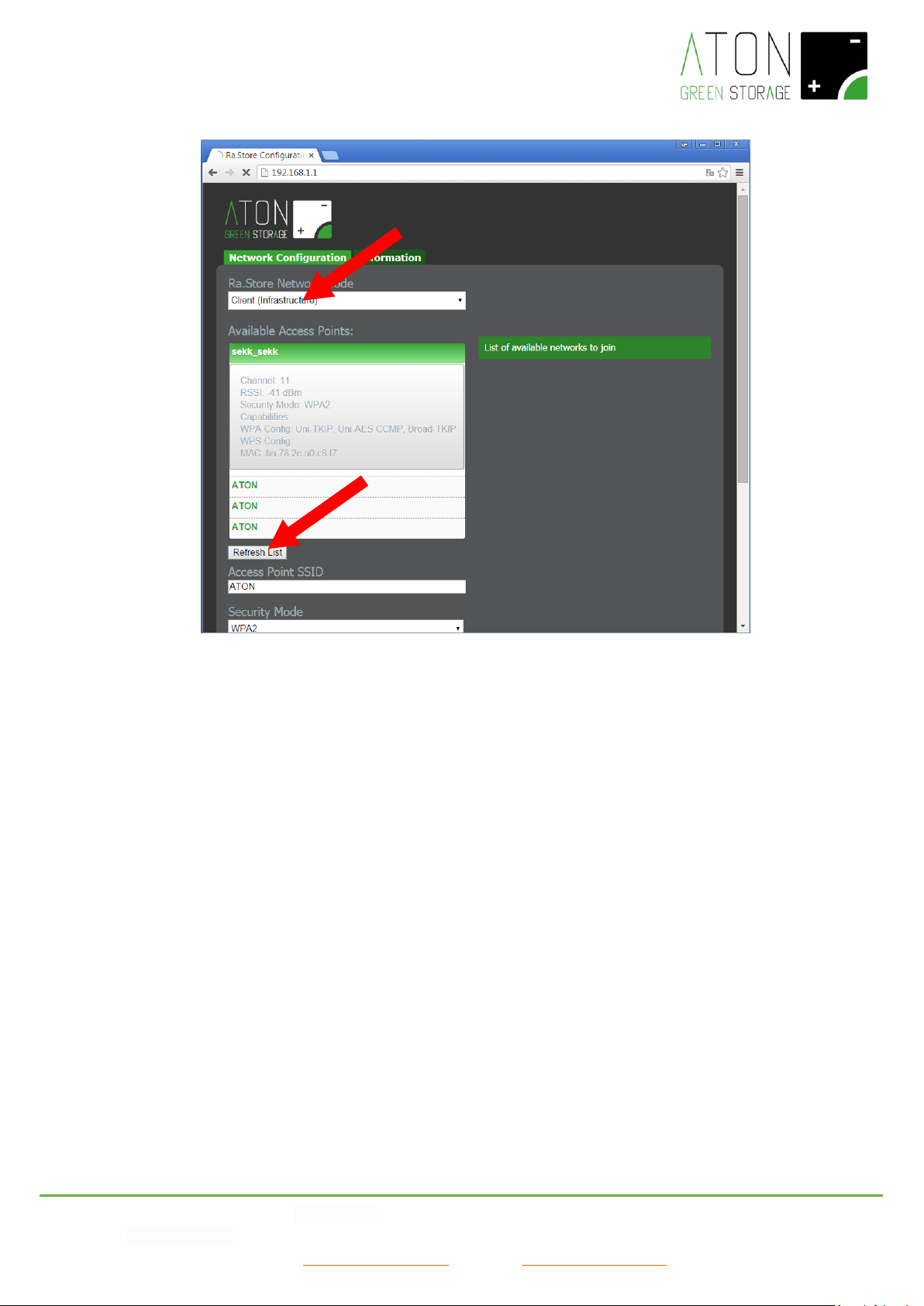

5.1 Modification of the WiFi connectivity

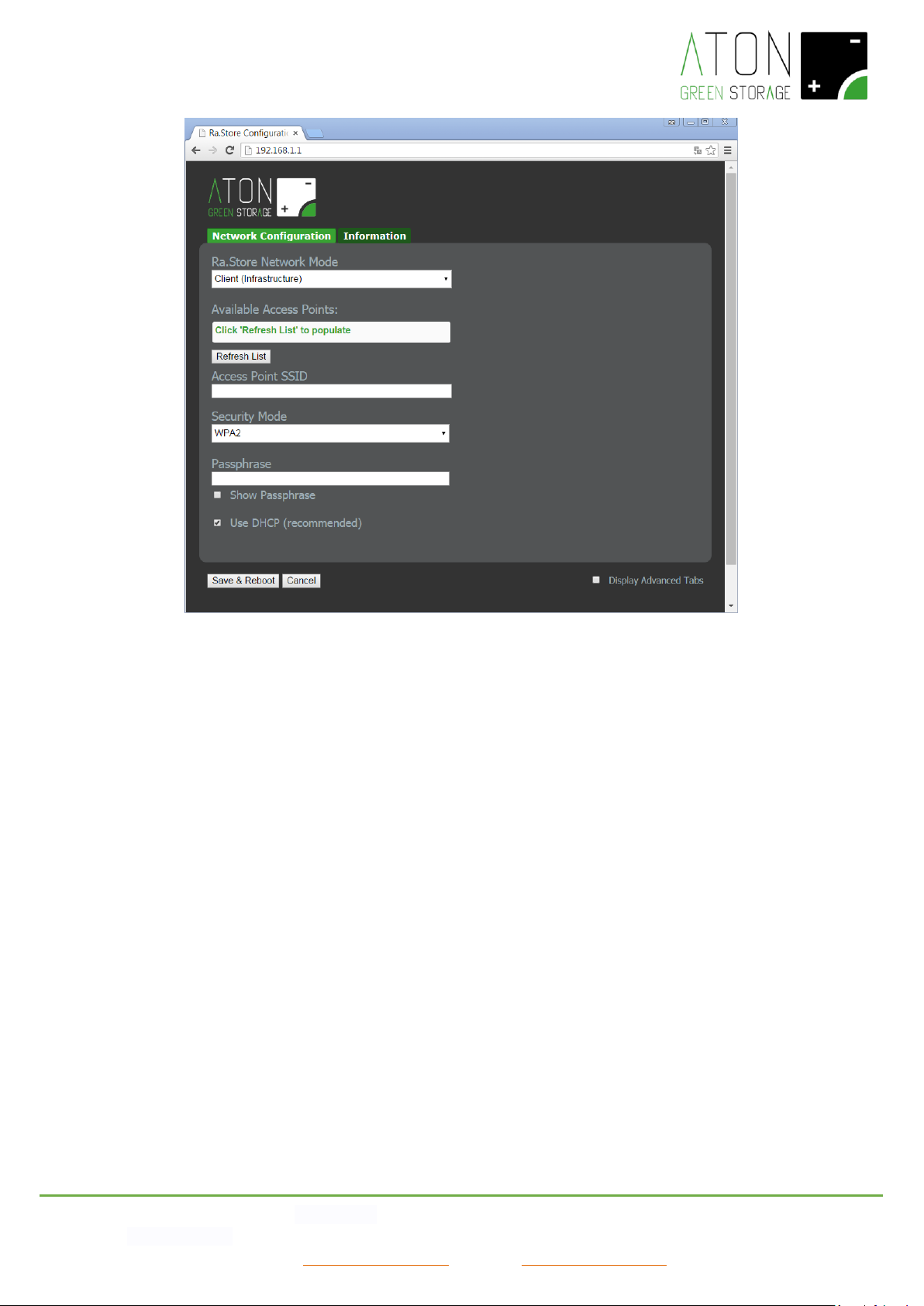

It is possible to see and set up the parameters regarding the WiFi communication, for ex. in case your router is replaced or your
password changed and the system must be reconnected to the internet. In case the WiFi device is off, the screen in Picture 12,
Picture 16 will appear (Press “Yes” to switch on the device), otherwise the screen in Picture 17 will appear.

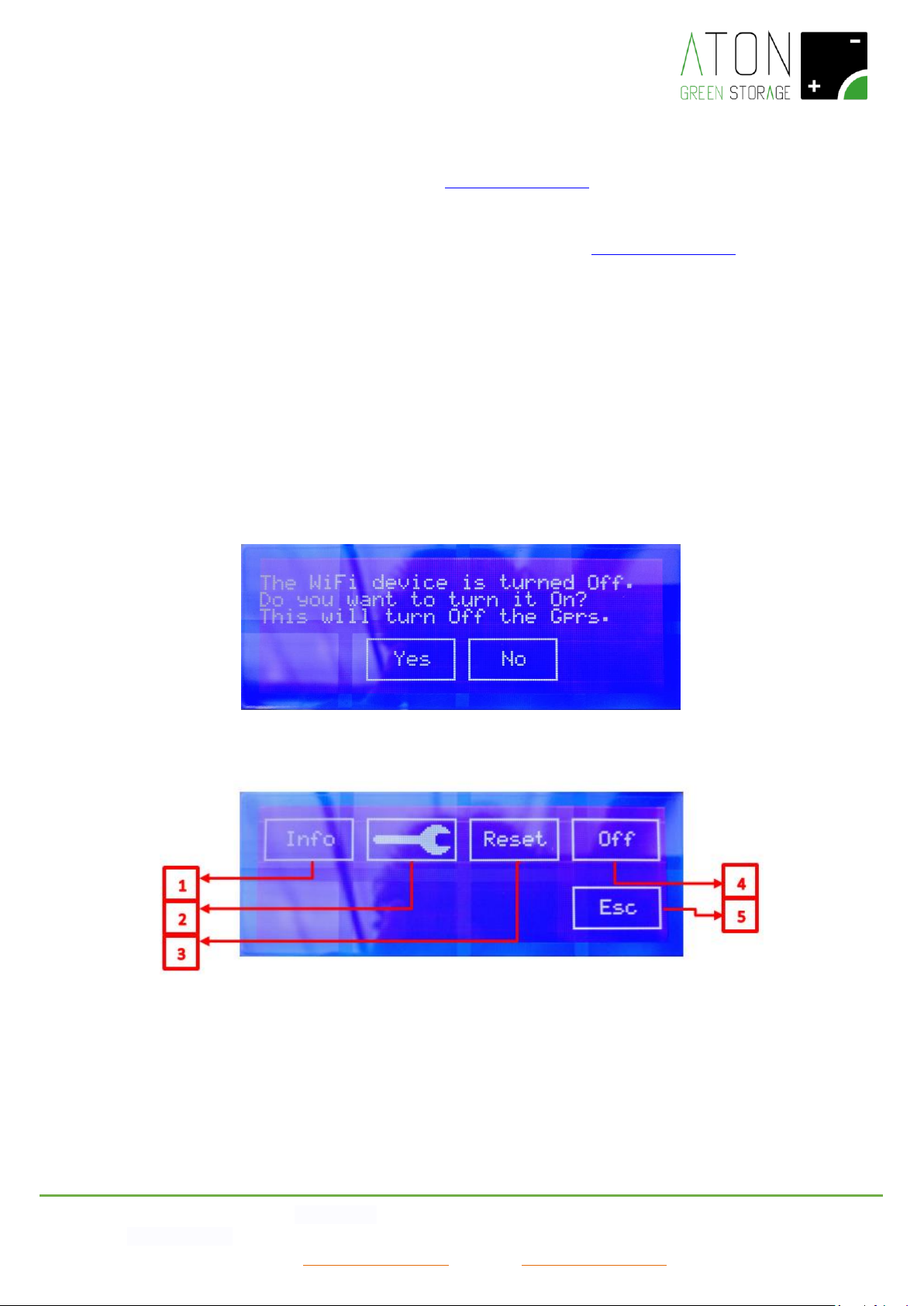

Picture 16 – Switch on the WiFi device

Picture 17 – Configuration of the WiFi device

By pressing “Info” (1), all the information regarding the configuration of the WiFi device is showed.
By pressing on the symbol “Wrench” (2), the procedure of configuration of the WiFi device is started.
By pressing “Reset” (3), the device is reset to the original set up.
By pressing “Off” (4), the WiFi device is switched off.
By pressing “Esc” (5), the system goes back to the configuration screen (Picture 17).

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

The procedure to be followed in order to connect the system RA.Store-3 to an existing WiFi line foresees the use of any device
equipped with WiFi connectivity (indicated as PC hereunder) and Web Browser:

1. Press on the symbol “Wrench” in Picture 17, then wait that on the display the message “Ra_Config WiFi network

enabled” appears.

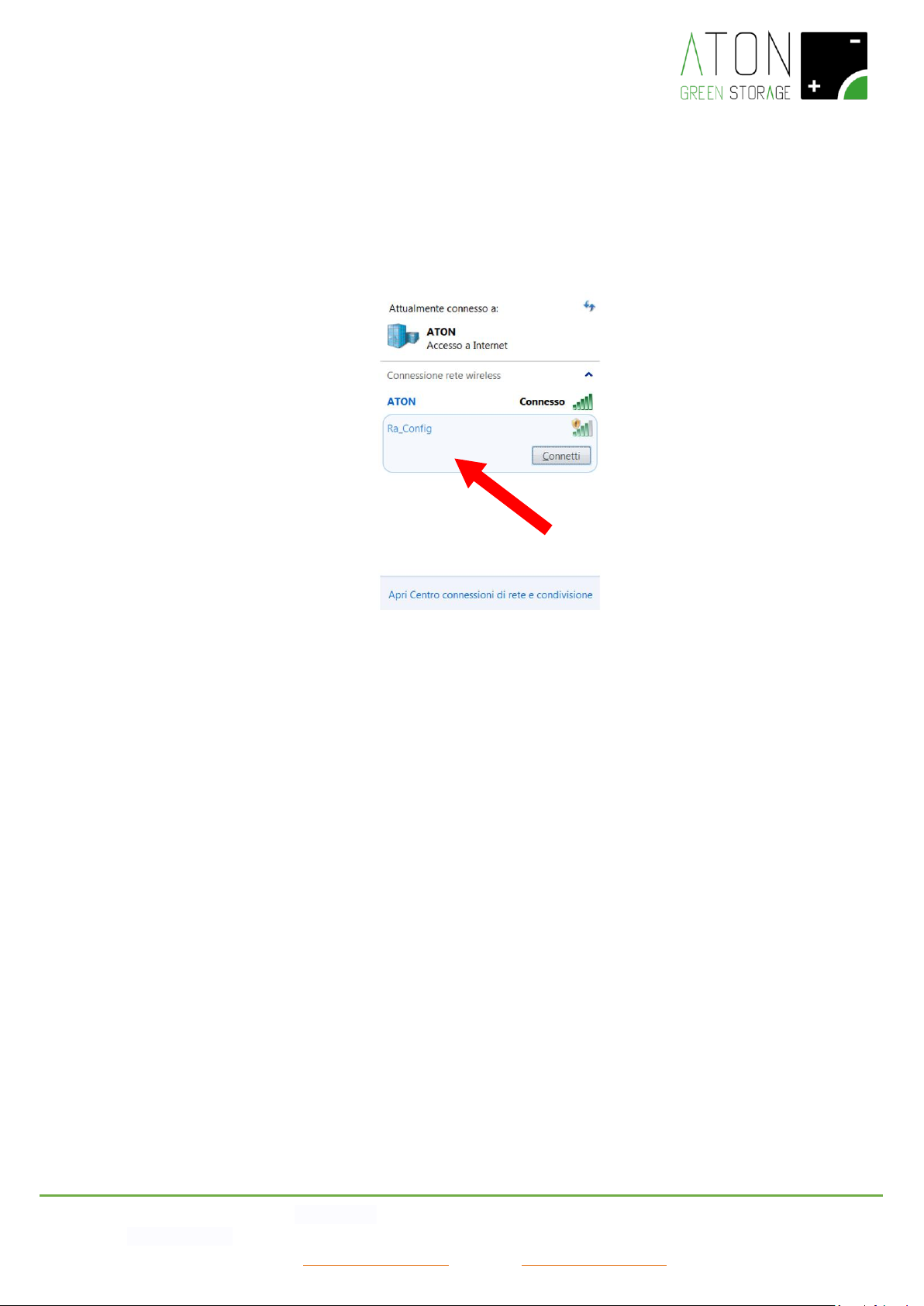

2. Connect the PC to the WiFi network Ra_Config (Picture 18).

Picture 18

3. Launch the Web Browser of the PC

4. Digit 192.168.1.1 in the address bar. The page showed in Picture 19 will appear.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Picture 19 – Configuration screen of the WiFi network

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

NOTE: if in any moment of the procedure, a table with a red background should appear (Picture 20) please go back to
point 1.

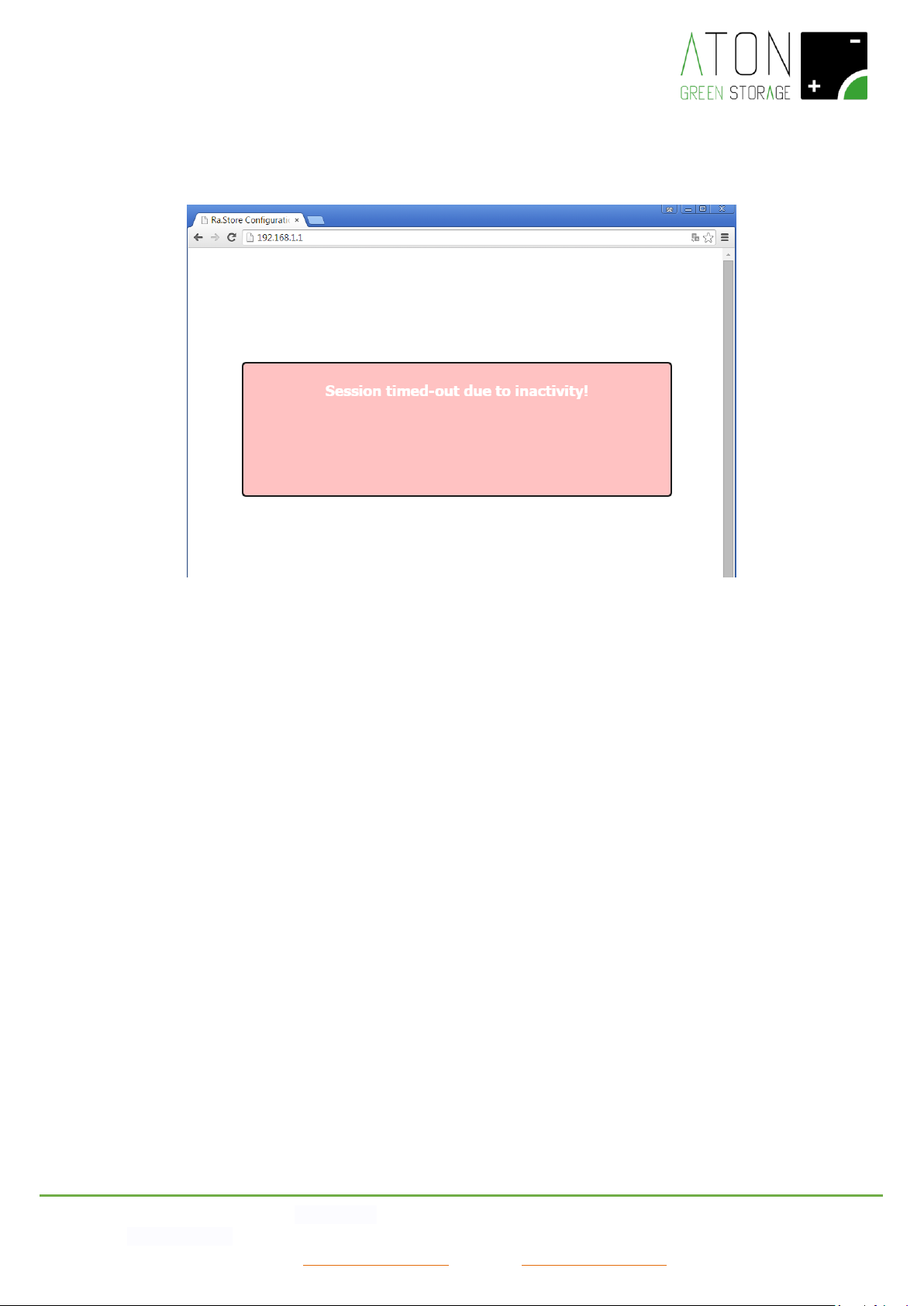

Picture 20 - Session of timed-out configuration due to inactivity

5. Select in the field RA.Store Network Mode the item Client (Infrastructure) (Picture 17).

6. Click on the button Refresh List. The module will scan the available networks and will show in Available Access Points a

list of the ones found (Picture 21).

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Picture 21 – Configuration screen of the WiFi network

7. Select with a click the network among the ones listed and the fields Access Point SSID and Security Mode will be filled

in automatically (for the WiFi networks without password select the item “Open”). If the wished WiFi network will not
be showed in the list, click on Refresh List in order to execute the searching again.

8. Digit the password of the WiFi network in the field Passphrase (put the tick on Show Passphrase to visualize the written

password).

9. (Optional) The module uses DHCP as default. If you wish to give the module a static IP, remove the tick on Check to

enable DHCP and insert a static IP, subnet mask, and gateway.

10. Click on Save & Reboot in order to save the given settings.

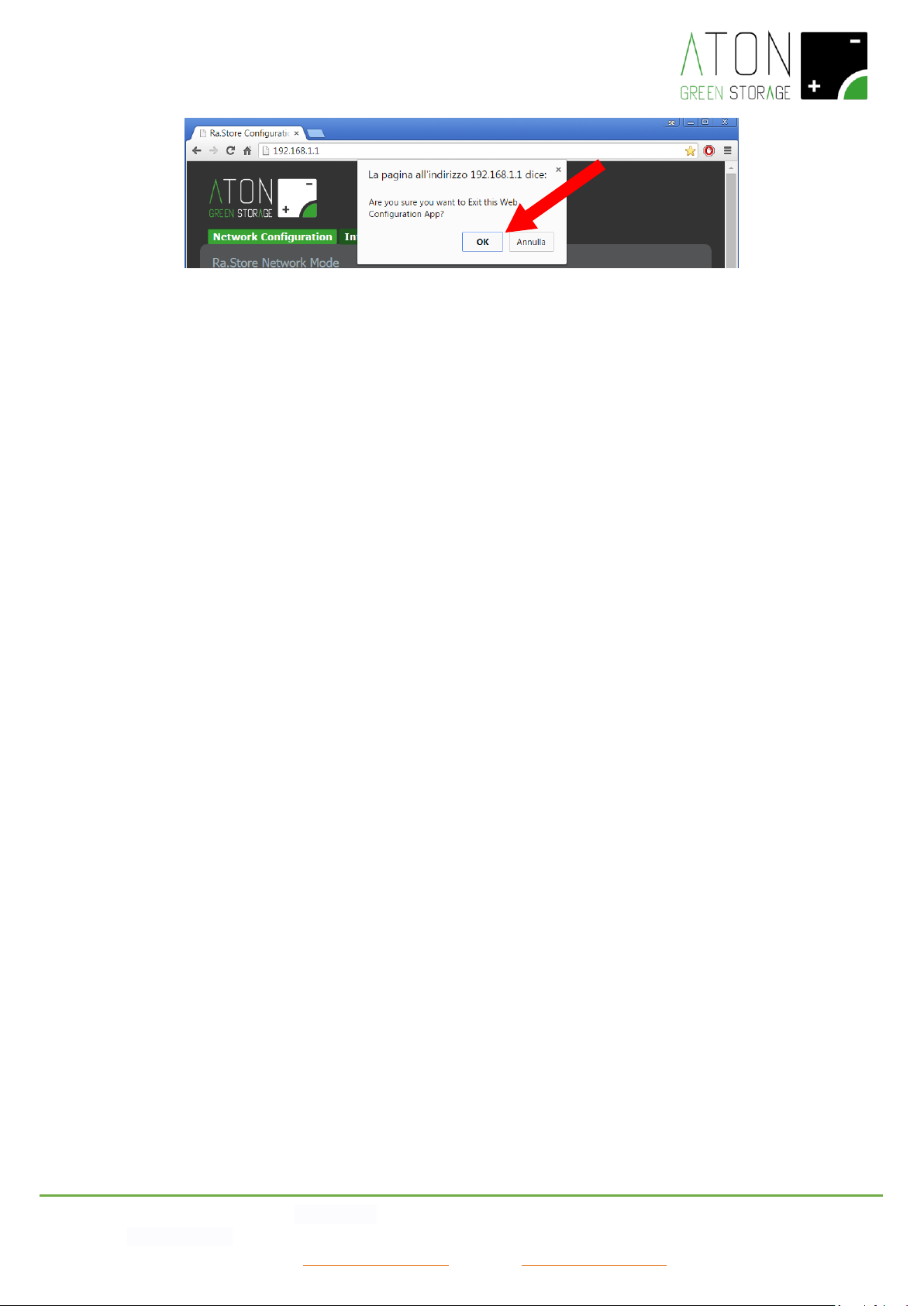

11. Press OK in the pop-up window in order to confirm the exit (Picture 18), then close the Web Browser.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Picture 22

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

12. Check on the Aton portal, or on the App for mobile devices, that the shown data of the screen update regularly.

Otherwise go back to the point 1.

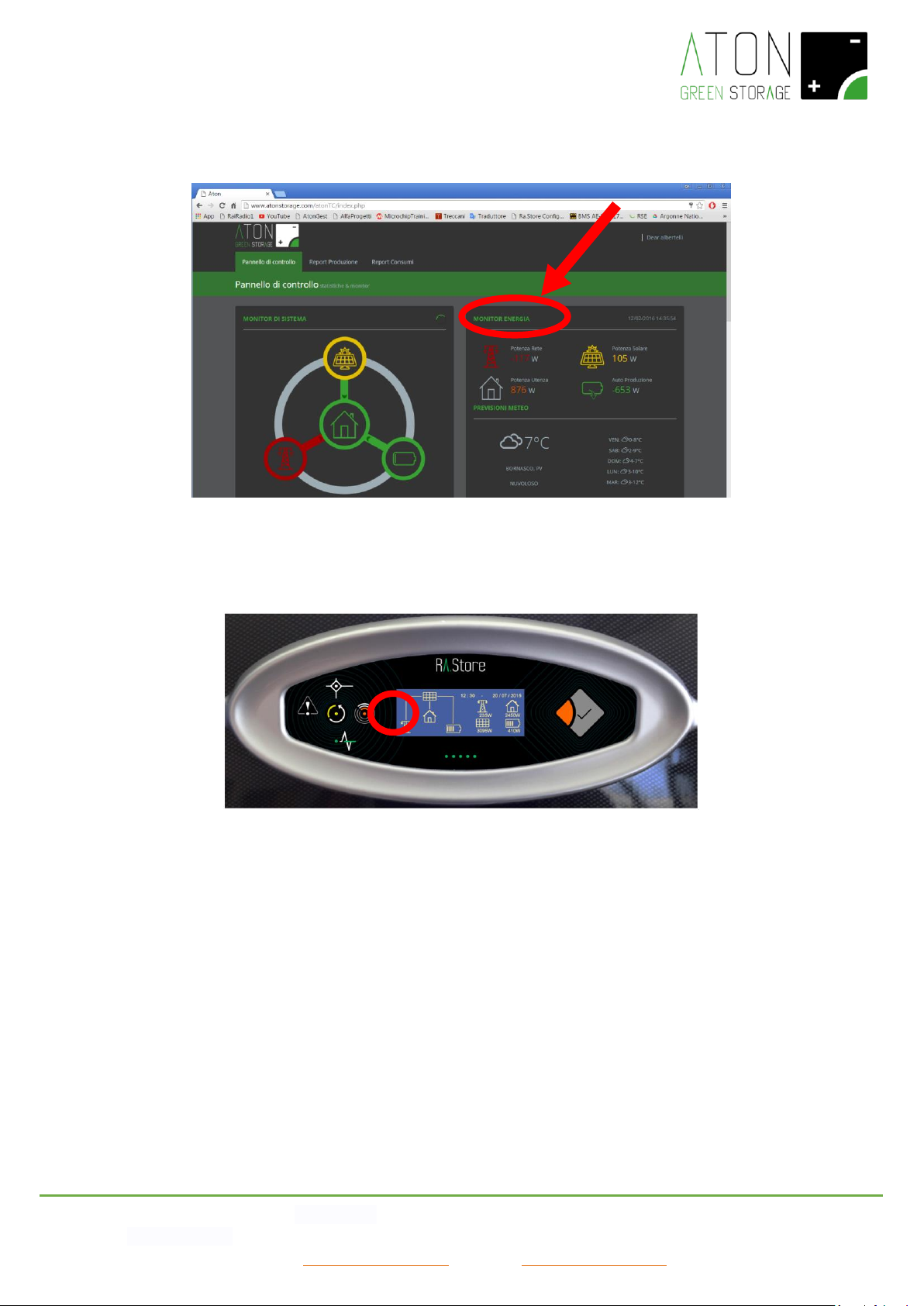

Picture 23- Aton portal: check that the shown data update regularly

13. Wait some more minutes and check that the “communication led light” switches on (Picture 24).

Picture 24 – Led light of communication switches on if the configuration has been done successfully

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

6. Statuses of the system

#

Code

Description

68

WAITING...

The system waits (WAITING) that the status of the public grid
goes back to the range of the parameters fixed by the Directive
in force (for ex. CEI-021). In such status, the system does not
supply energy to the household appliances and does not take it
from the PV panels. When the status of the public grid goes back
to the range of the parameters fixed by the Directive in force,
the system checks (CHECKING) that the grid stays stable for one
minute. Then the system starts to supply energy to the
household appliances and takes it from the PV panels (on-Grid
mode).

69

CHECKING...

76

ENERGY SAVING

In case the battery is run down and the PV panels do not supply
energy, for ex. at night or during a very cloudy day, the system
stays in standby in order to reduce its consumption.

77

ENERGY SAVING
66

OFF MODE...
2

Grid Lost. Err

Blackout of the public grid, so the system is supplying only the
privileged household appliances.

63

Eps Mode

74

EPS-MODE...

75

SELF TEST...

Upon a request, the system is executing the Self Test regarding
the Rule CEI-0-21

73

UPDATE…

An update of the system is in progress

64

VOUT OFF

The systema has desabled the supply of energy

65

RIGEN. CHARGE

The system is executing the monthly recharge of the battery up
to 90% (see paragraph “Monthly Recharge of the battery”)

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

7. Problems of the system

#

Code

Description and intervention

3

Grid voltage

The values of voltage and frequency of the public grid are not
included in the set up ranges. The system will supply again the
energy as soon as these values will go back in the normal range:

- If the problem keeps on, please do not hesitate to

contact your dealer.

4

Grid Frequency

5

PLL lost

12

10m avg gr. H

28

Overload Fault

The required power in EPS mode is higher than the permissible
power of the system:

- Reduce the required power.

- If the problem keeps on, please do not hesitate to

contact your dealer.

29

EPS OCP
14

Temp. Over

The temperature is not included in the set up range. The system
will supply again the energy as soon as this value will go back in
the normal range:

- If possible, in case of “Temp. Over” and/or “Charger

Tem.H” reduce the temperature of the room where the
system is located.

- If possible, in case of “Charger Tem.L” increase the

temperature of the room where the system is located.

- If the problem keeps on, please do not hesitate to

contact your dealer.

40 Charger Tem.H

41

Charger Tem.L

11

Pv volt. high

The string voltage of the PV panels exceeds the set up value:

- Do not hesitate to contact your dealer.

1

HW protection

System Error:

- Read the procedures described in the paragraph

“Switch off and on the system”, switch off the system
then wait 10 minutes and switch on the system again.

- If the problem keeps on, please do not hesitate to

contact your dealer.

6

Bus volt.high

8

Invert OCP

9

DCI OCP

10

Residual Cur.

13

Isolation Err

15

Fan1 Speed

16

Fan2 Speed

17

Spi Comms

18

Sci Comms

19

Can Comms

20

PV Config Err

21

E2prom Fault

22

Relay Fault

23

Sample Cons.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

24

Resid.Curr.D.

System Error:

- Read the procedures described in the paragraph

“Switch off and on the system”, switch off the system
then wait 10 minutes and switch on the system again.

- If the problem keeps on, please do not hesitate to

contact your dealer.

System Error:

- Read the procedures described in the paragraph

“Switch off and on the system”, switch off the system
then wait 10 minutes and switch on the system again.

- If the problem keeps on, please do not hesitate to

contact your dealer.

25

Fan1 Device

26

Fan2 Device

27

HCT AC Dev.

30

DCI Device

31

Other Dev.

32

Eps Relay

33

Boost Over C.

34

Batt.Over C.

35

Batt.Over V.

36

Boost Over V.

37

BUS Over Volt

38

Charger FAN

39

HW Protect

42

Awaken Fault

43

Curr. S.Boost

44

Curr. S.Batt.

45

EEPROM WR

46

UnRecover FAN

48

Charger Can

49

Internet IC

50

Rtc Error

51

E2prom Error

52

Can Comms

71

FAULT...

72

PERM.FAULT...

53

CT Error

58

Err Comm. ETH

59

E2C Fault

60

Flash Fault

61

Rtc Fault

67

WiFi Warning

81

BMS Discon.

82

BMS Alarm

83

BMS OverVolt.

84

BMS LowerVol.

85

BMS Ch.OverC.

86

BMS Dis.OverC

87

BMS TemHighW.

88

BMS TemLowW.

89

BMS CellImbl.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

ATTENTION

In case of a different problem that is not listed in the table above, do
not intervene in any way on the system and do not hesitate to
contact your dealer.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

8. Switch off and on the system

ATTENTION

See Picture 25, in order to switch off the system lower the
disconnectors in the following order:

a) Disconnector PV3 FIELD (8)
b) Disconnector PV2 FIELD (6)
c) Disconnector PV1 FIELD (4)
d) Magneto-thermal breaker EPS LINE (3)
e) Magneto-thermal breaker GRID LINE (2)
f) Magneto-thermal breaker BATTERY (1)

In order to switch on again the system, raise the disconnectors in
the following order:

g) Magneto-thermal breaker BATTERY (1)
h) Magneto-thermal breaker GRID LINE (2)
i) Magneto-thermal breaker EPS LINE (3)
j) Disconnector PV1 FIELD (4)
k) Disconnector PV2 FIELD (6)
l) Disconnector PV3 FIELD (8)

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Picture 25 – Front of the electrical panel

8.1 Prolonged stop

During a prolonged stop the battery modules discharge automatically up to the minimum energy level.
This process deeply damages the battery modules so they can be stored for a limited period of time (max. 4 months).
In the specific case a very deep discharge, ie batteries that have not undergone a charge / discharge cycle for more than a
month, the discharge of the batteries can become irreversible; once the photovoltaic generator is restored they will not be able
to recover.

If the batteries are discharged beyond this minimum threshold, it is necessary to recharge them individually with a slow charging
procedure.

To avoid this, before a scheduled prolonged stop, you must contact the retailer.

8.3 RA.Store-3Bplus

To deactivate the RA.Store-3Bplus expansion, lower the lever of the switches present within the accumulator electrical panel
(green status indicator).
To activate the RA.Store-3Bplus expansion, raise the lever of the switches present within the electrical panel of the accumulator
(red status indicator).

1 2 3

4 5 6 7 8 9

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

9. Removal and disposal of the system

Do not dispose of the product with household waste, but in compliance with local and EU regulations for the disposal of
electronic waste applicable in the country of installation.
All electrical and electronic products must be disposed of separately from the municipal waste collection system, through
specific collection facilities installed by public bodies or local authorities.
Correct disposal of the obsolete unit contributes to preventing possible negative consequences on the health of individuals and
the environment.
For more detailed information on the disposal of obsolete equipment, contact the office of the municipality of residence, the
waste disposal service or the point of sale where the product was purchased.

Building component

Material and/or waste type

Chassis, brackets, supports

Alluminium / Iron

External panels

Alluminium / Iron

Electrical cables

Copper / Rubber

Terminals

Alluminium / Copper / PVC

Electronical cards

RAEE

Inverter

RAEE

BMS

RAEE

Battery modules

LiFEPO4

WEEE Mark: means to dispose of the product in compliance with the current directives for electronic

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

A. Appendix – Technical datasheets

B. RA.Store-3 - Model

5K

6K

8K

10K

Input DC side (PV)

Max DC input power [W]

6000

8000

10000

12000

Absolute maximum DC input Voltage [V]

1000

MPPT Voltage range [V]

200 ÷ 950

Nr. of indipendent MPP trackers

2

Nr. of strings each MPP input A/B

1/1

1 / 2

Max DC input current (each string/each MPP)
[A]

11/11

11/20

Max short circuit current (each string/each
MPP) [A]

14/14

14/23

Compatible with amorphous PV modules

No

AC Output/Input (On-grid)

Wave form

Threephase 3P+N

Maximum active power output @ cosφ=1 [W]

5000

6000

8000

10000

Maximum apparent power output [VA]

5000

6000

8000

10000

AC Grid Voltage range [V]

342 ÷ 440

Rated grid frequency [Hz]

50/60

Nominal Input AC current [A]

7,2

8,7

10,1

10,1

Nominal Output AC current [A]

7,2

8,7

11,6

14,5

Max Input AC current [A]

8,0

9,6

11,2

11,2

Max Output AC current [A]

8,0

9,6

12,8

16,0

Displacement power factor

0,8 leading ÷ 0,8 lagging

Total Harmonic Distortion THDi

<2%

EPS-Back up

Wave form

Threephase 3P+N

Rated apparent power output [VA]*

5000

6000

8000

10000

No continuative Peak power (60 sec) [VA]

10000

12000

14000

14000

Rated Voltage [V]

400

Rated Frequency [Hz]

50/60

Rated current output [A]

7,2

8,7

11,6

14,5

Neutral connection while on EPS

Grounded (TN system)

*

Limited at 1150 VA each installed battery module, without PV power input.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Battery

Battery type

LiFePO4

Nominal Voltage each battery module [V]

48

Nominal minimum batteries Voltage [V]

192

240

Battery Voltage range [V]

170 ÷ 500

Max charge current [A]

25

Max discharge current [A]

25

Max storable energy each battery [kWh]

2,4

Standard number of batteries

4

5

Nominal power charge/discharge [W]

4800

6000

Maximum storable energy [kWh]

9,6

12

Usable energy [kWh]

7,68

9,8

DoD

80%

80%

80%

80%

Number of working cycle

4000

4000

4000

4000

Maintenance

No maintenance requested

Single battery module weight [kg]

24

Battery options

Number of additional battery / total

1 ÷ 4 / 5 ÷ 8

1 ÷ 3 / 6 ÷ 8

Maximum storable energy [kWh]

19,2

Maximum usable energy [kWh]

15,36

Storable energy [kWh]

2,4 kWh * N° modules

Usable energy [kWh]

1,92 kWh * N° modules

Nominal power charge/discharge [VA]

1200 W * N° modules

Nominal Battery Voltage [Vdc]

48 V * N° modules

RA.Store-3BPlus Battery options

Minimun number of additional modules

5

Max number of additional modules

16

Modules allowed configuration

5,6,7,8,10,12,14,16

Maximum total number of batteries

24

Maximum nominal energy [kWh]

57,6

Maximum usable energy [kWh]

46,08

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Safety and protection

Overload protection

YES

Overtemperature protection

YES

AC line protection

Magnetermic circuit breaker

Battery protection

Magnetermic circuit breaker

DC – PV line protection

Switch + SPD

Switch time to EPS mode

5 s

General Data

Temperature Range [°C]

from -5 to +45 °C

Relative Humidity

0 % ÷ 95 % non - condensing

Installation environment

Indoor

Degree of pollution

2

Weight [kg] (with standard number of
batteries)

261

285

Placement

Floor

IP grade

IP20

Class of isolation

I

Size and Weight

Size [L. x H x P] [mm]

1045x1245x545

Weight [kg] (standard nr. of batteries)

261

285

Weight with 6 batteries [kg]

309

Weight with 7 batteries [kg]

333

Weight with 8 batteries [kg]

357

Interfaces

GPRS (standard)

2G Dual band

WiFi (optional)

2.4 GHz IEEE Std. 802.11 b/g

LAN (optional)

10/100 Mbps Ethernet

HMI

Display LCD

Certifications and standards

Certifications

CE / VDE0126-1-1A1:2012 / VDE-AR-N4105 / G59-3 / AS4777 / EN50438 / CEI

0-21 / IEC62619 / ISO13849-2 / SN29500 / IEC615086 / IEC 62109-1 / -2

Warranty

On the system, battery included

7 years (ask for extensions to 10 years)

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Guido Rossa, 5 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

Credentials for access to remote control

To access the remote control of Aton storage systems it is necessary to authenticate using
the credentials shown below that are generated when the device is installed.

USERNAME:

PASSWORD:

You can access the remote control of your storage system in the following ways:

WEB:

You should connect to www.atonstorage.com/atonTC/ from your PC, Mac, smartphone or tablet. Enter the
credentials shown above and click on LOGIN. The site manual can be downloaded at

www.atonstorage.com/downloads/TC-ENG.pdf

App OS:

You should connect to the address
https://itunes.apple.com/it/app/aton-storage/id1124468302?mt=8 or search for "Aton
Storage" in the Apple App Store. You will find our free app for tracking. Once the app has
been downloaded and launched, enter the credentials listed above and tap the "Login"
button.

App Android:

You should connect to

https://play.google.com/store/apps/details?id=com.atonstorage.atonstorage

or search for "Aton Storage" in the Google Play Store. You will find our free app for tracking.
Once the app has been downloaded and launched, enter the credentials listed above and
tap the "Login" button.

Kindly thanks for choosing the Aton storage systems.

ATON S.r.l. Sede Legale: Via Nuova Circonvallazione, 57/B 47923 Rimini (RN)

Sede Operativa: Via Borsellino, 3 41057 Spilamberto (MO) Tel: [phone] Fax: [phone]

E-mail: [email protected] Sito web: www.atonstorage.com

If the storage system does not function as described in the present manual, do not hesitate to contact your dealer or an

authorised assistance centre.

Stamp of the Dealer / authorised assistance centre
