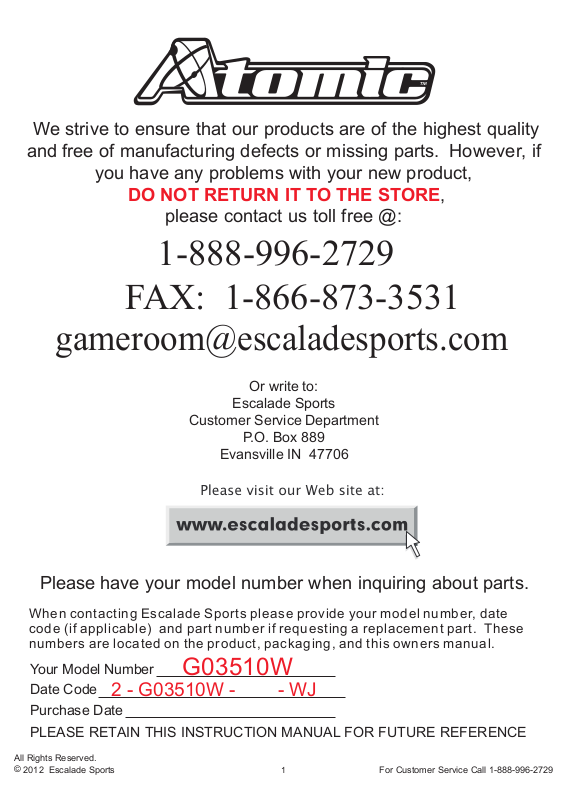

Whe n contactin g Escalad e Sport s pleas e provid e you r mode l numbe r , d at e
cod e (i f a pplicable ) an d par t n umbe r i f requestin g a replacemen t part . T hes e
number s ar e locate d o n th e product , packaging , an d t hi s owner s m anual .
Y ou r Mode l Numbe r
Dat e Cod e
hav e you r mode l numbe r whe n inquirin g abou t parts.
G03510W
2 - G03510W - - WJ
Purchase Dat e
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
Make sure you understand the following tips before you begin to assemble your hockey table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.

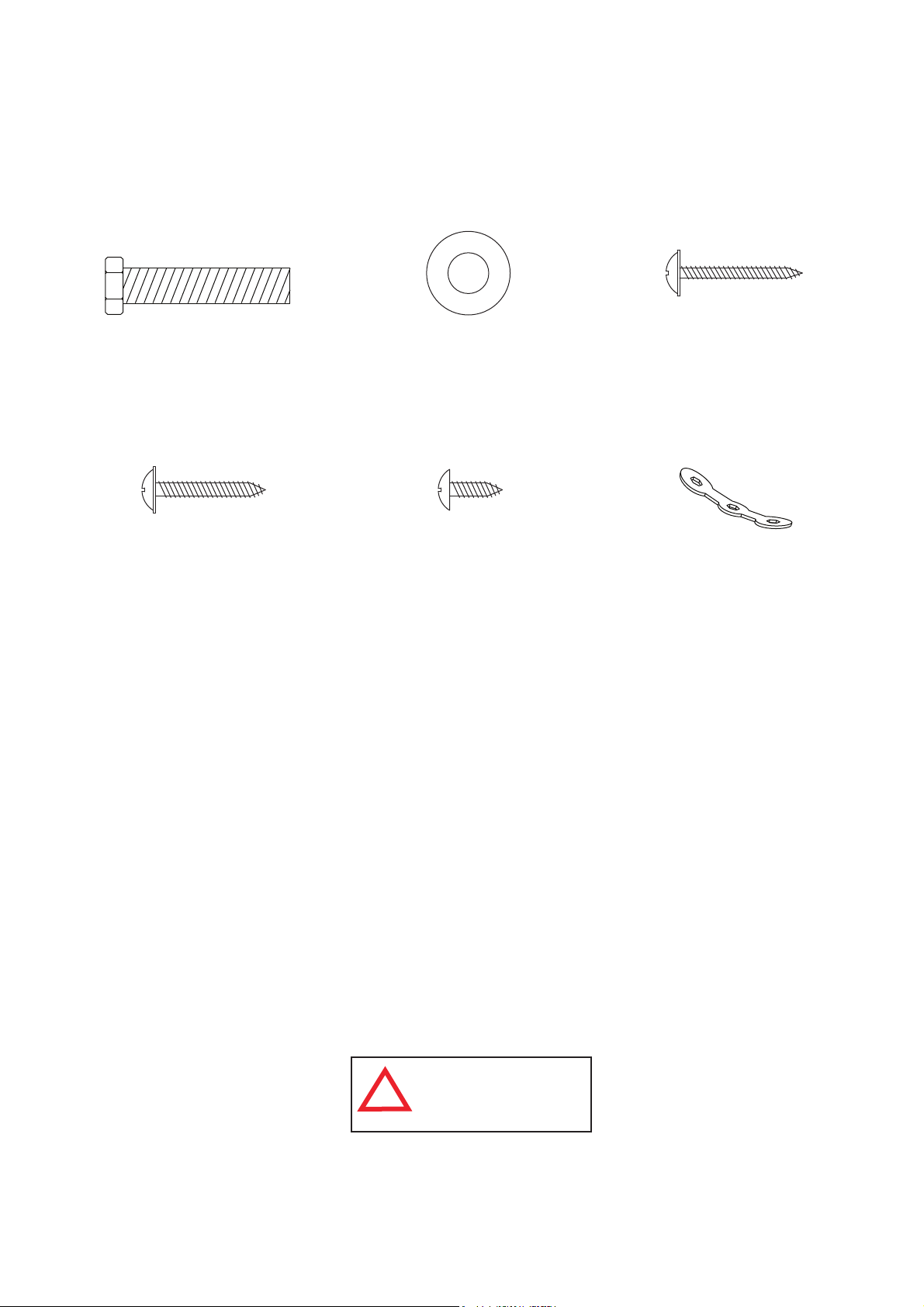

8 pcs - H1 Hex Bolt 2 pcs - P2 Right Leg
8 pcs - H2 Flat Washer 2 pcs - P3 Left Leg
1 pc - P1 Hockey Table Cabinet 1 pc - T1 Wrench

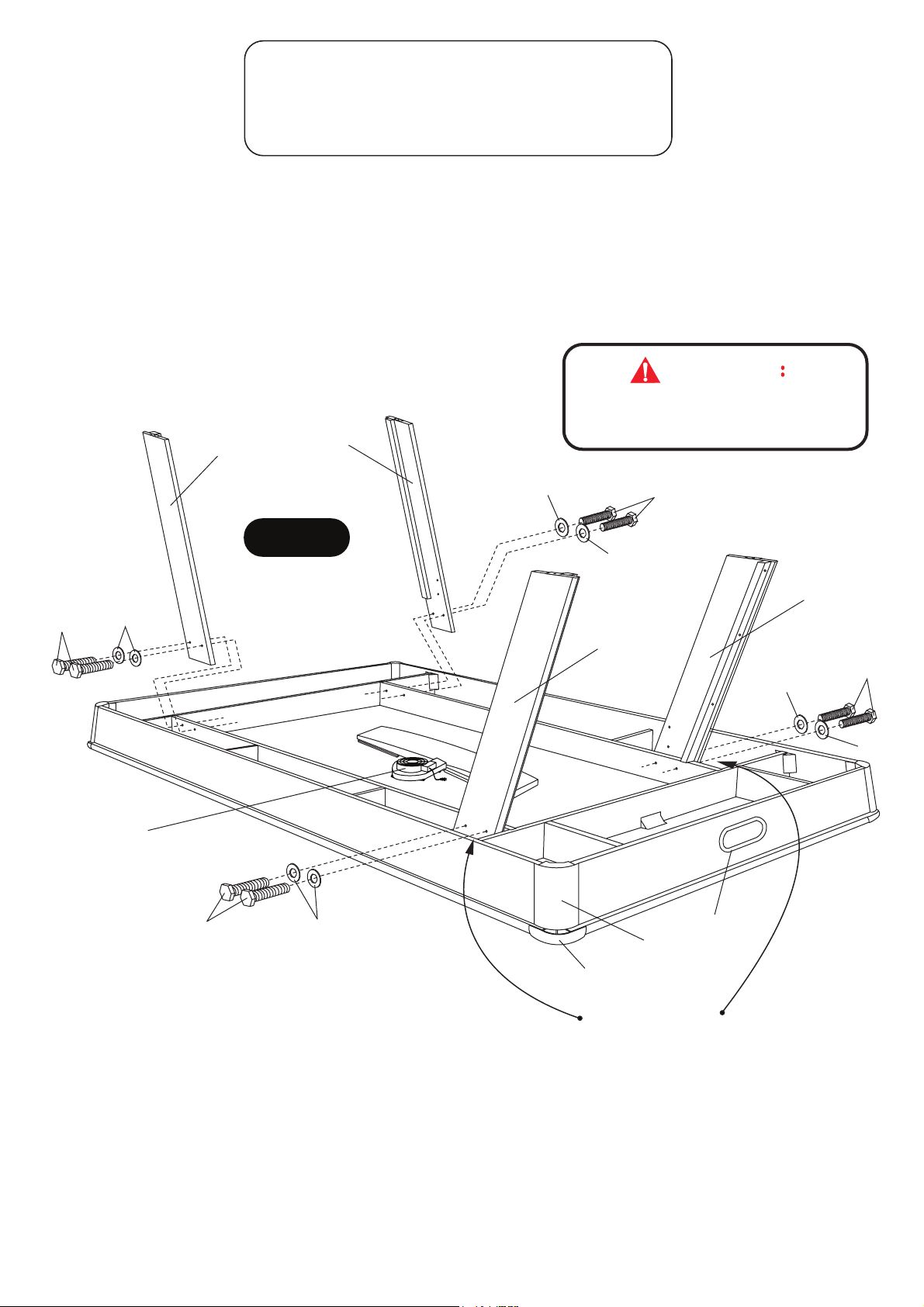

STEP 1:
To assemble this table, leave P1 Hockey Table Cabinet face down in the carton lid.
Attach P2 Right Legs and P3 Left Legs using H1 Hex Bolts with H2 Flat Washers as shown in FIGURE 1.
Do not tighten H1 Hex Bolts on this step until end of Step 3.
IMPORTANT NOTE: Be sure P2-Right Legs and P3-Left Legs are installed OUTSIDE of Support Beams
as shown in FIGURE 1.
CAUTION
PLEASE BE SURE TO ASSEMBLE P2-RIGHT
LEGS AND P3-LEFT LEGS EXACTLY AS PER
IMPORTANT NOTE:
BE SURE P2-RIGHT LEGS AND
P3-LEFT LEGS ARE INSTALLED
OUTSIDE OF SUPPORT BEAMS
AS PER DIAGRAM.
5
For Customer Service Call 1-888-996-2729
Page 6
PARTS REQUIRED:
12 pcs - H3 Phillips Washer Head Screw 2 pcs - P4 End Leg Panel
8 pcs - H4 Phillips Washer Head Screw 2 pcs - P5 Side Leg Panel

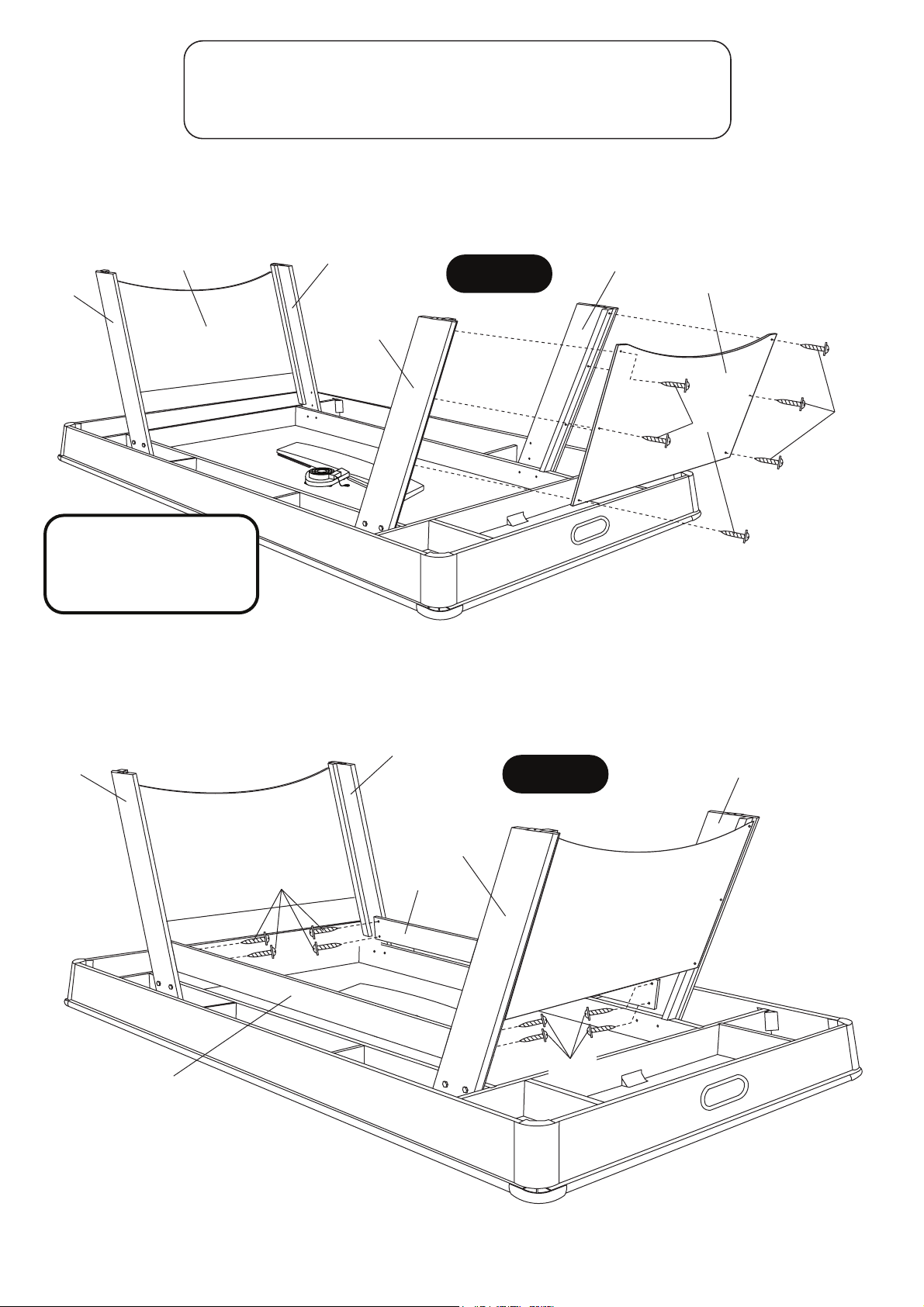

STEP 2:
Attach P4 End Leg Panels between two legs of P2 Right Legs and P3 Left Legs using pre-drilled pilot holes
with H3 Screws as shown in FIGURE 2. Tighten, but do not strip out H3 screws.
P4
P3
P2
FIGURE 2
P3
P4
P2
H3
NOTE:P4 End Leg Panels
are packed under the table
cabinet and underneath
styrofoam block.

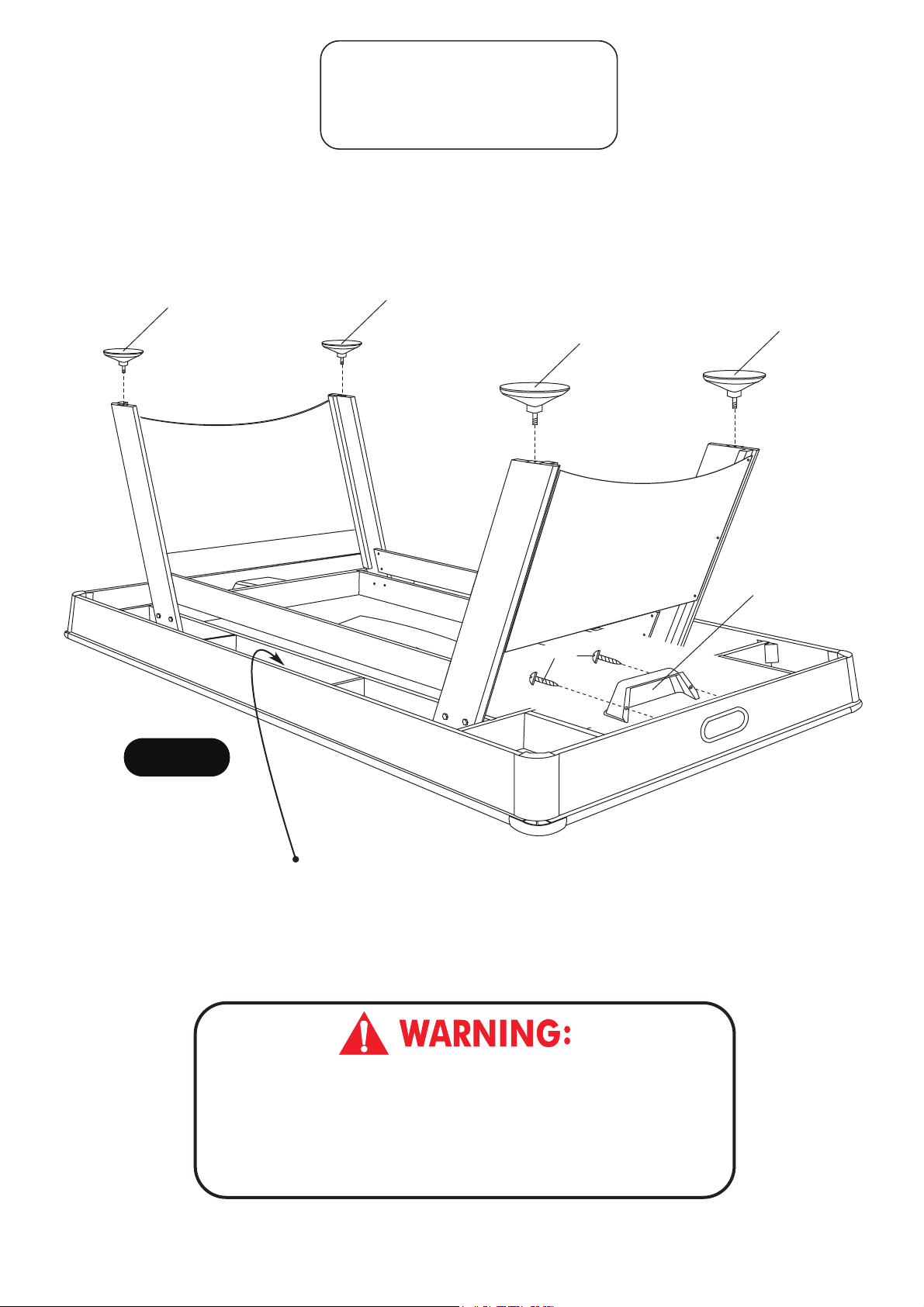

STEP 3:
Attach P5 Side Leg Panels between and inside P2 Right Legs and P3 Left Legs using pre-drilled pilot holes
with H4 Screws as shown in FIGURE 3. Tighten, but do not strip out H4 screws.
4 pcs - H5 Phillips Round Head Screw
2 pcs - P6 Puck Catcher
4 pcs - P7 Leg Leveler
STEP 4:
Attach P6 Puck Catchers on the inside of end apron using pre-drilled pilot holes with H5 Screws as shown in
FIGURE 4. Tighten, but do not strip out H5 screws.
Thread P7 Leg Levelers into the Leg assembly as shown in FIGURE 4.
P7
P7
H5
P7
P7
P6
FIGURE 4
Under the table, remove screw using a small phillips screwdriver and open the battery box. Insert 4(four)
AA batteries (not included) in the order of polarity as shown on the inside cover. Then close using a small
phillips screwdriver.
(If the game will not be used for a long period of the time, we recommend that the batteries be removed)

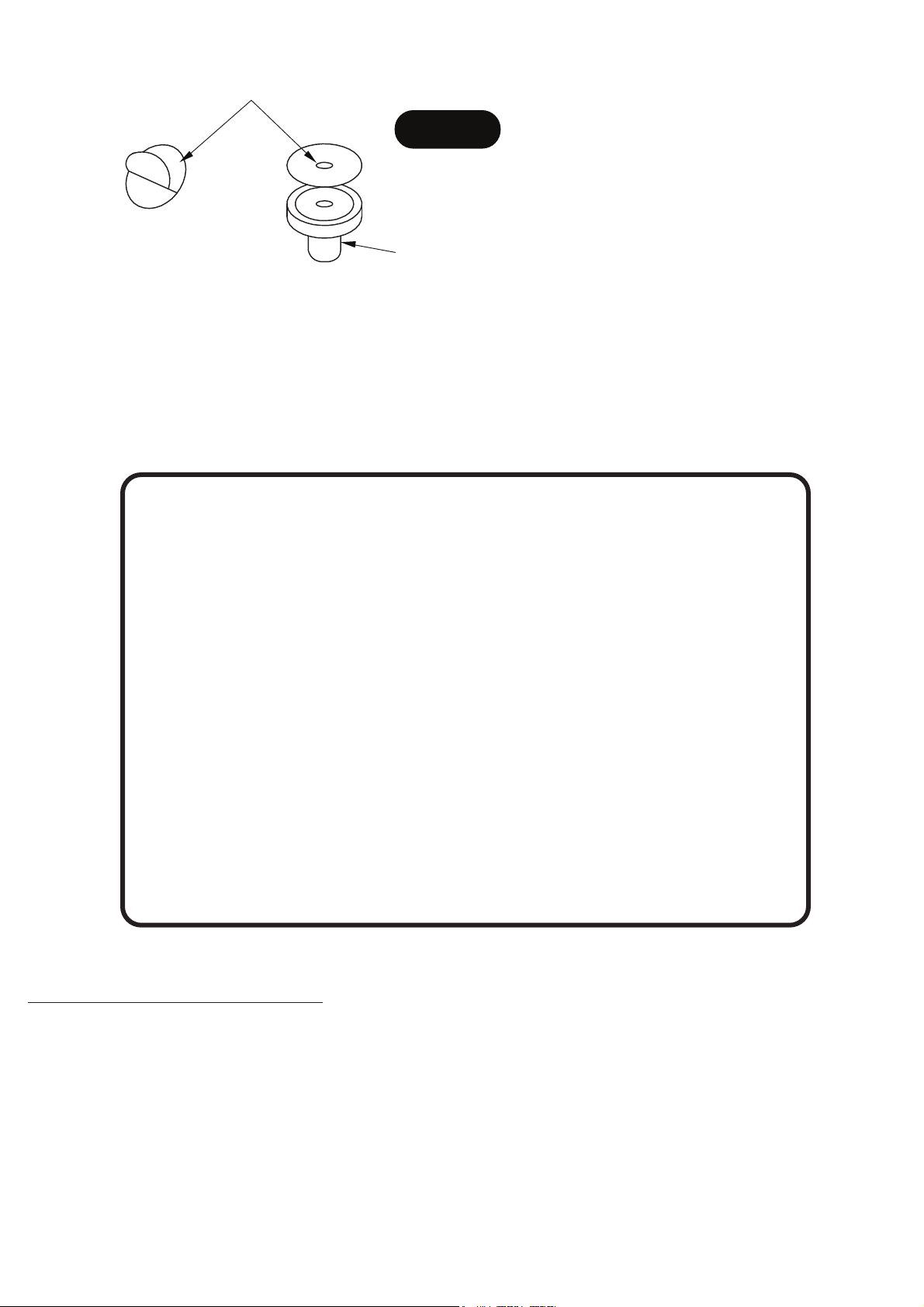

Peel the backing off A3 Felt Pad and attach to A1 Striker as shown in FIGURE 5.
A3
FIGURE 5
NOTE: A3 Felt Pads may
already be attached to
A1 Strikers.
A1
Congratulations! You have now assembled your Atomic Hockey Table. Please note the
instructions below to ensure many years of trouble free use of your Atomic Hockey Table.
CARE AND USE OF YOUR ATOMIC HOCKEY TABLE
1. Use only a suitable 120v AC household outlet, and insure the cord is not a
trip hazard.
2. Spray furniture polish is recommended to both protect the play field and
increase the puck speed. Apply and wipe off with the air motor on.
3. Use a carpenters level to properly level table using the leg levelers.
4. This product is intended for INDOOR use only.
5. DO NOT operate the motor if the cord is damaged in any way.
6. DO NOT sit, climb or lean on the table.
7. DO NOT drag the table when moving it. This will damage the legs.
8. DO NOT lift and move the table using the CORNERS as this may
damage them.
9. DO NOT set drinks on the table.
10. It is suggested that this table be placed close to a wall thus allowing the
air motor cord to NOT be a trip hazard. Always turn air motor off when
table is not in use.
11. The purchase of a billiard table cover will help protect and keep your
table clean while not in use.
HOCKEY GAME RULES:
1. This game is designed to be played with two (2) players, one at each end, or with four (4) players, two at each
end of the game table.
2. Flip a coin to determine who will begin play, or a face-off can be held at the center of the table.
3. Play begins when the puck is placed on the playing surface. Players must hit the puck with the strikers and
attempt to shoot into the opponent’s goal.
4. One point is awarded when a puck is shot into the opponent’s goal.
5. Winning the game: the winning score is accomplished by being the first player to reach a predetermined score
or by being the player to score the most points within a given period of time.

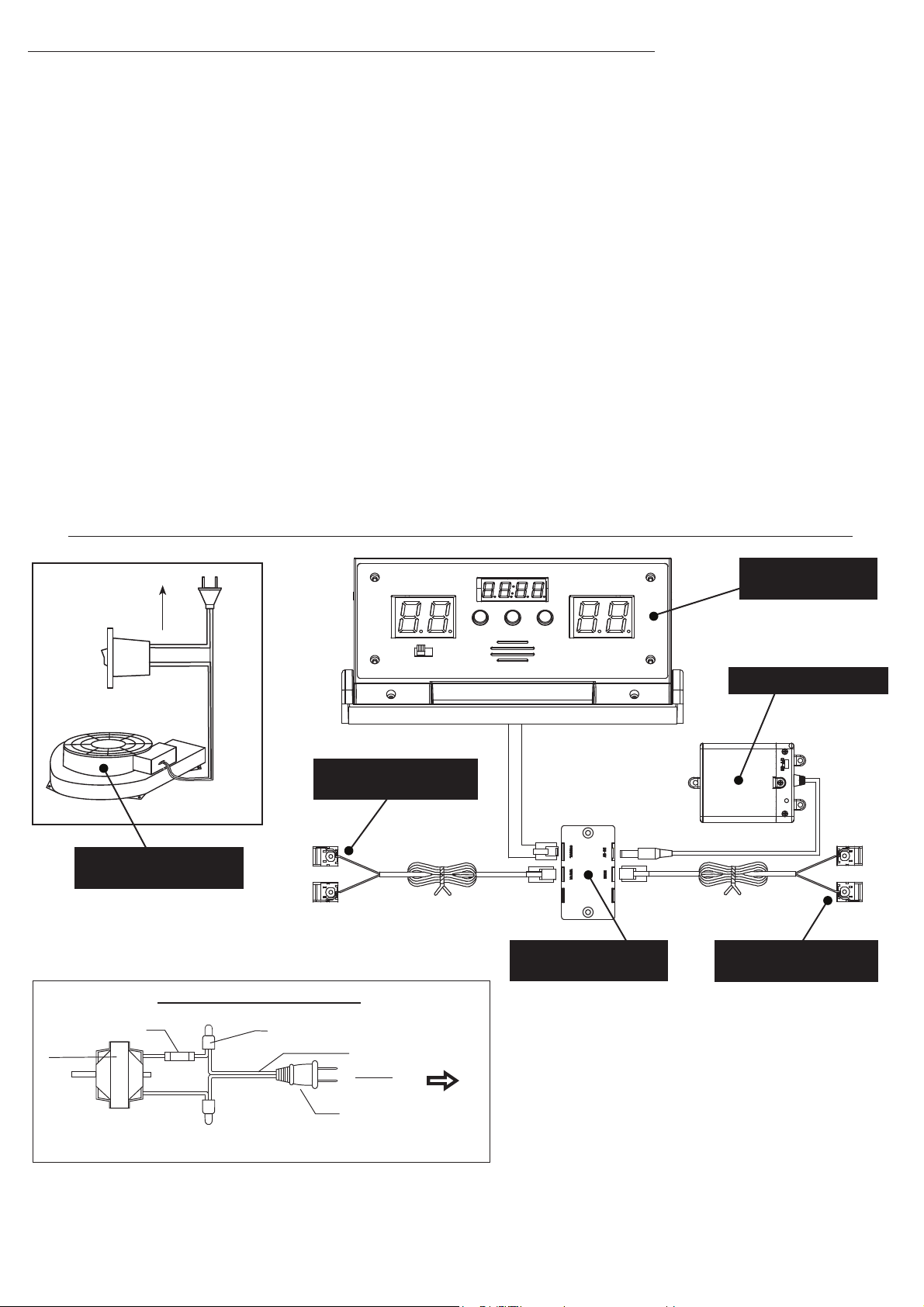

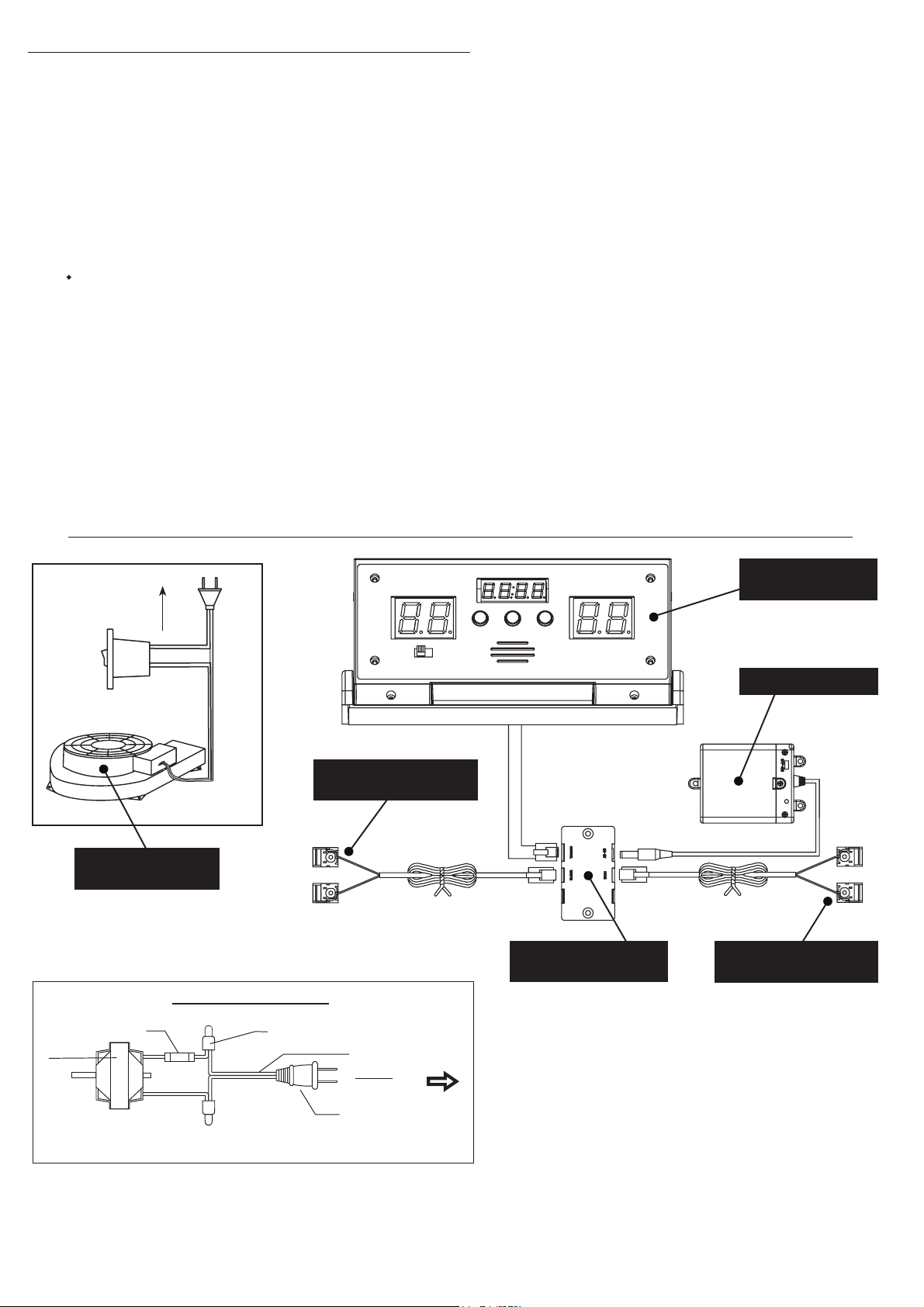

1. Under the table, remove screw using a small phillips screwdriver and open the battery box. Insert 4(four) pcs AA
batteries (not included) in the order of polarity as shown on the inside cover. Then close using a small phillips
screwdriver.
(If the game will not be used for a long period of the time, we recommend that the batteries be removed).
2. Turn on the scorer using the on/off switch located on the scoring display. You will hear music and the Home
and Visitor screens will show “00”.
3. There is one pre-set period of 15 minutes which can be adjusted to 10 minutes, 5 minutes, or “No Time Limit”
mode by pressing the “MINUTES” button.
4. Press the “START/RESET” button to start the game.
5. During Play - When “START/RESET” button is pushed, the following will occur:
Home and Visitor Score will reset to “00” and time will reset to it’s original setting.
6. “Sound ON/OFF” - Press this button while the game is on to turn the sound OFF and ON.
7. Once Home or Visitor reaches “99” points, Home or Visitor display will stop the scorer and keep flashing.
Please reset it by pressing the “START/RESET” button.
NOTE: If no score has been made for 15 minutes, the scoreboard will automatically turn off. You can turn it on
again by pressing the “START/RESET” button. However, we suggest turning the power off when the game will
not be used for an extended period of time.

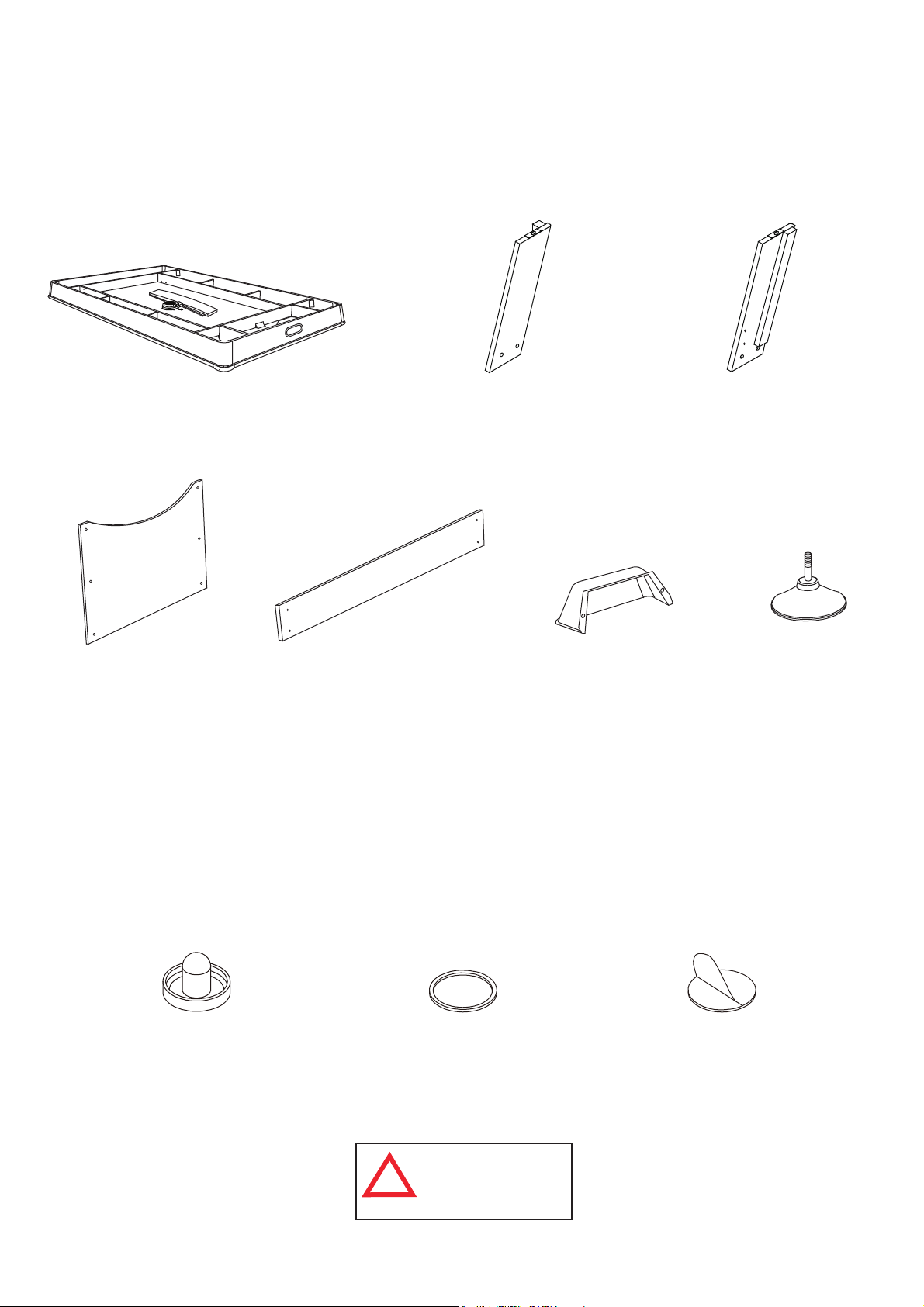

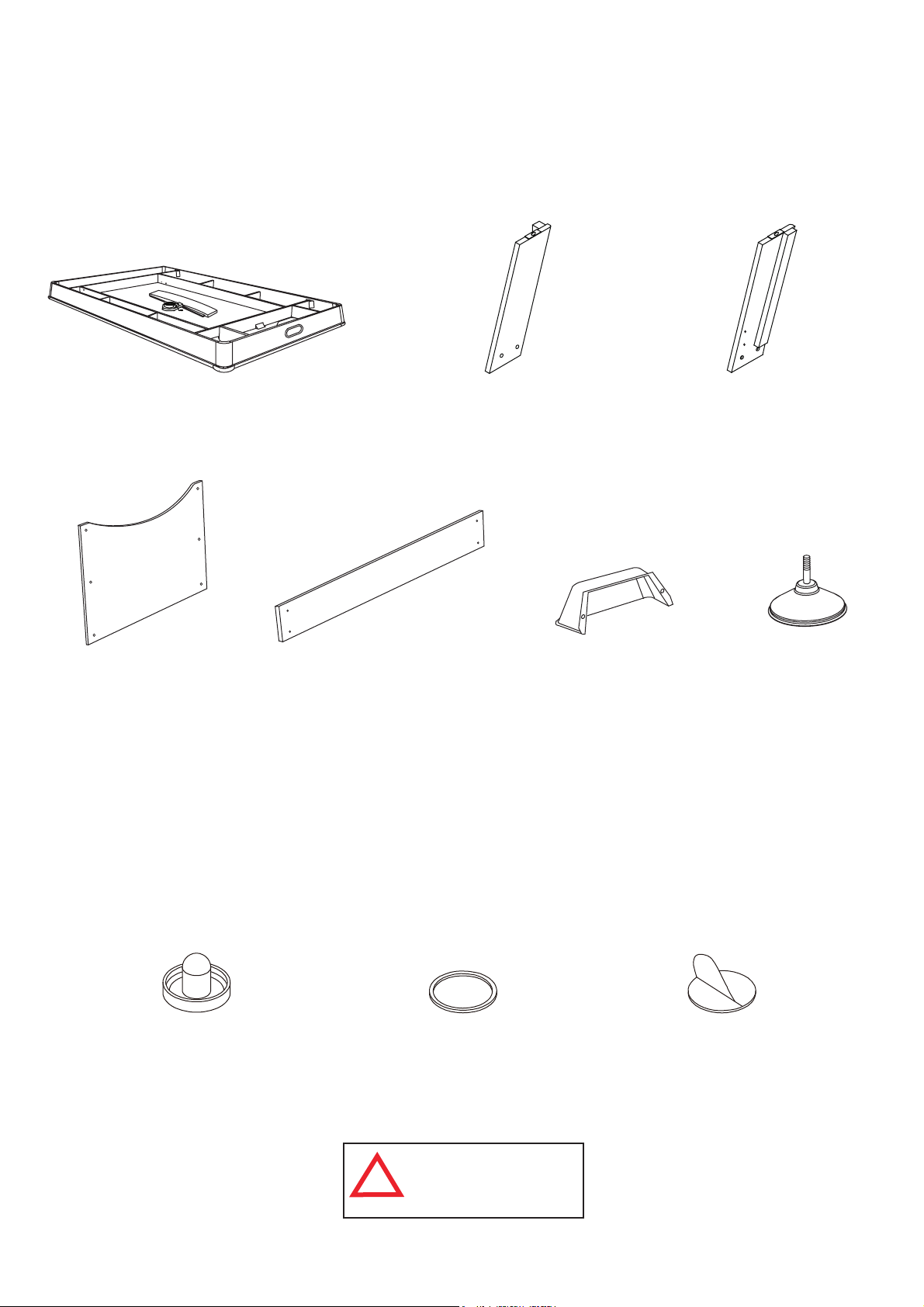

3.5mm x 28mm Phillips Washer Head Screw
4mm x 25mm Phillips Washer Head Screw
4mm x 12mm Phillips Round Head Screw
Wrench
Hockey Table Cabinet ( no blower motor )
Right Leg
Left Leg
End Leg Panel
Side Leg Panel
Puck Catcher
Leg Leveler
Striker
Puck
Felt Pad
Main Electronic Unit
Battery Box
LED Scorer and Timer Display
Scoring Sensors with Wire
Blower Motor with ON/OFF Switch
Plastic Corner Cap
Plastic Corner Post
Puck Return Tray
Hardware Kit
Owner’s Manual
This consumer warranty extends to the original consumer purchase of any ESCALADESPORTS
Product (hereinafter referred as the "Product").
WARRANTY DURATION: This Product is warranted to the original consumer purchase of a period of 90 days from the original purchase.
WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser
that any Product of its manufacture is free from defects in material and workmanship when used
for the intended purpose under normal use and conditions. THIS WARRANTY IS VOID IF THE
PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE,
IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PRODUCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL AND WORKMANSHIP.
WARRANTY PERFORMANCE: During the above 90 day warranty period, ESCALADESPORTS
shall repair or replace with a comparable model, and Product, or component thereof, which may
prove defective under normal use and proper care, and which our examination shall disclose to
our satisfaction to be thus defective, please contact our Warranty Dept.
1-888-996-2729 / Warranty Dept.
Or Write us at:
Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706
Other than shipping requirements no charge will be made for such repair or replacement of inwarranty Products. ESCALADE SPORTS strongly recommends that the Product is insured for
value prior to mailing.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF
THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE ABOVE 90 DAY PERIOD. ESCALADE SPORTS
SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER
CONSEQUENTIAL OR INCIDENTAL COSTS, EXPENSES OR DAMAGES INCURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or
incidental damages, so the above limitations or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights and you may also have other
rights which may vary from state to state.
Nosotros tratamos de asegurarnos que nuestros productos sean
de la más alta calidad y libre de problemas, como defectos de
fabricación ó partes incompletas. Sin embargo, Si usted tiene
algún problema con su producto, por favor
NO LO REGRESE A LA TIENDA
pongase en contacto con nosotros llamando gratis al:
1-888 -996-2729
FAX : 1-866-873-3531
gameroom@Escalade Sports.com
O escriba a:
Escalade Sports
Departamento de Atención al
Cliente
P.O.Bo x 889
Evansville IN 47706
Visite nuestro sitioWeb en:
Por favor tenga el n
Al contactar a Escalade Sports, por favor incluya su número de modelo, código
de fecha (si lo hubiera) y el número de parte en caso de solicitar una parte. Estos
números se ubican en el producto, en el empaque y en el manual del usuario.
Número de modelo:
Código de fecha:
Fecha de Compra:
2 - G03510W - - WJ
G03510W
úmero de modelo cuando solicite partes.
CONSERVE ESTE MANUAL DE INSTRUCCIONES PARA REFERENCIA.

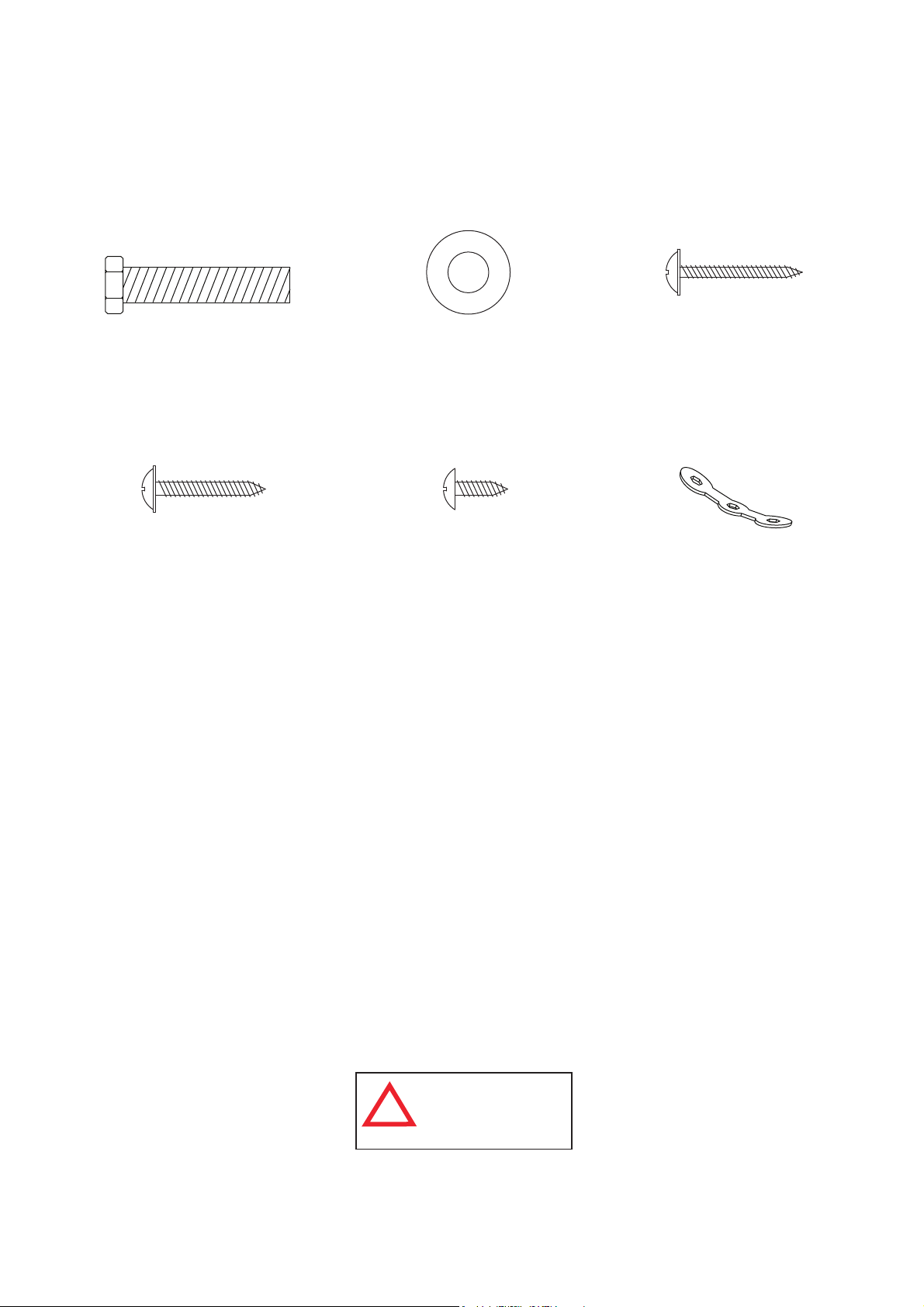

1 pza. - P1 Mesa de hockey de aire1 pza. - T1 Llave

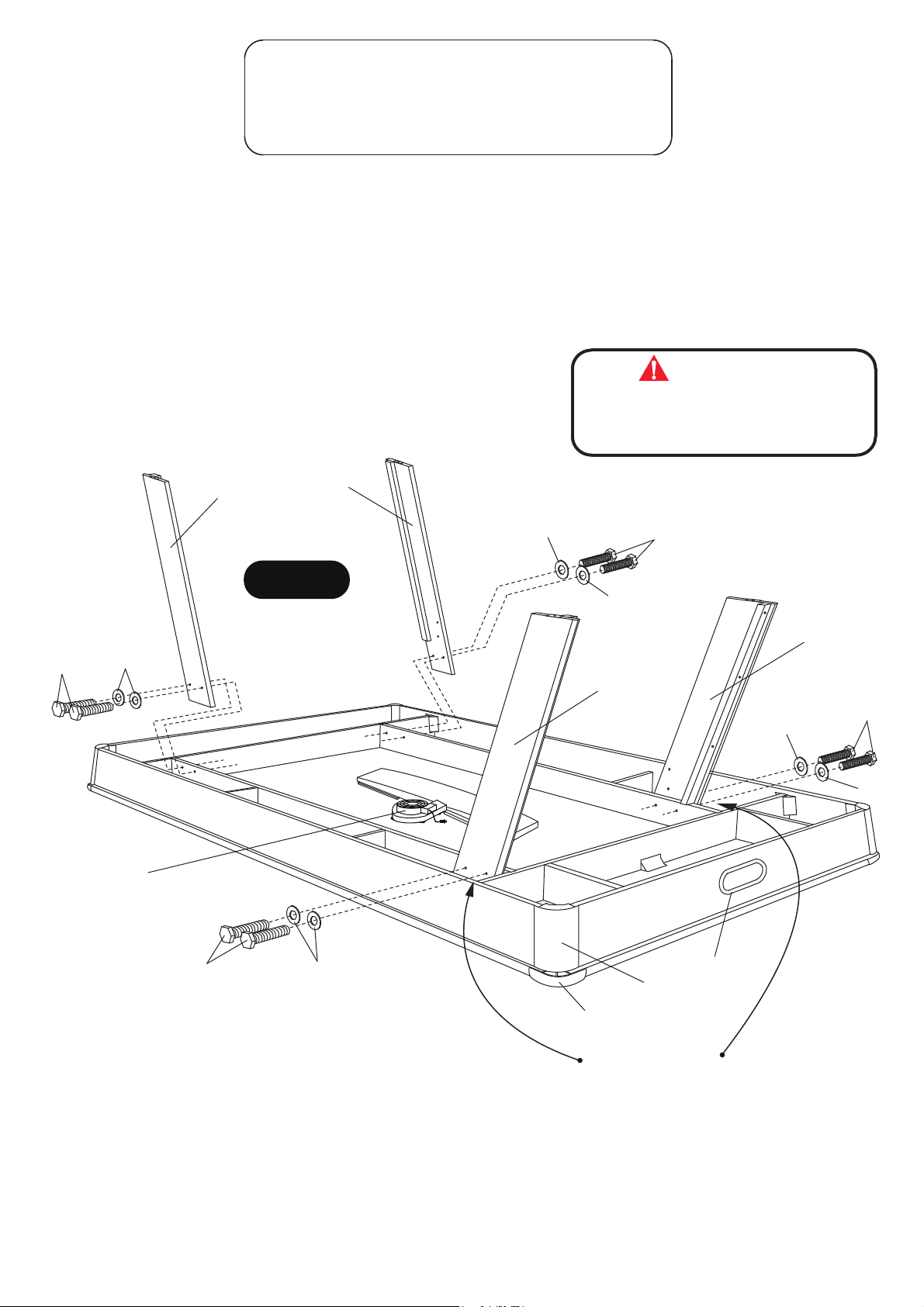

PASO 1:
Para ensamblar esta mesa, coloque el Gabinete de la Mesa de Hockey P1 boca abajo sobre el cartón
extendido. Coloque las Patas derechas P2 y las patas izquierdas P3 utilizando los Tornillos H1 con las
Rondanas
H2 como se muestra en la FIGURA 1.
No apriete los tornillos H1 en este paso, sino hasta el final del paso 3.
NOTA IMPORTANTE: Asegúrese que las Patas Derechas P2 y Las Patas Izquierdas P3 estén
instaladas AFUERA de las tablas de soporte como se muestra en la FIGURA 1.
AVISO:
ASEGURESE QUE LAS PATAS DERECHAS P2
Y LAS PATAS IZQUIERDAS P3 ESTÉN
ENSAMBLANDAS EXACTAMENTE COMO SE
MUESTRA EN EL DIAGRAMA.
NOTA IMPORTANTE: ASEGURESE
QUE LAS PATAS DERECHAS P2 Y
LAS PATAS IZQUIERDAS P3 ESTÉN
INSTALADAS AFUERA DE LAS
TABLAS DE SOPORTE COMO SE
MUESTRA EN EL DIAGRAMA.
Para Servicio al cliente llame 1-888-996-2729
Page 17
PARTES REQUERIDAS:
12 pzas. - H3 Tornillo Phillips (cabeza tipo arandela)2 pzas. - P4 Tabla del extremo para las patas
8 pzas. - H4 Tornillo Phillips (cabeza tipo arandela)2 pzas. - P5 Tabla lateral para las patas

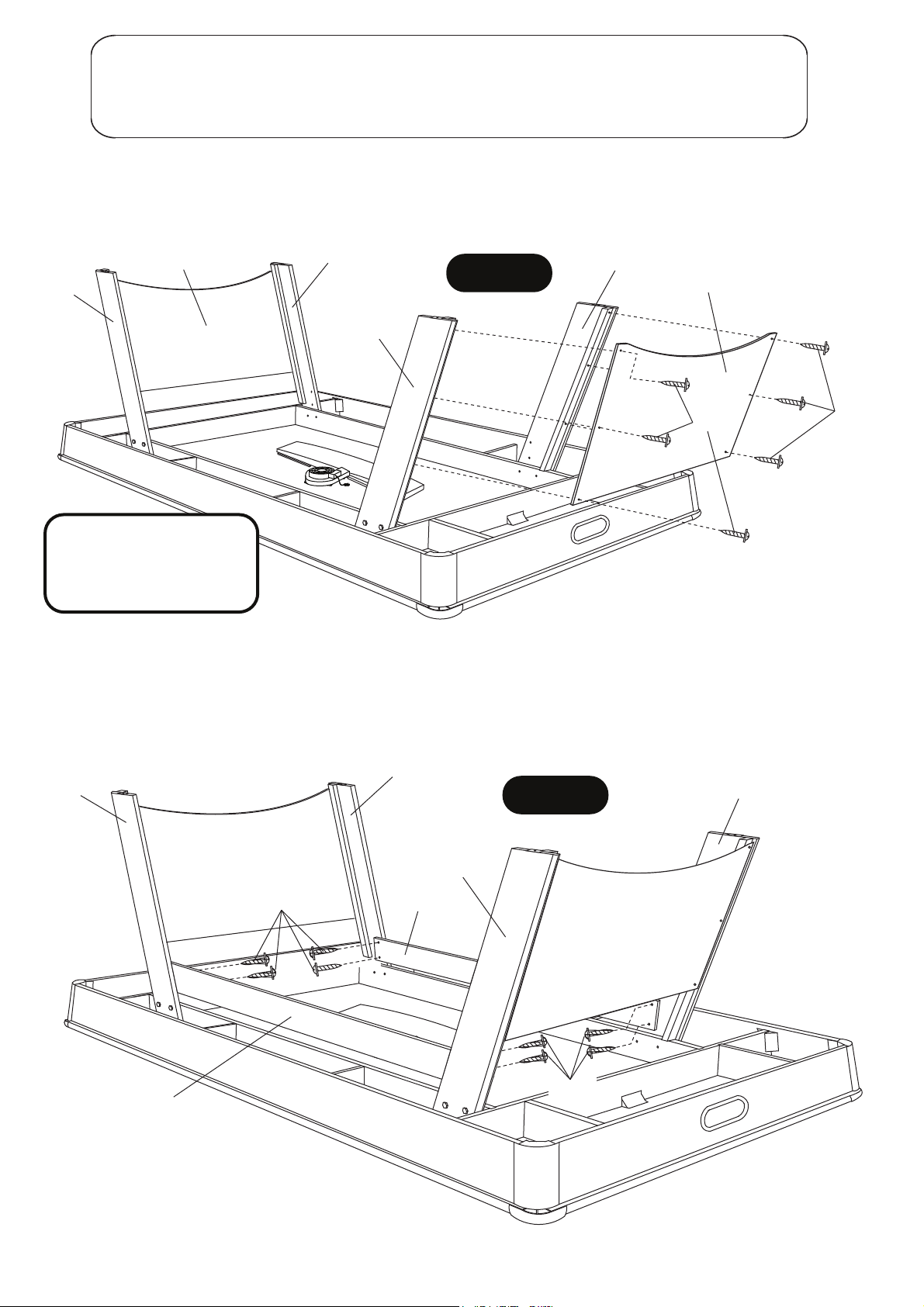

PASO 2:
Coloque las Tablas del Extremo P4 entre las dos Patas Derechas P2 y las Patas Izquierdas P3 usando los
orificios guía pre-perforados con los Tornillos H3 como se muestra en la FIGURA 2. Atornille bien los
tornillos H3, pero no los sobre apriete para no barrerlos.
P4
P3
P2
FIGURA 2
P3
P4
P2
H3
NOTA: Las Tablas del extremo para
las patas P4 están empacadas
debajo del gabinete de la mesa y
debajo del bloque de Unicel.

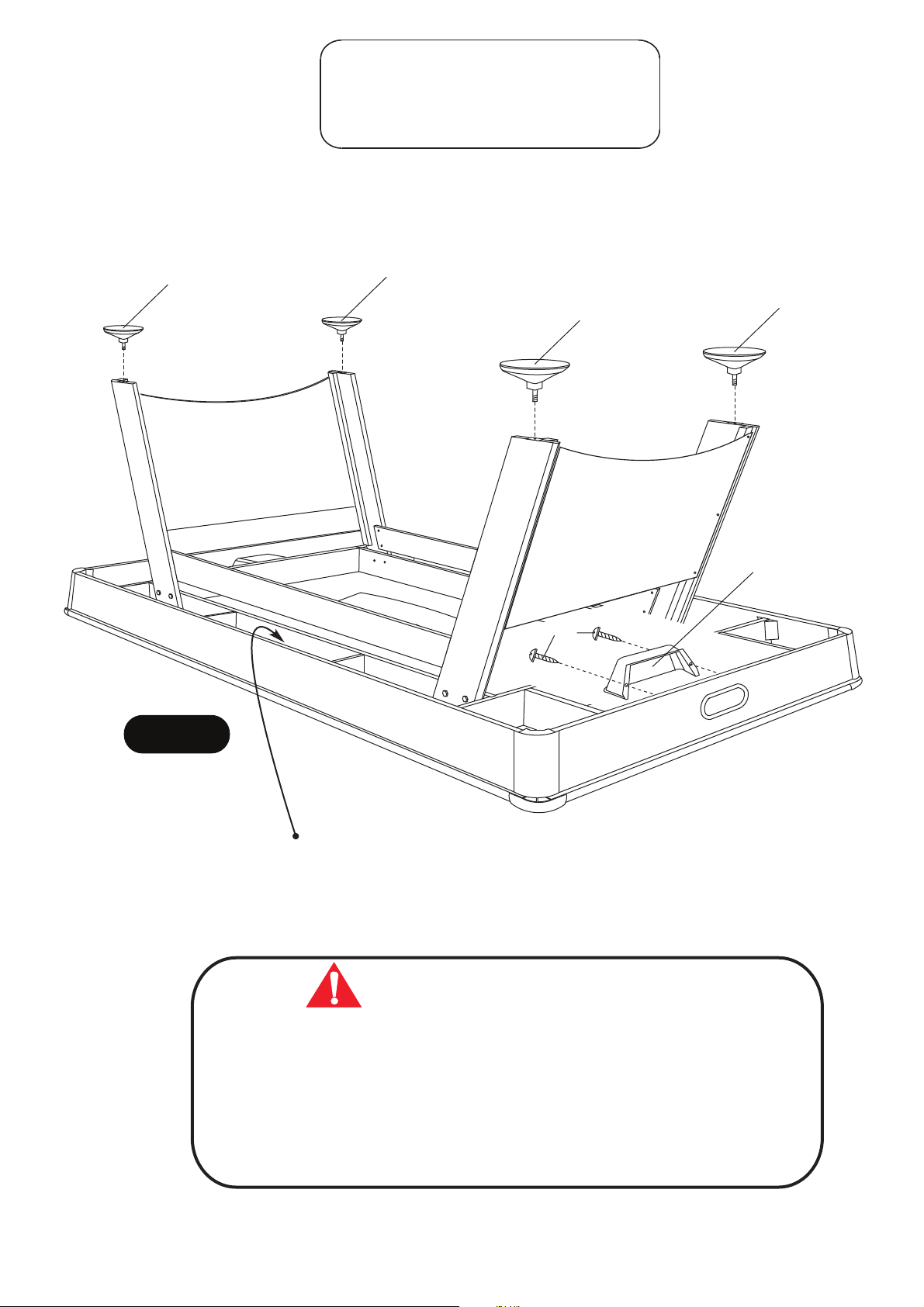

PASO 3:
Coloque las Tablas Laterales para las patas P5 entre y dentro de las patas derechas P2 y de las patas
izquierdas P3 usando los orificios guía pre-perforados con los Tornillos H4 como se muestra en la
FIGURA
Utilice la Llave T1 para apretar todos los tornillos.
3. Atornille bien los tonillos H4, pero no los sobre apriete para no barrerlos.
4 pzas. - H5 Tornillo Phillips (Cabeza redonda)
2 pzas. - P6 Recipiente de Discos
4 pzas. - P7 Nivelador de las patas
PASO 4:
Coloque el Recipiente de Discos P6 en el interior del Panel del Extremo usando los orificios guía
pre-perforados con los Tornillos H5 como se muestra en la FIGURA 4. Atornille bien los tonillos H5,
pero no los sobre apriete para no barrerlos.
Coloque los Niveladores P7 en las Patas ya ensambladas como se muestra en la FIGURA 4.
P7
P7
H5
P7
P7
P6
FIGURA 4
Debajo de la mesa se encuentra la caja de la batería, ábrala quitándole el tornillo con un destornillador
Phillips pequeño e Inserte 4 (cuatro) pilas AA (no incluidas) en el orden de la polaridad como se muestra
en la parte interior de la tapadera. Luego ciérrela utilizando el destornillador Phillips pequeño.
(Si no se utiliza el juego durante un período largo de tiempo, se recomienda que se retiren las pilas)

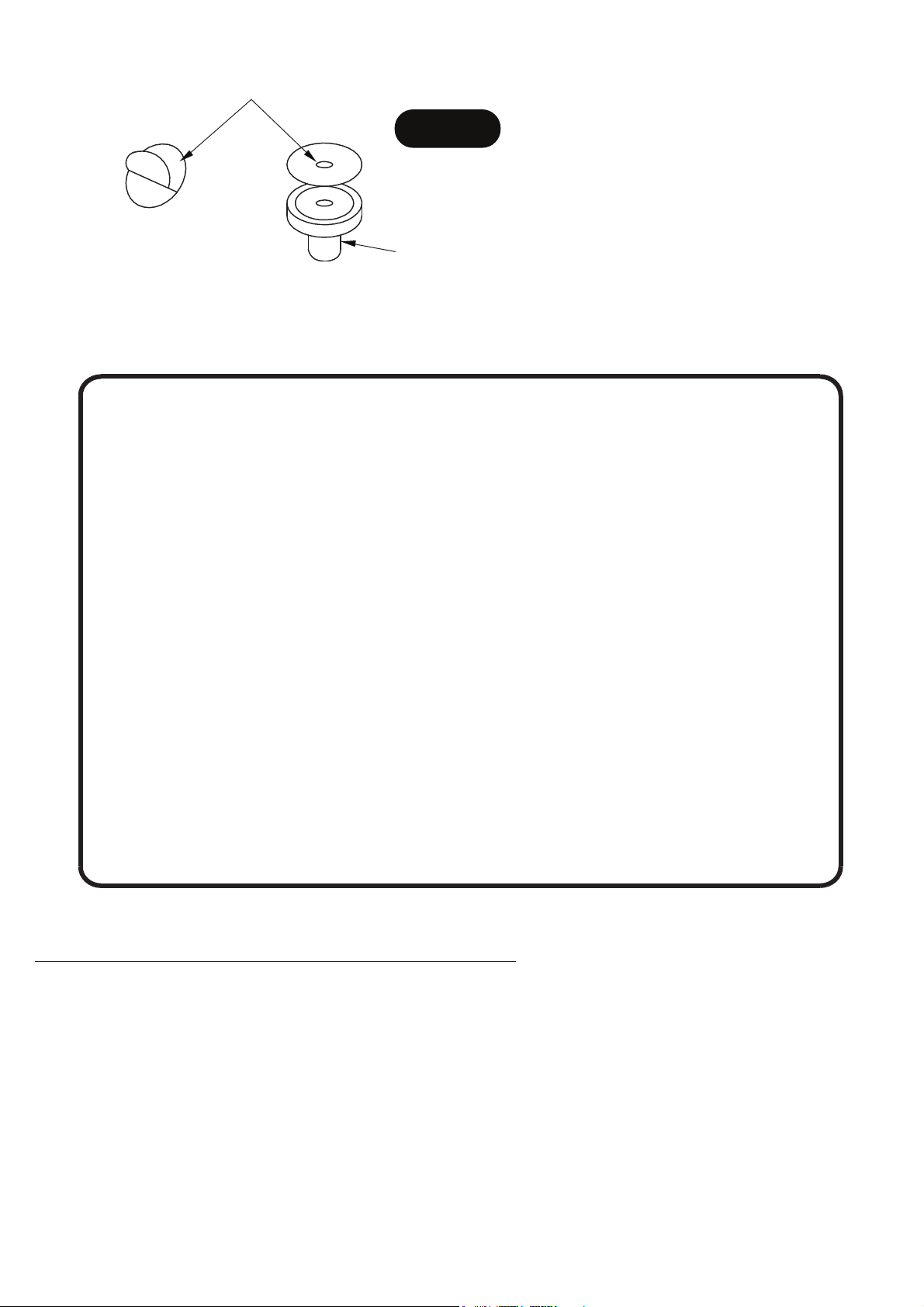

Despegue la protección del pegamento del Fieltro A3 y colóquela al Mazo A1 como se muestra en la FIGURA 6.
A3
FIGURA 5
NOTA: Fieltro puede
venir ya pegado en los
mazos A1.
Felicidades! Ahora ya ha terminado de ensamblar su mesa. Por favor, Siga las instrucciones del uso y el
cuidado de su mesa abajo mencionadas, para garantizar muchos años sin problemas el juego de su mesa.
A3
A1
INSTRUCIONES DEL CUIDADO Y USO DE SU MESA ATOMIC
1. Sólo Utilice una toma de corriente doméstica adecuada de 120v AC, y asegúrese
que el cable no es un riesgo de peligro para tropezar.
plique spray abrillantador de muebles en un paño y limpie la superficie de la
2. A
mesa de hockey de aire con el Motor de aire prendido para que los discos se
deslicen mas fácil y para proteger la superficie de la mesa.
3. Utilice un nivel de carpintero para nivelar la mesa con los niveladores de las patas.
4. Este producto está diseñado para su uso en INTERIORES exclusivamente.
5. NO opere el Motor si el cable está dañado.
6. NO salte, escale o se recargue en la mesa.
7. NO arrastre la mesa para moverla. Si lo hace se dañarán las patas.
8. NO levante ó voltee la Mesa de las ESQUINAS ya que la podría dañar.
NO ponga bebidas sobre la mesa.
9.
10. Se sugiere que la mesa se coloque cerca de una pared para asegurar que el
cable del Motor NO sea un riesgo de peligro para tropezar. Siempre apague el
Motor de aire cuando no utilice la mesa.
11. La compra de una cubierta para su mesa de billar le ayudará a protegerla y
mantenerla limpia mientras no esté en uso.
REGLAS DEL JUEGO HOCKEY DE AIRE:
1. Este juego está diseñado para ser jugado con dos (2) jugadores, uno en cada extremo, o con cuatro (4)
jugadores, dos en cada extremo de la mesa de juego.
2. Lance una moneda para determinar quien comenzará el juego, o una cara a cara rotando la moneda en
el centro de la mesa.
3. El juego se inicia cuando el disco se coloca sobre la superficie de juego. Cada jugador debe golpear el
disco con el mazo e intentar disparar en la portería del oponente.
4. Cada vez que el disco entre en la portería del oponente se contará un punto.
5. Para ganar el juego: la anotación del ganador se logrará al ser el primer jugador que alcance un número
de puntos predeterminados o el jugador con un número superior de puntos en un período de tiempo
determinado.
1. Debajo de la mesa se encuentra la caja de la batería, ábrala quitándole el tornillo con un destornillador Phillips
pequeño e Inserte 4 (cuatro) pilas AA (no incluidas) en el orden de la polaridad como se muestra en la
contratapa.
Luego ciérrela utilizando el destornillador Phillips pequeño.
(Si no se utiliza el juego durante un período largo de tiempo, se recomienda que se retiren las pilas)
2. Para prender o apagar el marcador presione el botón del apagador localizado en el marcador de la pantalla.
Usted escuchará música y en la pantalla de la Casa y el Visitante mostrará/aparecerán “00”.
3. Hay un periodo de tiempo pre-seleccionado de 15 minutos, el cual puede ser ajustado a 10 minutos,
5 minutos o “Sin Límite de Tiempo” presionando el botón que dice “MINUTOS”.
4. Presione el botón “INICIAR/RESTABLECER” (“START/RESET”) para iniciar el juego.
5. Durante el modo de Juego – Cuando Presione el botón “INICIAR/RESTABLECER” (“START/RESET”) ocurrirá
lo siguiente: El marcador electrónico de la Casa y el Visitante se restablecerá a “00” y el tiempo se
restablecerá a su estado original.
6. “Sound ON/OFF” - Presione este botón mientras el juego esta prendido para PRENDER y APAGAR el sonido.
7. Una vez que la Casa o el Visitante alcancen a los “99” puntos, la pantalla de la Casa o del Visitante parará el
marcador y la luz continuará parpadeando. Restablescalo oprimiendo el boton “START/RESET”.
NOTA: Si no ha anotado/no ha habido puntuación por 15 minutos, el marcador se apagará automáticamente.
Usted lo puede encender otra vez presionando el botón “INICIAR/RESTABLECER” ("START / RESET"). Sin
embargo, recomendamos apagar el juego cuando no sea utilizado durante un periodo de tiempo prolongado.
CONEXIONES ELÉCTRICAS E ILUSTRACIONES DE PARTES DE REPUESTO
3.5mm x 28mm Tornillo Phillips (cabeza tipo arandela)
4mm x 25mm Tornillo Phillips (cabeza tipo arandela)
4mm x 12mm Tornillo Phillips (cabeza redonda)
Llave
Mesa de hockey de aire (sin Motor)
Pata (Derecha)
Pata (Izquierda)
Tabla del extremo para las patas
Tabla lateral para las patas
Recipiente de Discos
Nivelador de las patas
Mazo
Disco
Fieltro para el Mazo
Unidad Electrónica Principal
Caja de Batería
Marcador
Sensores con Cable
Motor de Aire con Apagador
Tapa esquina
Esquineros de plástico
Retorno de Discos
Conjunto de Tornillos y Tuercas
Manual
