ATOL D6000 User Manual

1

User Manual for D6000 Series

2

Copyright Statement

Information contained in this document provides solely the description

of the current status of the product but not an intended guarantee,

including but limited to any implied warranties of merchantability and

fitness for a particular purpose. Shenzhen OCOM Technologies Limited

(hereinafter referred to as the Company) reserves the right to change the

features, specifications, and warranty information and document

contents of related products at any time without prior notice.

Control programs of this product are also protected by the Copyright

Law of the People’s Republic of China, with all rights reserved.

Microsoft, Windows, Windows 2000, Windows XP, Windows CE,

Windows 2003, Windows Vista, Windows 2008, Windows 7, Activesync,

Windows Mobile Device Center, and Internet Explorer are registered

trademarks of Microsoft Corporation in the United States or other

countries.

All the other brand names and product names mentioned in this document

are legal trademarks names, service marks or registered trademarks of the

corresponding companies.

3

Before Using this product, read this manual carefully please.

CHAPTER 1 PACKING CONFIRMATION …….…… 4

CHAPTER 2 INTRODUCTION………………………….. 5

CHAPTER 3 USING THE DEVICE………………..…… 17

CHAPTER 4 ADVANCED SETTINGS………………………… 35

CHAPTER 5 AFTER SALES SERVICE……………………51

4

Chapter 1 Packing Confirmation

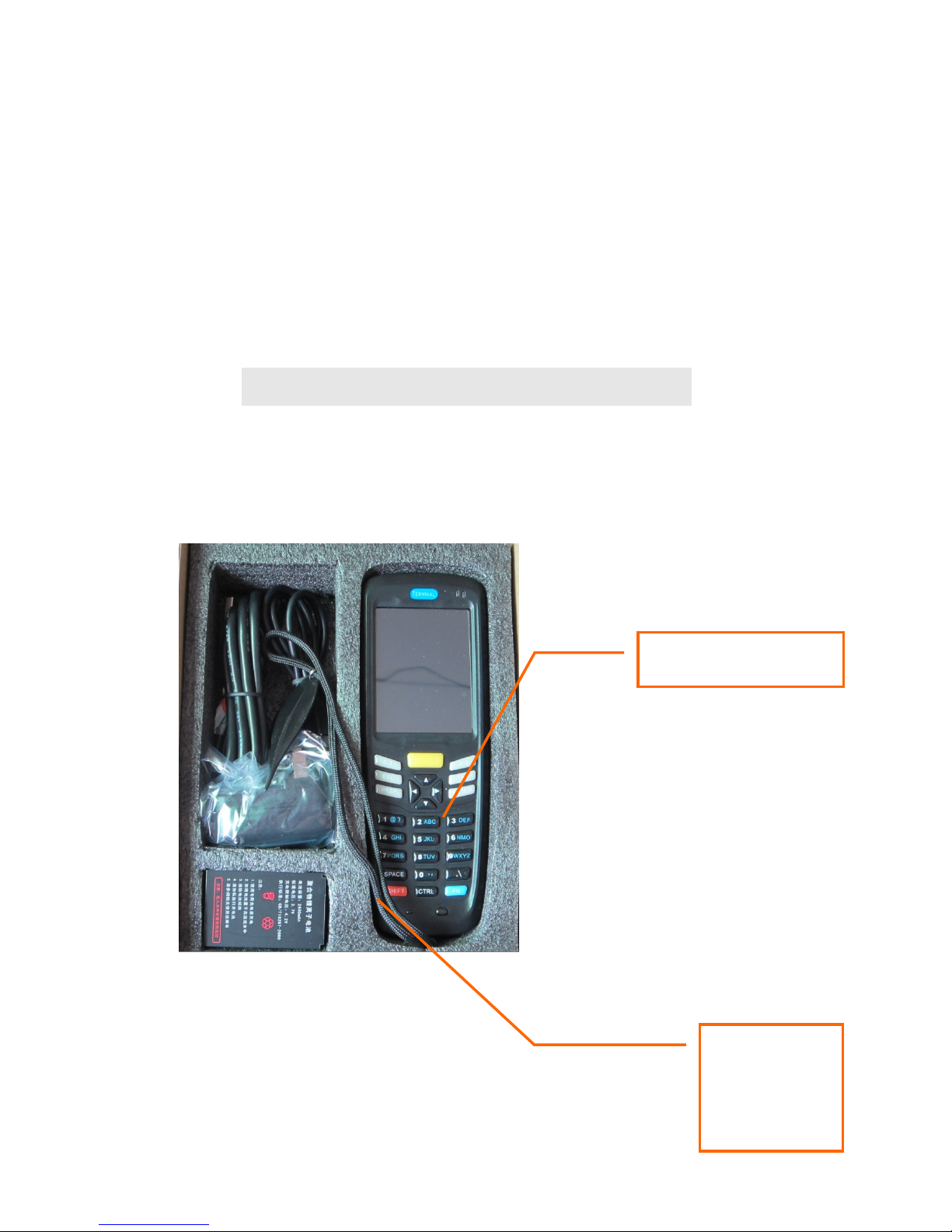

Checking articles contained in the package

Before using the product,pls check whether the package contains the

following articles：

D6000 device

Touch pen

and Wrist

strap

5

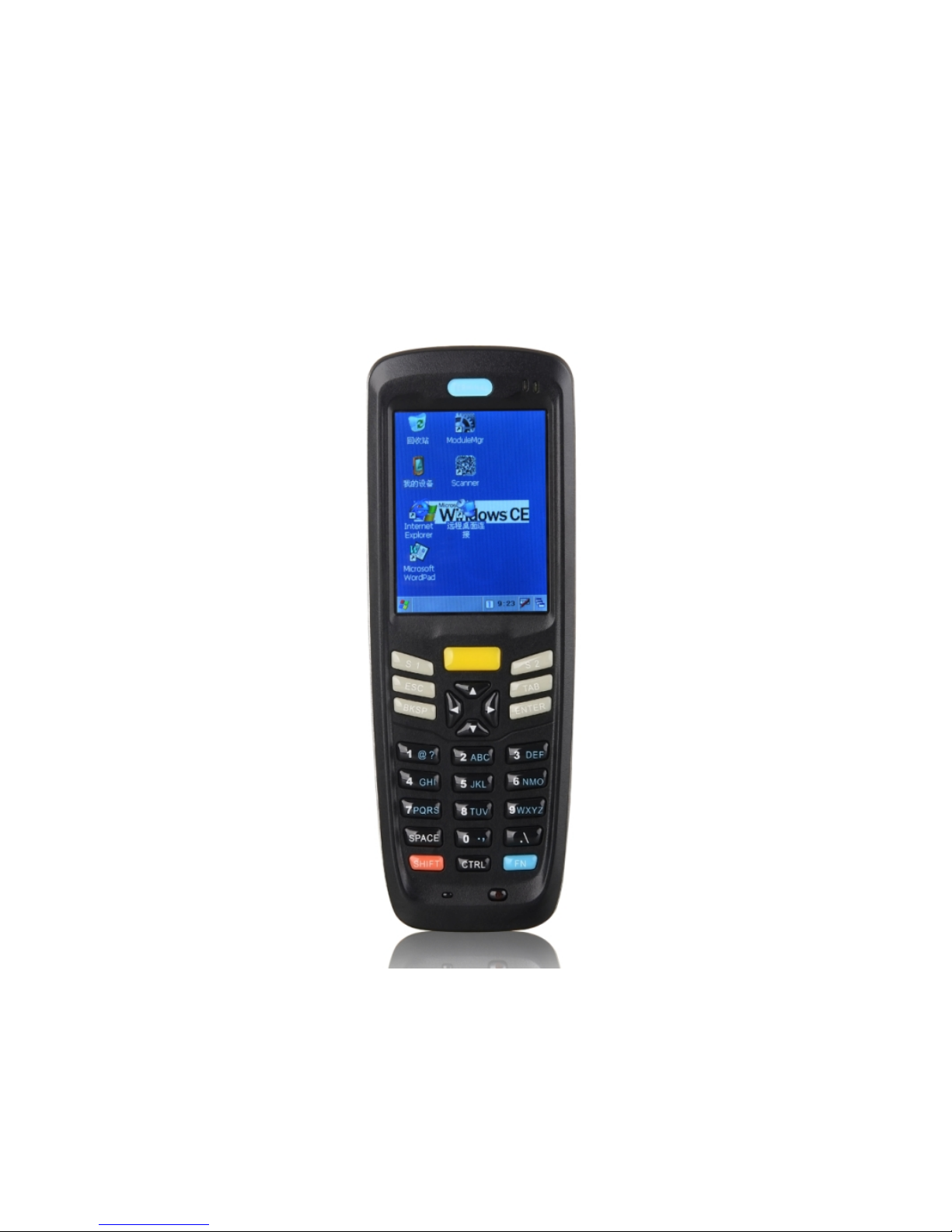

Chapter 2 Introduction

D6000 Introduction

The D6000 product is an industry-level handheld terminal developed,

designed, and produced based on features of different industries by

Shenzhen OCOM Technologies Limited. The D6000 series adopt

ergonomic design and is compact and flexible, shock-proof, and

drop-proof.The D6000 series can work in the standby mode for a long

time. In addition, the D6000 series adopt the dual power supply mode

and support the conversation function.

Main Functions and Features

1. Compact, portable, and durable.

2. Long working time: the product can work for more than eight

hours consecutively.

3. Easy charging: the product uses a usb interface for charging

without a specialized USB cable.

4. Built-in one-dimension scanning module.

5. Communication mode: the product supports Wi-Fi communication,

GPRS/GSM

6. Open design: the product provides a software interface that can be

used to develop application functions.

Power adapter and
Usb cable，charger

cable

battery

6

7. The product is an industry-level device that is drop-proof, dustproof

and high/low temperature resistant.

8. High-speed and high-capacity data processing: the product provides

a 533 MHZ CPU processing speed, 256MB built in storage, and 128MB

memory and supports the Micro SD/TF card with a maximum capacity

of 16GB.

9. The product provides a 2.8in color touch screen.

Detailed Parameters：

Model

D6000

CPU

SUMSANG S3C2451 (533MHZ)

Operating System Microsoft Windows CE 5.0 OS(Multi-lingual)

Memory

RAM 128MB

F-ROM 256MB

Extension

Micro SD/TF slot（a maximum of 16G）

Scanning

parameters

Scanning engine

type

One

-dimension laser scanner

Sca- speed

100+20 per second (bidirectional)

Scan-distance

60-650mm

Scanning angle

54±5 degree

Resolution 0.127-1.00mm

7

Readable barcodes

UPC

-A; UPC-E; UPC-E1; EAN-8; EAN-

13;

Bookland EAN; Code 128; UCC/EAN

-

128; Code

39; Trioptic Code 39; Code 39

Full ASCII; Code

Limited; GS1 DataBar Expanded;

Screen

2.8’TFT-LCD QVGA(240*320)color touch screen

Input

Soft keyboard English,Pinyin,and Chinese handwriting

Hard keyboard 27+2 key alphanumeric keyboard

Scanning start

key

The central key

Communicati

on

WI-FI

WLAN(standard

configuration)

The product supports communication on the

802.11b/g Wifi WLAN with a rate of 54MB/s，

which meets the requirements of the CISCO

CCX2,3 security standards and supports

CISCO AP

and security regulations.

Wide-area

wireless network

(extension)

The product provides a GSM/GPRS wireless

communication module and supports GSM/GPRS

Class10and GSM07.10 multiplexing

Power

（Dual-

Power

Master battery 3.7V 2600MAH rechargeable lithium battery

Working hours 8 or above (depending on the actual environment)

8

Mode）

Charging time

3.5 hours

Ingress

protection

IP54

Dimensions

Ergonomic

design

155mm(L)×76(W)×29(T)

Weight 320g(with battery)

Working

Environment

Operating

temperature

-15~+50℃

Storage

temperature

-20~+60℃

Operating

humidity

Relative humidity:5-95%(no condensation)

Storage

humidity

Relative humidity:5-95%(no condensation)

Endurable height

for dropping

Can endure multiple drops to a smooth concrete

floor from a height of 4 inches(1.2M)

9

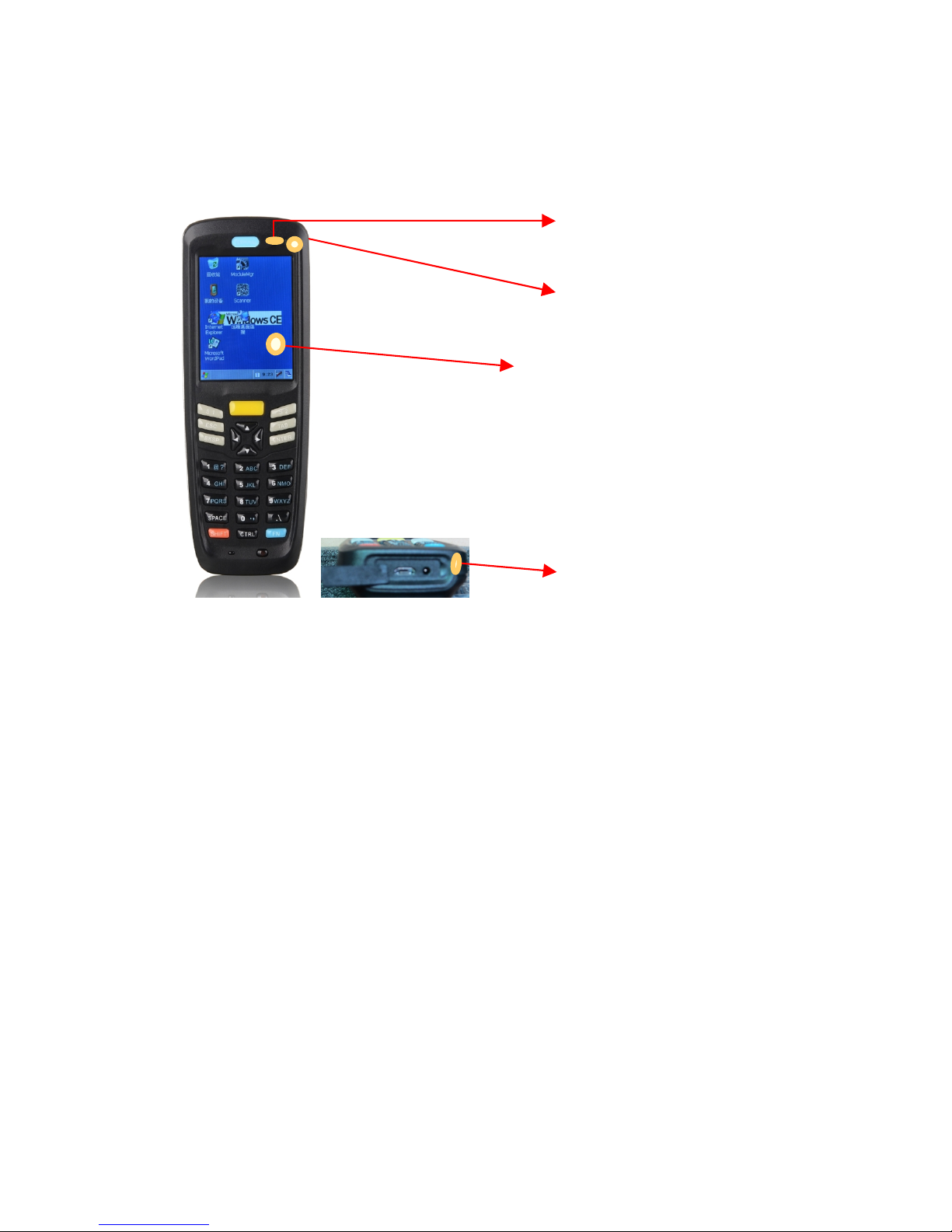

Function Introduction:Front View and side View

a. Charging and system indicator:

The indicator is displayed in red during charging and green when

the charging is complete and the system runs properly.The indicator

blinks in green when the power is insufficient。

b. Scanning indicator

The indicator is displayed in red when a barcode is scanned successfully.

c.Touch screen：

The touch screen enables you to perform operations by using a stylus.

d. USB hole and DC hole:

The USB hole: you can connect the USB cable to transmit and receive

data between device and PC. DC hole: you can charger the device

a. Charging and

system indicator

c. Touch screen

b. Scanning

indicator

d. USB hole and

DC hole

10

through it by the power adapter.

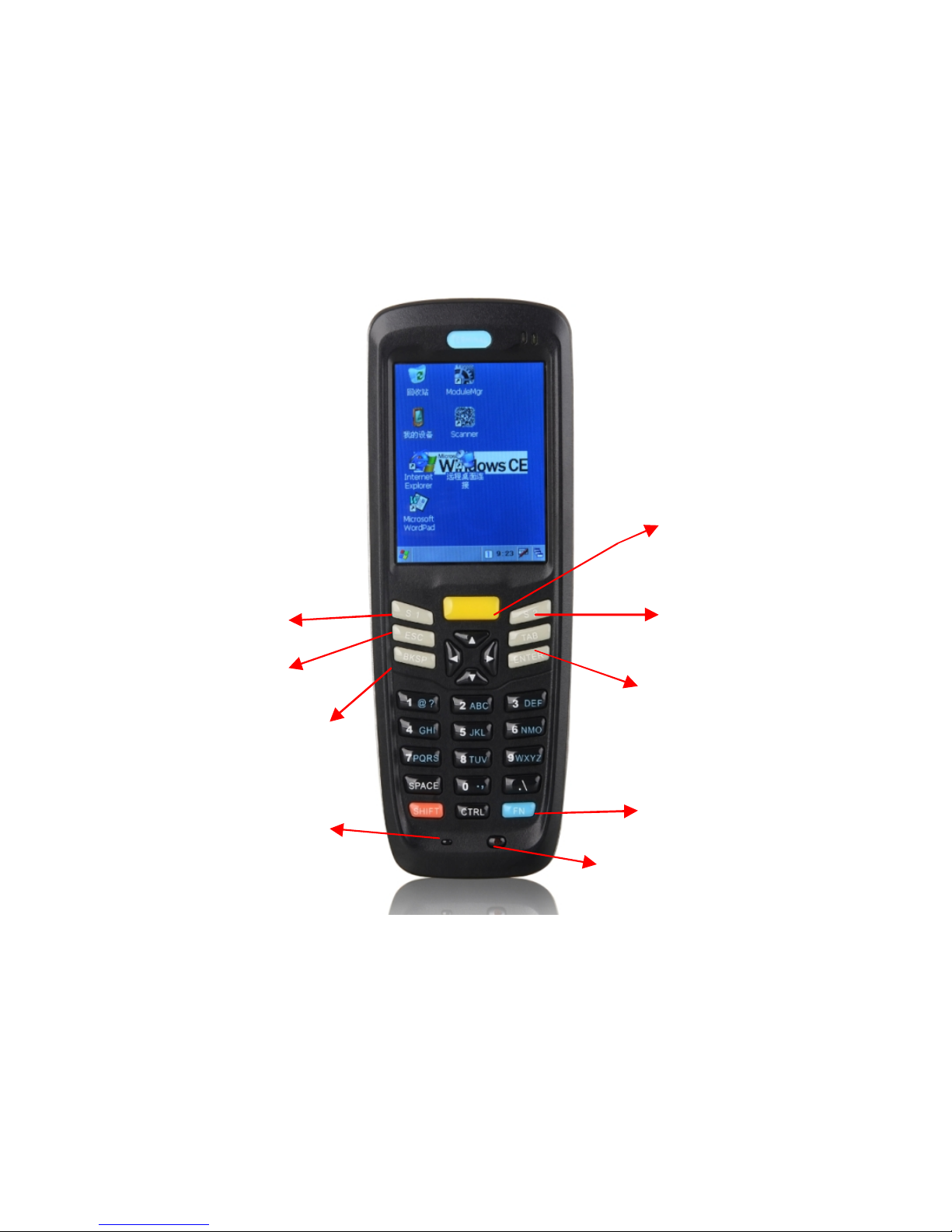

Master keyboard introduction

a. Barcode scanning key：You can scan barcodes by pressing this key.

b. Power button：Power on/off the device or switch the device into sleep

or wake-up mode.

a. Barcode

scanning key

c. ESC

d. Enter key

g. S2 key

h. Function key

f. S1 key

e. Backspace

b. Power button

I. Reset button

11

c. ESC key：You can press the ESC key to perform operations such

as cancel and exit.

d. Enter key：You can press the Enter key for confirmation or to switch

to next line.

e. Backspace key： You can press this key to delete the previous

character.

f. S1 key：It represents the left softkey and is equivalent to the F11 key

on a computer keyboard.

g. S2 key：It represents the right softkey and is equivalent to the F12 key

on a computer keyboard.。

h. Function key：You can use a key combination by pressing FN key

releasing it and then pressing another key.

I. Reset key：You can use it to reset the device.

The key combinations are as follows:

[Func] + [.] Open the backlight of keyboard

[Func] + [<=] Battery status

[Func] + [space]

Input numbers or letters based on the current input

mode.

CTRL+SPACE Chinese and English changed

[Func] + [0] F10

12

[Func] + [1] F1

[Func] + [2] F2

[Func] + [3] F3

[Func] + [4] F4

[Func] + [5] F5

[Func] + [6] F6

[Func] + [7] F7

[Func] + [8] F8

[Func] + [9] F9

13

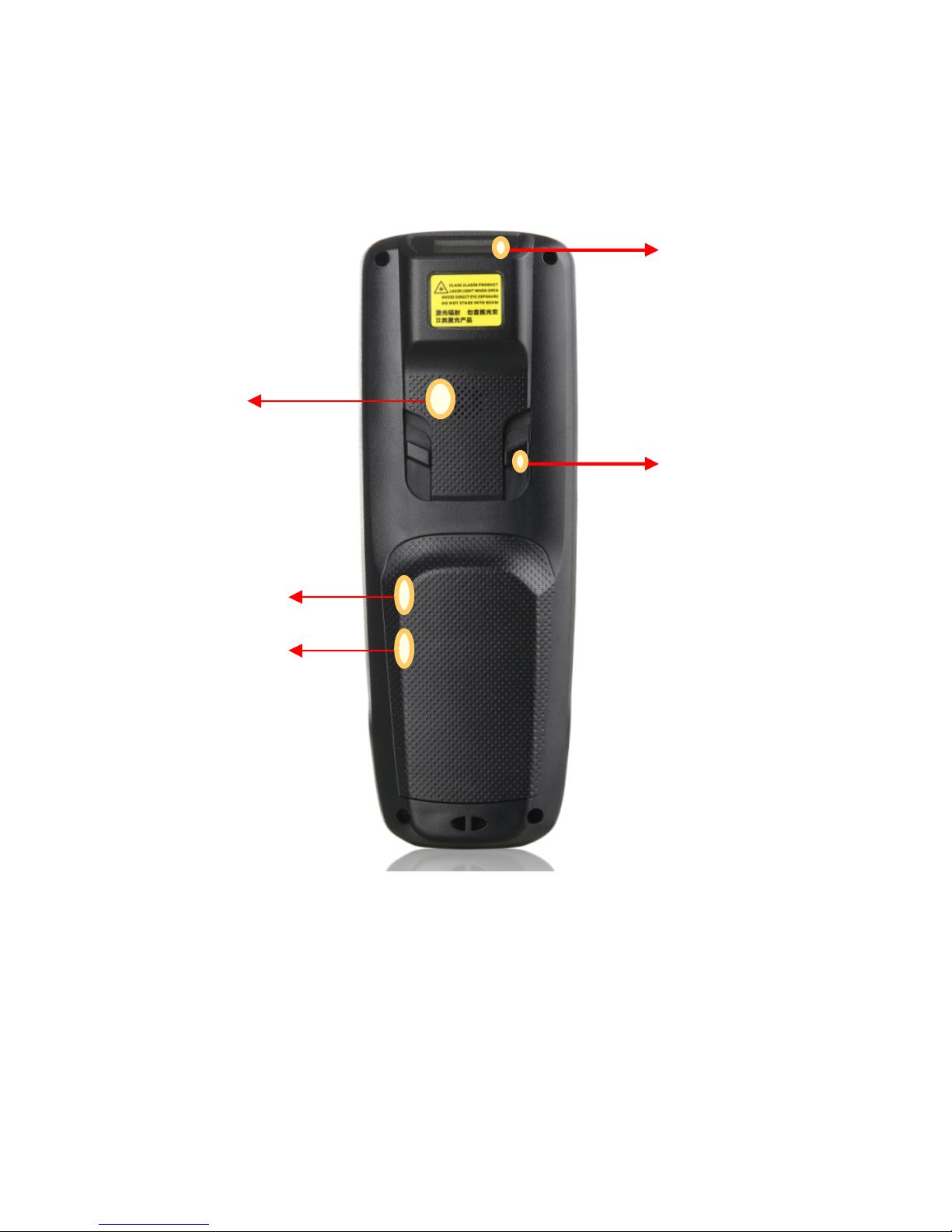

Function Introduction: back View

a. Windows for scanning barcodes： Laser comes out from this

window.donot look into the window with naked eyes.

b. Camera：A camera and fill light are installed here.
c. Speaker：Playing the voice from speaker.
d. Master battery cover buckles：The master battery cover buckles are

d.Master

battery cover

buckles(left

and right)

a. Window for

scanning barcodes

c.Speaker

e.TF card slot

f.SIM card solt

14

used to fix the battery cover.

e.TF card slot:A micro SD/TF memory card can be inserted in the TF

card slot.

f.SIM card slot: An SIM card provided by carriers can be inserted in the

SIM card slot.

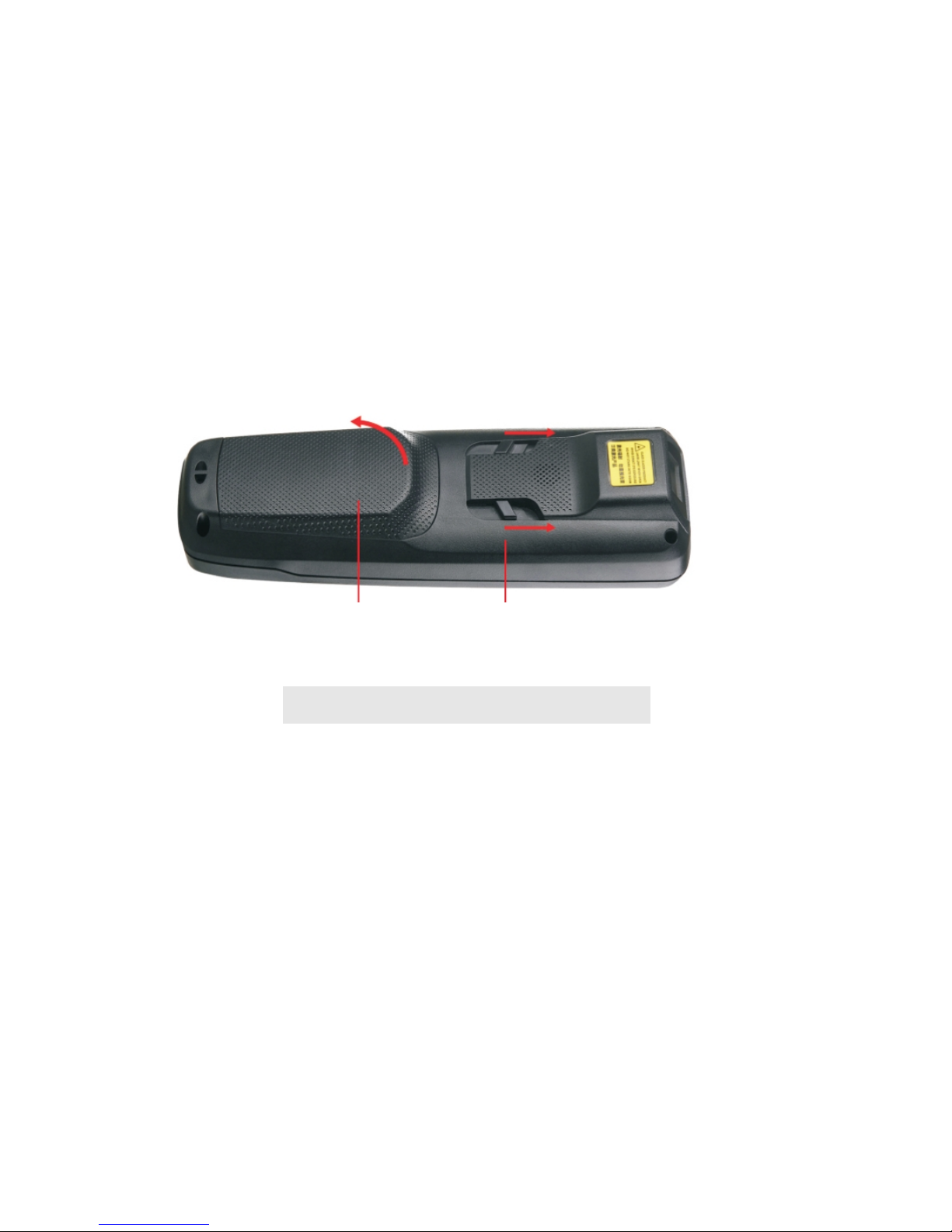

Open the battery cover:

The ways as below:

Chapter 3 Using the device

Installing the SIM card, memory card and battery

1. Open the battery cover, Insert the SIM card or Micro SD/TF card

2. And Install the battery properly, Close the battery cover.

Note: Only 50% electricity remains in the battery when you use the

battery for the first time.you can charge the battery by using the power

adapter or a seat charger (purchased separately).The first charging must

be more than 12 hours.

Powering on/off the device

15

The D6000 product is powered off when you obtain it for the first time.

After you press and hold down the power button, the indicator is turned

on and the Windows CE screen is displayed.Then you can release the

button to power on the device.

When the device is not used, you can switch the device into sleep mode

or power off the device to save electricity.

1. If you shortly press the power button when the device is in

powered-on mode, the device is switched to sleep mode.

When the device works in sleep mode, power is provided to certain

components and data in the memory is retained.You can press the power

button again to switch back to wake-up mode.

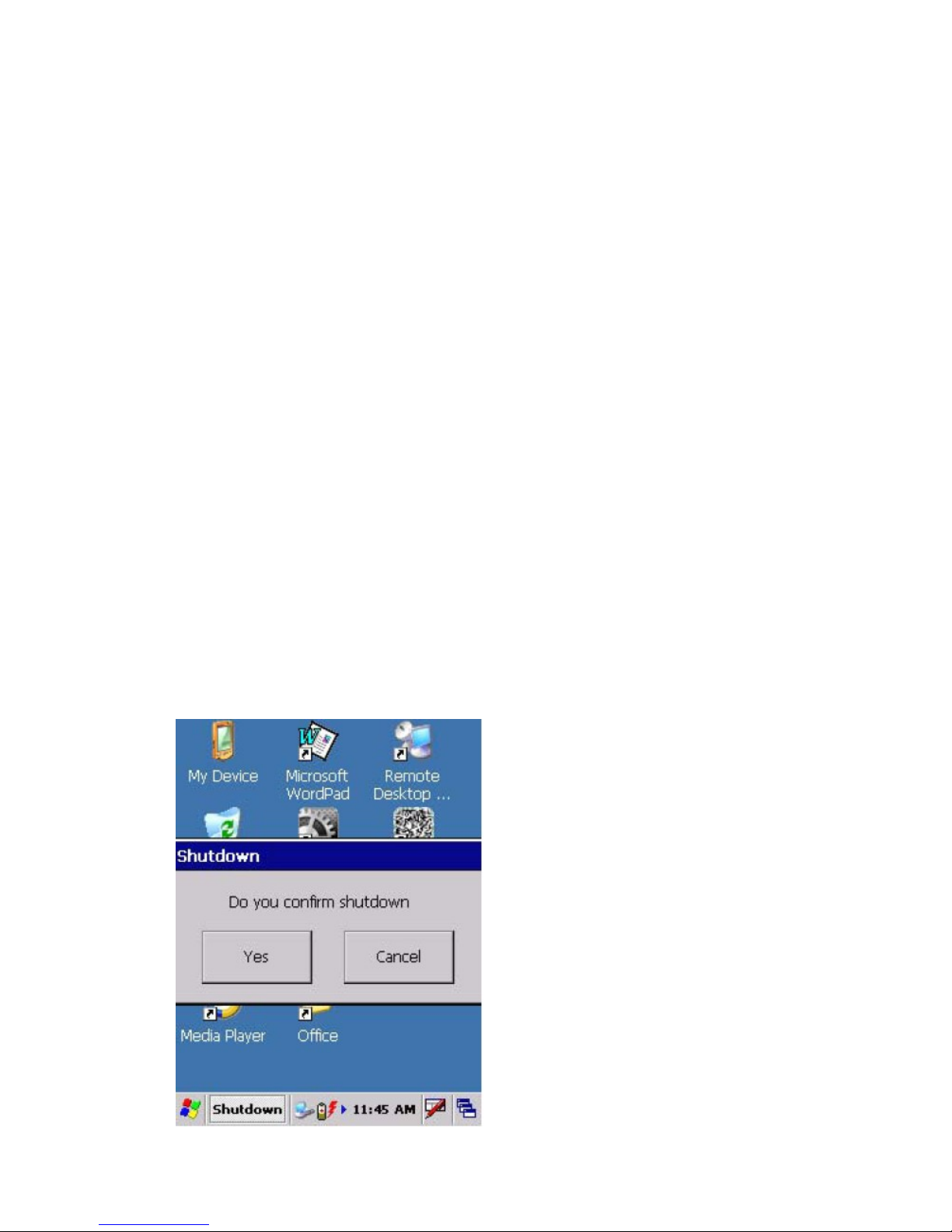

2. If you press and hold down the power button for more than three

seconds when the device is powered-on,the following dialog box is

displayed:

16

Select Yes to power off the device.

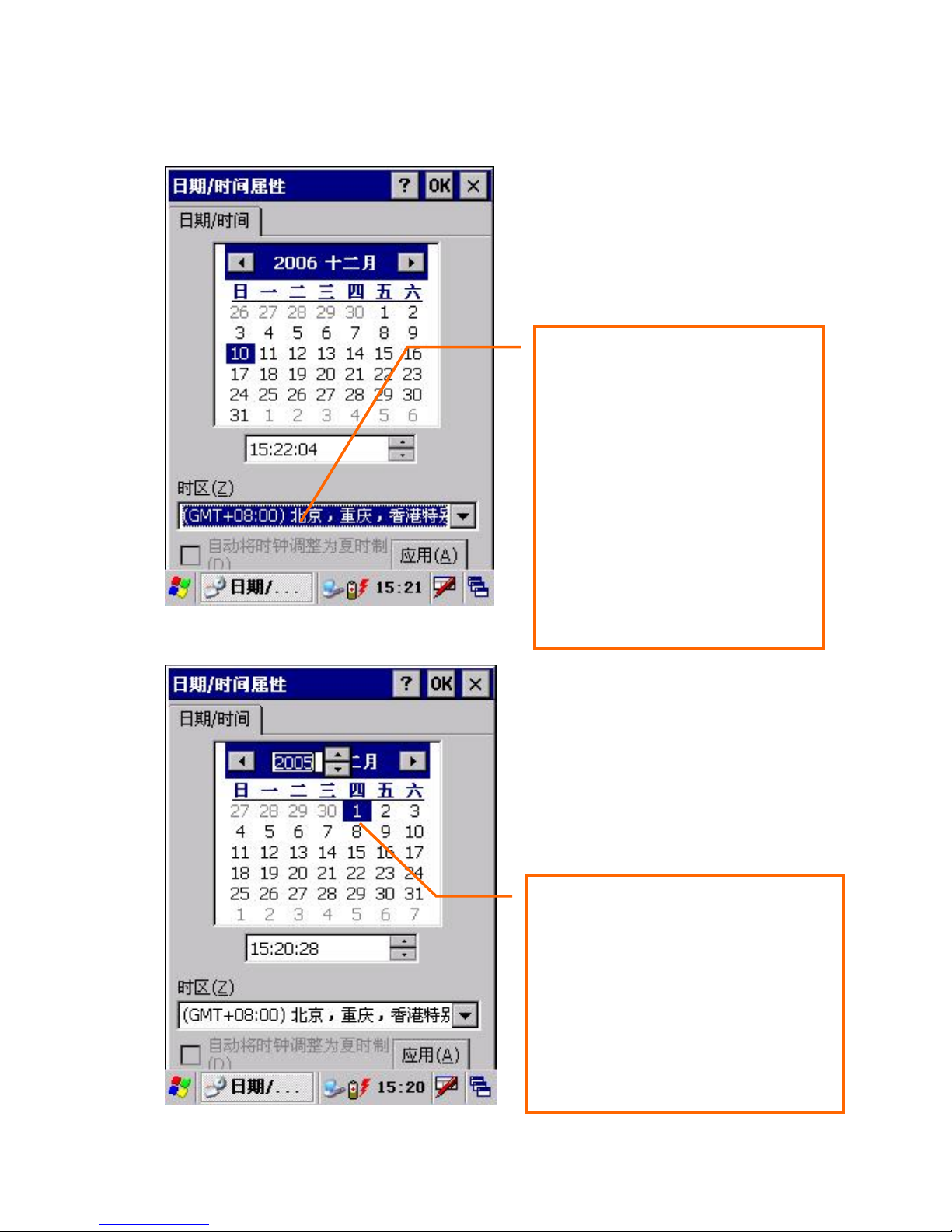

Changing Date and Time

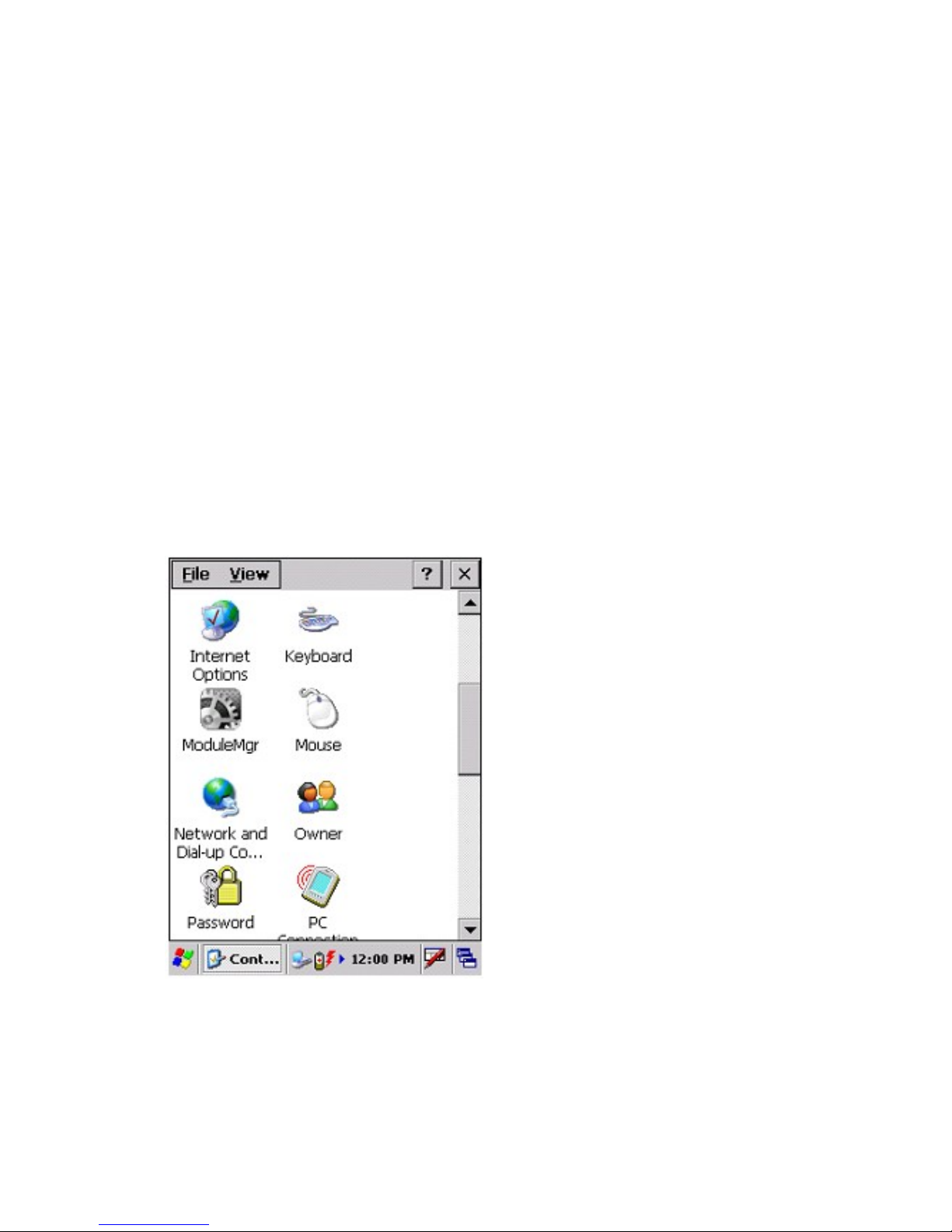

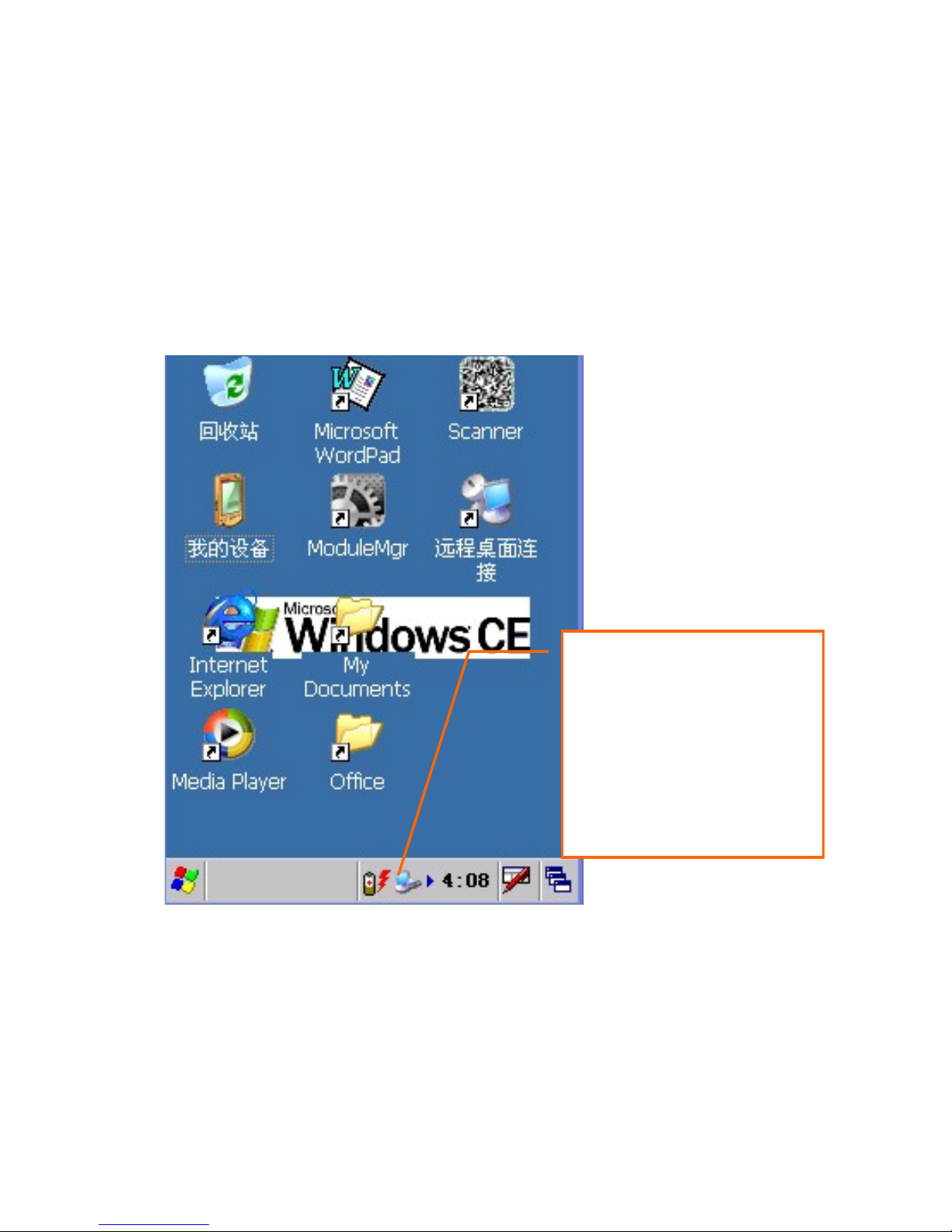

Click Date/Time on the control panel or double-click the time zone on

the taskbar to display the Date/Time Properties dialog box.

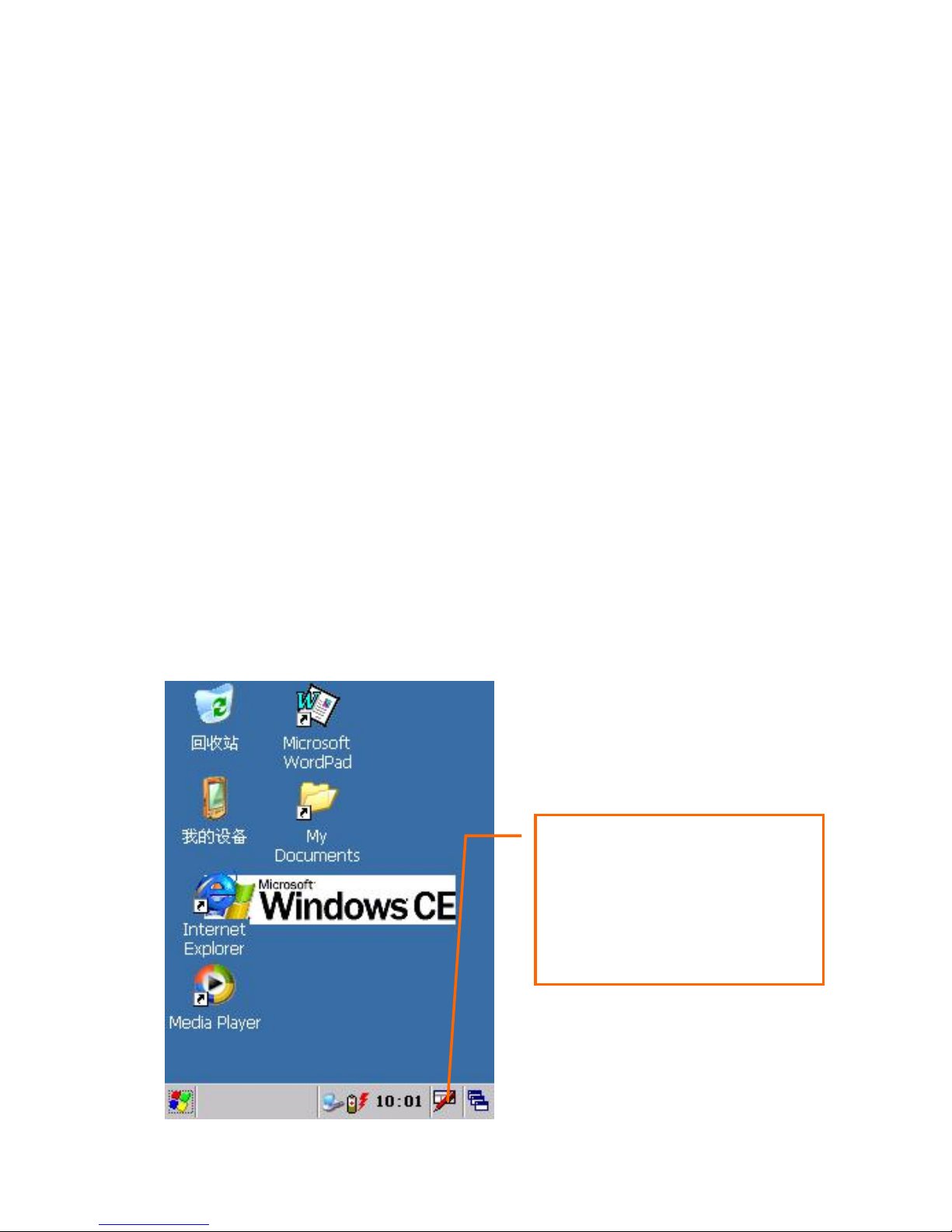

Double-click the time

zone on the taskbar

to display the

Date/Time Properties

dialog box.

17

Click the number indicating

the year to enter a year

directly or change the year

by clicking the up and down

arrows

Click the Time Zone

drop-down list to choose

the required time

zone.Click Apply on the

lower right corner of the

dialog box to save the

configuration.

18

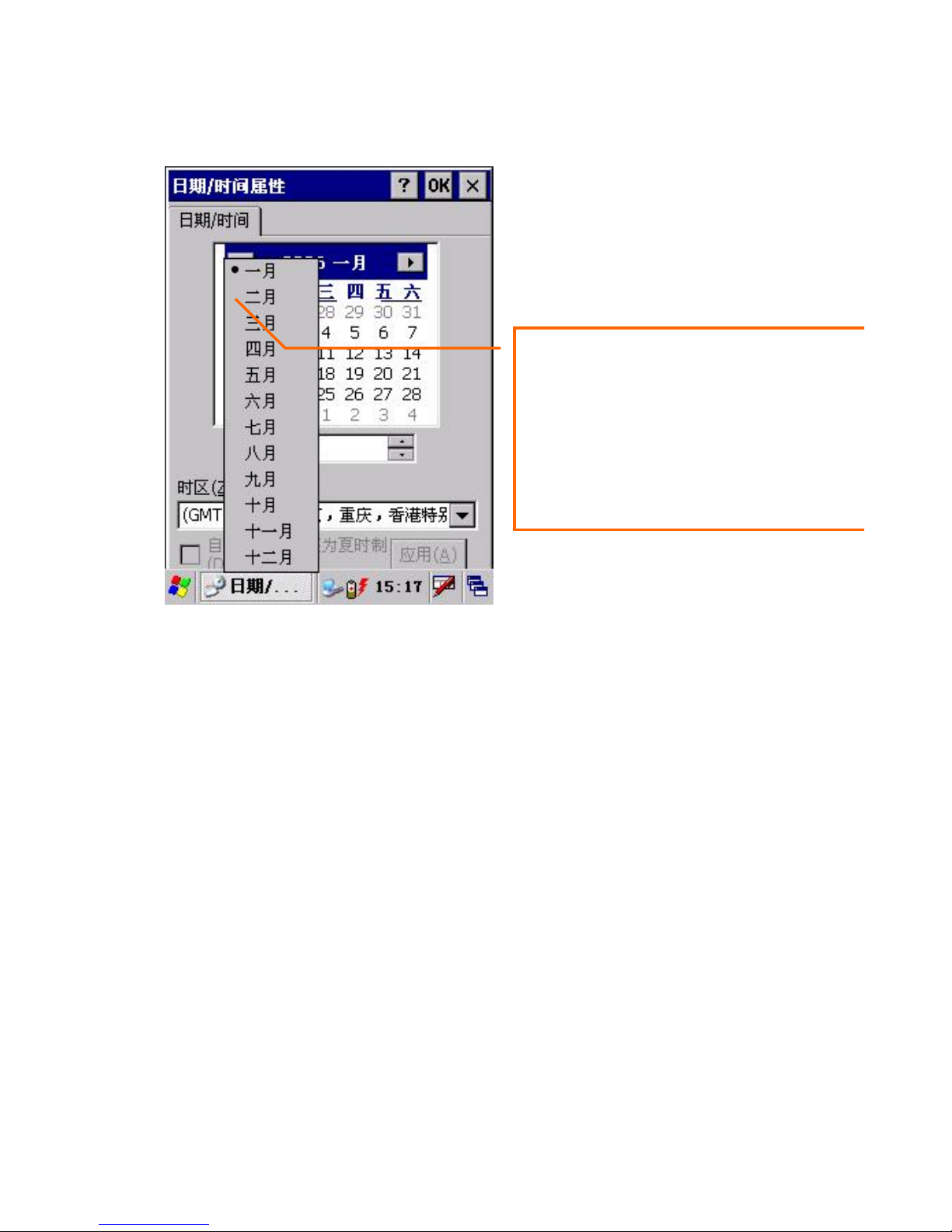

Click the charac

ters indicating a

month to change it in the

displayed menu or click the up

and down arrows to change the

month.

19

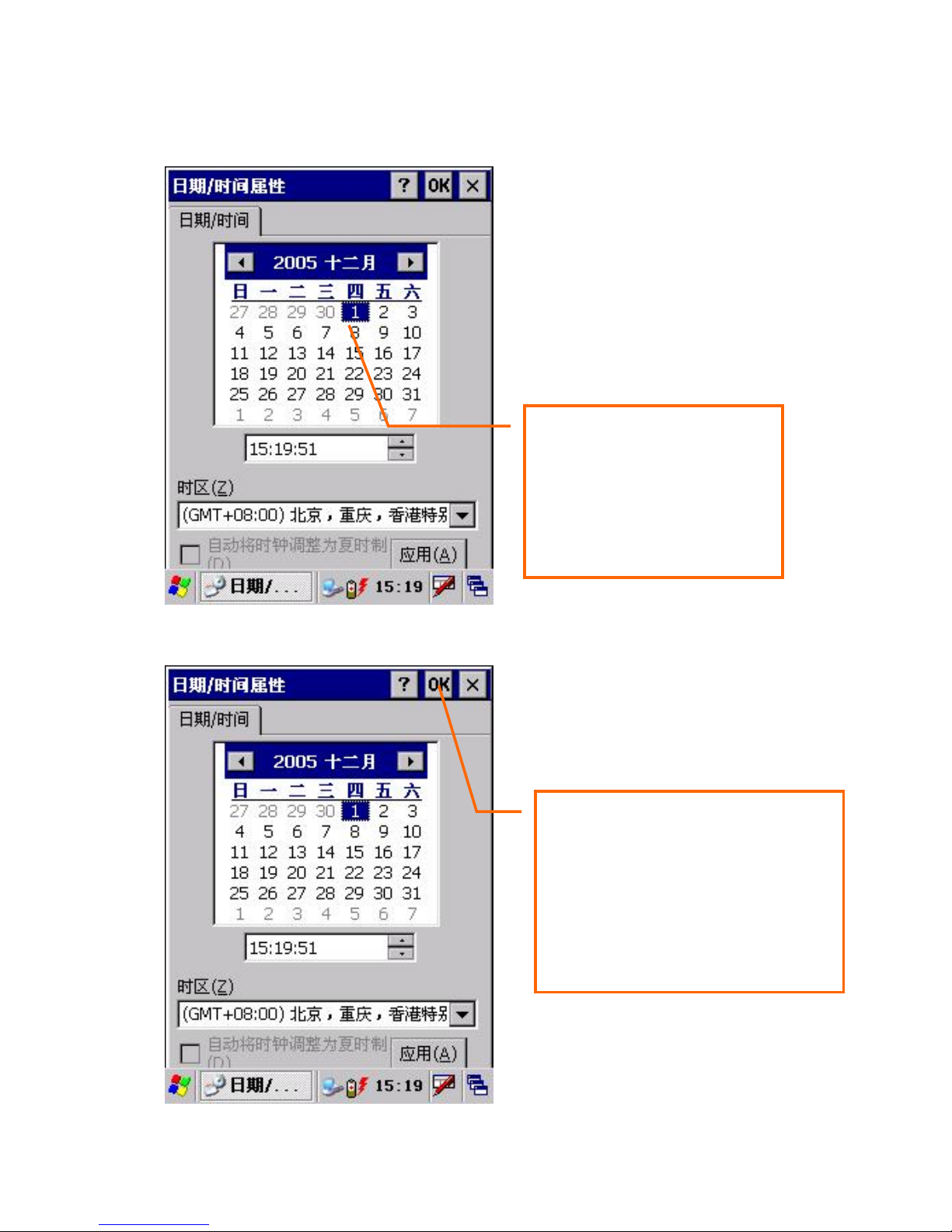

Click the mapping

number in the data

area to change the

date

After the configuration is

complete,click OK on the

upper right corner of the

dialog box to save the

configuration.

20

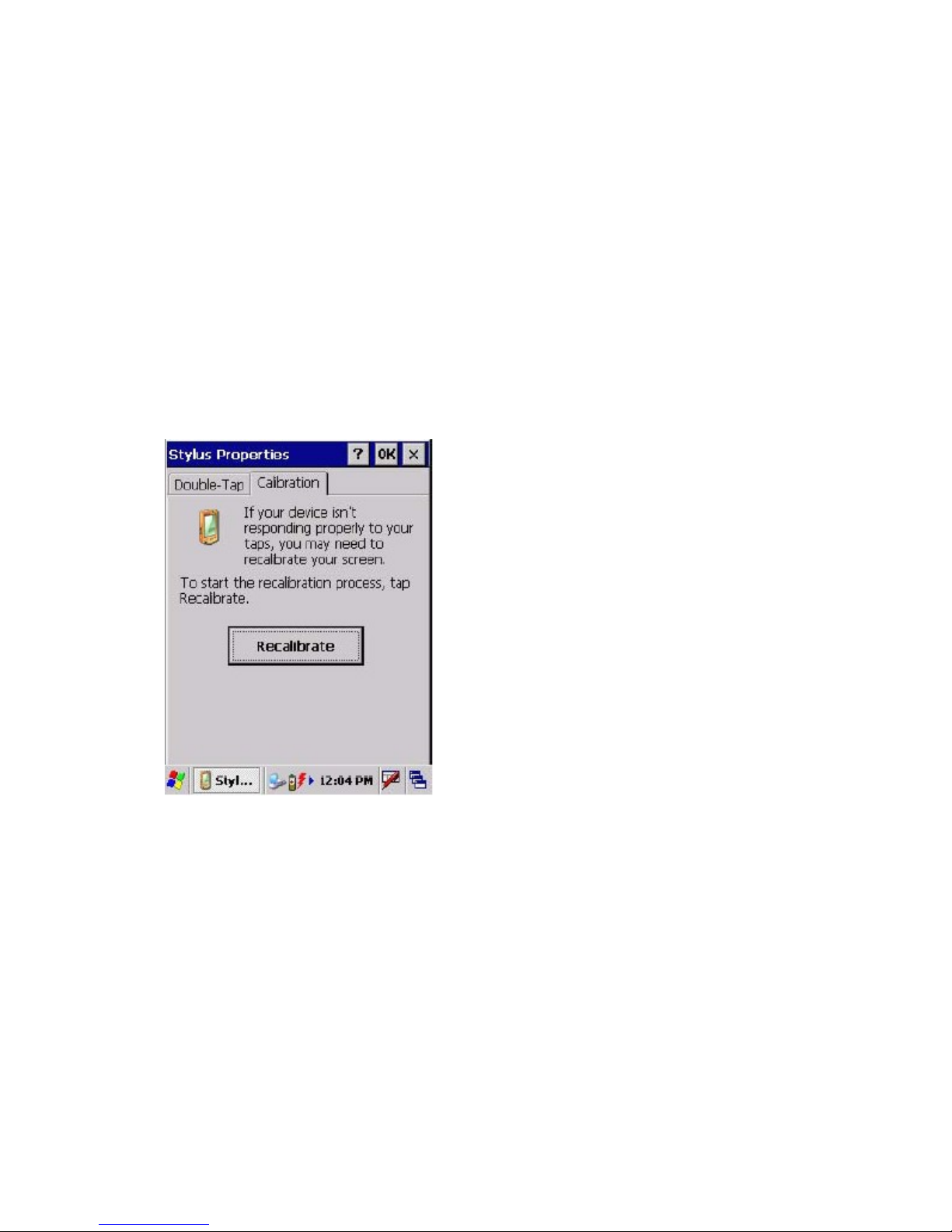

Callbrating the screen

After a period,the clicking point of the stylus may shift and you must

re-calibrate the screen.

Click the stylus icon in the control panel to display the Stylus Properties

Re-calibrate.The calibration screen is displayed.

21

Using the stylus

Clicking objects on the device screen is the basic operation and is similar
to using the mouse to click objects on a computer screen.

When the device is powered on, you can use the stylus to perform
multiple operations, such as starting an application, choosing a menu, or
selecting items in a dialog box.

You can double-click an icon on the screen to start an application.Just
like you drag the mouse to select text or move objects on a computer,
you can drag the stylus to select text or use the stylus to drag the scroll
bar.For many applications, after you press and hold down an object for
about two seconds by using the stylus,a context menu is displayed.

Note: You must use the dedicated stylus to perform operations on the

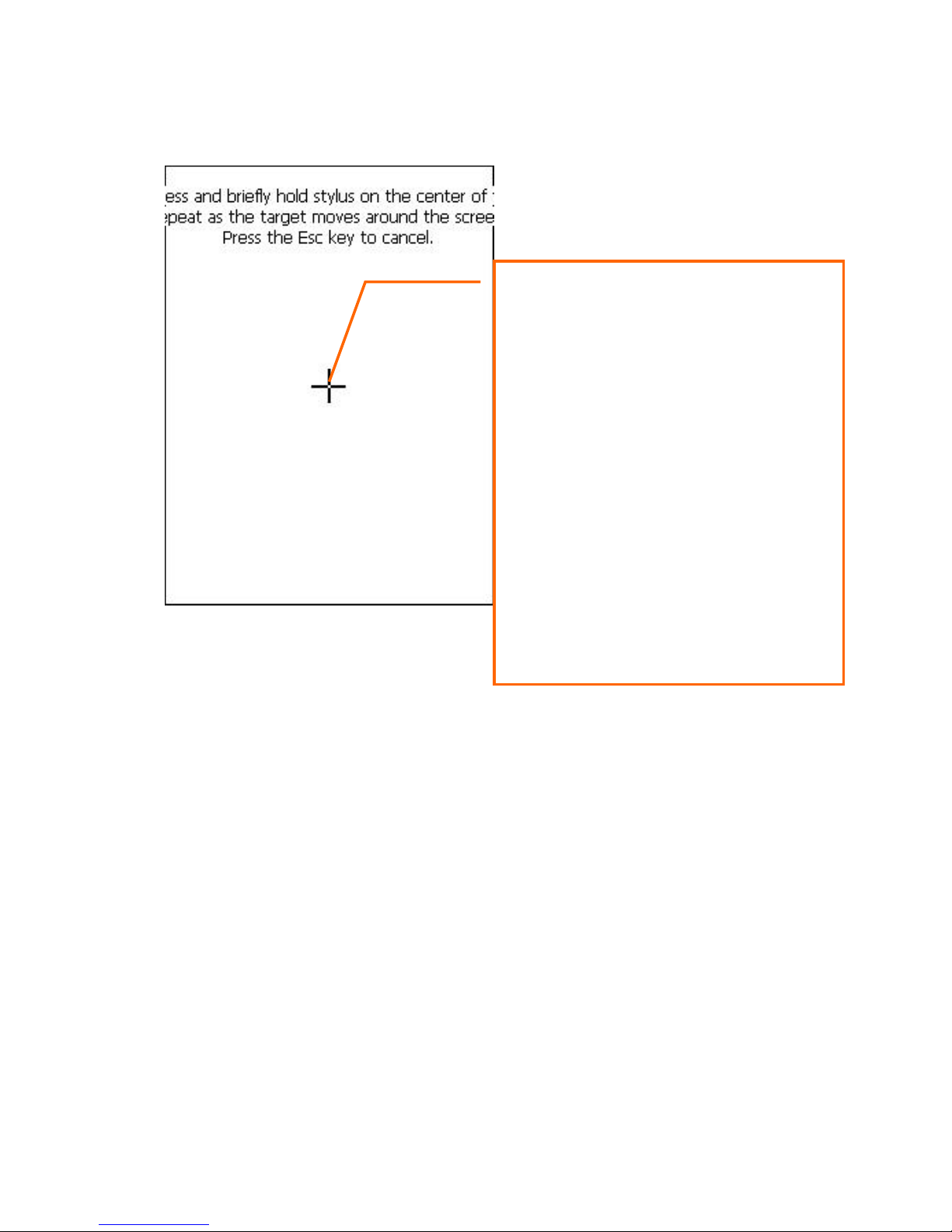

Use the stylus to click the

cross center on the

screen.After each click,the

cross is displayed in another

position.After you click the

cross center correctly for a

consecutive five times,the

cross disappears.At this

point,you can press the Enter

key to save the calibration.

22

screen. Donot use a ball pen, pencil or other sharp articles.

Entering text

You can enter text in the following ways:

˙Entering text by using the soft keyboard on the screen

˙Entering text by using the hard keyboard of the device

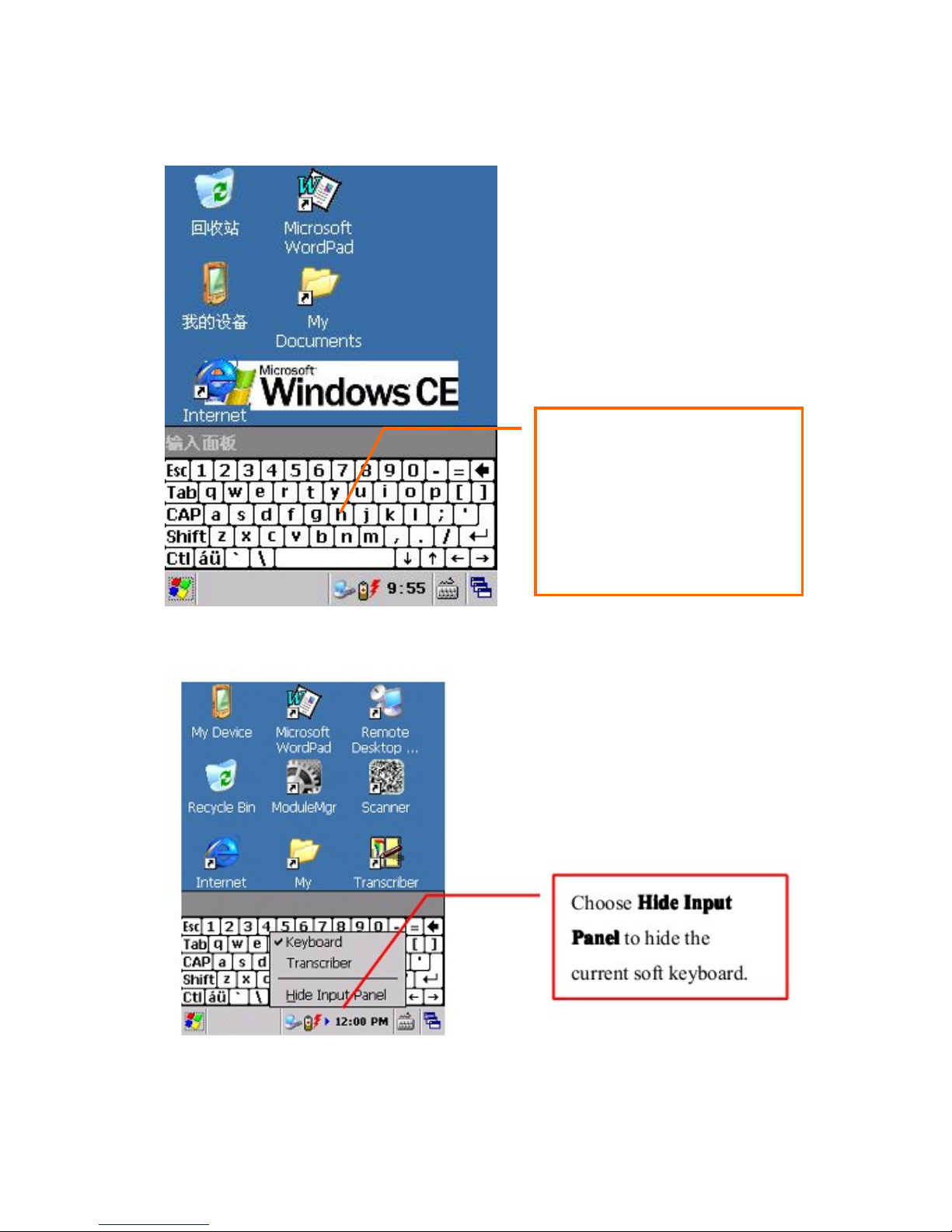

Entering text by using the soft keyboard

A soft keyboard is displayed in the lower area of the screen.You can use

different soft keyboards to adopt corresponding input methods to enter

letters, numbers or symbols.

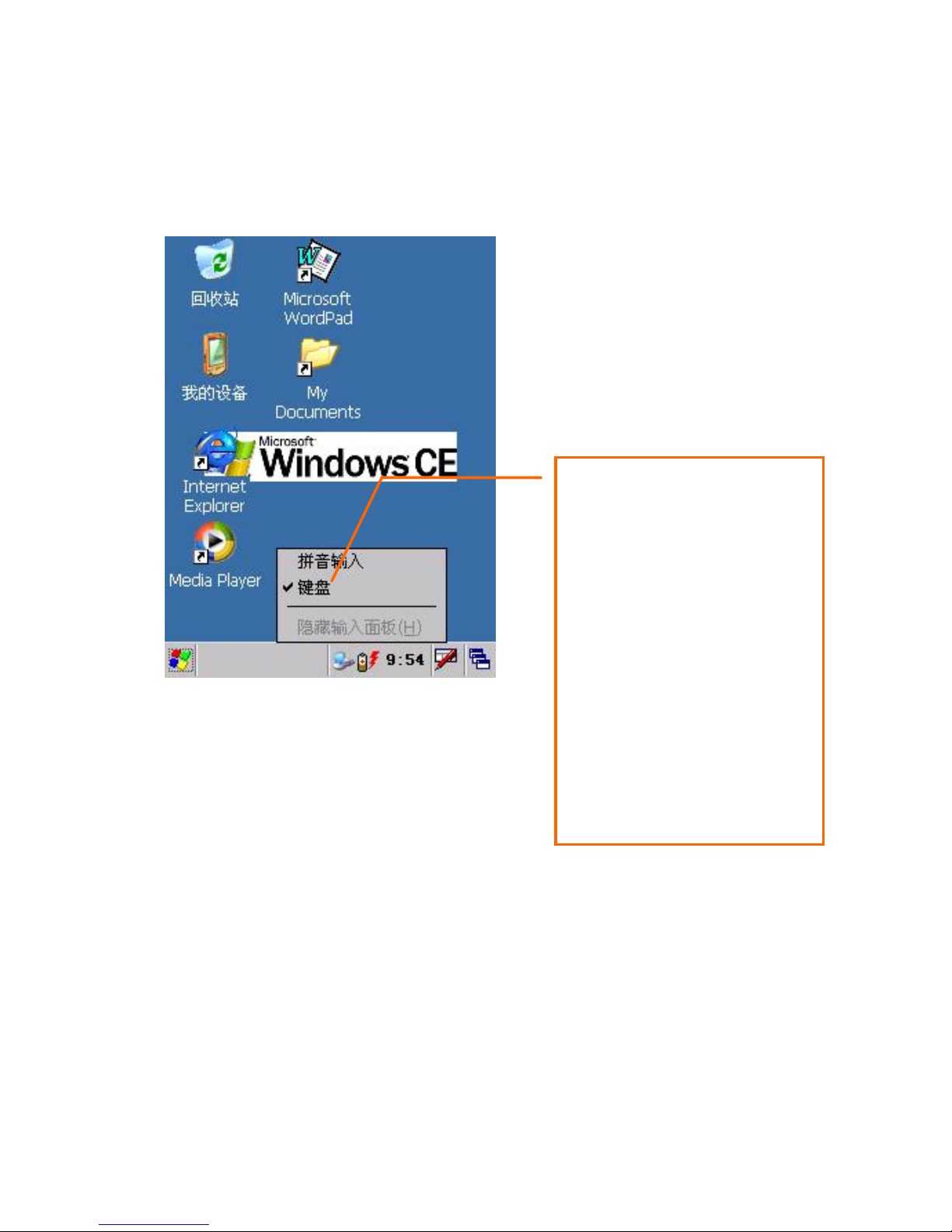

Use the stylus to
click the keyboard
icon on the taskbar

23

The list of available

soft keyboards is

displayed on the

screen.You can choose

the required soft

keyboard from the list.

Click Keyboard to

display the keyboard

input panel.

24

Use the stylus to click

the soft keyboard to

enter letters,numbers

or symbols

25

Managing Device Functions

Certain functions of the D6000 product are turned off when you use it
for the first time. You can start the required functions by using the device
function manager ModuleMgr.

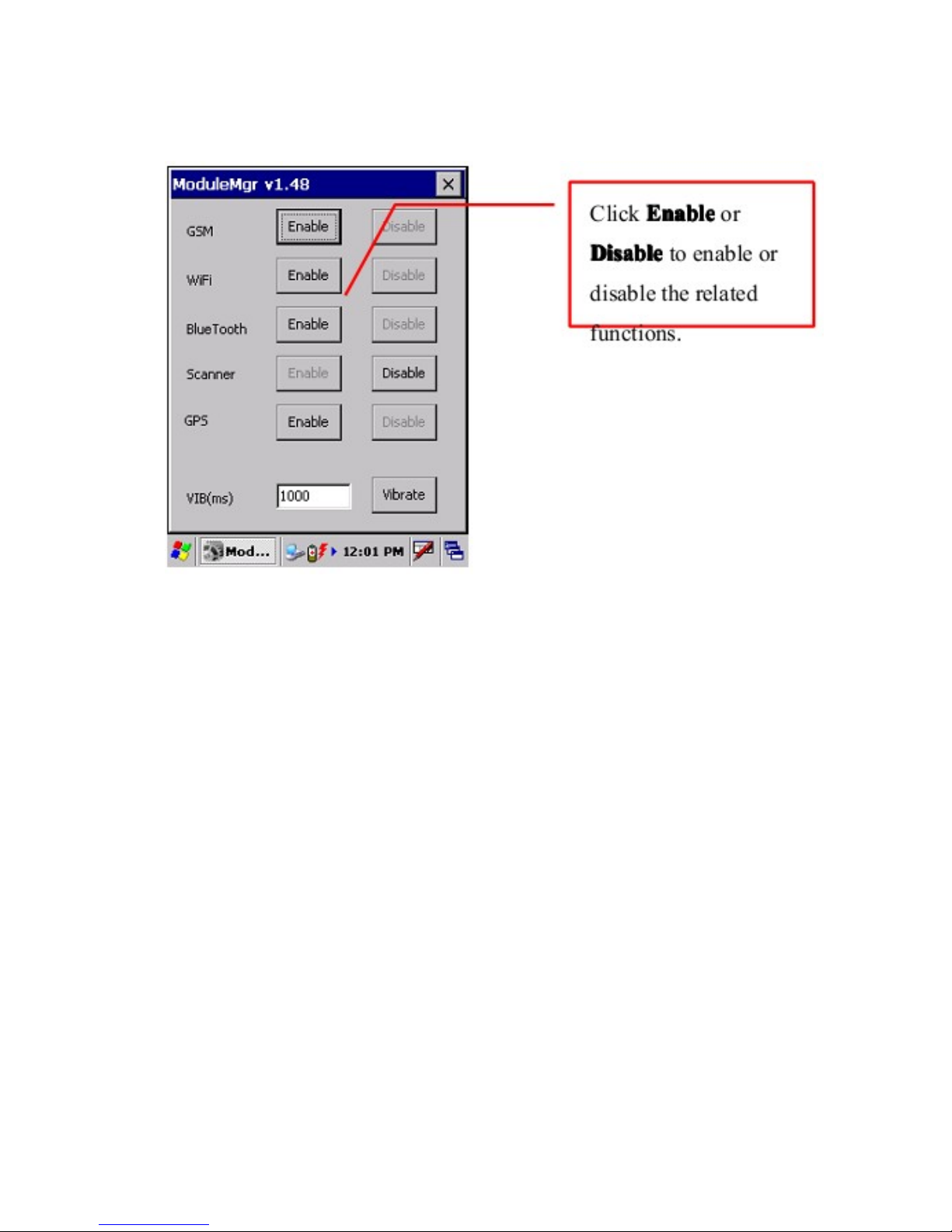

You can start the device function manager by double-clicking the
ModuleMgr icon on the desktop or control panel.

26

When you enable/disable a certain function, the system retains the
configuration and enables/disables the function automatically after next
power-on.

Scanning Barcodes

You can use the ModuleMgr or Scannersetting program to start the
scanner, and then press the orange barcode scanning key on the master
keyboard or the left/right key to scan barcodes.

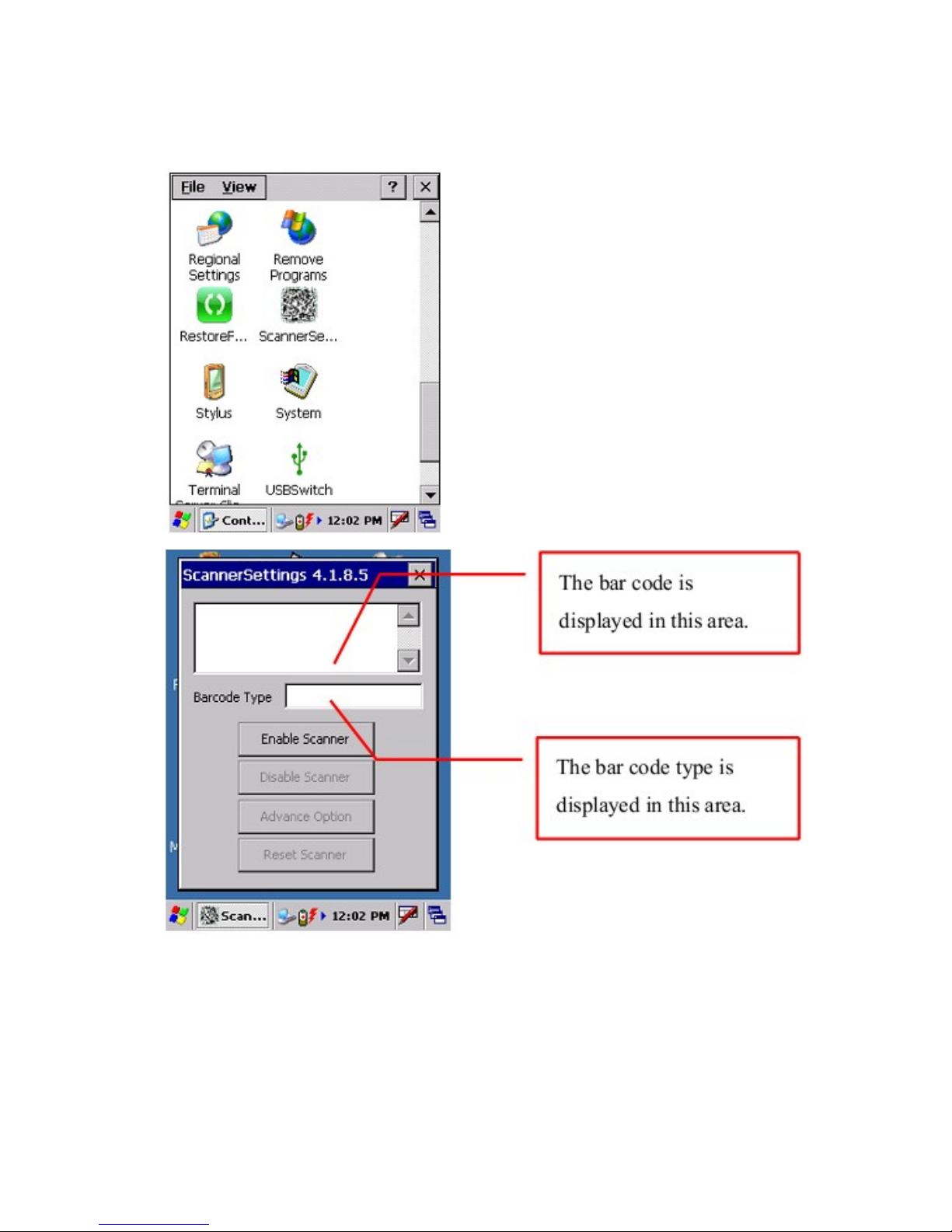

You can start the ScannerSetting program by double-clicking the
Scannersetting icon on the desktop or control panel.

27

Connecting to a PC

You can connect the device to a PC by using a data line if Microsoft
ActiveSync 4.5 (Window 2000/XP/2003) or Windows Mobile Device
center 6.1(Windows Vista/2008/7) is installed on the PC. You can
download Microsoft ActiveSync 4.5(Window 2000/XP/2003) or

28

Windows Mobile Device center 6.1(Windows Vista/2008/7) from

www.Microsoft.com.

Restarting the Device

You may need to restart the device to recover normal running
occasionally (when more applications are running than in normal cases
or when certain software runs abnormally).The device can be restarted in
the following two modes.

1. Warm boot

If you restart the device in warm boot mode,ongoing items are stopped
before the device restarts.Records and data in the memory are
retained.Execution method:Use the stylus to click the reset hole and
release it immediately.

2. Cold boot

If you restart the device in cold boot mode, the power is cut off
forcedly.Ongoing items are terminated and the device restarts.Data in the
memory is deleted.

Execution method: Press and hold down FN KEY,use the stylus to click
the reset hole,and then release FN and the reset hole simultaneously.

Restoring Default Settings

In some cases, you may need to delete certain settings.You can delete
data in the memory and registry by restoring the default settings.

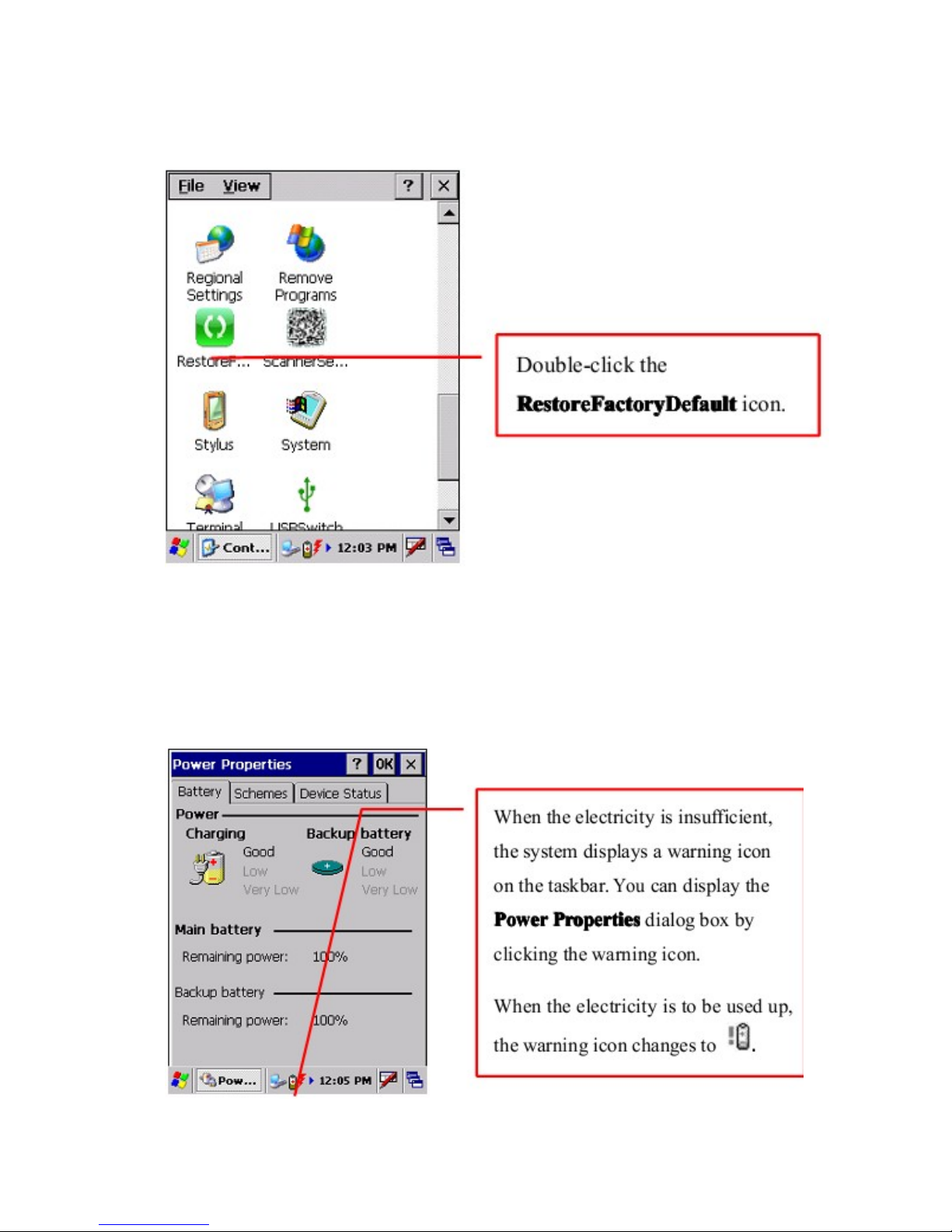

You can restore the default settings by double-clicking the
RestoreFactorydefault icon and enter 1234.After the operation is
successful, the device automatically restarts.

29

Check the Remaining electricity

You can click the power icon on the control panel to display the Power
Properties dialog box.

30

Precautions for using the battery

Certain files and information may be stored in the memory.If the battery
runs out; these files and information are lost.Therefore, providing power
to the device constantly is very important.

In general cases, the device can work for more than eight hours after it is
fully charged.When the electricity is reduced to a certain level, the
system indicator blinks and a warming indicating electricity
insufficiency is displayed.If you continue to use the device, the device
switches to sleep mode or is turned off automatically.

To extend the battery life, you must follow the following advices:

1. Minimize the battery charge and discharge times and charge the
battery only when the system displays the electricity insufficiency
warming.

2. Prevent over discharge in daily use and charge the battery
immediately when the system displays the electricity insufficiency
warning.Over discharge shortens the battery life.

3. Prevent overcharging in daily use and stop charging when the
battery electricity exceeds 95%.You must calculate the charging
time correctly when a seat charger is used.Do not charge a
fully-charged battery because over charging shortens the battery
life.

4. Charge and discharge the battery completely when you use the
battery for the first time and every three months.

5. If the battery is not used for a long time, you must remove the
battery from the device and retain 50% of electricity in the battery.

31

Chapter 4 Advanced Settings

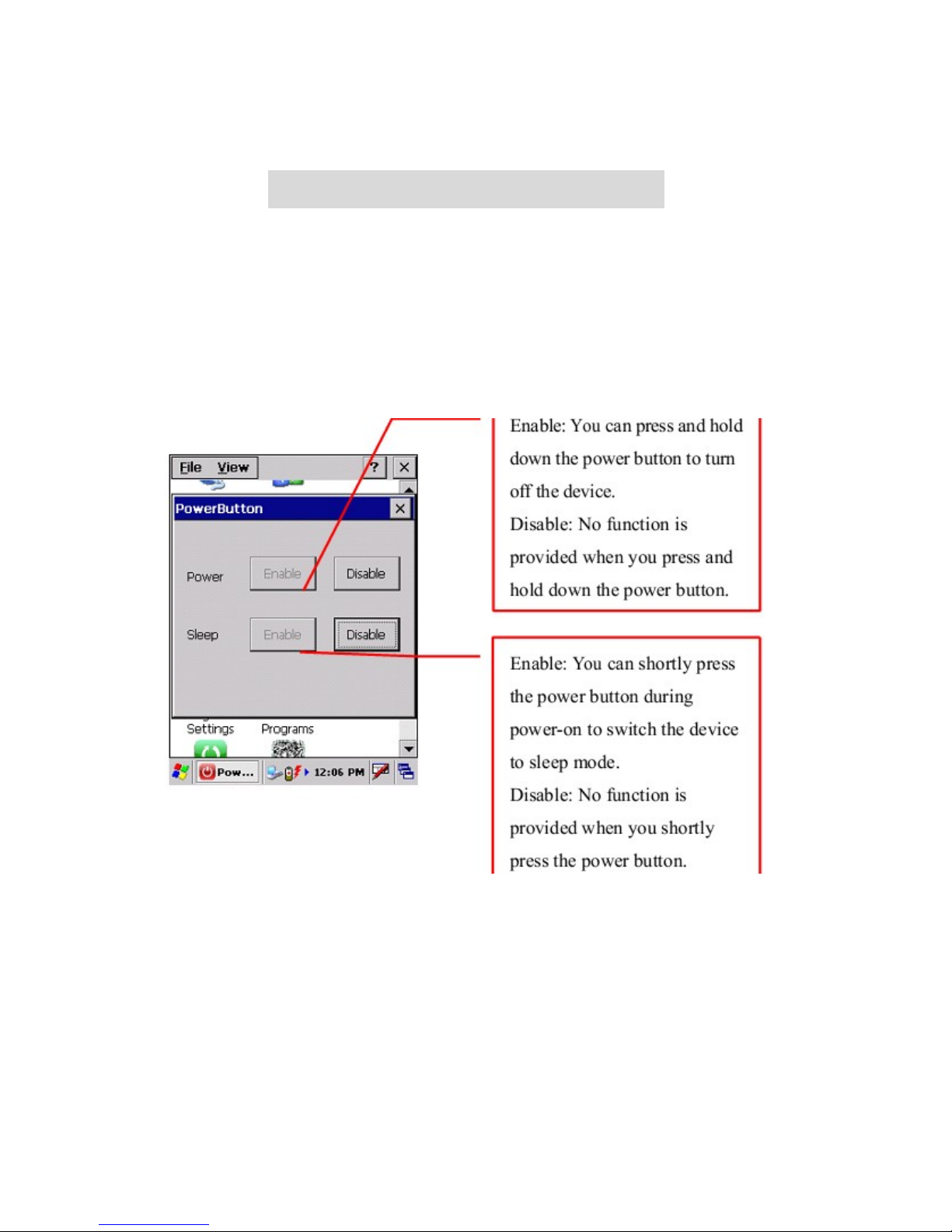

Setting the Power button function

You can click Powerbutton icon on the control panel to set the power

button function

Setting the GPRS Network

Before using the GPRS,you must ensure that the GSM function is

enabled.

You can start the GSM function by using the device function manager

ModuleMgr.

32

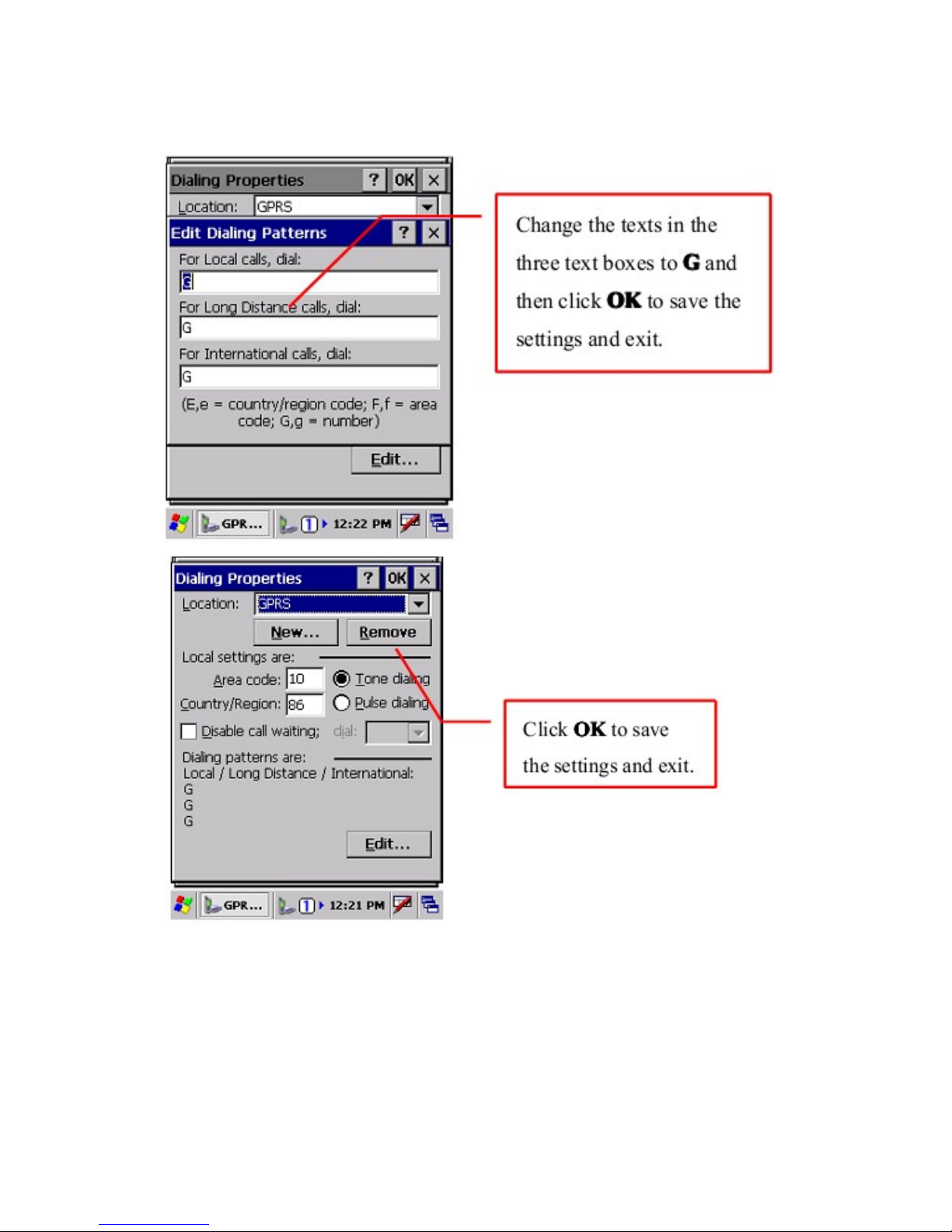

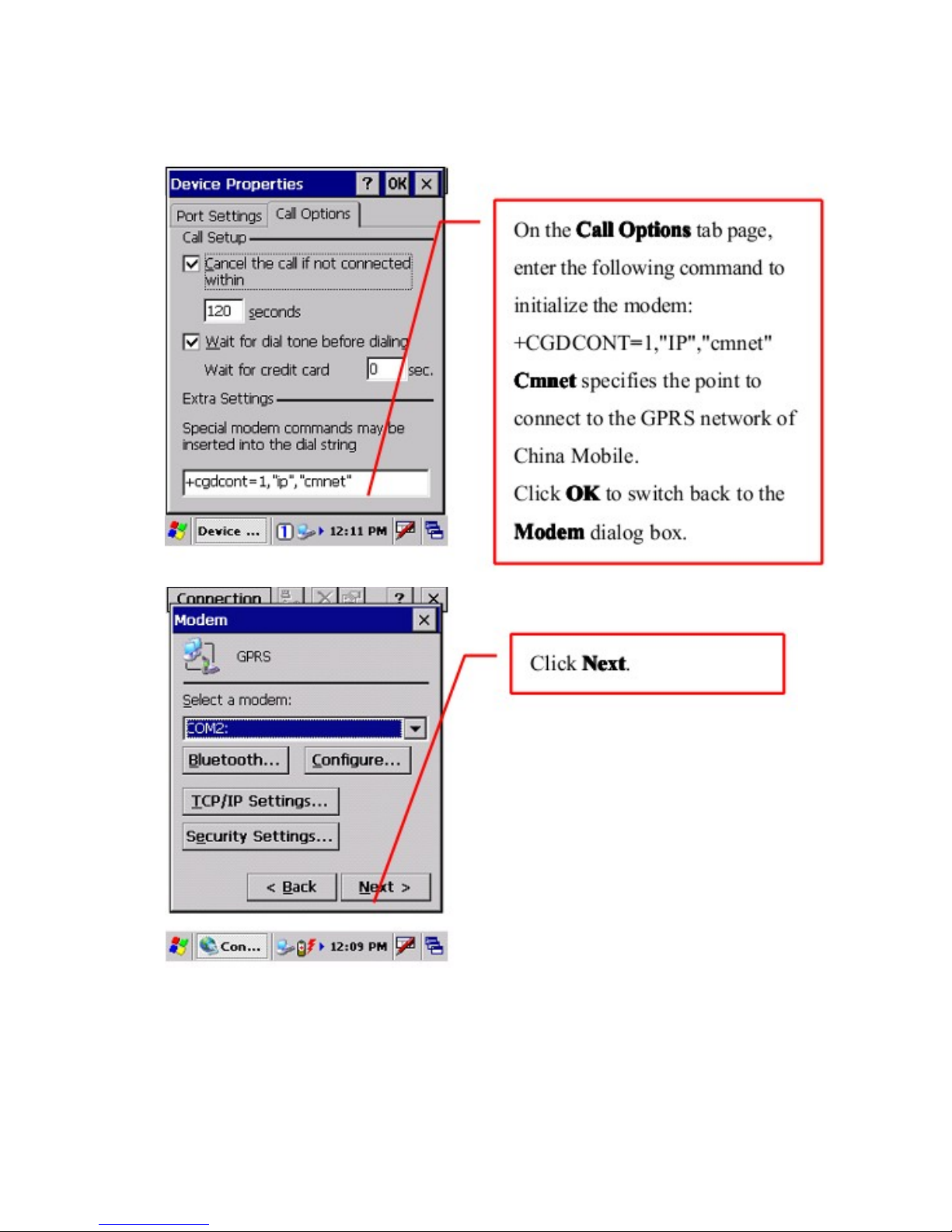

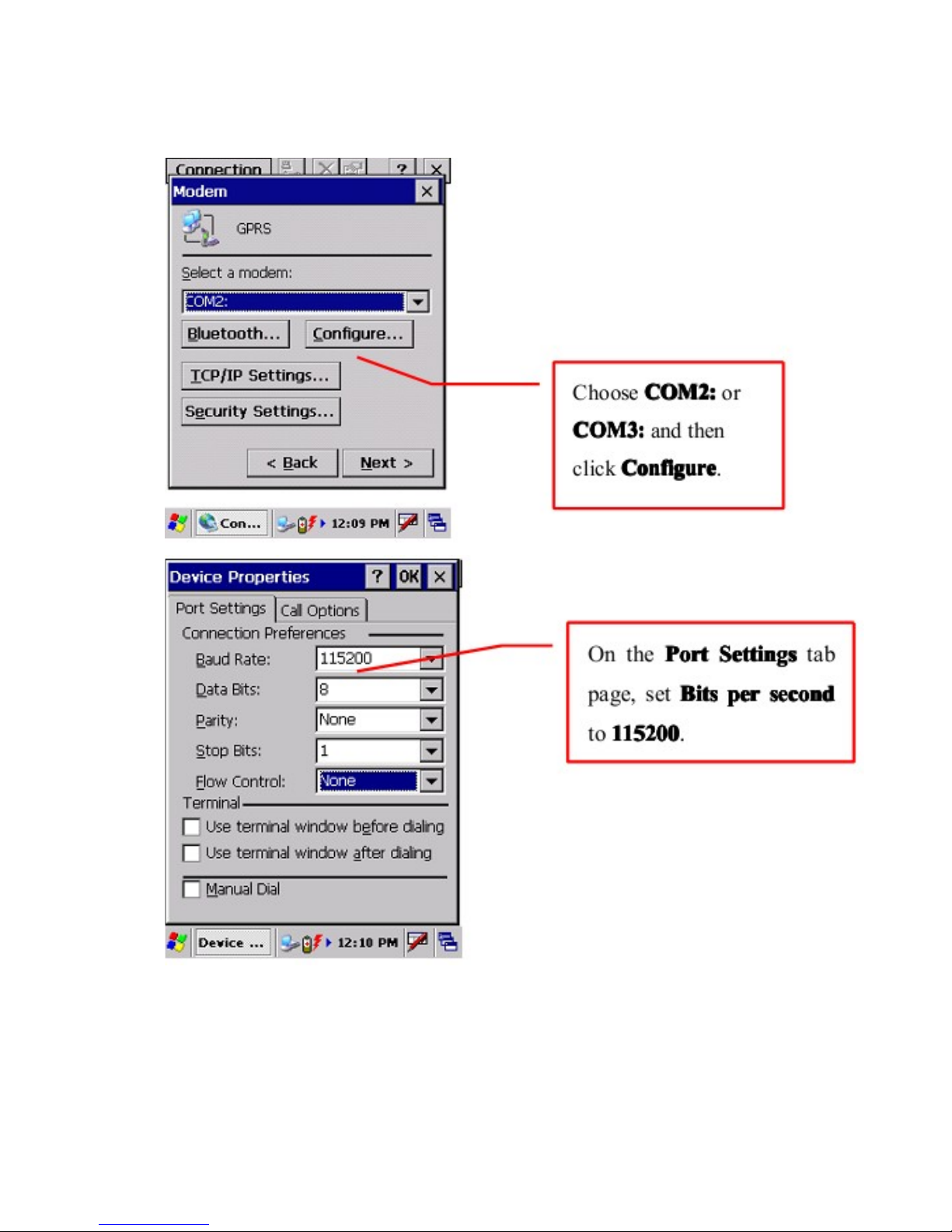

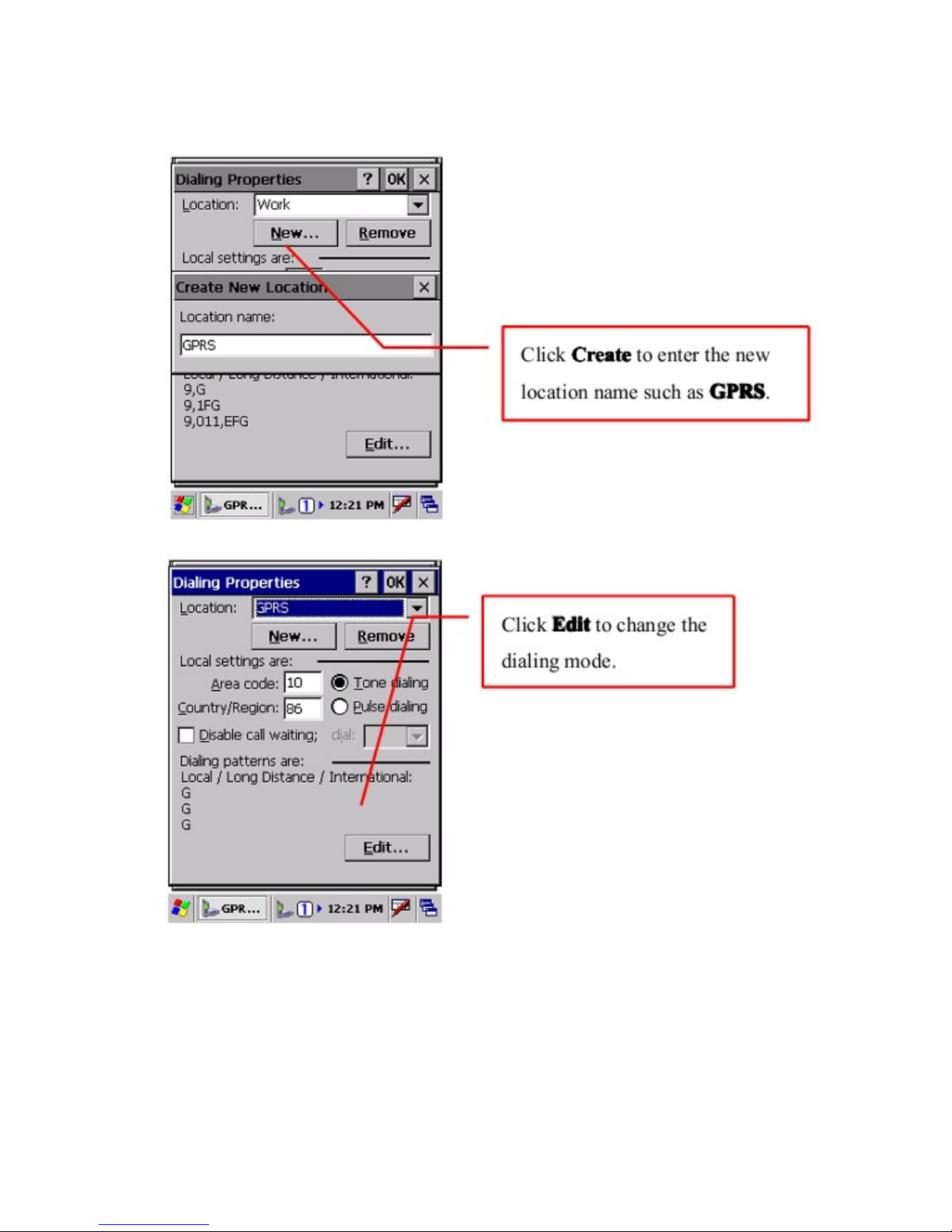

You can create the GPRS connection in the following two ways:

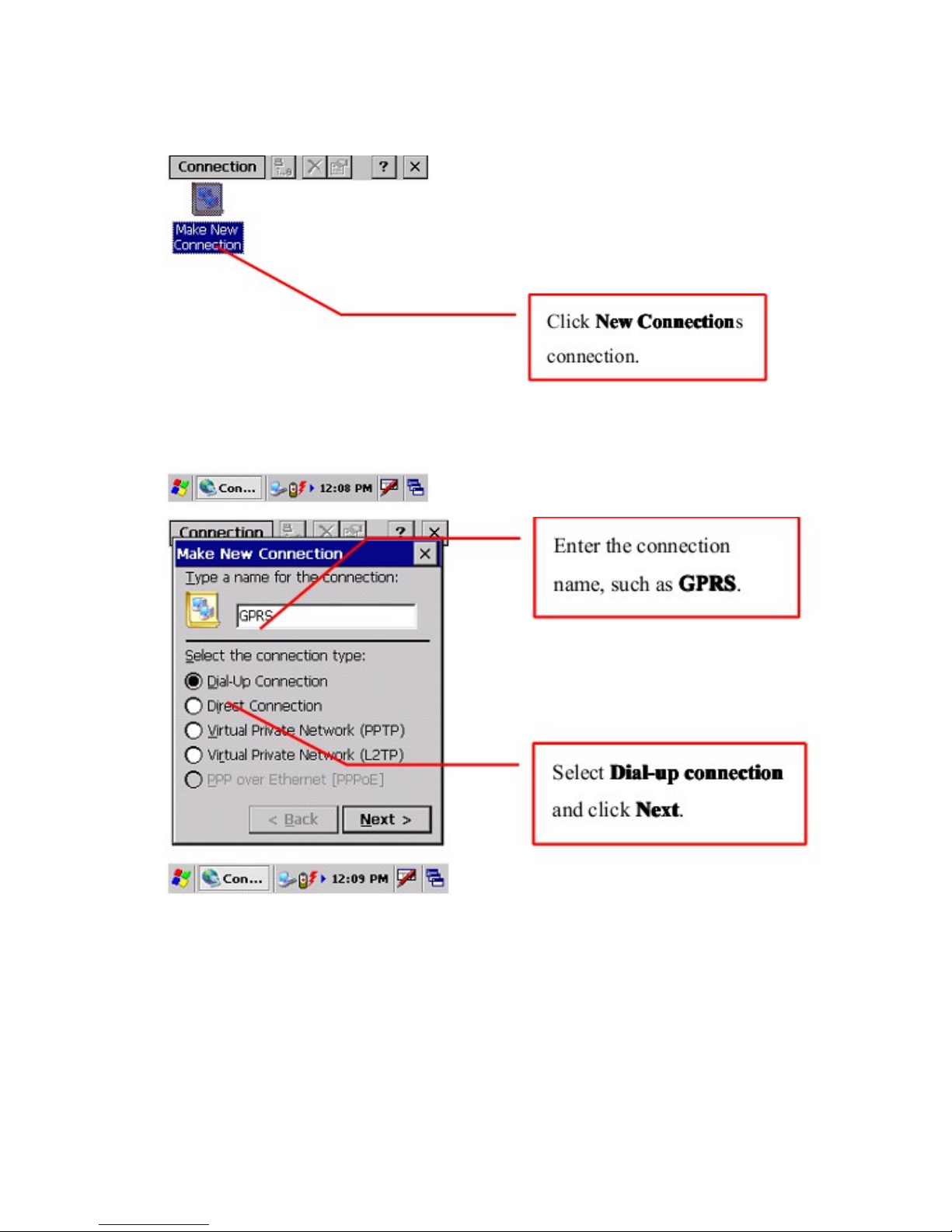

1. Creating the connection manually.

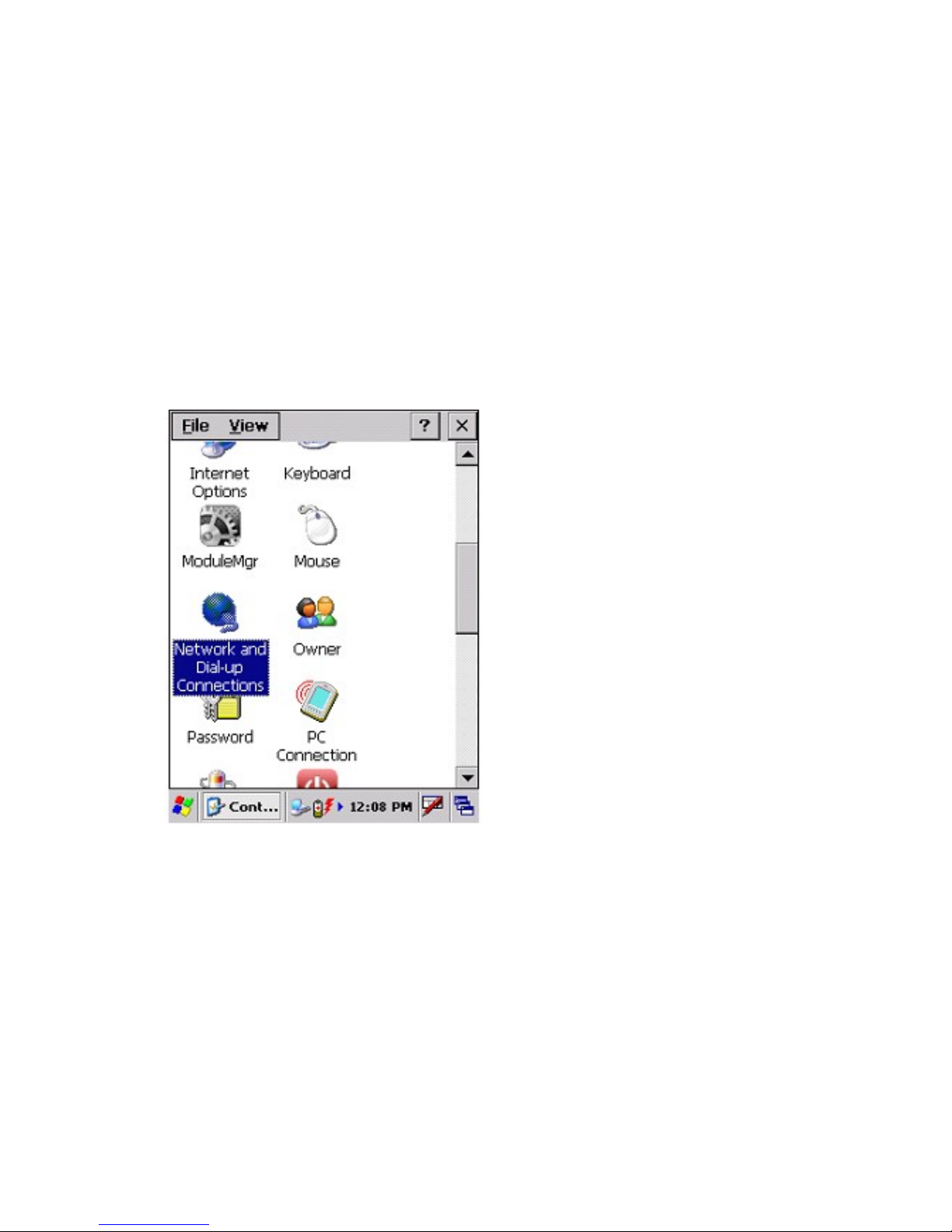

Double-click the Network and Dial-up connection icon on the control

panel to enable the network and the dial-up connection manager.

33

34

35

36

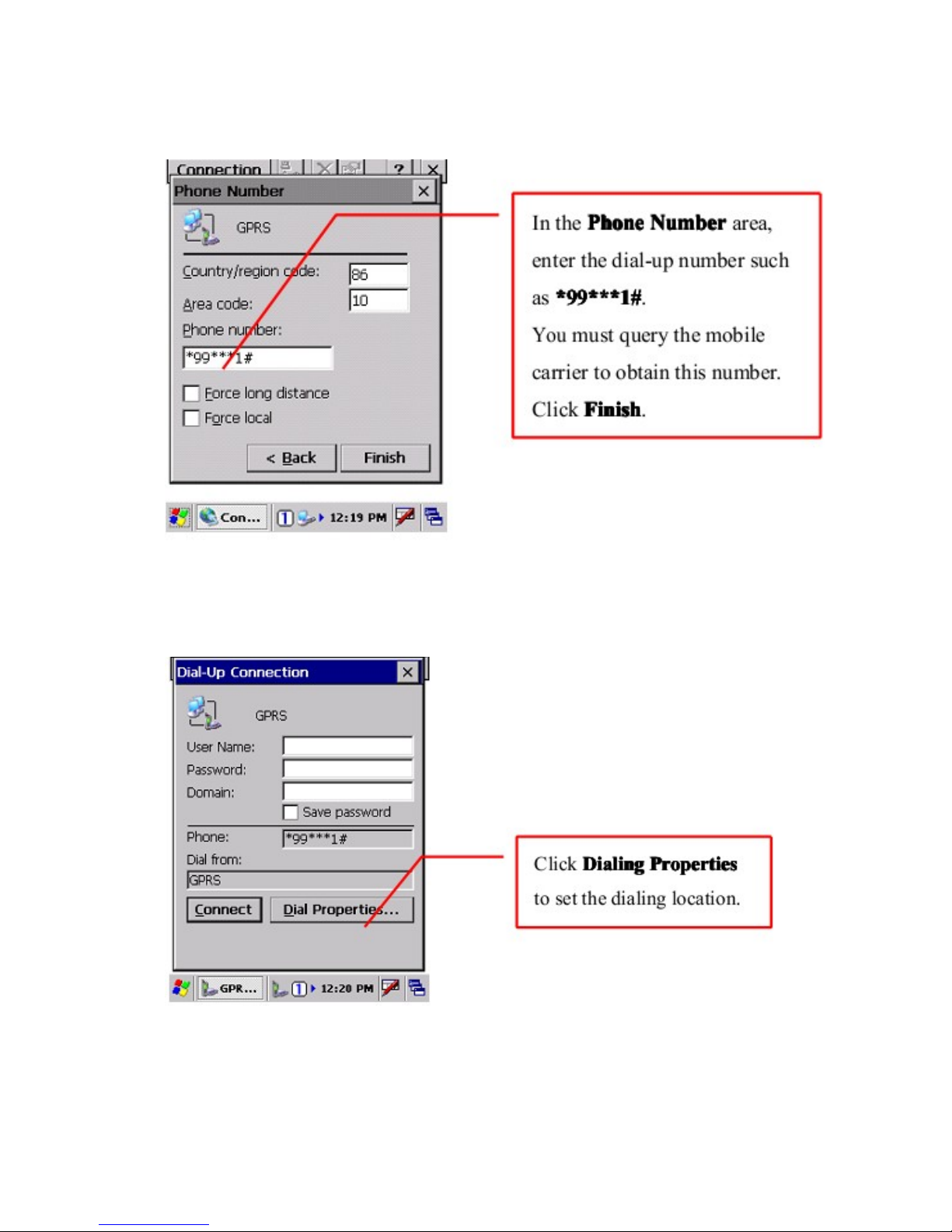

Double-click the created GPRS connection to display the Dial-up

Connection dialog box.

37

38

At the point, the GPRS connection is created successfully.

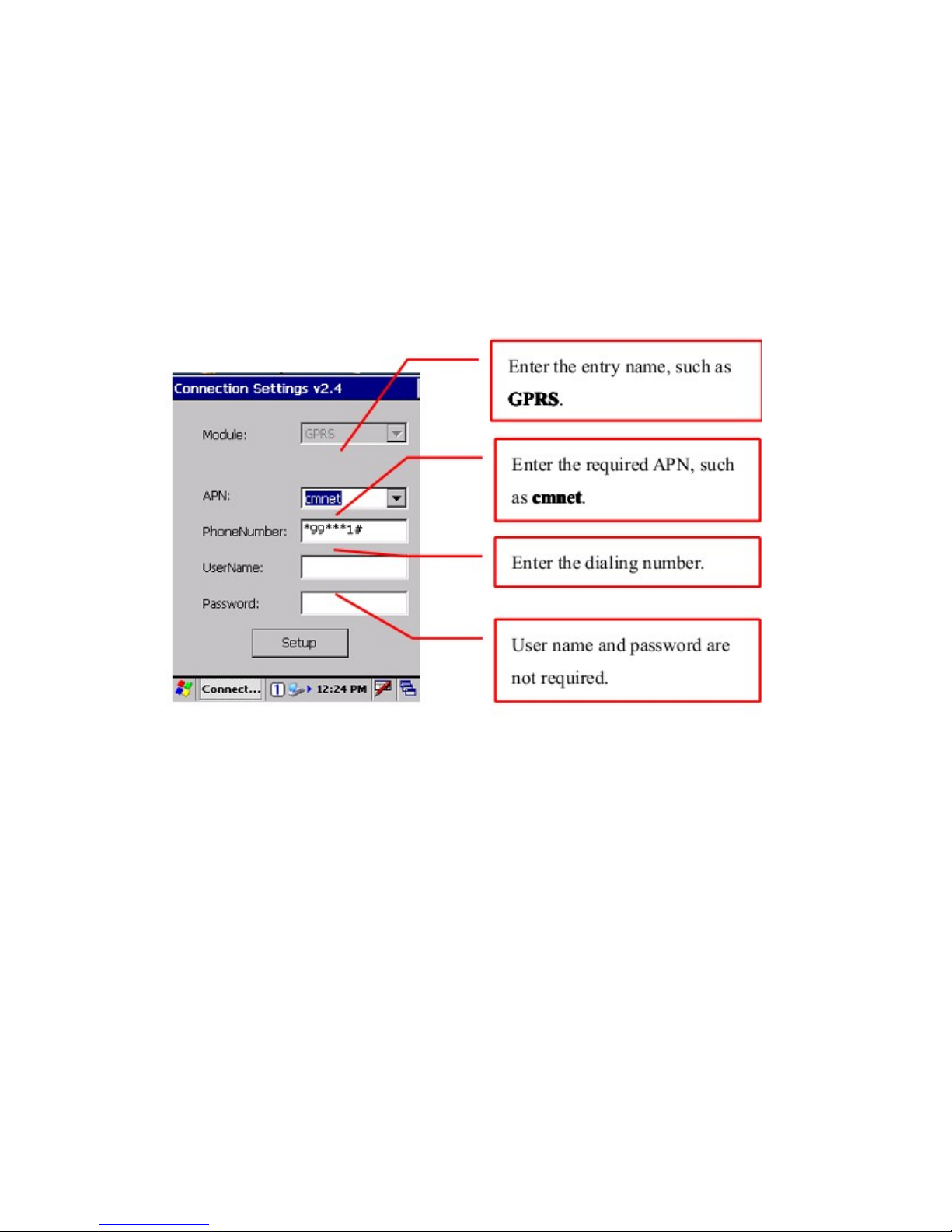

2. Creating the connection automatically.

To simplify the setting of GPRS connection, the device provides the

39

GPRS setting tool to set the connection quickly.

Choose My Device>windows and click the GPRS setting icon to

enable the GPRS setting tool.

Setting the WI-FI Network

Before using the WIFI, you must ensure that the wifi function is enabled.

You can start the wifi function by using the device function manager

ModuleMgr.

You can query the network administrator for the wireless network

information, such as SSID, encryption type, authentication mode, and

cipher key.

40

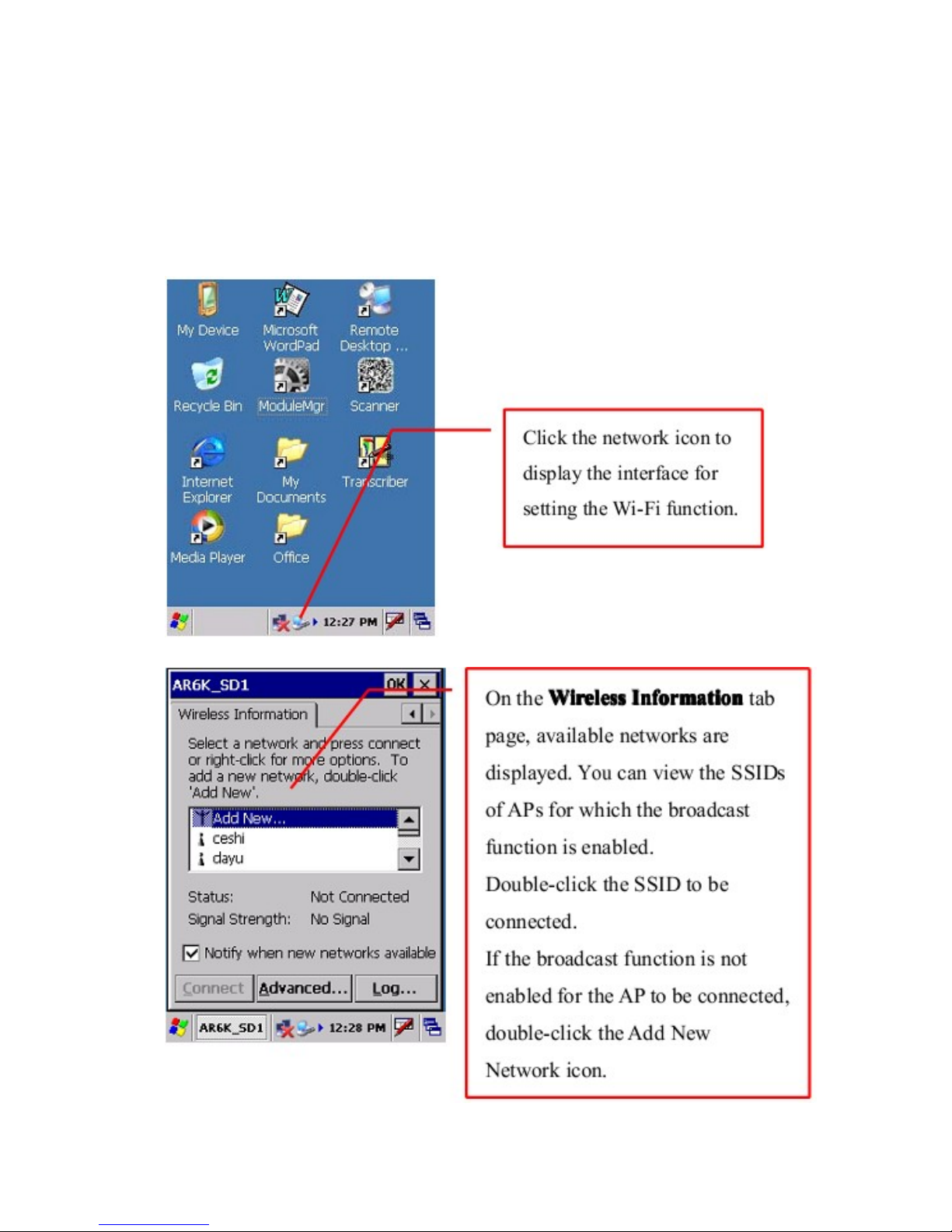

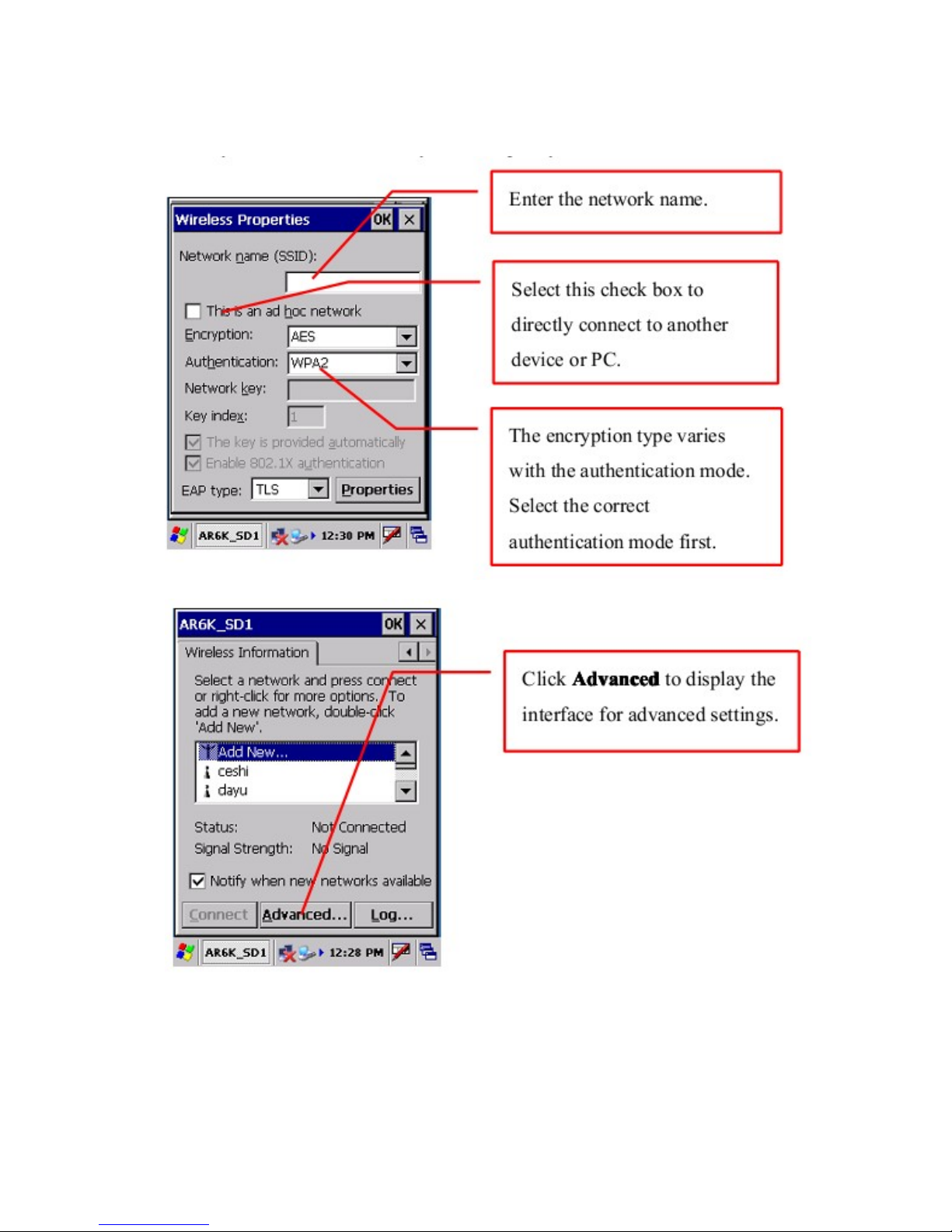

Click the network icon on the taskbar to display the interface for setting

the wifi and set the wifi as follows:

41

When you add an available network, the system automatically detects

the encryption type and authentication mode of the added network.

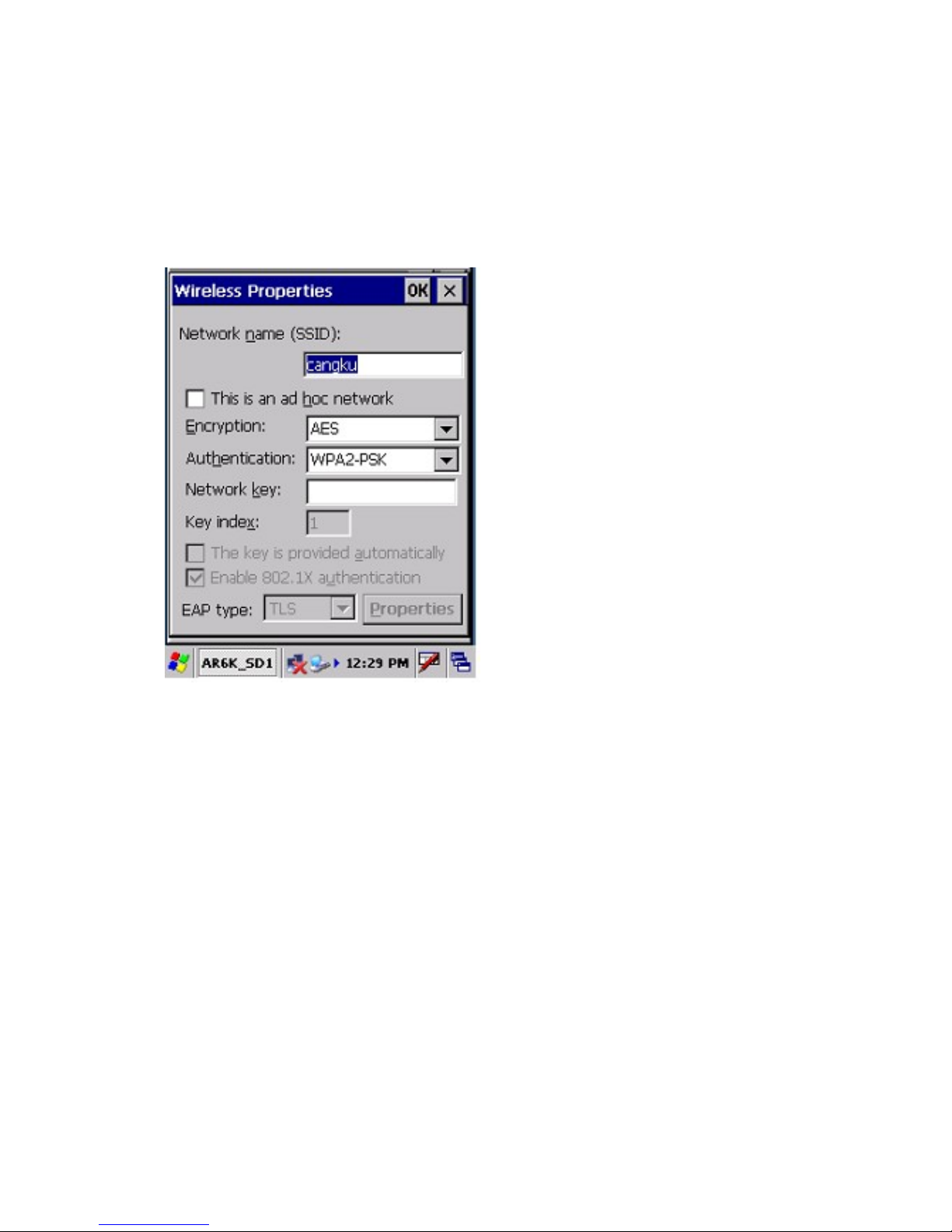

When you add a new network, you must specify the network

information.

42

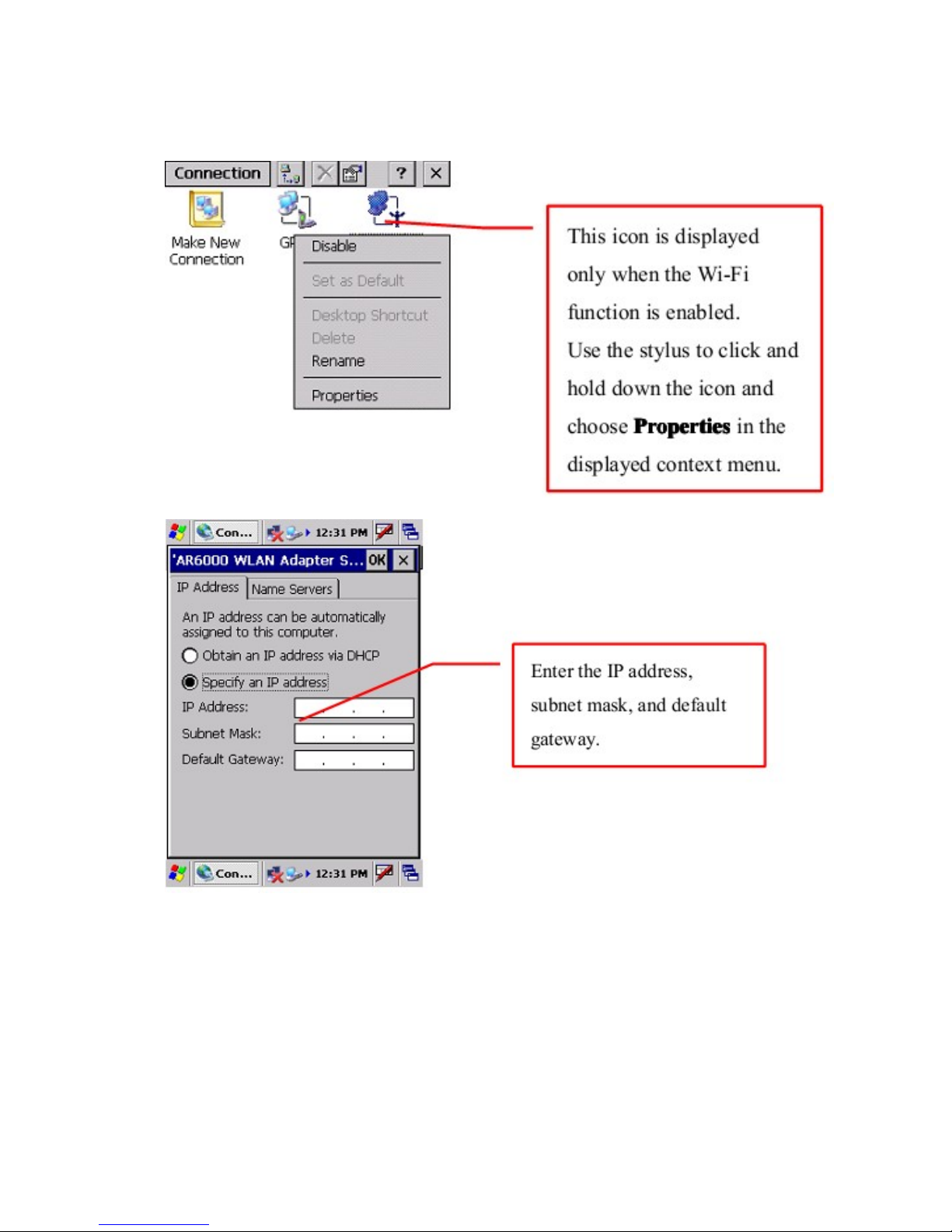

If a static IP address is required for the network, choose Control

Panel>Network and Dial-up connection to set the network adapter

properties.

43

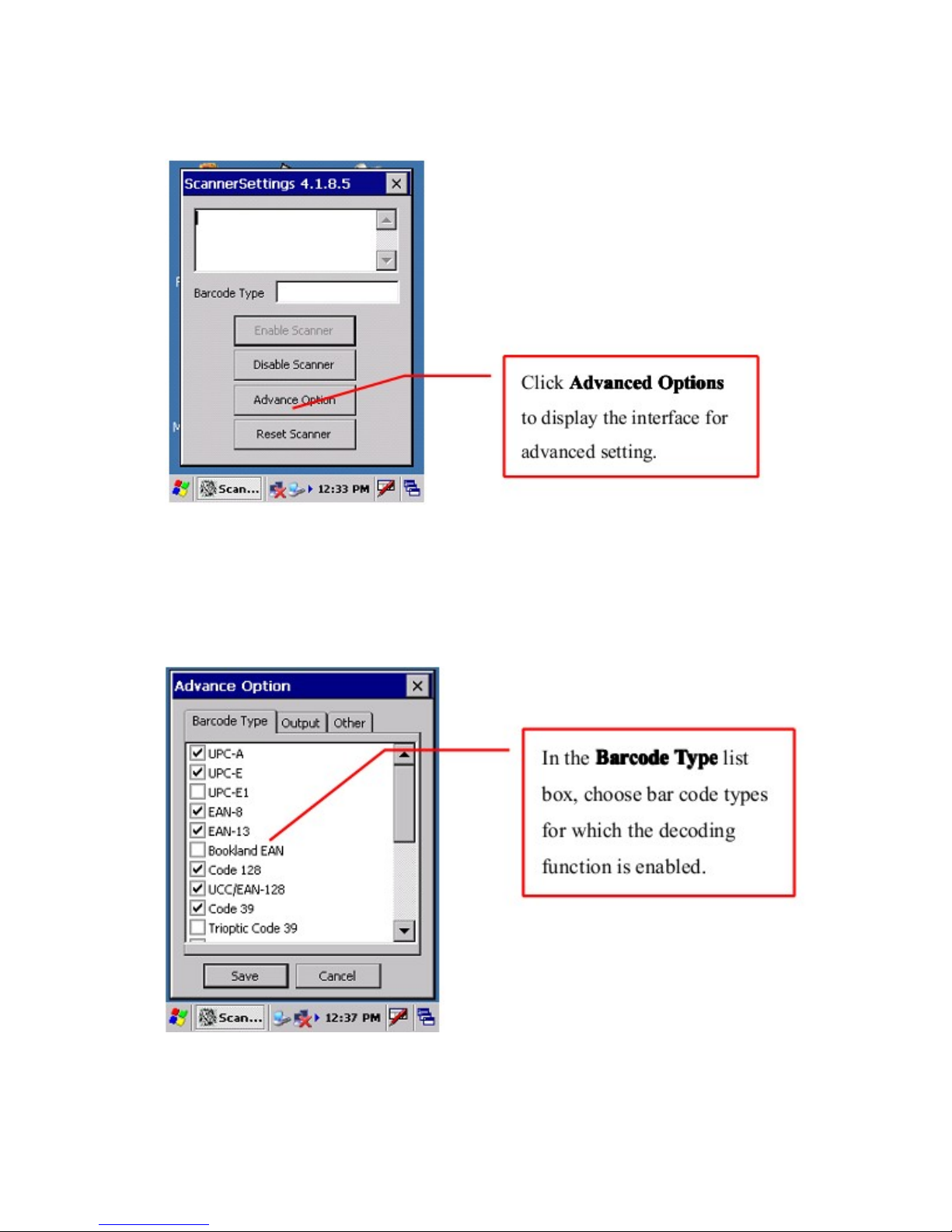

Setting the Options for barcodes scanning

You can modify the advanced settings of the scanner by using the

Scannersetting program.

44

To enhance the decoding speed, the decoding function is disabled for

certain types of barcodes by default.You can enable the decoding

function manually.

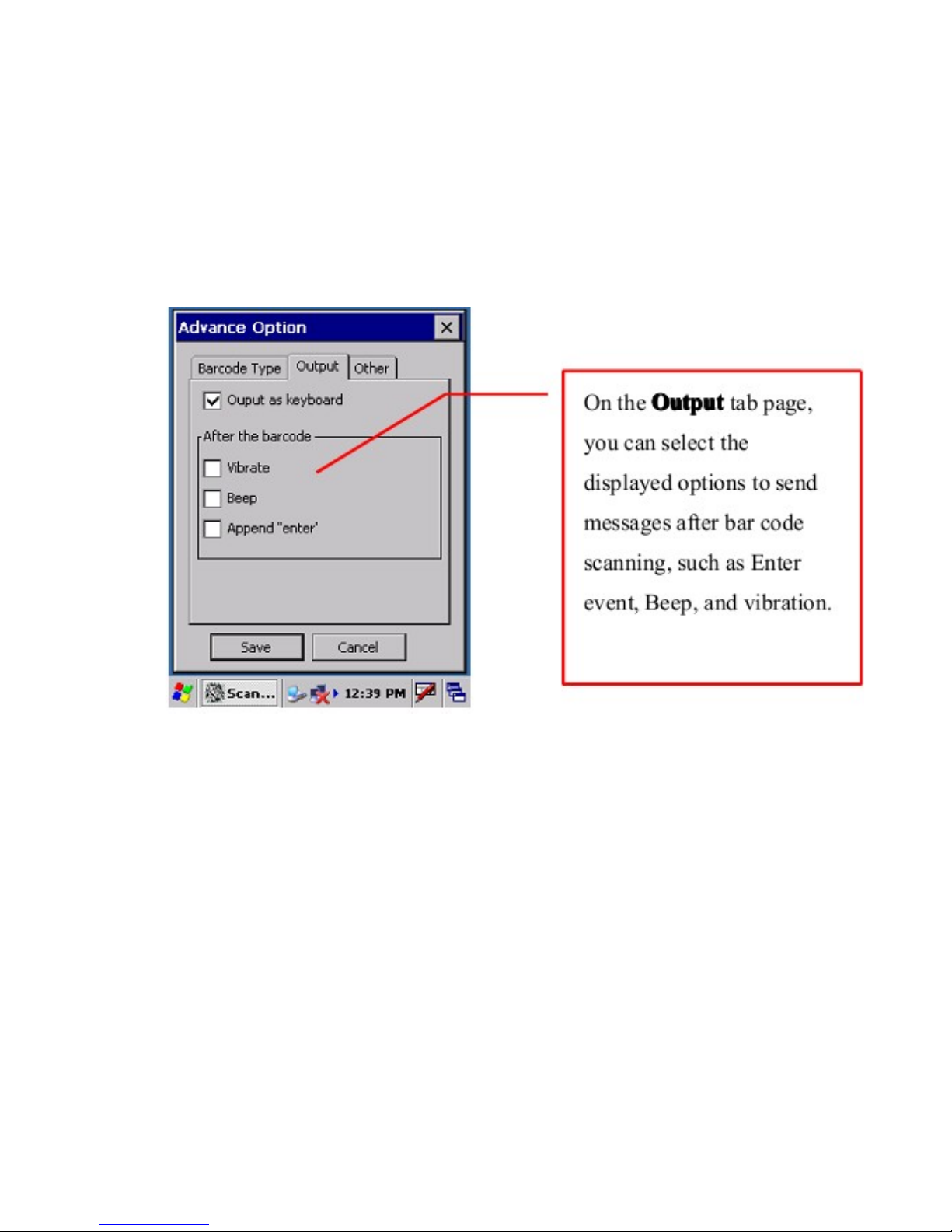

You can set the scanner to a standard input device.

45

At this point,the scanned barcodes are converted into keyboard

messages.You can scan barcodes by using programs not supporting

barcode scanning, including the wordpad and remote desktop programs.

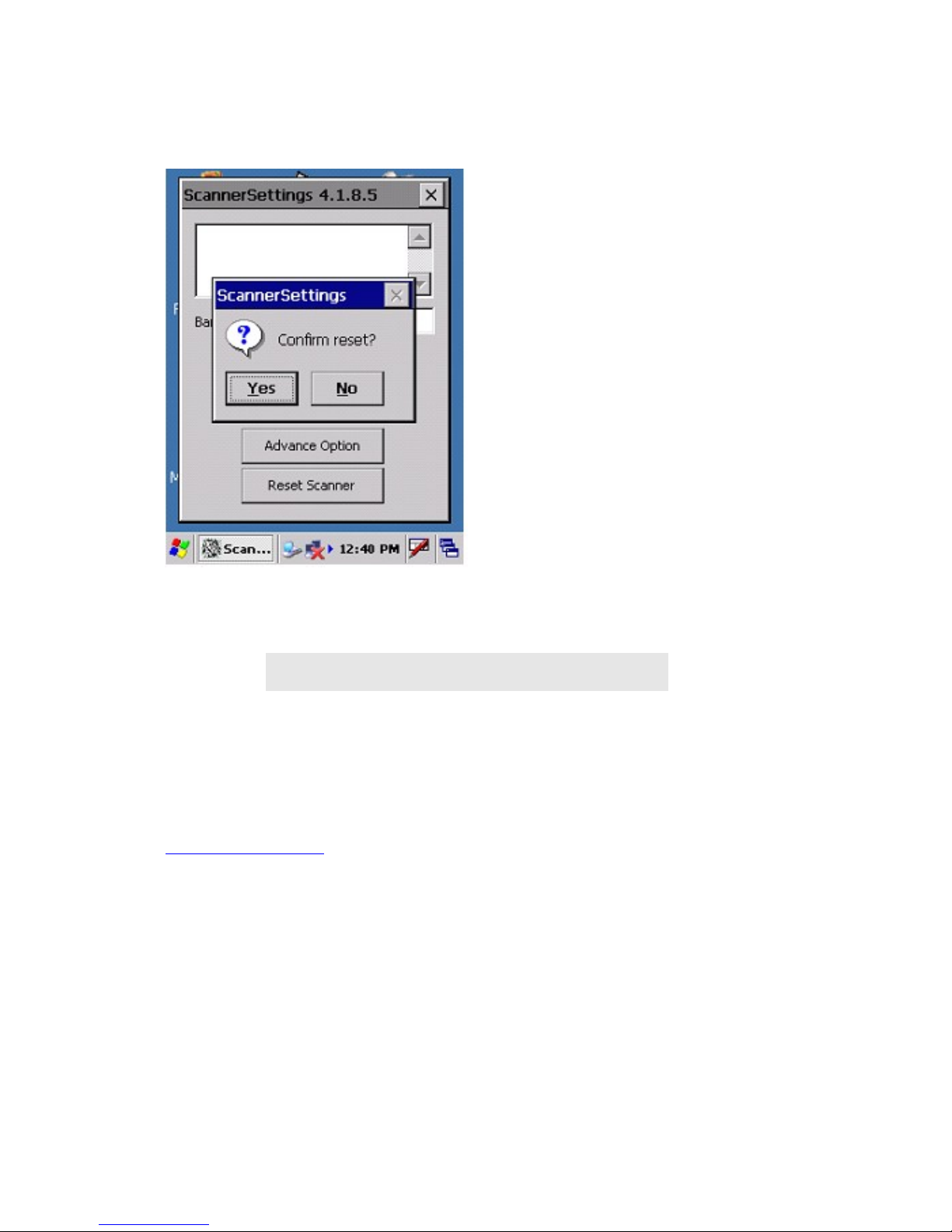

You can click Reset Scanner to restore the default settings.

46

Chapter 5 After-Sales Service

Support and service

Website: You can connect your PC to the Internet and visit

www.ocominc.com to obtain the product specifications, optional

equipment, and related information.

Customer support: If you have questions about this manual or you

cannot solve any problem through the website, pls contact our customer

service staff. If your device needs repair, pls contact us before delivering

the device in order to obtain service information, delivery instructions,

and maintenance costs (maintenance irrelevant to the warranty).

Service: If you require diagnostic services or other service information,

47

pls contact our customer service staff. Donot deliver your device before

contacting the company. If your device meets the warranty conditions for

repair, pls prepare your purchase date certificate and warranty card.

Before contacting the company, you must:

1. Read this manual.

2. Prepare the device information, including:

Model, S/N, Purchase certificate, Warranty card.

3. Get your device ready. Our customer service staff may ask you to

operate the device.

4. Prepare your questions. Detailed problem description can help the

customer service staff to solve your problem quickly.

Warranty Period

A customer will enjoy a warranty of 12 months for the handheld terminal

(subject to the sales contract) and a warranty of 3 months for accessories

from the date of purchase. If no purchase certificate can be presented, the

customer will enjoy a warranty of 12 months for the handheld terminal

since of the date of production. (The accessories include data line,

connector adapter, stylus, battery, power adapter, and handheld elastic

strap.)

Based on normal operating conditions, if you find quality defect within

seven days from the purchase date, you can cancel the order or exchange

for another product of the same model.

The company provides guarantee for the defect-free materials and

manufacturing of the hardware product for 12 months from the purchase

date on the original receipt of the first buyer.

If the company receives a notification on the defined product defects

during the warranty period, the company may decide to repair or replace

48

the proved defective product.

If the Company cannot repair or replace the product within a reasonable

period, the customer can choose a refund when returning the product.

Warranty scope

The warranty does not cover defects caused by the follwing factors：

Misuse, unauthorized modification, dismantling the product without

permission, installing, operating, using or storing the product without

strictly following the environment specifications described in this

manual, damage caused during delivery, improper maintenance, using

software, components, media, supplies, and consumables not provided

by the company or using the product in a non-designated project, natural

wear, damaged product label, and irresistible damages caused by natural

disasters. This warranty applies to mandatory specifications of related

national laws.

Warranty declaration

The company provides this unique warranty statement for the product

without other written or oral warranty statements.

Any commodity route or metaphor applicable to any special purpose is

limited to the warranty period of 12 months in this written warranty

statement.

In any case, the company is not liable for direct, indirect, special,

accidental or ensuing damages (including lost profits) regardless of the

warranty statement, contract, negligence, or any other legal theory.
