CAUTION
Please read the instructions carefully
before first use!
preamble
Dear Customer!
We want to thank you for your confidence
in purchasing our product.
The VITA-LIFT ist distinguished by its quality, safety and ease of use.
To use this aid optimally, we ask you and
any other users to read the instructions
carefully.
Page 4
Page 4
Contents
Theme Page
General warnings and
safety notes ……………………………… 5
Warranty and product liability …………… 5
Purpose …………………………………… 6
Product overview ………………………… 7
Delivery and installation ………………… 8
Operation of the electric actuators ……… 9
Operation of the mechanical parts ……… 9
Operation – general procedures ……… 10
Types …………………………………… 11
Accessories ……………………………… 11
Maintenance and repair ……………… 12
Cleaning und care ……………………… 12
Technical details ………………………… 13
Spare parts ……………………………… 14
Contents
Page 5
Page 5
General warnings
and safety notes
The VITA-LIFT is owned with CE-Sign and
incorporates the latest findings. The Production is subject to continuous quality control.
The VITA-LIFT can be loaded to max.
weight 150 kg.
• Don`t leave the client unattended in the
VITA LIFT.
• It is not allowed to use or park the VITA
LIFT near by staircases, steps, gradients or
slopes.
• Wet or dirty wheels may reduce the
braking.
• The brakes have to be locked while implementing the patient generally.
The VITA-LIFT ist equipped with an automatic limit and an emergency stop button.
Warranty
and product liability
The Vita-Lift ist guaranteed and liable for
two years by ATO FORM. Only original
equipment and accessoires should be used.
When neglect and/or repairs through non
authorized persons occur, any guarantee of
the Vita-Lift and its components are rendered invalid. Product liability on the part of
the manufacturer (ATO FORM GmbH, Zur
Lauterhecke 34, D-63877 Sailauf) is excluded in these cases.
CAUTION
Before each use of the VITA LIFT the
brakes have to be checked for proper
function. The braked wheels must stop
rotating. If they do, the brakes must be
set by your dealer.
In follow of ignoring the user guide or
rather the safety notes the manufacturer
excludes any liability of arising damage
to persons, property or animals.
General warnings and safety notes
Warranty and product liability
Page 6
Page 6
Purpose

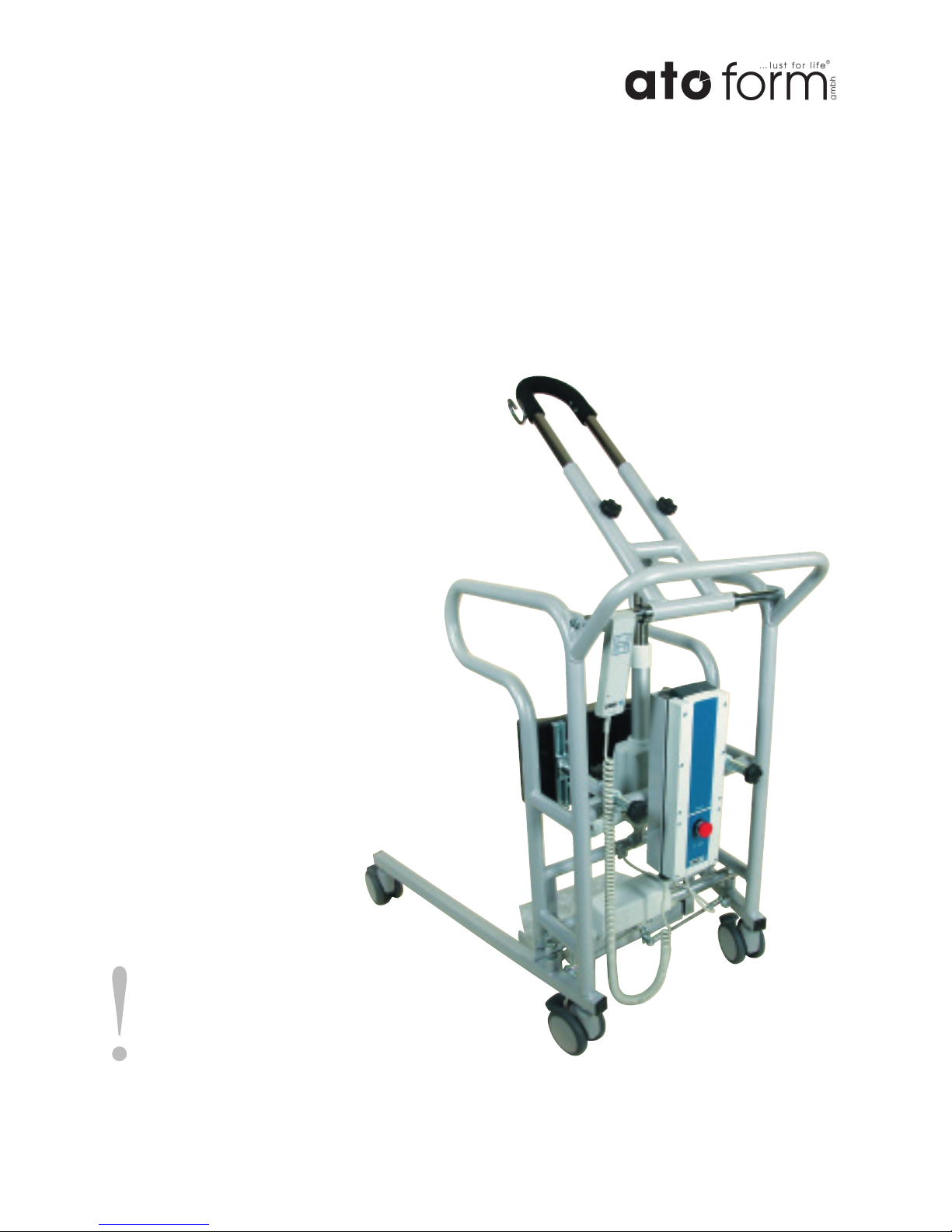

The VITA LIFT is a stand up and transfer
aid for home care and hospital care. On
the basis of the maneuverability and easy
handling the VITA LIFT can be used by one
person too.
The VITA LIFT is an essential aid for transfer,
standing or walking of client.
It is only allowed to use the VITA LIFT for
listed applications above. For all other applications and of resulting damages of any
kind in connection therewith, the manufacturer assumes no liability.
You furthermore have the possibility to use
extensive accessories from the ATO FORM
program.
We wish you much success while using your
VITA LIFT.
Purpose
Page 7
Page 7

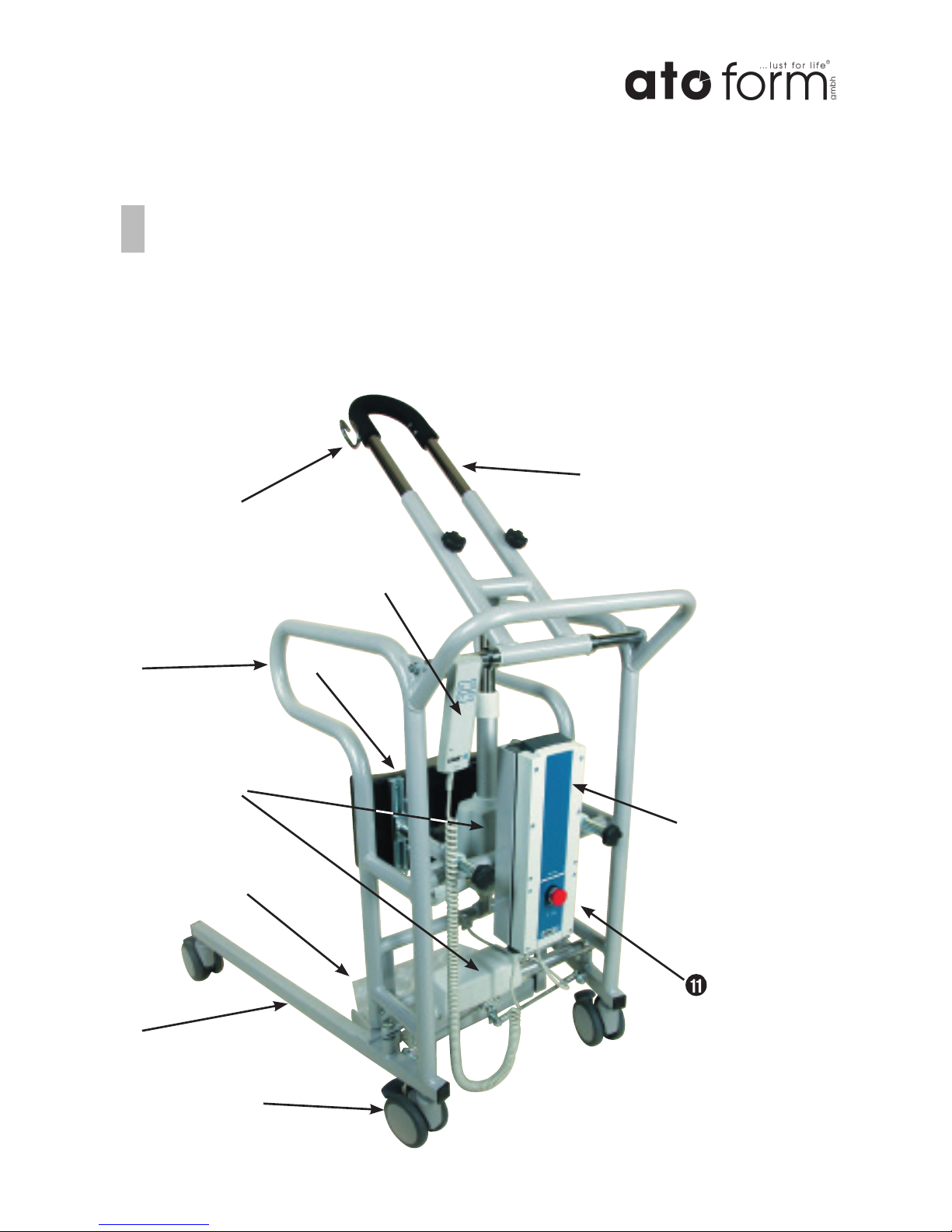

Procuct overview
➊
➑
➓
➎
➒
➌
➐
➏
➋
➍
Parts
1 Hooks to secure the belt loops
2 Lifting arm
3 Actuators
4 Battery box
5 Braked wheels
6 hand switch
7 Knee pad unit
8 Frame
9 Footplate
10 Legs (width adjustable)
11 Control unit incl. emergency stop button
Page 8
Page 8
Delivery
and installation
Each VITA LIFT is delivered in a stable box.
After unpacking the parts have to be assembled as follows: Insert the plug of the hand
switch into the socket of control unit (product overview, page 7, pos. 11). Now you
combine the plugs of the actuators (pos 3.)
with the controller(pos. 11). All sockets are
located on the underside of the control unit
case.
Before using the VITA LIFT please note
following: The battery (pos. 4) must be loa-
ded before the first use. For loading insert
the plug in the power cord. Use only the
originally supplied power cord.
After the control unit is connected to the
power plug on power grid, the two LED displays (ON/Charge) flash on. As soon as full
capacity is reached, the orange LED display
„Charge“ goes out.
During use:
If the battery is discharged while using the
VITA-LIFT the client can be moved to the
lower position by making use of the emergency lowering (on the control unit). The
battery must be loaded immediately.
Delivery and installation
CAUTION
The operation of the VITA LIFT is not
available while loading! Therefore we
recommend to charge the battery after
using evry day.
Page 9
Page 9

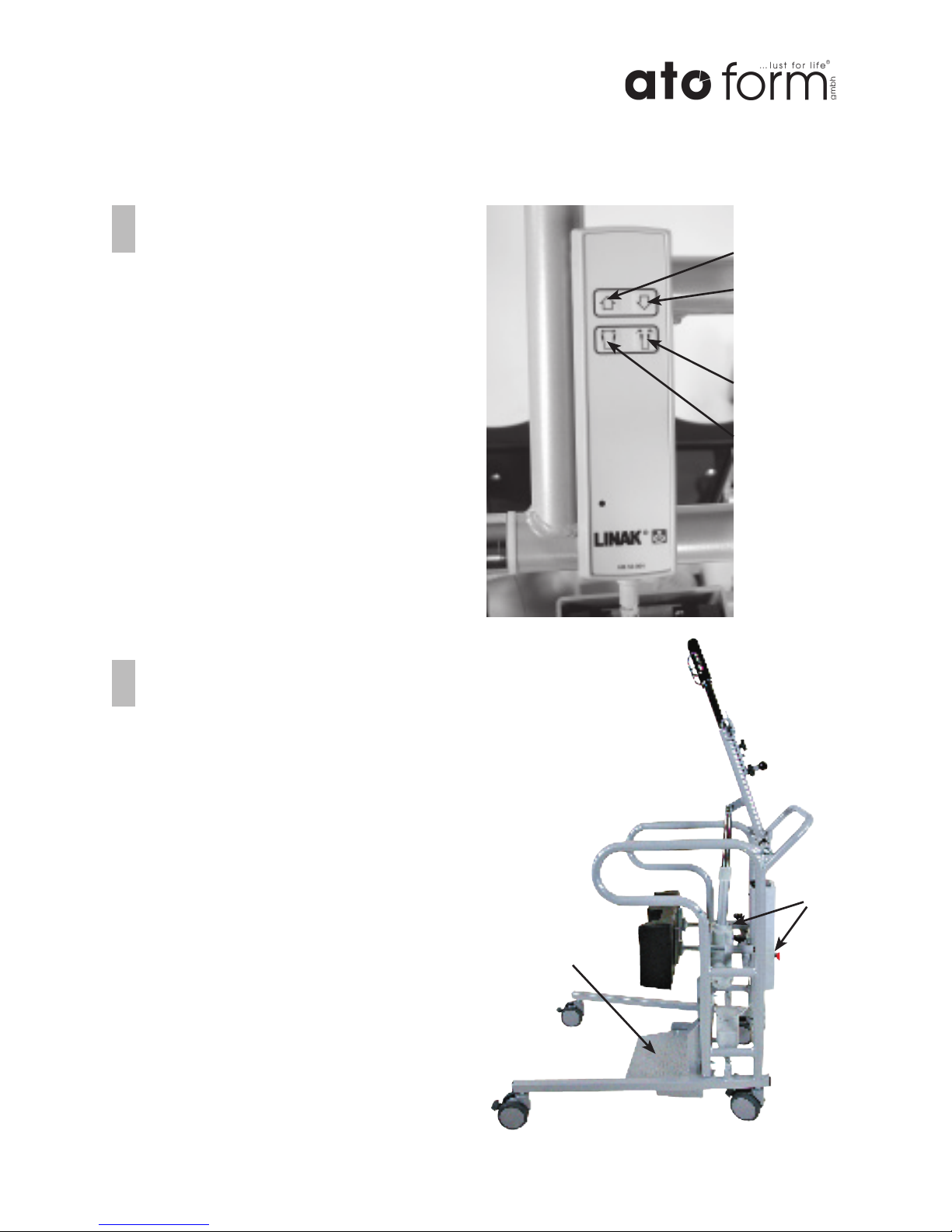

Operation of the
electric actuators
Before you use the standing up aid, please
insure, that the emergency-stop-button
(product overview, page 7, pos. 11) is not
pushed. if applicable solve the button by
turning the knob. The raising and lowering
of the lifting arm and the spreading of the
suspension will be achieved by pressing the
corresponding button on the control. In
dangerous situations push the red emergency-stop-button (pos. 11) on the control unit
immediately.
After using the VITA LIFT please always
push the emergency-stop-button, otherwise the battery is going to unload.
Operation of the
mechanical parts
For knee pad adjustment remove the two
set screws(1).
The footplate (2) can be folded up. Take
care that it locks in order to avoid unintended swinging down. For folding back please
press the footplate down.
operation electric actuators
operation mechanical parts
Lift
Sink
Spread back
Suspension
spread
➊
➋
Page 10
Page 10
Operation – general procedures
Operation –
general procedures

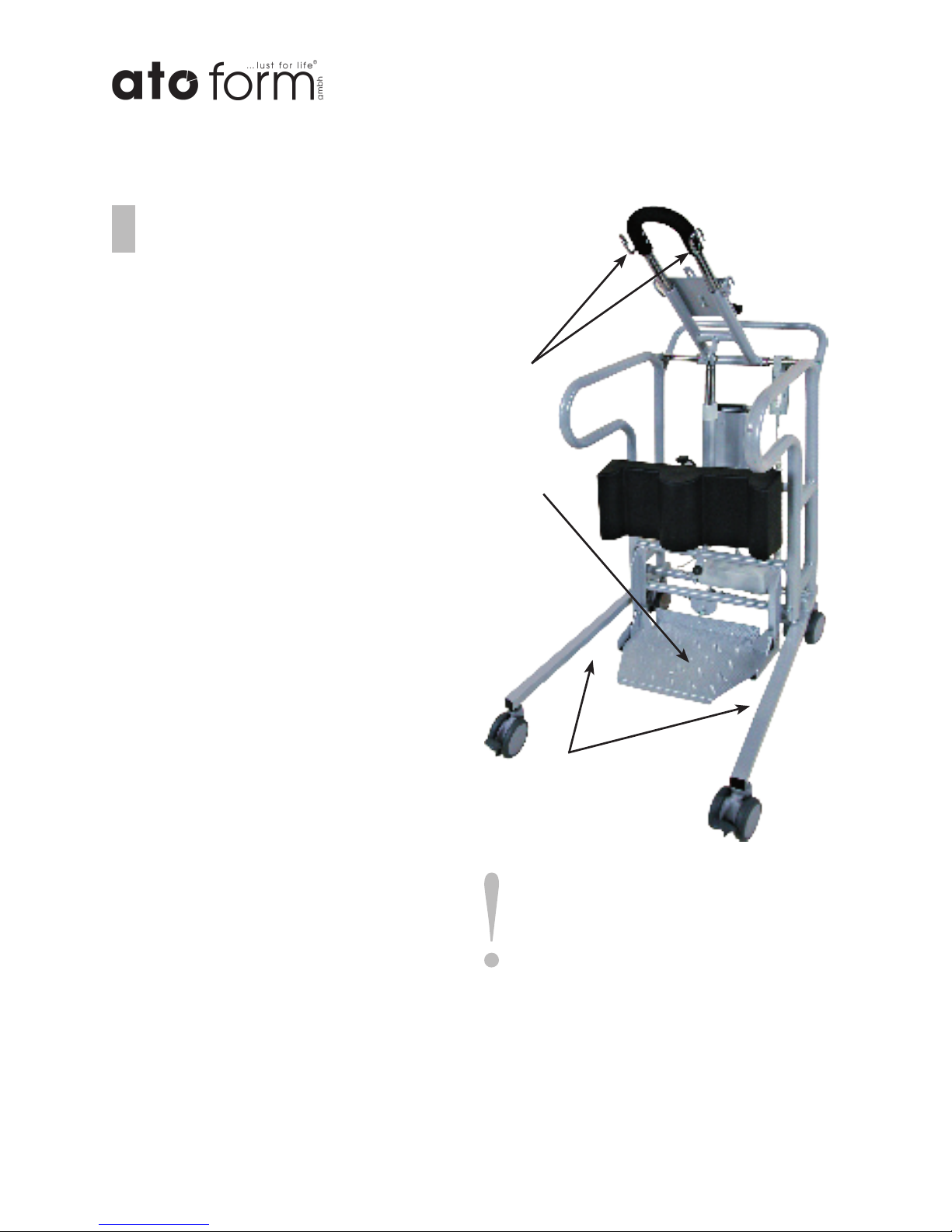

At first use a fitting sling for your project.
The sling should be used in pelvic height. If
necessary, a sling with an addtional seat belt
has to be used.
Push the VITA-LIFT approach the patient
and lock the brakes of the wheels. Hang the
loops of the sling in the appropriate hooks
(pos. 1). Please make sure to straddle the
legs by pressing the knob on the remote
control before you start lifting.
The footplate (pos. 3) is for clients, who
aren‘t able to walk.
If you use the footplate, the clients feet
must stand on it. Now you can raise transfer
or put the client down again.
CAUTION
Parts to insert such as loops, chains or
rings must always be fixed correctly in
the appropriate hooks (pos. 1).
➊
➌
➋
Page 11
Page 11
Types / Accessories
Types
VI-3000 stand up aid VITA-LIFT, color silver
Accessories
for the stand up aid VITA-LIFT are currently following accessories available:
VG-0101 Sling, Size 1
VG-0102 Sling, Size 2
VG-0201 Sling with removable seat, Size 1
VG-0202 Sling with removable seat, Size 2
VG-0300 Coat role
VG-0301 Sling two part in one, Size 1
VG-0302 Sling two part in one, Size 2
VG-0303 Sling two part in one, Size 3
VI-3065 Footplate elevated
VI-3070 Handgrip
VI-3050 Holder for Sling two part in one
VI-3090 Calf belt
VI-3095 Mounting hardware for calf belt
You will find more information in our
current leaflet.
Page 12
Page 12
Maintenance and repair
If repairs are needed on your VITA LIFT,
please contact your dealer.
Cleaning and care
The VITA LIFT can be cleaned with commercially disinfectand or household cleaning
products. Please refer to the instructions
provided by the cleaning agent.
Maintenance and repair
Cleaning and Care
Before each use of the VITA LIFT please
check the brakes for proper function.
The braked wheels must stop rotating.
If they do, the brakes must be set by
your dealer.
At least once a year, or every 2 months
by frequently using, please check the
seams, electronics, bearings, bolts
screws and nuts including brakes.
To your own safety please contact your
dealer for any repairs
CAUTION
Do not clean with a high pressure
cleaner.
Page 13
Page 13
Technical details
Stand up and transfer aid VITA-LIFT
Total length 900 mm
Total width outside 500 bis 900 mm
Total width inside 440 bis 840 mm
Overall height 960 mm
Jib heigt 890 bis 1540 mm
Electric engine 24 Volt
Power supply 220 Volt
fuse 9 Ampère
total weight ca. 40 kg
Maximum load 150 kg
Frame Steel, powder coated
Technical details
CAUTION
Specifications subject to change.
Page 14
Page 14
Spare parts
The Vita-Lift ist guaranteed and liable for
two years by ATO FORM. Only original
equipment and accessoires should be used.
When neglect and/or repairs through non
authorized persons occur, any guarantee of
the Vita-Lift and its components are rendered invalid. Product liability on the part of
the manufacturer (ATO FORM GmbH, Zur
Lauterhecke 34, D-63877 Sailauf) is excluded in these cases.
For questions about spare parts or accessories please contact your dealer or the
ATO FORM service.
Phone: +49 6093 / 944-0.
Spare parts
In environmetal protection:
All packaging materials are recyclable.
The cardboard packaging is to be assign
to the recycling waste paper. Therefore
we use as a filler only paper. Perhaps
used plastic packaging films are of PE
and can be low pollution burned or
recycled.
Page 15
Page 15
Page 16
Complete program:
■ Walking aids
■ Walking frames
■ Standing aids
■ Seating aids
■ Hoists
■ Body Protection
■ Customized solutions
Thank you for your interest in our products.
For questions please contact us or our dealer and
sales representative.
Your ATO FORM Team
ATO FORM GmbH, Zur Lauterhecke 34, D-63877 Sailauf
phone +49 60 93/9 44-0, Fax +49 60 93/9 44-4 44
