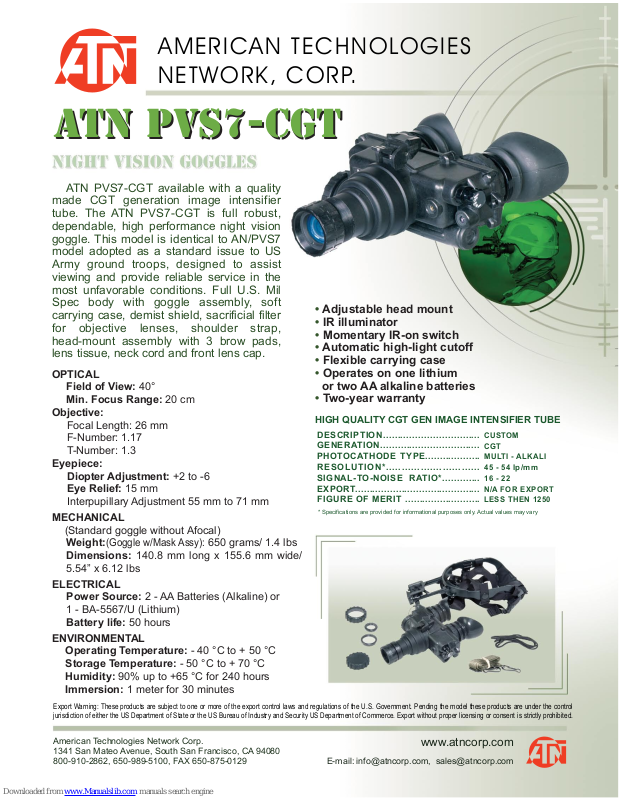

ATN PVS7-CGT Specifications

ATN PVS7-CGT available with a quality
made CGT generation image intensifier
tube. The ATN PVS7-CGT is full robust,
dependable, high performance night vision
goggle. This model is identical to AN/PVS7
model adopted as a standard issue to US
Army ground troops, designed to assist
viewing and provide reliable service in the
most unfavorable conditions. Full U.S. Mil
Spec body with goggle assembly, soft
carrying case, demist shield, sacrificial filter
for objective lenses, shoulder strap,
head-mount assembly with 3 brow pads,
lens tissue, neck cord and front lens cap.

atn pvs7-CGT

atn pvs7-CGT

OPTICAL

Field of View: 40°
Min. Focus Range: 20 cm

Objective:

Focal Length: 26 mm
F-Number: 1.17
T-Number: 1.3

Eyepiece:

Diopter Adjustment: +2 to -6
Eye Relief: 15 mm
Interpupillary Adjustment 55 mm to 71 mm

MECHANICAL

(Standard goggle without Afocal)

Weight:

(Goggle w/Mask Assy):

650 grams/ 1.4 lbs

Dimensions: 140.8 mm long x 155.6 mm wide/

5.54” x 6.12 lbs

ELECTRICAL

Power Source: 2 - AA Batteries (Alkaline) or

1 - BA-5567/U (Lithium)

Battery life: 50 hours

ENVIRONMENTAL

Operating Temperature: - 40 °C to + 50 °C
Storage Temperature: - 50 °C to + 70 °C
Humidity: 90% up to +65 °C for 240 hours
Immersion: 1 meter for 30 minutes

• Adjustable head mount

• IR illuminator

• Momentary IR-on switch

• Automatic high-light cutoff

• Flexible carrying case

• Operates on one lithium

or two AA alkaline batteries

• Two-year warranty

www.atncorp.com

E-mail: [e-mail], [e-mail]

AMERICAN TECHNOLOGIES
NETWORK, CORP.

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX [phone]

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

HIGH QUALITY CGT GEN IMAGE INTENSIFIER TUBE

* Specifications are provided for informational purposes only. Actual values may vary

DESCRIPTION.................................

GENERATION..................................

PHOTOCATHODE TYPE...................

RESOLUTION*..............................

SIGNAL-TO-NOISE RATIO*.............

EXPORT...........................................

FIGURE OF MERIT ..........................

CUSTOM
CGT
MULTI - ALKALI
45 - 54

lp/mm
16 - 22
N/A FOR EXPORT
LESS THEN 1250
