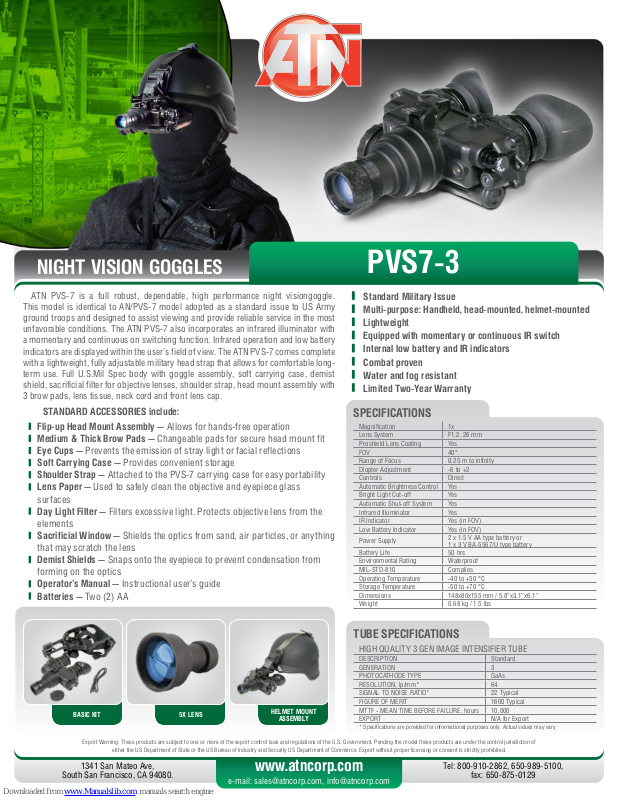

ATN PVS7-3 Specification

NIGHT VISION GOGGLES

PVS7-3

ATN PVS-7 is a full robust, dependable, high performance night visiongoggle.
This model is identical to AN/PVS-7 model adopted as a standard issue to US Army
ground troops and designed to assist viewing and provide reliable service in the most
unfavorable conditions. The ATN PVS-7 also incorporates an infrared illuminator with
a momentary and continuous on switching function. Infrared operation and low battery
indicators are displayed within the user’s field of view. The ATN PVS-7 comes complete
with a lightweight, fully adjustable military head strap that allows for comfortable long­term use. Full U.S.Mil Spec body with goggle assembly, soft carrying case, demist
shield, sacrificial filter for objective lenses, shoulder strap, head mount assembly with
3 brow pads, lens tissue, neck cord and front lens cap.

STANDARD ACCESSORIES include:

Flip-up Head Mount Assembly — Allows for hands-free operation

Medium & Thick Brow Pads — Changeable pads for secure head mount fit

Eye Cups — Prevents the emission of stray light or facial reflections

Soft Carrying Case — Provides convenient storage

Shoulder Strap — Attached to the PVS-7 carrying case for easy portability

Lens Paper — Used to safely clean the objective and eyepiece glass

surfaces

Day Light Filter — Filters excessive light. Protects objective lens from the

elements

Sacrificial Window — Shields the optics from sand, air particles, or anything

that may scratch the lens

Demist Shields — Snaps onto the eyepiece to prevent condensation from

forming on the optics

Operator’s Manual — Instructional user’s guide

Batteries — Two (2) AA

Standard Military Issue
Multi-purpose: Handheld, head-mounted, helmet-mounted
Lightweight
Equipped with momentary or continuous IR switch
Internal low battery and IR indicators
Combat proven
Water and fog resistant
Limited Two-Year Warranty

SPECIFICATIONS

Magnification 1x
Lens System F1.2, 26 mm
Proshield Lens Coating Yes
FOV 40°
Range of Focus 0.25 m to infinity
Diopter Adjustment -6 to +2
Controls Direct
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)

Power Supply

Battery Life 50 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Dimensions 148x80x155 mm / 5.8”x3.1”x6.1”
Weight 0.68 kg / 1.5 lbs

2 x 1.5 V AA type battery or
1 x 3 V BA-5567/U type battery

BASIC KIT 5X LENS

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

1341 San Mateo Ave,

South San Francisco, CA 94080.

TUBE SPECIFICATIONS

HIGH QUALITY 3 GEN IMAGE INTENSIFIER TUBE

DESCRIPTION Standard
GENERATION 3
PHOTOCATHODE TYPE GaAs
RESOLUTION, lp/mm* 64
SIGNAL TO NOISE RATIO* 22 Typical
FIGURE OF MERIT 1600 Typical

HELMET MOUNT

ASSEMBLY

MTTF - MEAN TIME BEFORE FAILURE, hours 10,000
EXPORT N/A for Export

* Specifications are provided for informational purposes only. Actual values may vary
