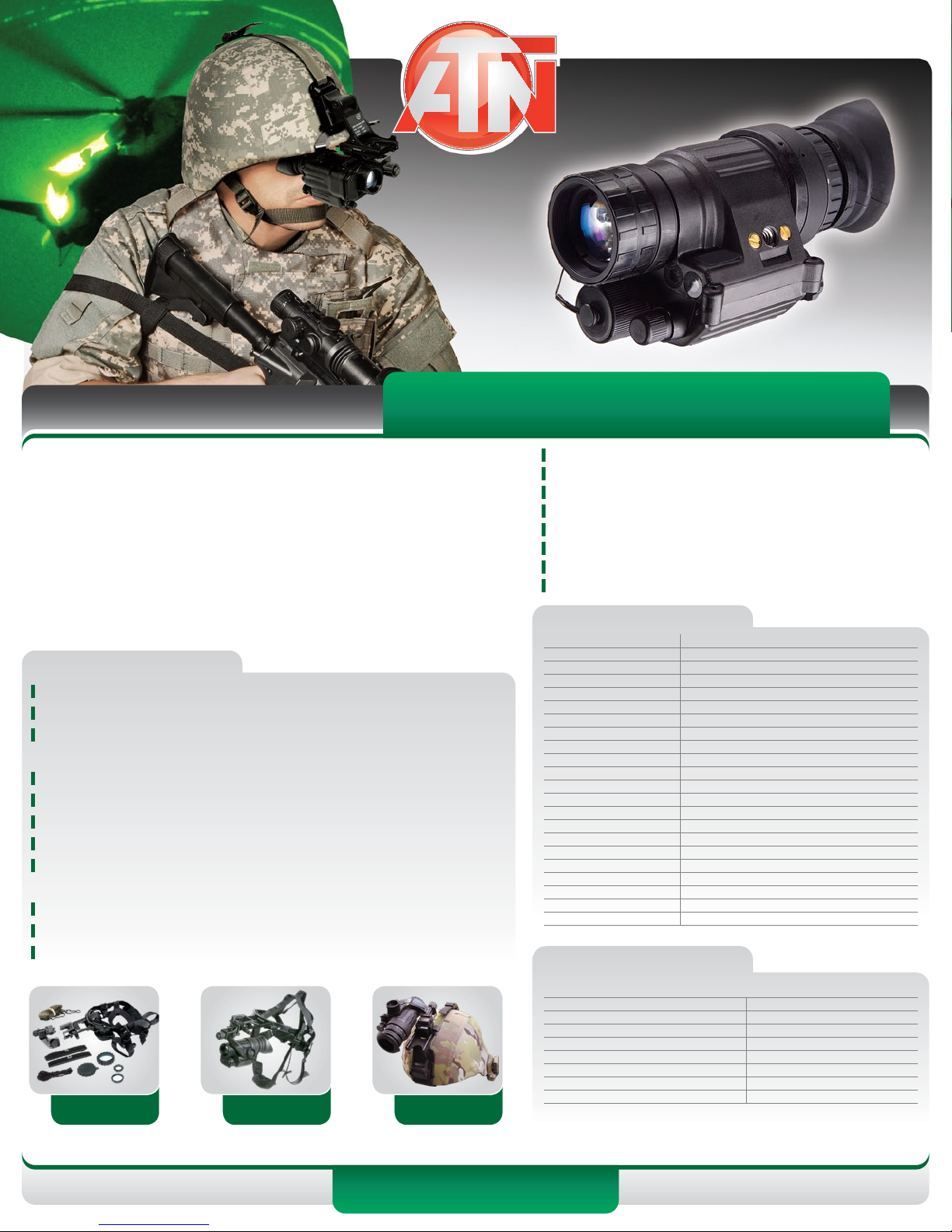

MULTI-PURPOSE SYSTEM
PVS14-3P
ATNs PVS14 are rugged, lightweight and versatile night vision monoculars,
designed for the most demanding of nighttime applications. The PVS14
can be handheld, head/helmet-mounted for hands-free usage or adapted
to cameras/camcorders. Originally designed for the U.S. military, these
units are of the highest quality in optics, design and functionality. The ATN
PVS14 is an outstanding choice for professional night vision applications.
The industry leading ITT Pinnacle™ Image Tubes utilize a gated power
supply providing truly outstanding performance in high-light or lightpolluted areas. The Pinnacle™ Tubes with gated power supply minimize
any “Halo” effects.
THE PVS-14 BASIC KIT
Head Mount Assembly — Allows for hands-free operation
Brow Pad — Changeable pad for secure head mount fit
Helmet/Head Mount Adapter — Allows the user to position the monocular in
front of either eye
Eye Cup — Prevents the emission of stray light or facial reflections
Soft Carrying Case — Provides convenient storage of PVS14 and accessories
Shoulder Strap — Attaches to the PVS14 carrying case for easy portability
Lens Paper — Used to lightly clean the objective and eyepiece glass surfaces
Day Light Filter — Filters excessive light. Protects objective lens from the
elements
Diopter Lens Cap — Protects diopter lens from the elements
Operator’s Manual — Instructional user’s guide
Batteries — One 1.5V AA size
INCLUDED
ACCESSORIES
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of
either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
HEAD MOUNT
ASSEMBLY
HELMET MOUNT
ASSEMBLY
US Military design
ITT Pinnacle™ Image Intensifier Tubes
Multi-Purpose unit
Handheld monocular
Hands-free goggle (optional helmet mount)
Mil-Spec headgear
Manual Variable Gain Control
Limited Two-Year Warranty
SPECIFICATIONS
Magnification 1x
Lens System F1.2, 26 mm
Proshield Lens Coating Yes
FOV 40°
Range of Focus 0.25 m to infinity
Diopter Adjustment -5 to +2
Controls Direct
Manual Gain Control Yes
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Low Battery Indicator Yes
Power Supply 1 x 1.5 V AA type battery
Battery Life 50 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Dimensions 114x56x50 mm / 4.5”x2,2”x2”
Weight 0.3 kg / 0,68 lbs
TUBE SPECIFICATIONS
HIGH QUALITY 3P GEN IMAGE INTENSIFIER TUBE
DESCRIPTION Pinnacle™
GENERATION 3
PHOTOCATHODE TYPE Thin-Filmed/Auto-Gated
RESOLUTION, lp/mm * 64 - 72
SIGNAL-TO-NOISE RATIO* 24 typical
FIGURE OF MERIT 1800 typical
PHOTOCATHODE SENSITIVITY 2000-2800
EXPORT N/A for export
Pinnacle is a registered trademark of ITT Night Vision
* Specifications are provided for informational purposes only. Actual values may vary
1341 San Mateo Ave,
South San Francisco, CA 94080.
www.atncorp.com
e-mail: [email protected], [email protected]
Tel: 800-910-2862, 650-989-5100,
fax: 650-875-0129
