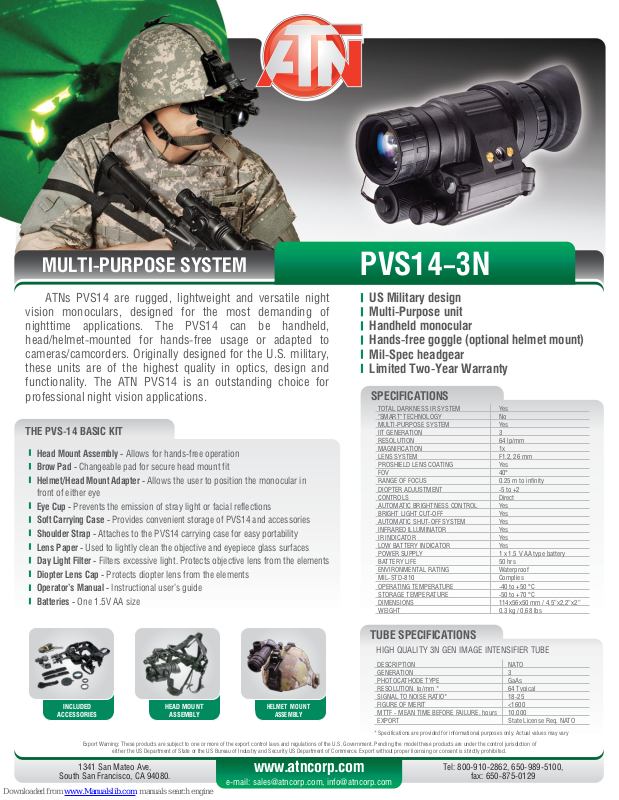

ATN PVS14-3N Specification

MULTI-PURPOSE SYSTEM

PVS14–3N

ATNs PVS14 are rugged, lightweight and versatile night
vision monoculars, designed for the most demanding of
nighttime applications. The PVS14 can be handheld,
head/helmet-mounted for hands-free usage or adapted to
cameras/camcorders. Originally designed for the U.S. military,
these units are of the highest quality in optics, design and
functionality. The ATN PVS14 is an outstanding choice for
professional night vision applications.

THE PVS-14 BASIC KIT

Head Mount Assembly - Allows for hands-free operation
Brow Pad - Changeable pad for secure head mount fit
Helmet/Head Mount Adapter - Allows the user to position the monocular in

front of either eye

Eye Cup - Prevents the emission of stray light or facial reflections
Soft Carrying Case - Provides convenient storage of PVS14 and accessories
Shoulder Strap - Attaches to the PVS14 carrying case for easy portability
Lens Paper - Used to lightly clean the objective and eyepiece glass surfaces
Day Light Filter - Filters excessive light. Protects objective lens from the elements
Diopter Lens Cap - Protects diopter lens from the elements
Operator’s Manual - Instructional user’s guide
Batteries - One 1.5V AA size

US Military design
Multi-Purpose unit
Handheld monocular
Hands-free goggle (optional helmet mount)
Mil-Spec headgear
Limited Two-Year Warranty

SPECIFICATIONS

TOTAL DARKNESS IR SYSTEM
"SMART" TECHNOLOGY
MULTI-PURPOSE SYSTEM
IIT GENERATION
RESOLUTION
MAGNIFICATION
LENS SYSTEM
PROSHIELD LENS COATING
FOV
RANGE OF FOCUS
DIOPTER ADJUSTMENT
CONTROLS
AUTOMATIC BRIGHTNESS CONTROL
BRIGHT LIGHT CUT-OFF
AUTOMATIC SHUT-OFF SYSTEM
INFRARED ILLUMINATOR
IR INDICATOR
LOW BATTERY INDICATOR
POWER SUPPLY
BATTERY LIFE
ENVIRONMENTAL RATING
MIL-STD-810
OPERATING TEMPERATURE
STORAGE TEMPERATURE
DIMENSIONS
WEIGHT

Yes
No
Yes
3
64 lp/mm
1x
F1.2, 26 mm
Yes
40°

0.25 m to infinity

-5 to +2
Direct
Yes
Yes
Yes
Yes
Yes
Yes
1 x 1.5 V AA type battery
50 hrs
Waterproof
Complies

-40 to +50 °C

-50 to +70 °C
114x56x50 mm / 4.5”x2,2”x2”

0.3 kg / 0,68 lbs

INCLUDED

ACCESSORIES

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

HEAD MOUNT

ASSEMBLY

1341 San Mateo Ave,

South San Francisco, CA 94080.

TUBE SPECIFICATIONS

HIGH QUALITY 3N GEN IMAGE INTENSIFIER TUBE

DESCRIPTION
GENERATION
PHOTOCATHODE TYPE
RESOLUTION, lp/mm *
SIGNAL TO NOISE RATIO*

HELMET MOUNT

ASSEM BLY

FIGURE OF MERIT
MTTF - MEAN TIME BEFORE FAILURE, hours
EXPORT

* Specifications are provided for informational purposes only. Actual values may vary

www.atncorp.com

e-mail: [e-mail], [e-mail]

NATO
3
GaAs
64 Typical
18-25
<1600
10,000
State License Req. NATO
