ATN PS28 Operator's Manual

ATN PS28

NIGHT VISION CLIP-ON

ATN PS28 OPERATOR’S MANUAL (REV. 2, MAY, 2014)

operator’s manual

Important Export Restrictions! Commodities, products,
technologies and services contained in this manual are
subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or written
approval of the U.S. Government is required, without first
obtaining the required license or written approval from the
Department of the U.S. Government having jurisdiction.
Diversion contrary to U.S. law is prohibited.

Register your product warranty online at

www.atncorp.com/warranty

The information in this manual is furnished for information use only, is subject
to change without notice, cannot be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies
that may appear in this book.

© 2014 ATN Corp. All right reserved.

SAFETY SUMMARY

CAUTIONS

• The ATN PS28 is a precision optical instrument and must be handled
carefully at all times to prevent damage.

• Do not scratch the external lens surfaces or touch them with your fin­gers.

• To protect the image intensifier, keep the lens cap on the objective lens
when the sight is not in use or when checked out in daylight conditions.

• The IR illuminator is the light that is invisible to the unaided eye for use
during conditions of extreme darkness. However, the light from the illu­minator can be detected by others when using night vision devices.

• If you use the rubber eyecaps for a long period of time, you may suffer
skin inflammation. If you develop any symptoms, consult a doctor imme­diately.

WARNING

Do not carry batteries in pockets containing metal objects such as
coins, keys, etc. Metal objects can cause the batteries to short circuit
and become very hot.

WARNING

Toxic Material

The image intensifier’s phosphor screen contains toxic materials.

• If an image intensifier breaks, be extremely careful to avoid inhaling the
phosphor screen material. Do not allow the material to come in contact
with the mouth or open wounds on the skin.

• If the phosphor screen material contacts your skin, wash it off immedi­ately with soap and water.

• If you inhale/swallow any phosphor screen material, drink a lot of water,
induce vomiting, and seek medical attention as soon as possible.

WARNING

Do not use contaminated light suppressor. They must be replaced.

CAUTION:

THIS PRODUCT CONTAINS NATURAL RUBBER LATEX

WHICH MAY CAUSE ALLERGIC REACTIONS.

a

EQUIPMENT LIMITATIONS

To avoid physical and equipment damage when using the
ATN PS28, carefully read and understand the following equip­ment limitations.

• The equipment requires some night light (moonlight, starlight,
etc.) to operate. The level of equipment performance depends
upon the level of light.

• Night light reduces by passing through the clouds, while oper­ating under trees, at building shadows, etc.

• The equipment is less effective when viewing into shadows
and other darkened areas.

• The equipment is less effective when viewing through the rain,
fog, sleet, snow or smoke.

• The equipment will not “see” through the dense smoke.

b

TABLE OF CONTENTS

pg.

SAFETY SUMMARY a

SECTION I. INTRODUCTION 1-1

1.1. General 1-2

1.1.1. Scope 1-2

1.1.2. Repor ts 1-2

1.1.3. Storage 1-2

1.1.4. Warranty 1-3

1.2. Description and Data 1-5

1.2.1. Description 1-5

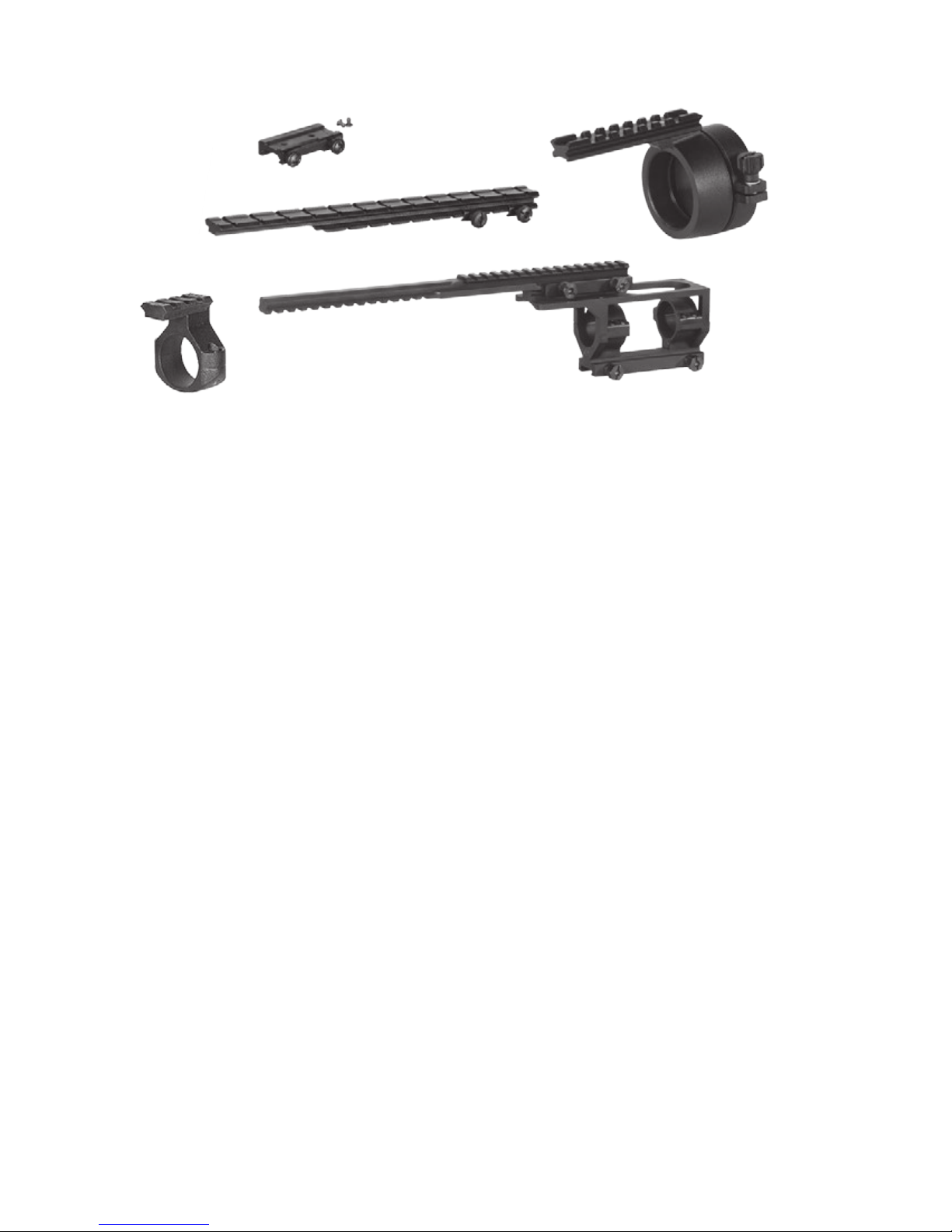

1.2.2. Standard Components and Optional Equipment 1-8

SECTION II. OPERATING INSTRUCTIONS 2-1

2.1. Installation Procedures 2-2

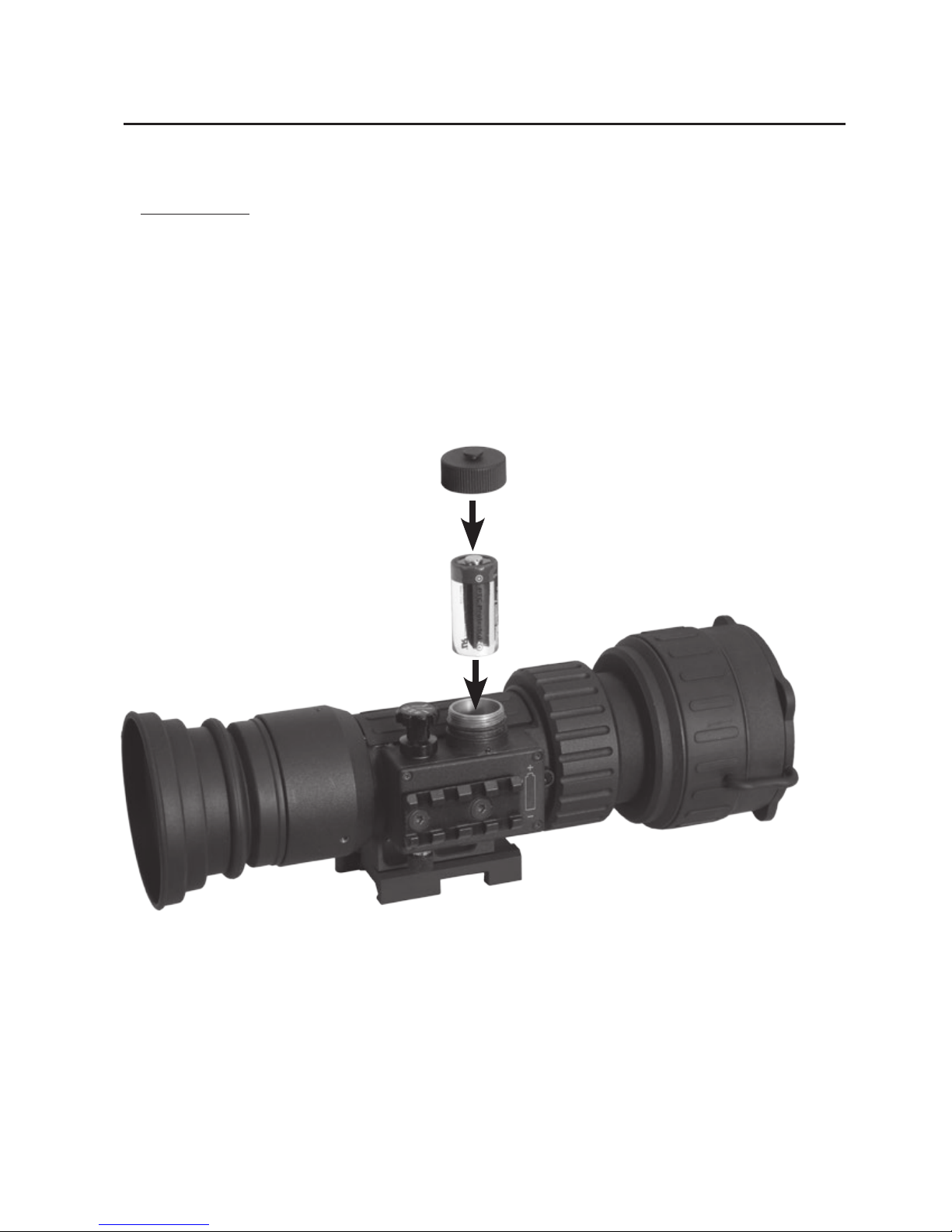

2.1.1. Battery Installation 2-2

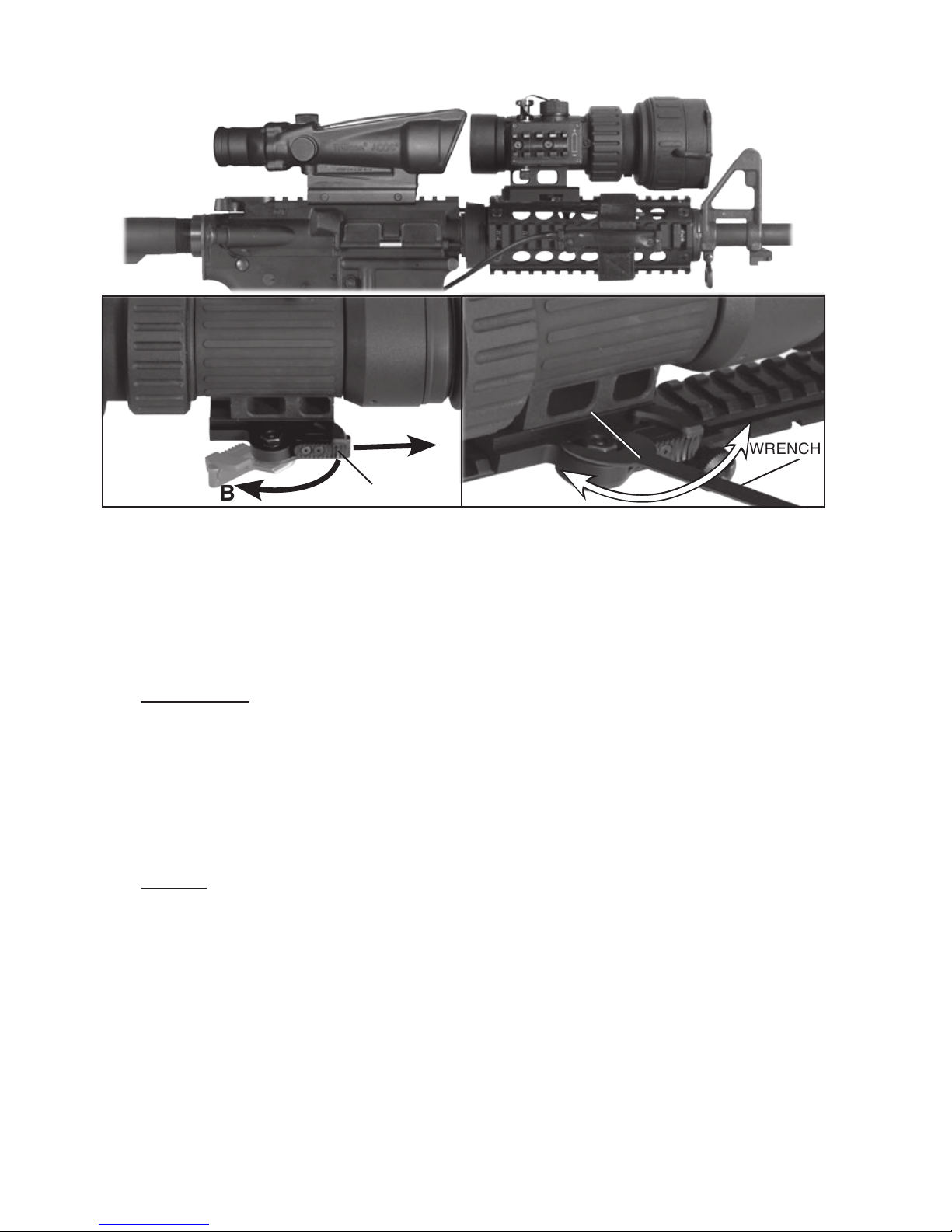

2.1.2. Installation on MIL-STD-1913 Rail 2-2

2.1.3. Attachment to Dayscope Objective Lens 2-4

2.1.4. Long Rail Adapter 2-5

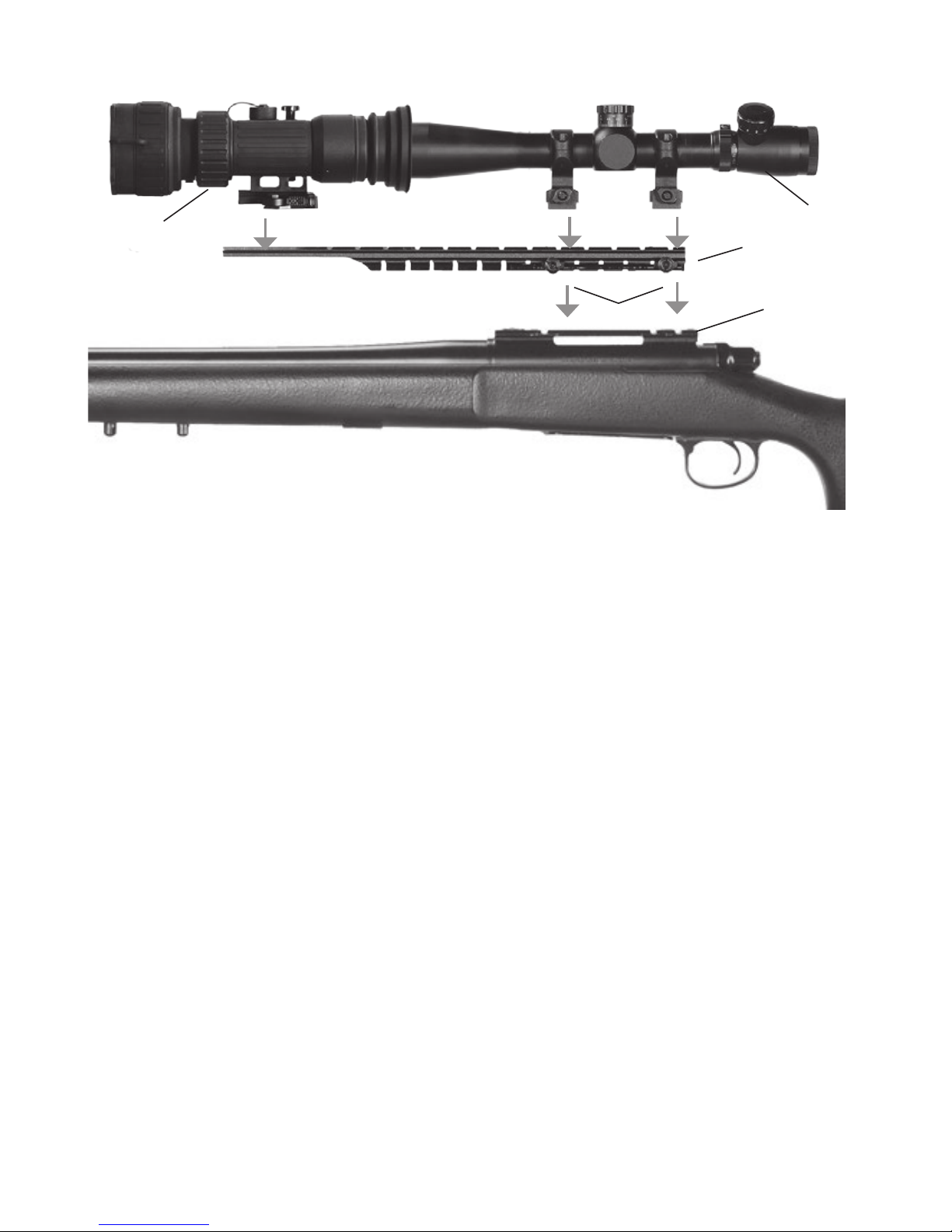

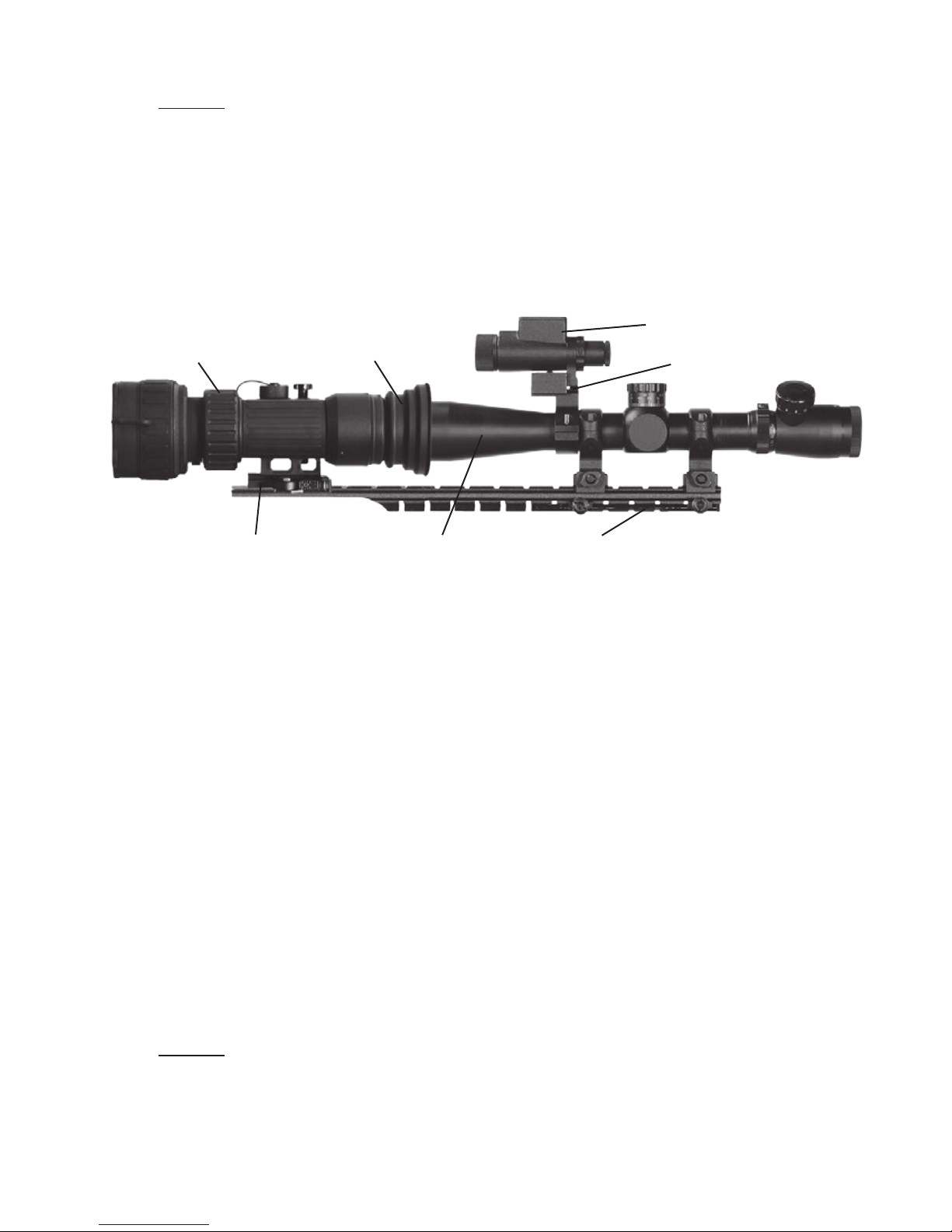

2.1.5. B.A.M. System 2-6

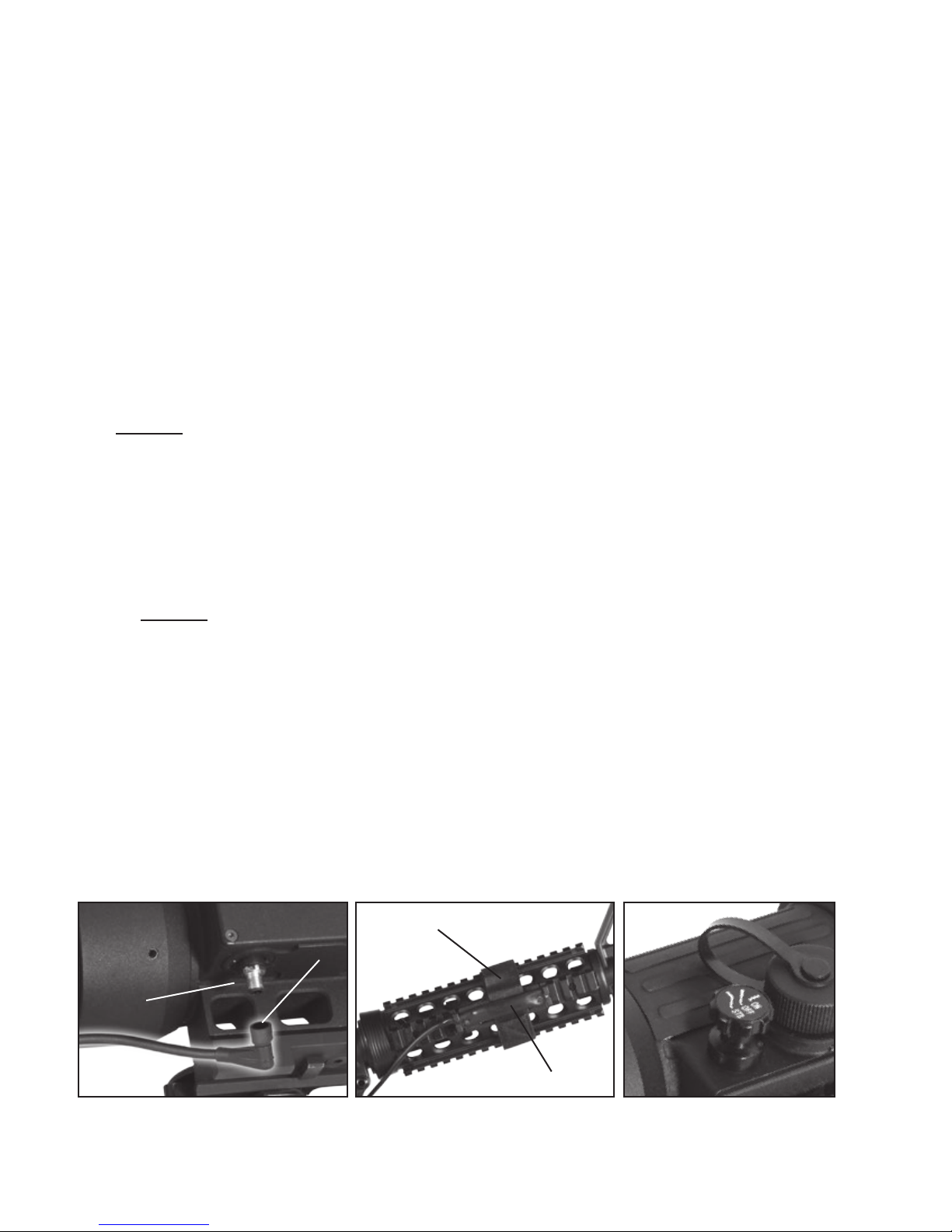

2.1.6. Remote Control 2-8

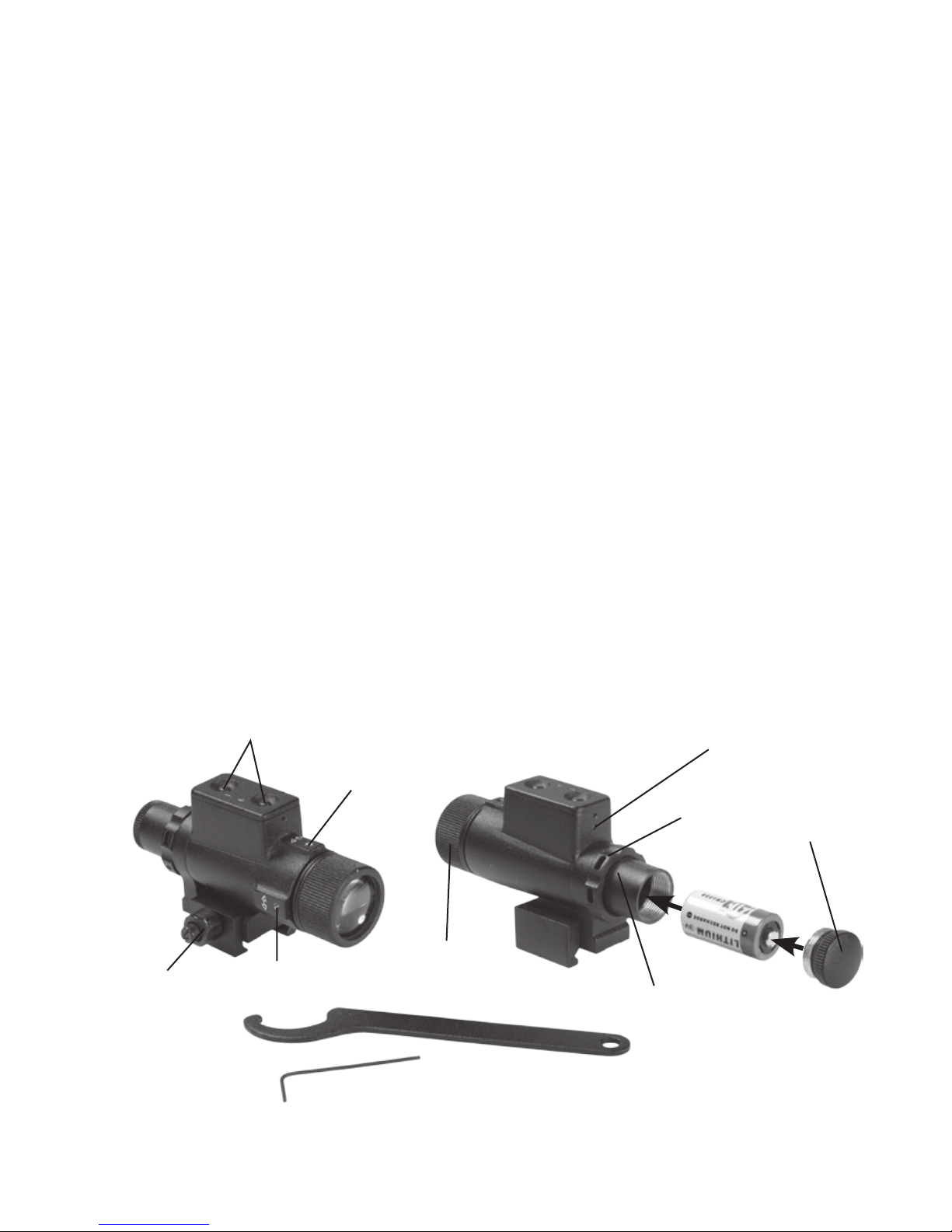

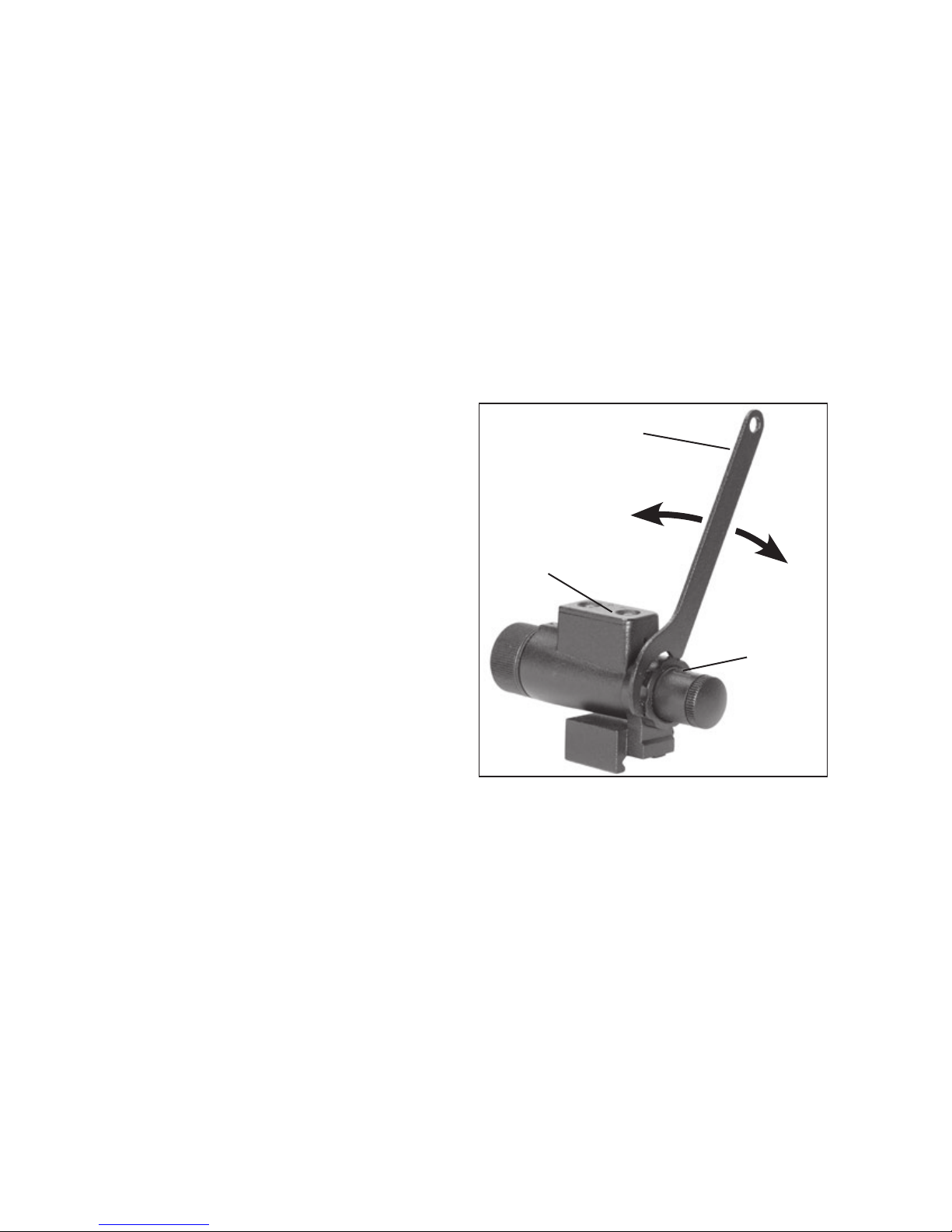

2.1.7. IR450 Illuminator 2-9

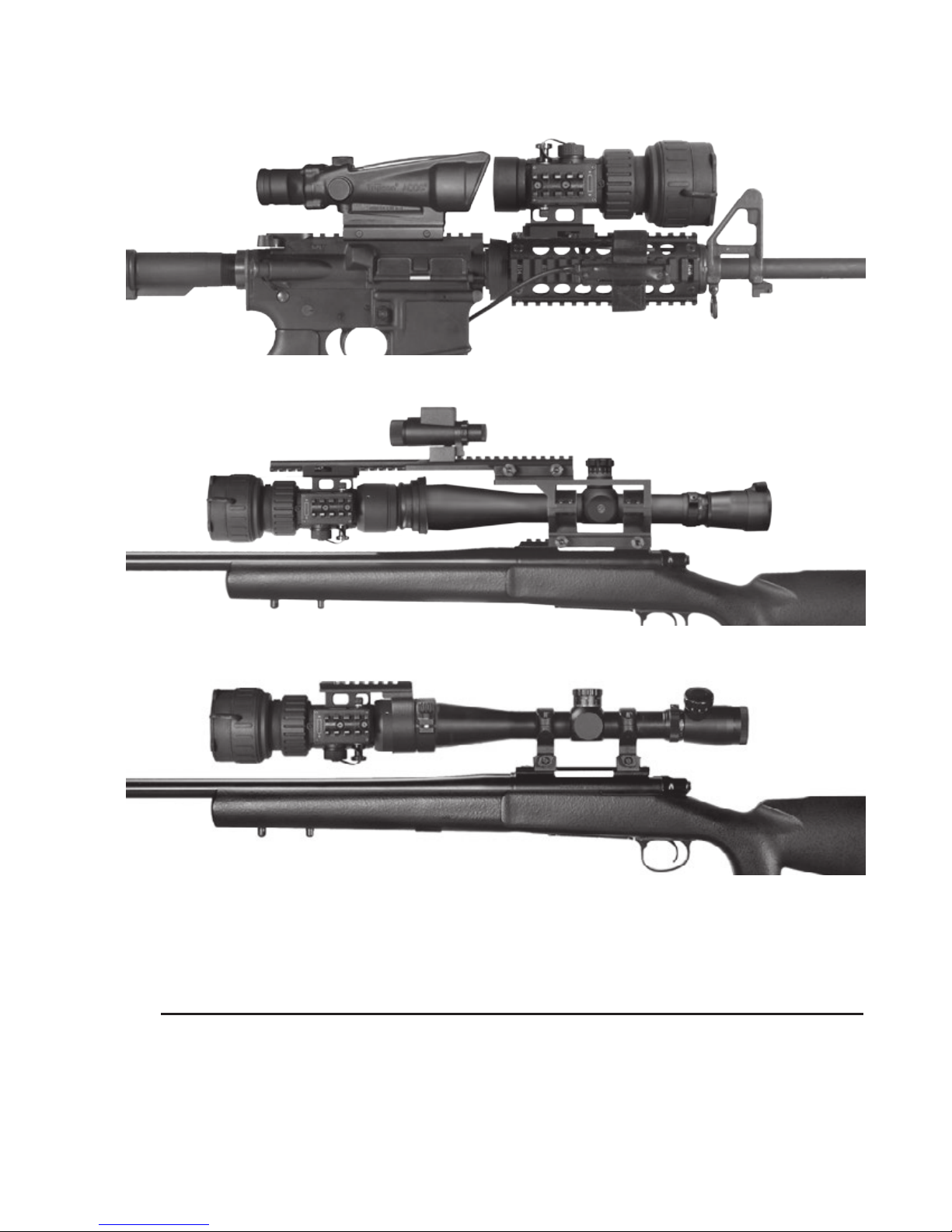

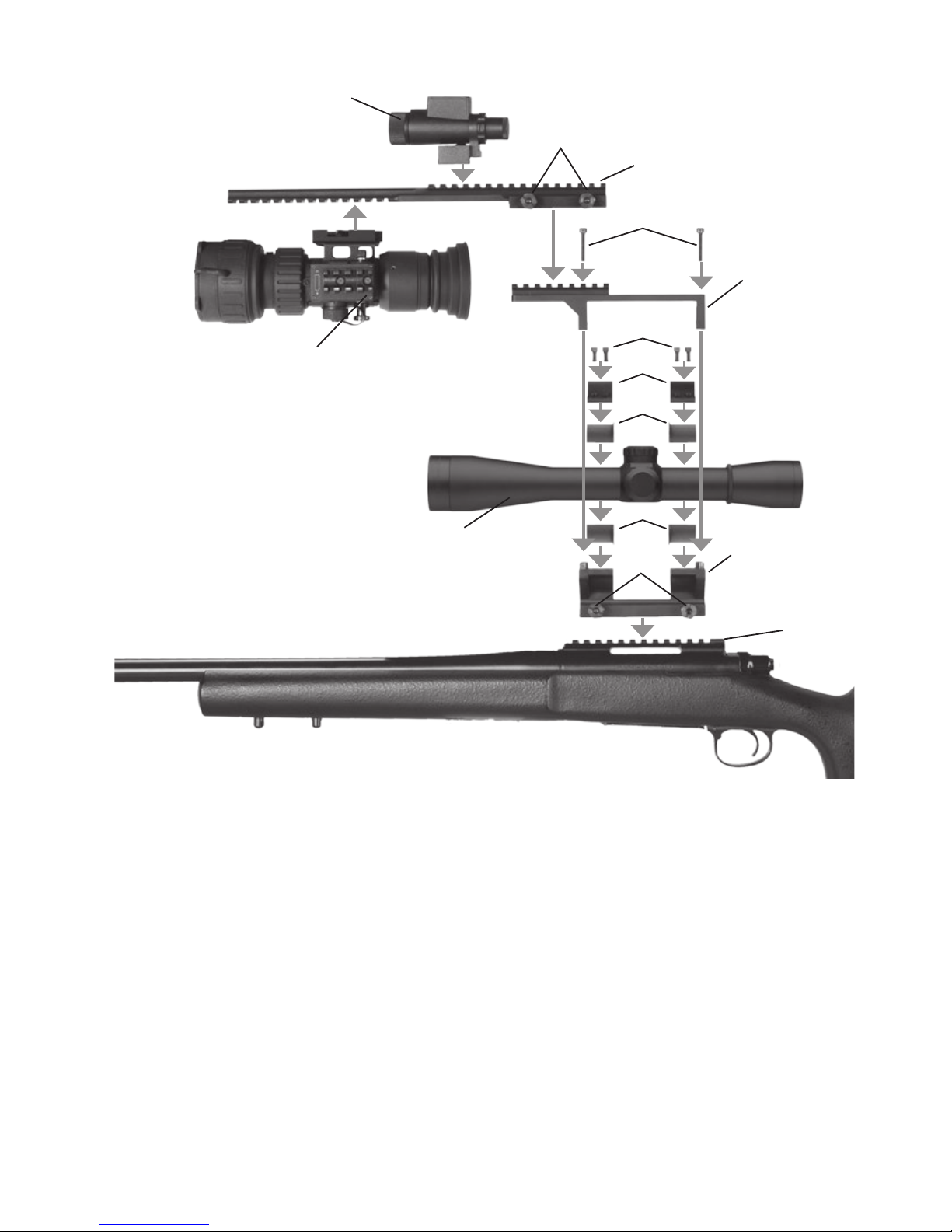

2.1.8. Mounting Examples 2-11

2.2. Operating Procedures 2-11

2.2.1. General 2-11

2.2.2. Controls and Indicators 2-12

2.2.3. Operating Procedures 2-13

2.2.4. Operating with Remote Control 2-14

2.2.5. Operating with IR450 Illuminator 2-14

2.2.6. Preparation for Storage 2-14

SECTION III. MAINTENANCE INSTRUCTIONS 3-1

i

3.1. Preventive Maintenance Checks
and Services (PMCS) 3-2

3.1.1. Preventive Maintenance Checks And Services
Table 3-2

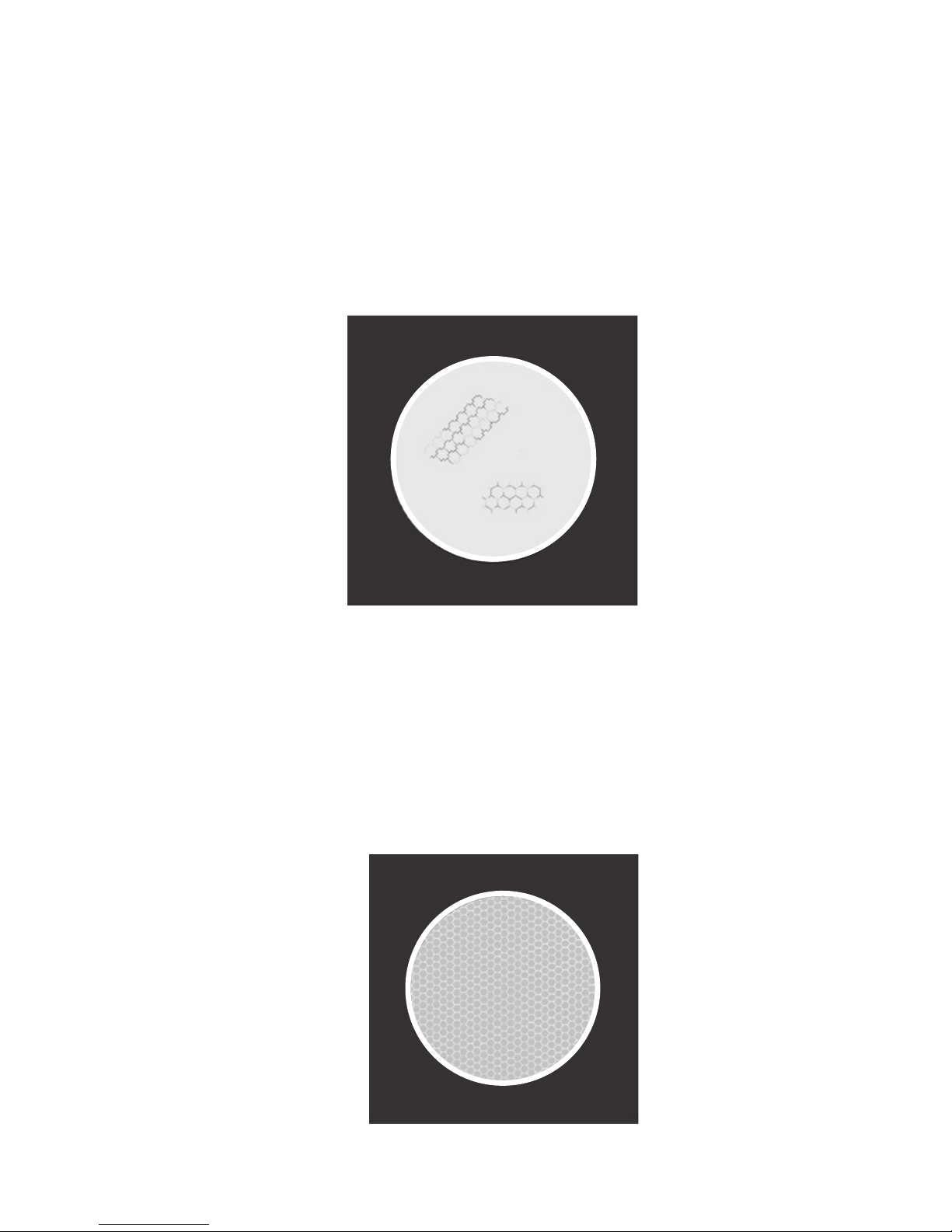

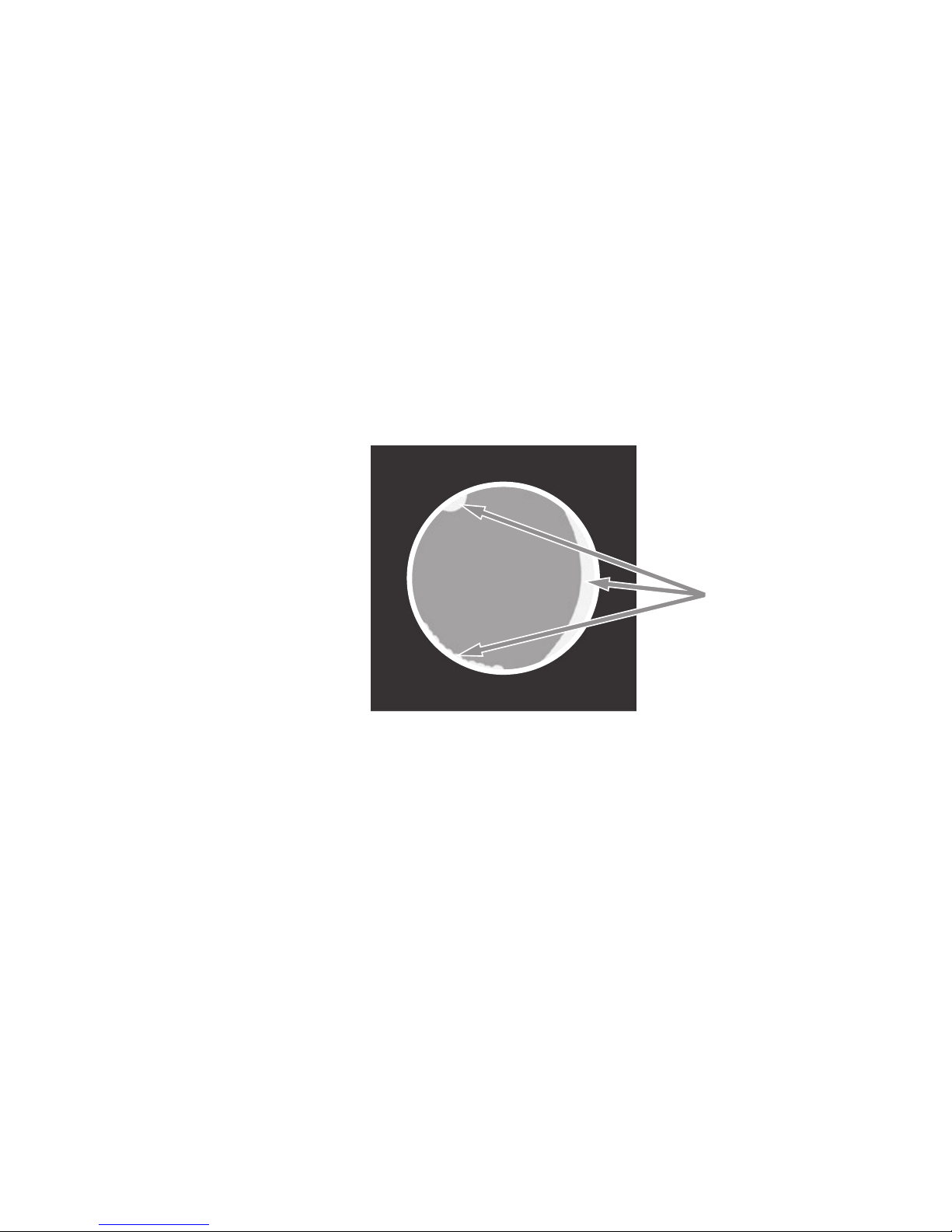

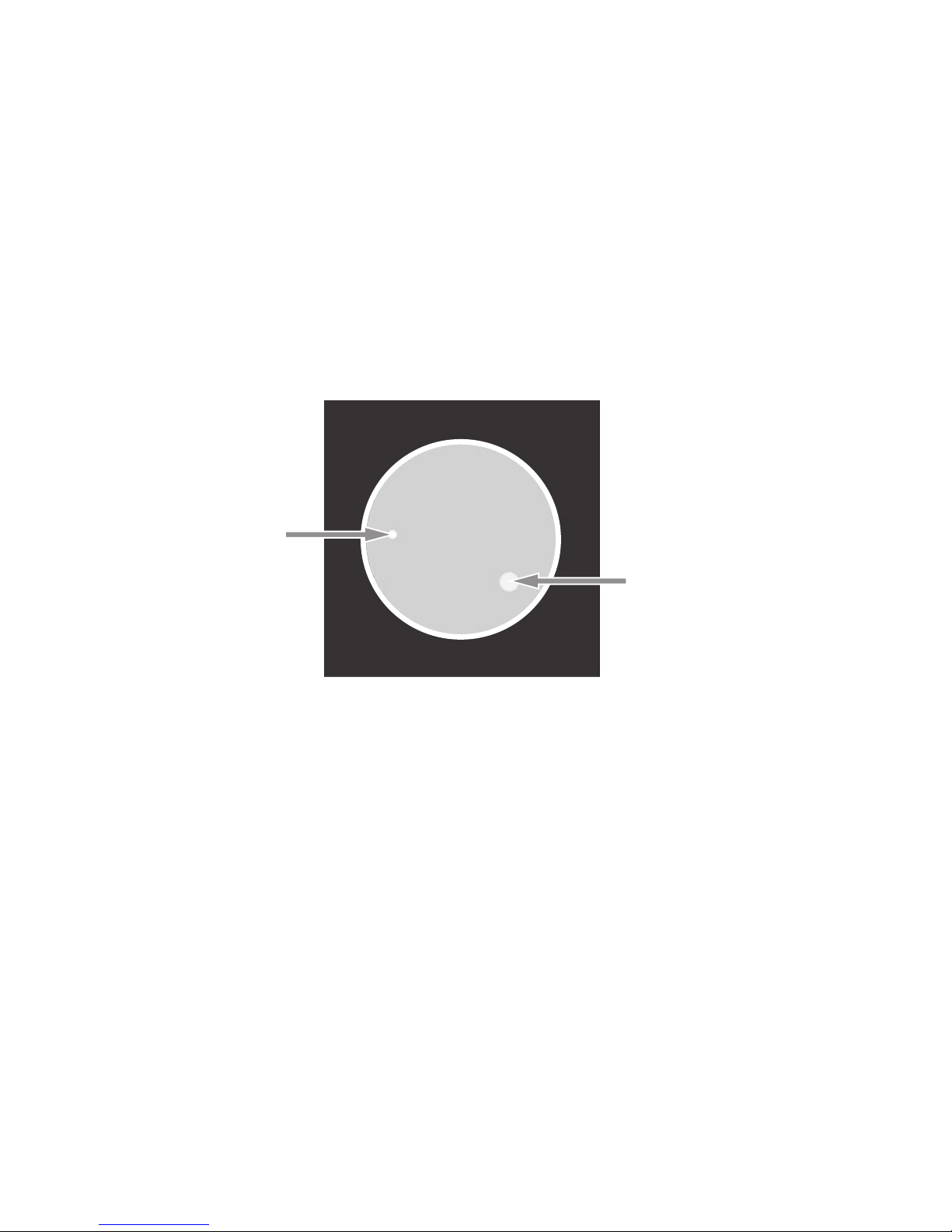

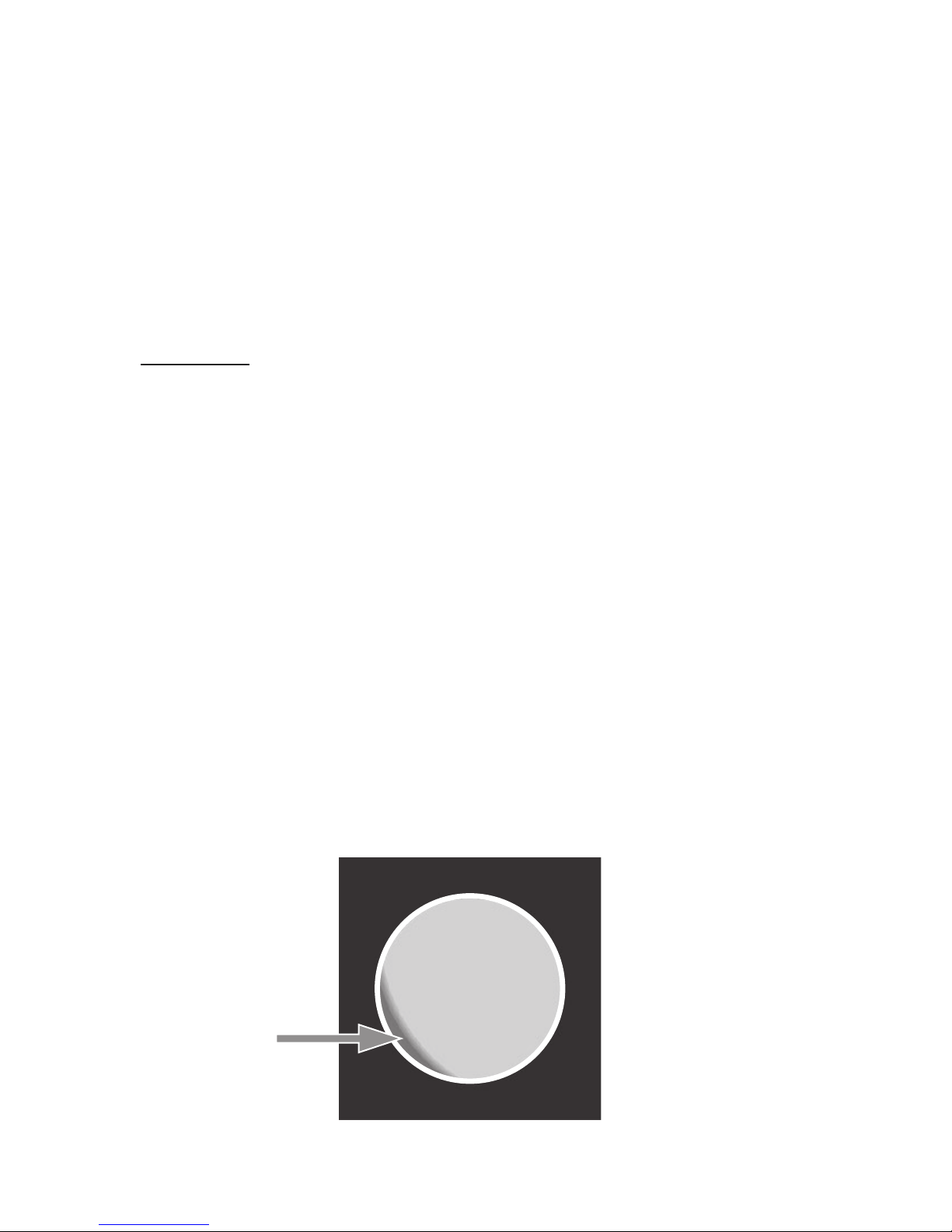

3.1.2. Inspection Criteria for Proper Image Intensifier
Operation 3-6

3.2. Troubleshooting 3-10

3.2.1. General 3-10

3.2.2. Troubleshooting Procedures 3-10

3.3. Maintenance Procedures 3-11

3.3.1. PS28 Maintenance 3-11

3.3.2. Cleaning Procedures 3-11

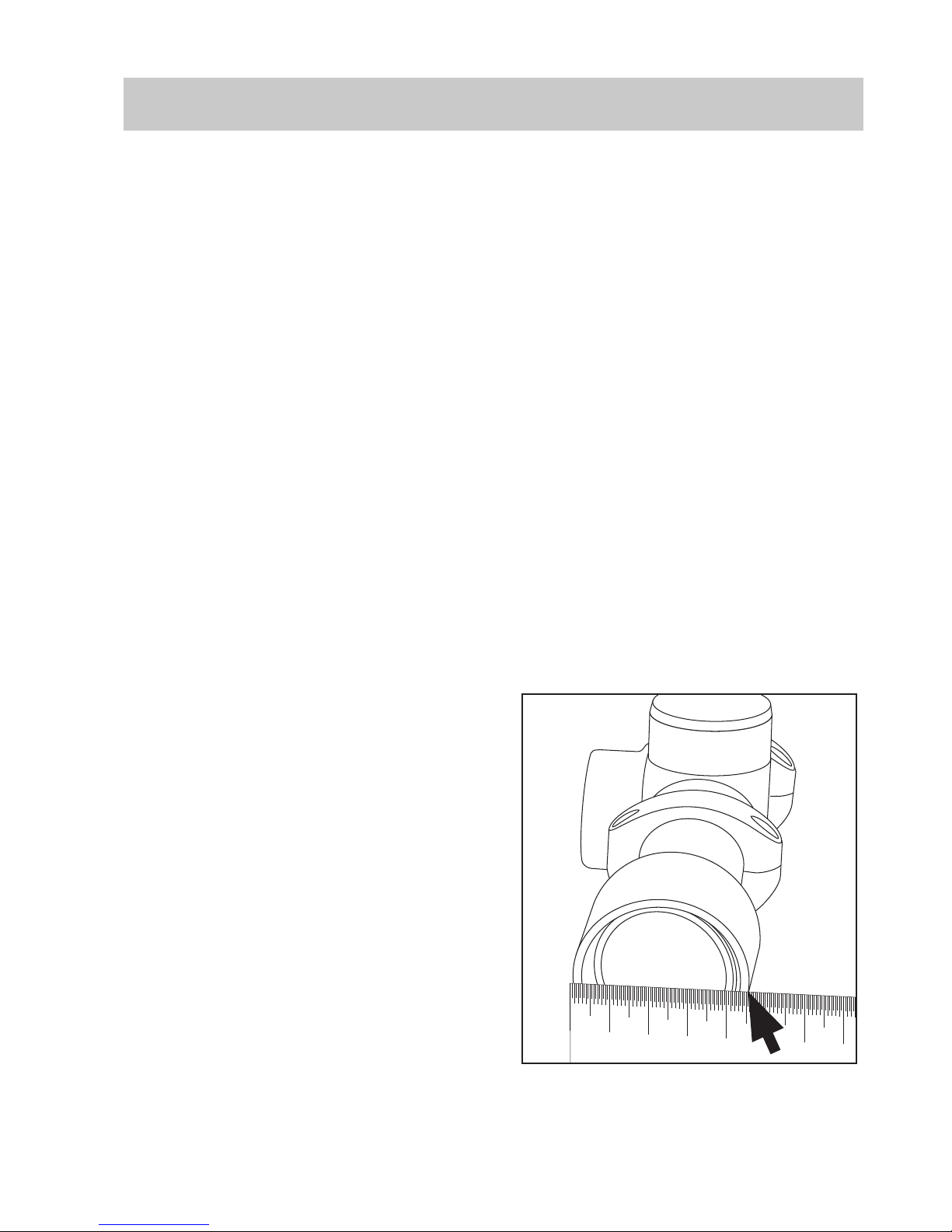

Appendix A. How to select Scope Mounting System A-1

Appendix B. Estimation of Ambient Illumination Level B-1

ii

SECTION I

INTRODUCTION

1-1

1.1 GENERAL INFORMATION

1.1.1. SCOPE

This manual contains instructions for use in operating and main­taining the ATN PS28 Night Vision Front Sights. Throughout this
manual, the ATN PS28 will be referred to as the sights or the PS28.

1.1.2. REPORTS

Reports from the user on recommendations for improvements are
encouraged. Send reports to the address below.

American Technologies Network Corp.

1341 San Mateo Avenue

South San Francisco, CA 94080

[phone]
[phone]

[phone] fax

www.atncorp.com

[e-mail]

1.1.3. STORAGE

Storage of the PS28 should be done in the factory packing and
after a thorough PMCS as outlined in Section IV of this manual.
This will ensure the sight remains in mission ready condition dur­ing storage. Battery should be stored separately from the sight.

The PS28 should not be placed on the floor, in any area exposed
to high temperatures or direct sunlight. Presence of acid and al­kaline vapor, as well as of other aggressive admixtures in the air
is unacceptable.

1-2

1.1.4. WARRANTY

2 YEAR PRODUCT WARRANTY

This product is guaranteed to be free from manufacturing defects in
material and workmanship under normal use for a period of 2 (two)
years from the date of purchase. In the event a defect that is covered
by the foregoing warranty occurs during the applicable period stated
above, ATN, at its option, will either repair or replace the product, and
such action on the part of ATN shall be the full extent of ATN’s liability,
and the Customer’s sole and exclusive remedy. This warranty does not
cover a product (a) used in other than its normal and customary man
ner; (b) subjected to misuse; (c) subjected to alterations, modifications
or repairs by the Customer of by any party other than ATN without prior
written consent of ATN; (d) special order or “close-out” merchandise or
merchandise sold “as-is” by either ATN or the ATN dealer; or (e) mer­chandise that has been discontinued by the manufacturer and either
parts or replacement units are not available due to reasons beyond the
control of ATN. ATN shall not be responsible for any defects or damage
that in ATN’s opinion is a result from the mishandling, abuse, misuse,
improper storage or improper operation, including use in conjunction
with equipment which is electrically or mechanically incompatible with
or of inferior quality to the product, as well as failure to maintain the
environmental conditions specified by the manufacturer. CUSTOMER

IS HEREBY NOTIFIED THAT OPERATION OF THE EQUIPMENT
DURING DAYLIGHT HOURS OR UNDER ANY EXCESSIVE LIGHT
CONDITIONS MAY PERMANENTLY DAMAGE THE INTERNAL
COMPONENTS OF THE UNIT AND SAID DAMAGE WILL NOT BE
COVERED UNDER THIS WARRANTY. This warranty is extended only

to the original purchaser. Any breach of this warranty shall be waived
unless the customer notifies ATN at the address noted below within the
applicable warranty period.

-

The customer understands and agrees that except for the foregoing
warranty, no other warranties written or oral, statutory, expressed or
implied, including any implied warranty of merchantability or fitness for
a particular purpose, shall apply to the product. All such implied warran
ties are hereby and expressly disclaimed.

LIMITATION OF LIABILITY

ATN will not be liable for any claims, actions, suits, proceedings, costs,
expenses, damages or liabilities arising out of the use of this product.
Operation and use of the product are the sole responsibility of the Cus
tomer. ATN’s sole undertaking is limited to providing the products and
services outlined herein in accordance with the terms and conditions of
this Agreement. The provision of products sold and services performed
by ATN to the Customer shall not be interpreted, construed, or regard­ed, either expressly or implied, as being for the benefit of or creating

-

-

1-3

any obligation toward any third party of legal entity outside ATN and the
Customer; ATN’s obligations under this Agreement extend solely to the
Customer.

ATN’s liability hereunder for damages, regardless of the form or action,
shall not exceed the fees or other charges paid to ATN by the customer
or customer’s dealer. ATN shall not, in any event, be liable for special,
indirect, incidental, or consequential damages, including, but not limited
to, lost income, lost revenue, or lost profit, whether such damages were
foreseeable or not at the time of purchase, and whether or not such
damages arise out of a breach of warranty, a breach of agreement, neg

-

ligence, strict liability or any other theory of liability.

PRODUCT WARRANTY REGISTRATION

In order to validate the warranty on your product, ATN must receive a
completed Product Warranty Registration Card for each unit or com

­plete warranty registration on our website at www.atncorp.com. Please
complete the included form and immediately mail it to our Service Cen­ter: ATN Corporation, 1341 San Mateo Avenue, South San Francisco,
CA 94080.

OBTAINING WARRANTY SERVICE

To obtain warranty service on your unit, End-user must notify ATN ser

­vice department by calling 800-910-2862 or 650-989-5100 or via e-mail
[e-mail] to receive a Return Merchandise Authorization
number (RMA).

When returning please take or send the product, postage paid, with a
copy of your sales receipt to our service center, ATN Corporation at the
address noted above. All merchandise must be fully insured with the
correct postage; ATN will not be responsible for improper postage or,
missing or damaged merchandise during shipment.

When sending product back, please clearly mark the RMA# on the
outside of the shipping box. Please include a letter that indicates your
RMA#, Name, Return Address, reason for service return, Contact in

­formation such as valid telephone numbers and/or e-mail address and
proof of purchases that will help us to establish the valid start date of the
warranty. Product merchandise returns that do not have an RMA listed
may be refused or a significant delay in processing may occur.

Estimated Warranty service time is 10-20 business days. End-user/cus

­tomer is responsible for postage to ATN for warranty service. ATN will
cover return postage/shipping to continental USA end-users/customers
after warranty repair only if product is covered by aforementioned war­ranty. ATN will return product after warranty service by domestic ground
service and/or domestic mail. Any other requested, required or interna­tional shipping method the postage/shipping fee will be the responsibil­ity of the end-user/customer.

1-4

1.2. DESCRIPTION AND DATA

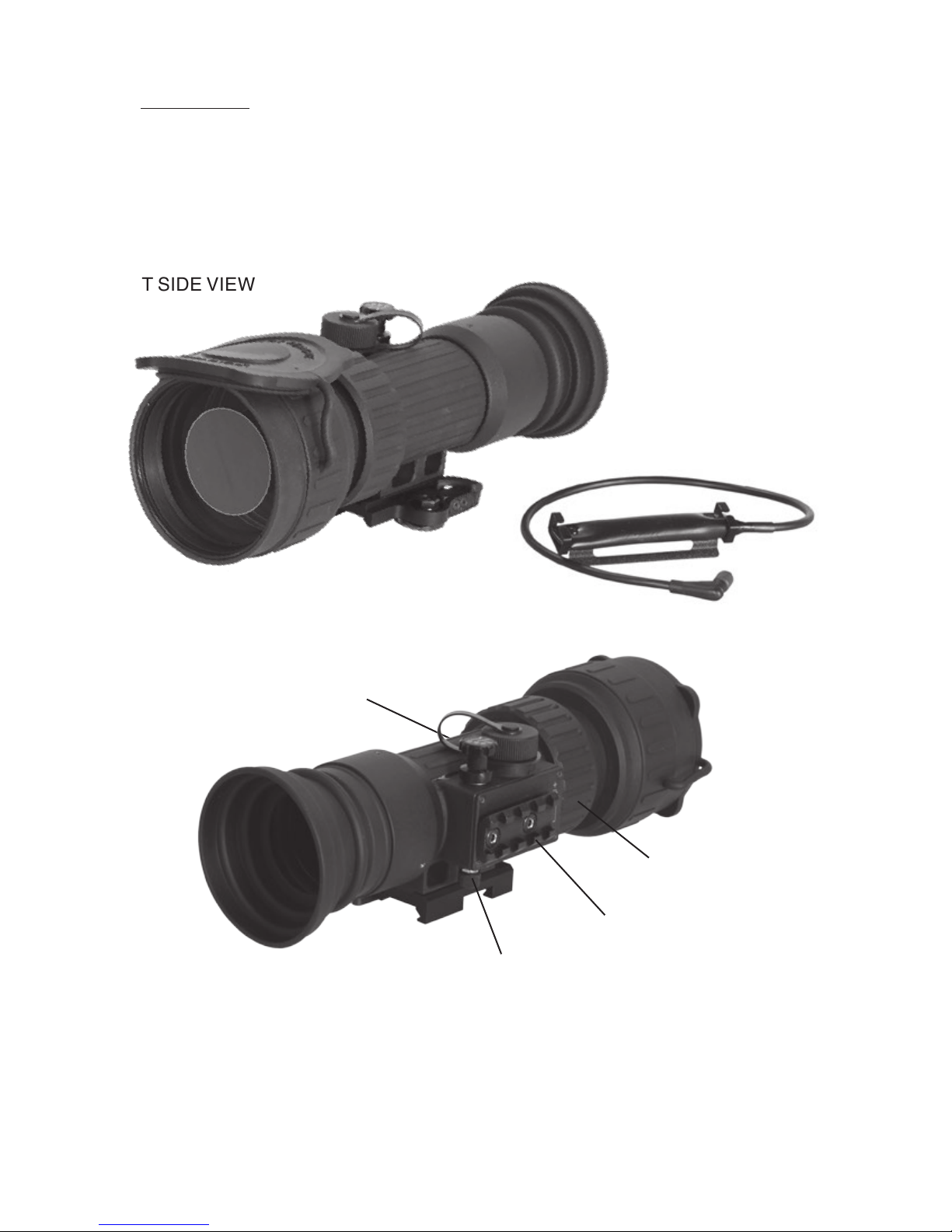

1.2.1. DESCRIPTION

A. Purpose

The PS28 is an effective night vision system that mounts forward
of an existing riflescope/spotting scope (further referred to as a
scope) adding night vision capabilities to daytime target acqui­sition platform. Advisable dayscope magnification is 1X to 12X
(2.5X to 8X is optimum). The sight is installed and removed with­out affecting boresight (permanent boresight alignment).

NOTE

The PS-28 can be installed also forward of viewfinders of vari­ous instruments to widen operating illumination range.

B. Principle of Operation

The PS28 operation is based on the principle of electron-optical
intensification of light. The input fast catadioptric lens collects
available ambient light from sources such as the moon, stars and
skyglow and focuses it on the image intensifier tube photocath­ode. The tube amplifies the light and produces the viewable im­age projected by the output lens from the tube screen into the
dayscope lens. Thus the sight provides the capability for operator
to see through the scope at night.

C. Features

The PS28 has the following important features:

• Available with 2+, 3, WPT™* or 4th generation image intensi­fier tube.

• Powered by a single 123A lithium battery.

• Adjusts for lens focus.

• Automatic Brightness Control System always keeps the IIT
brightness level constant, even under unsteady brightness
conditions.

• Equipped with remote control.

* WPT is a registered trademark of American Technology Network Corp.

1-5

• Is mounted on MIL-STD-1913 rail or dayscope lens.

• Is submersible to 10 m for 30 minutes.

• Filled with dry nitrogen to prevent internal fogging.

D. System Limitations

The PS28 is an effective night vision system designed for night op­erations but does have the following limitations:

• The sight requires some night light (moonlight, starlight, etc.) to
operate. Night light is reduced by such factors as passing cloud
cover and objects that produce shadows.

• The sight is less effective viewing through rain, fog, sleet, snow,
smoke.

• Under starlight conditions low contrast environments (such as
snowcovered territory, sandy deserts, large bodies of water or
grassy hills) degrade visibility thereby disguising or masking
changes in terrain.

• Under low-light conditions the sight looses some of the resolu­tion that it has under full moon.

TABLE 1-1. SYSTEM DATA

ITEM DATA

Magnification Unity (1 X)

Boresight Characteristics:

Accuracy Factory aligned to ½ MOA or better

Retention Permanent to within 1 MOA or better

Repeatability Within ½ MOA

System Resolution subject to Tube Resolution:

36 to 44 lp/mm 0.38 mrad/lp

45 to 54 lp/mm 0.30 mrad/lp

55 to 64 lp/mm 0.25 mrad/lp

Over 65 lp/mm 0.21 mrad/lp

1-6

TABLE 1-2. MECHANICAL DATA

ITEM DATA

Dimensions (Length x Width x Height) 7.7”x3.5”x3”/ 195x89x76 mm

Weight 1.85 lbs/ 0.84 kg

TABLE 1-3. ELECTRICAL DATA

ITEM DATA

Battery CR123A (3 V)

Consumption Current:
at 3.0 V 38 mA

Cell Life at 20˚C:
123A Lithium Battery 36 hours

TABLE 1-4. OPTICAL DATA

ITEM DATA

Objective Lens Focal Length 80 mm

Objective Lens F/number 1:1.10

Focus Range 10 m to infinity

Field of View 15˚

Output Lens Exit Pupil Diameter 40 mm

TABLE 1-5. ENVIRONMENTAL DATA

ITEM DATA

Operating Temperature -40 to +50˚C

Storage Temperature -50 to +50˚C

Humidity 95 %, 25˚C to 40˚C for 48 hours

Illumination Required Natural night illumination (overcast star-

light to moonlight)

Immersion 10 m for 30 minutes

1-7

1.2.2. PS28 STANDARD COMPONENTS AND

OPTIONAL EQUIPMENT

The PS28 standard components are shown in Figure 1-1 and pre­sented in Table 1-6.

TABLE 1-6. PS28 STANDARD COMPONENTS

ITEM DESCRIPTION QTY

1 ATN PS28 Night Vision Front Sight 1

2 Objective Lens Cap 1

3 Quick Release Mount (QRM) 1

4 Light Suppressor 1

5 Remote Control 1

6 IR450-B4 IR Illuminator Kit 1

7 Shipping /Storage Case 1

8 Battery 123A, Lithium 1

9 Operating Manual 1

1

2

3

5

FIGURE 1-1. PS28 STANDARD COMPONENTS

4

6

9

7

8

IR450-B4 IR Illuminator Kit is shown in Figure 1-2 and listed in Table 1-7.

1-8

TABLE 1-7. IR450-B4 IR ILLUMINATOR KIT

ITEM DESCRIPTION QTY

1 IR450-B4 IR 1

2 1,5 mm Allen Key 1

3 IR450 Wrench 1

4 Battery 123A, Lithium 1

1

2

FIGURE 1-2. IR450-B4 IR ILLUMINATOR KIT

3 4

Optional items are shown in Figure 1-3 and listed in Table 1-8.

TABLE 1-8. PS28 OPTIONAL EQUIPMENT

ITEM DESCRIPTION PART CODE

1

Weaver Mount

2

Scope Mounting System #1

3

Scope Mounting System #2

4

Boresight Attachment Mount (B.A.M.)

5

Long Rail Adapter

6

Platform Ring

ACDNPS40MWVR

ACDNPS40SM01

ACDNPS40SM02

ACDNPS40BM01

ACWSLRADPT

ACWSRTRA

1-9
