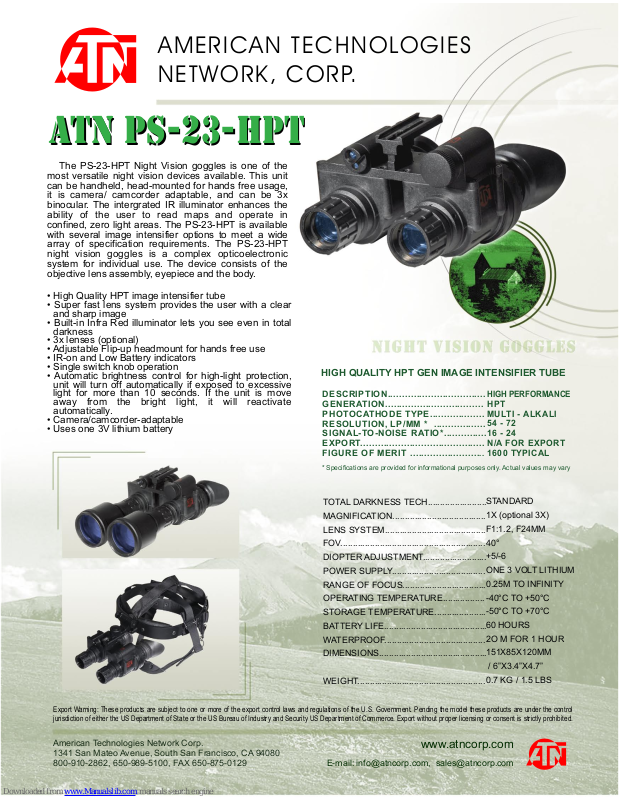

ATN PS-23-HPT Specifications
The PS-23-HPT Night Vision goggles is one of the
most versatile night vision devices available. This unit
can be handheld, head-mounted for hands free usage,
it is camera/ camcorder adaptable, and can be 3x
binocular. The intergrated IR illuminator enhances the
ability of the user to read maps and operate in
confined, zero light areas. The PS-23-HPT is available
with several image intensifier options to meet a wide
array of specification requirements. The PS-23-HPT
night vision goggles is a complex opticoelectronic
system for individual use. The device consists of the
objective lens assembly, eyepiece and the body.
ATN PS-23-HPT
ATN PS-23-HPT
STANDARD
1X (optional 3X)
F1:1.2, F24MM
40°
+5/-6
ONE 3 VOLT LITHIUM
0.25M TO INFINITY
-40°C TO +50°C
-50°C TO +70°C
60 HOURS
2O M FOR 1 HOUR
151X85X120MM
/ 6”X3.4”X4.7”
0.7 KG / 1.5 LBS
TOTAL DARKNESS TECH........................
MAGNIFICATION......................................
LENS SYSTEM.........................................
FOV...........................................................
DIOPTER ADJUSTMENT..........................
POWER SUPPLY......................................
RANGE OF FOCUS..................................
OPERATING TEMPERATURE.................
STORAGE TEMPERATURE.....................
BATTERY LIFE..........................................
WATERPROOF.........................................
DIMENSIONS............................................
WEIGHT....................................................
www.atncorp.com
E-mail: info@atncorp.com, sales@atncorp.com
AMERICAN TECHNOLOGIES
NETWORK, CORP.
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
• High Quality HPT image intensifier tube
• Super fast lens system provides the user with a clear
and sharp image
• Built-in Infra Red illuminator lets you see even in total
darkness
• 3x lenses (optional)
• Adjustable Flip-up headmount for hands free use
• IR-on and Low Battery indicators
• Single switch knob operation
• Automatic brightness control for high-light protection,
unit will turn off automatically if exposed to excessive
light for more than 10 seconds. If the unit is move
away from the bright light, it will reactivate
automatically.
• Camera/camcorder-adaptable
• Uses one 3V lithium battery
American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX 650-875-0129
DESCRIPTION..................................
GENERATION..................................
PHOTOCATHODE TYPE...................
RESOLUTION, LP/MM * ..................
SIGNAL-TO-NOISE RATIO*...............
EXPORT...........................................
FIGURE OF MERIT ........................
..
HIGH QUALITY HPT GEN IMAGE INTENSIFIER TUBE
* Specifications are provided for informational purposes only. Actual values may vary
HIGH PERFORMANCE
HPT
MULTI - ALKALI
54 - 72
16 - 24
N/A FOR EXPORT
1600 TYPICAL
