Page 1
www.atncorp.com
E-mail: [email protected], [email protected]
American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX 650-875-0129
AMERICAN TECHNOLOGIES
NETWORK, CORP.

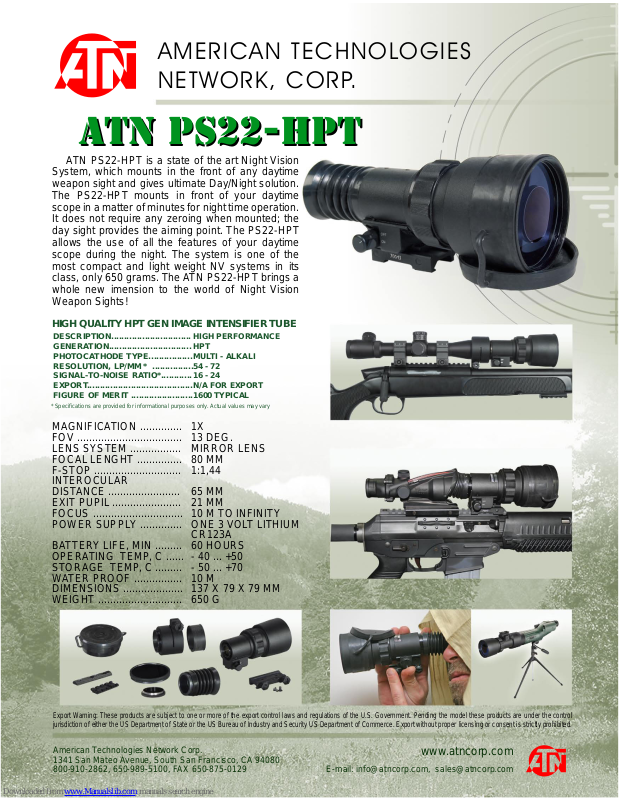

ATN PS22-HPT
ATN PS22-HPT
ATN PS22-HPT is a state of the art Night Vision
System, which mounts in the front of any daytime
weapon sight and gives ultimate Day/Night solution.
The PS22-HPT mounts in front of your daytime
scope in a matter of minutes for night time operation.
It does not require any zeroing when mounted; the
day sight provides the aiming point. The PS22-HPT
allows the use of all the features of your daytime
scope during the night. The system is one of the
most compact and light weight NV systems in its
class, only 650 grams. The ATN PS22-HPT brings a
whole new imension to the world of Night Vision
Weapon Sights!
HIGH QUALITY HPT GEN IMAGE INTENSIFIER TUBE
DESCRIPTION...............................
HIGH PERFORMANCE
GENERATION................................
HPT
PHOTOCATHODE TYPE.................
MULTI - ALKALI
RESOLUTION, LP/MM * ................
54 - 72
SIGNAL-TO-NOISE RATIO*............
16 - 24
EXPORT.........................................
N/A FOR EXPORT
FIGURE OF MERIT ........................
1600 TYPICAL
* Specifications are provided for informational purposes only. Actual values may vary
MAGNIFICATION .............. 1X
FOV ................................... 13 DEG.
LENS SYSTEM ................. MIRROR LENS
FOCAL LENGHT ............... 80 MM
F-STOP ............................. 1:1,44
INTEROCULAR
DISTANCE ........................ 65 MM
EXIT PUPIL ....................... 21 MM
FOCUS .............................. 10 M TO INFINITY
POWER SUPPLY .............. ONE 3 VOLT LITHIUM
CR123A
BATTERY LIFE, MIN ......... 60 HOURS
OPERATING TEMP, C ...... - 40 ... +50
STORAGE TEMP, C ......... - 50 ... +70
WATER PROOF ................ 10 M
DIMENSIONS .................... 137 X 79 X 79 MM
WEIGHT ............................ 650 G
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
