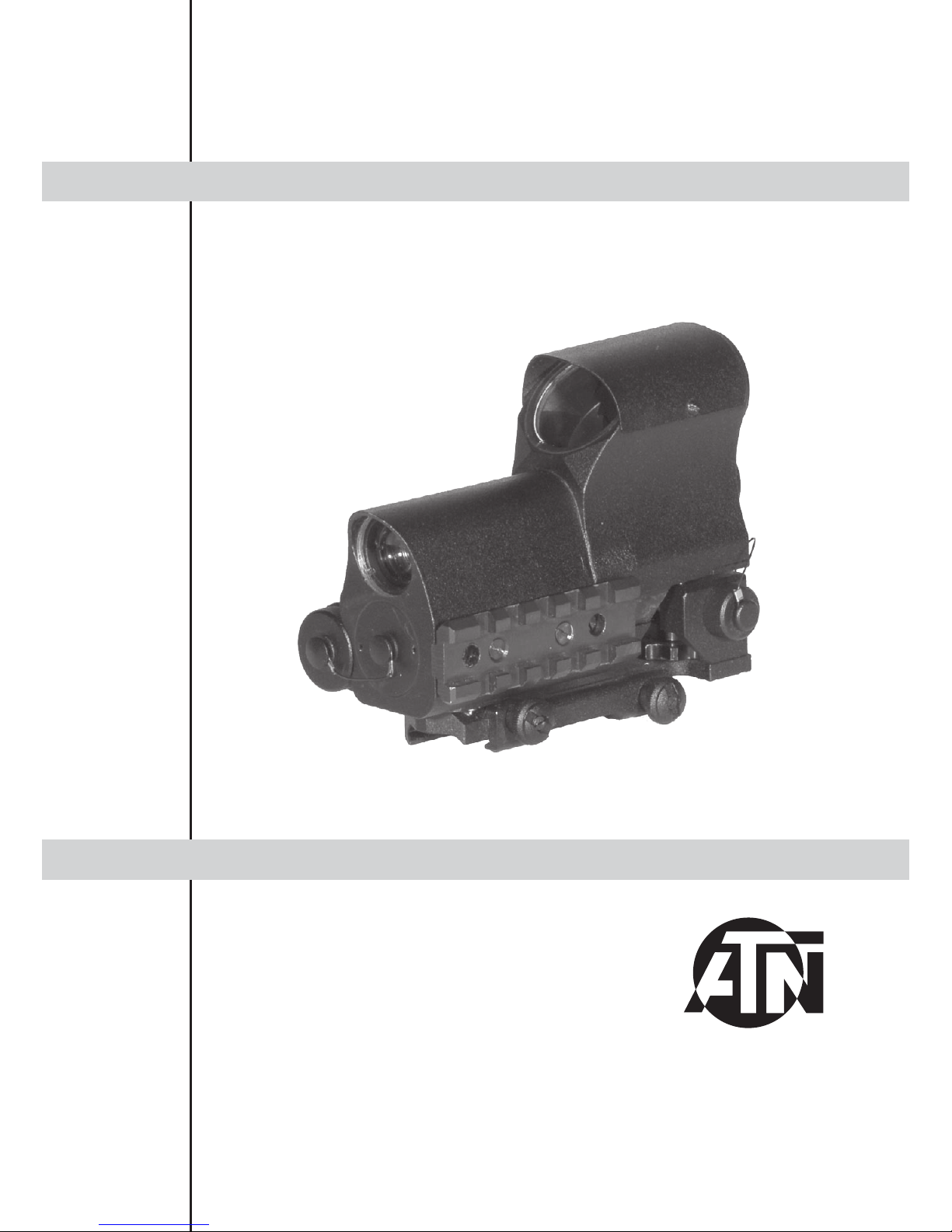

ATN OU-R3X User Manual

ATN OU-R3X

RefleX sighT/3X sCOPe

u s e r ` s g u i d e

Important Export Restrictions ! Commodities, prod­ucts, technologies and services contained in this manual
are subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or writ­ten approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.

AMERICAN

TECHNOLOGIES

NETWORK

CORP.

The information in this manual furnished for information use only, is subject to change without notice, is not to be
construed as a commitment by ATN Corp.

ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

©2006 ATN Corp. All right reserved.

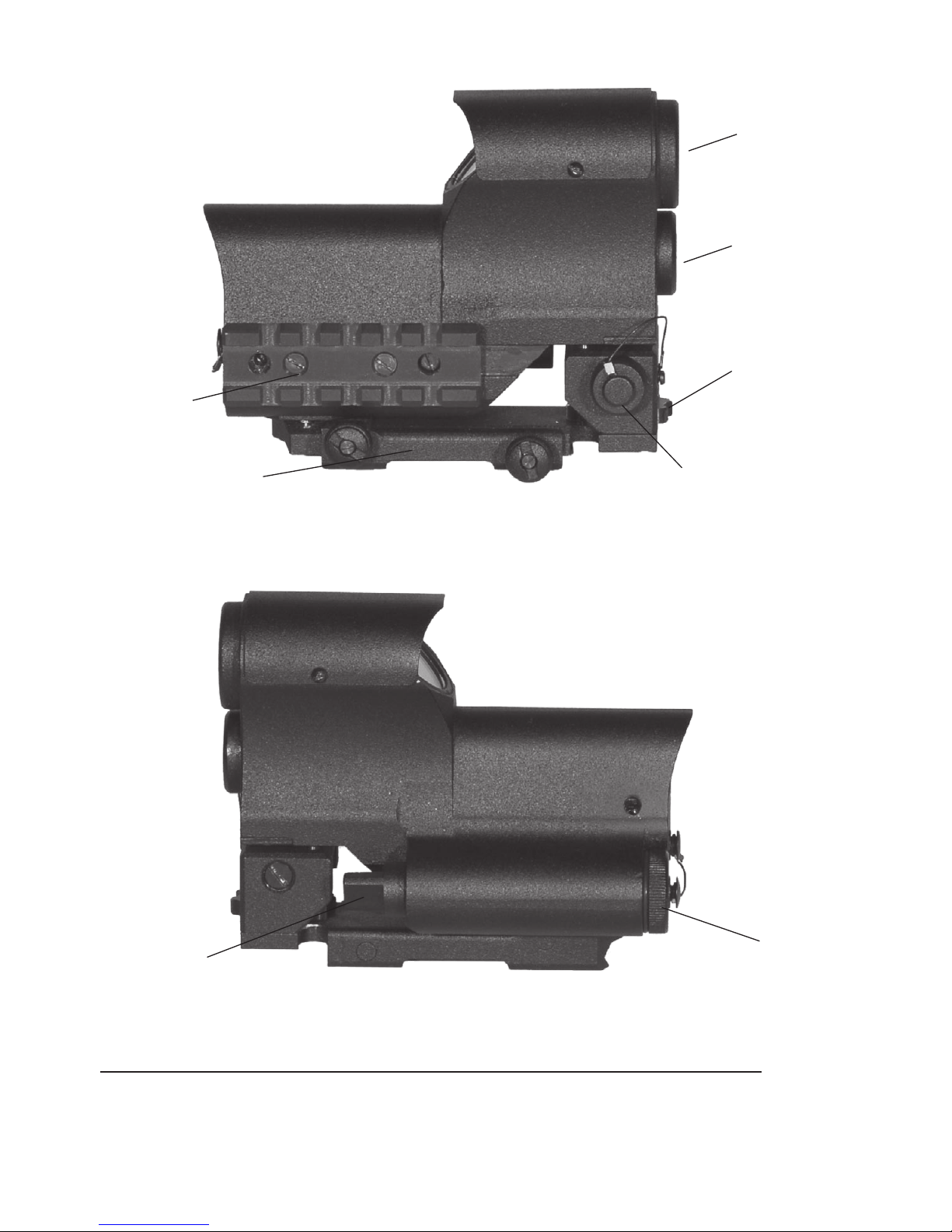

Elevation

Mounting system

Battery

housing cap

Operation knob

Windage

Picatinny rail

Channel 1:
Reflex sight

Channel 2:
3x tactical sight

2

APPliCATiON

Everything and anything except the ordinary. The new OU-R3X is a revolutionary break­through. This dual channel device combines a red dot reflex sight with a highly accurate
3x device. The reflex sight is perfect for the close quarter combat scenario with the 3x
sight available for those longer shots. The OU-R3x is an advanced and extremely univer­sal sight.

feATURes

• A true innovation

• Unique dual channel device

• Channel 1: Reflex sight

• Channel 2: 3x tactical sight

• 3X magnification, F:1.4, f26mm lens (

Channel 2)

• Multi coated Optics

• Prosheild and Everlight Lens coatings

• Easy to mount, equipped to fit Weaver bases picatinny rail

• Limited lifetime warranty.

• Dimensions: 126 x93x60 mm

• Weight: 350 g.

OPeRATiNg

MOUNTiNg

1. Slightly loosen the fixing screws on the weaver rail built into the device.

2. Place the device on the rail of the firearm making certain that the mount aligns with the
receptor attachment screw groove. Adjust as necessary.

3. Tighten the fixing screws.

NOTE: Receptor attachment screws may need to be tightened after continuous shooting.

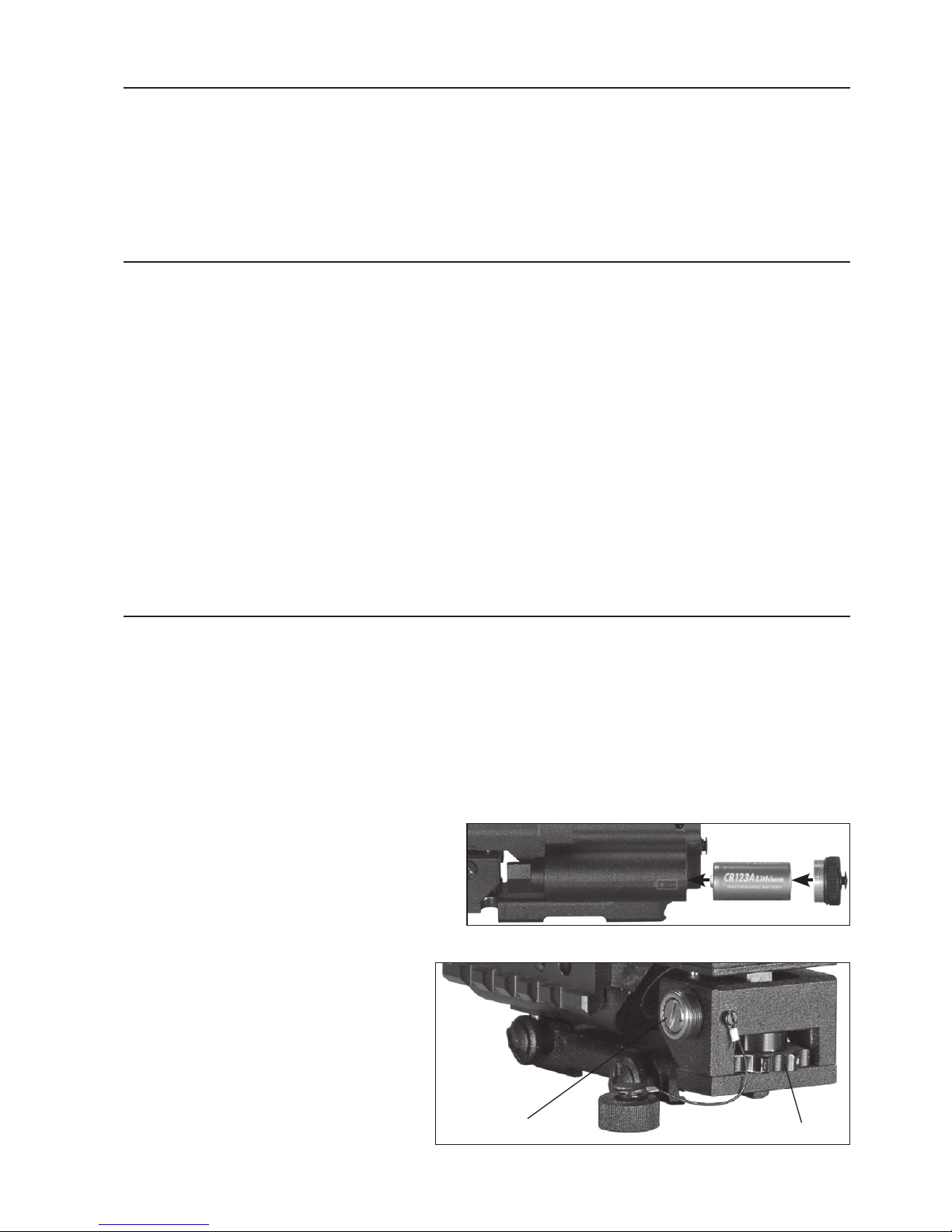

BATTeRy iNsTAllATiON

Install the battery into the housing with
the polarity order as shown on the de-

vice. Battery Type: 3 Volt Lithium bat­tery type CR132A.

WiNDAge AND eleVATiON

The vertical and horizontal adjust­ments for the OU -R 3X can be
achieved by turning the elevation
and windage adjustment mecha­nisms (remove dust cap first). Each
click equals to 1/4 inches at 100
yards. When reaching the maximum
of rotation do not use force.

Elevation

Windage

3

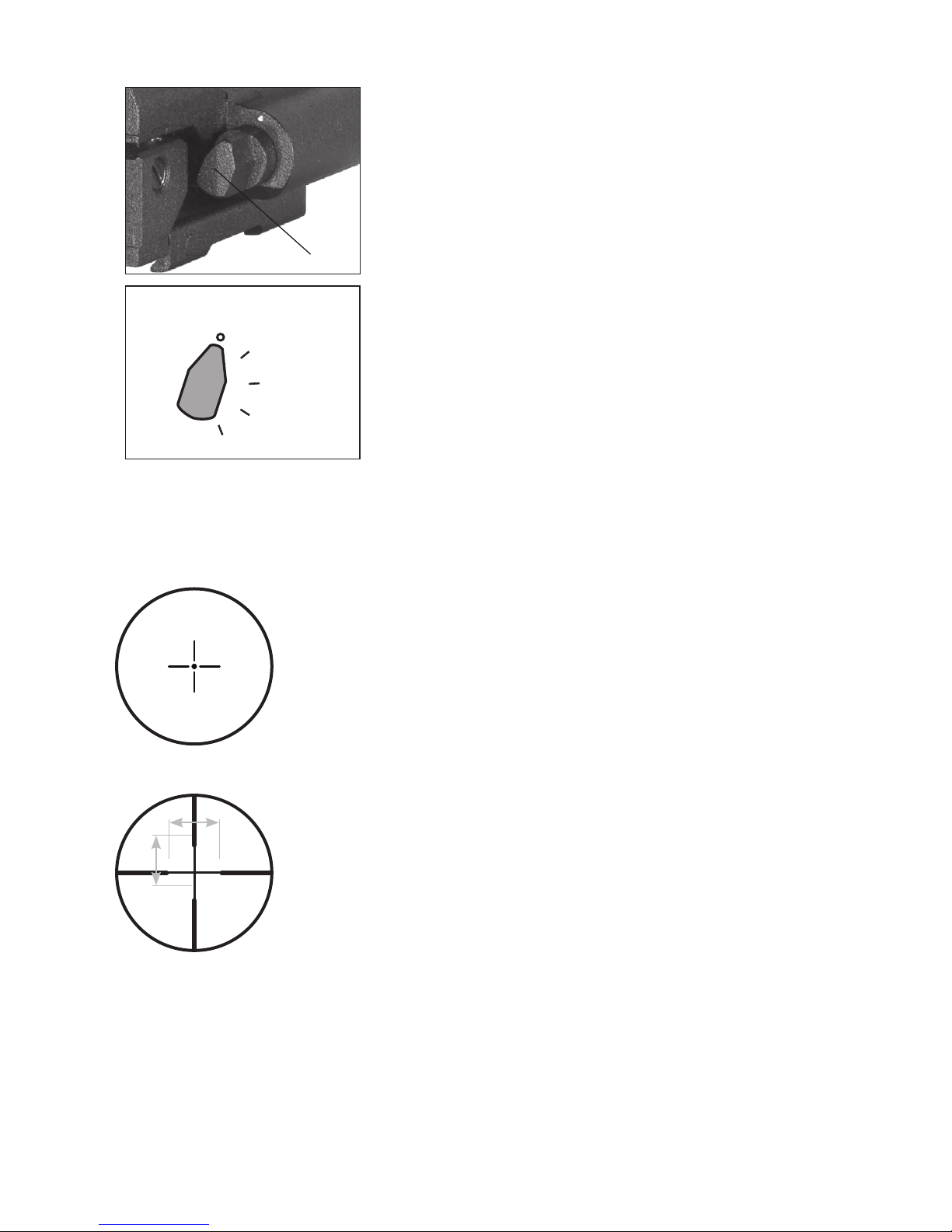

OPERATING

The OU- R 3 U has a one knob op e r a t ion contro l.
The operation knob has an OFF position marked white dot
and 4 positions of different brightness levels. Positions
of operation knob is shown on figure. The Level 1 po­sition corresponds to minimal level of reticle brightness.
The Level 4 corresponds to maximal level of reticle bright­ness.

To turn on the upper reflex sight channel and illumination
of reticle of lower channel rotate operation knob from OFF
position.

When the device is not used rotate operation knob to OFF
position.

ELECTRONIC RETICLE

Your device has an electronic reticles. The brightness of reticle illu­mination changes in both channels simultaneously.

Upper channel

The upper channel of OU-R3X has a Cross Hair with Dot reticle
with four positions of illumination.

Hold the device away from you and look through it with both eyes
open to see a reticle pattern of reflex sight channel.

Lower channel

The lower channel of OU-R3X has a Plex reticle with four positions
of illumination.

The reticle gives a clearly aiming point, even when hard-to-see
game blends into the background. Posts and crosshairs center
section covers a minimum of the target and allow for less target
coverage, making precision shots on small target easy.

The size of thin cross-line in the middle of reticle correspond to
2 yards at 100 yards distance.

Lower chanell reticle

Operation knob

OFF

Level 1

Level 2

Level 3

Level 4

Positions of operation knob

Upper chanell reticle

4

ZeROiNg

Pre-zeroing is recommended and can be done in accordance with a device guide or
owner’s instructions.

CAUTION: Be sure gun is not loaded. Always use safe gun handling procedures.

All shooting should be done at an approved range or other safe area. Eye and ear protec­tion is recommended.

DANGER

: If you used a bore-obstructing device, remove it before proceeding. If
the barrel has-been drilled for a mount, check that the screws do not protrude into
the bore. Do not fire live or even blank ammunition with an obstructed barrel. An
obstruction can cause serious damage to the gun and possible injury to you and
others nearby.

From a steady position, fire three rounds at a target. Observe the impact errors and esti­mate the correction value. Adjust windage and elevation handles as needed to correct
aim.

Remove the dust caps from the top of the windage and elevation adjusting handles.

Turn the windage and elevation handles through the number of clicks necessary for an
amendment.

NOTE: Each click of adjustment changes bullet strike by the amount shown on the chart

below.

Windage/Elevation

(inches of movement per click)

100 Yards - 1/4”
200 Yards - 1/2”
300 Yards - 3/4”

400 Yards - 1”

500 Yards - 1 1/4”

When you have finished adjustment of fire, recap windage mechanisms.

5

MAiNTAiNiNg yOUR DeViCe

Your device is weather resist and shock­proof. However, you should never try to
take apart or clean it internally (it will void
your warranty). If your scope ever does
need repairs or adjustments, it should be
returned to ATN’s service depar tment.
The exposed optical surfaces will perform
their best if they are occasionally wiped
clean with a lens cloth or with optical qual­ity lens paper like those for eyeglasses

or camera lenses. Maintain the metal
surfaces of your rifle scope by removing
any dirt or sand with a soft brush so as to
avoid scratching the finish. Wipe down the
scope with a damp cloth and follow with
a dry cloth. Finally, going over the tube
with a silicone treated cloth will restore
luster and protect the scope against cor­rosion. Be careful not to touch the any of
the lenses with the silicone cloth.

6

lifeTiMe liMiTeD PRODUCT
WARRANTy

This product comes with a Lifetime Guarantee
against defects in both materials and workman­ship. In the event a defect that is covered by the
foregoing warranty occurs during the applicable
period stated above, ATN, at its option, will either
repair or replace the product, and such action on
the part of ATN shall be the full extent of ATN’s
liability, and the Customer’s sole and exclusive
remedy. This warranty does not cover a product
(a) used in other than its normal and customary
manner; (b) subjected to misuse, (c) subjected
to alterations, modifications or repair s by the
Customer of by any party other than ATN with­out prior written consent of ATN; (d) special or­der or “close-out” merchandise or merchandise
sold “as-is” by either ATN or the ATN dealer; or
(e) merchandise that has been discontinued by
the manufacturer and either parts or replacement
units are not available due to reasons beyond the
control of ATN. ATN shall not be responsible for
any defects or damage that in ATN’s opinion is a
result from the mishandling, abuse, misuse, im­proper storage or improper operation, including
use in conjunction with equipment which is elec­trically or mechanically incompatible with or of
inferior quality to the product, as well as failure to
maintain the environmental conditions specified
by the manufacturer. This warranty is extended
only to the original purchaser. Any breach of this
warranty shall be waived unless the customer no­tifies ATN at the address noted below within in the
applicable warranty period.

T H E C U S T O M ER U N D E R STA N D S A N D
AGREES THAT EXCEPT FOR THE FOREGOING
WARRANTY, NO OTHER WARRANTIES WRIT­TE N OR ORAL , STATUTORY, E XPRESSED
OR IMPLIED, INCLUDING ANY IMPLIED WAR­RANTY OF MERCHANTABILIT Y OR FITNESS
FOR A PARTICULAR PURPOSE, SHALL APPLY
TO THE PRODUCT. ALL SUCH IMPLIED WAR­RANTIES ARE HEREBY AND EXPRESSLY DIS­CLAIMED.

liMiTATiON Of liABiliTy

ATN will not be liable for any claims, actions, suits,
proceedings, costs, expenses, damages or liabili­ties arising out of the use of this product. Operation
and use of the product are the sole responsibility
of the Customer. ATN’s sole undertaking is limited
to providing the products and services outlined
herein in accordance with the terms and conditions

of this Agreement. The provision of products sold
and services performed by ATN to the Customer
shall not be interpreted, construed regarded,
either expressly or implied as being the benefit of
or creating any obligation toward any third party of
legal entity outside ATN and the Customer: ATN’s
obligations under this Agreement extend solely to
the Customer. ATN’S LIABILITY HEREUNDER
FOR DAMAGES. REGARDLESS OF THE FORM
OR ACTION, SHALL NOT EXCEED THE FEES
OR OTHER CHARGES PAID TO ATN BY THE
CUSTOMER OR CUSTOMER’S DEALER. ATN
SHALL NOT, IN ANY EVENT, BE LIABLE FOR
SPECIAL, INDIRECT, INCIDENTAL OR CONSE­QUENTIAL DAMAGES. INCLUDING. BUT NOT
LIMITED TO LOST INCOME, LOST REVENUE
OR LOST PROFIT WHETHER SUCH DAMAGES
WERE FORESEEABLE OR NOT AT THE TIME
OF PURCHASE AND WHETHER OR NOT SUCH
DAMAGES ARISE OUT OF A BREACH OF WAR­RANTY, A BREACH OF AGREEMENT, NEGLI­GENCE, STRICT LIABILITY OR ANY OTHER
THEORY OF LIABILITY.

PRODUCT WARRANTy RegisTRATiON

In order to validate the warranty on your product,
ATN must receive a completed Product Warranty
Registration Card for each unit. Please com­plete me form below and immediately mail it to
our Service Centre: ATN Corporation, 20 South
Li nden Ave. Suite 1B, South San Franci sco,
CA 94080. Products qualifying for warranty repair
will be either repaired or replaced within 10 busi­ness days of receipt of merchandise unless the
customer is notified otherwise.

OBTAiNlNg WARRANTy seRViCe

To obtain warranty ser vice on your unit, take or
send the product, postage paid, with a copy of our
sales receipt to our service centre, ATN Corpora­tion at the address noted above. All merchandise
must be fully insured with the correct postage;
ATN will not be responsible for improper postage,
or, missing or damaged merchandise during ship­ment.

WARRANTy

For customer service and technical support, please contact

American Technologies Network Corp.

North American Office

20 S. Linden Ave. Suite 1B, South San Francisco, CA 94080

phone: [phone]; fax: [phone]

European Office

phone: [phone], fax: [phone]

The following countries can use our

toll free number 00 800 9102-8620

Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland

www.atncorp.com

©2006 ATN Corporation
