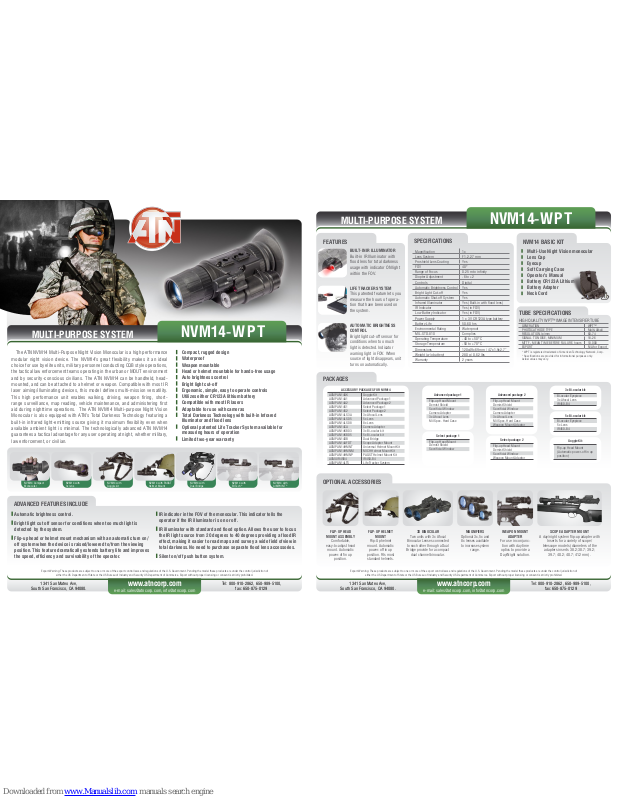

ATN NVM14-WPT Specification

MULTI-PURPOSE SYSTEM

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

1341 San Mateo Ave,

South San Francisco, CA 94080.

Tel: [phone],

fax: [phone]

www.atncorp.com

e-mail: [e-mail], [e-mail]

FEATURES NVM14 BASIC KIT

PACKAGES

OPTIONAL ACCESSORIES

BUILT-IN IR ILLUMINATOR

Built-in IR Illuminator with
flood lens for total darkness
usage with indicator ON light
within the FOV.

LIFE TRACKER SYSTEM

This patented feature lets you
measure the hours of opera­tion that have been used on
the system.

AUTOMATIC BRIGHTNESS
CONTROL

Bright light cut-off sensor for
conditions when too much
light is detected. Indicator
warning light in FOV. When
source of light disappears, unit
turns on automatically.

Multi-Use Night Vision monocular
Lens Cap
Eyecup
Soft Carr ying Case
Operator’s Manual
Batter y CR123A Lithium
Battery Adapter
Neck Cord

ACCESSORY PACKAGES FOR NVM14

ACMPAN14GK Goggle Kit
ACMPAN14A1 Advanced Package 1
ACMPAN14A2 Advanced Package 2
ACMPAN14S1 Select Package 1
ACMPAN14S2 Select Package 2
ACMPAN14LS3A 3x Afocal Lens
ACMPAN14LS05 5x Lens
ACMPAN14LS08 8x Lens
ACMPAN14CA Camera Adapter
ACMPAN14KB03 3x Bi-ocular kit
ACMPAN14KB05 5x Bi-ocular kit
ACMPAN14DB Dual Bridge
ACMPAN14AFDT Scope Adapter Mount
ACMPAN14HMNT Universal Helmet Mount Kit
ACMPAN14HMNM MICH Helmet Mount Kit
ACMPAN14HMNP PAGST Helmet Mount Kit
ACMUIR45B4 IR450-B4
ACMPAN14LTS Life Tracker System

Select package 1

Flip-up Head Mount
Demist Shield
Sacrificial Window

3x Bi-ocular kit:

Bi-ocular Eyepiece
3x Afocal Lens
IR450-B4

Goggle Kit:

Flip-up Head Mount
(Automatic power-off in up
position)

Select package 2

Flip-up Head Mount
Demist Shield
Sacrificial Window
Weapon Mount Adaptor

5x Bi-ocular kit:

Bi-ocular Eyepiece
5x Lens
IR450-B4

FLIP-UP HEAD

MOUNT ASSEMBLY

Comfortable,

easy-to-adjust head

mount. Automatic

power-off in up

position.

FLIP-UP HELMET

MOUNT

Flip-Up helmet

mount. Automatic

power-off in up
position. Fits most
standard helmets.

3X BINOCULAR

Two units with 3x Afocal
Binocular Lenses connected
to each other through a Dual

Bridge provide for a compact

dual channel binocular.

MAGNIFIERS

Optional 3x, 5x and
8x lenses available
to increase system

range.

WEAPON MOUNT

ADAPTER

For use in conjunc-

tion with daytime

optics to provide a

Day/Night solution.

SCOPE ADAPTER MOUNT

A day/night system flip-up adapter with

Inserts for a variety of scope/

telescope models (diameters of the

adapters inserts 38.2; 38.7; 39.2;

39.7; 40.2; 40.7; 41.2 mm).

Advanced package 2

Flip-up Head Mount
Demist Shield
Sacrificial Window
Camera Adapter
3x Afocal Lens
Mil Spec. Hard Case
Weapon Mount Adaptor

Advanced package 1

Flip-up Head Mount
Demist Shield
Sacrificial Window
Camera Adapter
3x Afocal Lens
Mil Spec. Hard Case

SPECIFICATIONS

Magnification 1x
Lens System F1.2, 27 mm
Proshield Lens Coating Ye s
FOV 40°
Range of Focus 0.25 m to infinity
Diopter Adjustment -6 to +2
Controls Digital
Automatic Brightness Control Yes
Bright Light Cut-off Yes
Automatic Shut-off System Yes
Infrared Illuminator Yes (Built-in with flood lens)
IR Indicator Yes (in FOV)
Low Battery Indicator Yes (in FOV)
Power Supply 1 x 3 V CR123A type battery
Battery Life 50-60 hrs
Environmental Rating Waterproof
MIL-STD-810 Complies
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Dimensions 120x49x69 mm / 4.7x1,9x2.7”
Weight (w/o battery) 280 g / 0,62 lbs
Warranty 2 years

MULTI-PURPOSE SYSTEM

The ATN NVM14 Multi-Purpose N ight Vision Monocular is a high per formance
modular night vision d evice. The NVM14’s great flexib ility makes it an i deal
choice for use by elite uni ts, military pers onnel conducting CQB st yle operations,
the tactical l aw enforcement teams operat ing in the urban or MOUT environmen t
and by securit y-conscious civ ilians. The ATN NVM14 can be handh eld, head­mounted, and can be a ttached to a helm et or weapon. Compatible with most IR
laser aiming/illuminating dev ices, this model defines multi-mis sion versatility.
This high perfor mance unit enables w alking, driving, we apon firing, shor t­range surveillance, map reading, vehicle maintenance, and administering first
aid during night time operations. T he ATN NVM14 Multi-purpose N ight Vision
Monocular is also equip ped with ATN’s Total Darkness Technology fe aturing a
built-in infrared light-emit ting source giving it ma ximum flexibility even when
available ambient li ght is minimal. The tech nologically adva nced ATN NVM14
guarantees a tac tical advantage for any us er operating at night, whethe r military,
law enforcement, or civilian.

Compact, rugged design
Waterproof
Weapon mountable
Head or helmet mountable for hands-free usage
Auto brightness control
Bright light cut-off
Ergonomic, simple, easy to operate controls
Utilizes either CR123A lithium battery
Compatible with most IR lasers
Adaptable for u se with cameras
Total Darkness Technology with built-in Infrared

Illuminator and flood lens

Optional pate nted Life Tracker System availa ble for

measuring hours of operation

Limited two-year warrant y

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

1341 San Mateo Ave,

South San Francisco, CA 94080.

Tel: [phone],

fax: [phone]

www.atncorp.com

e-mail: [e-mail], [e-mail]

ADVANCED FEATURES INCLUDE

Automatic brightness contr ol.

Bright li ght cut off sensor for condi tions when too much light is

detected by the system.

Flip-up head or helmet mount mechanism with an automatic turn on/

off system when the device is raised/lower ed to/from the viewing
position. This feature dramatically ex tends battery life and improves
the speed, efficiency and survivabili ty of the operator.

IR indicator in the FOV of the monocular. This indicator tells the

operator if the IR illuminator is on or off.

IR illuminat or with standard and floo d option. Allows the user to f ocus

the IR light sourc e from 20 degrees to 40 degrees pr oviding a flood IR
effect , making it easier to read maps and su rvey a wide field ofv iew in
total darkness. No need to purchase separate flood lens accessories .

Silent on/off push button system .

NVM14 Compact
Monocular

NVM14 with
3x lens

NVM14 with
Goggle kit

NVM14 with PAGST
Helmet Mount

NVM14 with
Dual Bridge

NVM14 with
EOTech

®

NVM14 with
AIMPOINT

®

NVM14-WPT

NVM14-WPT

TUBE SPECIFICATIONS

HIGH QUALITY WPT™ IMAGE INTENSIFIER TUBE

GENERATION WPT™
PHOTOCATHODE TYPE Multi-Alkali
RESOLUTION, lp/mm 60-74
SIGNAL TO NOISE, MINIMUM 18-26
MTTF - MEAN TIME BEFORE FAILURE, hours 10,000
EXPORT N/A for Export

* WPT is registered trademark of American Technology Network, Corp.

* Specifications are provided for informational purposes only.
Actual values may vary.
