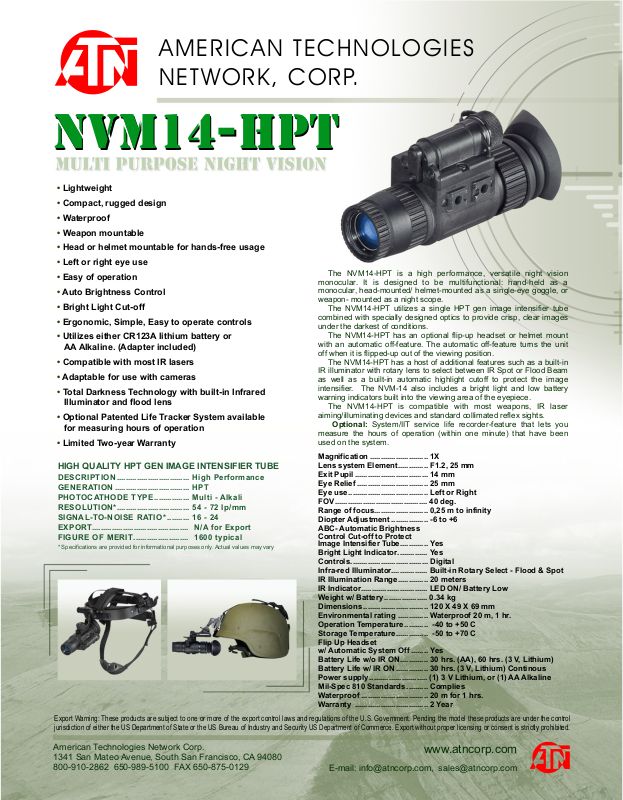

ATN NVM14-PT User Manual

AMERICAN TECHNOLOGIES
NETWORK, CORP.

nvm14-HPT

nvm14-HPT

• Lightweight

• Compact, rugged design

• Waterproof

• Weapon mountable

• Head or helmet mountable for hands-free usage

• Left or right eye use

• Easy of operation

• Auto Brightness Control

• Bright Light Cut-off

• Ergonomic, Simple, Easy to operate controls

• Utilizes either CR123A lithium battery or

AA Alkaline. (Adapter included)

• Compatible with most IR lasers

• Adaptable for use with cameras

• Total Darkness Technology with built-in Infrared

Illuminator and flood lens

• Optional Patented Life Tracker System available

for measuring hours of operation

• Limited Two-year Warranty

HIGH QUALITY HPT GEN IMAGE INTENSIFIER TUBE

DESCRI PTION .................................

GENERATIO N ..................................

PHOTOCATHODE TYPE ................

RESOLU TION* .................................

SIGNAL -TO-NOISE RATIO* ..........

EXPORT............................................

FIGURE OF M ERIT.........................

* Specifications are provided for informational purposes only. Actual values may vary

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

High Performance
HPT
Multi - Alkali
54 - 72

lp/mm

16 - 24

N/A for Export
1600 typical

The NVM14-HPT is a high performance, versatile night vision
monocular. It is designed to be multifunctional: hand-held as a
monocular, head-mounted/ helmet-mounted as a single-eye goggle, or
weapon- mounted as a night scope.

The NVM14-HPT utilizes a single HPT gen image intensifier tube
combined with specially designed optics to provide crisp, clear images
under the darkest of conditions.

The NVM14-HPT has an optional flip-up headset or helmet mount
with an automatic off-feature. The automatic off-feature turns the unit
off when it is flipped-up out of the viewing position.

The NVM14-HPT has a host of additional features such as a built-in
IR illuminator with rotary lens to select between IR Spot or Flood Beam
as well as a built-in automatic highlight cutoff to protect the image
intensifier. The NVM-14 also includes a bright light and low battery
warning indicators built into the viewing area of the eyepiece.

The NVM14-HPT is compatible with most weapons, IR laser
aiming/illuminating devices and standard collimated reflex sights.

Optional: System/IIT service life recorder-feature that lets you
measure the hours of operation (within one minute) that have been
used on the system.

Magnification ........................... 1X

Lens system Element.............. F1.2, 25 mm

Exit Pupil .................................. 14 mm

Eye Relief ................................. 25 mm

Eye use..................................... Left or Right

FOV........................................... 40 deg.

Range of focus......................... 0,25 m to infinity

Diopter Adjustment ................. -6 to +6

ABC- Automatic Brightness
Control Cut-off to Protect

Image Intensifier Tube............. Yes

Bright Light Indicator.............. Yes

Controls.................................... Digital

Infra-red Illuminator................. Built-in Rotary Select - Flood & Spot

IR Illumination Range.............. 20 meters

IR Indicator............................... LED ON/ Battery Low

Weight w/ Battery .................... 0.34 kg

Dimensions .............................. 120 X 49 X 69 mm

Environmental rating .............. Waterproof 20 m, 1 hr.

Operation Temperature........... -40 to +50 C

Storage Temperature............... -50 to +70 C

Flip Up Headset

w/ Automatic System Off ........ Yes

Battery Life w/o IR ON............. 30 hrs. (AA), 60 hrs. (3 V, Lithium)

Battery Life w/ IR ON............... 30 hrs. (3 V, Lithium) Continous

Power supply........................... (1) 3 V Lithium, or (1) AA Alkaline

Mil-Spec 810 Standards .......... Complies

Waterproof ............................... 20 m for 1 hrs.

Warranty .................................. 2 Year

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862 650-989-5100 FAX [phone]

www.atncorp.com

E-mail: [e-mail], [e-mail]
