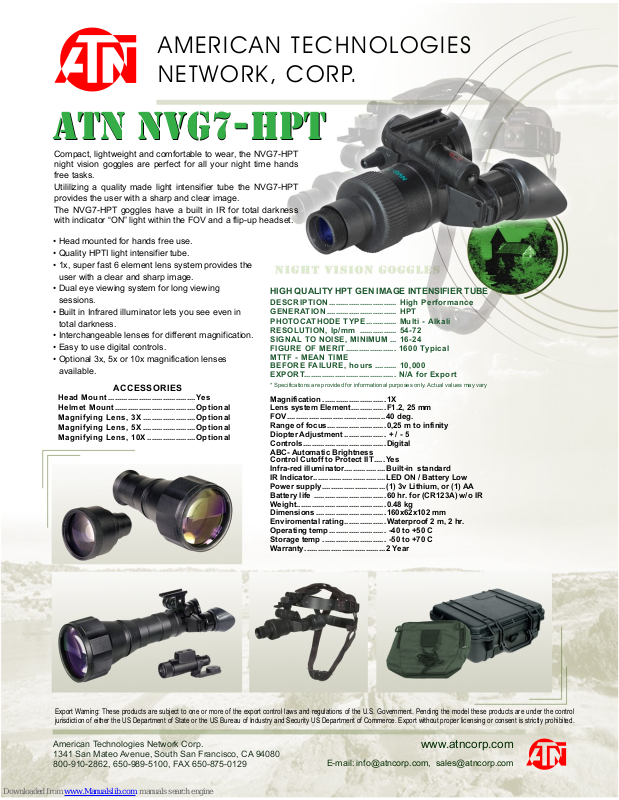

ATN NVG7-HPT Specifications

ATN NVG7-HPT

ATN NVG7-HPT

www.atncorp.com

E-mail: [e-mail], [e-mail]

AMERICAN TECHNOLOGIES
NETWORK, CORP.

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX [phone]

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

Compact, lightweight and comfortable to wear, the NVG7-HPT
night vision goggles are perfect for all your night time hands
free tasks.
Utililizing a quality made light intensifier tube the NVG7-HPT
provides the user with a sharp and clear image.
The NVG7-HPT goggles have a built in IR for total darkness
with indicator “ON” light within the FOV and a flip-up headset.

• Head mounted for hands free use.

• Quality HPTI light intensifier tube.

• 1x, super fast 6 element lens system provides the

user with a clear and sharp image.

• Dual eye viewing system for long viewing

sessions.

• Built in Infrared illuminator lets you see even in

total darkness.

• Interchangeable lenses for different magnification.

• Easy to use digital controls.

• Optional 3x, 5x or 10x magnification lenses

available.

Magnification .............................1X

Lens system Element................ F1.2, 25 mm

FOV............................................. 40 deg.

Range of focus...........................0,25 m to infinity

Diopter Adjustment ................... + / - 5

Controls...................................... Digital

ABC- Automatic Brightness

Control Cutoff to Protect IIT..... Yes

Infra-red illuminator...................Built-in standard

IR Indicator.................................LED ON / Battery Low

Power supply.............................(1) 3v Lithium, or (1) AA

Battery life ................................. 60 hr. for (CR123A) w/o IR

Weight.........................................0.48 kg

Dimensions ................................ 160x62x102 mm

Enviromental rating................... Waterproof 2 m, 2 hr.

Operating temp.......................... -40 to +50 C

Storage temp ............................. -50 to +70 C

Warranty..................................... 2 Year

ACCESSORIES

Head M ount ........................................Yes

Helmet Mount..................................... O pt ional

Magnif ying Le ns , 3X ........................O ption al

Magnif ying Le ns , 5X ........................O ption al

Magnif ying Le ns , 10X ......................O ption al

HIGH QUALITY HPT GEN IMAGE INTENSIFIER TUBE

DESCRI PTION ............................... High Pe rform an ce

GENERATION ................................ HP T

PHOTOCATHODE TY PE .............. Multi - Alk ali

RESOLU TION, l p/ mm ................. 54-72

SIGNAL TO NO ISE, MI NI MUM ... 1 6- 24

FIGURE OF MER IT ....................... 1600 Typica l

MTTF - MEAN TIME

BEFORE FAILURE, hours .......... 1 0,000

EXPORT.......................................... N/A for Exp ort

* Specifications are provided for informational purposes only. Actual values may vary
