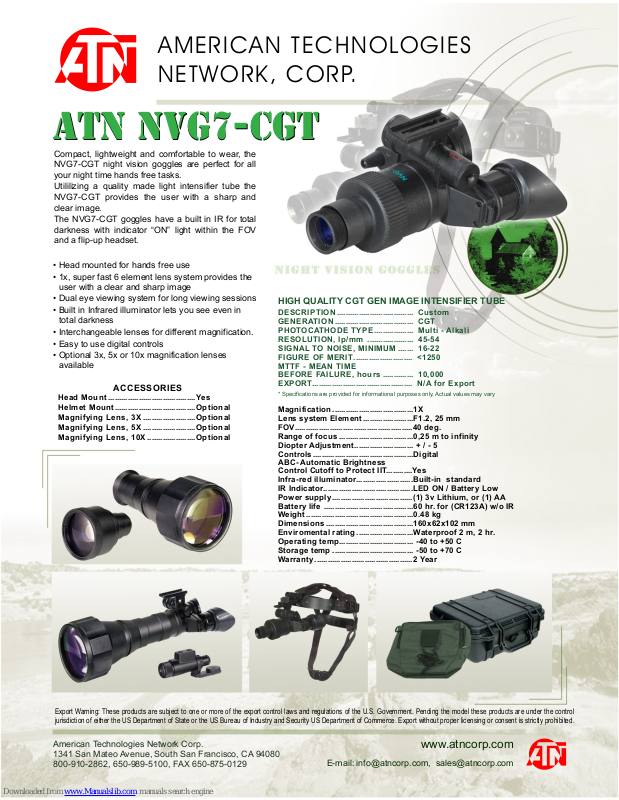

ATN NVG7-CGT Specifications

Compact, lightweight and comfortable to wear, the
NVG7-CGT night vision goggles are perfect for all
your night time hands free tasks.
Utililizing a quality made light intensifier tube the
NVG7-CGT provides the user with a sharp and
clear image.
The NVG7-CGT goggles have a built in IR for total
darkness with indicator “ON” light within the FOV
and a flip-up headset.

ATN NVG7-CGT

ATN NVG7-CGT

www.atncorp.com

E-mail: [e-mail], [e-mail]

AMERICAN TECHNOLOGIES
NETWORK, CORP.

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX [phone]

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

• Head mounted for hands free use

• 1x, super fast 6 element lens system provides the

user with a clear and sharp image

• Dual eye viewing system for long viewing sessions

• Built in Infrared illuminator lets you see even in

total darkness

• Interchangeable lenses for different magnification.

• Easy to use digital controls

• Optional 3x, 5x or 10x magnification lenses

available

Magnification .....................................1X

Lens system Element .......................F1.2, 25 mm

FOV......................................................40 deg.

Range of focus ..................................0,25 m to infinity

Diopter Adjustment........................... + / - 5

Controls ..............................................Digital

ABC- Automatic Brightness

Control Cutoff to Protect IIT............Yes

Infra-red illuminator..........................Built-in standard

IR Indicator.........................................LED ON / Battery Low

Power supply.....................................(1) 3v Lithium, or (1) AA

Battery life .........................................60 hr. for (CR123A) w/o IR

Weight .................................................0.48 kg

Dimensions ........................................160x62x102 mm

Enviromental rating ..........................Waterproof 2 m, 2 hr.

Operating temp.................................. -40 to +50 C

Storage temp ..................................... -50 to +70 C

Warranty .............................................2 Year

ACCESSORIES

Head Mou nt ........................................Yes

Helmet M oun t..................................... Opt ional

Magnifyi ng Lens, 3X ........................ Opt ional

Magnifyi ng Lens, 5X ........................ Opt ional

Magnifyi ng Lens, 10X ...................... Opt ional

HIGH QUALITY CGT GEN IMAGE INTENSIFIER TUBE

DESCRIPT ION ................................... Custo m

GENERATION .................................... CG T

PHOTOCATHO DE TYPE .................. Mu lti - Alk ali

RESOLUTI ON, lp/mm ..................... 45- 54

SIGNAL TO NOISE, MIN IMU M ....... 16 -22

FIGURE O F M ERIT........................... <12 50

MTTF - MEAN TIME

BEFORE FAILU RE, hours .............. 10,000

EXPORT.............................................. N/A for Expo rt

* Specifications are provided for informational purposes only. Actual values may vary
