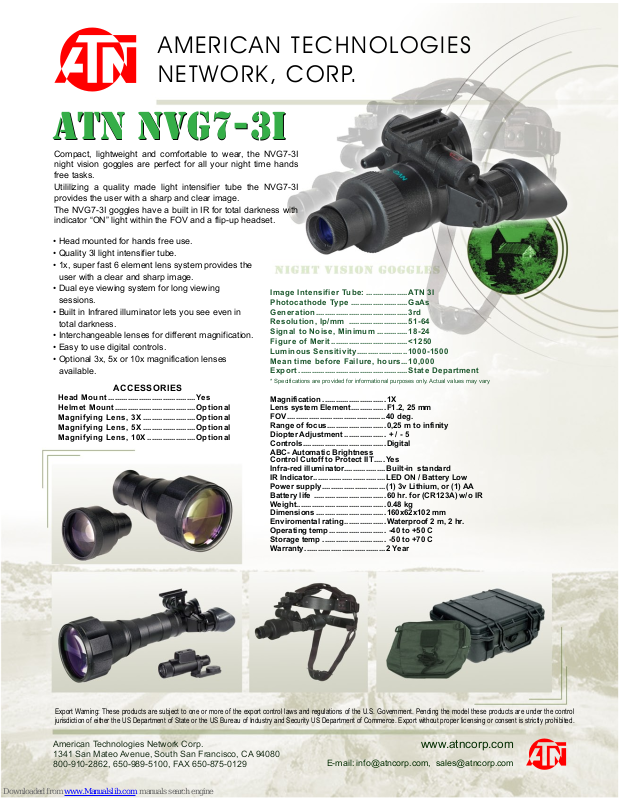

ATN NVG7-3I Specifications

Compact, lightweight and comfortable to wear, the NVG7-3I
night vision goggles are perfect for all your night time hands
free tasks.
Utililizing a quality made light intensifier tube the NVG7-3I
provides the user with a sharp and clear image.
The NVG7-3I goggles have a built in IR for total darkness with
indicator “ON” light within the FOV and a flip-up headset.

ATN NVG7-3I

ATN NVG7-3I

www.atncorp.com

E-mail: [e-mail], [e-mail]

AMERICAN TECHNOLOGIES
NETWORK, CORP.

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862, 650-989-5100, FAX [phone]

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.

• Head mounted for hands free use.

• Quality 3I light intensifier tube.

• 1x, super fast 6 element lens system provides the

user with a clear and sharp image.

• Dual eye viewing system for long viewing

sessions.

• Built in Infrared illuminator lets you see even in

total darkness.

• Interchangeable lenses for different magnification.

• Easy to use digital controls.

• Optional 3x, 5x or 10x magnification lenses

available.

Magnification .............................1X

Lens system Element................ F1.2, 25 mm

FOV............................................. 40 deg.

Range of focus...........................0,25 m to infinity

Diopter Adjustment ................... + / - 5

Controls...................................... Digital

ABC- Automatic Brightness

Control Cutoff to Protect IIT..... Yes

Infra-red illuminator...................Built-in standard

IR Indicator.................................LED ON / Battery Low

Power supply.............................(1) 3v Lithium, or (1) AA

Battery life .................................60 hr. for (CR123A) w/o IR

Weight.........................................0.48 kg

Dimensions ................................ 160x62x102 mm

Enviromental rating................... Waterproof 2 m, 2 hr.

Operating temp.......................... -40 to +50 C

Storage temp ............................. -50 to +70 C

Warranty..................................... 2 Year

Image I ntensif ie r Tube: ...................ATN 3 I

Photoca thode Type ..........................GaAs

Generat ion..........................................3rd

Resolut ion, lp /m m ...........................51-64

Signal to Nois e, Minimu m ..............18-24

Figure of Meri t ...................................<1250

Luminou s Sensi ti vity....................... 10 00 -1500

Mean ti me befo re Failur e, hours... 10,0 00

Export ..................................................State D ep artment

* Specifications are provided for informational purposes only. Actual values may vary

ACCESSORIES

Head Mo unt ........................................Yes

Helmet Mount..................................... Optiona l

Magnify ing Len s, 3X ........................Option al

Magnify ing Len s, 5X ........................Option al

Magnify ing Len s, 10X ......................Option al
