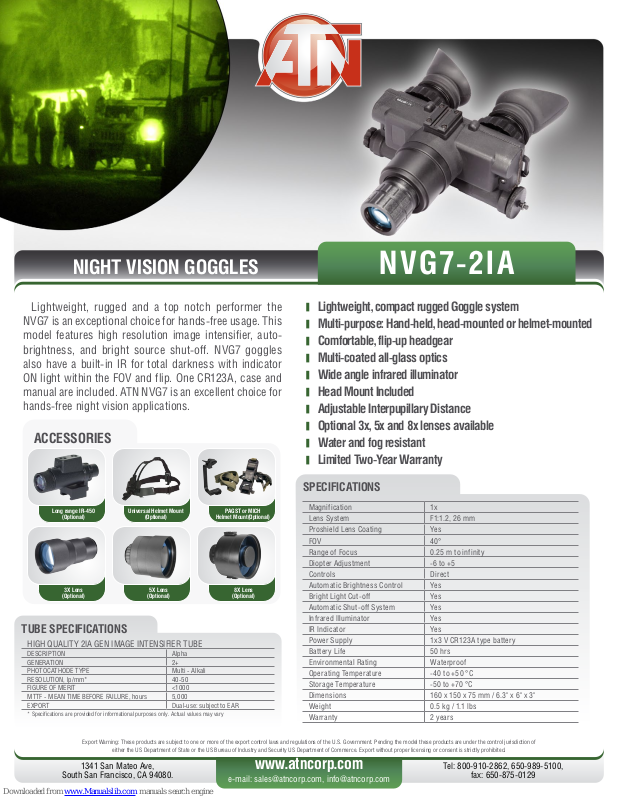

ATN NVG7-2IA Specification

NIGHT VISION GOGGLES

NVG7-2IA

Lightweight, rugged and a top notch performer the
NVG7 is an exceptional choice for hands-free usage. This
model features high resolution image intensifier, auto­brightness, and bright source shut-off. NVG7 goggles
also have a built-in IR for total darkness with indicator
ON light within the FOV and flip. One CR123A, case and
manual are included. ATN NVG7 is an excellent choice for
hands-free night vision applications.

ACCESSORIES

Long range IR-450

(Optional)

3X Lens

(Optional)

Universal Helmet Mount

(Optional)

5X Lens

(Optional)

TUBE SPECIFICATIONS

HIGH QUALITY 2IA GEN IMAGE INTENSIFIER TUBE

DESCRIPTION Alpha
GENERATION 2+
PHOTOCATHODE TYPE Multi - Alkali
RESOLUTION, lp/mm* 40-50
FIGURE OF MERIT <1000
MTTF - MEAN TIME BEFORE FAILURE, hours 5,000
EXPORT Dual-use: subject to EAR

* Specifications are provided for informational purposes only. Actual values may vary

PAGST or MICH

Helmet Mount(Optional)

8X Lens

(Optional)

Lightweight, compact rugged Goggle system
Multi-purpose: Hand-held, head-mounted or helmet-mounted
Comfortable, flip-up headgear
Multi-coated all-glass optics
Wide angle infrared illuminator
Head Mount Included
Adjustable Interpupillary Distance
Optional 3x, 5x and 8x lenses available
Water and fog resistant
Limited Two-Year Warranty

SPECIFICATIONS

Magnification 1x
Lens System F1:1.2, 26 mm
Proshield Lens Coating Yes
FOV 40°
Range of Focus 0.25 m to infinity
Diopter Adjustment -6 to +5
Controls Direct
Automatic Brightness Control Yes
Bright Light Cut-off Ye s
Automatic Shut-off System Yes
Infrared Illuminator Yes
IR Indicator Yes
Power Supply 1x3 V CR123A type battery
Battery Life 50 hrs
Environmental Rating Waterproof
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Dimensions 160 x 150 x 75 mm / 6.3" x 6" x 3"
Weight 0.5 kg / 1.1 lbs
Warranty 2 years

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of

either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
