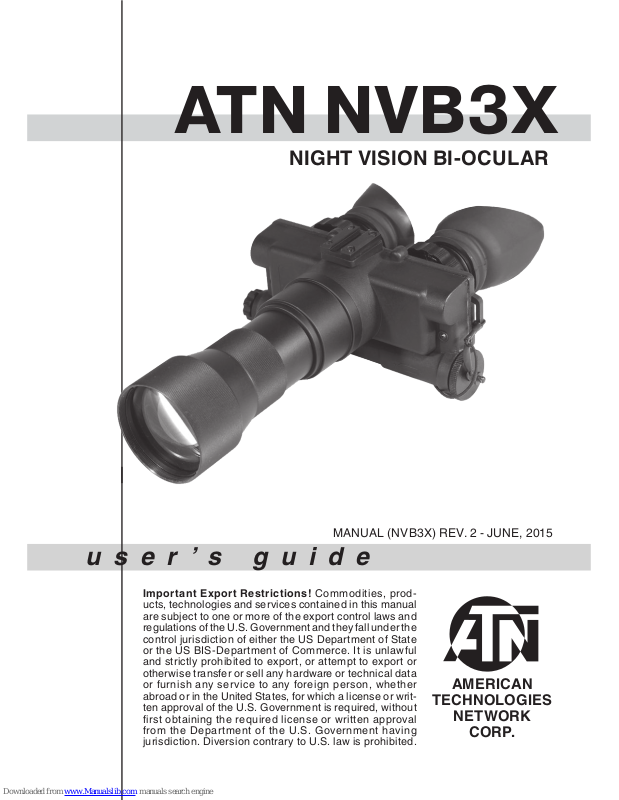

ATN NVB3X User Manual

user’s guide

ATN NVB3X

Important Export Restrictions! Commodities, prod­ucts, technologies and services contained in this manual
are subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
otherwise transfer or sell any hardware or technical data
or furnish any service to any foreign person, whether
abroad or in the United States, for which a license or writ­ten approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.

AMERICAN

TECHNOLOGIES

NETWORK

CORP.

NIGHT VISION BI-OCULAR

MANUAL (NVB3X) REV. 2 - JUNE, 2015

1

THIS PRODUCT CONTAINS NATURAL RUBBER LATEX WHICH MAY CAUSE ALLERGIC REACTIONS.

CAUTION:

Register your product warranty online at www.atncorp.com/warranty

5 m to Infinity focus

-6 to +5 Diopter

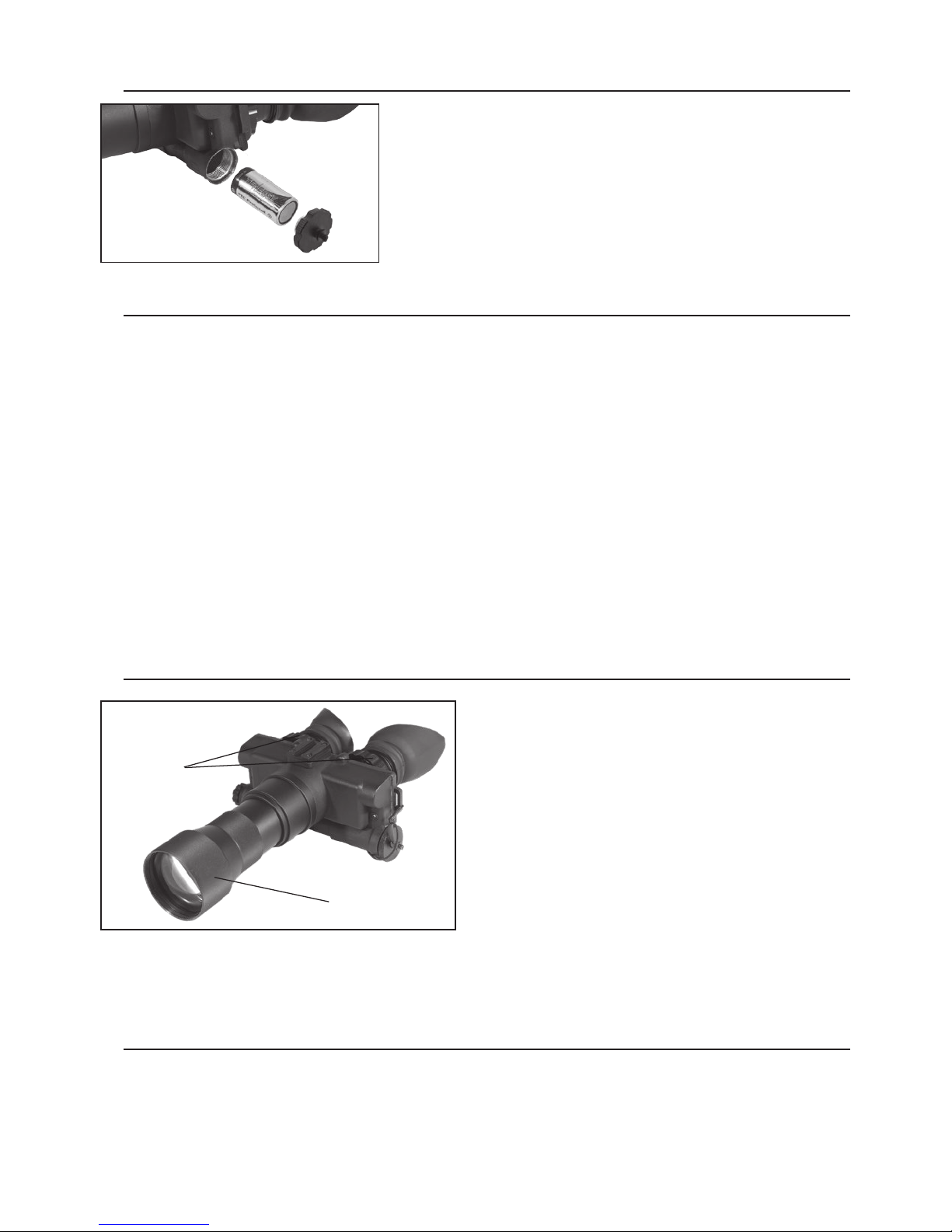

One 3 volt

battery

Built-in IR illuminator

Bracket

Power and IR

ON/OFF switch

Infra-red illuminators IR850

(included)

The information in this manual furnished for information use only, is subject to change without notice,
is not to be construed as a commitment by ATN Corp.

ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

©2015 ATN Corp. All right reserved.

2

SPECIFICATIONS

Magnification ............................................... 3x

Intensifier tube ............................................ Gen. 2 or Gen.3

Field of view ................................................ 14°

Range of Focus ........................................... 3 m to infinity

Power Supply .............................................. 3 V, CR123A type

Battery Life (CR123A type) ......................... 60 hours

Operating Temperature .............................. -40°C to +50°C

Storage Temperature ................................. -50°C to +70°C

Dimensions ................................................. 212 x 150 x 75 mm (8.4” x 6” x 3”)

Weight ......................................................... 0.82 kg (1.8 lbs)

* ATN reserves the right to change the above specifications at any time without notice

FEATURES

• Available IITs: 2+, CGT, HPT, WPT™, 3 and 3A

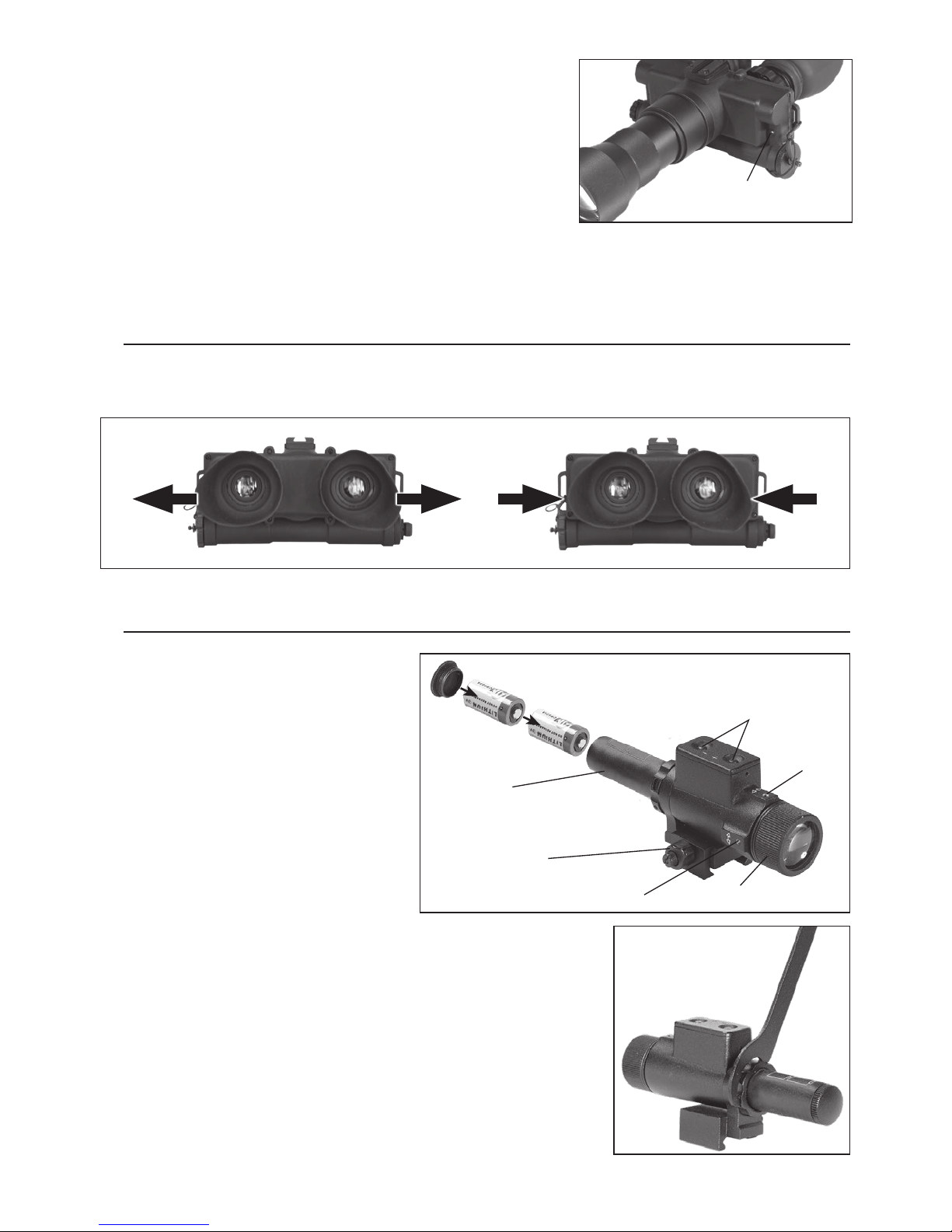

• Detachable Long Range Infrared Illuminator

• Multi-coated all-glass optics

• Adjustable Interpupillary Distance

• Built-in Flood Infrared Illuminator

• Water and fog resistant

• Limited Two-Year Warranty

APPLICATION

The NVB3X is a medium range night vision bi-ocular. The NVB3X combines a high quality
image intensifier tube with a two eyepieces that lets the user comfortably look through the
unit with both eyes. The NVB provides the user with excellent resolution and a wider field
of view then other units.

The NVB3X is available with a wide range of image intensifier options to meet a wide array
of specification requirements.

The NVB3X is a complex opticoelectronic system for individual use. The device con­sists of the objective lens assembly, eyepiece and the body. The body contains a image
intensifier tube assembly with an integrated high voltage power source and the battery
housing.

Objective lens protective cover (not shown) is intended to protect the objective lens from
dust and scratches. It also will act as a daylight filter, allowing you to test the scope in day­light or other bright light situations. The pinhole in the center of the protective cover allows
the user to check the operation ability of the device in daylight conditions.

NOTE: Do not test the scope in daylight conditions even with the daylight filter/lens cap on
for more than ten (10) minutes.
