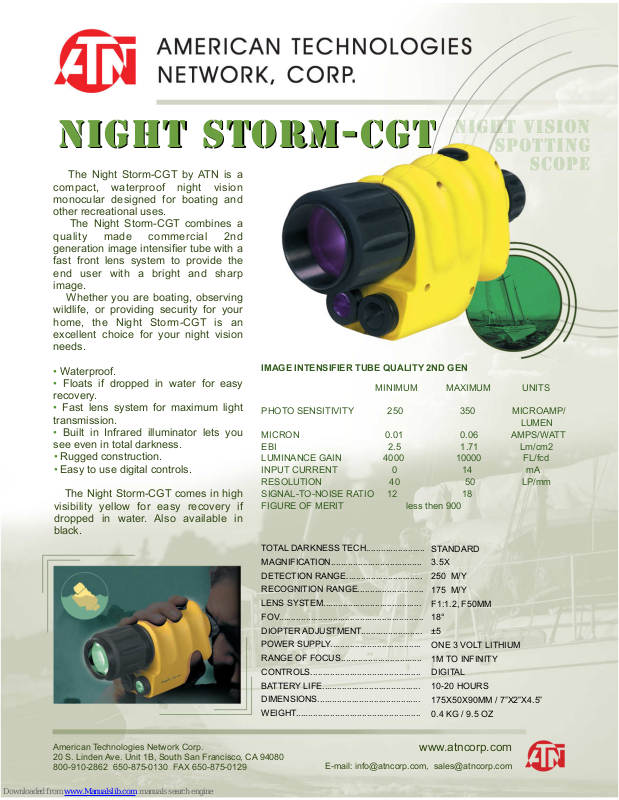

ATN Night Storm CGT Specifications
TOTAL DARKNESS TECH........................
MAGNIFICATION.....................................
DETECTION RANGE...............................
RECOGNITION RANGE...........................
LENS SYSTEM........................................
FOV...........................................................
DIOPTER ADJUSTMENT.........................
POWER SUPPLY.....................................
RANGE OF FOCUS.................................
CONTROLS.............................................
BATTERY LIFE........................................
DIMENSIONS..........................................
WEIGHT...................................................
STANDARD
3.5X
250 M/Y
175 M/Y
F1:1.2, F50MM
18°
±5
ONE 3 VOLT LITHIUM
1M TO INFINITY
DIGITAL
10-20 HOURS
175X50X90MM / 7”X2”X4.5”
0.4 KG / 9.5 OZ
The Night Storm-CGT by ATN is a
compact, waterproof night vision
monocular designed for boating and
other recreational uses.
The Night Storm-CGT combines a
quality made commercial 2nd
generation image intensifier tube with a
fast front lens system to provide the
end user with a bright and sharp
image.
Whether you are boating, observing
wildlife, or providing security for your
home, the Night Storm-CGT is an
excellent choice for your night vision
needs.
• Waterproof.
• Floats if dropped in water for easy
recovery.
• Fast lens system for maximum light
transmission.
• Built in Infrared illuminator lets you
see even in total darkness.
• Rugged construction.
• Easy to use digital controls.
The Night Storm-CGT comes in high
visibility yellow for easy recovery if
dropped in water. Also available in
black.
night storm-CGT
night storm-CGT
www.atncorp.com
E-mail: info@atncorp.com, sales@atncorp.com
American Technologies Network Corp.
20 S. Linden Ave. Unit 1B, South San Francisco, CA 94080
800-910-2862 650-875-0130 FAX 650-875-0129
MINIMUM MAXIMUM UNITS
PHOTO SENSITIVITY 250 350 MICROAMP/
LUMEN
MICRON 0.01 0.06 AMPS/WATT
EBI 2.5 1.71 Lm/cm2
LUMINANCE GAIN 4000 10000 FL/fcd
INPUT CURRENT 0 14 mA
RESOLUTION 40 50 LP/mm
SIGNAL-TO-NOISE RATIO 12 18
FIGURE OF MERIT less then 900
IMAGE INTENSIFIER TUBE QUALITY 2ND GEN
