Page 1
user`s guide
Important Export Restrictions! Commodities,
pr oducts, tec hnologies an d ser vices contained in
this manual are subject to one or more of the export
control laws and regulations of the U.S. Government
and they fall under the control jurisdiction of either the
US Department of State or the US BIS-Department
of Commerce. It is unlawful and strictly prohibited
to export, or attempt to export or otherwise transfer
or sell any hardware or technical data or furnish any
ser vice to any foreign person, whether abroad or
in the United States, for which a license or written
approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
AMERICAN
TECHNOLOGIES
NETWORK
CORP.
Night Arrow 4
NI GHT ARROW 4 USE R’S GUIDE ( REV. 2, SE PTE M B ER 2 010)
Page 2
APPLICATION
The Night Arrow 4 from ATN is a rugged, 4X night vision weapon sight that provides excellent
observation, target acquisition and aiming capabilities for the demanding sports shooter or
varmint hunter.
The Night Arrow 4 is available in a variety of Image Intensifier Tube configurations to fit into a
wide array of budgets.
The best optics, tubes and performance make the Night Arrow 4 one of the best commercial
night vision weapon sights there is!

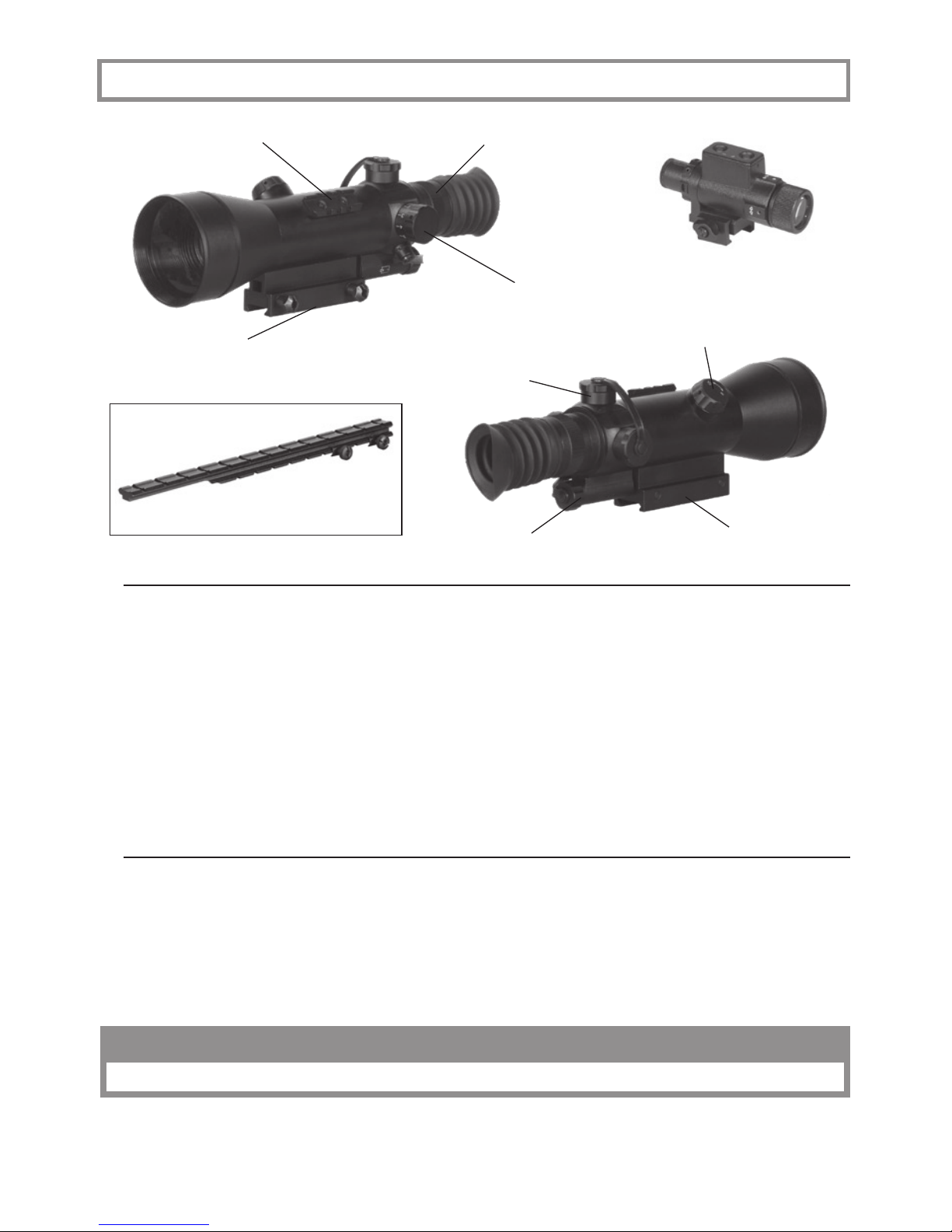

Operating knob
(Power ON-OFF/Reticle
brightness adjustment)
Elevation adjustment
Windage adjustment
Diopter adjustment
Battery housing
Mounting system
Picatinny rail
Focus adjustment knob
• LIGH T A ND COMPACT DESIGN
• TOP-NOTCH PERFORMANCE
• A LL E XTERNAL SURFACES ARE A
NON-REFLECTIVE MATTE BLACK
FINISH (EXCEPT FOR THE OPTICAL
ELEMENTS )
• “ RED ON GREEN” RETICLE SYSTEM
WITH 1/4 M OA ADJ UST MENT
• AUTOMATIC BRIGHTNESS CONTROL(ABC) FOR TUBE PROTEC TION
• ONE-KNOB OPERATION
• ILLUMINATED CENTER RED RETICLE
FOR OP TIMAL CONTRAST AGAINST A
DARK OR LIGHT TARGET
• WEATHER RESISTANT
• M OUNTS TO STANDARD WEAVER
RAILS
• NIGHT ARROW 4 IS DESIGNED TO USE
1 A A TYPE BATTERY
FEATURES
Th is p roducT co nTa ins n aT u r al ru b b e r l aTe x wh i ch m ay cau s e allerg ic r e acTi o n s .
CAUTION:
The information in this manual furnished for information use only, is subject to change without notice, is not to be
construed as a c o m m i t m e n t by ATN C o r p.
ATN C o r p. assumes no responsibility or liability for a ny errors or i n a c curacies t h a t may appear i n t h i s bo o k .
©2010 ATN Corp. All right reserved.
LO N G RAIL A DAP TER ( O PTIONA L)
Item #ACWSLRADPT
Register your product warranty online at www.atncorp.com/warranty
450 MW INFRA-RED ILLUMINATOR
(INCLUDED)
Page 3
2
SPECIFICATIONS
Magnification ............................................................. 4X
FOV............................................................................ 7. 5°
Range of focus ........................................................... 10 m to infinit y
Reticle ........................................................................
Red On Green
Windage & elevation adjustments ............................. 1/4MOA
IR illuminator ............................................................. Digital 450 mW (detachable)
Power Supply ................................................................. One 1.5V A A size batter y
Battery life .................................................................. 3 0 hours
Operating Temperature .............................................
-40°C to + 50°C
Storage Temperature ................................................. -50°C to +70°C
Dimensions ................................................................ 280x 10 3 x 9 3mm /11.0 x 4.1 x 3.7 ”
Weight ........................................................................ 1.4kg / 3.1 l b
Diopter adjustment .................................................... +6 / -4
PREPARATION FOR OPERATION
Before getting started make sure to follow these steps:
• Install the battery into its housing with the polarity order shown on the main body of the unit.
• Switch on the scope with the protective lens cover still
at tache d to t he lens.
• Make sure that the green luminance of the light inten-
sifier tube is pres ent.
• Observe the scene, and adjust the diopter and/or lens
for o ptimal image c larit y.
• You may now enter a dark environment or simply shut
the lights of f in order to darken the r oom.
• Next, remove the lens cap/daylight filter.
• Finally, you may want to turn the infra red (IR) illuminator on. Notice the ability of the scope to
see in total darkness with the aid of the IR illuminator.
OPERATING
MOUNTING
1. Slightly lo osen the fixin g screws on the 7/ 8” weaver mount built into the scope.
2. Place the scope on the weaver rail of the fire ar m.
3. Tighten the fixing screws.
NOTE: Fixing screws may need to be tightened after continuous shooting.
MOUNTING SYSTEM
The ATN Night Vision Riflescopes Mounting System allows to change the position of the riflescope flexibly on the weapon in relation to a shooter in combination with the fixed positions
already available on the weaver rail. For this purpose in the base of the mounting bracket there
is a rail with a fixing projection. There are two grooves in the mounting bracket for mounting
this rail. Besides it is possible to change the position of the riflescope additionally by 1/3 of
inch. For doing th is one need s to a bout-face the ra il.
* ATN reserves the right to change the above specifications at any time without notice

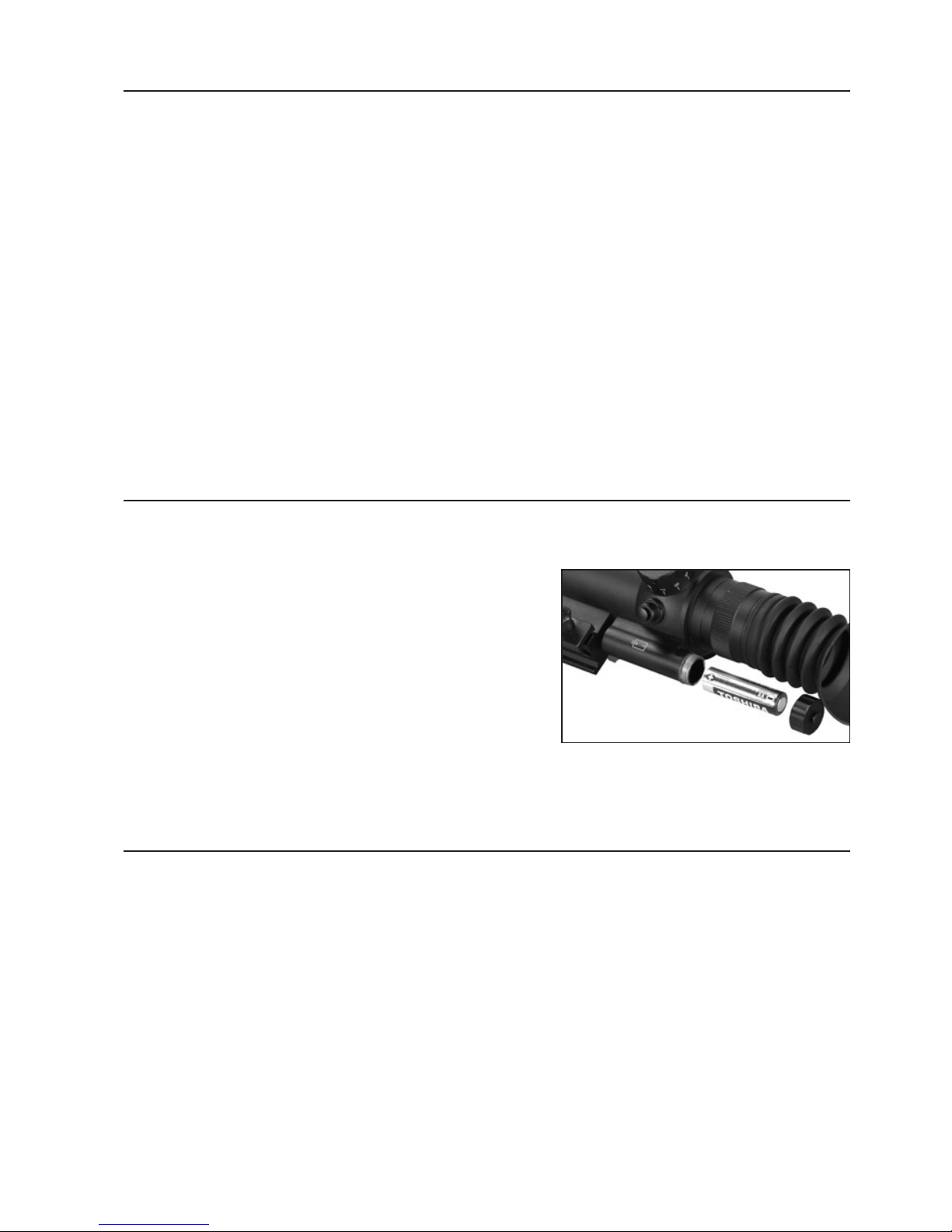

Battery
installation
Page 4
3
To change the position of the riflescope on the weaver rail additionally follow the steps mentioned below:
1. Unscrew the two screws, which attach the rail to the
mounting bracket.
2. Take the ra il out of the groove.
3. About-face th e rail in case of necessit y.
4. Plac e the rail into another g roove.
5. Fi x the rail with th e t wo screws.
NOTE: If the rail does not come out easily, tighten one of the removed screws into the threaded
aperture in the middle of the fixing projection of the rail. Rotate this screw, which will in turn push
the rail out from the groove.
CONTROL
The Night Arrow 4 has a simple and easy to operate one-knob control and adjustment.
To turn riflescope on rotate the operation knob from position marked “0”.
To turn riflescope off rotate the operation knob to position marked “0”.
After turning scope on, you may adjust the reticle’s brightness by rotating the operation knob
from position marked “1” to position “9”. Position “1” corresponds to the minimal brightness,
the positi on “9 ” corresponds to the ma ximal brig htness of reti cle’s gl ow.
Ad justment c ould be easily s een if you look throu gh the sco pe while adjus tment.
FOCUSING
To focus the scope you need to adjust the diopter first.
Simply turn the diopter clockwise until it stops. Then concentrate on any object and slowly turn the diopter back
counter clockwise until the grain in the image is sharp.
You sc ope has abi lity to focu s either long ra nge or shor t.
Focus the front lens by rotating the knob until the image
and the gra in are both s har p. W hen you a re in the low -l igh t
conditions and the daylight filter is off you may focus the
front lens to receive a sharp image, the diopter should not
be adjusted.
NOTE: The front lens should be readjusted for viewing
objects at different distances.
OPERATION EXTENDIBILITY
There is Picatinny rail on the body of the scope for additional lighting, laser and other mission
critical tools.
IR ILLUMINATION
Infra-red (IR) Illuminators are common for night vision technology. The IR light greatly
enhances the performance of your Night Arrow 4 scope, while remaining almost totally invisible to the naked eye. In dark environment, power up the ATN Ni gh t A rr ow 4. N ow, f in d a s ce ne
and examine it without the IR on then with IR powered up. Note the difference in illumination. It
is important to remember that the IR illuminator is simply an infra red light source, and like any
light source it m ay lo ose its effe ctiveness over a great dist ance.
To fix the IR illuminator to the riflescope use the picatinny raile of the scope.
The IR illuminator control buttons are located on its side. To switch the Digital IR illuminator
on/off press “+” and “-” buttons simultaneously. When the IR illuminator is switched on you can
see the green LED lit. By pu shing the but tons “+” and “-” you may adju st the IR brightne ss.
The IR beam is focusable to change the field of coverage. To change the beam width slightly
turn the IR lens.
Groove
Rail with a
fixing projection
Screws
Mounting
system
Focus adjustment knob
Page 5
4
You could change the IR control panel fitting your needs. The wrench included into the set
should be used for weakening the fixing nut located on the IR. Rotate the IR placing at in the
most convenient po sition. Tig hten the nut with th e wrench to fix the new po sition.
RETICLE
The Night Arrow 4 reticle gives a clear aiming point, even when
hard-to-see targets blends into the background. Thin posts and
center crosshairs cover a minimum of the target and allow for
less target coverage, making precision shots on small targets
easy.
Lit center section of crosshairs have an adjustable brightness
to lead your eye directly to the center and aiming position. The
result is fast precision target acquisition.
WINDAGE AND ELEVATION
The vertical and horizontal adjustments for the Night Arrow
4 can be achieved by turning the elevation and windage
adjustment mechanisms (remove dust caps first). Each
click equals 1/4 inch at 100 yards. When reaching the
maximum r ange of rotation d o not use force.
CLEAN ING THE OPT IC SUR FACES
You m ay n ee d to c lea n t he o pt ic sur fa ce s of t he ri flesc op e fr om t im e to ti me i n o rd er t o gu ar an tee top performance. When you receive your riflescope you should check for dust on the optic
surface s of t he unit.
CAUTION: Use only Photographic lens cleaning tissue on these surfaces. Be careful not to
scratch or smudge any of these surfaces. When using compressed air to blow dust away, make
sure to avoid inverting the can while spraying. This can cause frozen propellant to exit the can,
which can cause serious problems with the g lass and phosphor sc reen.
Windage
Elevation
IR Brightness
Adjustment
Battery
Housing
Fixation
Screw
IR Elevation
IR W i n d a g e
IR Focusing
Nut
Illuminated
red center
section
Page 6
5
WARNINGS AND CAUTIONS
• Always remember to turn off the Night Arrow 4 scope when it is not in use. If you do not plan
on using your scope for a period of more than 10 days, you should remove the batteries.
• Keep l ens cap on when n ot in use.
• Avoid contact with dust, steam, and gas.
• T he scope is n ot harmful to the user or th e env ironment.
• Do not disassemble: it will void your warrant y.
• Evaluate the scopes function by looking through it in a lit environment with the lens cap put
on. Never use in daylight without the daylight filter lens cap on. Do not surpass ten minutes
of testing.
• N ever po int the scop e at a br ight light sour ce.
• Adverse atmospheric conditions such as fog, smog, or haze and a lack of ambient light
(moon or starlight) may diminish the effective viewing distance. All technical data for this unit
wa s c ompile d in a controlle d environment.
• This product contains natural rubber latex which may cause allergic reactions.
TROUBLESHOOTING
Q: Flashes, fli ckers, or clic king occur while oper ating
S: If it occurs within the first five minutes of inserting new batteries, it is normal and the device
will resume normal operation soon thereafter. If it occurs for more than 10 minutes, contact
your dealer or other authorized service representative for service instructions.
Q: Dark spots on screen.
S: Thi s may b e du st on the l ens , ple ase c le an ac cor din g to i nstr uti on s. They may al so b e Cos -
metic blemishes in the intensifier tube which are a by-product of the manufacturing process. This is nor mal and will not af fect the life or per forman ce of the unit.
Q: Image not clear.
S: Adjust dio pter ring. If probl em persist s, increase viewing distan ce
Q: Fixe d-pat tern noise in a ho neyc omb shape.
S: Usually a cosmetic blemish characterized by a faint honeycomb-type pattern. This usually
occurs w hen viewing ver y bright lights.
Q: A pattern of dark th in lines whic h look like chicken wire.
S: Turn on illuminator, if purchased. If illuminator doesn’t brighten image, replace batteries. If
problem persists, contact ATN for service instructions.
Page 7
6
2 YEAR PRODUCT WARRANTY
This product is guaranteed to be free from manufacturing defects in material and workmanship under
normal use for a period of 2 (two) years from the date of purchase. In the event a defect that is covered
by the foregoing warranty occurs during the applicable period stated above, ATN, at its option, will
either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s
liability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a)
used in other than its normal and customary manner; (b) subjected to misuse; (c) subjected to alterations, modifications or repairs by the Customer of by any party other than ATN without prior written
consent of ATN; (d) special order or “close-out ” merchandise or merchandise sold “as-is” by either
ATN or the ATN dealer; or (e) merchandise that has been discontinued by the manufacturer and either
parts or replacement units are not available due to reasons beyond the control of ATN. ATN shall not
be responsible for any defects or damage that in ATN’s opinion is a result from the mishandling, abuse,
misuse, improper storage or improper operation, including use in conjunction with equipment which
is electrically or mechanically incompatible with or of inferior quality to the product, as well as failure
to maintain the environmental conditions specified by the manufacturer. CUSTOMER IS HEREBY
NOTIFIED THAT OPERATION OF THE EQUIPMENT DURING DAYLIGHT HOURS OR UNDER
AN Y E XCE SS IV E LI G HT C ON DI TI ON S MAY P ER M AN E NT LY DAM A G E TH E IN TE R NA L CO M PO NENTS OF THE UNIT AND SAID DAMAGE WILL NOT BE COVERED UNDER THIS WARR ANTY.
This warranty is extended only to the original purchaser. Any breach of this warranty shall be waived
unless the customer notifies ATN at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties
writ ten or oral, statutory, expressed or implied, including any implied warranty of merchantability or
fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby and
expressly disclaimed.
LIMITATION OF LIABILITY
ATN will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages or liabilitie s ar isi ng o ut of the use o f th is p ro d uc t. O per ati on a n d u s e of t he p r od uc t ar e th e so l e re sp ons ib i li t y o f
the Customer. ATN’s sole undertaking is limited to providing the products and services outlined herein
in accordance with the terms and conditions of this Agreement. The provision of products sold and
services performed by ATN to the Customer shall not be interpreted, construed, or regarded, either
exp r es s ly o r im p lie d, a s bei ng fo r th e be n efi t of o r cre ati ng a n y ob l ig a ti o n tow a rd a ny th i rd p a rt y of l eg a l
en t it y ou ts id e AT N a nd t he Cu st om er ; AT N’s ob li ga ti on s u nd er t hi s A gr ee me nt e xt en d s ol el y t o th e C us tomer. ATN’s li a bilit y h ereun d er for dam a ges, r e gardl e ss of the for m o r a ction , s h all not excee d
the fees or other charges paid to ATN by the customer or customer’s dealer. ATN shall not, in
any event, be liable for special, indirect, incidental, or consequential damages, including, but
no t li mi t ed to , lo st in c om e, lo st re v en ue , o r lo st pr of i t, w h eth er s uc h d am ag es we re f or ese ea bl e
or not at the time of purchase, and whether or not such damages arise out of a breach of war-
ranty, a br e ach of a g reem e n t, neglige n ce, strict liabilit y o r a ny oth e r t heor y of lia b i l i t y.
PRODUCT WARRANTY REGISTRATION
In order to validate the warranty on your product, ATN must receive a completed Product Warranty
Registration Card for each unit or complete warranty registration on our website at www.atncorp.com.
Please complete the included form and immediately mail it to our Service Center: ATN Corporation,
1341 San Mateo Avenue, South San Francisc o, CA 9408 0.
OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, End-user must notify ATN service department by calling 800910-2862 or 650-989-5100 or via e-mail service@atncorp.com to receive a Return Merchandise
Authorization number (RMA).
When returning please take or send the product, postage paid, with a copy of your sales receipt to our
service center, ATN Corporation at the address noted above. All merchandise must be fully insured
with the correct postage; ATN will not be responsible for improper postage or, missing or damaged
merchandise during shipment.
When sending product back, please clearly mark the RMA# on the outside of the shipping box. Please
include a letter that indicates your RMA#, Name, Return Address, reason for service return, Contact
information such as valid telephone numbers and /or e-mail address and proof of purchases that will
help us to establish the valid start date of the warranty. Product merchandise returns that do not have
an R MA l i sted may be refuse d or a signi f i cant delay i n p r o cessing may occur.
Estimated Warranty service time is 10-20 business days. End-user/customer is responsible for postage to ATN for warranty service. ATN will cover return postage/shipping to continental USA end-users/
customers after warranty repair only if product is covered by aforementioned warranty. ATN will return
product after warranty service by domestic UPS ground and/or domestic mail. Any other requested,
required or international shipping method the postage/shipping fee will be the responsibility of the
end-user/customer.
21072 011
Page 8
©2010 ATN Corporation
Fo r cu s tomer ser v i c e a n d techni c a l sup p o r t, p l e a s e c o n t a c t
American Technologies Network Corp.
North American Office
1341 San Mateo Avenue, South San Franc i s c o, CA 9 4 080
phone: 800-910-2862, 650-989-5100; fax: 650-875-0129
European Office
The f o l l owing countries can use o u r toll free number:
00 80 0 9102- 8 620
Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland
For other countries, please use
38 048-7770214 or 38 04 8 -7770 3 4 5
www.atncorp.com
Loading...
