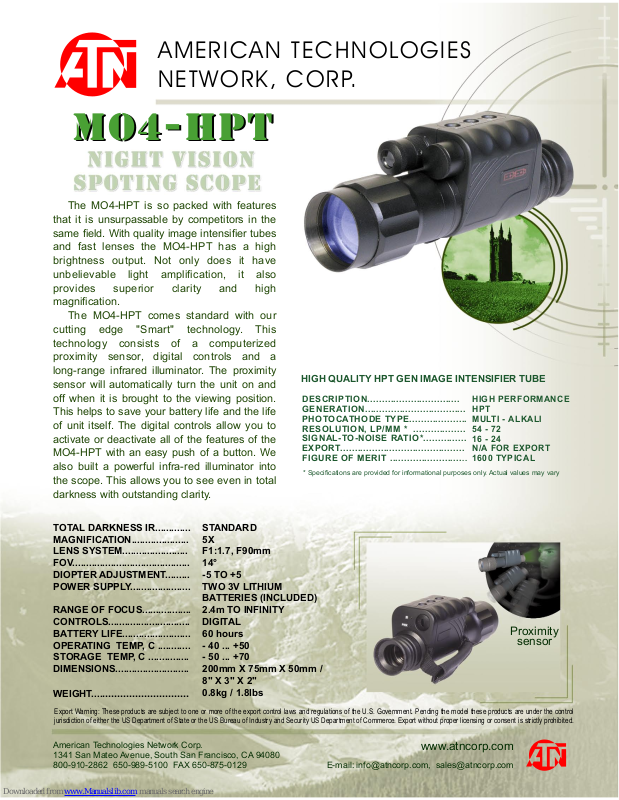

ATN MO4-HPT Specifications
mo4-HPT
mo4-HPT
TOTAL DARKNESS IR.............
MAGNIFICATION.....................
LENS SYSTEM........................
FOV...........................................
DIOPTER ADJUSTMENT.........
POWER SUPPLY......................
RANGE OF FOCUS..................
CONTROLS..............................
BATTERY LIFE.........................
OPERATING TEMP, C ............
STORAGE TEMP, C ...............
DIMENSIONS...........................
WEIGHT.................................
STANDARD
5X
F1:1.7, F90mm
14°
-5 TO +5
TWO 3V LITHIUM
BATTERIES (INCLUDED)
2.4m TO INFINITY
DIGITAL
60 hours
- 40 ... +50
- 50 ... +70
200mm X 75mm X 50mm /
8" X 3" X 2"
0.8kg / 1.8lbs
The MO4-HPT is so packed with features
that it is unsurpassable by competitors in the
same field. With quality image intensifier tubes
and fast lenses the MO4-HPT has a high
brightness output. Not only does it have
unbelievable light amplification, it also
provides superior clarity and high
magnification.
The MO4-HPT comes standard with our
cutting edge "Smart" technology. This
technology consists of a computerized
proximity sensor, digital controls and a
long-range infrared illuminator. The proximity
sensor will automatically turn the unit on and
off when it is brought to the viewing position.
This helps to save your battery life and the life
of unit itself. The digital controls allow you to
activate or deactivate all of the features of the
MO4-HPT with an easy push of a button. We
also built a powerful infra-red illuminator into
the scope. This allows you to see even in total
darkness with outstanding clarity.
www.atncorp.com
E-mail: info@atncorp.com, sales@atncorp.com
American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862 650-989-5100 FAX 650-875-0129
AMERICAN TECHNOLOGIES
NETWORK, CORP.
DESCRIPTION................................
GENERATION...................................
PHOTOCATHODE TYPE....................
RESOLUTION, LP/MM * ..................
SIGNAL-TO-NOISE RATIO*...............
EXPORT...........................................
FIGURE OF MERIT .........................
..
HIGH PERFORMANCE
HPT
MULTI - ALKALI
54 - 72
16 - 24
N/A FOR EXPORT
1600 TYPICAL
HIGH QUALITY HPT GEN IMAGE INTENSIFIER TUBE
* Specifications are provided for informational purposes only. Actual values may vary
Proximity
sensor
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
