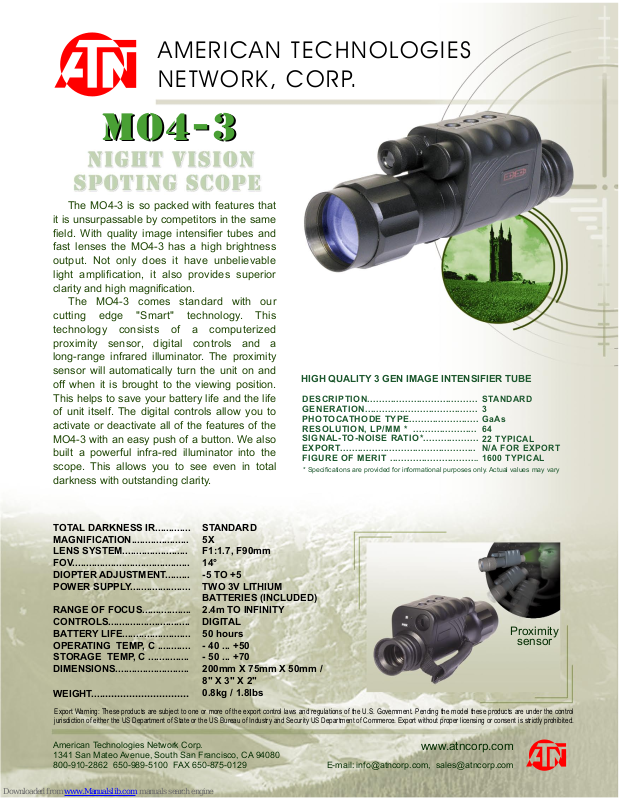

ATN MO4-3 Specifications

mo4-3

mo4-3

TOTAL DARKNESS IR.............

MAGNIFICATION.....................

LENS SYSTEM........................

FOV...........................................

DIOPTER ADJUSTMENT.........

POWER SUPPLY......................

RANGE OF FOCUS..................

CONTROLS..............................

BATTERY LIFE.........................

OPERATING TEMP, C ............

STORAGE TEMP, C ...............

DIMENSIONS...........................

WEIGHT.................................

STANDARD
5X
F1:1.7, F90mm
14°

-5 TO +5
TWO 3V LITHIUM
BATTERIES (INCLUDED)

2.4m TO INFINITY
DIGITAL
50 hours

- 40 ... +50

- 50 ... +70

200mm X 75mm X 50mm /
8" X 3" X 2"

0.8kg / 1.8lbs

The MO4-3 is so packed with features that
it is unsurpassable by competitors in the same
field. With quality image intensifier tubes and
fast lenses the MO4-3 has a high brightness
output. Not only does it have unbelievable
light amplification, it also provides superior
clarity and high magnification.

The MO4-3 comes standard with our
cutting edge "Smart" technology. This
technology consists of a computerized
proximity sensor, digital controls and a
long-range infrared illuminator. The proximity
sensor will automatically turn the unit on and
off when it is brought to the viewing position.
This helps to save your battery life and the life
of unit itself. The digital controls allow you to
activate or deactivate all of the features of the
MO4-3 with an easy push of a button. We also
built a powerful infra-red illuminator into the
scope. This allows you to see even in total
darkness with outstanding clarity.

www.atncorp.com

E-mail: [e-mail], [e-mail]

American Technologies Network Corp.
1341 San Mateo Avenue, South San Francisco, CA 94080
800-910-2862 650-989-5100 FAX [phone]

AMERICAN TECHNOLOGIES
NETWORK, CORP.

DESCRIPTION......................................

GENERATION.......................................

PHOTOCATHODE TYPE........................

RESOLUTION, LP/MM * ......................

SIGNAL-TO-NOISE RATIO*...................

EXPORT...............................................

FIGURE OF MERIT .............................

..

STANDARD
3
GaAs
64
22 TYPICAL
N/A FOR EXPORT
1600 TYPICAL

HIGH QUALITY 3 GEN IMAGE INTENSIFIER TUBE

* Specifications are provided for informational purposes only. Actual values may vary

Proximity
sensor

Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
