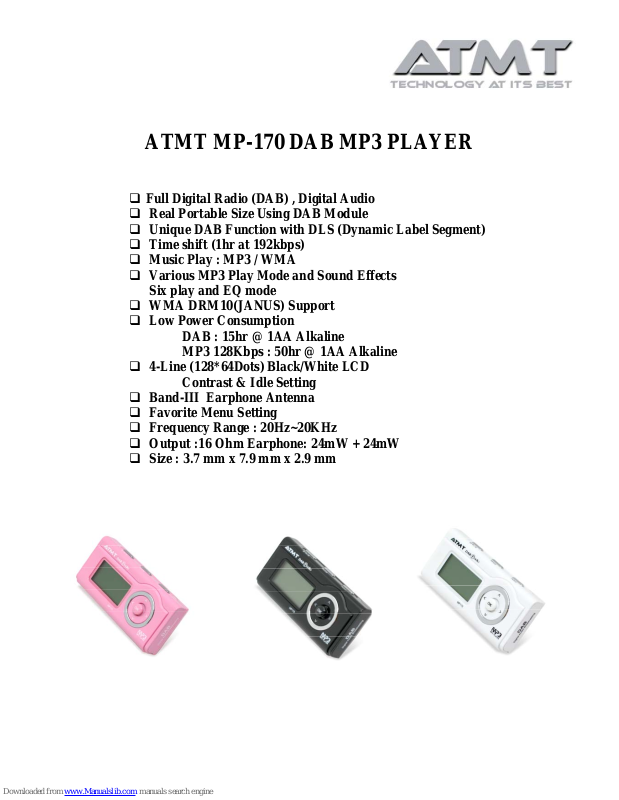

ATMT MP-170 DAB MP3 PLAYER
Full Digital Radio (DAB) , Digital Audio
Real Portable Size Using DAB Module
Unique DAB Function with DLS (Dynamic Label Segment)
Time shift (1hr at 192kbps)
Music Play : MP3 / WMA
Various MP3 Play Mode and Sound Effects
Six play and EQ mode
WMA DRM10(JANUS) Support
Low Power Consumption
DAB : 15hr @ 1AA Alkaline
MP3 128Kbps : 50hr @ 1AA Alkaline
4-Line (128*64Dots) Black/White LCD
Contrast & Idle Setting
Band-III Earphone Antenna
Favorite Menu Setting
Frequency Range : 20Hz~20KHz
Output :16 Ohm Earphone: 24mW + 24mW
Size : 3.7 mm x 7.9 mm x 2.9 mm
Page 2
TECHNICAL DATA
an
en
10 Announcement Service (Traffic, Transport, Service, News, Weather, Event, Sports, SPC-Event, PRGINFO, Financial, etc)
Announcem
t
Acquisition & Audio Play (U.K Local Scan : 8sec / Full Scan : 18sec)
Channel Ch ge
BAND-III
DAB Band
LCD with blue back lighting (128x64 dots, 4Line Display)
Display Monitor
1GB
Storage Capacity
Earphone, USB cable, Guide
Provided Accessories
40g (65g with Battery)
weight
3.7 mm x 7.9 mm x 2.9 mm
Dimensions (W X H X D)
MP3 : 50Hr, DAB : 15Hr
Max. Playback Time
1* AA Battery (Alkaline)
Battery Type
Unit : USB2.0 (High Speed Supported)
Input / Output Terminals
Unit : Headphone 30Hz ~ 20kHz
Features of Frequencies
MP3 : 8kbps ~ 320kbps, WMA : 8kbps ~ 320kbps,
DAB : 64Kbps~256Kbps(All Stations can be covered)
Bit Rate
Up to 20 Channel Saving
Preset
Typical BER 1e
-4
@ -98dBm
Sensitivity
MP3 / WMA (WMA-DRM10)
Supports Audio Formats
Languages : English
.
Display Languages
