English
MedizinTechnik
ATMOS®
Chair 31 P
Operating Instructions
503.0800.B
503.0802.B
2015-08 Index: 09
Table of contents
page
1.0 Introduction ............................................................3-5
1.1 Notes on operating instructions ................................... 3
1.2 Function ...................................................................... 4
1.3 Intended use ...............................................................4
1.4 Scope of supply ...........................................................5
1.5 Transport and storage ................................................. 5
1.6 Explanation of symbols ............................................... 5
2.0 For your safety .......................................................... 6
3.0 Installation and start-up ........................................7-8
3.1 Operating elements ..................................................... 7
3.2 Electrical connection ................................................... 7
3.3 Fixing the ATMOS
3.4 Mounting the foot rest ................................................. 8
3.5 Fixation of the back rest .............................................. 8
3.6 Adjusting the head rest ............................................... 8
3.7 Removing the head rest .............................................. 8
4.0 Operation ..............................................................9-10
4.1 Positioning the patient ................................................. 9
4.2 Adjusting the seat height ............................................. 9
4.3 Rotating the upper part ............................................... 9
4.4 Adjusting the backrest ................................................. 9
4.5 Adjusting the fold-away foot rest ............................... 10
®
Chair 31 P .................................... 7
ATMOS
MedizinTechnik GmbH & Co. KG
Ludwig-Kegel-Str.16
79853 Lenzkirch
Germany
Telefon: + 49 7653 689-0
Fax:
+ 49 7653 689-190
+ 49 7653 689-292 (Service Centre)
5.0 Cleaning and care ................................................... 11
6.0 Maintenance and service ........................................ 12
7.0 Troubleshooting ...................................................... 12
8.0 Options, accessories and spare parts .............13-14
8.1 Options ...................................................................... 13
8.2 Accessories ............................................................... 13
8.3 Spare parts ................................................................14
9.0 Technical data ......................................................... 15
10.0 Testing / Disposal .................................................... 16
10.1 Checking ATMOS devices ......................................... 16
10.2 Disposal .................................................................... 16
11.0 Notes on EMC ..................................................... 17-19
E-Mail: atmos@atmosmed.com
Internet: http://www.atmosmed.com
2
1.0 Introduction
1.1 Notes on operating instructions
These operating instructions contain important notes on how to operate the ATMOS® Chair 31 P
safely, correctly and effectively. Their reading helps to avoid risks, and also to reduce repair costs
and down-time. That increases, amongst other things, the reliability and service life of the device.
These operating instructions serve not only for new operating personnel to be instructed in its use,
but also for use as a reference manual. Full or partial reproduction is subject to prior written appro-
val from ATMOS.
These operating instructions must always be kept available near the device.
Care and safety inspections in conjunction with professional execution provide for operational safety
and readiness for use of your ATMOS
ning.
Repair work and safety inspections may only be carried out by expert personnel authorised by
ATMOS. By applying original spare parts you will have the guarantee that operational safety,
readiness for work and the value of your ATMOS
®
● The product ATMOS
Directive of the council for medical products 93/42/EEC, Directive 2007/47/EC dd.
05 September 2007 and meets the basic requirements of annex I of this directive.
● The product ATMOS
2011/65/EC restricting the use of certain hazardous substances in electrical and electronic
equipment (“RoHS”).
● The declaration of conformity and our general standard terms and conditions can be obtained
on our website at www.atmosmed.com
● The quality management system applied at ATMOS has been certifi ed according to international
standards EN ISO 9001 and EN ISO 13485.
● Prior to start-up please peruse chapter 2.0 „For your safety“, in order to be prepared for any
possible dangerous situations.
These operating instructions are valid for the following devices:
●
ATMOS® Chair 31 P REF 503.0802.0
Colour: white-dove blue
Chair 31 P bears CE marking CE according to the EC
®
Chair 31 P complies with all applicable requirements of the directive
®
Chair 31 P and are therefore a must besides regular clea-
®
Chair 31 P will be preserved.
ATMOS® Chair 31 P REF 503.0800.0
●
Coulor: basic-dove blue
●
ATMOS® Chair 31 P REF 503.0801.0
Special colour
Please store this document near the device for later use!
3
1.0 Introduction
1.2 Function
● The ATMOS® Chair 31 P (for patients) guarantees a
comfortable deportment for the patient (seating or
half-lying position) at optimum examination position.
● The ATMOS
height adjustment. The seat height can be varied
between 48 - 68 cm.
● The upper part of the chair is rotatable by 360° and can
be arrested in every height and rotary position by
a fi xing brake.
● The inclination of the backrest is infi nitely variable from
approx. -5° forward to 45° backward.

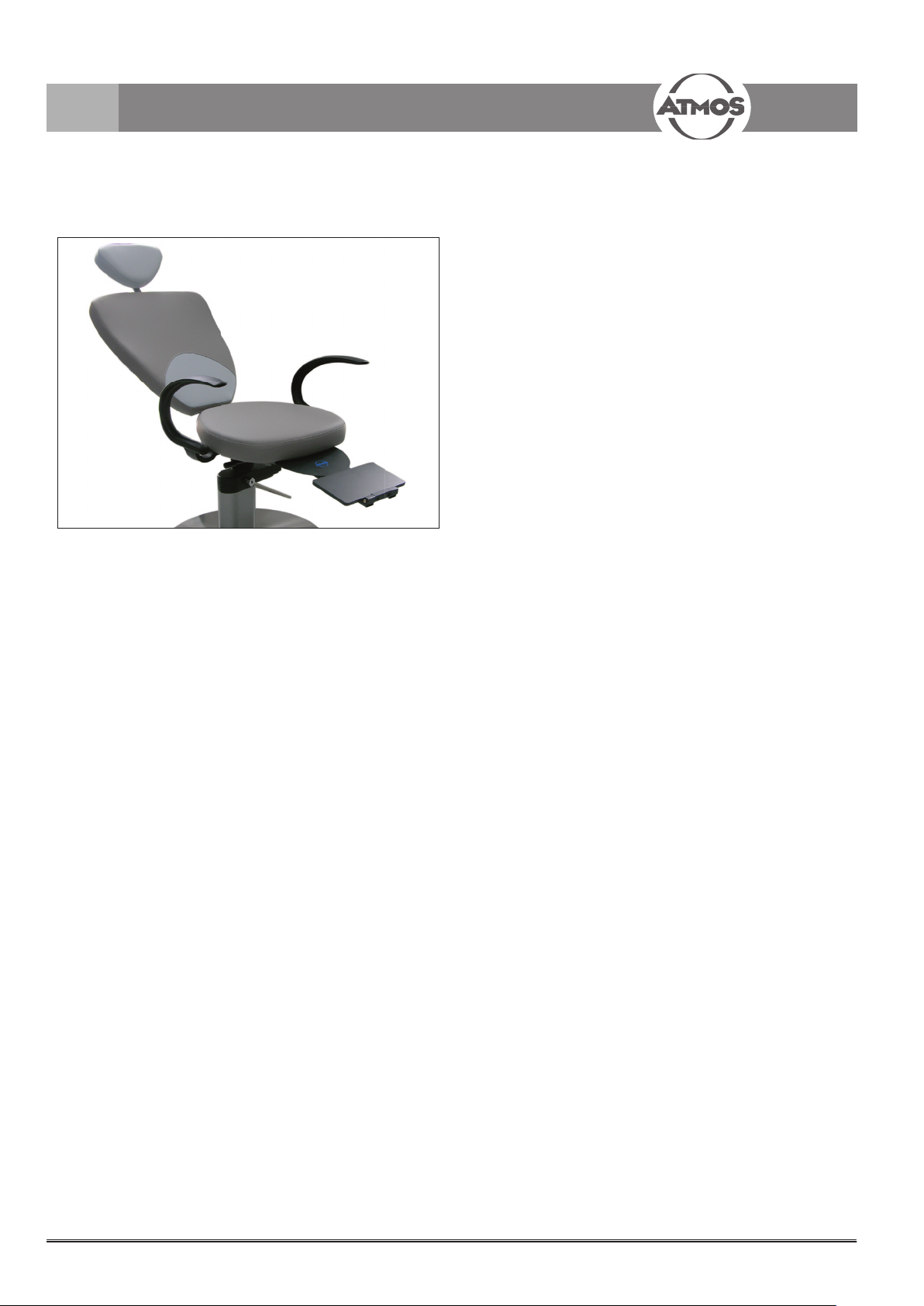

● Adjustment of the fold-away foot rest (optional) is synchro-
nous with the back rest inclination.
®
Chair 31 P is equipped with a mechanical
1.3 Intended use
Name: ATMOS® Chair 31 P
Main functions:
This doctor's chair enables the optimum positioning of the doctor
with regard to height and access to the patient.
Med. indications/ application:
Positioning of the patient during standard ENT examinations and
/ or therapy.
Specifi cation of the main function:
Seamless seat made of abrasion resistant and tear-proof leathe-
rette, backrest is infi nitely variable with gas compression from -5°
up to + 45°, solid plastic armrest, open in front for an optimum
legroom, safe head positioning due to projecting and height ad-
justable headrest, infi nitely variable height adjustment of the seat
by an electric motor from approx. 48 cm up to 68 cm, easy patient
positioning resulting from the 360° rotation around its own axis,
can be easily arrested in any height and rotating position using the
foot pedal, the positioning of the foldable foot support (optional)
is done via synchronous coupling with the backrest inclination,
powder-coated base plate with rubber protection ring, disinfectantresistant leatherette colour combination.
Application organ: Positioning of the patient
Application time: Temporary (Max. 60 minutes)
Application site:
In clinics and practices for ENT doctors and phoniatrists. The
application of the doctor’s chair must be executed by medically
trained persons only.
Contraindications:
Not suitable as a swivel chair for testing the nystagmus stimulation,
for patients weighing more than 150 kg, a backrest inclination is
only possible when the chair is screwed to the fl oor, not suitable for
positioning the patient in the shock position (completely horizontal).
The product is: X active □ not active
Sterility: Not necessary
Single use product / reprocessing: No single use product
4
1.0 Introduction
Creation date
1.4 Scope of supply
Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed.
Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note)
1.5 Transport and storage
● The transport of the device may only be effected in
a dispatch carton upholstered and offering suffi cient pro-
tection.
● Please document and report damages in transit immediately. For complaints or return deliveries, please use
the enclosed form QD 434.
The form QD 434 can also be downloaded from the
internet www.atmosmed.de.
● Prior to starting up for the fi rst time the unit must be al-
lowed to stand for up to six hours at room temperature
following transport at temperatures below freezing. The
unit may not be operated if it has not acclimatised as it
might be damaged.
● Ambient conditions:
Transport/Storage: -20...+50 °C;
5...95 % air humidity
non-condensing
at air pressure 700...1060 hPa
Operation and
battery charging: +5...+35 °C;
20...95 % air humidity
non-condensing
at air pressure 700...1060 hPa
1.6 Explanation of symbols
Important information!
Warning,
!
especial diligent notice!
The CE sign shows that this
product meets the appropriate
requirements of the
EC Directive.
SN
REF
Serial number
Order number
Creation date
5
2.0 For your safety
!
For your safety
● The ATMOS® Chair 31 P may only be operated in rooms
used for medical purposes, but not in areas subject to
explosion hazards. Explosion harzards may result from
the use of combustible anaesthetic agents, skin cleansing
agents or disinfectants.
● The ambient conditions specifi ed in section 9.0
"Technical specifi cations" must be strictly observed!
®
● To guarantee safe operation of the ATMOS
must be screwed tightly onto the fl oor. To avoid damages,
check, prior to this fi xing, whether there are feed lines
(heating, current, water etc.) in the fl oor.
● Before connecting the device to the power line, check
that the voltage and frequency ratings of the power line
correspond to those indicated on the type plate.
● Ensure that your patients sit in the middle of the seat.
A constant unilateral strain on the seat can damage the
surface.
● For current entry, only the supplied power cable (or an
equivalent one) may be used.
● Correct configuration in assembly of country-specific
connections:
green/yellow protective conductor (PE)
blue neutral conductor (N)
black resp. brown phase (L)
● Prior to every application of the equipment make sure that
all connecting lines are technically safe and in proper condition. Damaged leads must be replaced immediately!
®
● The design of the ATMOS
ments of IEC 601/EN 60601 and of protection class I.
The device must only be connected to a properly installed
socket with non-fused earthed wire.
Chair 31 P fulfi lls the require-
Chair 31 P, it
● Before the patient takes a seat, when he gets up
from the chair and prior to starting the examination
(after positioning of the patient), make sure that the
swivel joint is arrested (multifunction lever in top
position).
● ATMOS neither guarantees error-free function nor
is ATMOS liable for personal injury and damage to
property if
• original ATMOS parts are not being used,
• the advice for use in these operating instructions
is not being observed,
• assembly, new settings, alterations, extensions
and repairs have been carried out by personnel
not authorised by ATMOS.
● The warranty will be rendered invalid in case of da-
mages caused due to the utilization of accessories or
consumables which are not approved by ATMOS for
use with this chair.
● Please note:
A medical insulating transformer with earth leakage
monitor or any similar safety system acc. to EN 60
601-1 is required, if several devices are connected
over one common power supply. The transformer
must correspond to the power consumption of all the
devices to be connected.
● When connecting several devices to an insulated
ground receptacle, the allowed strain and leakage
current have to be observed!
Prior to use a visual inspection is required. If any
parts are defective the ATMOS
not be used. Please contact your service partner.
The ATMOS
rooms used for medical purposes, but not in
areas subject to explosion hazards and in oxygen
rich environments.
®
Chair 31 P may be operated only in
Please notice that the ATMOS
be lifted or transported by pulling on the operation
lever.
®
Chair 31 P may
®
Chair 31 P may not
● Disconnection of the chair from the power line is only
possible by pulling the mains plug! First remove the plug
from the wall outlet. Then the power cord may be disconnected from the chair. Never touch the plug or cord with
wet hands.
● In case of non-use, service, repair or cleaning work the
chair must be disconnected from the current supply.
®
● The ATMOS
magnetic immunity requirements of standard IEC 601-1-2
/ EN 60601-1-2 "Electromagnetic compatibility - Medical
Electrical Equipment".
Chair 31 P fully complies with the electro-
6
3.0 Installation and start-up
3.1 Operating elements
Head rest
Lever for adjusting the backrest
Arresting lever / Multifunctional
Electrical lifting column
Fold-away footrest (option)
3.2 Electrical connection
● The ATMOS® Chair 31 P is supplied with a power cable
and connection for non-heating appliances. The power
cable is inserted in the socket for non-heating
appliances at the back of the base and connected to
an insulated ground receptacle.
● The electrical connection values (voltage and
frequency) are stated on the type plate under the seat.
The chair can only be separated from the current
●
supply by pulling the mains plug out of the wall socket!
An LED illuminates on the lifting column if the chair is
connected to the mains supply.
� In case of non-use, service, repair or cleaning work
the chair must be disconnected from the current
supply.
Fig 1. ATMOS® Chair 31 P
�
�
Fig 2. Drillings for fi xation of the base plate
�
�
3.3 Fixing the ATMOS® Chair 31 P
To guarantee safe operation of the ATMOS® Chair 31 P, it
must be screwed tightly onto the fl oor. To avoid damages,
check, prior to this fi xing, whether there are any feed lines
(heating, current, water etc. ) in the fl oor.
The chair is fi xed with the fastening parts kit which is included in
delivery. The sealing caps which are inserted in the drilling holes
must be removed and the base plate has to be fi xed to the fl oor with
the provided anchor fi ttings and screws (Fig. 2).
7
3.0 Installation and start-up
3.4 Mounting the foot rest (option)
Fig 3. Fixation of the fold-away foot rest
Fig 4. Fixation of the back rest
�
�
First of all press the collar bushings (503.0735.0) from inside,
on the left and right, into the front drillings of the seat base
frame. Afterwards bring the upper part of the pre-assembled
component (with the fold-away foot plate in front) in correct
position between the two bushings. Feed the axis (197 mm
length, REF 503.0721.0) through the drillings of the seat
base. A plain washer is installed on either side and the retaining washer is slided into the groove of the axis.
Press the collar bushing (503.0736.0) from outside into the
stiffener. Remove retaining washer and washer from the
axis at the lower bottom end of the seat frame. Pull the axis
back to the right. Lift the stiffener and bring it into the correct
position with the axis and slide it forward again. Afterwards
the plain washer is installed on either side and the retaining
washer is slided into the groove.
3.5 Fixation of the back rest
Insert the back rest into the provided opening. The round
bolts are locked into place in slightly tilting them forwards (
Fig. 4) and tightening them with the cylinder head screw
M 8x20 and the spring washer Ø 8,1 (
, Fig. 4) .
,
Fig 5. Locking screw
3.6 Adjusting the head rest
The height of the head rest can be adjusted by using
the locking screw (
headrest in two different positions. The headrest can completely be swivelled backwards and then be pulled out from its
support (Fig. 6).
, Fig. 5). It is possible to adjust the
3.7 Removing the head rest
The head rest can be pulled out of the support.
Fig. 6. Turning the head-rest
8
4.0 Operation
4.1 Positioning the patient
Ensure that your patients sit in the middle of the seat.
A constant unilateral strain on the seat can damage
the surface
.
4.2 Adjusting the seat height
The swivel joint must be arrested (multifunctional
lever in uppermost position = swivel locking) in all
cases, prior to access respectively exit of the patient.
Fig 7.
Multifunctional lever
● Move the multifunctional lever (
manner to moveust the chair upwards.
● Arrest the chair in the desired position (multifunctional
lever in highest position = height locking).
● By pressing the multifunction lever completely down, the
chair can be adjusted to its lowest position.
, fi g. 7) in a pumping
4.3 Rotating the upper part
The upper part of the chair with the patient can be
completely rotated by moving the multifunction lever from
its highest position (rotation arresting) to the fi rst snap-in
position or even lower till the brake is completely released.
Then rotate the upper part of the chair with the patient and
move the multifunction lever again in highest position
(rotation arresting) when the desired position is achieved.
Fig 8.
Lever for adjusting the backrest
4.4 Adjusting the backrest
● The backrest can be adjusted to the desired position by
pressing the lever (
● Release the lever which will then return to its initial position.
The backrest remains in the adjusted position.
When pressing the lever again backwards the installed
gas compression damper will induce the backrest to
return to the upright position.
, fi g. 8) backwards.
9
4.0 Operation
4.5 Adjusting the
fold-away foot rest (option)
Movement of the foot rest is synchronised with the movement
of the back rest.
Fig 9. ATMOS
®
Chair 31 P in half-lying position
10
5.0 Cleaning and care
chloride < 1 g Metasys, Rum (Austria)
5.1 General information on cleaning and disinfection
Before cleaning
Medical devices must always offer a maximum in safety and function.
The described measures to clean and to disinfect do not
rule out regulations valid for the particular company!
Always observe the concentration specifi cations and
instructions by the respective manufacturer.
● In chapter 5.3 Recommended disinfectants“ all sur-
face and instrument disintectants are stated which are
suitable for disinfection.
● Do NOT use
- disinfectants containing concentrated organic
or anorganic acids or bases, since these may cause
corrosion damages.
- disinfectants containing chloramides, phenol
derivatives or anionic tensides, since these may
cause stress cracks in the plastics used.
5.2 Cleaning the unit's surfaces and upholstery
● The surfaces of the ATMOS
5.3 and 5.4. Nevertheless after any length of time discolourations could possibly develop.
● Substances such as blood need to be removed immediately to prevent stains on the cover material of the upholstery.
● The unit itself can be wiped off with a moist (not wet) cloth.
Do not use any abrasive cleaning agents. For the upholstery usual dry foam may be used.
Treatment with a commonly used care product for artifi cial leather is recommended once a week in order to keep the
upholstery soft and smooth.
!
®
Chair 31 P are resistant against all the recommended surface disinfectants stated in chapter
5.3 Recommended surface disinfectant
● The surfaces of the ATMOS® Chair 31 P can be cleaned/wiped with disinfectants containing the following active ingredients:
QAV (quarternary ammonium compounds)
5.4 Recommended disinfectants for the upholstery
Disinfectant Ingredients (in 100 g) Manufacturer
ATMOS Green & Clean SK Alkyldimethyl
(application solution) benzylammonium
Dialkyldimehty
lammoniumchloride < 1 g
Alkyldimethylethyl
benzylammoniumchloride < 1 g
11
6.0 Maintenance and service
● Maintenance, repairs and period tests may only be car-
ried out by persons who have the appropriate technical
knowledge and are familiar with the product. To carry out
these measures the person must have the necessary test
devices and original spare parts.
ATMOS recommends: work should be carried out by an
authorized ATMOS-service partner. This ensures that
repairs and testing are carried out professionally, original
spare parts are used and warranty claims remain
unaffected.
●
Please comply with the country-specifi c guidelines regarding
regular testing especially for the electrical safety.
ATMOS recommends a test every 24 months.
● ATMOS neither guarantees error-free function nor is
ATMOS liable for personal injury and damage to property
if
• original ATMOS parts are not being used,
• the advice for use in these operating instructions is not
being observed,
• assembly, new settings, alterations, extensions and
repairs have been carried out by personnel not
authorised by ATMOS.
● The warranty will be rendered invalid in case of damages
caused due to the utilization of accessories or consumables
which are not approved by ATMOS for use with these
chairs.
7.0 Troubleshooting
The ATMOS® Chair 31 P was subjected to a close quality examination before leaving the factory. If, however, any problems
should occur please contact an ATMOS service technician.
error indication possible cause remedy
height adjustment lifting column is defective exchange the lifting column
is not possible only by an ATMOS service technician
defective power supply unit exchange the power supply unit
only by an ATMOS service technician
power cable is not connected to the mains connect power cable to the mains
> control LED
downward movement of the lifting column is defective exchange the lifting column
chair under load only by an ATMOS service technician
backrest cannot be adjusted gas spring is defective exchange the gas spring
only by an ATMOS service technician
12
8.0 Options, accessories and spare parts
8.1 Options
Description REF
Foot rest, rigid.............................................................................................. 503.0731.0
made of silver-coloured metal tube and hard rubber
Foot rest, fold-away .................................................................................... 503.0810.0
moves synchronously when tilting the back rest
8.2 Accessories
Child seat..................................................................................................... 503.0372.0
made of tearproof imitation leather for long durability,
height: 9 cm, colour: white
13
8.0 Options, Accessories and spare parts
8.3 Spare parts
Backrest complete, white/dove-blue ............................................................ 503.0712.0
Backrest complete, basic/dove-blue ............................................................ 503.0713.0
Cylinder head screw, inner edge 8x20 ....................................................... 051.0087.0
Washer 8.4 form-b ....................................................................................... 053.0012.0
Seat cushion, white ................................................................................... 503.0714.0
Seat cushion, basic ................................................................................... 503.0715.0
Cylinder head screw, inner edge 6x45 ....................................................... 051.0131.0
Washer 6.4 form-b ....................................................................................... 053.0006.0
Head rest complete ..................................................................................... 503.0723.0
Arm rest complete ...................................................................................... 503.0720.0
Cylinder head screw, inner edge 6x30 ....................................................... 051.0083.0
Cylinder head screw, inner edge 6x20 ....................................................... 051.0082.0
Cylinder head screw, inner edge 6x20 ....................................................... 051.0143.0
Washer 6.4 form-b ....................................................................................... 053.0006.0
Base plate.................................................................................................... 503.0805.0
Counter sunk screw m 8x25 ....................................................................... 051.0387.0
Lifting cylinder.............................................................................................. 503.0806.0
Axis for backrest ......................................................................................... 503.0721.0
Axis for gas spring rear .............................................................................. 503.0724.0
Axis for gas spring front .............................................................................. 503.0725.0
Lock washer 8 ............................................................................................. 053.0110.0
Lock washer 6 ............................................................................................ 053.0109.0
Gas spring ................................................................................................. 503.0734.0
Fixation plate ............................................................................................... 503.0722.0
Seat support complete ............................................................................... 503.0710.0
Bracket for backrest complete ..................................................................... 503.0711.0
Mains cable ................................................................................................. 507.0859.0
14
9.0 Technical data
Voltage 100-230 V~ ± 10 % 50/60 Hz
Current input max. 2,5 A @ 100 V~
Power cable 3 m long
Power consumption max. 250 VA
Operating time continuous operation: 3 minutes max.
Height adjustment electrically driven lift column,
Seat depth 48 cm
Seat height 48 - 68 cm
Protective earth conductor resistance 0,1 Ω
Earth leakage current 0,5 mA
Ambient conditions
Transport/storage
Operation
Backrest inclination 50° (-5° ... 45°)
Rotation 360°
Dimensions HxWxD 128 x 58 x 64 cm
Back rest HxW 58 x 54 cm
Head rest HxW 19 x 28 cm, height adjustable
Weight 46.4 kg
Max. load 150 kg
Protection class (EN 60601-1) I
max. 1,1 A @ 230 V~
operation by foot switch
-20...+50 °C
5...95 % air humidity without condensation,
air pressure 700...1060 hPa
+5...+35 °C
30...95 % air humidity without condensation,
air pressure 700...1060 hPa
Degree of protection type B
Kind of protection IP 51
Regular Period tests Recommended: Testing every 24 months.
Classifi cation according to Appendix IX, EC
Directive 93/42/EEC, Directive 2007/47/EC,
version: 05.09.2007
CE marking CE
UMDNS code 16-437
GMDN code 38447
REF 503.0802.0 white / dove-blue
I
503.0800.0 basic / dove-blue
Stand der technischen Daten: 08.02.2010
15
10.0 Checking / Disposal
10.1 Checking ATMOS devices
The ATMOS devices are maintenance-free when they are used according to the operating instructions.
Regular, thoroughly cleaning and disinfection of the application parts respectively the operation in line with the
operating instructions are assumed.
10.2 Disposal
● The ATMOS® Chair 31 P is not comprised of any hazardous materials.
● The materials of the housing can be completely recycled.
● Prior to disposal, device and accessories must be decontaminated.
● The materials are to be separated carefully.
● Pay attention to country-specifi c regulations for disposal (e. g. waste incineration).
Disposal within the EC
The procuct described above is a high-quality medical product with a long service
life. After its life cycle it must be disposed of professionally. According to the EC directives
(WEEE and RoHS) the device may not be disposed of in domestic waste. Please observe
existing national laws and rules for disposal of old devices.
Disposal within the Federal Republic of Germany
In order to guarantee a proper disposal of your old device, please either pass on your old
device to your specialised dealer or send it directly to ATMOS MedizinTechnik for a
professional disposal.
Prior to disposal respectively before transport all parts and hoses must be
thoroughly cleaned, disinfected. The device surface must be disinfected.
16
11.0 Notes on EMC
■ Medical electrical equipment is subject to special precautions with regard to EMC and must be installed acc.
to following EMC notes.
■ Portable and mobile HF communication facilities can influence medical electrical equipment.
■ The use of other accessories, other converters and cables than stated may lead to an increased emission
or a reduced interference immunity of the equipment or system.
11.1 Guidelines and Manufacturer´s Declaration - Emissions
The ATMOS® Chair 31 P is intended for use in the electromagnetic environment specifi ed below. The customer or
user of the ATMOS® Chair 31 P should ensure that it is used in such an environment.
Emissions Test Compliance Electromagnetic Environment - Guidance
RF Emissions
CISPR 11
RF Emissions
CISPR 11
Harmonics IEC 61000-3-2 Class A
Flicker
IEC 61000-3-3
Group 1 The ATMOS® Chair 31 P uses RF energy only for
its internal function. Therefore, its RF emissions are
very low and are not likely to cause any interference
in nearby electronic equipment.
Class B
Inapplicable
The ATMOS
tablishments, including domestic, and those directly
connected to the public low-voltage power supply
network that supplies buildings used for domestic
purposes.
®
Chair 31 P is suitable for use in all es-
The device may not be used directly next to other devices or piled up with other devices.
If operation next to or piled with other devices is necessary, please watch the device to check its intended
operation in this arrangement.
11.2 Guidelines and Manufacturer´s Declaration - Immunity
The ATMOS® Chair 31 P is intended for use in the electromagnetic environment specifi ed below. The customer or
user of the ATMOS® Chair 31 P should ensure that it is used in such an environment.
Immunity Test
ESD
IEC 61000-4-2
EFT
IEC 61000-4-4
Surges
IEC 61000-4-5
Power Frequency
50/60 Hz
Magnetic fi eld
IEC 61000-4-8
IEC 60601Test Level
± 6 kV Contact
± 8 kV Air
± 2 kV Mains
± 1 kV I/Os
± 1 kV Differential
± 1 kV Common
3 A/m Inapplicable Power frequency magnetic fi elds
Compliance Level
± 6 kV Contact
± 8 kV Air
± 2 kV Mains
Inapplicable
± 2 kV Differential
± 1 kV Common
Electromagnetic
Environment - Guidance
Floors should be wood, concrete,
or ceramis tile. If fl oors are synthe-
tic, the relative humidity should be
at least 30%.
Mains power quality should be that
of a typical commercial or hospital
environment.
Mains power quality should be that
of a typical commercial or hospital
environment.
should be that of a typical commercial or hospital environment.
17
11.0 Notes on EMC
Immunity Test IEC 60601-
Test Level
Voltage Dips / Dropout
IEC 61000-4-11
< 5 % UT
(> 95 % Dip of the U
for 0.5 Cycle
T
Compliance Level Electromagnetic
Environment - Guidance
< 5 % UT
)
(> 95 % Dip of the UT)
for 0.5 Cycle
Mains power quality should be
that of a typical commercial or
hospital environment. If the user of
the ATMOS® Chair 31 P demands
40 % U
T
(60% Dip of the UT)
for 5 Cycles
40 % U
T
(60% Dip of the UT)
for 5 Cycles
continued function even in case of
interruptions with the energy supply, it is recommended to supply the
ATMOS® Chair 31 P with uninter-
NOTE U
70% U
T
(30 % Dip of the UT)
for 25 Cycles
< 5 % UT
(>95 % Dip of the UT)
for 5 s
is the mains alternating current prior to application of the test levels.
T
70% U
T
(30 % Dip of the UT)
for 25 Cycles
< 5 % UT
(>95 % Dip of the UT)
for 5 s
ruptible current supply or a battery.
11.3 Guidelines and Manufacturer´s Declaration - Electromagnetic interference
The ATMOS® Chair 31 P is intended for use in the electromagnetic environment specifi ed below. The customer or
user of the ATMOS
Immunity Test
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
®
Chair 31 P should ensure that it is used in such an environment.
IEC 60601Test Level
Compliance Level
Electromagnetic Environment Guidance
Portable and mobile communications
3 V
eff
150 kHz to 80 MHz
3 V/m
3 V
eff
3 V/m
equipment should be separated from the
ATMOS® Chair 31 P incl. the cables by no
less than the distances calculated/listed
below.
80 MHz to 2.5 GHz
Recommended distances:
18
d = (3,5 / V1) * √(P)
d = (3,5 / E1) * √(P) 80-800 MHz
d = (7 / E1) * √(P) 0,8-2,5 GHz
where „P“ is the max. power in watts (W)
and D is the recommended separation
distance in meters (m).
Field strengths from fi xed transmitters, as
determined by an electromagnetic site (a)
survey, should be less than the compliance level (b).
Interference may occur in the vicinity of
equipment containing following symbol.
11.0 Notes on EMC
NOTE 1 With 80 MHz and 800 MHz the higher frequency range applies.
NOTE 2 These guidelines may not be applicable in all cases. The propagation of electromagnetic sizes is
infl uenced by absorptions and refl ections of buildings, objects and people.
a The fi eld strength of stationary transmitters, such as base stations of cellular phones and mobile terrain radio
equipment, amateur radio transmitters, cbm broadcast and TV stations cannot be exactly predestined.
To determine the electromagnetic environment in regard to stationary transmitters, a study of the location
should be considered. If the measured fi eld strength at the location where the ATMOS
is used exceeds the above compliance level, the ATMOS® Chair 31 P is to be observed to
verify the intended use. If abnormal performance characteristics are noted, additional measures might
be necessary, e. g. a changed arrangement or another location for the device.
b Within the frequency range of 150 kHz to 80 MHz the fi eld strength should be below 3 V/m.
11.4 Recommended separations between portable and mobile RF Communications
equipment and the ATMOS® Chair 31 P
®
The ATMOS
are controlled. The customer or user of the ATMOS® Chair 31 P can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF Communications equipment and the ATMOS® Chair 31 P as recommended below, according to the maximum output power of the communications
equipment.
Chair 31 P is intended for use in an electromagnetic environment in which ratiated disturbances
®
Chair 31 P
Separation distance, depending on transmit-frequency m
Nominal output of the
150 kHz bis 80 MHz
80 MHz bis 800 MHz
800 MHz bis 2,5 GHz
transmitter
d = [ 3,5 / 3] √P
d = [ 3,5 / 3] √P
d = [ 7,0 / 3] √P
W
0,01 0,12 0,12 0,24
0,1 0,37 0,37 0,74
1 1,2 1,2 2,4
10 3,69 3,69 7,38
100 11,66 11,66 23,32
For transmitters for which the maximum nominal output is not indicated in the above table, the recommended
separation distance d in meters (m) can be determined using the equation belonging to the respective column
whereas P is the maximum nominal output of the transmitter in watts (W) acc. to manufacturer´s specifi cation.
NOTE 1 With 80 MHz and 800 MHz the higher frequency range applies.
NOTE 2 These guidelines may not be applicable in every case. The propagation of electromagnetic sizes is
infl uenced by absorptions and refl ections of buildings, objects and people.
19
„Patients and doctors worldwide rely on ATMOS“
MedizinTechnik
ATMOS MedizinTechnik GmbH & Co. KG
Ludwig-Kegel-Str. 16
79853 Lenzkirch / Germany
Tel: +49 7653 689-370
atmos@atmosmed.de
www.atmosmed.com
Loading...
