Atmel DataFlash AT45DB321 Operation

Features

Single 2.7V - 3.6V Supply
Serial-interface Architecture
Page Program Operation
– Single Cycle Reprogram (Erase and Program) – 8192 Pages (528 Bytes/Page) Main Memory
Optional Page and Block Erase Operations
Two 528-byte SRAM Data Buffers – Allows Receiving of Data while Reprogramming of
Nonvolatile Memory
Internal Program and Control Timer
Fast Page Program Time – 7 ms Typical
120 µs Typical Page to Buffer Transfer Time
Low-power Dissipation
– 4 mA Active Read Current Typical – 3 µA CMOS Standby Current Typical
13 MHz Max Clock Frequency
Hardware Data Protection Feature
Serial Peripheral Interface (SPI) Compatible – Modes 0 and 3
CMOS and TTL Compatible Inputs and Outputs
Commercial and Industrial Temperature Ranges
32-megabit
2.7-volt Only Serial DataFlash
®

Description

The AT45DB321 is a 2.7-volt only, serial-interface Flash memory suitable for in-sys­tem reprogramming. Its 34,603,008 bits of memory are organized as 8192 pages of 528 bytes each. In addition to the main memory, the AT45DB321 also contains two SRAM data buffers of 528 bytes each. The buffers allow receiving of data while a page in the main memory is being reprogrammed. Unlike conventional Flash memo-
(continued)

Pin Configurations

Pin Name Function
CS
SCK Serial Clock
SI Serial Input
SO Serial Output
WP
RESET
RDY/BUSY
Chip Select
Hardware Page Write Protect Pin
Chip Reset
Ready/Busy
CBGA Top View Through Package
2345
1
A
B
C
D
E
F
G
H
J
NC
NC
NC
NC
NC
NC
NC
SCK
NC
CS
NC
SO
NC
NC
NC
NC
NC
NC
NC
NC
GND
RDY/BSY
SI
NC
NC
NC
NC
NC
NC
VCC
WP
RESET
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
TSOP Top View
Type 1
RESET
WP
VCC GND
SCK
1 2 3 4
NC
5
NC
6
NC
7 8 9
NC
10
NC
11
NC
12
NC
13
CS
14 15
SI
16
SO
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
RDY/BUSY
NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC
AT45DB321
Recommend using AT45DB321B for new designs.
AT45DB321 Preliminary 16­Megabit 2.7-volt Only Serial DataFlash
Rev. 1121E–01/01
1
ries that are accessed randomly with multiple address lines and a parallel interface, the DataFlash uses a serial inter­face to sequentially access its data. The simple serial inter­face facilitates hardware layout, increases system reliability, minimizes switching noise, and reduces package size and active pin count. The device is optimized for use in many commercial and industrial applications where high density, low pin count, low voltage, and low power are essential. Typical applications for the DataFlash are digital voice storage, image storage, and data storage. The device operates at clock frequencies up to 13 MHz with a typical active read current consumption of 4 mA.

Block Diagram

To allow for simple in-system reprogrammability, the AT45DB321 does not require high input voltages for pro­gramming. The device operates from a single power sup­ply, 2.7V to 3.6V, for both the program and read operations. The AT45DB321 is enabled through the chip select pin (CS consisting of the Serial Input (SI), Serial Output (SO), and the Serial Clock (SCK).
All programming cycles are self-timed, and no separate erase cycle is required before programming.
) and accessed via a three-wire interface
WP
PAGE (528 BYTES)
SCK
CS
RESET
VCC
GND
RDY/BUSY

Memory Array

To provide optimal flexibility, the memory array of the AT45DB321 is divided into three levels of granularity com­prising of sectors, blocks, and pages. The Memory Archi­tecture Diagram illustrates the breakdown of each level and
FLASH MEMORY ARRAY
BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)
I/O INTERFACE
SOSI
details the number of pages per sector and block. All pro­gram operations to the DataFlash occur on a page by page basis; however, the optional erase operations can be per­formed at the block or page level.
2
AT45DB321

Memory Architecture Diagram

SECTOR ARCHITECTURE BLOCK ARCHITECTURE PAGE ARCHITECTURE
SECTOR 0 = 4224 bytes (4K + 128)
SECTOR 1 = 266,112 bytes (252K + 8064)
SECTOR 0
BLOCK 0
BLOCK 1
BLOCK 2
8 Pages
AT45DB321
PAGE 0
PAGE 1
SECTOR 2 = 270,336 bytes (256K + 8192)
SECTOR 15 = 270,336 bytes (256K + 8192)
SECTOR 16 = 270,336 bytes (256K + 8192)
SECTOR 1
SECTOR 2
Block = 4224 bytes

Device Operation

The device operation is controlled by instructions from the host processor. The list of instructions and their associated opcodes are contained in Table 1 and Table 2. A valid instruction starts with the falling edge of CS appropriate 8-bit opcode and the desired buffer or main memory address location. While the CS the SCK pin controls the loading of the opcode and the desired buffer or main memory address location through the SI (serial input) pin. All instructions, addresses, and data are transferred with the most significant bit (MSB) first.

Read

By specifying the appropriate opcode, data can be read from the main memory or from either one of the two data buffers.
MAIN MEMORY PAGE READ: A main memory read allows the user to read data directly from any one of the 8192 pages in the main memory, bypassing both of the data buff­ers and leaving the contents of the buffers unchanged. To start a page read, the 8-bit opcode, 52H, is followed by 24 address bits and 32 dont care bits. In the AT45DB321, the first address bit is reserved for larger density devices (see Notes on page 10), the next 13 address bits (PA12-PA0) specify the page address, and the next 10 address bits (BA9-BA0) specify the starting byte address within the
followed by the
pin is low, toggling
BLOCK 0
BLOCK 62
BLOCK 63
BLOCK 64
BLOCK 65
BLOCK 1
BLOCK 126
BLOCK 127
BLOCK 128
BLOCK 129
BLOCK 1022
BLOCK 1023
(4K + 128)
PAGE 6
PAGE 7
PAGE 8
PAGE 9
PAGE 14
PAGE 15
PAGE 16
PAGE 17
PAGE 18
PAGE 8189
PAGE 8190
PAGE 8191
Page = 528 bytes
(512 + 16)
page. The 32 dont care bits which follow the 24 address bits are sent to initialize the read operation. Following the 32 dont care bits, additional pulses on SCK result in serial data being output on the SO (serial output) pin. The CS must remain low during the loading of the opcode, the address bits, and the reading of data. When the end of a page in main memory is reached during a main memory page read, the device will continue reading at the beginning of the same page. A low to high transition on the CS terminate the read operation and tri-state the SO pin.
BUFFER READ: Data can be read from either one of the two buffers, using different opcodes to specify which buffer to read from. An opcode of 54H is used to read data from buffer 1, and an opcode of 56H is used to read data from buffer 2. To perform a buffer read, the eight bits of the opcode must be followed by 14 dont care bits, 10 address bits, and eight don't care bits. Since the buffer size is 528­bytes, 10 address bits (BFA9-BFA0) are required to specify the first byte of data to be read from the buffer. The CS must remain low during the loading of the opcode, the address bits, the dont care bits, and the reading of data. When the end of a buffer is reached, the device will con­tinue reading back at the beginning of the buffer. A low to high transition on the CS
pin will terminate the read opera-
tion and tri-state the SO pin.
pin
pin will
pin
3
MAIN MEMORY PAGE TO BUFFER TRANSFER: A page
of data can be transferred from the main memory to either buffer 1 or buffer 2. An 8-bit opcode, 53H for buffer 1 and 55H for buffer 2, is followed by one reserved bit, 13 address bits (PA12-PA0) which specify the page in main memory that is to be transferred, and 10 dont care bits. The CS
pin must be low while toggling the SCK pin to load the opcode, the address bits, and the dont care bits from the SI pin. The transfer of the page of data from the main memory to the buffer will begin when the CS
pin transitions from a low to a high state. During the transfer of a page of data (t
), the status register can be read to determine
XFR
whether the transfer has been completed or not.
MAIN MEMORY PAGE TO BUFFER COMPARE: A page of data in main memory can be compared to the data in buffer 1 or buffer 2. An 8-bit opcode, 60H for buffer 1 and 61H for buffer 2, is followed by 24 address bits consisting of one reserved bit, 13 address bits (PA12-PA0) which spec­ify the page in the main memory that is to be compared to the buffer, and 10 don't care bits. The loading of the opcode and the address bits is the same as described pre­viously. The CS
pin must be low while toggling the SCK pin to load the opcode, the address bits, and the don't care bits from the SI pin. On the low to high transition of the CS
pin, the 528 bytes in the selected main memory page will be compared with the 528 bytes in buffer 1 or buffer 2. During this time (t
), the status register will indicate that the part
XFR
is busy. On completion of the compare operation, bit 6 of the status register is updated with the result of the com­pare.

Program

BUFFER WRITE: Data can be shifted in from the SI pin
into either buffer 1 or buffer 2. To load data into either buffer, an 8-bit opcode, 84H for buffer 1 or 87H for buffer 2, is followed by 14 don't care bits and 10 address bits (BFA9­BFA0). The 10 address bits specify the first byte in the buffer to be written. The data is entered following the address bits. If the end of the data buffer is reached, the device will wrap around back to the beginning of the buffer. Data will continue to be loaded into the buffer until a low to high transition is detected on the CS
BUFFER TO MAIN MEMORY PAGE PROGRAM WITH BUILT-IN ERASE: Data written into either buffer 1 or buffer
2 can be programmed into the main memory. An 8-bit opcode, 83H for buffer 1 or 86H for buffer 2, is followed by one reserved bit, 13 address bits (PA12-PA0) that specify the page in the main memory to be written, and 10 addi­tional don't care bits. When a low to high transition occurs on the CS
pin, the part will first erase the selected page in
pin.
main memory to all 1s and then program the data stored in the buffer into the specified page in the main memory. Both the erase and the programming of the page are internally self timed and should take place in a maximum time of t
EP
During this time, the status register will indicate that the part is busy.
BUFFER TO MAIN MEMORY PAGE PROGRAM WITH­OUT BUILT-IN ERASE: A previously erased page within
main memory can be programmed with the contents of either buffer 1 or buffer 2. An 8-bit opcode, 88H for buffer 1 or 89H for buffer 2, is followed by one reserved bit, 13 address bits (PA12-PA0) that specify the page in the main memory to be written, and 10 additional dont care bits. When a low to high transition occurs on the CS
pin, the part will program the data stored in the buffer into the specified page in the main memory. It is necessary that the page in main memory that is being programmed has been previ­ously erased. The programming of the page is internally self timed and should take place in a maximum time of t During this time, the status register will indicate that the part is busy.
PAGE ERASE: The optional Page Erase command can be used to individually erase any page in the main memory array allowing the Buffer to Main Memory Page Program without Built-In Erase command to be utilized at a later time. To perform a Page Erase, an opcode of 81H must be loaded into the device, followed by one reserved bit, 13 address bits (PA12-PA0), and 10 dont care bits. The 13 address bits are used to specify which page of the memory array is to be erased. When a low to high transition occurs on the CS
pin, the part will erase the selected page to 1s. The erase operation is internally self-timed and should take place in a maximum time of t
. During this time, the status
PE
register will indicate that the part is busy. BLOCK ERASE: A block of eight pages can be erased at
one time allowing the Buffer to Main Memory Page Pro­gram without Built-In Erase command to be utilized to reduce programming times when writing large amounts of data to the device. To perform a Block Erase, an opcode of 50H must be loaded into the device, followed by one reserved bit, 10 address bits (PA12-PA3), and 13 don’t care bits. The 10 address bits are used to specify which block of eight pages is to be erased. When a low to high transition occurs on the CS
pin, the part will erase the selected block of eight pages to 1s. The erase operation is internally self-timed and should take place in a maximum time of t
. During this time, the status register will indicate
BE
that the part is busy.
.
.
P
4
AT45DB321
AT45DB321

Block Erase Addressing

PA 12 PA 11 PA 10 PA 9 PA 8 PA 7 PA 6 PA 5 PA 4 PA 3 PA 2 PA 1 PA 0 Bl oc k
0 0 0 0000000XXX 0
0 0 0 0000001XXX 1
0 0 0 0000010XXX 2
0 0 0 0000011XXX 3
1 1 1 1111100XXX1020
1 1 1 1111101XXX1021
1 1 1 1111110XXX1022
1 1 1 1111111XXX1023
MAIN MEMORY PAGE PROGRAM: This operation is a combination of the Buffer Write and Buffer to Main Memory Page Program with Built-In Erase operations. Data is first shifted into buffer 1 or buffer 2 from the SI pin and then pro­grammed into a specified page in the main memory. An 8­bit opcode, 82H for buffer 1 or 85H for buffer 2, is followed by one reserved bit and 23 address bits. The 13 most sig­nificant address bits (PA12-PA0) select the page in the main memory where data is to be written, and the next 10 address bits (BFA9-BFA0) select the first byte in the buffer to be written. After all address bits are shifted in, the part will take data from the SI pin and store it in one of the data buffers. If the end of the buffer is reached, the device will wrap around back to the beginning of the buffer. When there is a low to high transition on the CS first erase the selected page in main memory to all 1s and then program the data stored in the buffer into the specified page in the main memory. Both the erase and the program­ming of the page are internally self timed and should take place in a maximum of time t register will indicate that the part is busy.
AUTO PAGE REWRITE: This mode is only needed if multi­ple bytes within a page or multiple pages of data are modi­fied in a random fashion. This mode is a combination of two operations: Main Memory Page to Buffer Transfer and Buffer to Main Memory Page Program with Built-In Erase. A page of data is first transferred from the main memory to buffer 1 or buffer 2, and then the same data (from buffer 1 or buffer 2) is programmed back into its original page of main memory. An 8-bit opcode, 58H for buffer 1 or 59H for buffer 2, is followed by one reserved bit, 13 address bits (PA12-PA0) that specify the page in main memory to be rewritten, and 10 additional don't care bits. When a low to high transition occurs on the CS fer data from the page in main memory to a buffer and then
program the data from the buffer back into same page of main memory. The operation is internally self-timed and should take place in a maximum time of t
. During this
EP
time, the status register will indicate that the part is busy.
If a sector is programmed or reprogrammed sequentially page by page, then the programming algorithm shown in Figure 1 is recommended. Otherwise, if multiple bytes in a page or several pages are programmed randomly in a sec­tor, then the programming algorithm shown in Figure 2 is recommended.
STATUS REGISTER: The status register can be used to determine the devices ready/busy status, the result of a Main Memory Page to Buffer Compare operation, or the
pin, the part will
device density. To read the status register, an opcode of 57H must be loaded into the device. After the last bit of the opcode is shifted in, the eight bits of the status register, starting with the MSB (bit 7), will be shifted out on the SO pin during the next eight clock cycles. The five most-signifi-
. During this time, the status
EP
cant bits of the status register will contain device informa­tion, while the remaining three least-significant bits are reserved for future use and will have undefined values. After bit 0 of the status register has been shifted out, the sequence will repeat itself (as long as CS
remains low and SCK is being toggled) starting again with bit 7. The data in the status register is constantly updated, so each repeating sequence will output new data.
Ready/busy status is indicated using bit 7 of the status reg­ister. If bit 7 is a 1, then the device is not busy and is ready to accept the next command. If bit 7 is a 0, then the device is in a busy state. The user can continuously poll bit 7 of the status register by stopping SCK once bit 7 has been output. The status of bit 7 will continue to be output on the SO pin,
pin, the part will first trans-
and once the device is no longer busy, the state of SO will change from 0 to 1. There are eight operations which can
5
cause the device to be in a busy state: Main Memory Page to Buffer Transfer, Main Memory Page to Buffer Compare, Buffer to Main Memory Page Program with Built-In Erase, Buffer to Main Memory Page Program without Built-In Erase, Page Erase, Block Erase, Main Memory Page Pro­gram, and Auto Page Rewrite.
The result of the most recent Main Memory Page to Buffer Compare operation is indicated using bit 6 of the status register. If bit 6 is a 0, then the data in the main memory page matches the data in the buffer. If bit 6 is a 1, then at least one bit of the data in the main memory page does not match the data in the buffer.
The device density is indicated using bits 5, 4, and 3 of the status register. For the AT45DB321, the three bits are 1, 1, and 0. The decimal value of these three binary bits does not equate to the device density; the three bits represent a combinational code relating to differing densities of Serial DataFlash devices, allowing a total of eight different density configurations.

Read/Program Mode Summary

The modes listed above can be separated into two groups modes which make use of the flash memory array (Group A) and modes which do not make use of the flash memory array (Group B).
Group A modes consist of:
1. Main Memory Page Read
2. Main Memory Page to Buffer 1 (or 2) Transfer
3. Main Memory Page to Buffer 1 (or 2) Compare
4. Buffer 1 (or 2) to Main Memory Page Program With Built-In Erase
5. Buffer 1 (or 2) to Main Memory Page Program With­out Built-In Erase
6. Page Erase
7. Block Erase
8. Main Memory Page Program
9. Auto Page Rewrite
Group B modes consist of:
1. Buffer 1 (or 2) Read
2. Buffer 1 (or 2) Write
3. Status Register Read
If a Group A mode is in progress (not fully completed) then another mode in Group A should not be started. However, during this time in which a Group A mode is in progress, modes in Group B can be started.
This gives the Serial DataFlash the ability to virtually accommodate a continuous data stream. While data is being programmed into main memory from buffer 1, data can be loaded into buffer 2 (or vice versa). See application note AN-4 (Using Atmels Serial DataFlash) for more details.
HARDWARE PAGE WRITE PROTECT: If the WP held low, the first 256 pages of the main memory cannot be reprogrammed. The only way to reprogram the first 256 pages is to first drive the protect pin high and then use the program commands previously mentioned. The WP internally pulled high; therefore, connection of the WP not necessary if this pin and feature will not be utilized. However, it is recommended that the WP externally whenever possible.
RESET
the operation in progress and reset the internal state machine to an idle state. The device will remain in the reset condition as long as a low level is present on the RESET pin. Normal operation can resume once the RESET pin is brought back to a high level.
The device incorporates an internal power-on reset circuit, so there are no restrictions on the RESET power-on sequences. The RESET pulled high; therefore, connection of the RESET necessary if this pin and feature will not be utilized. How­ever, it is recommended that the RESET externally whenever possible.
READY/BUSY
low when the device is busy in an internally self-timed oper­ation. This pin, which is normally in a high state (through an external pull-up resistor), will be pulled low during program­ming operations, compare operations, and during page-to­buffer transfers.
The busy status indicates that the Flash memory array and one of the buffers cannot be accessed; read and write operations to the other buffer can still be performed.
: A low state on the reset pin (RESET) will terminate
: This open drain output pin will be driven
pin be driven high
pin is also internally
pin be driven high
pin is
pin is
pin is
pin during
pin is not

Power On/Reset State

When power is first applied to the device, or when recover­ing from a reset condition, the device will default to SPI mode 3. In addition, the SO pin will be in a high impedance state, and a high to low transition on the CS required to start a valid instruction. The SPI mode will be automatically selected on every falling edge of CS pling the inactive clock state.
pin will be
by sam-

Status Register Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
RDY/BUSY
6
COMP110XXX
AT45DB321

Absolute Maximum Ratings*

Temperature Under Bias................................ -55°C to +125°C
Storage Temperature..................................... -65°C to +150°C
All Input Voltages (including NC Pins)
with Respect to Ground...................................-0.6V to +6.25V
All Output Voltages
with Respect to Ground.............................-0.6V to V
+ 0.6V
CC

DC and AC Operating Range

AT45DB321
*NOTICE: Stresses beyond those listed under “Absolute
Maximum Ratings may cause permanent dam­age to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
AT45DB321
Operating Temperature (Case)
V
Power Supply
CC
Note: 1. After power is applied and VCC is at the minimum specified data sheet value, the system should wait 20 ms before an oper-
(1)
ational mode is started.
Com. 0°C to 70°C
Ind. -40°C to 85°C
2.7V to 3.6V
7

DC Characteristics

Symbol Parameter Condition Min Typ Max Units
CS
I
I
I
I
I
V
V
V
V
SB
CC1
CC2
LI
LO
IL
IH
OL
OH
Standby Current
Active Current, Read Operation
Active Current, Program/Erase Operation
Input Load Current VIN = CMOS levels 1 µA
Output Leakage Current V
Input Low Voltage 0.6 V
Input High Voltage 2.0 V
Output Low Voltage IOL = 1.6 mA; VCC = 2.7V 0.4 V
Output High Voltage IOH = -100 µA VCC - 0.2V V
, RESET, WP = VIH, all inputs at
CMOS levels
f = 13 MHz; I
= 3.6V
V
CC
V
= 3.6V 30 40 mA
CC
= CMOS levels 1 µA
I/O
= 0 mA;
OUT
31A
410mA

AC Characteristics

Symbol Parameter Min Max Units
f
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SCK
WH
WL
CS
CSS
CSH
CSB
SU
H
HO
DIS
V
XFR
EP
P
PE
BE
RST
REC
SCK Frequency 13 MHz
SCK High Time 35 ns
SCK Low Time 35 ns
Minimum CS High Time 250 ns
CS Setup Time 250 ns
CS Hold Time 250 ns
CS High to RDY/BUSY Low 200 ns
Data In Setup Time 10 ns
Data In Hold Time 20 ns
Output Hold Time 0ns
Output Disable Time 25 ns
Output Valid 30 ns
Page to Buffer Transfer/Compare Time 350 µs
Page Erase and Programming Time 20 ms
Page Programming Time 15 ms
Page Erase Time 10 ms
Block Erase Time 15 ms
RESET Pulse Width 10 µs
RESET Recovery Time s

Input Test Waveforms and Measurement Levels

2.4V
AC
DRIVING
LEVELS
0.45V
tR, tF < 5 ns (10% to 90%)
8
AT45DB321
AC
2.0 MEASUREMENT
0.8 LEVEL

Output Test Load

DEVICE UNDER
TEST
30 pF

AC Waveforms

Two different timing diagrams are shown below. Waveform 1 shows the SCK signal being low when CS to-low transition, and Waveform 2 shows the SCK signal being high when CS
makes a high-to-low transition. Both
waveforms show valid timing diagrams. The setup and hold

Waveform 1 – Inactive Clock Polarity Low

CS
makes a high-
AT45DB321
times for the SI signal are referenced to the low-to-high transition on the SCK signal.
Waveform 1 shows timing that is also compatible with SPI Mode 0, and Waveform 2 shows timing that is compatible with SPI Mode 3.
tCS
tWH tWL tCSH
tV
VALID IN
SCK
HIGH IMPEDANCE
SO
SI
tCSS

Waveform 2 – Inactive Clock Polarity High

CS
SCK
SO
tCSS
HIGH Z
tWL tWH tCSH
tV
tHO tDIS
VALID OUT
tHO tDIS
VALID OUT
tHtSU
tHtSU
HIGH IMPEDANCE
tCS
HIGH IMPEDANCE
SI
VALID IN
9

Reset Timing (Inactive Clock Polarity Low Shown)

CS
SCK
RESET
t
RST
t
REC
t
CSS
SO
HIGH IMPEDANCE HIGH IMPEDANCE
SI

Command Sequence for Read/Write Operations (Except Status Register Read)

SI CMD 8 bits
MSB
Reserved for
larger densities
Notes: 1. “r” designates bits reserved for larger densities.
2. It is recommended that “r” be a logical “0” for densities of 32M bit or smaller.
3. For densities larger than 32M bit, the “r” bits become the most significant Page Address bit for the appropriate density.
Page Address
(PA12-PA0)
8 bits
(BA9-BA0/BFA9-BFA0)
8 bits
Byte/Buffer Address
LSBr X X X X X X X X X X X X X X X X X X X X X X X
10
AT45DB321
AT45DB321
y

Write Operations

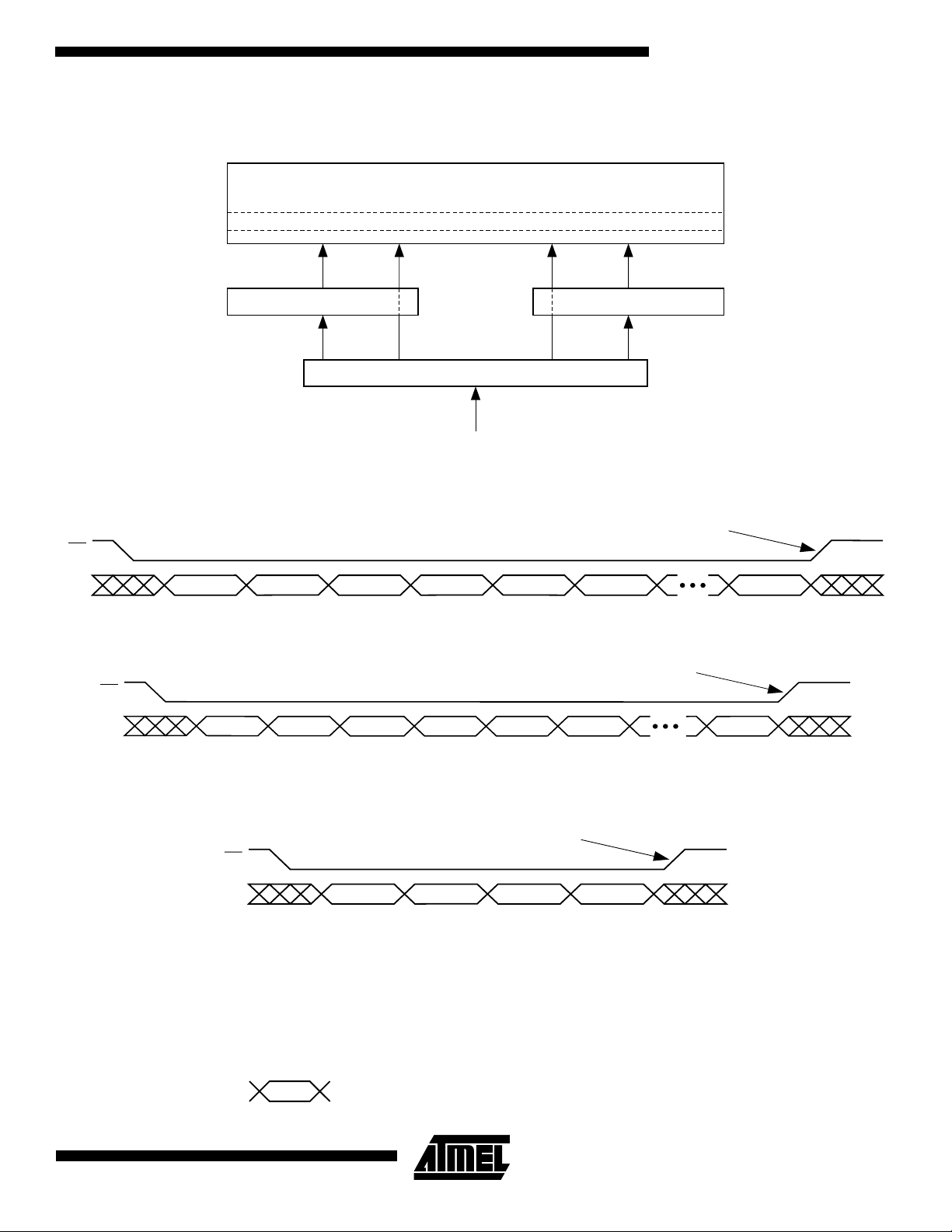

The following block diagram and waveforms illustrate the various write sequences available.
FLASH MEMORY ARRAY
PAGE (528 BYTES)
BUFFER 1 TO
MAIN MEMORY
PAGE PROGRAM
BUFFER 1
WRITE
MAIN MEMORY PAGE PROGRAM THROUGH BUFFER 1
MAIN MEMORY
PAGE PROGRAM
THROUGH BUFFER 2
I/O INTERFACE
SI

Main Memory Page Program through Buffers

CS
SI
CMD n n+1 Last Byte
r , PA12-6
PA5-0, BFA9-8
BFA7-0

Buffer Write

CS
BUFFER 2 TO MAIN MEMORY PAGE PROGRAM
BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)
BUFFER 2 WRITE
· Completes writing into selected buffer
· Starts self-timed erase/program operation
· Completes writing into selected buffer
SI
CMD X
X···X, BFA9-8
BFA7-0
n

Buffer to Main Memory Page Program (Data from Buffer Programmed into Flash Page)

Starts self-timed erase/program operation
CS
SI
Each transition represents
8 bits and 8 clock c
cles
CMD PA5-0, XX X
r , PA12-6
n+1
Last Byte
n = 1st byte written n+1 = 2nd byte written
11

Read Operations

y
The following block diagram and waveforms illustrate the various read sequences available.
FLASH MEMORY ARRAY
PAGE (528 BYTES)
MAIN MEMORY
PAGE TO
BUFFER 1
BUFFER 1
READ

MAIN MEMORY PAGE READ

I/O INTERFACE
SO
BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)
MAIN MEMORY PAGE TO BUFFER 2
BUFFER 2 READ
Main Memory Page Read
CS
XXX
n n+1
SO
SI
CMD
r , PA12-6
PA5-0, BA9-8
BA7-0 X

Main Memory Page to Buffer Transfer (Data from Flash Page Read into Buffer)

Starts reading page data into buffer
CS

Buffer Read

Each transition represents
8 bits and 8 clock c
12
SI
SO
CS
SI
CMD
SO
cles
AT45DB321
CMD
X
r , PA12-6
X···X, BFA9-8
PA5-0, XX X
BFA7-0
X
n n+1
n = 1st byte read n+1 = 2nd byte read
AT45DB321

Detailed Bit-level Read Timing – Inactive Clock Polarity Low

Main Memory Page Read

CS
SCK
tSU
SI
SO

Buffer Read

CS
SCK
tSU
SI
SO

Status Register Read

12345 60 61 62 63 64 65 66 67
COMMAND OPCODE
0
10
XXX
1
0
HIGH-IMPEDANCE
12345 36 37 38 39 40 41 42 43
XX
tV
DATA OUT
D
7
MSB
D
COMMAND OPCODE
0
10
XXX
1
0
HIGH-IMPEDANCE
XX
tV
DATA OUT
D
7
MSB
D
D
6
5
D
6
5
CS
SCK
SI
SO
tSU
12345 7891011 12 16 17
6
COMMAND OPCODE
0
10
111
tV
STATUS REGISTER OUTPUT
D
D
7
MSB
D
6
5
D
1
D
LSB MSB
1
0
HIGH-IMPEDANCE
D
0
7
13

Detailed Bit-level Read Timing – Inactive Clock Polarity High

Main Memory Page Read

CS
SCK
12345 61 62 63 64 65 66 67
tSU
SI
SO

Buffer Read

CS
SCK
12345 37 38 39 40 41 42 43
tSU
SI
SO

Status Register Read

COMMAND OPCODE
1
0
0
HIGH-IMPEDANCE
COMMAND OPCODE
1
0
0
HIGH-IMPEDANCE
10
10
XXX
XXX
XX
tV
XX
tV
D
MSB
D
MSB
7
7
DATA OUT
D
D
6
5
DATA OUT
D
D
6
5
68
44
D
4
D
4
14
CS
SCK
SI
SO
12345 7891011 12 17 18
6
tSU
COMMAND OPCODE
0
10
111
tV
D
MSB
STATUS REGISTER OUTPUT
D
D
7
6
D
5
4
1
0
HIGH-IMPEDANCE
AT45DB321
D
D
0
LSB MSB
D
7
6
AT45DB321
Table 1.
Main Memory
Main Memory
Page Read
52H 54H 56H 53H 55H 60H 61H 84H 87H
000000011
111111100
000001100
111110000
000000000
011010011
101100001
000110101
rXXrrrrXX
PA 1 2 X X PA 1 2 PA 12 PA 1 2 PA 12 X X
PA 1 1 X X PA 11 PA 1 1 PA 11 PA 1 1 X X
PA 1 0 X X PA 1 0 PA 10 PA 1 0 PA 10 X X
PA 9 X X PA 9 PA 9 PA 9 PA 9 X X
PA 8 X X PA 8 PA 8 PA 8 PA 8 X X
PA 7 X X PA 7 PA 7 PA 7 PA 7 X X
PA 6 X X PA 6 PA 6 PA 6 PA 6 X X
PA 5 X X PA 5 PA 5 PA 5 PA 5 X X
PA 4 X X PA 4 PA 4 PA 4 PA 4 X X
PA 3 X X PA 3 PA 3 PA 3 PA 3 X X
PA 2 X X PA 2 PA 2 PA 2 PA 2 X X
PA 1 X X PA 1 PA 1 PA 1 PA 1 X X
PA 0 X X PA 0 PA 0 PA 0 PA 0 X X
BA9BFA9BFA9XXXXBFA9BFA9
BA8BFA8BFA8XXXXBFA8BFA8
BA7BFA7BFA7XXXXBFA7BFA7
BA6BFA6BFA6XXXXBFA6BFA6
BA5BFA5BFA5XXXXBFA5BFA5
BA4BFA4BFA4XXXXBFA4BFA4
BA3BFA3BFA3XXXXBFA3BFA3
BA2BFA2BFA2XXXXBFA2BFA2
BA1BFA1BFA1XXXXBFA1BFA1
BA0BFA0BFA0XXXXBFA0BFA0
XXX
XXX
XXX
XXX
XXX
XXX
XXX
XXX
X (64th bit)
Buffer 1
Read
Buffer 2
Read
Page to Buffer 1
Transfer
Main Memory
Page to Buffer 2
Transfer
Opcode
Main Memory
Page to Buffer 1
Compare
Main Memory
Page to Buffer 2
Compare
Buffer 1
Write
X (Dont Care)
r (reserved bits)
Buffer 2
Write
15
Table 2.
Buffer 1 to
Main
Memory
Page
Program
with Built
In Erase
83H 86H 88H 89H 81H 50H 82H 85H 58H 59H 57H
11111011000
00000100111
00000000000
00000100111
00110000110
01000001001
11000010001
10011001011
r r r r r r rrrr
PA12 PA12 PA12 PA12 PA12 PA12 PA12 PA12 PA12 PA12
PA11 PA11 PA11 PA11 PA11 PA11 PA11 PA11 PA11 PA11
PA10 PA10 PA10 PA10 PA10 PA10 PA10 PA10 PA10 PA10
PA 9 PA 9 PA 9 PA 9 PA 9 PA 9 PA 9 PA 9 PA 9 PA 9
PA 8 PA 8 PA 8 PA 8 PA 8 PA 8 PA 8 PA 8 PA 8 PA 8
PA 7 PA 7 PA 7 PA 7 PA 7 PA 7 PA 7 PA 7 PA 7 PA 7
PA 6 PA 6 PA 6 PA 6 PA 6 PA 6 PA 6 PA 6 PA 6 PA 6
PA 5 PA 5 PA 5 PA 5 PA 5 PA 5 PA 5 PA 5 PA 5 PA 5
PA 4 PA 4 PA 4 PA 4 PA 4 PA 4 PA 4 PA 4 PA 4 PA 4
PA 3 PA 3 PA 3 PA 3 PA 3 PA 3 PA 3 PA 3 PA 3 PA 3
PA 2 PA 2 PA 2 PA 2 PA 2 X PA 2 PA 2 PA 2 PA 2
PA 1 PA 1 PA 1 PA 1 PA 1 X PA 1 PA 1 PA 1 PA 1
PA 0 PA 0 PA 0 PA 0 PA 0 X PA 0 PA 0 PA 0 PA 0
XXXXXXBFA9BFA9XX
XXXXXXBFA8BFA8XX
XXXXXXBFA7BFA7XX
XXXXXXBFA6BFA6XX
XXXXXXBFA5BFA5XX
XXXXXXBFA4BFA4XX
XXXXXXBFA3BFA3XX
XXXXXXBFA2BFA2XX
XXXXXXBFA1BFA1XX
XXXXXXBFA0BFA0XX
Buffer 2 to
Main
Memory
Page
Program
with Built-
In Erase
Buffer 1 to
Main
Memory
Page
Program
without
Built-In
Erase
Buffer 2 to
Main
Memory
Page
Program
without Built-In
Erase
Page
Erase
Block Erase
Opcode
Main
Memory
Page Program Through
Buffer 1
Main
Memory
Page Program Through
Buffer 2
Auto Page
Rewrite
Through
Buffer 1
Auto Page
Rewrite
Through
Buffer 2
Status
Register
16
X (Dont Care)
r (reserved bits)
AT45DB321
AT45DB321
Figure 1. Algorithm for Programming or Reprogramming of an Entire Sector Sequentially
START
provide address
and data
BUFFER WRITE
(84H, 87H)
MAIN MEMORY PAGE PROGRAM
(82H, 85H)
BUFFER to MAIN
MEMORY PAGE PROGRAM
(83H, 86H)
END
Notes: 1. This type of algorithm is used for applications in which an entire sector is programmed sequentially, filling the sector page-
by-page.
2. A page can be written using either a Main Memory Page Program operation or a Buffer Write operation followed by a Buffer to Main Memory Page Program operation.
3. The algorithm above shows the programming of a single page. The algorithm will be repeated sequentially for each page within the entire sector.
17
Figure 2. Algorithm for Randomly Modifying Data
START
provide address of
page to modify
MAIN MEMORY PAGE
to BUFFER TRANSFER
MAIN MEMORY PAGE PROGRAM
(82H, 85H)
ADDRESS POINTER
(53H, 55H)
Auto Page Rewrite
(58H, 59H)
INCREMENT PAGE
If planning to modify multiple bytes currently stored within a page of the Flash array
BUFFER WRITE
(84H, 87H)
BUFFER to MAIN
MEMORY PAGE PROGRAM
(83H, 86H)
(2)
(2)
END
Notes: 1. To preserve data integrity, each page of a DataFlash sector must be updated/rewritten at least once within every 10,000
cumulative page erase/program operations within that sector.
2. A Page Address Pointer must be maintained to indicate which page is to be rewritten. The Auto Page Rewrite command
must use the address specified by the Page Address Pointer.
3. Other algorithms can be used to rewrite portions of the Flash array. Low power applications may choose to wait until 10,000
cumulative page erase/program operations have accumulated before rewriting all pages of the sector. See application note AN-4 (Using Atmels Serial DataFlash”) for more details.

Sector Addressing

PA12 PA11 PA10 PA9 PA8 PA7 PA6 PA5 PA4 PA3 Sector
0 0 0 0000000 0
0000XXXXXX1
0001XXXXXX2
0010XXXXXX3
• • • ••••••• •
• • • ••••••• •
• • • ••••••• •
1100XXXXXX13
1101XXXXXX14
1110XXXXXX15
1111XXXXXX16
18
AT45DB321

Ordering Information

I
CC
f
(MHz)
SCK
13 10 0.01 AT45DB321-TC
13 10 0.01 AT45DB321-TI
(mA)
Ordering Code Package Operation RangeActive Standby
AT45DB321-CC
AT45DB321-CI
32T 44C1
32T 44C1
AT45DB321
Commercial
(0°C to 70°C)
Industrial
(-40°C to 85°C)
Package Type
32T 32-lead, Plastic Thin Small Outline Package (TSOP)
44C1 44-ball (5 x 9 Array), 1.0 mm Pitch, Plastic Chip-scale Ball Grid Array (CBGA)
19
Packaging Information
32T, 32-lead, Plastic Thin Small Outline Package
(TSOP) Dimensions in Millimeters and (Inches)*
JEDEC OUTLINE MO-142 BD
INDEX MARK
0.50(.020) BSC
0
REF
5
7.50(.295) REF
8.20(.323)
7.80(.307)
0.15(.006)
0.05(.002)
18.5(.728)
18.3(.720)
0.25(.010)
0.15(.006)
0.70(.028)
0.50(.020)
20.2(.795)
19.8(.780)
1.20(.047) MAX
0.20(.008)
0.10(.004)
*Controlling dimension: millimeters
44C1, 44-ball (5 x 9 Array), 1.0 mm Pitch, Plastic Chip-scale Ball Grid Array (CBGA) Dimensions in Millimeters and (Inches)*
6.2 (0.244)
5.8 (0.228)
12.2 (0.480)
11.8 (0.465)
0.30 (0.012)
1.12 (0.044)
0.88 (0.035)
1.00 (0.039) BSC
NON-ACCUMULATIVE
A
B
C
D
E
F
G
H
J
54 3 21
4.0 (0.157)
8.0 (0.315)
1.20 (0.047) MAX
2.12 (0.083)
1.88 (0.074)
0.41 (0.016) DIA BALL TYP
*Controlling dimension: millimeters
20
AT45DB321
Atmel Headquarters Atmel Operations
Corporate Headquarters
2325 Orchard Parkway San Jose, CA 95131 TEL (408) 441-0311 FAX (408) 487-2600
Europe
Atmel SarL Route des Arsenaux 41 Casa Postale 80 CH-1705 Fribourg Switzerland TEL (41) 26-426-5555 FAX (41) 26-426-5500
Asia
Atmel Asia, Ltd. Room 1219 Chinachem Golden Plaza 77 Mody Road Tsimhatsui East Kowloon Hong Kong TEL (852) 2721-9778 FAX (852) 2722-1369
Japan
Atmel Japan K.K. 9F, Tonetsu Shinkawa Bldg. 1-24-8 Shinkawa Chuo-ku, Tokyo 104-0033 Japan TEL (81) 3-3523-3551 FAX (81) 3-3523-7581
Atmel Colorado Springs
1150 E. Cheyenne Mtn. Blvd. Colorado Springs, CO 80906 TEL (719) 576-3300 FAX (719) 540-1759
Atmel Rousset
Zone Industrielle 13106 Rousset Cedex France TEL (33) 4-4253-6000 FAX (33) 4-4253-6001
Atmel Smart Card ICs
Scottish Enterprise Technology Park East Kilbride, Scotland G75 0QR TEL (44) 1355-357-000 FAX (44) 1355-242-743
Atmel Grenoble
Avenue de Rochepleine BP 123 38521 Saint-Egreve Cedex France TEL (33) 4-7658-3000 FAX (33) 4-7658-3480
Fax-on-Demand
North America:
e-mail
literature@atmel.com
1-(800) 292-8635
International: 1-(408) 441-0732
Web Site
http://www.atmel.com
BBS
1-(408) 436-4309
© Atmel Corporation 2001.
Atmel Corporation makes no warranty for the use of its products, other than those expressly contained in the Companys standard war­ranty which is detailed in Atmels Terms and Conditions located on the Companys web site. The Company assumes no responsibility for any errors which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. No licenses to patents or other intellectual prop­erty of Atmel are granted by the Company in connection with the sale of Atmel products, expressly or by implication. Atmels products are not authorized for use as critical components in life support devices or systems.
Marks bearing ® and/or ™ are registered trademarks and trademarks of Atmel Corporation.
Terms and product names in this document may be trademarks of others.
Printed on recycled paper.
1121E–01/01/xM
Loading...
